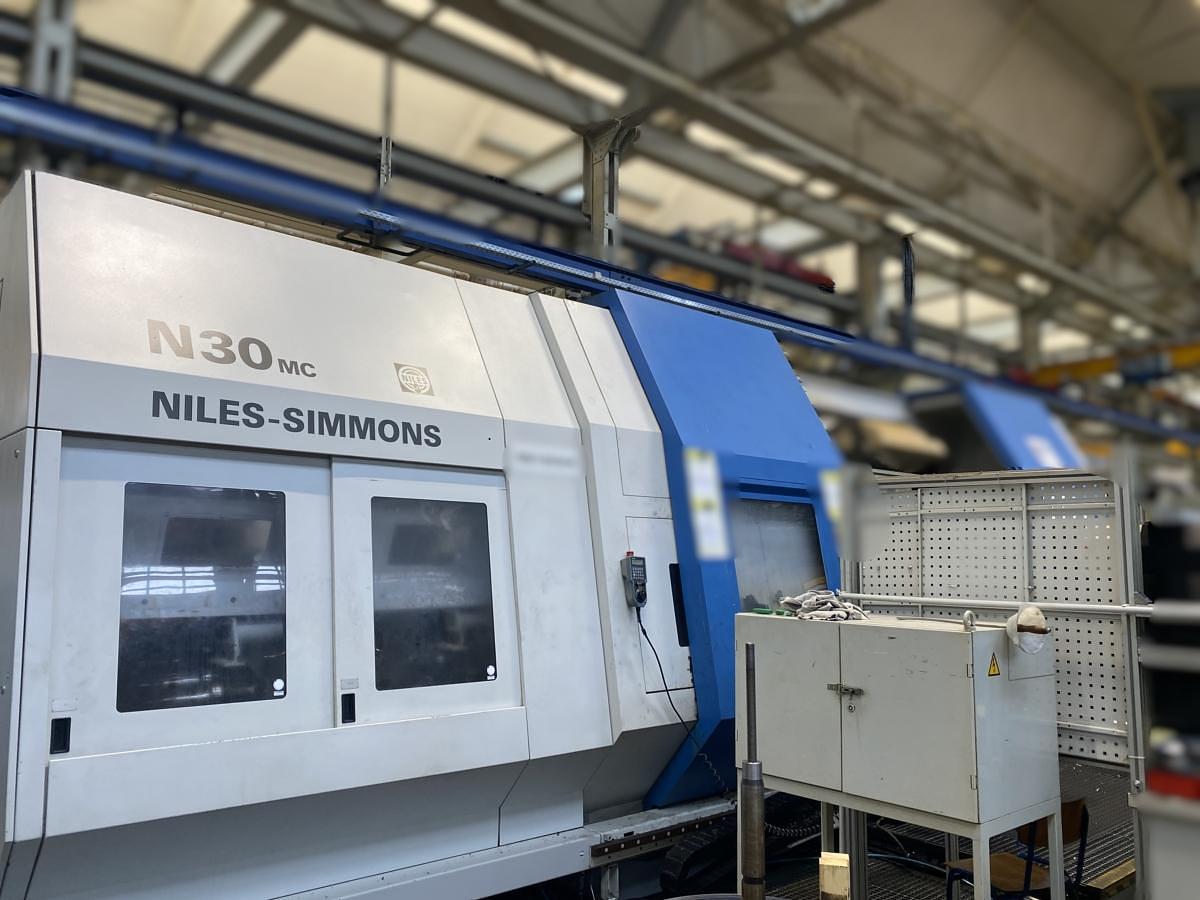

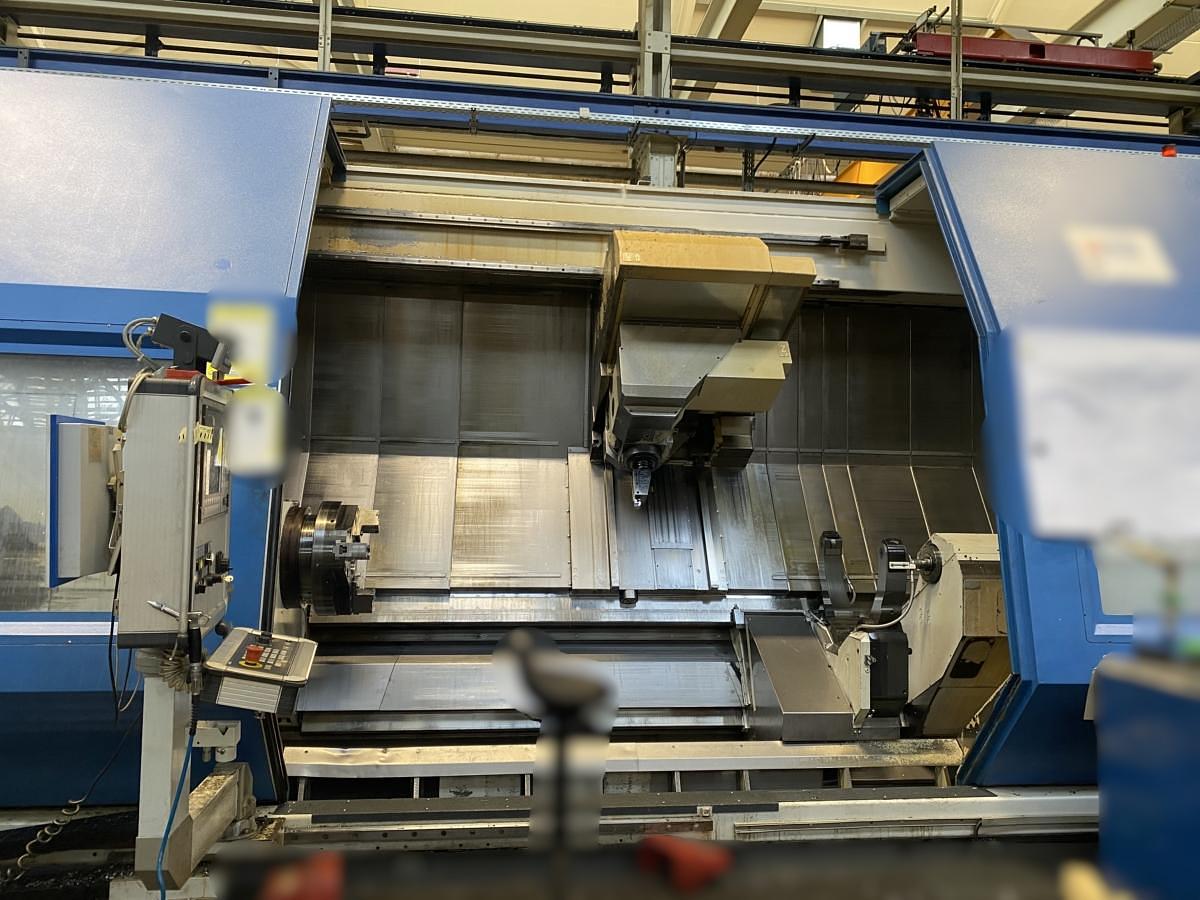

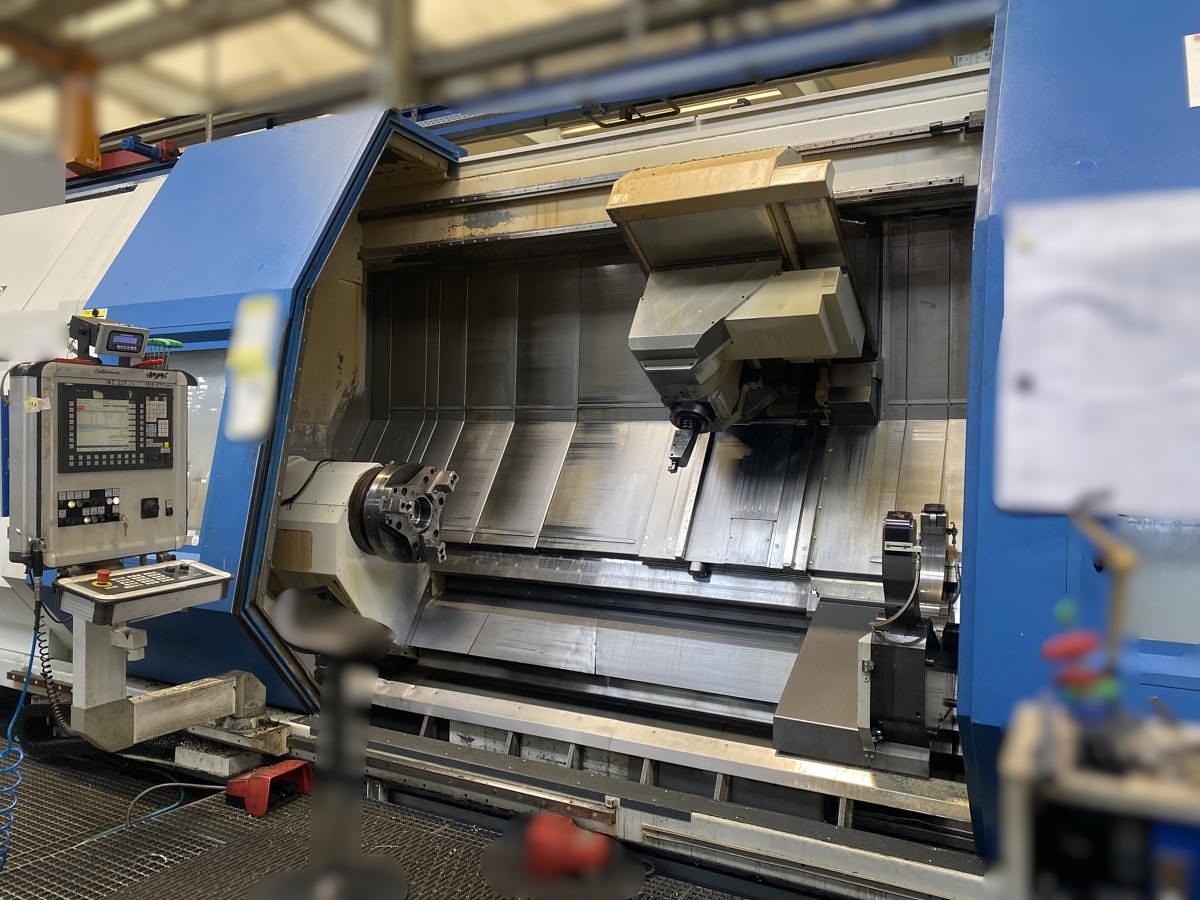

Niles Simmons N30 3MC 2500 CNC Inclined Bed Turning Center
Niles Simmons N30 3MC 2500 CNC Inclined Bed Turning Center
or
Call 770-509-0744
Description
Siemens 840D CNC Control
Total Speed Range - 10 - 2,500 rpm
- Speed Range I - 10 - 775 rpm
- Speed Range II - 20 - 2,500 rpm
48 Tool
- tool length - max. 500 mm
- weight of tools max. 15 kg
- weight of the machine ca. 27 t
C Axis
Spindle head to DIN 55026: A 11
Taper Bore MK 5
Specifications
| Manufacturer | Niles Simmons |
| Model | N30 3MC 2500 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 5654423 |
| Turning length | 2,500 mm |
| Swing over bed slide | 750 mm |
| Swing over bed | 780 mm |
| Woring height | 1,300 mm |
| Quill diameter | 160 mm |
| Diameter in front bearing | 200 mm |
| Bore through | 123 mm |
| Oriented Spindle Stop | 0 - 350° |
| Drive power (100/60 %) | 37/45 kW |
| Total speed range | 10 - 2,500 rpm |
| Machine dimensions | 8.4 x 4 x 2.5 m |
| Max torque (60% ED, up to 186 rpm) | 2,083 Nm |
