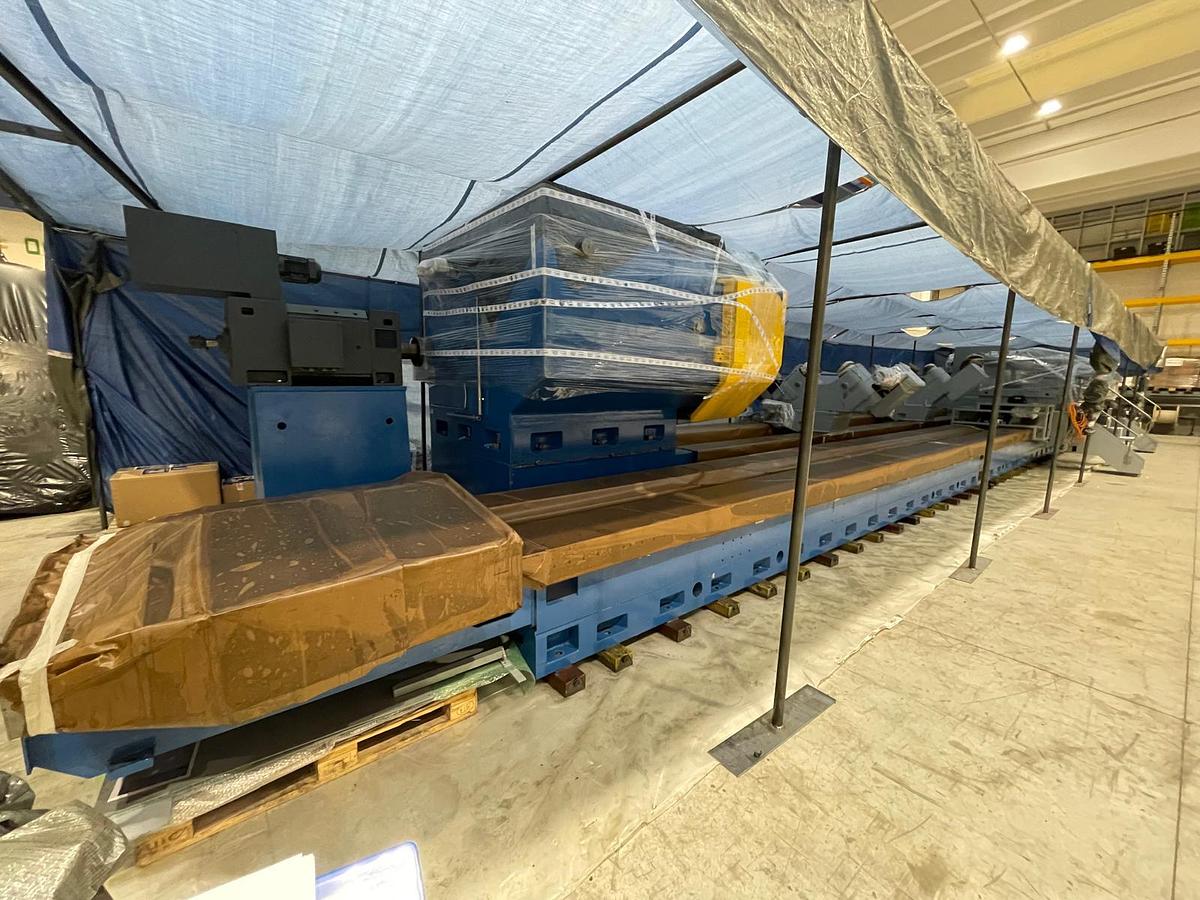

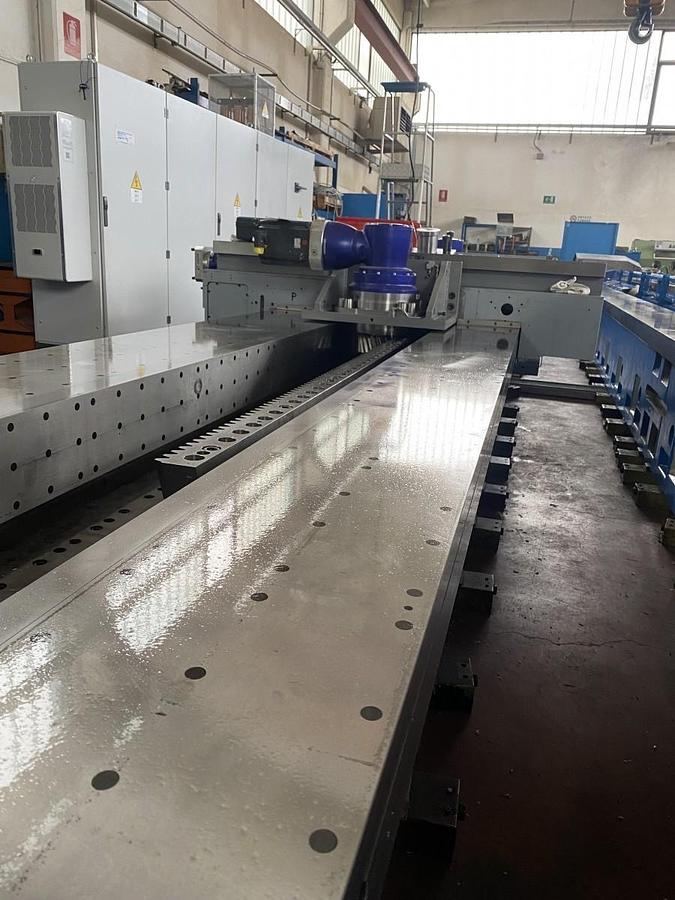

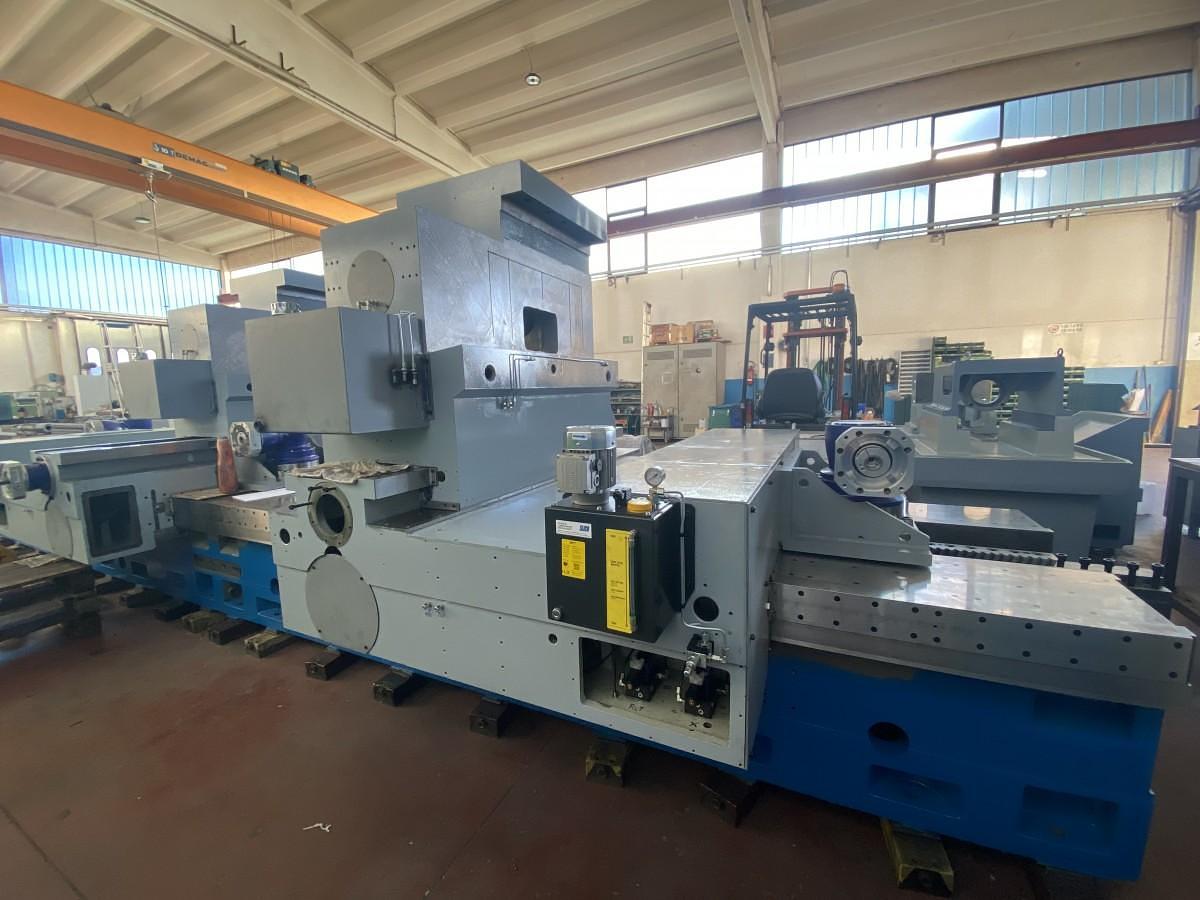

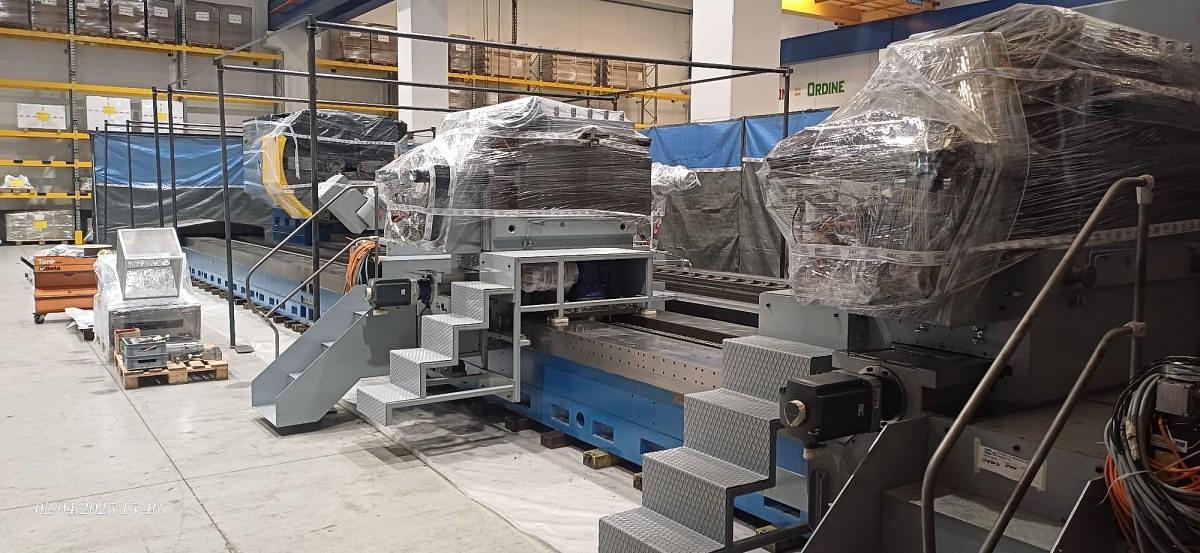

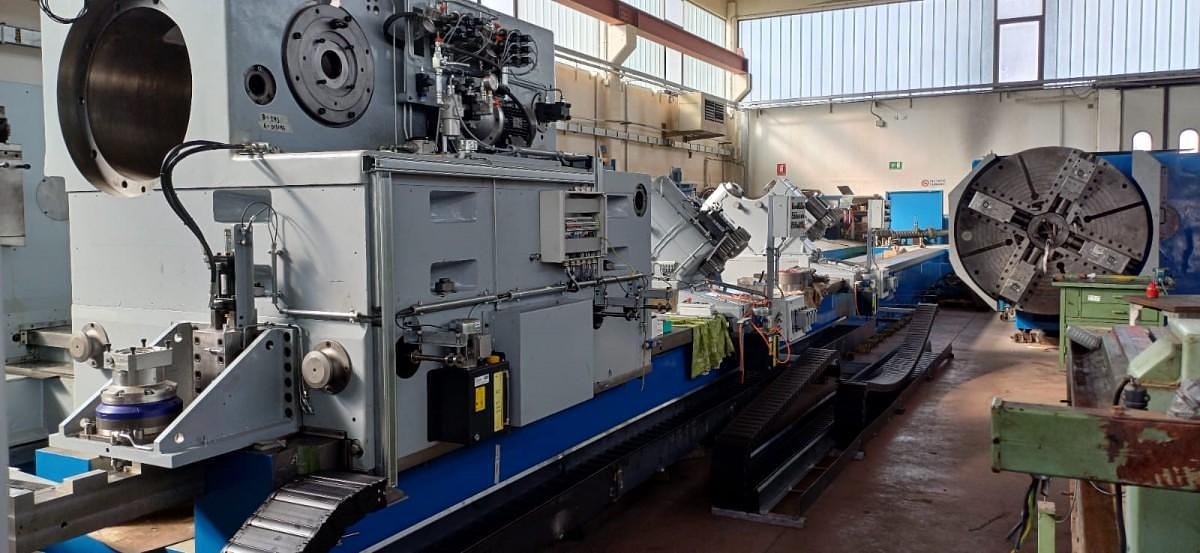

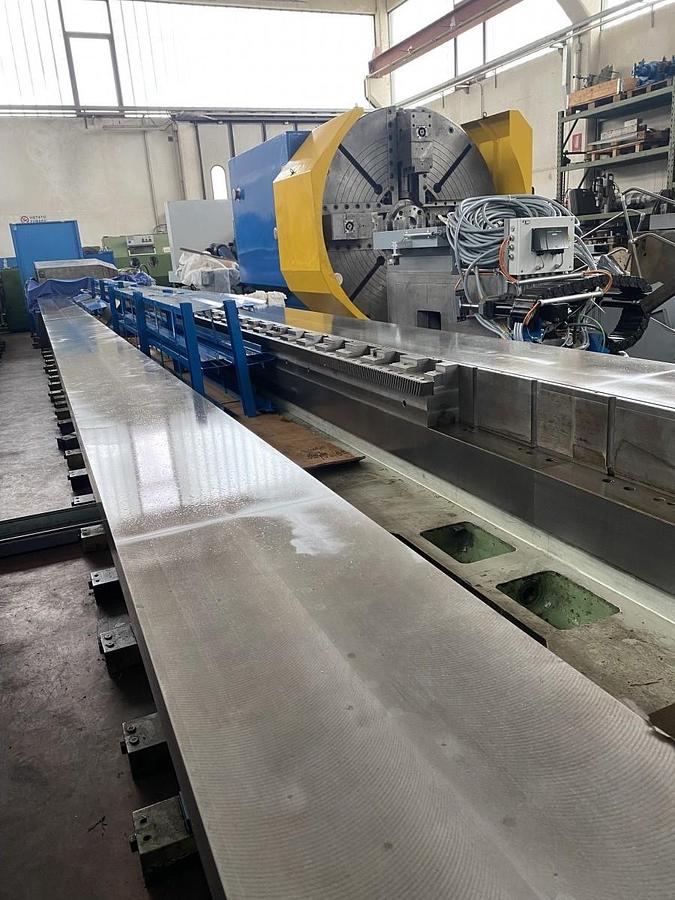

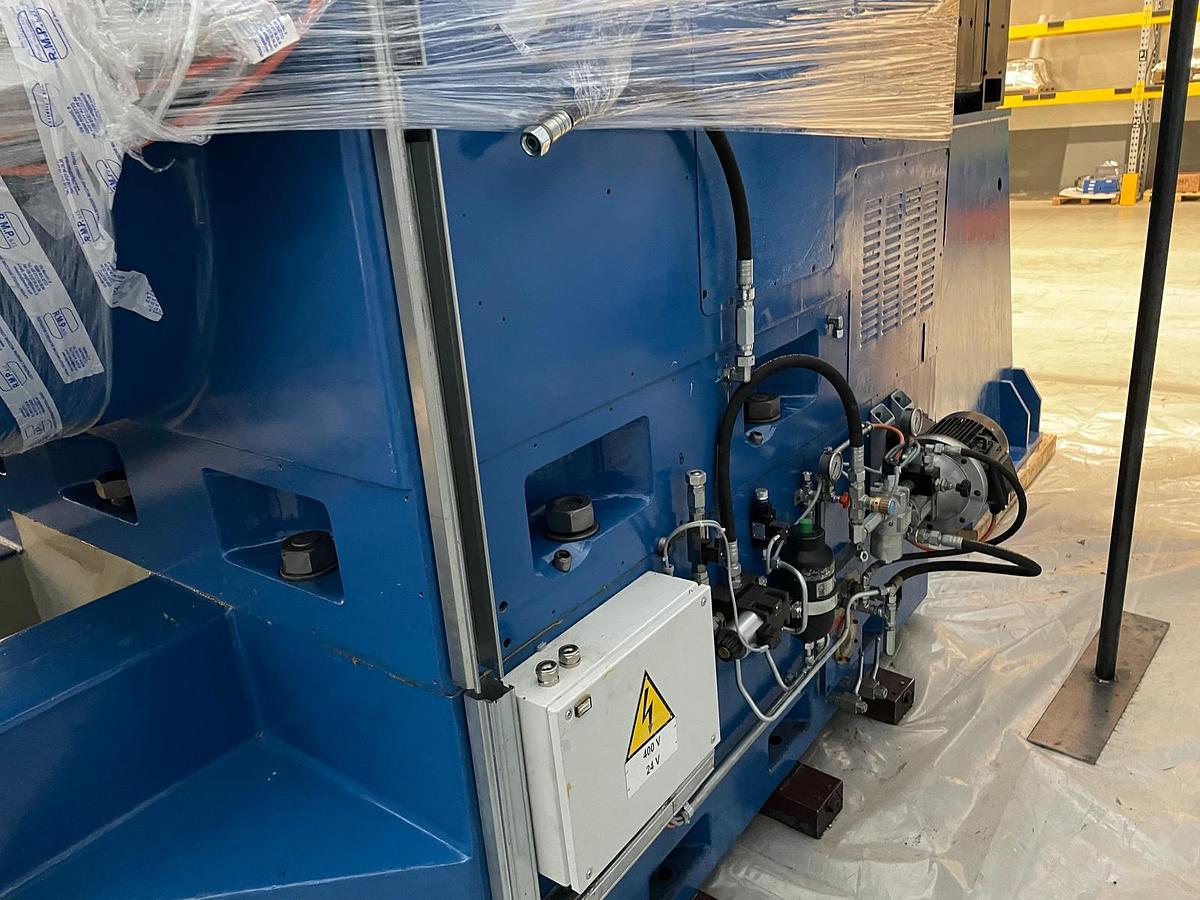

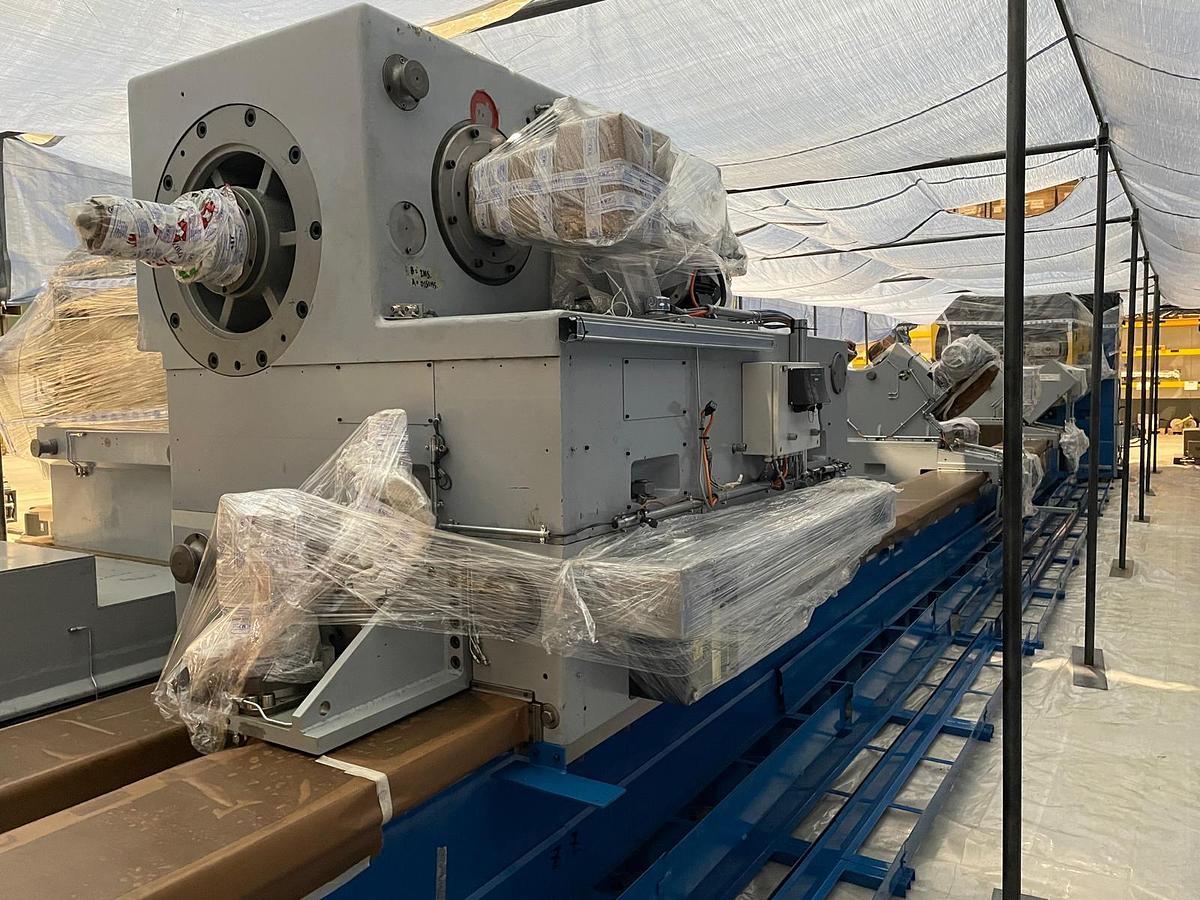

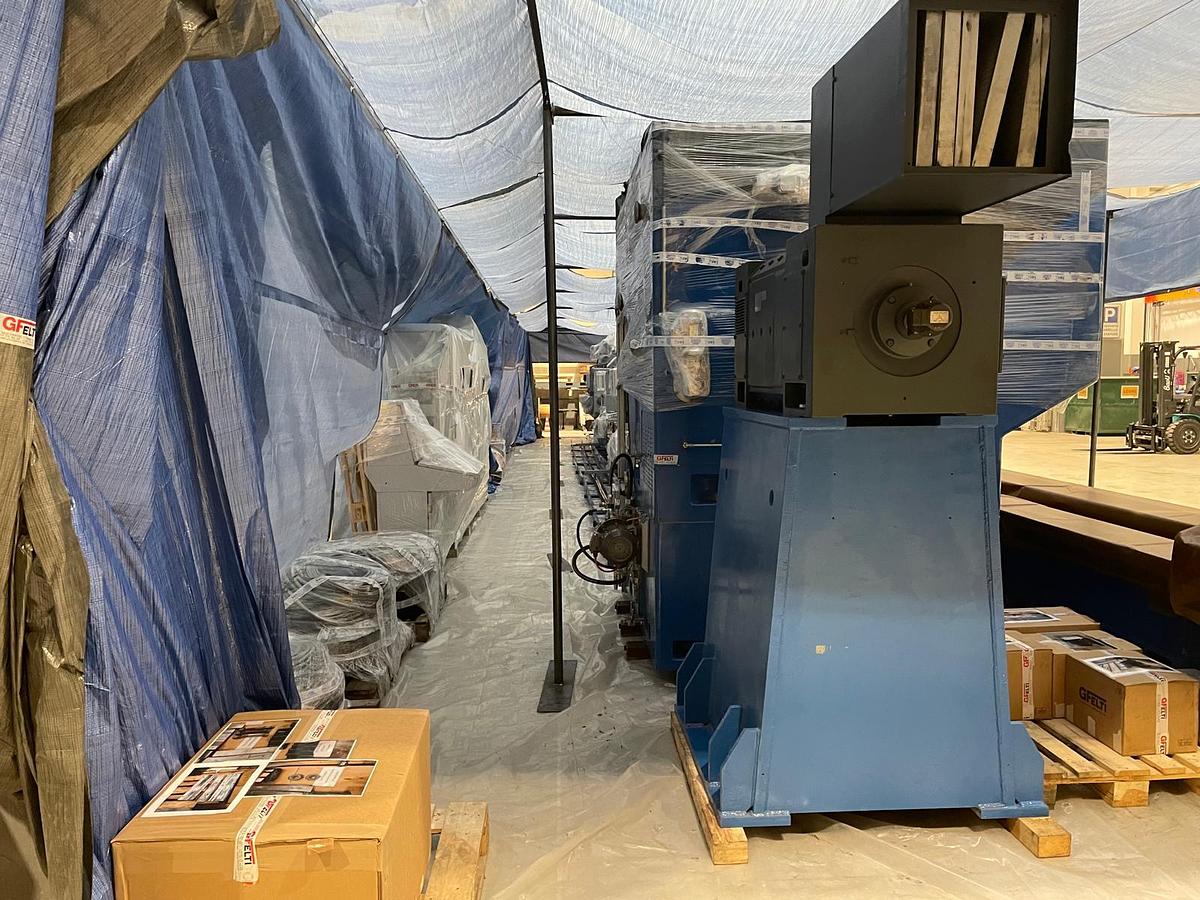

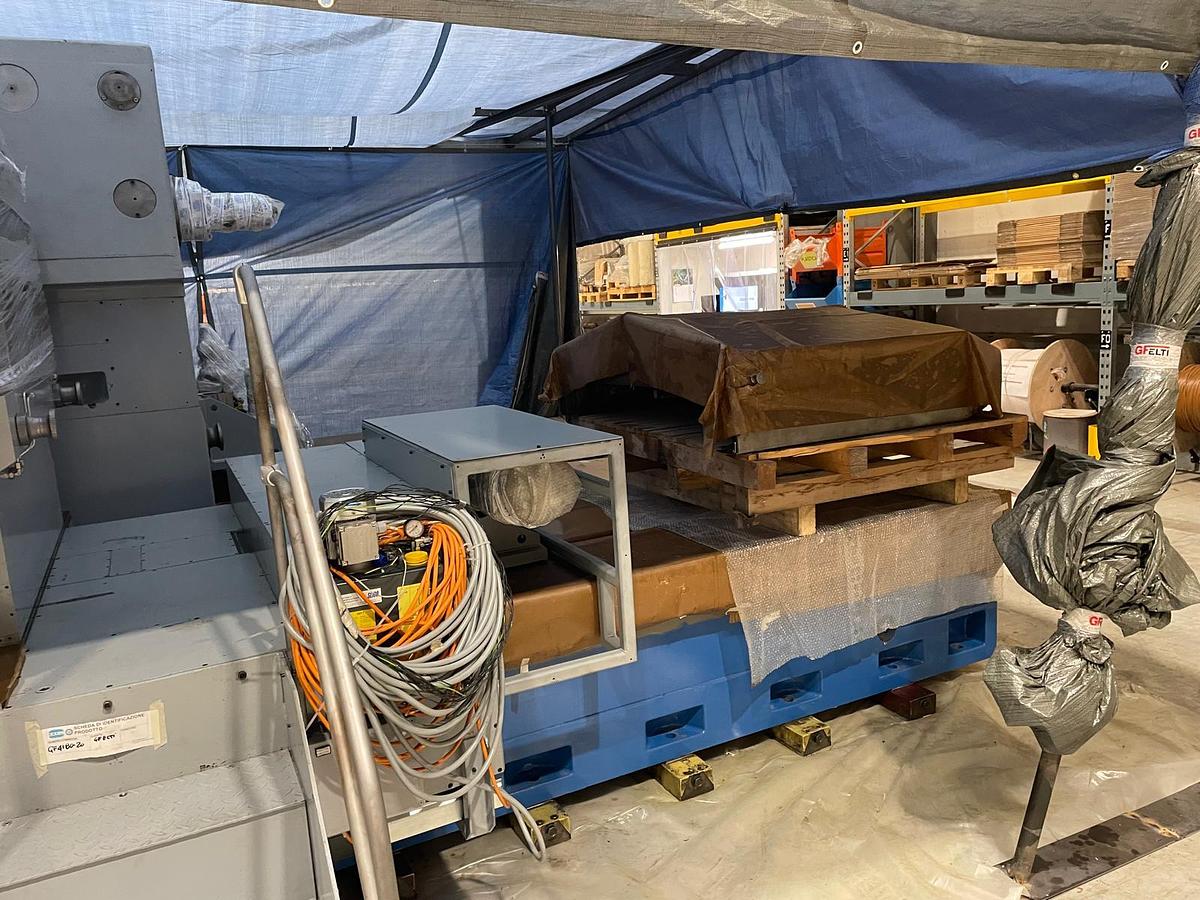

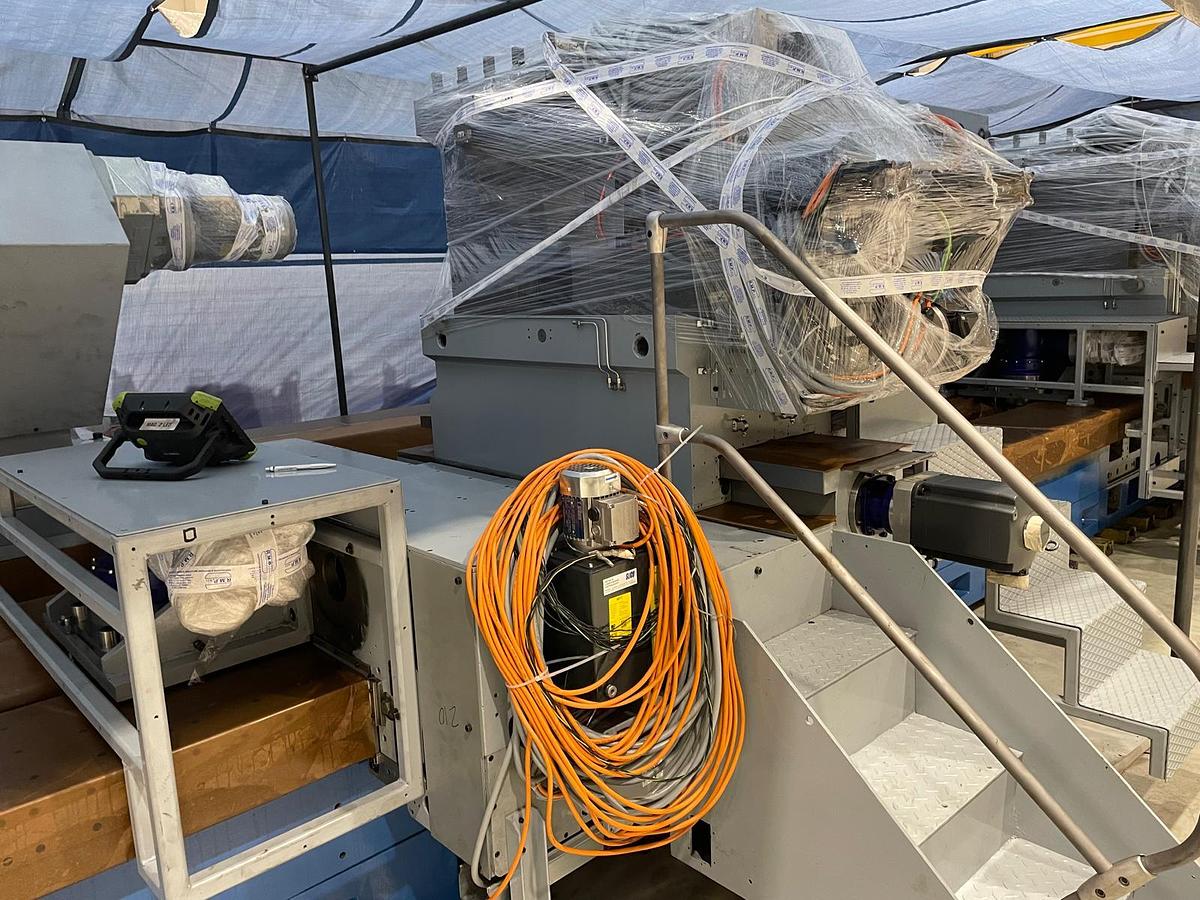

WMW DXWD 1800 Heavy-Duty CNC Horizontal Lathe

Completely Rebuilt & Retrofitted In 2025. New Condition.

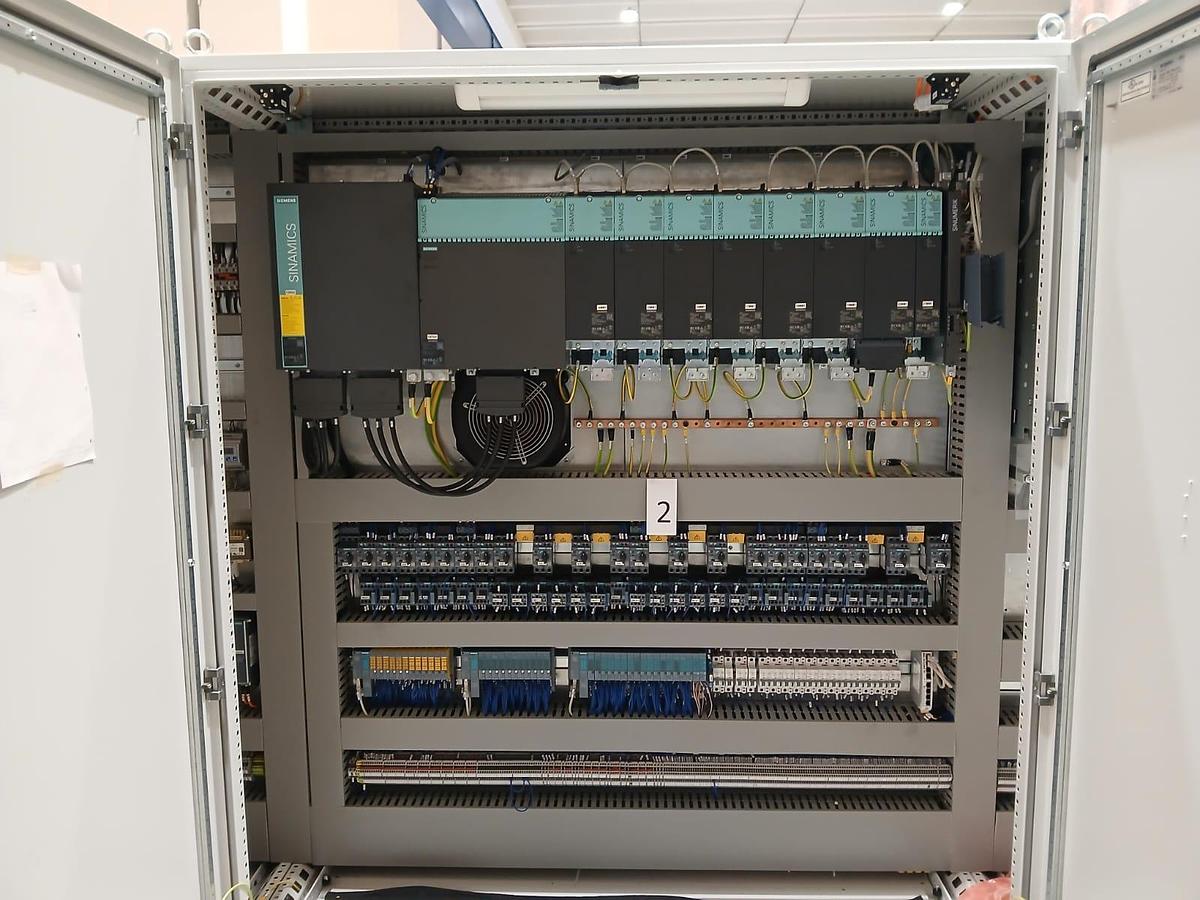

This machine was Completely Re-Manufactured, Rebuilt & Retrofitted, Mechanical & Electrical with a New Siemens 840D One CNC System,

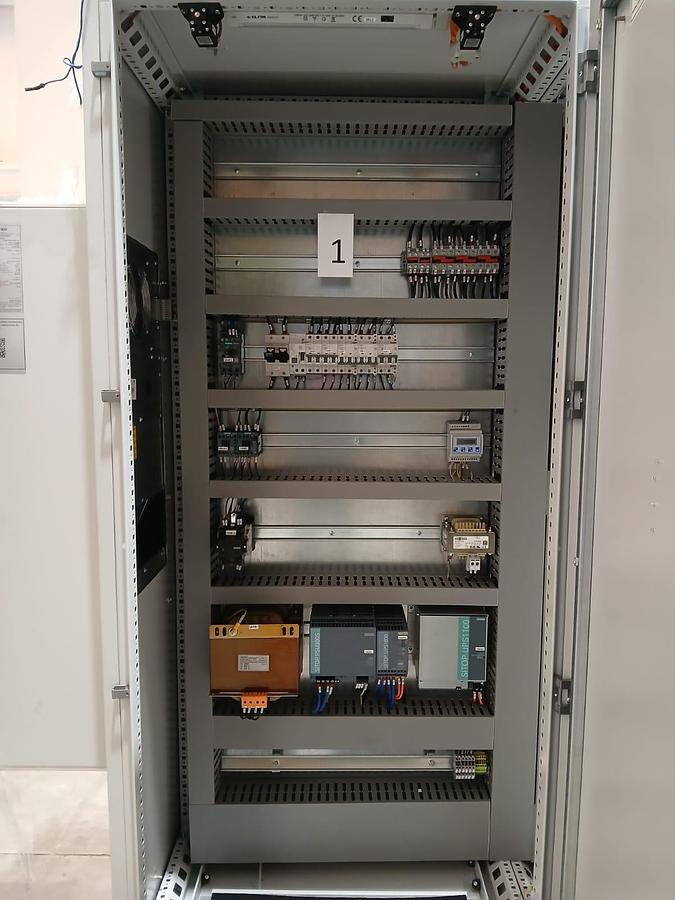

All New Electrics, Motors. In NEW Condition.

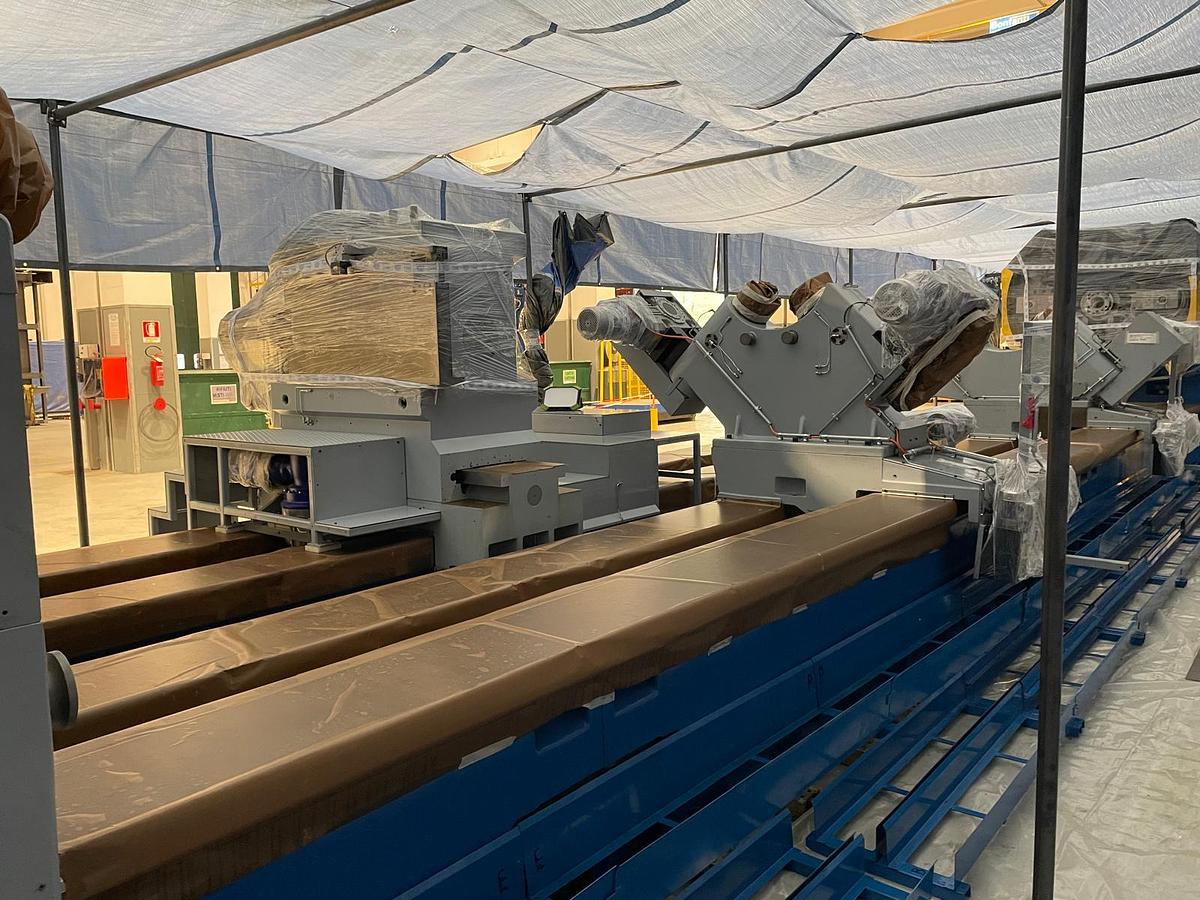

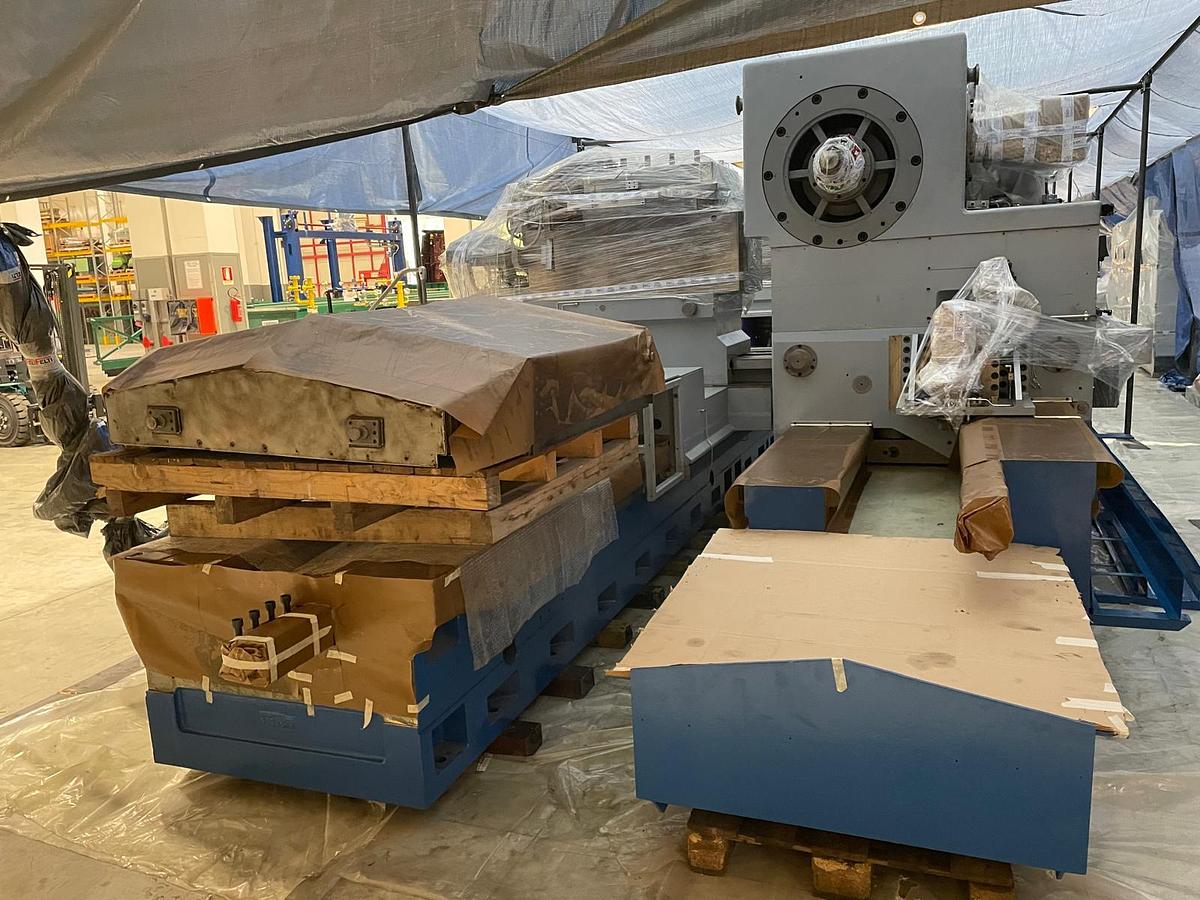

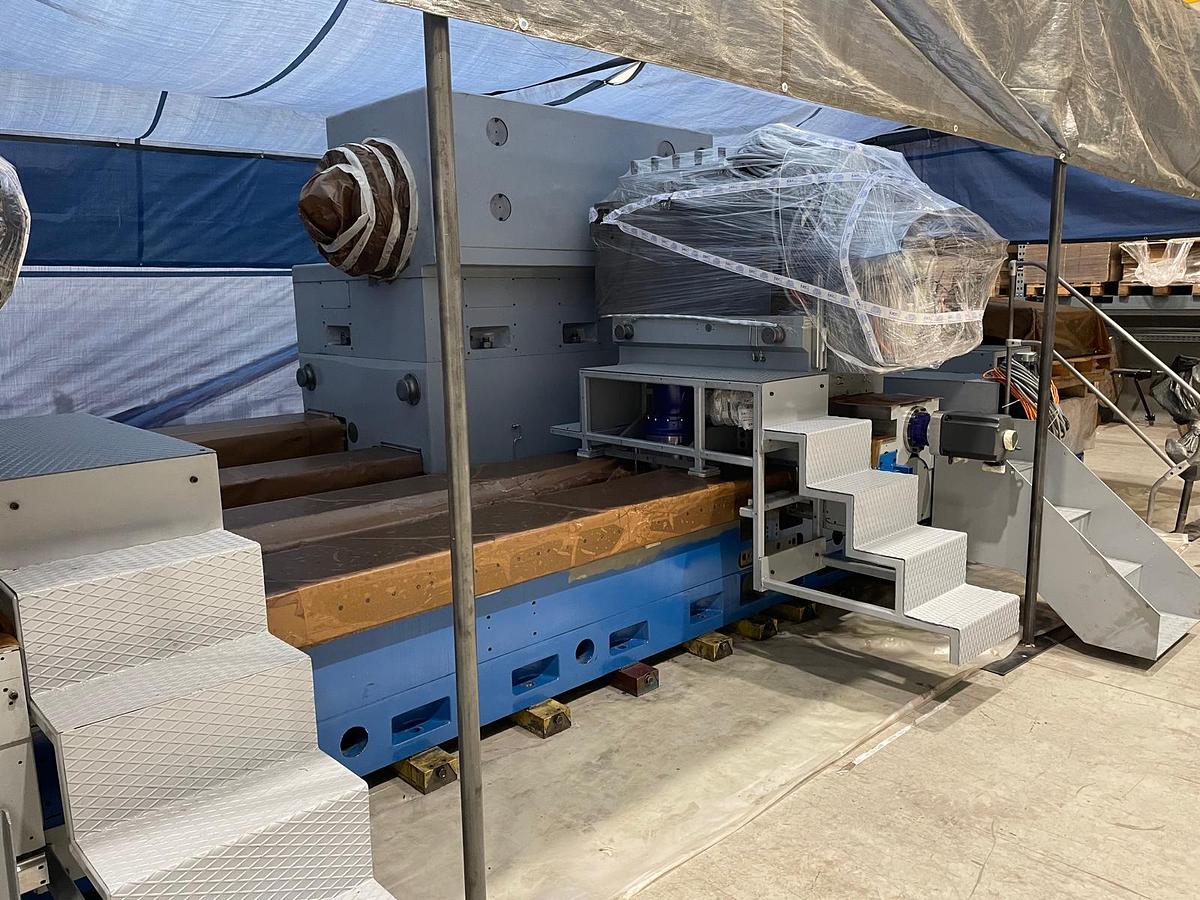

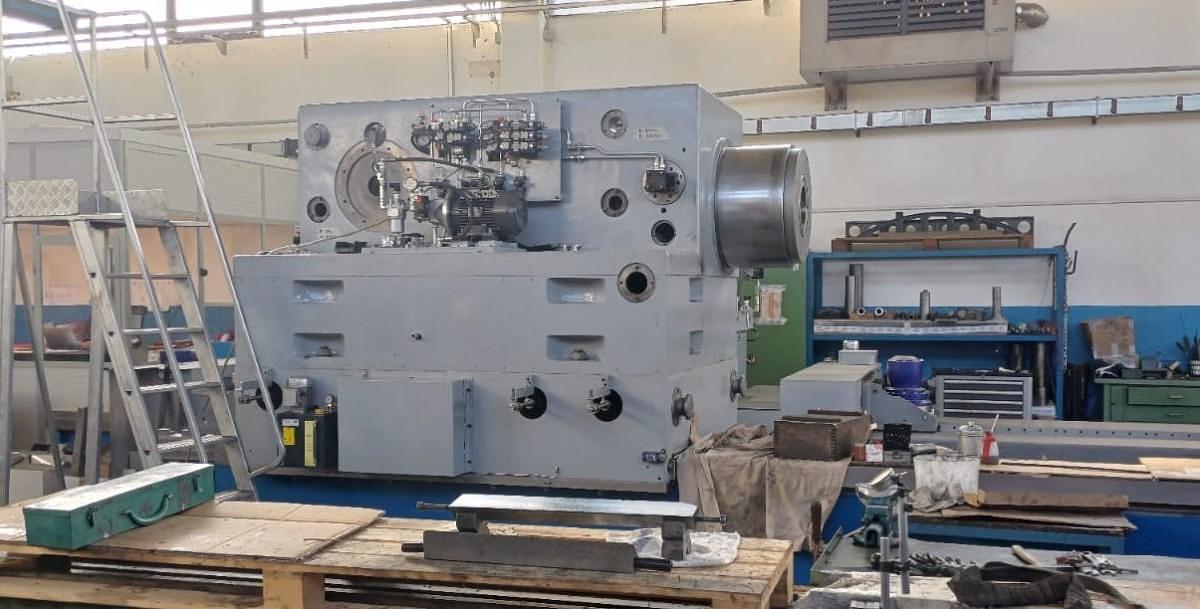

This VEB WZM Meuselwitz (WMW) DXWD 1800 / 2 is a heavy-duty lathe designed for large-scale machining tasks. Manufactured and overhauled in 2025, it features a robust construction with overall dimensions of 25,500 mm in length, 5,150 mm in width, and 3,230 mm in height, and a substantial machine weight of 160,000 kg. The lathe is capable of handling a maximum workpiece weight of up to 80,000 kg, making it suitable for very heavy and large components.

The machine offers a maximum turning diameter of 1,900 mm and a faceplate diameter of 1,900 mm, allowing it to accommodate sizable workpieces. The distance between centers is approximately 12,025 mm, and a spindle center height of 1,300 mm. Its spindle motor delivers 160 kW of power, supporting a spindle torque up to 155 kNm and a rotation speed range from 1 to 150 rpm across three speed ranges.

Maximum loadable weight (capacity between centers) 80 Tons

Machine weight 160 Tons

Nominal turning diameter mm Ø 1,800

Maximum turning diameter mm Ø 1,900

Maximum swing diameter over bed Ø 2,600 mm

Max turning length (distance between centers) 12,025 mm

Spindle axis height 1,300 mm

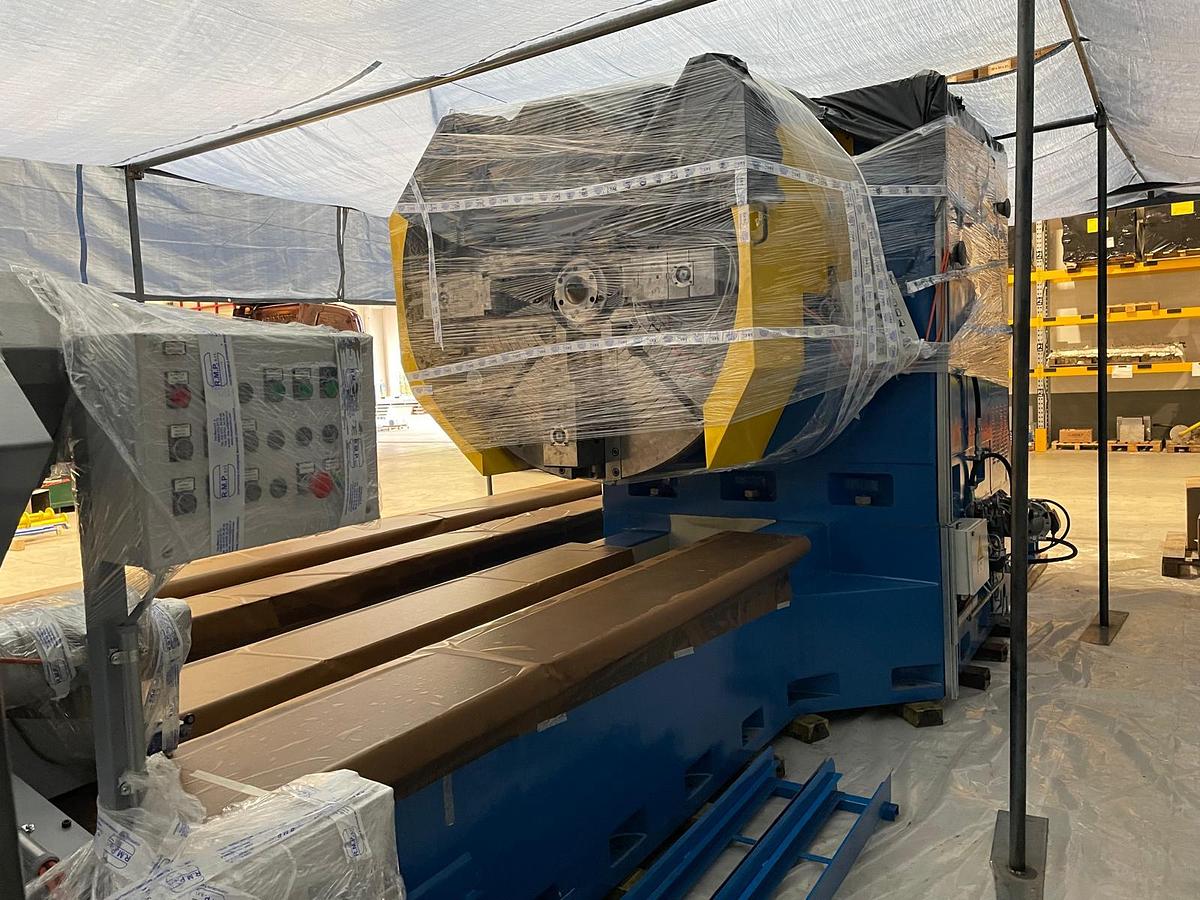

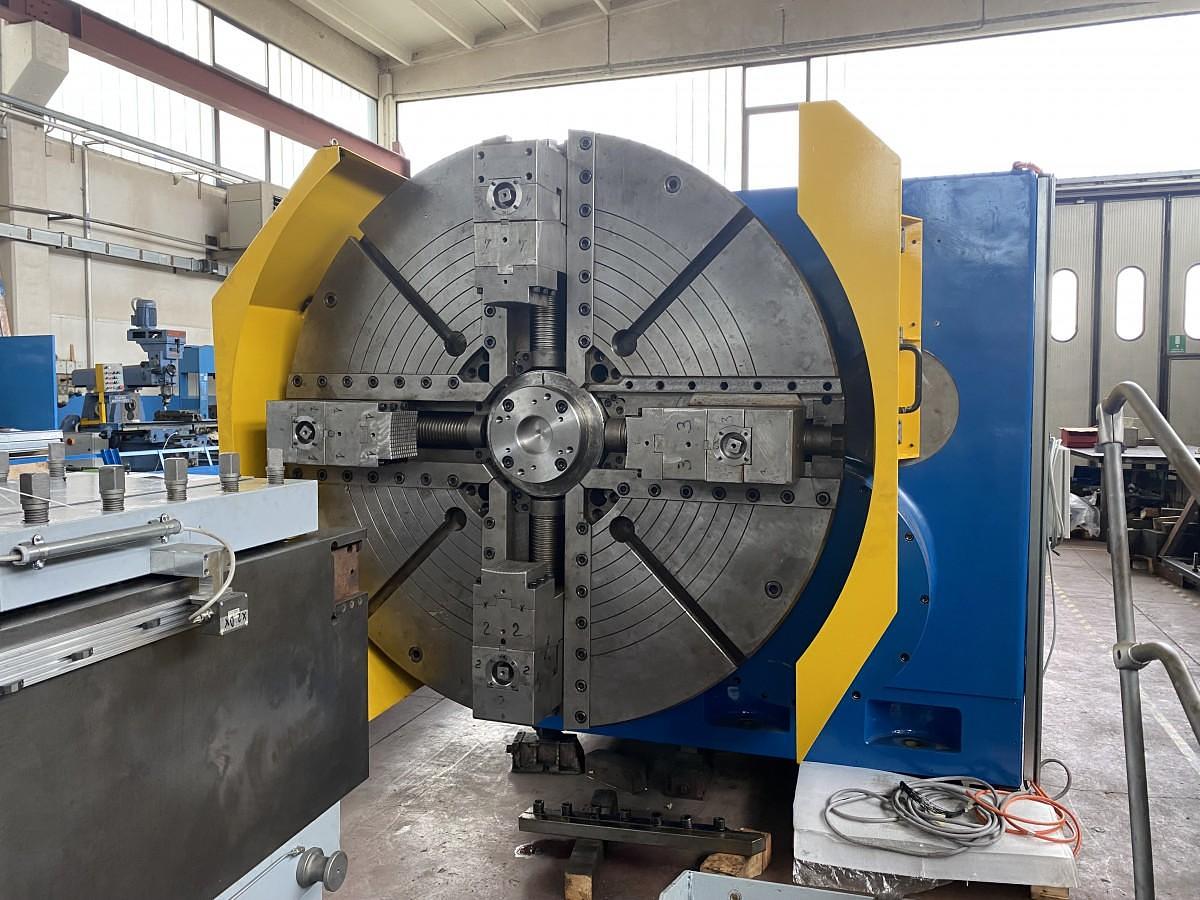

Chuck diameter Ø 1,900 mm

Chuck jaw range Ø 300 ÷ Ø 1,350 mm

• jaw range 1 Ø 300 ÷ Ø 550 mm
• jaw range 2 Ø 500 ÷ Ø 950 mm
• jaw range 3 Ø 900 ÷ Ø 1,350 mm

Clamping force (with max tightening torque 250 Nm) kN 200

Spindle motor power 160 kW

Total installed power 310 Kw

Maximum spindle torque 155 kNm

Spindle rotation speed range 1 ÷ 150 rpm

• Spindle rotation speed in 1st range 1 ÷ 24 rpm
• Spindle rotation speed in 2nd range 20 ÷ 60 rpm
• Spindle rotation speed in 3rd rrange 50 ÷ 150 rpm

Carriage forward speed in transverse direction (“X” axis – “U” axis) 1 - 400 mm/min

Carriage forward speed in the longitudinal direction (“Z” axis – “W” ​​axis) 1-400 mm/min

Rapid carriage forward speed in transversal direction (“X” axis – “U” axis) 3,000 mm/min

Rapid carriage forward speed in the longitudinal direction (“Z” axis – “W” ​​axis) 3,000 mm/min

Minimum distance between centers 1,600 mm

Maximum tool holder overhang 530 mm

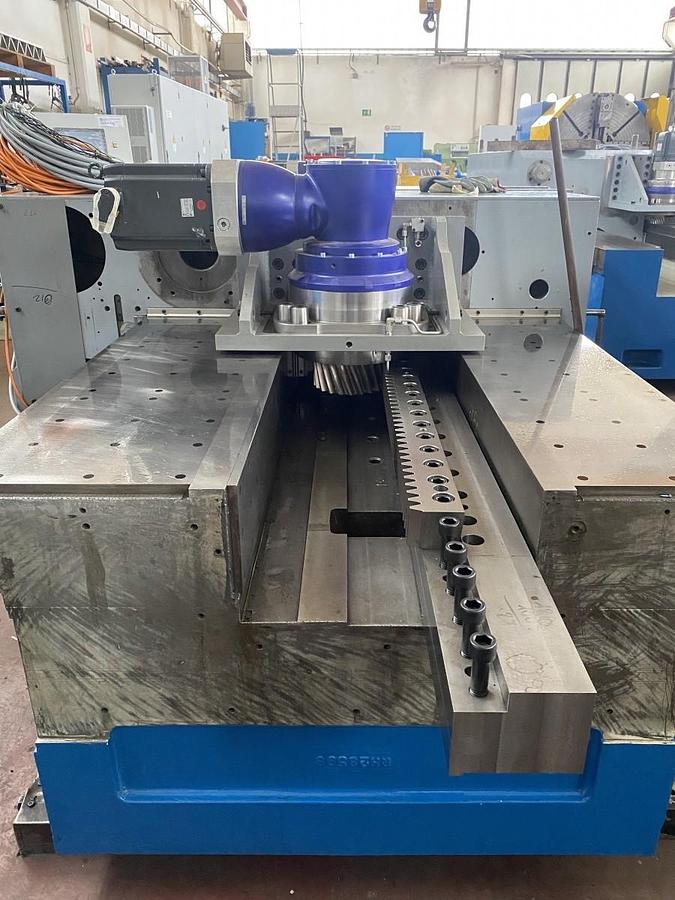

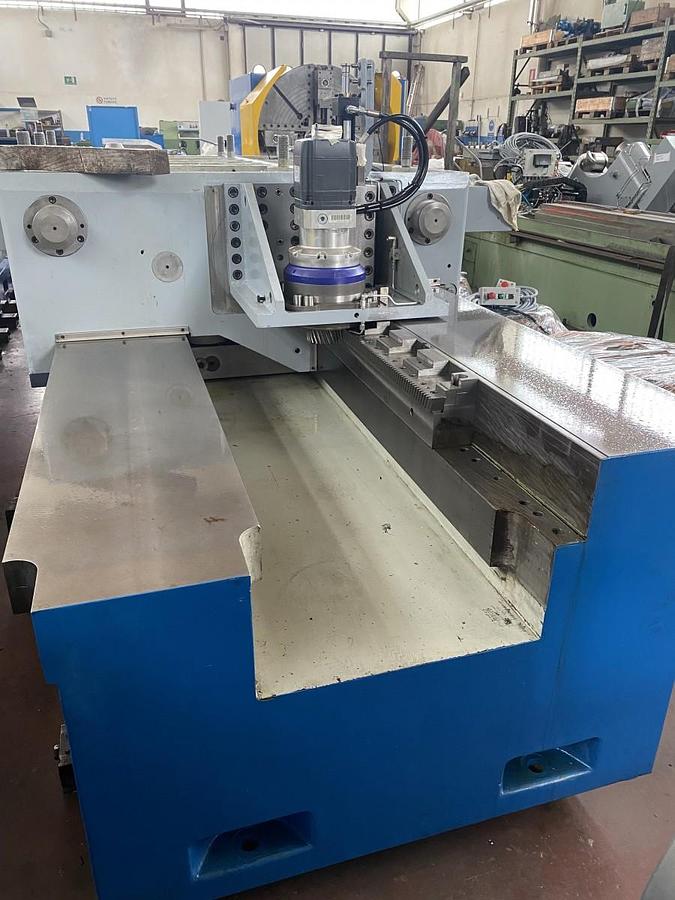

Longitudinal travel of carriages (“Z” axis – “W” ​​axis) 14,451 mm

Carriage translation travel (“X” axis – “U” axis) 795 mm

Rapid tailstock translation speed mm/min 3,000

Tailstock quill stroke 300 mm

Tailstock quill advancement speed 20 mm/min

Rapid feed speed of the tailstock quill 100 mm/min

Maximum thrust of the tailstock quill 600 kN

Tailstock quill diameter Ø 630 mm

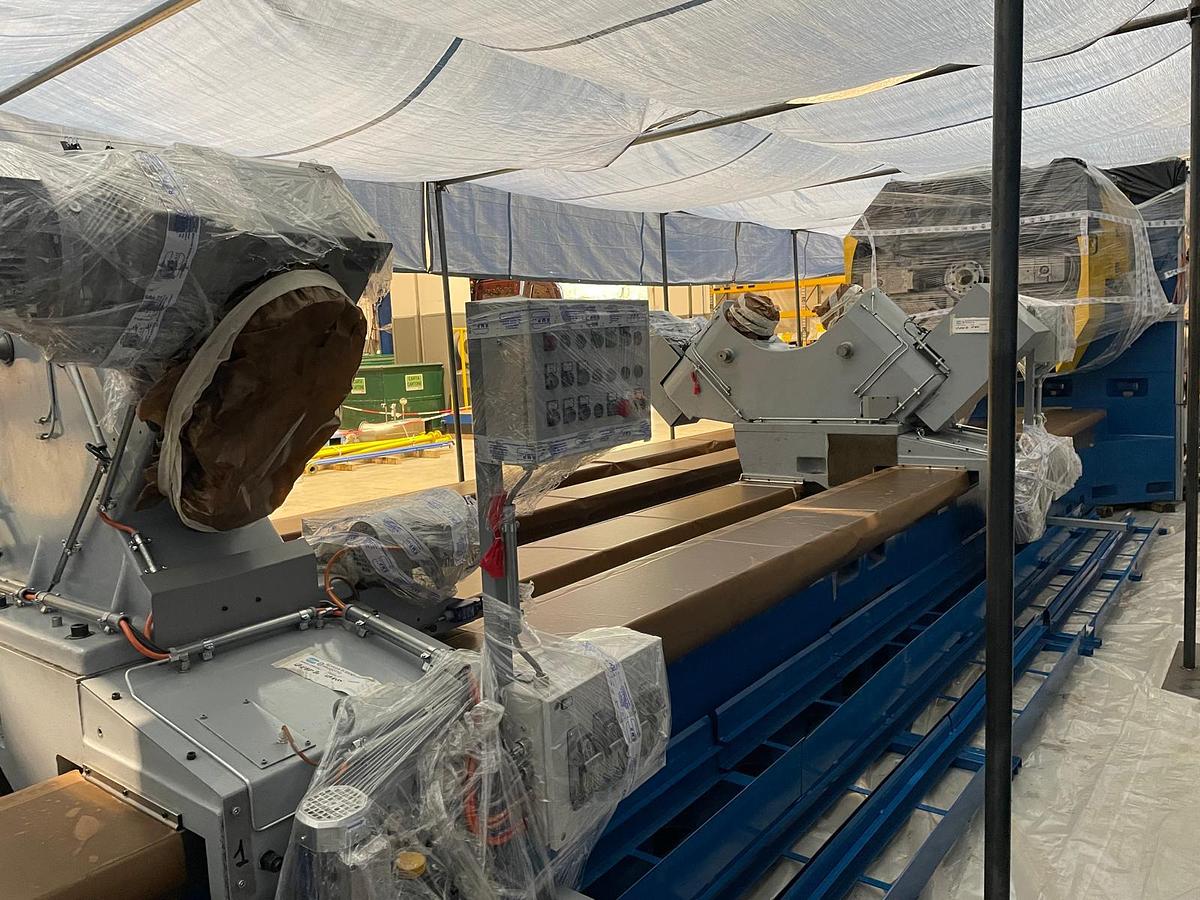

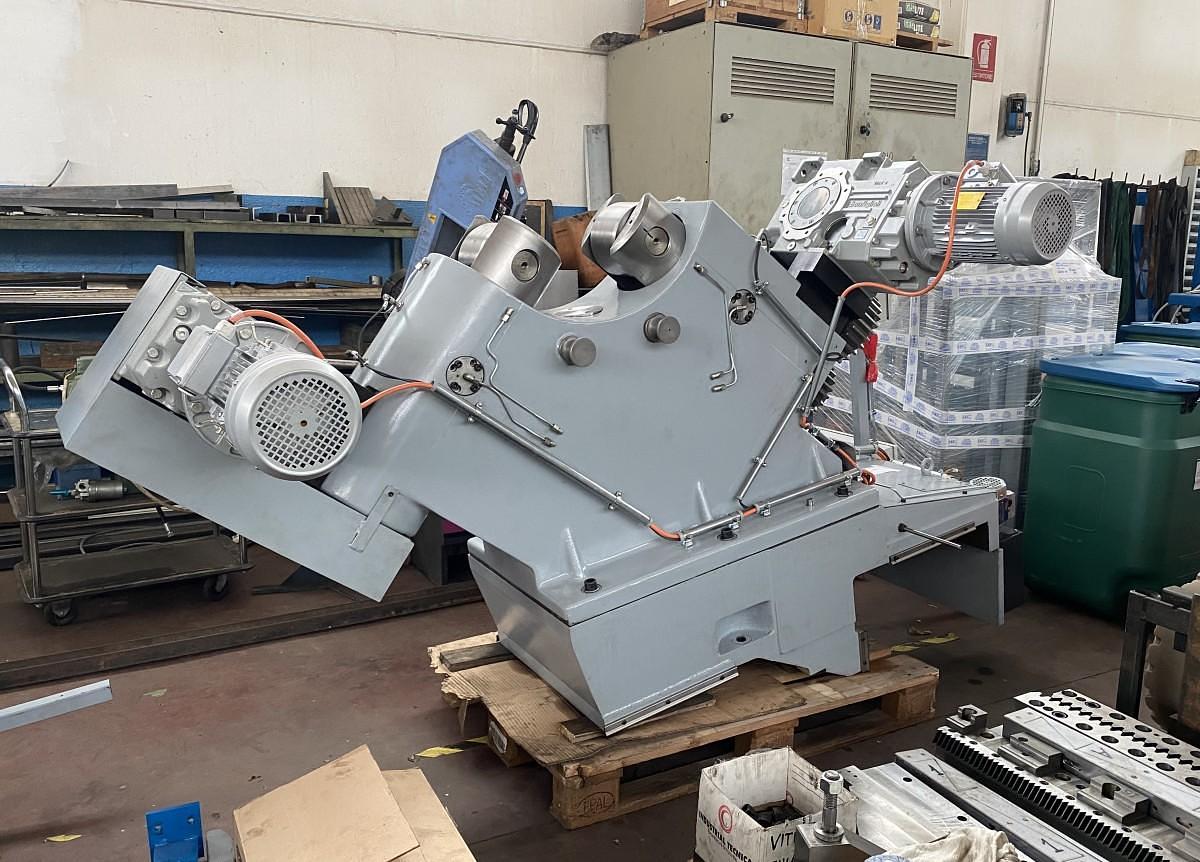

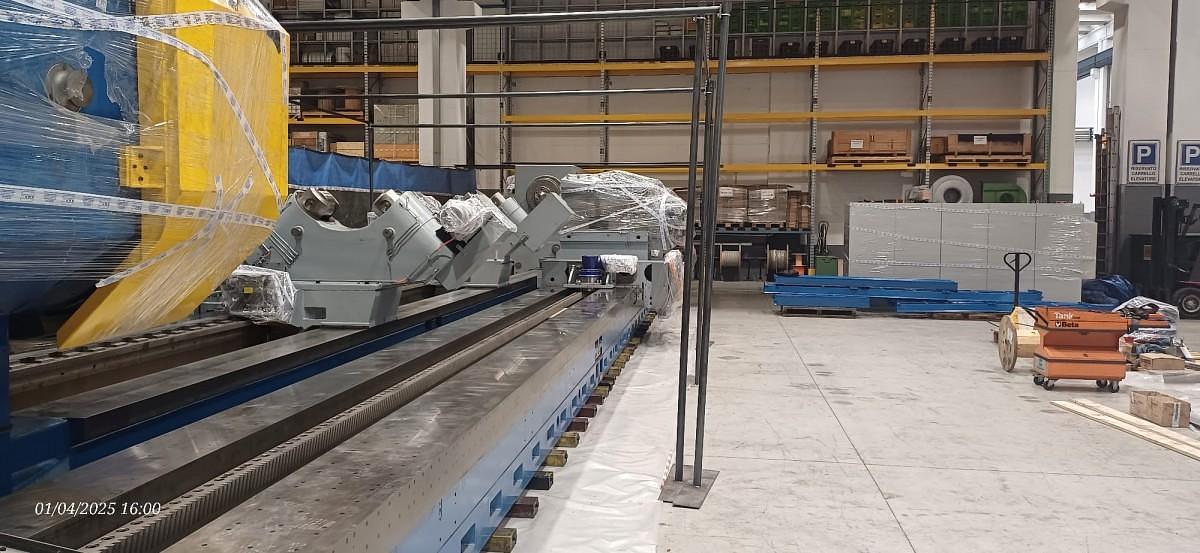

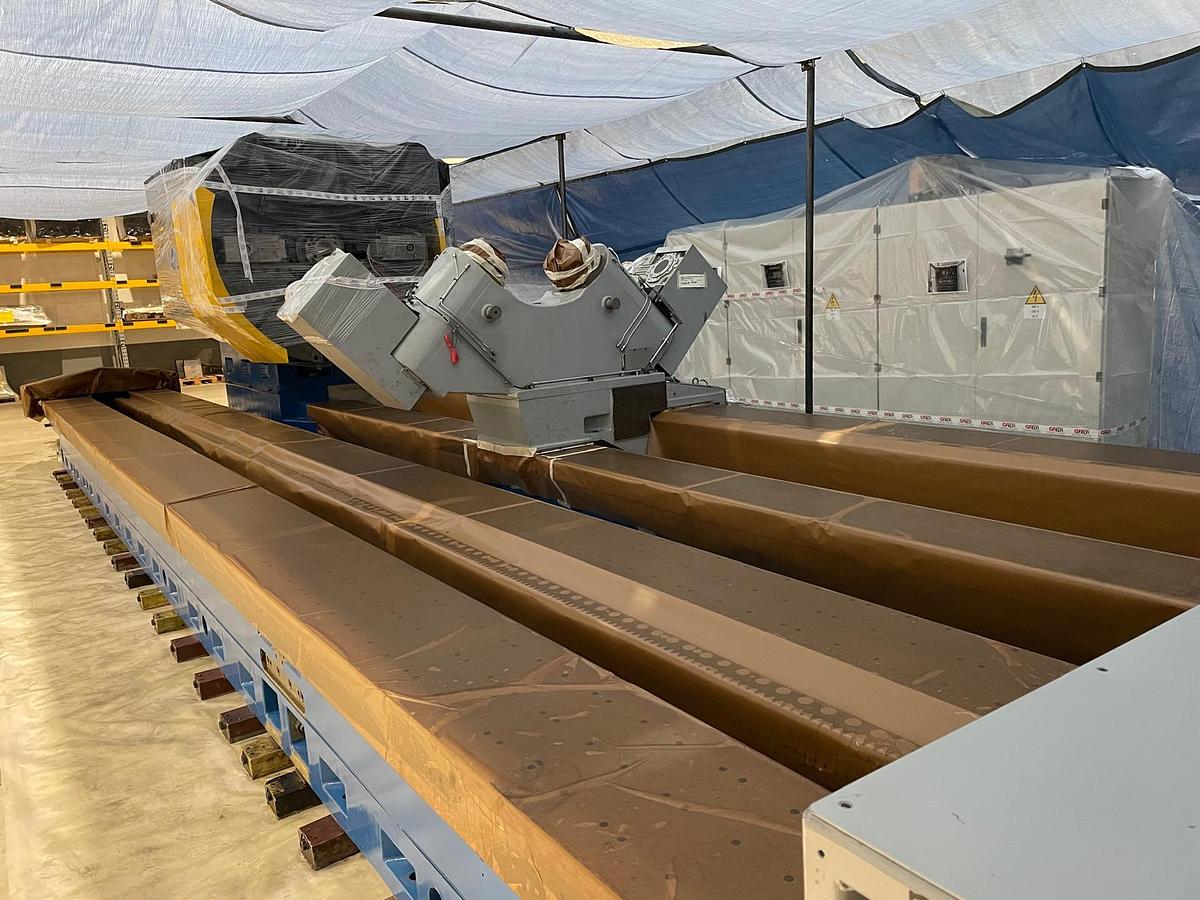

Maximum diameter large Steady Rest (open type) - Dis 175-42-6120:00-00, 550÷900 mm

Maximum load admitted 40 tons

Feed speed large Steady 194 mm/min

Maximum diameter of small steady rest (open type) - Dis 175-42-6110:00-00, 200÷600 mm

Maximum load allowed 20 tons

Feed speed Small steady 194 mm/min.

Main cutting force of the carriage 180 kN

Back pressure force 1,144 kN

Feed force 108 kN

(material being processed Ks = 1,800 N/mm2) 2 100 mm

Chip removal for each carriage 1,118 kg/h
