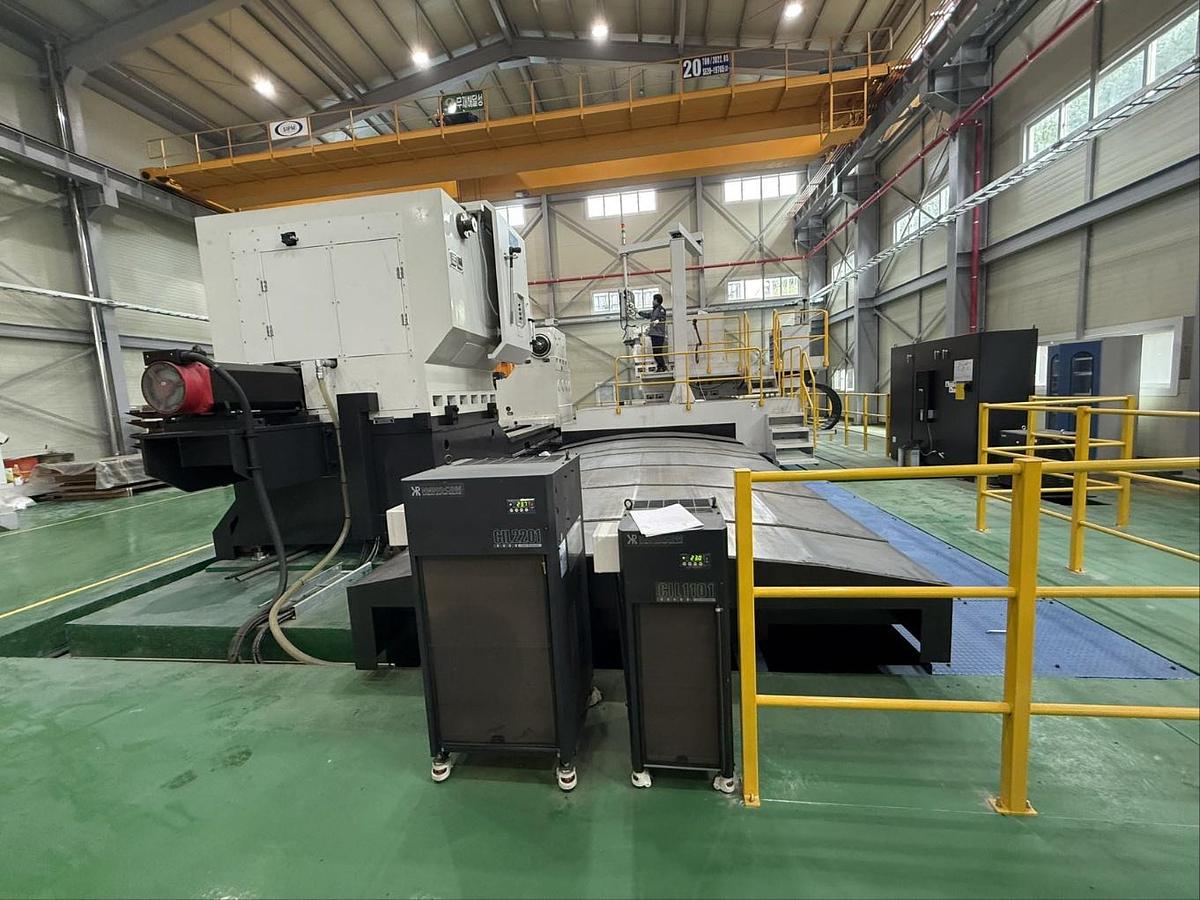

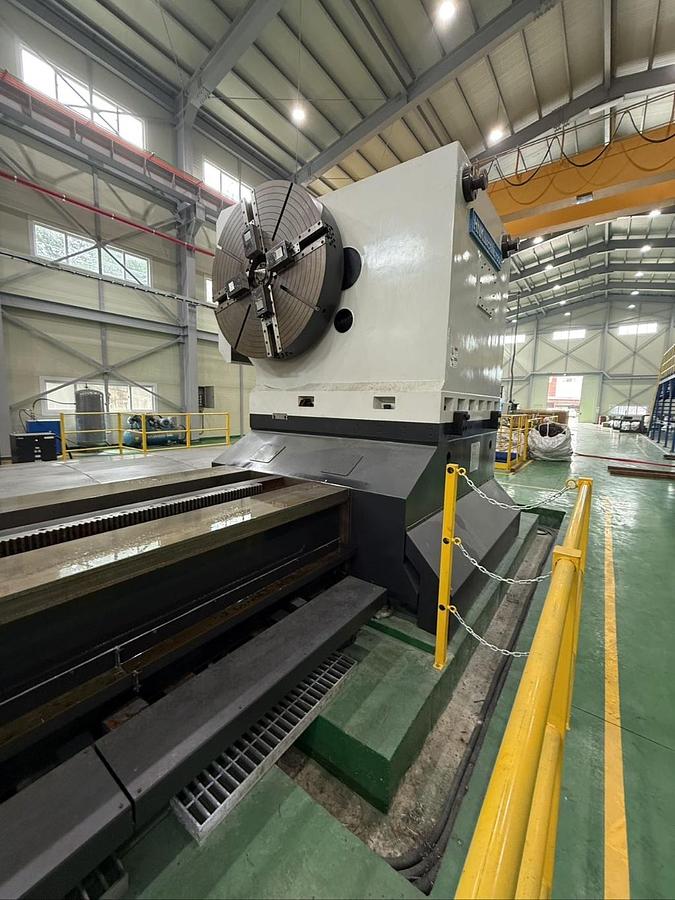

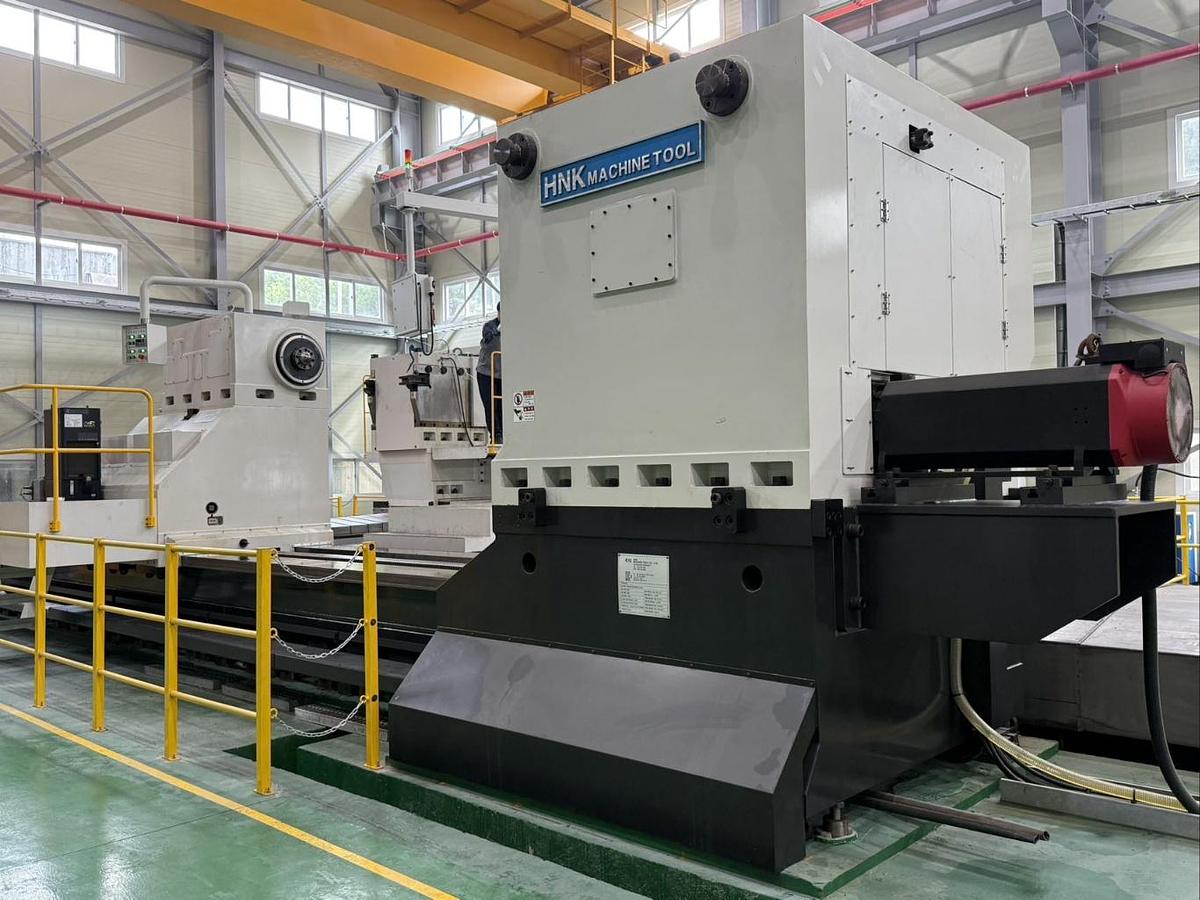

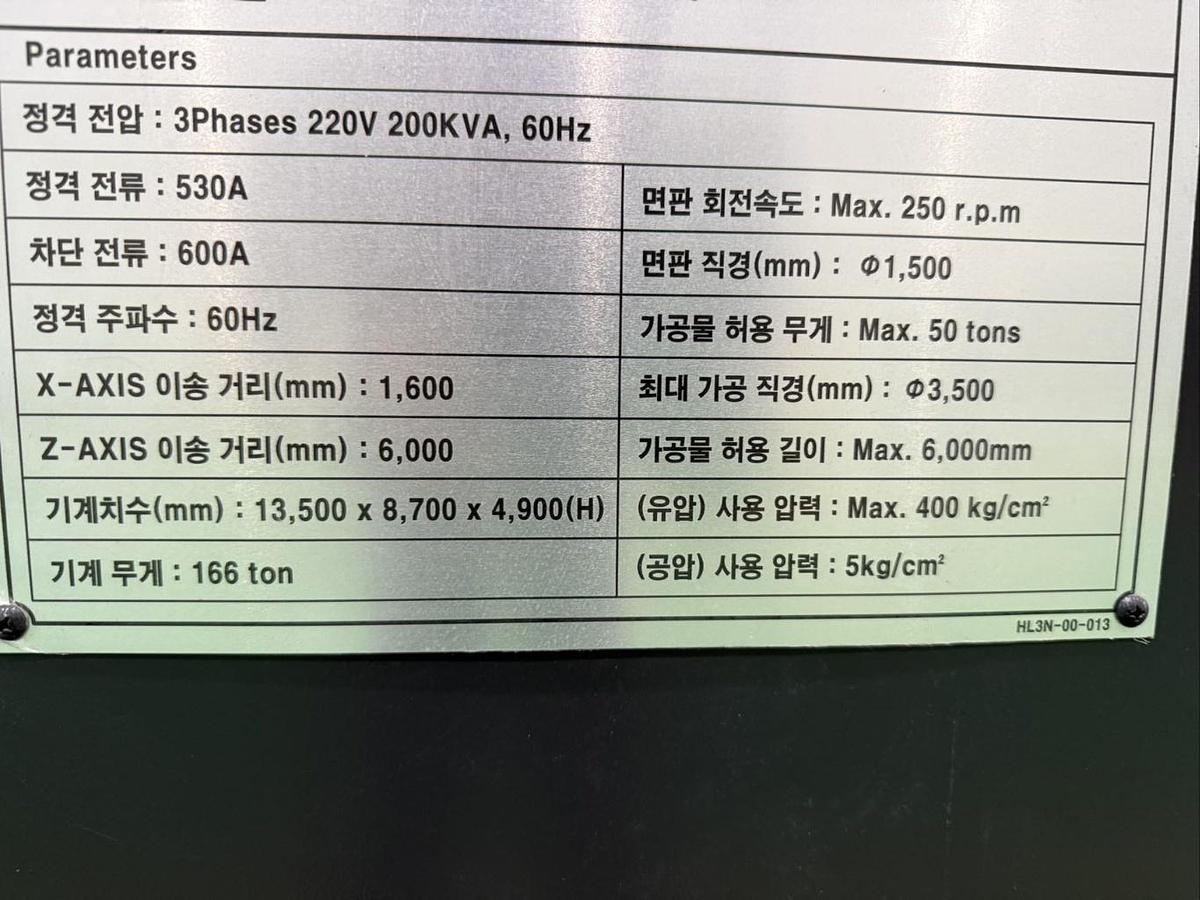

HNK HL 35x 6-50T CNC Heavy-Duty Horizontal Lathe

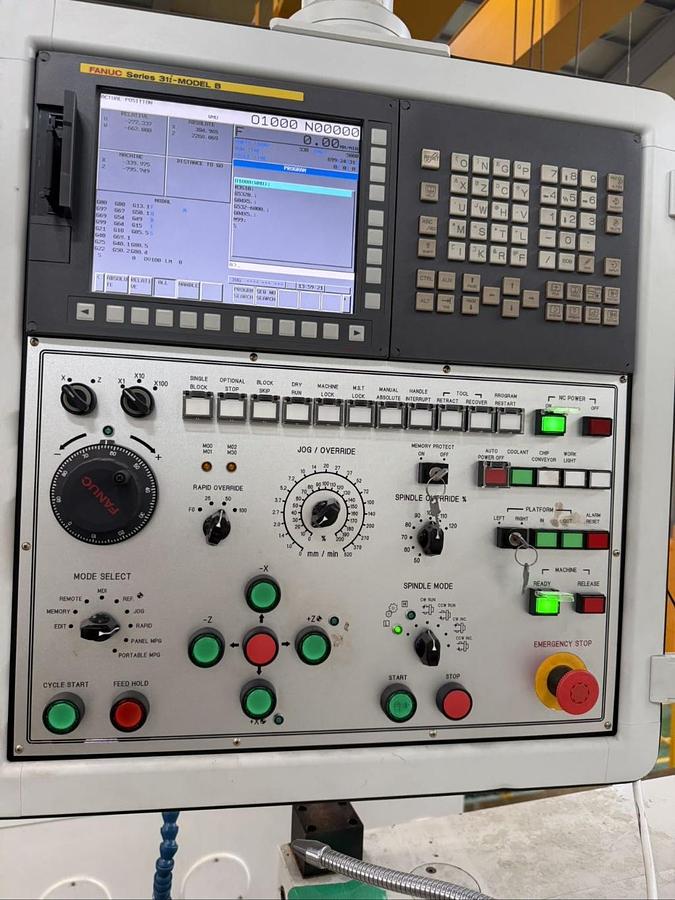

Fanuc 31i CNC Control - 10.4" Color LCD

Faceplate Speeds:

Step I: 2 - 15.6 - 59.5 rpm

Step II: 1 - 59.5 - 235 rpm

Flanged Center with Taper 1/10, angle 75◦ ea 2

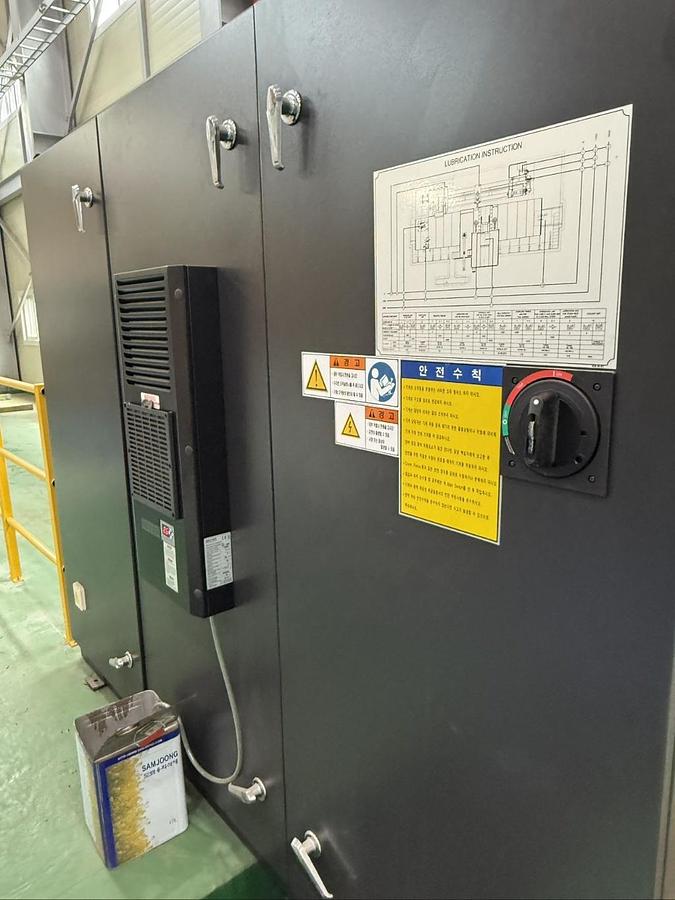

Lubrication & Hydraulic unit for headstock

Oil cooler for Headstock lub’ & hyd’ unit

Headstock spindle bearing temperature monitoring

Hydrostatic Lubrication unit for X, Z-axis slideway

Oil cooler for hydrostatic lubrication unit

Lubrication unit for tailstock

Hydraulic power unit for tailstock

Tailstock load meter and display

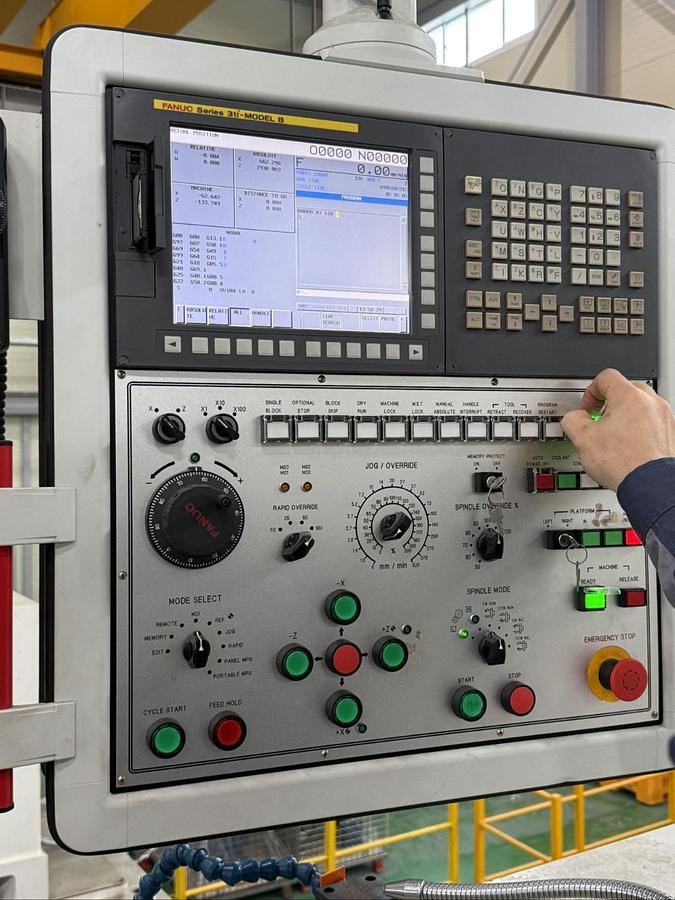

Operation panel (pendant type)

Work light & patrol lamp(3 colors –red/yellow/green)

Telescopic steel cover (X, Z-axis)

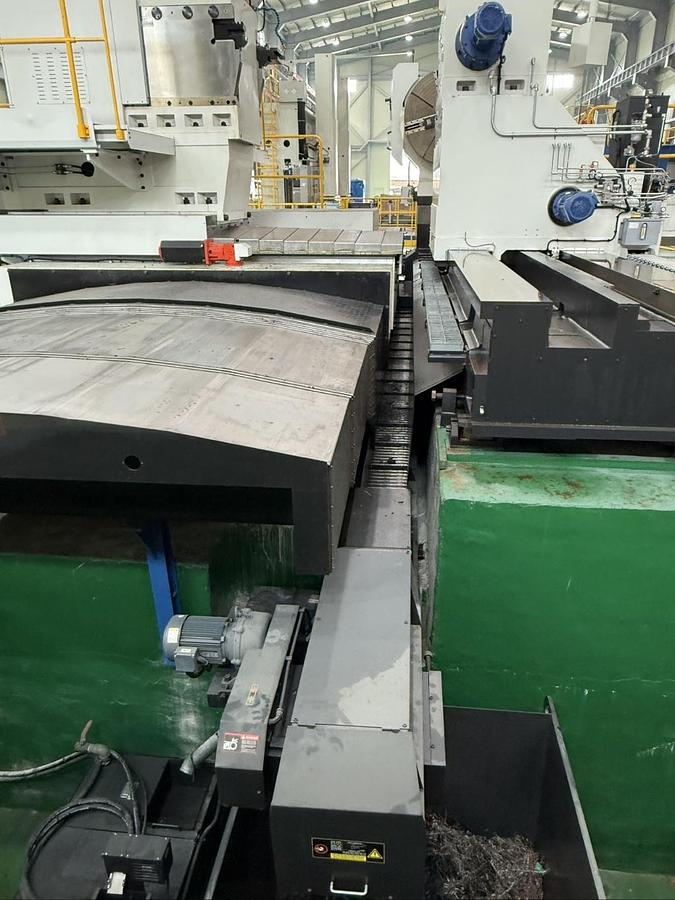

Chip conveyor (hinge type)

Faceplate safety cover with interlock

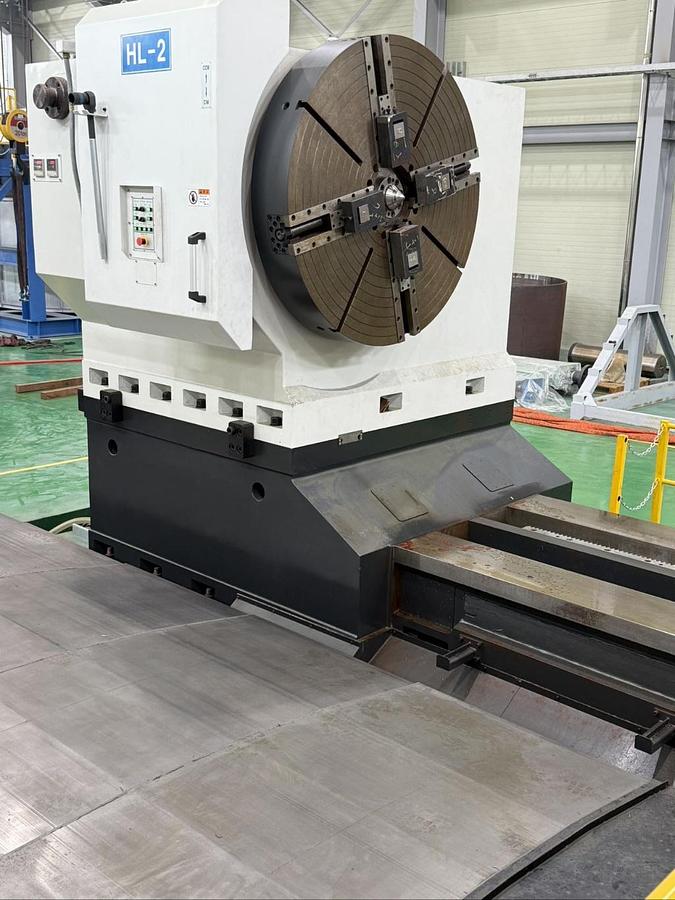

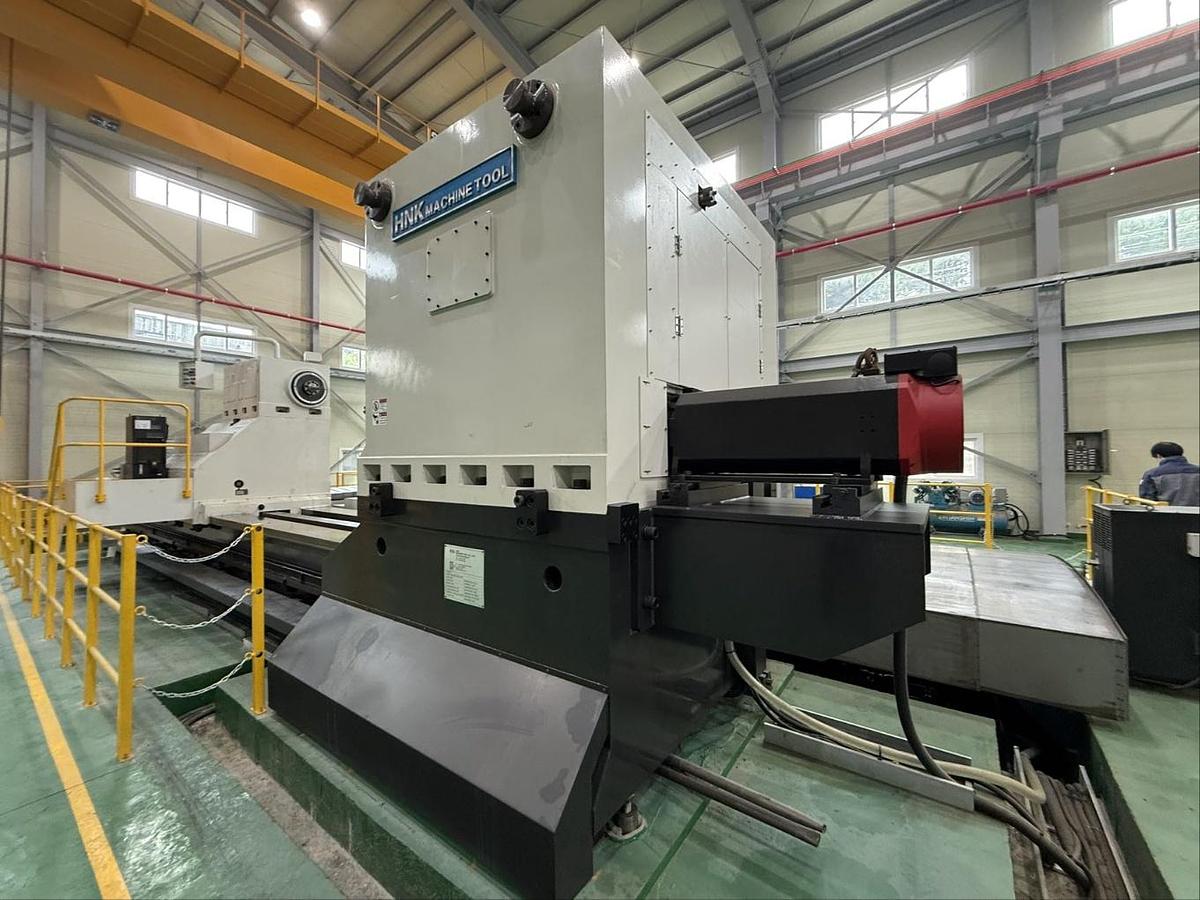

HEADSTOCK

• Drive output kW AC100
• Main spindle bearing diameter mm 400
• Faceplate speeds
• 1`st Step rpm 02. ~ 15.6 ~ 59.5
• 2`nd Step rpm 1 ~ 59.5 ~ 235
• Max Torque of faceplate Nm 61,000
• Angle of flanged Center with Taper 1/10 deg. 75
• Lubrication system * Forced circulation with oil cooler

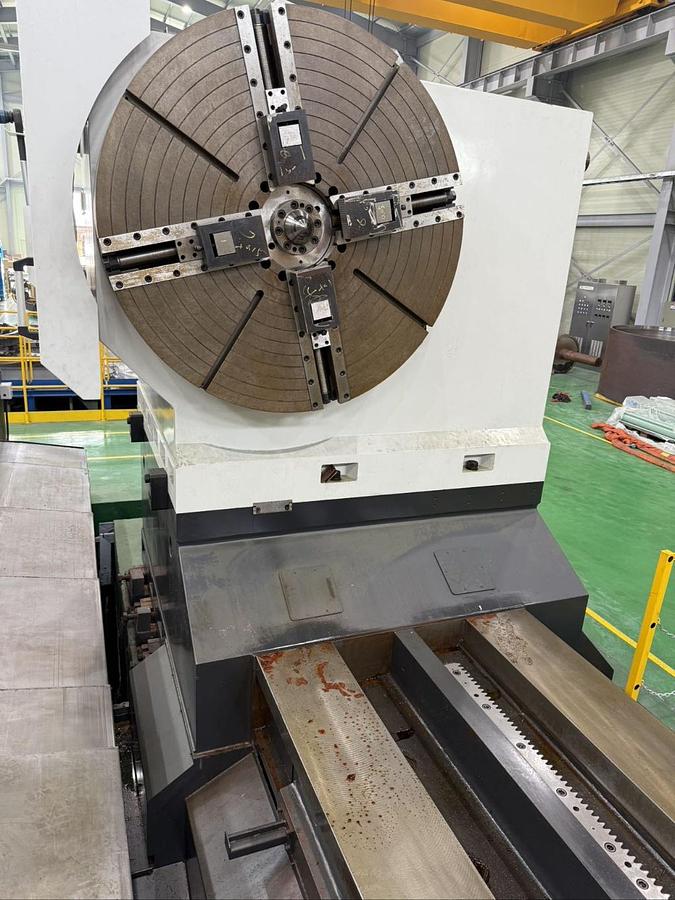

FACEPLATE

• Outside diameter mm Ø1,500
• Chucking diameter range(Normal) mm Ø490 ~ Ø1,350
• Chucking diameter range(Reverse) mm Ø350 ~ Ø1,100
• Number of chuck jaws ea 4

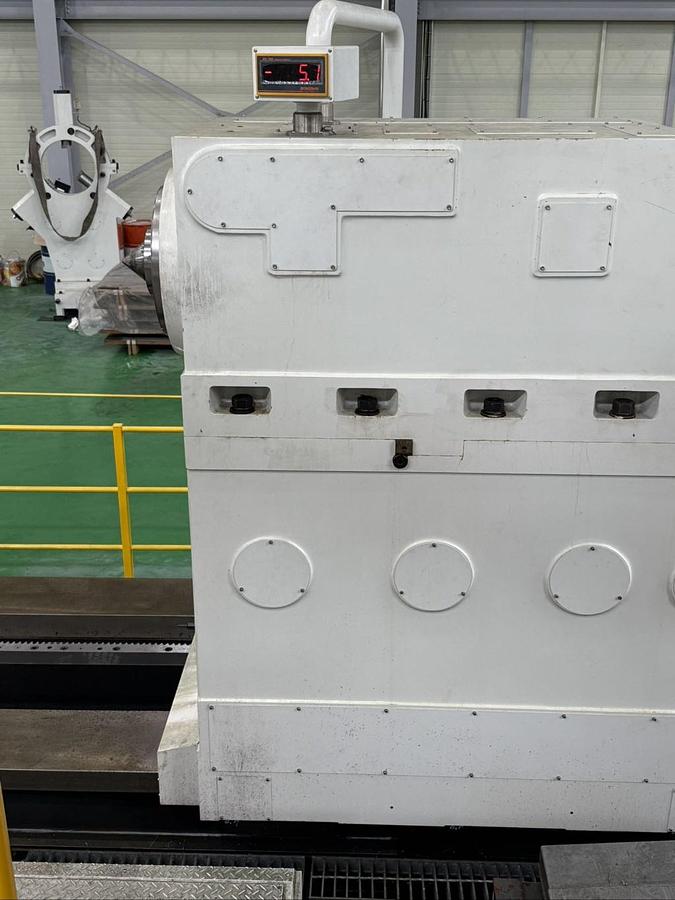

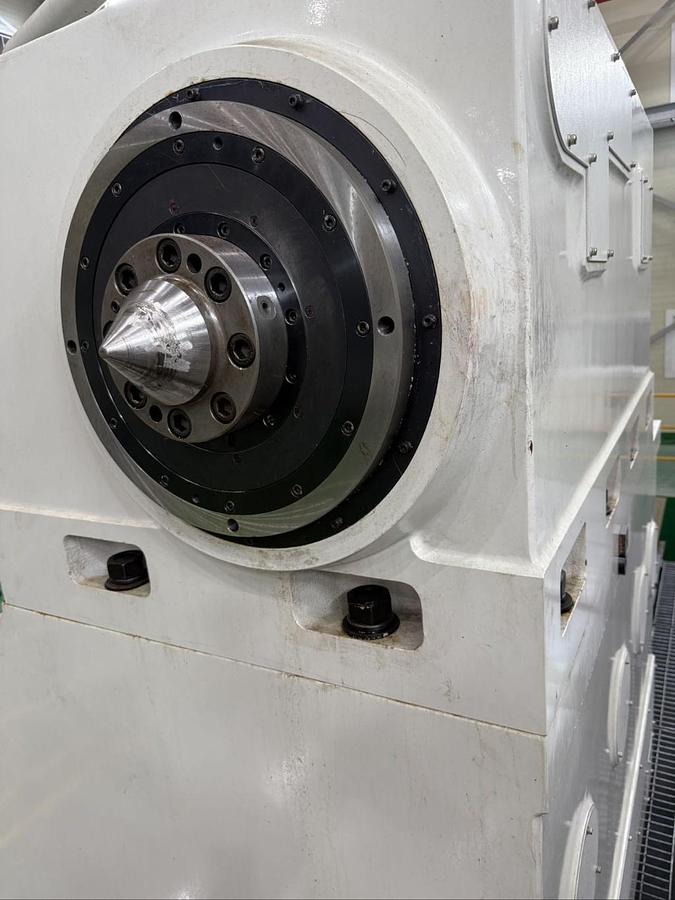

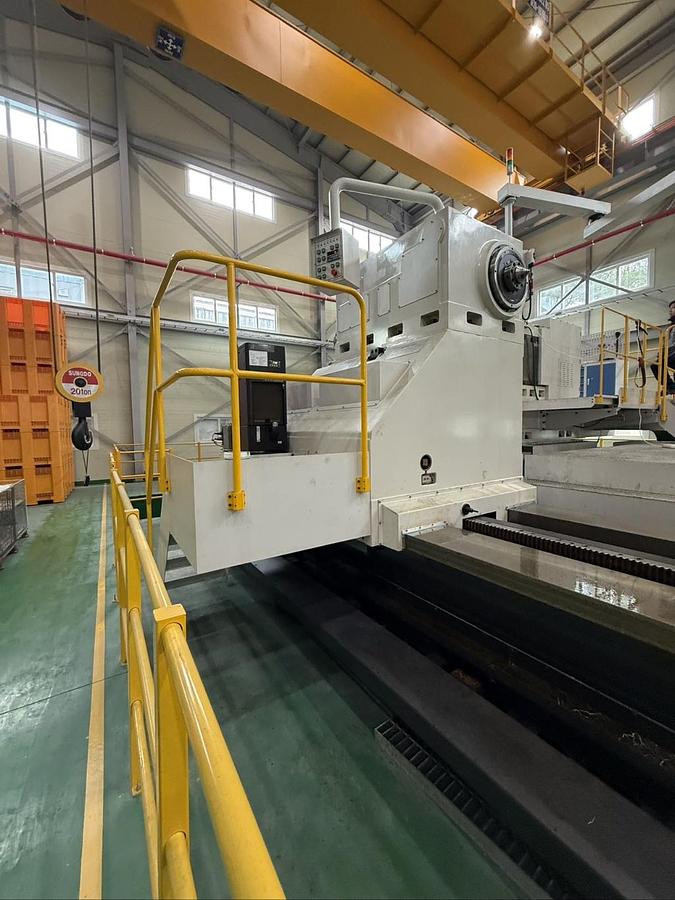

TAILSTOCK with live spindle

• Quill diameter mm Ø450
• Travel of tailstock Quill mm 200
• Rapid traverse speed of Quill (high / low) mm/min 160 / 80
• Rapid traverse speed of Tailstock on bed (high / low) mm/min 1,800 / 900
• Longitudinal expansion compensation mm 3 (Disk spring)
• Clamping / Unclamping on the bed Mechanical / hydraulic
• Clamping / Unclamping of Quill Mechanical / hydraulic
• Tailstock traverse motor - AC3.7kW*4P/8P
• Quill traverse motor - AC5.5kW*4P/8P
• Angle of flanged Center with taper 1/10 deg. 75

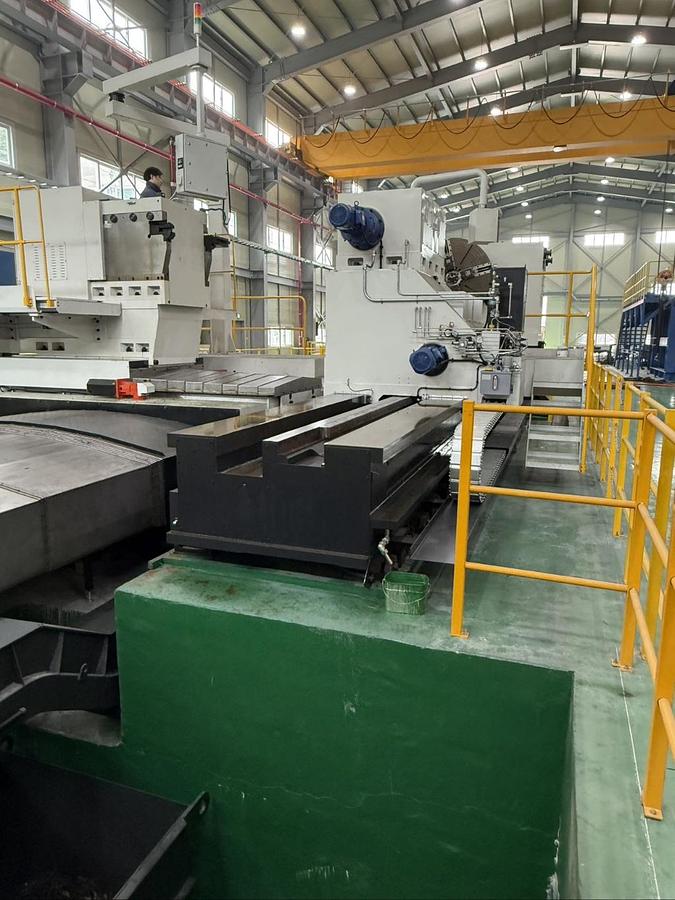

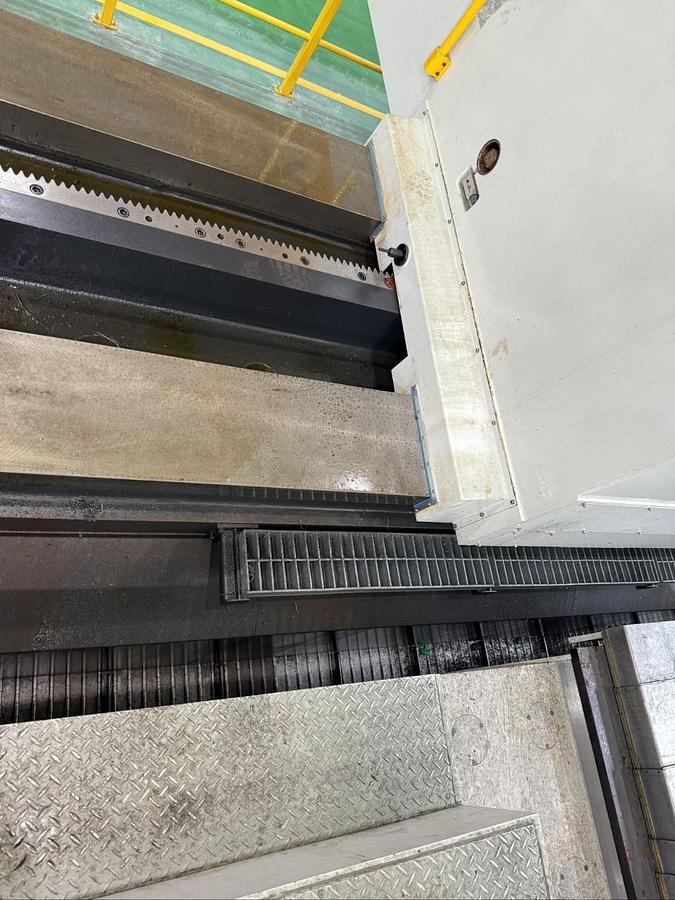

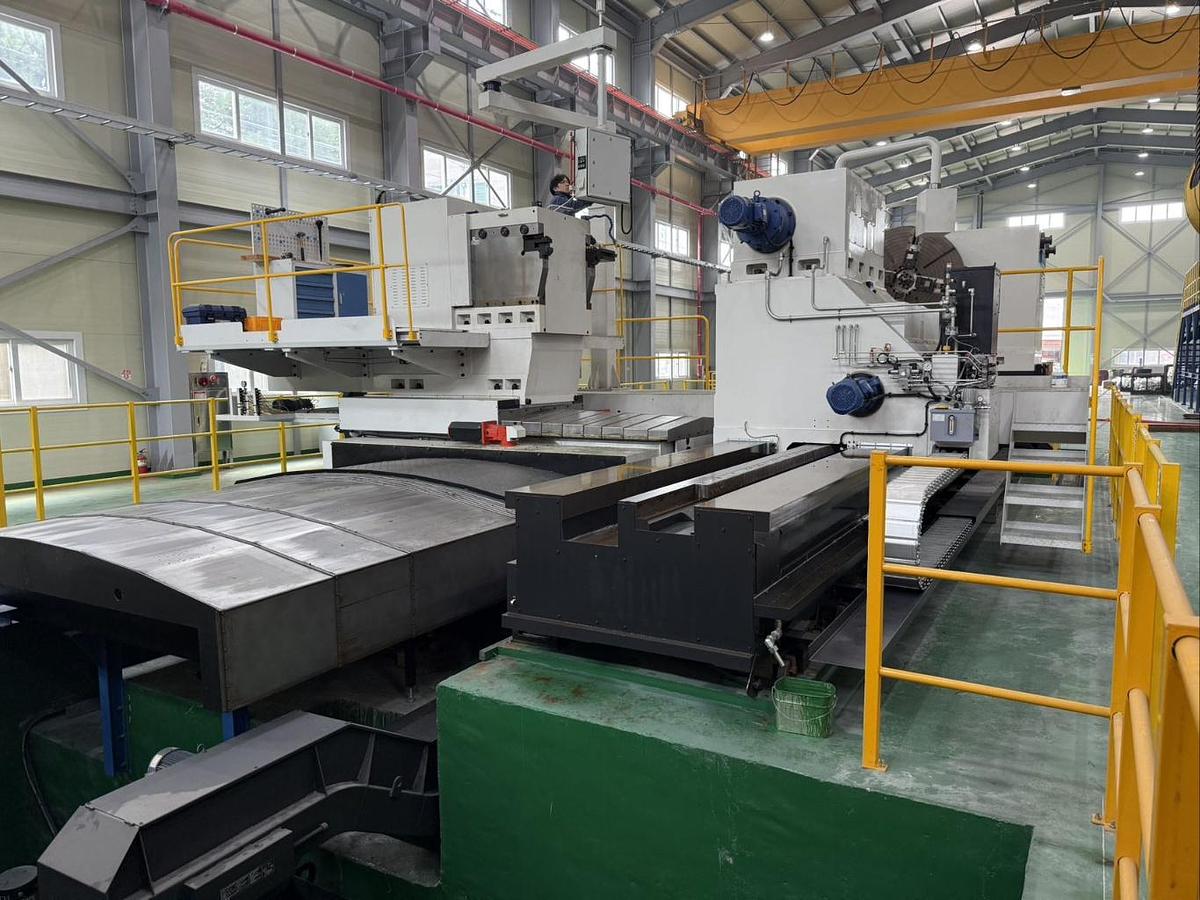

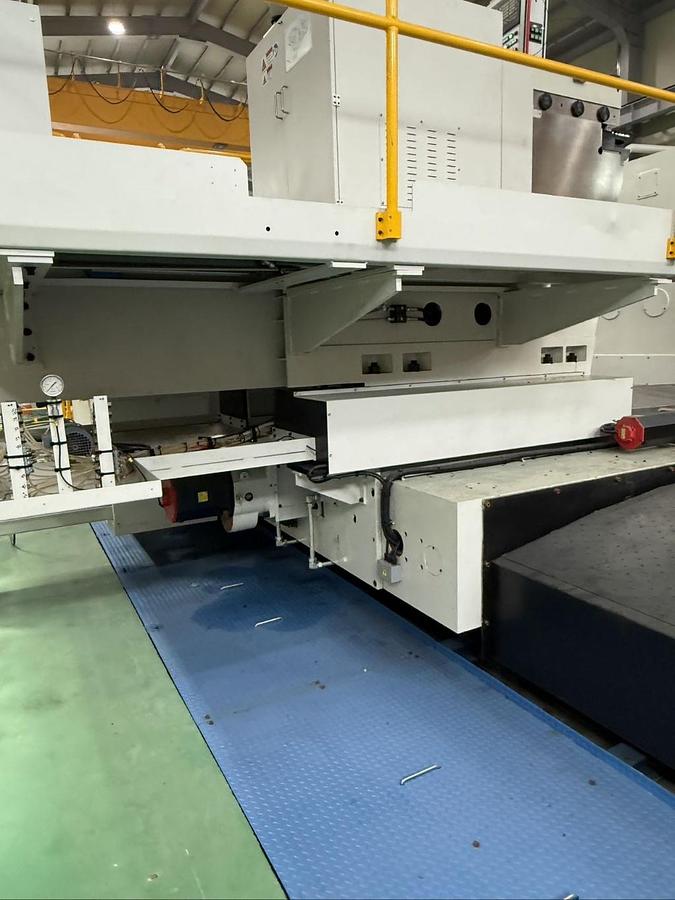

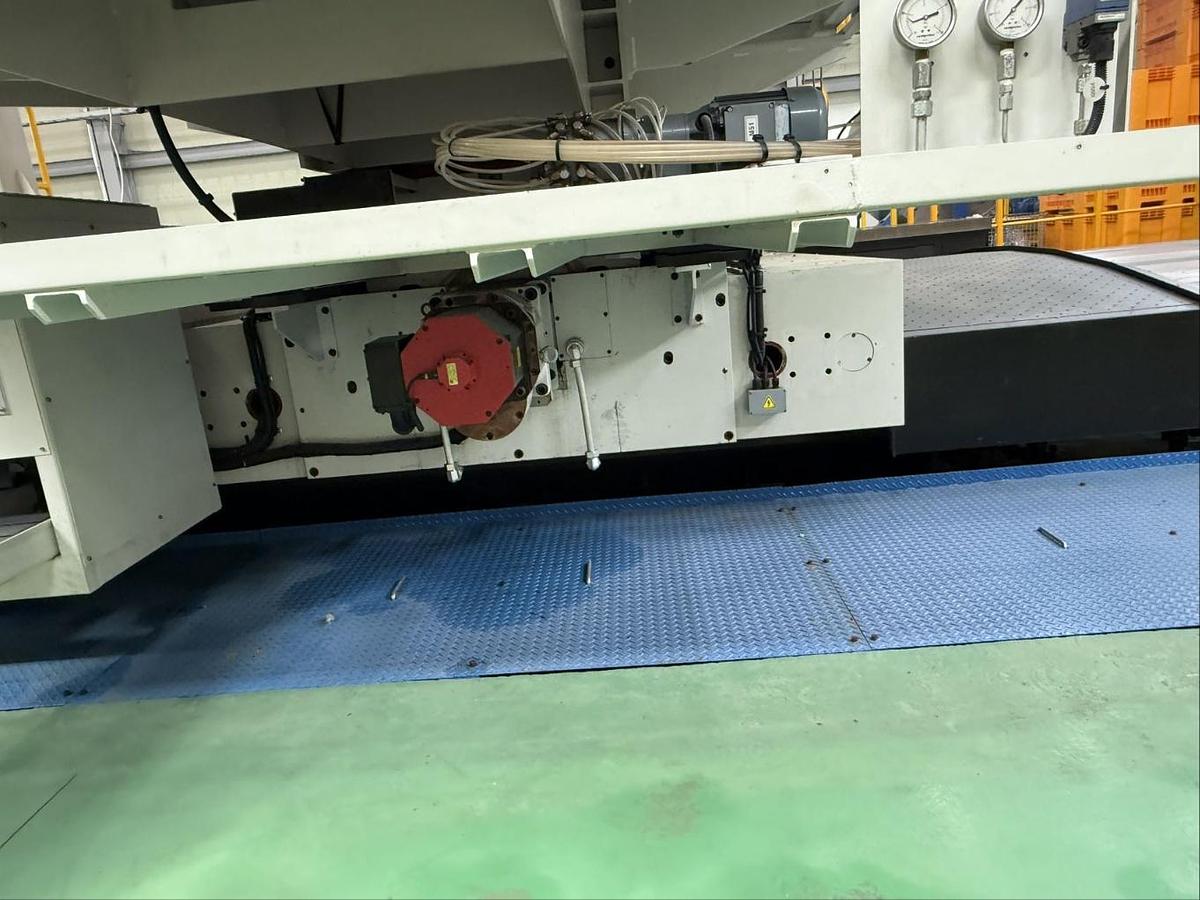

CARRIAGE AND CROSS SLIDE

Number of carriage 1

Number of tool carriers(lamella) 2

X-axis driving system - Ballscrew

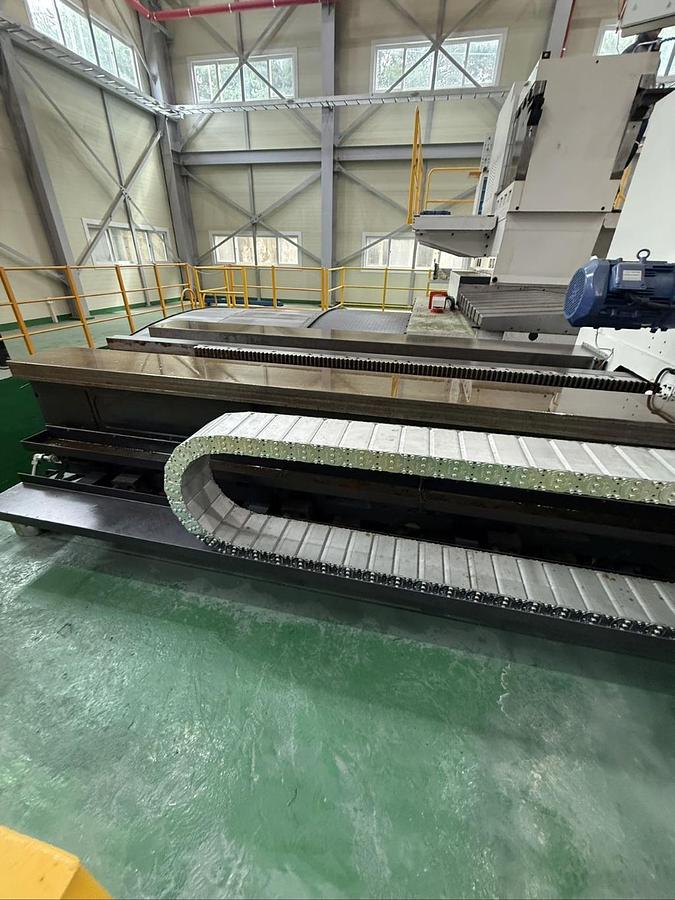

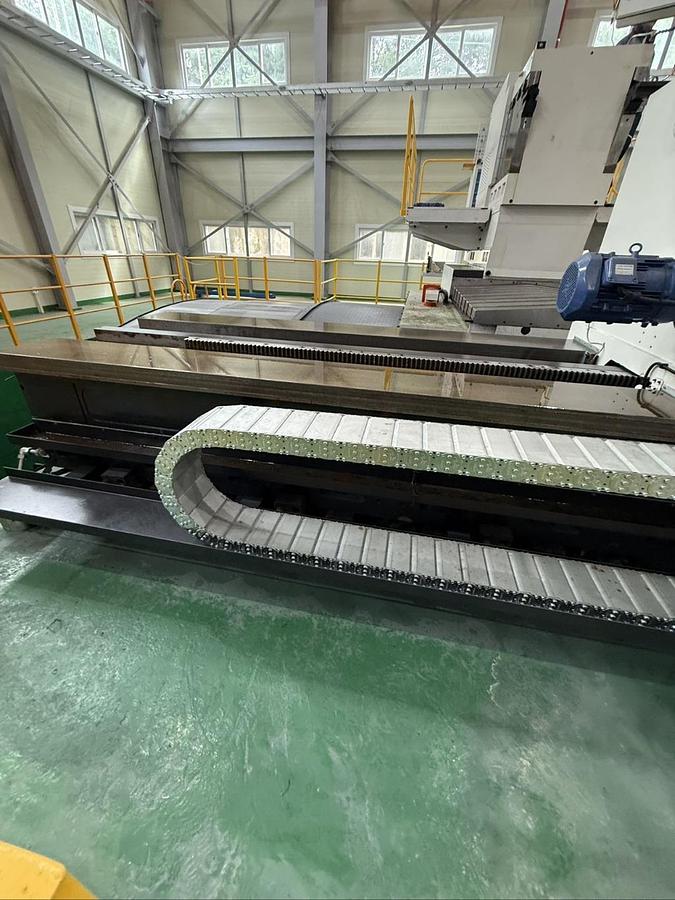

Z-axis driving system Rack & double pinion

Travel transverse (X-axis) mm 1,600

Travel Longitudinal (Z-axis) mm 6,500

Travel of tool carrier (Tool slide overhang) mm 500

X, Z-axis slideway lubrication system * Hydrostatic

Rapid feedrate:

X-AXIS mm/min 5,000

Z-AXIS mm/min 7,500

Cutting feedrate:

X-AXIS mm/min 3,000

Z-AXIS mm/min 3,000

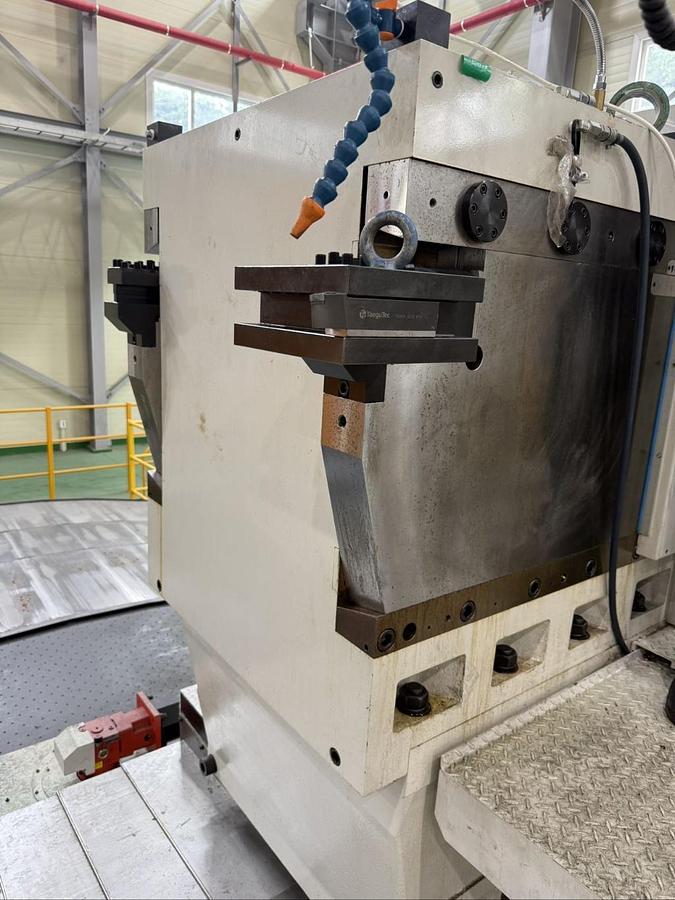

Tool carriers(lamella) width (Headstock / Tailstock) mm 100 / 100

Tool carriers(lamella) adjustment * By manual

Tool carriers(lamella) Clamping / unclamping * By manual

Tooling system (block tool type) * HNK standard

Tool size mm 40 * 40

STEADY REST (OPTION)

Type mm C-type, 3-Quill, Pad

Supporting range mm Ф150 ~ Ф600

Max. supporting load kgf 10,000

Number of steady rest * 1

Longitudinal adjustment on the bed * By manual

Clamping method on the bed * By manual

COOLANT SYSTEM (External Coolant)

Coolant consumption L/min 100

Output pressure bar 1 ~2

Tank Volume L 1,000
