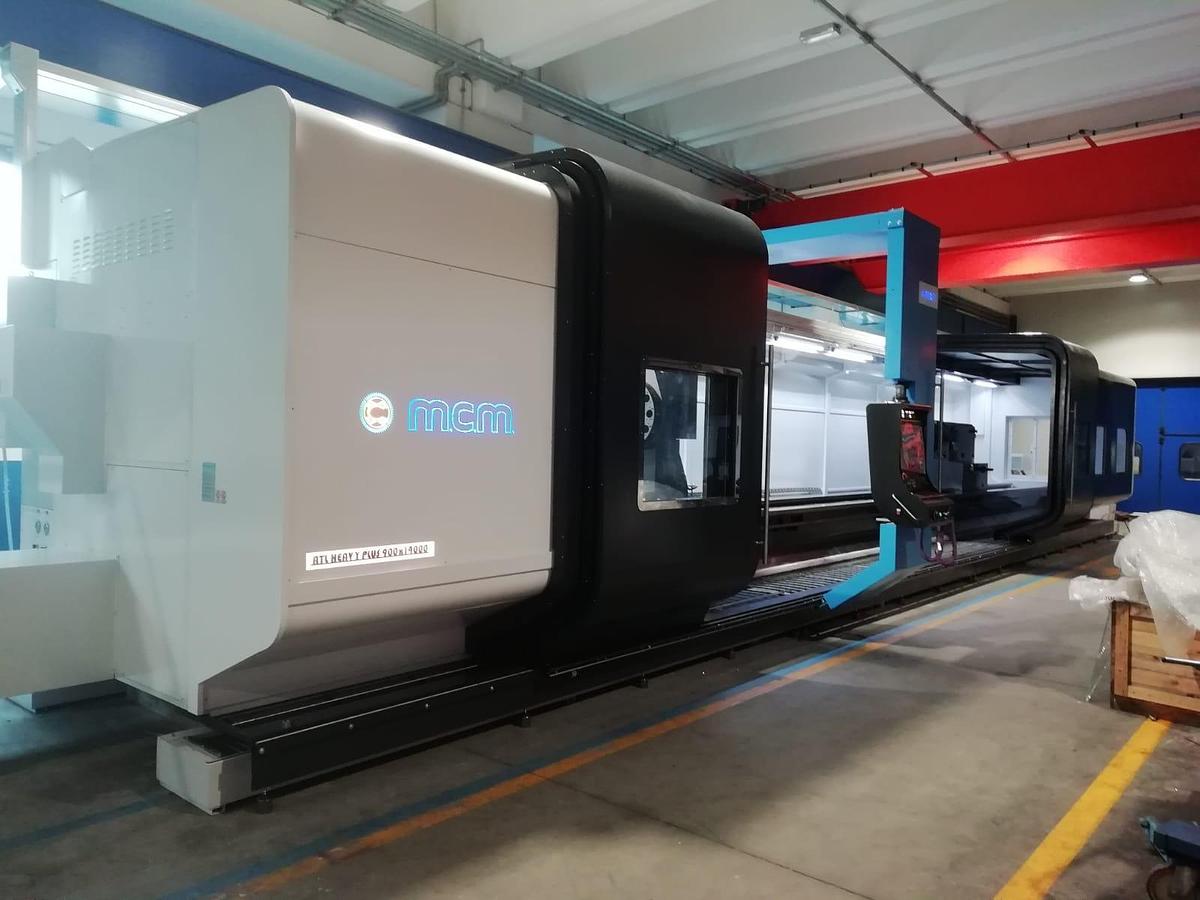

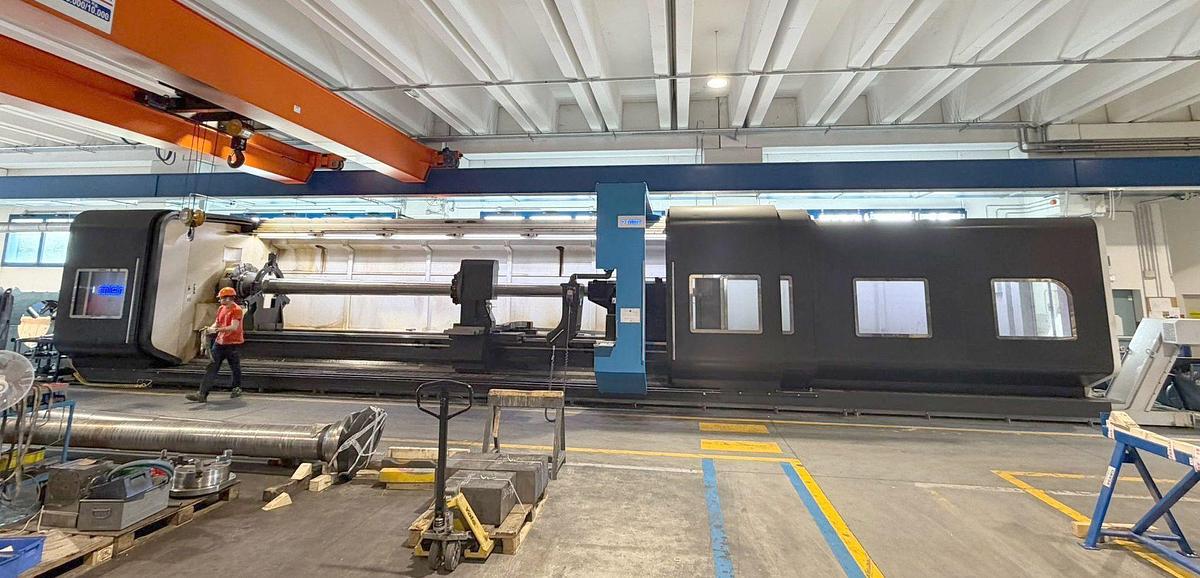

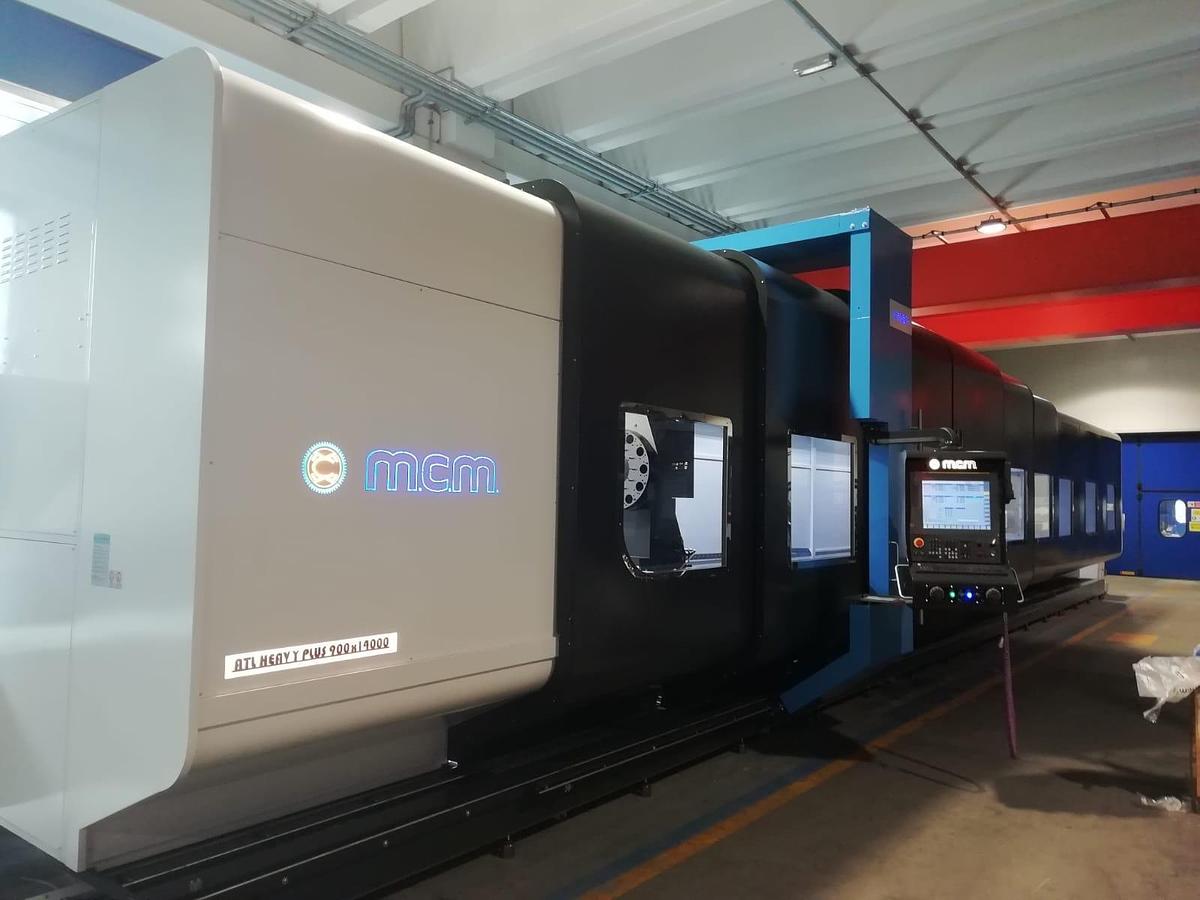

MCM ATL Heavy-Plus 900 x 14000 CNC Horizontal Lathe
MCM ATL Heavy-Plus 900 x 14000 CNC Horizontal Lathe
Description
FANUC 32i-B CNC Control with MANUAL GUIDE

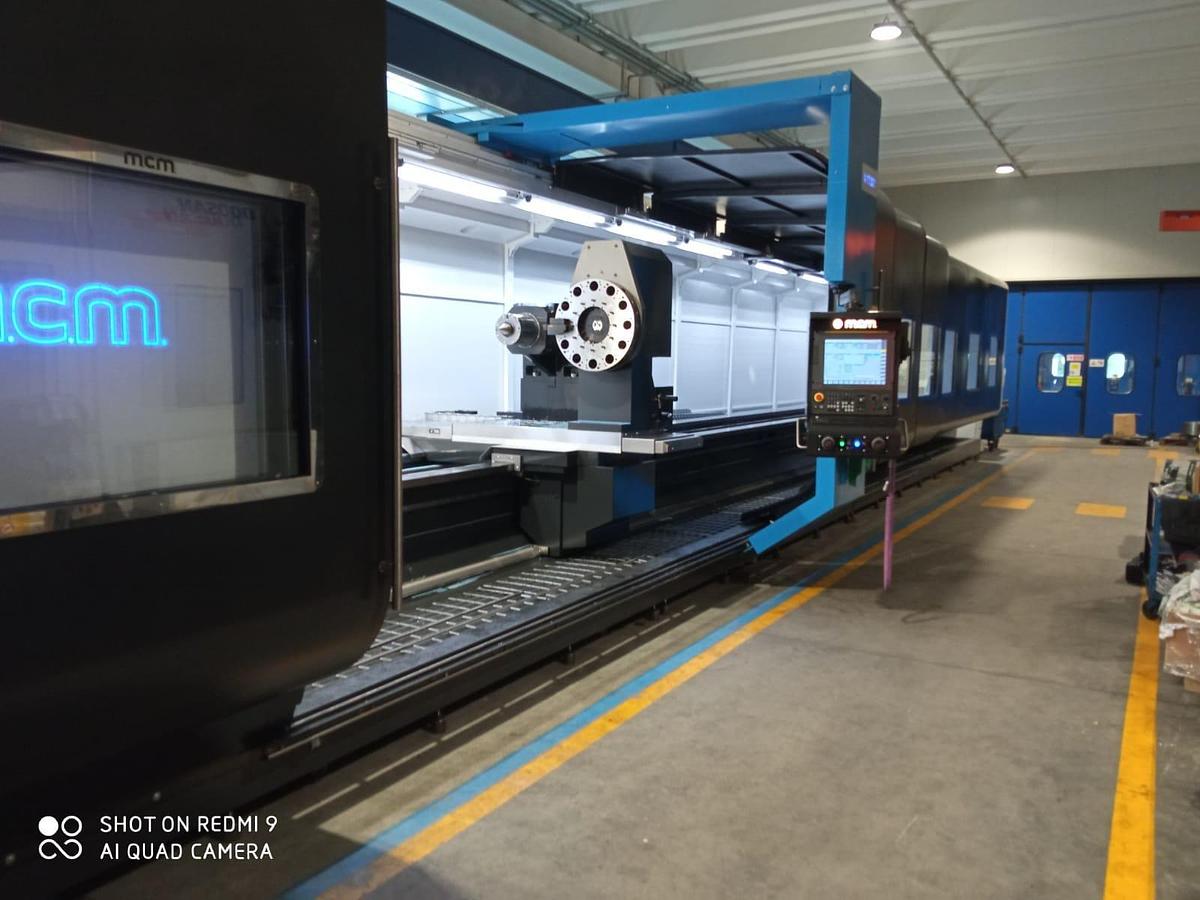

Automatic 12 position turret with live tool stations ( Baruffaldi ) mod. TBMA 320 VDI 60 + C axis

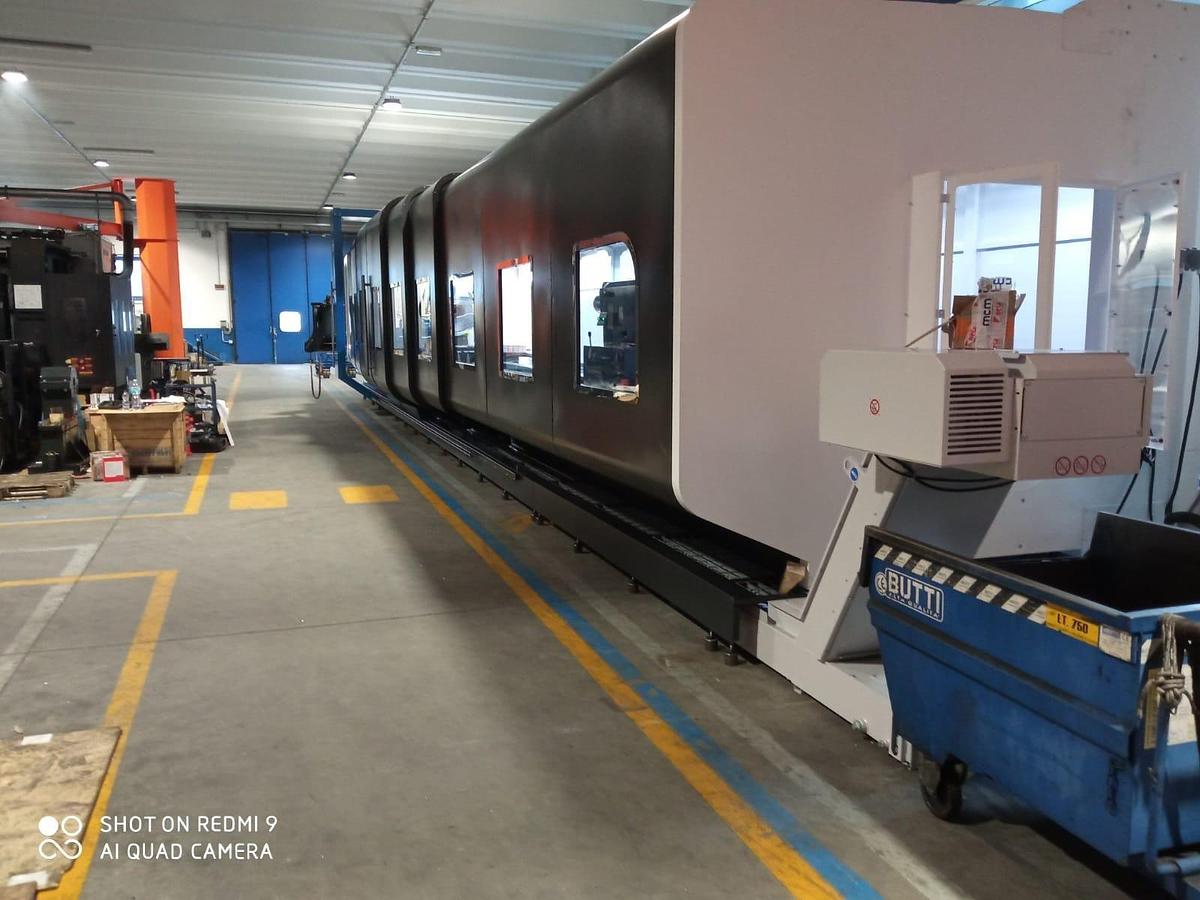

Chip conveyor (Front)
Chip conveyor (Posterior)

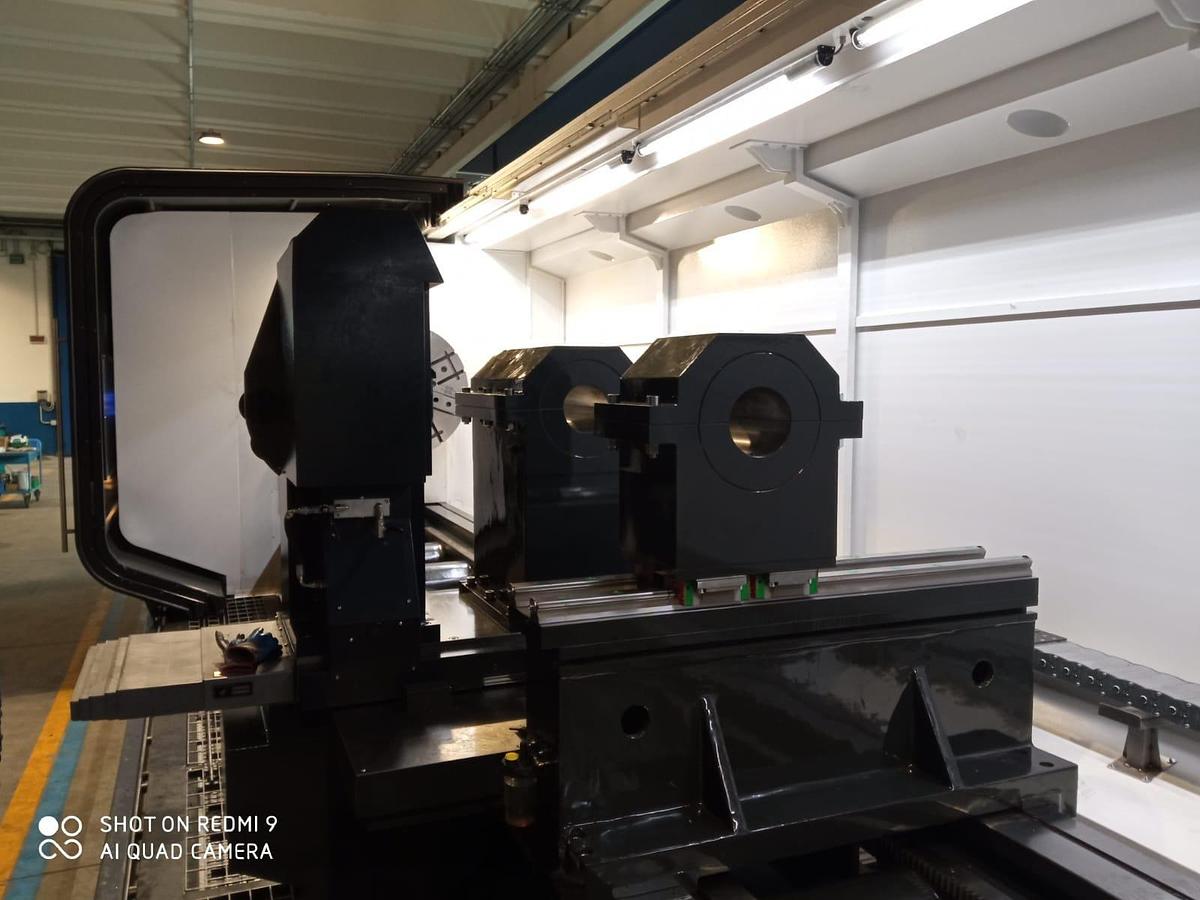

N.2 Steady rest range 600 mm
N. 2 Steady rest range 1,100 mm
Boring bar support
Hydraulic Quill Tailstock
Hydraulic Tailstock Basement Clamping
Motorized Displacement of the Tailstock in the Bed
Portable Electronic Handwheel
COVER FULL ENCLOSURE
Machine built according CE rules
Complete coolant system
The presence of the lower guideway significantly increases the stiffness of the X-axis during large-diameter machining operations. The weight of the cross slide and the turret, together with the forces generated by the cutting process, is supported by this guideway, ensuring greater structural stability of the cross slide and high machining accuracy.
Specifications
| Manufacturer | MCM |
| Model | ATL Heavy-Plus 900 x 14000 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 5654390 |
| Center height | 900 mm |
| Swing over bed | 1,800 mm |
| Swing over slide | 1,400 mm |
| Between centers | 14,000 mm |
| Capacity between centers | 15,000 / 18,000 kg |
| Bed width | 1,100 mm |
| Number of guideways | 3 (2+1) |
| Spindle bore | 130 mm |
| Spindle nose | A2-15 |
| Range of speed (auto speed change gear box) | 2 |
| Main spindle speed | 0 - 600 rpm |
| Main motor S1 | 60 kW |
| X axis travel | 1,000 mm |
| Rapid feed X/Z | 8/10 m/min |
| Quill diameter | 240 mm (rotating quill) |
| Quill travel | 300 mm |
| Quill taper | 80; 1:7 |
| Machine dimensions | 19,800 x 3,600 x 3,000 mm |
| Machine weight | 52,000 kg |
