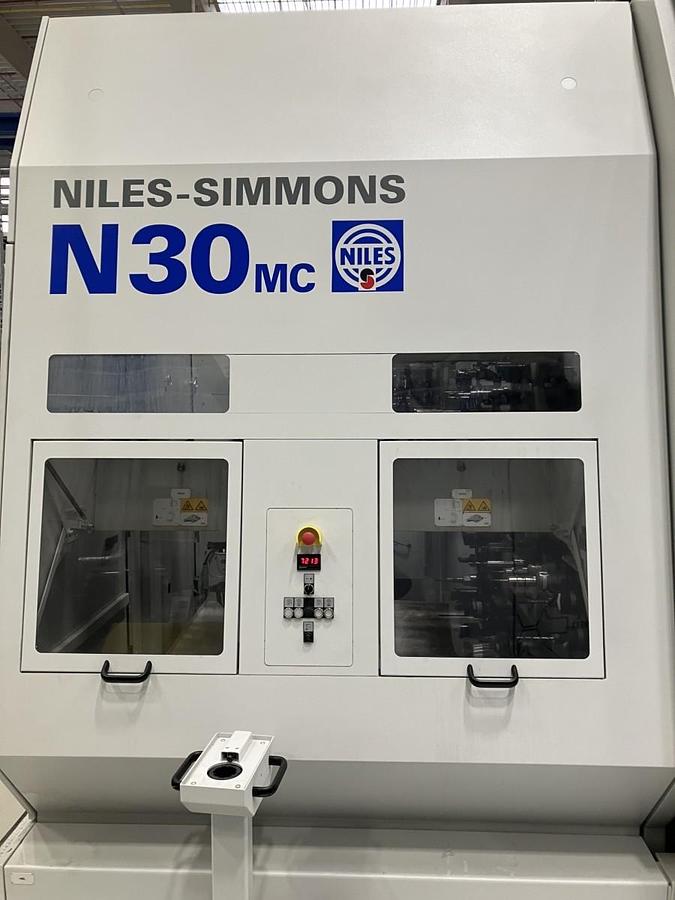

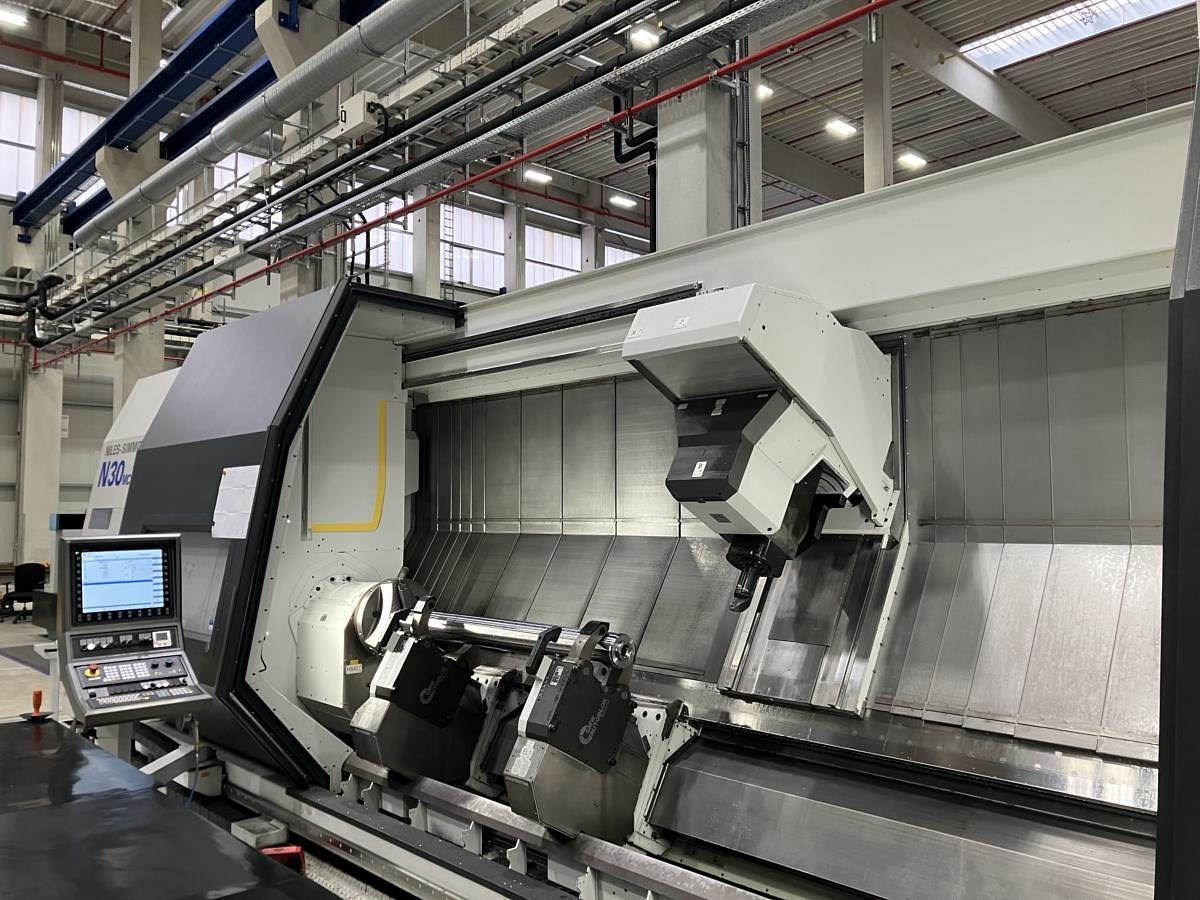

Niles N30MC-4500 CNC Turning & Milling Center
Niles N30MC-4500 CNC Turning & Milling Center
Description
Siemens SINUMERIK SI 840D SL CNC Control
Main spindle A15 with BVG; 3135 N;/ 2,000 rpm
Spindle head DIN 55026 Form A 15

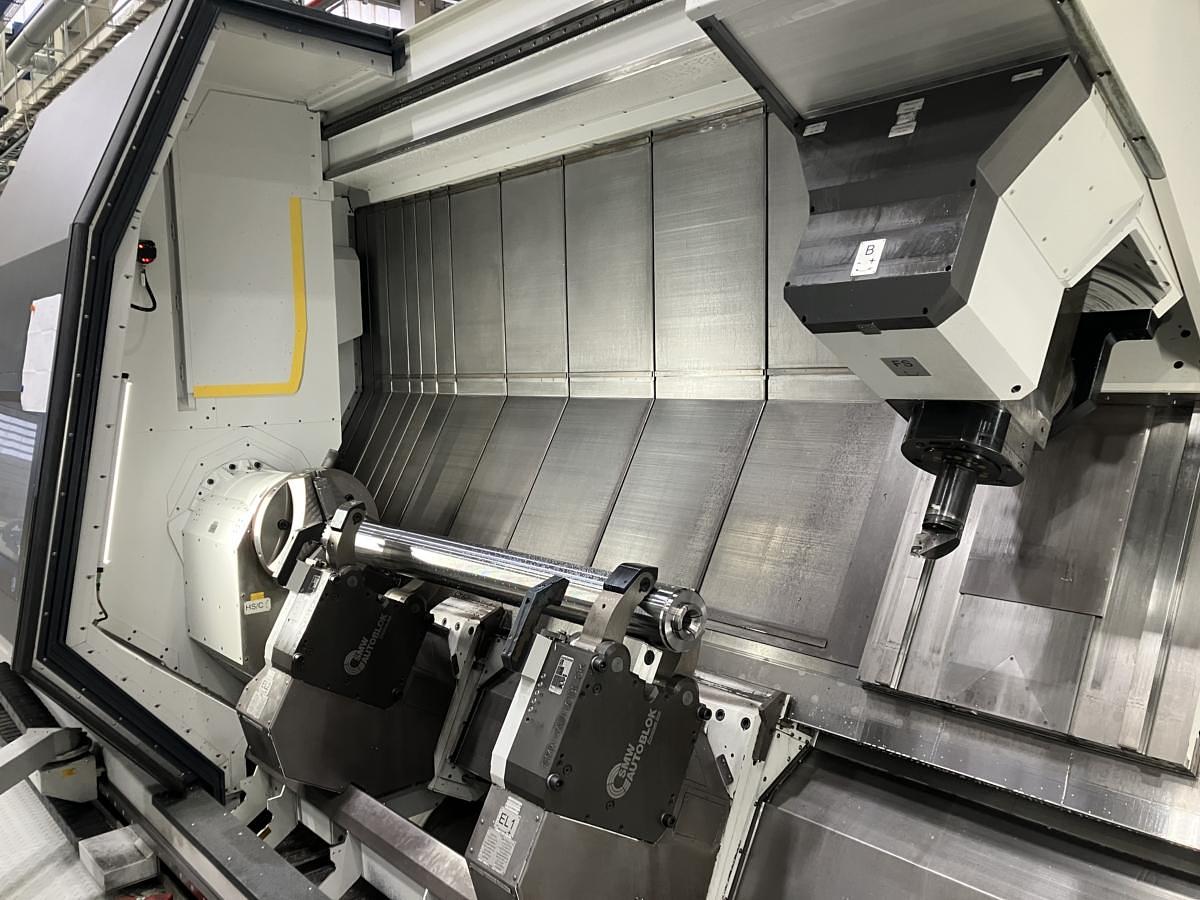

SR5 steady rest with eccentric fine adjustment 45–310 mm
C8 tool system
Tool magazine (2 magazines) 144
Tailstock
Quill diameter MK6 180 mm
Quill stroke 170 mm
Quill force (adjustable) 5–28 kN
Quill fine adjustment +/- 0.15 mm
Optional equipment
Coolant tank capacity 990 l
Workpiece measurement MC (Reinshaw)
Software Gear hobbing

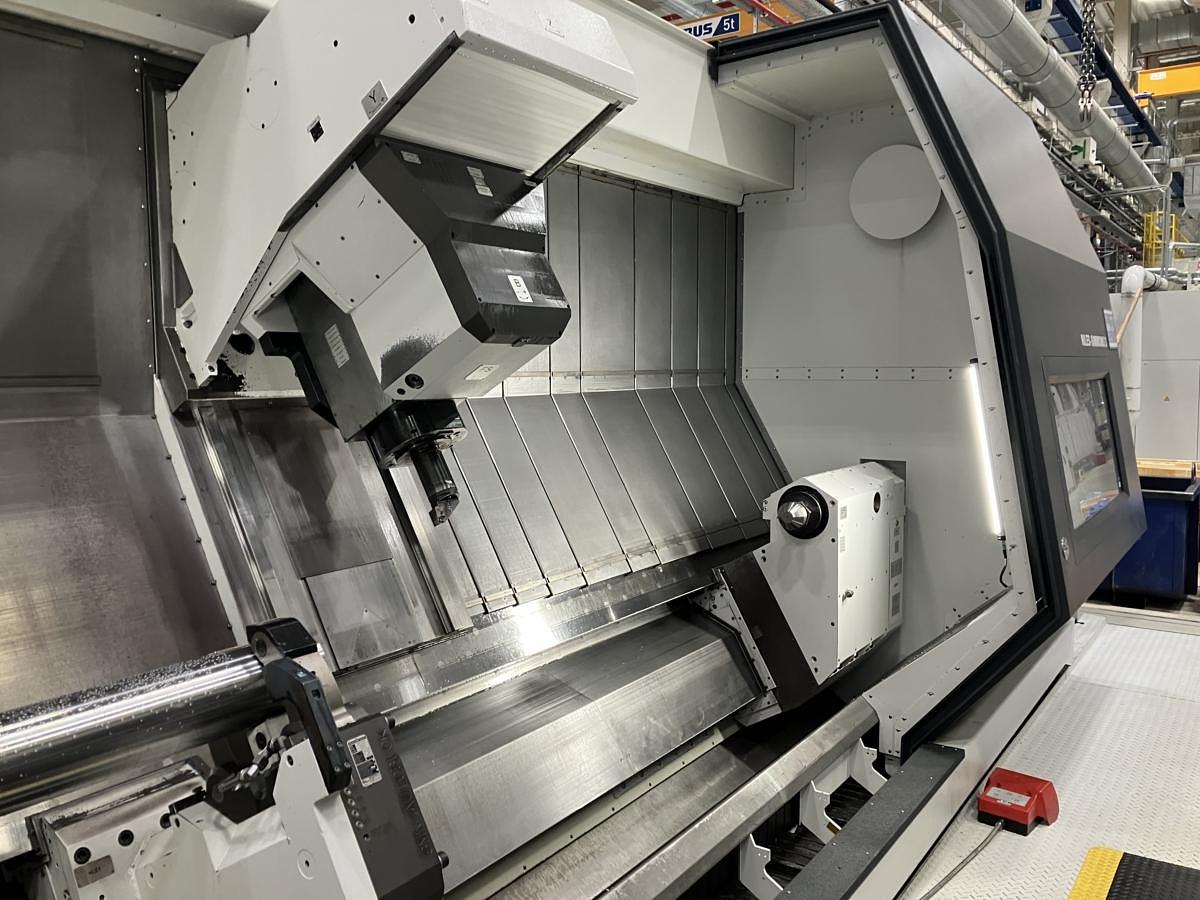

Drilling/Milling Unit:
Milling power (40/100% duty cycle) 36.5/29.8 kW
Torque up to 1110 rpm (40/100% duty cycle) 328/261 Nm
Max. spindle speed 5000 rpm
Swivel range (B-axis) -105 +95°
Vertical travel (Y-axis) -250 +250 mm
Time recording from Feb. 2025
Operating hours = 16085 h
Main spindle = 616 h
Milling spindle = 369 h
Specifications
| Manufacturer | Niles |
| Model | N30M-4500 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 5654386 |
| Between centers | 4,500 mm |
| Swing over bed | 820 mm |
| Swing over slide | 780 mm |
| Workpiece height | 1,375 mm |
| Main spindle | 2,000 rpm |
| C axis | ± 0.001° |
| X axis travel | -15 +725 mm |
| Y axis travel | -245 +4,756 mm |
| Turning diameter | 820 mm |
| Turning length | 4,500 mm |
