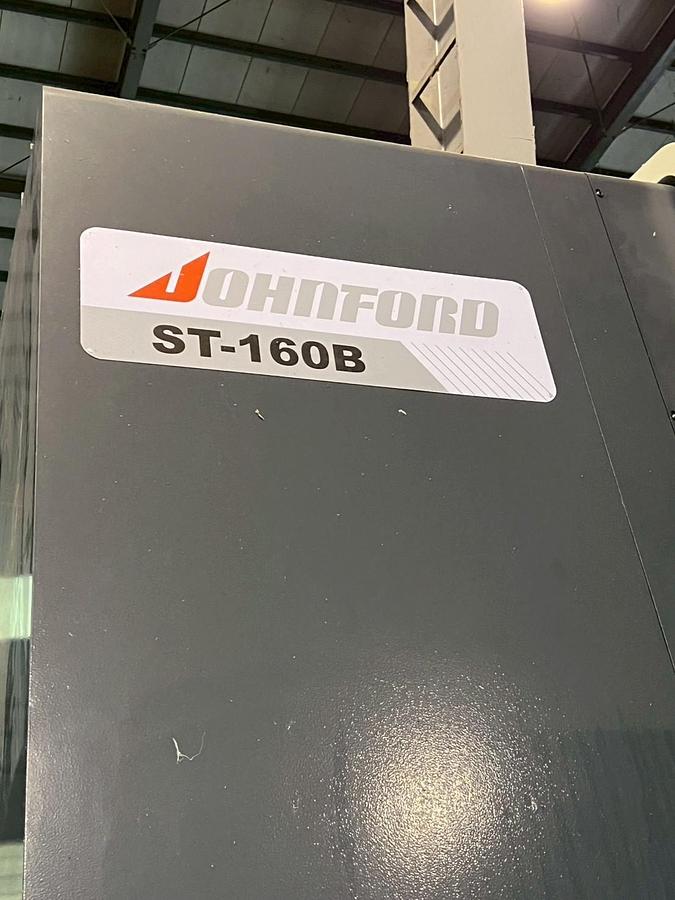

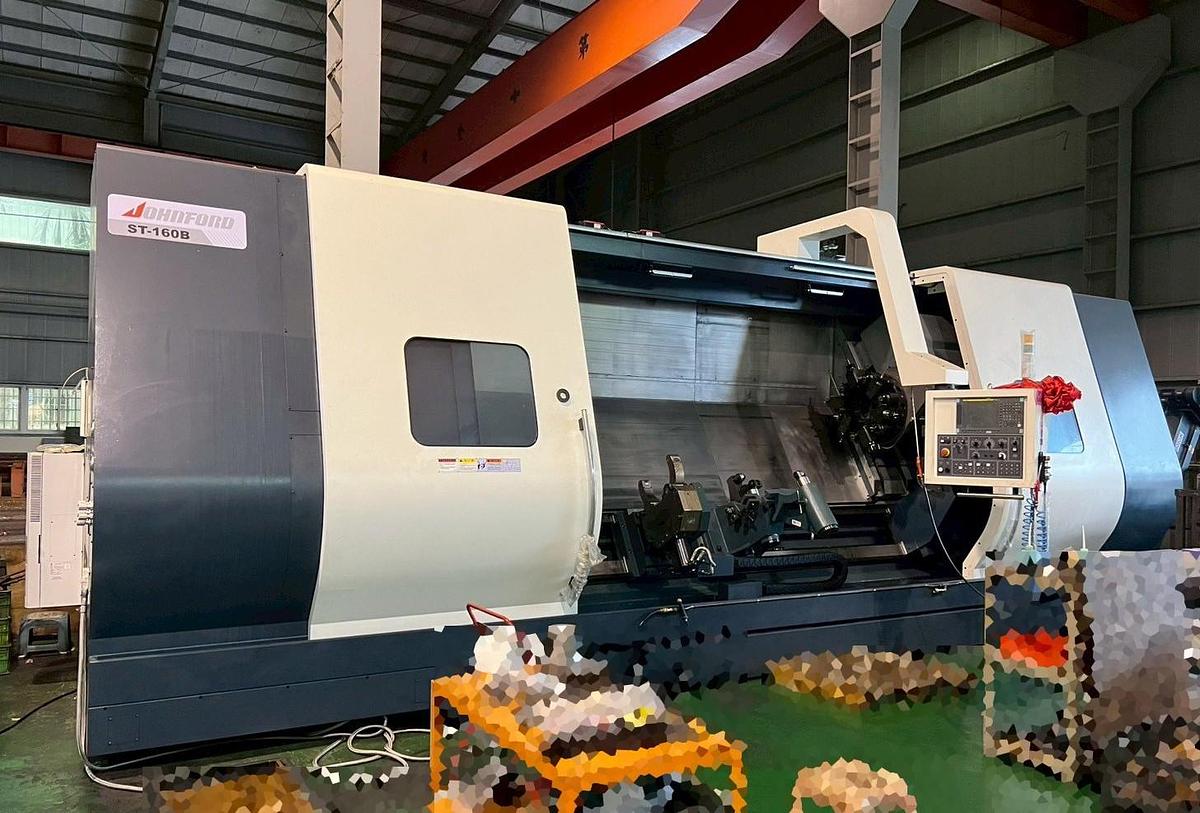

Johnford ST 160B +C+Y CNC Slant Bed Lathe with Live Spindle
Johnford ST 160B +C+Y CNC Slant Bed Lathe with Live Spindle
or
Call 770-509-0744
Description

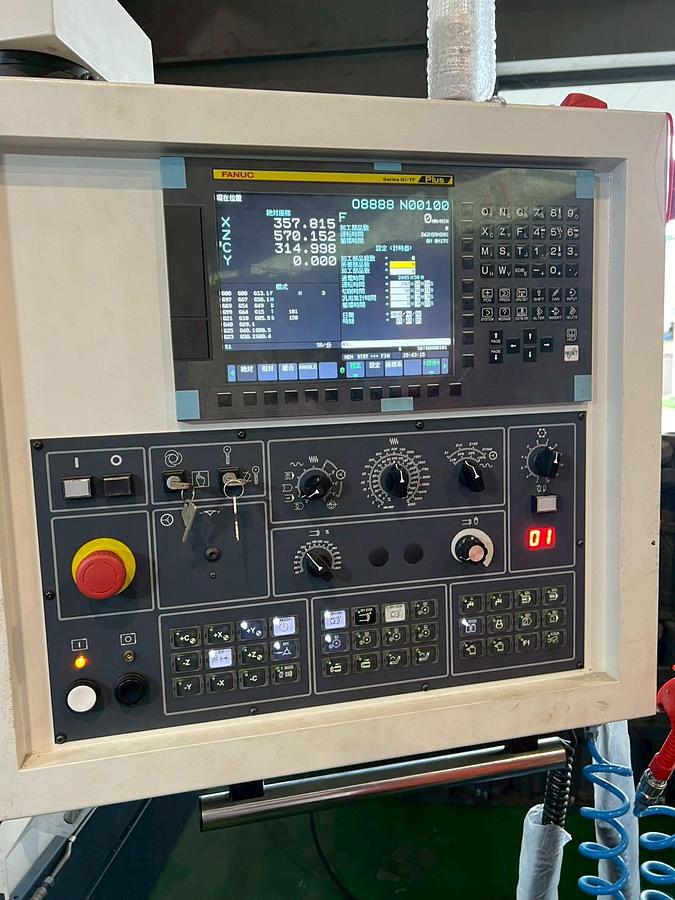

Fanuc 0i-TF PLUS CNC Control - 10.4" LCD

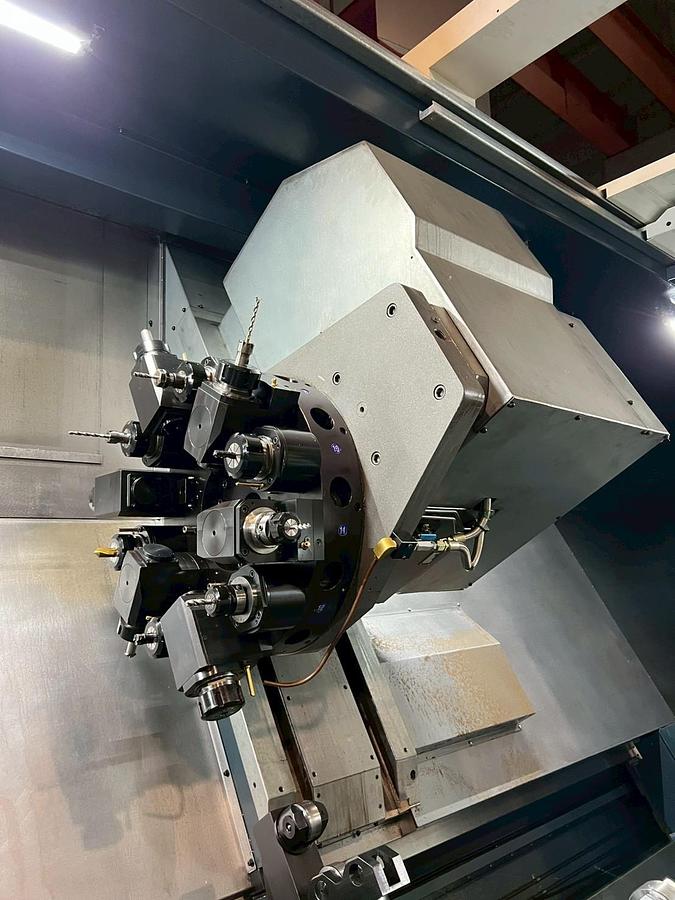

Turret：Barufalldi TBYA-320/VDI-60 12 stations
Live Tool Holders on Turret come with Machine

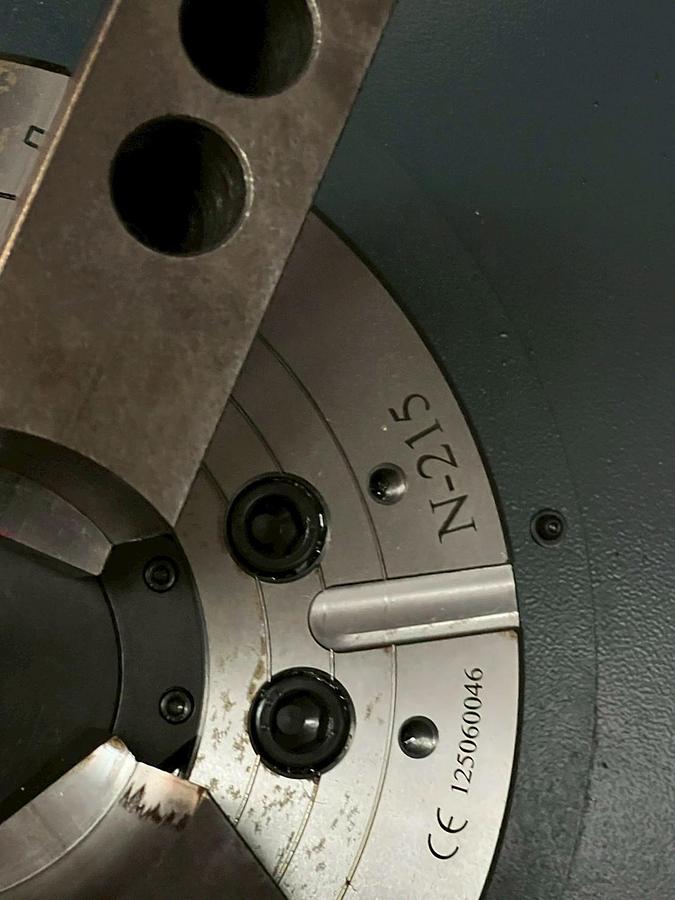

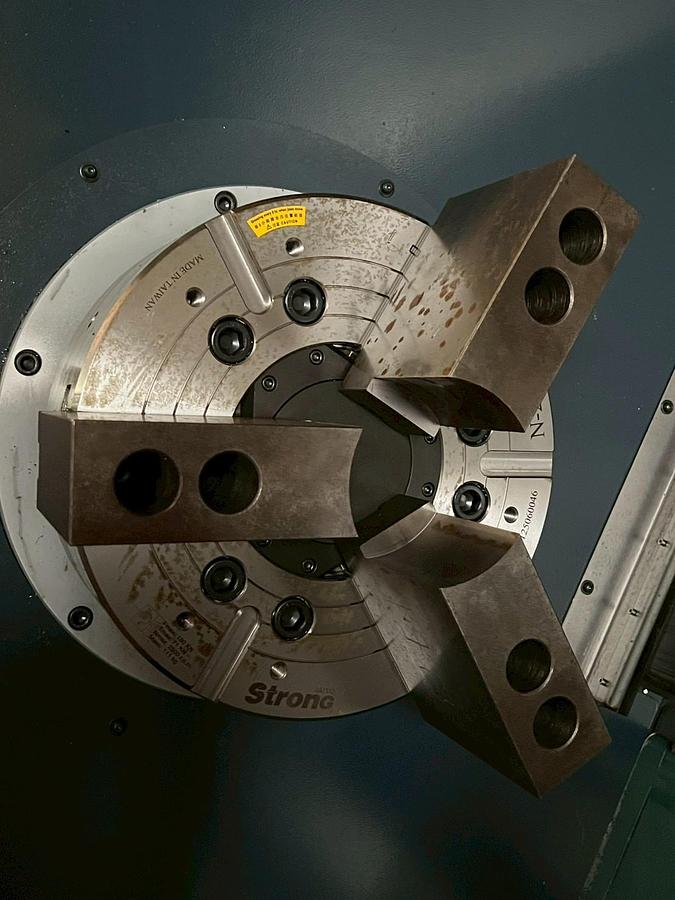

Hydraulic chuck：15”hollow

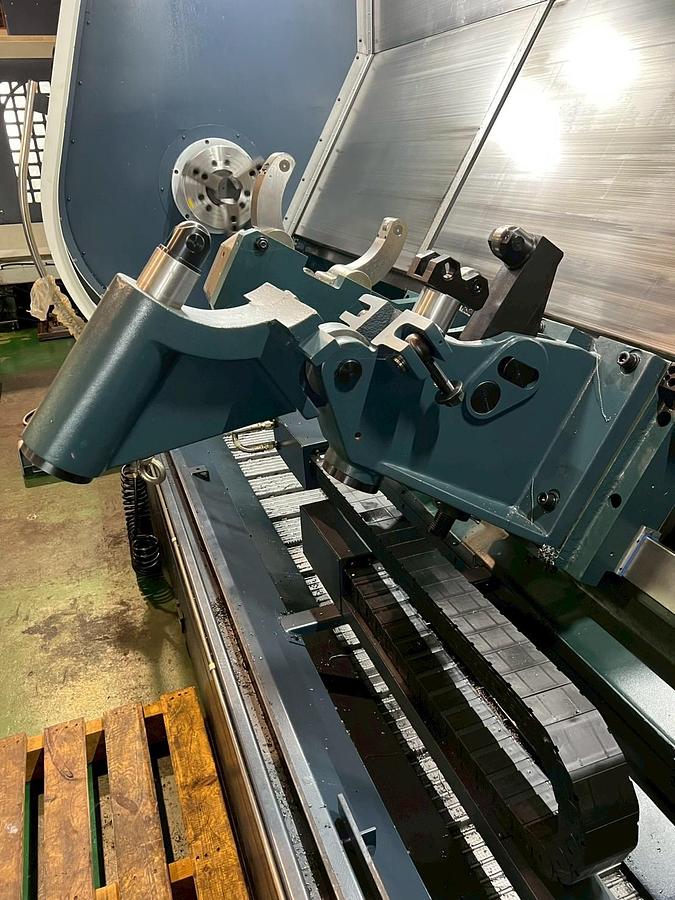

Hydraulic steady rest clamping capacity：Ø45-320 mm
Manual steady rest clamping capacity: Ø35-350 mm
CF axis
Specifications
| Manufacturer | Johnford |
| Model | ST 160B +C+Y |
| Year | 2025 |
| Condition | Used |
| Stock Number | 5654385 |
| Swing over bed | 920 mm |
| Swing over saddle | 567 mm |
| Spindle speed | 2,000 rpm |

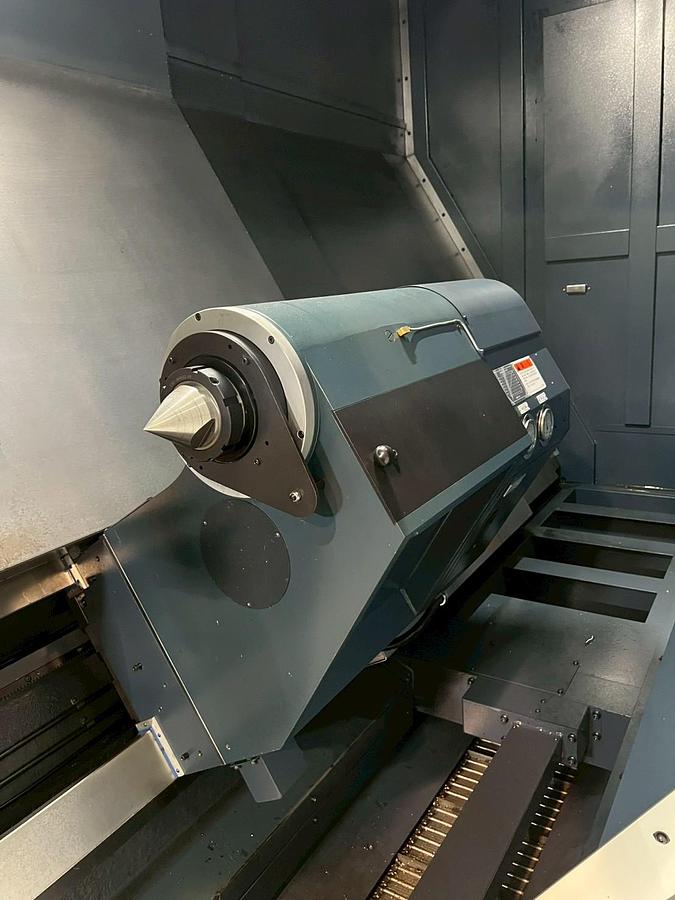

| Tailstock diameter | 200 mm |
| Tailstock travel | 150 mm |

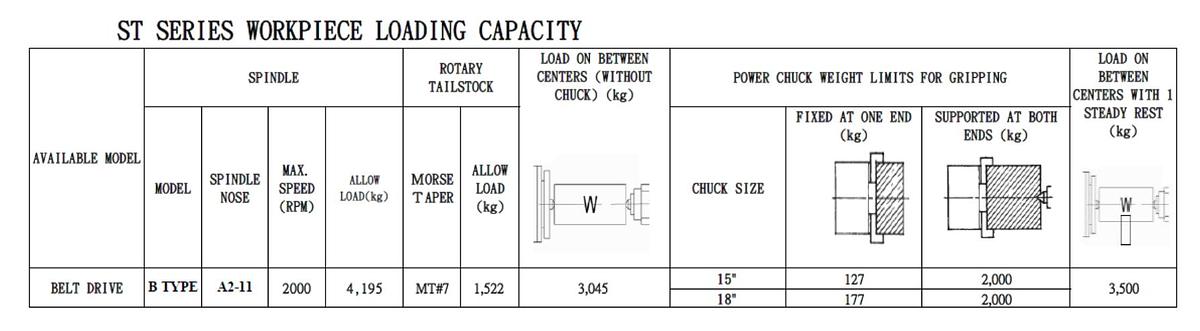

| Workpiece weight without steady rest | 2,000 kg |
| Workpiece weight with steady rest | 3,500 kg |
| X axis travel | 370 mm |
| Y axis travel | 4,050 mm |
| Z axis travel | 132.5 mm |
| Spindle bore | 180 mm |
| Spindle power | 22/26 kW (α22i) + gearbox |
| Machine dimensions | 10,104 x 2,656 x 3,227 mm |
| Machine weight | 24,500 kg |
