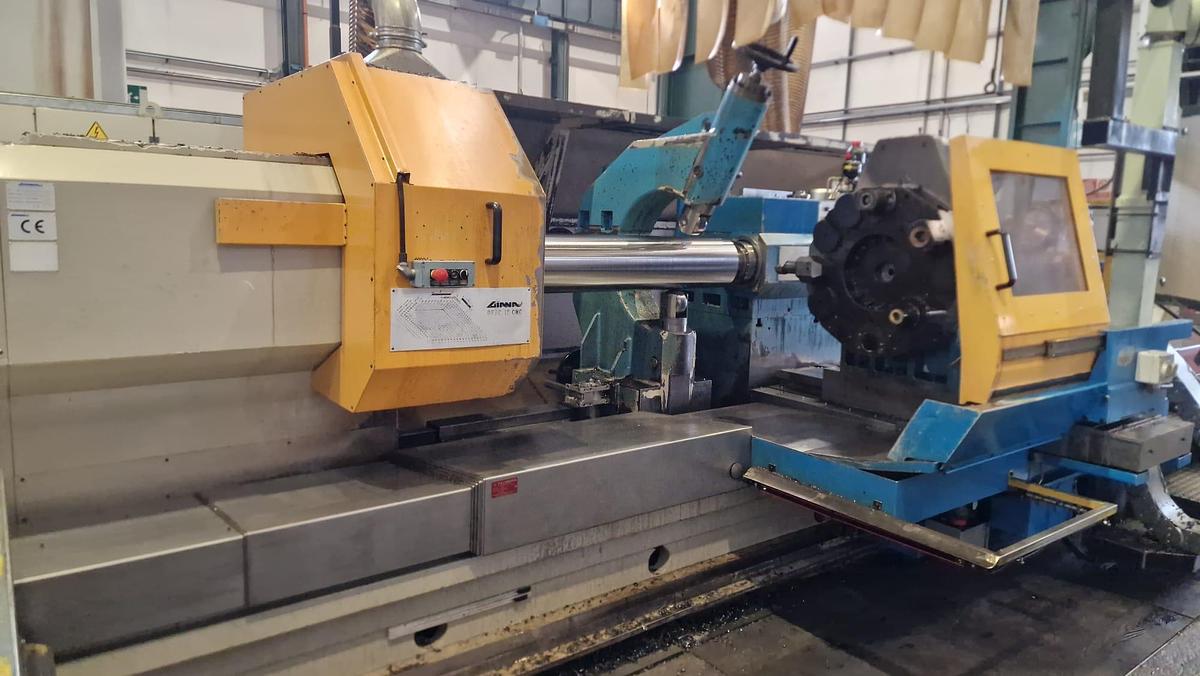

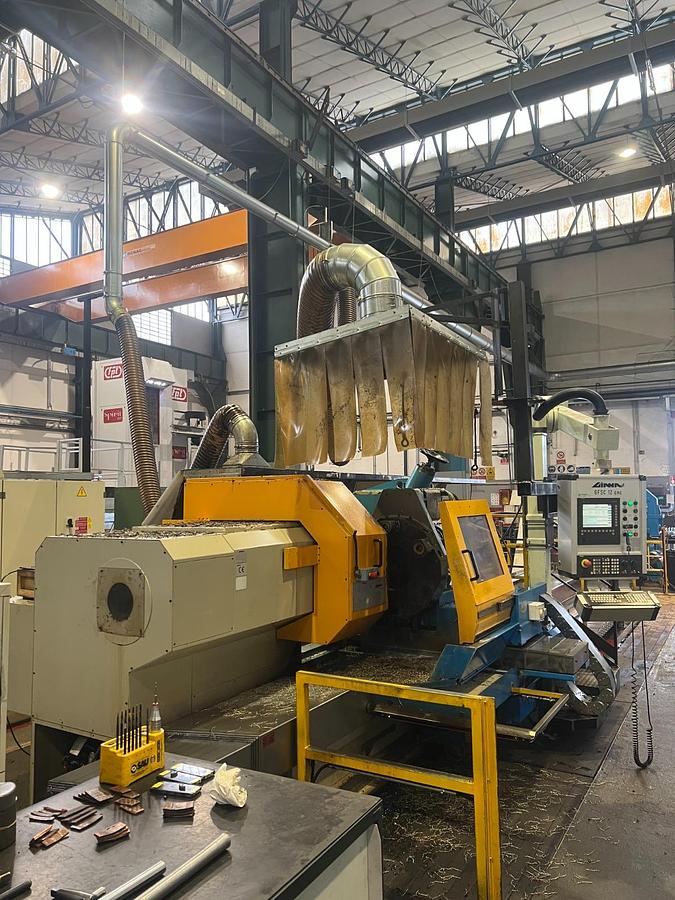

Giana GFSC 12 x 7000 CNC Thress-Slide Bed Heavy-Duty Horizontal Lathe
Giana GFSC 12 x 7000 CNC Thress-Slide Bed Heavy-Duty Horizontal Lathe
or
Call 770-509-0744
Description

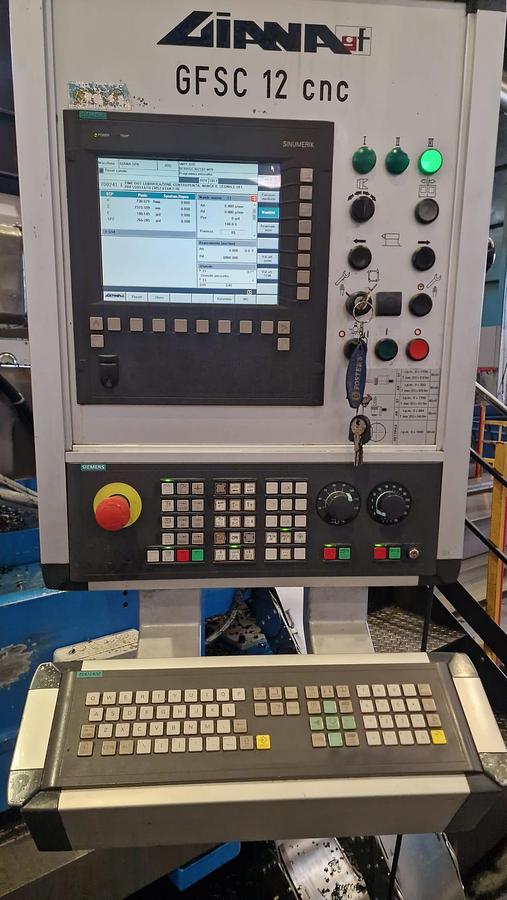

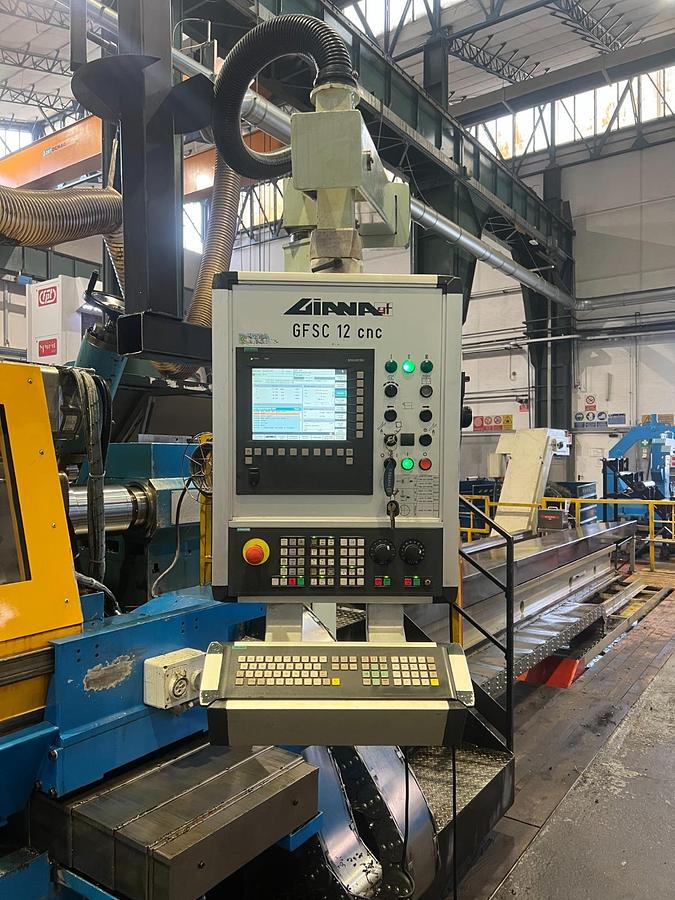

Siemens 840D CNC Control
“C” AXIS
MOTORISED TOOLS
N. 1 FOUR JAWS TABLE

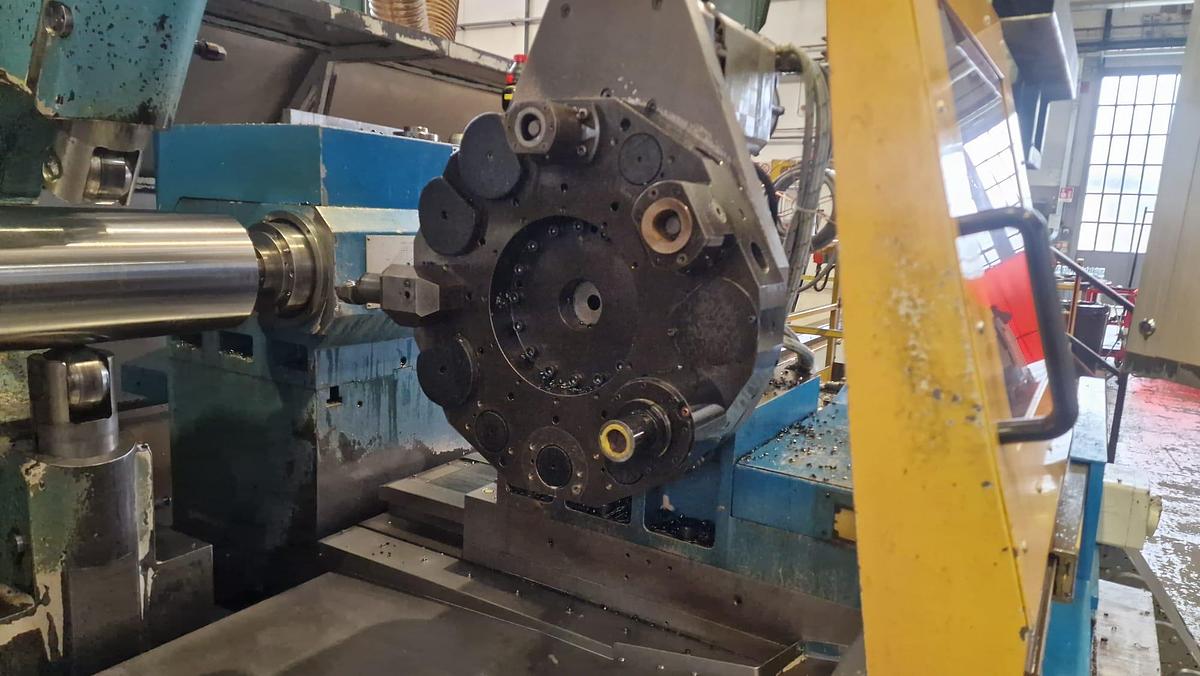

12 POSITIONS AUTOMATIC TURRET
N. 1 "C" FRAME STEADY

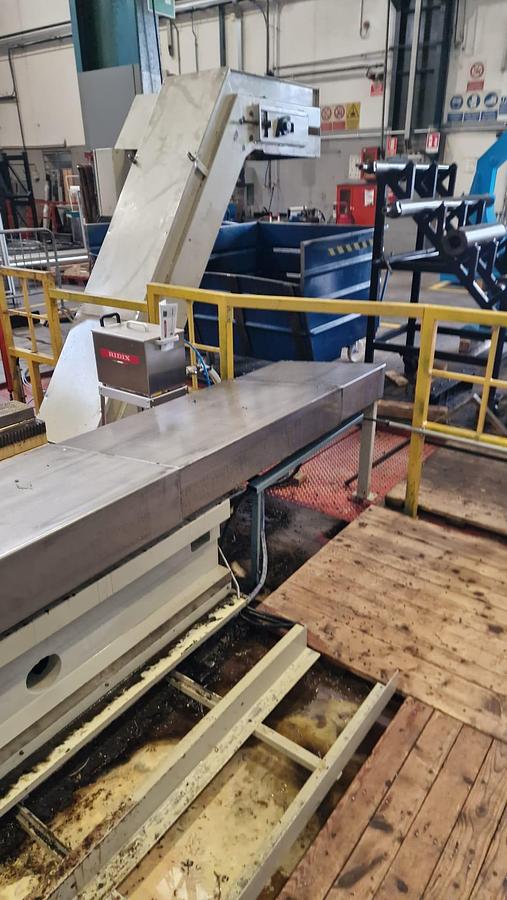

CHIPCONVEYOR
SAFETY PROTECTIONS
Specifications
| Manufacturer | Giana |
| Model | GFSC 12 x 7000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 5654384 |
| Between centers | 7,000 mm |
| Capacity between centers, without steady | 16 Ton |
| Capacity between centers, with 1 steady | 18 Ton |
| Swing over bed | 1,520 mm |
| Swing over saddle | 1,320 mm |
| Chuck speed | 2.2 - 500 rpm |
| Tailstock quill diameter | 220 mm |
| Tailstock quill travel | 300 mm |
| Spindle bore | 150 mm |
| Spindle power | 60 kW |
| Bed width | 1,250 mm |
| Machine weight | 33 Ton |
