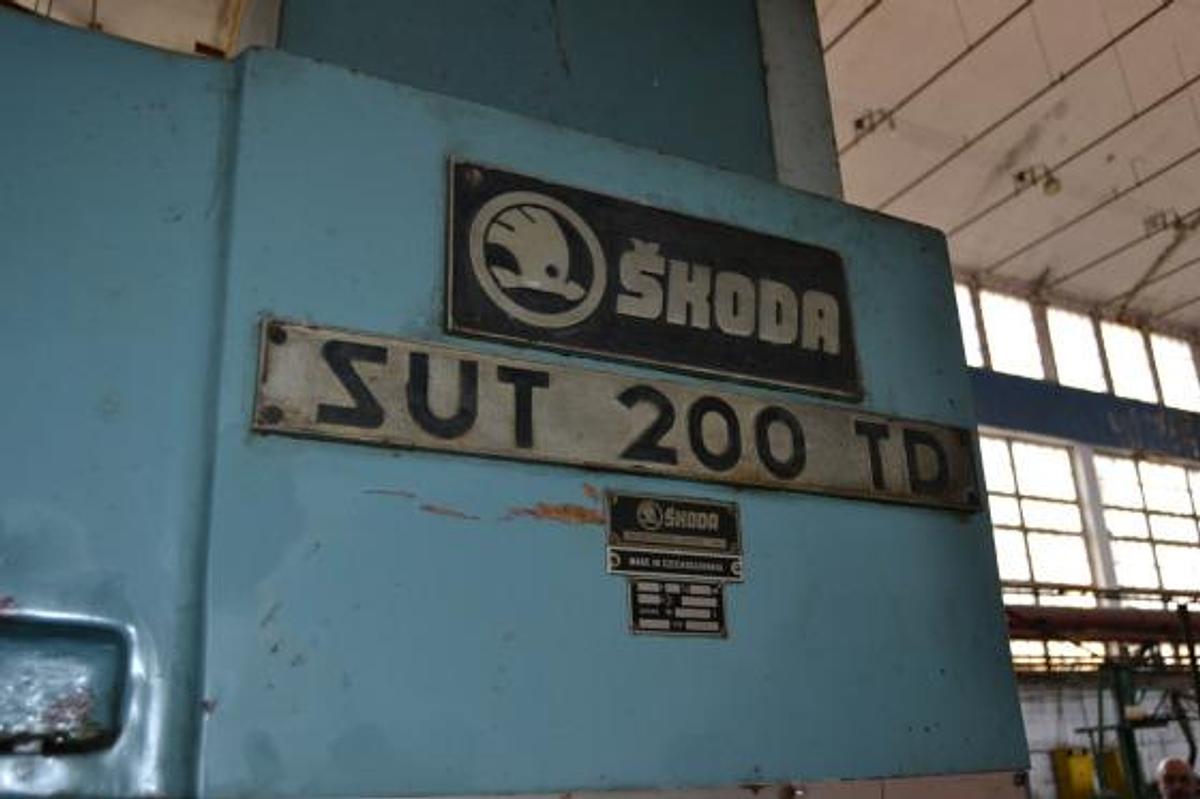

Skoda SUT 200 TD CNC Horizontal Lathe with 2 Headstocks 2 Tailstocks
Skoda SUT 200 TD CNC Horizontal Lathe with 2 Headstocks 2 Tailstocks
or
Call 770-509-0744
Description

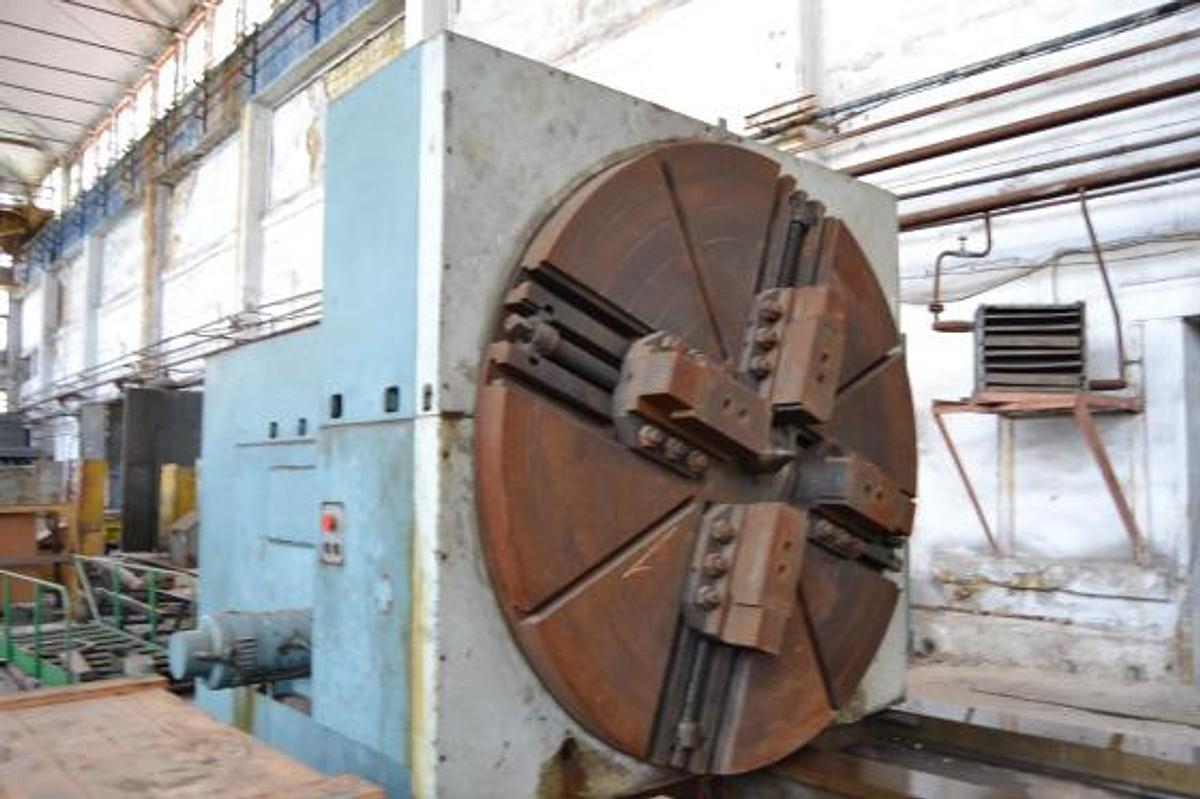

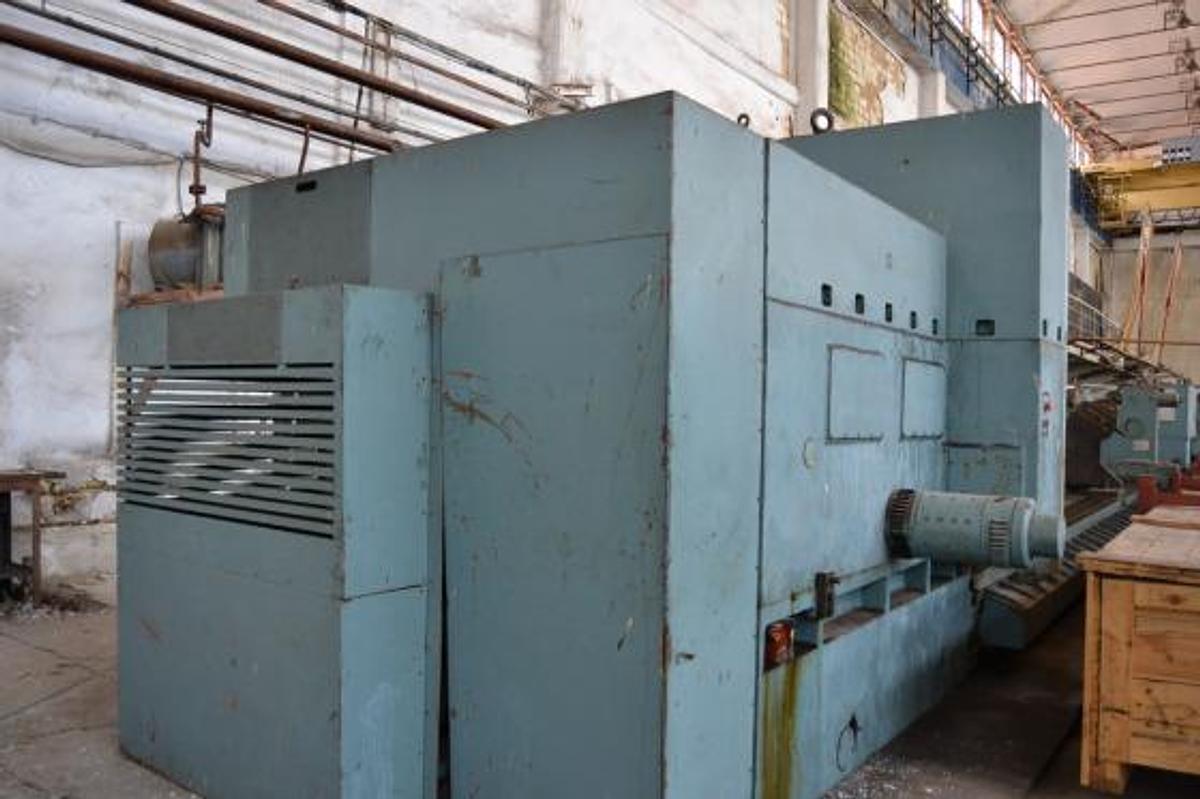

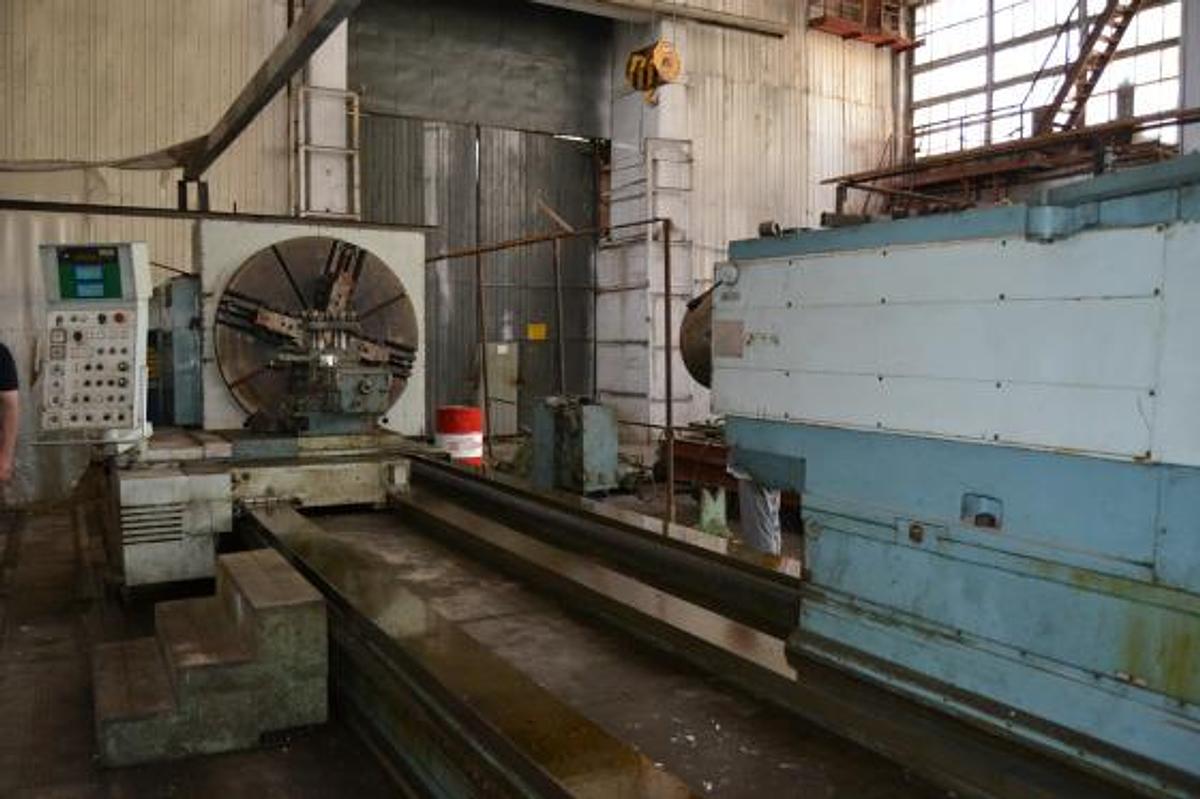

- Tandem construction on 1 bed left headstock + right headstock

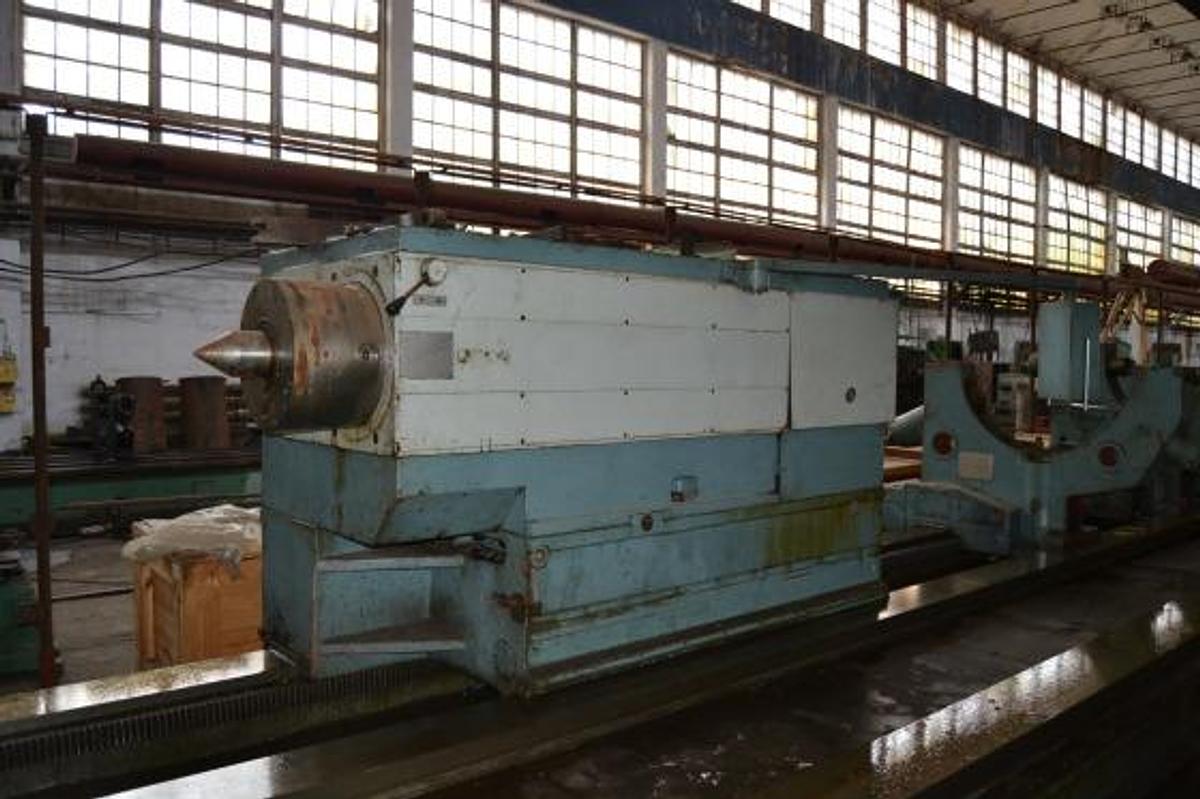

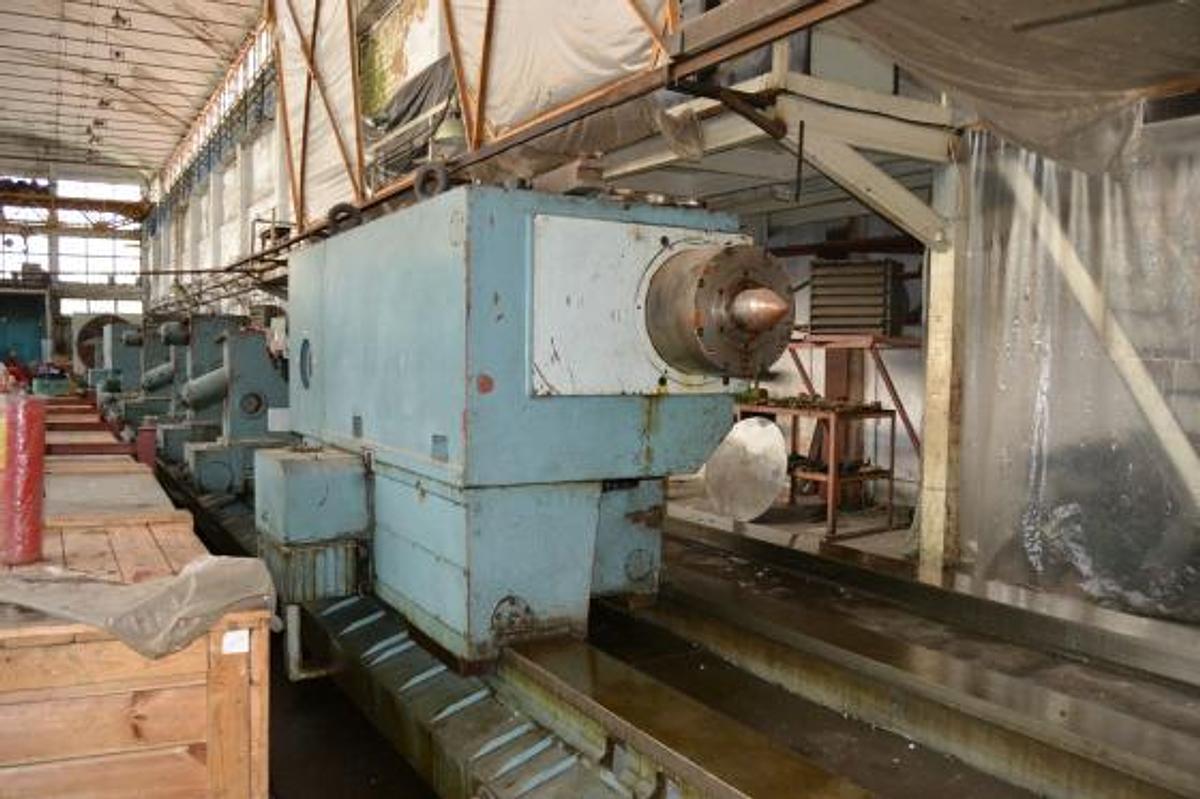

- Mirror double tailstock left and right

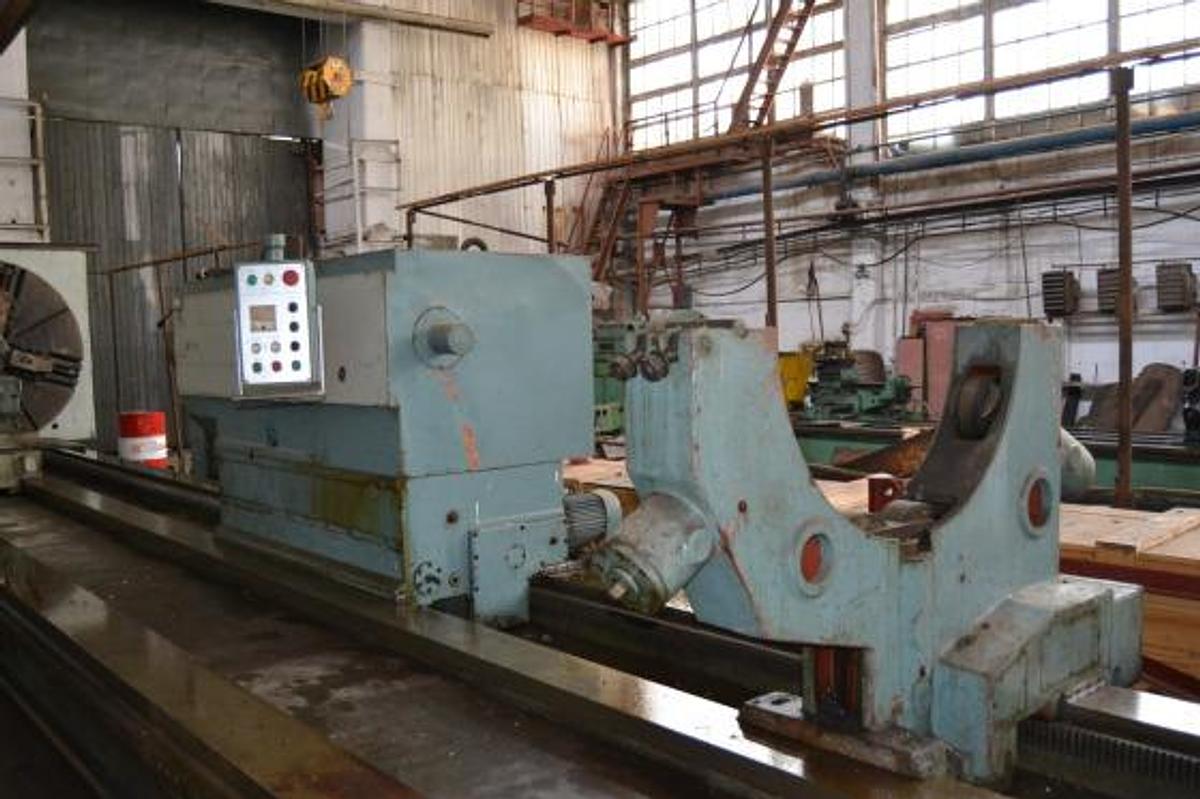

- Double carriage

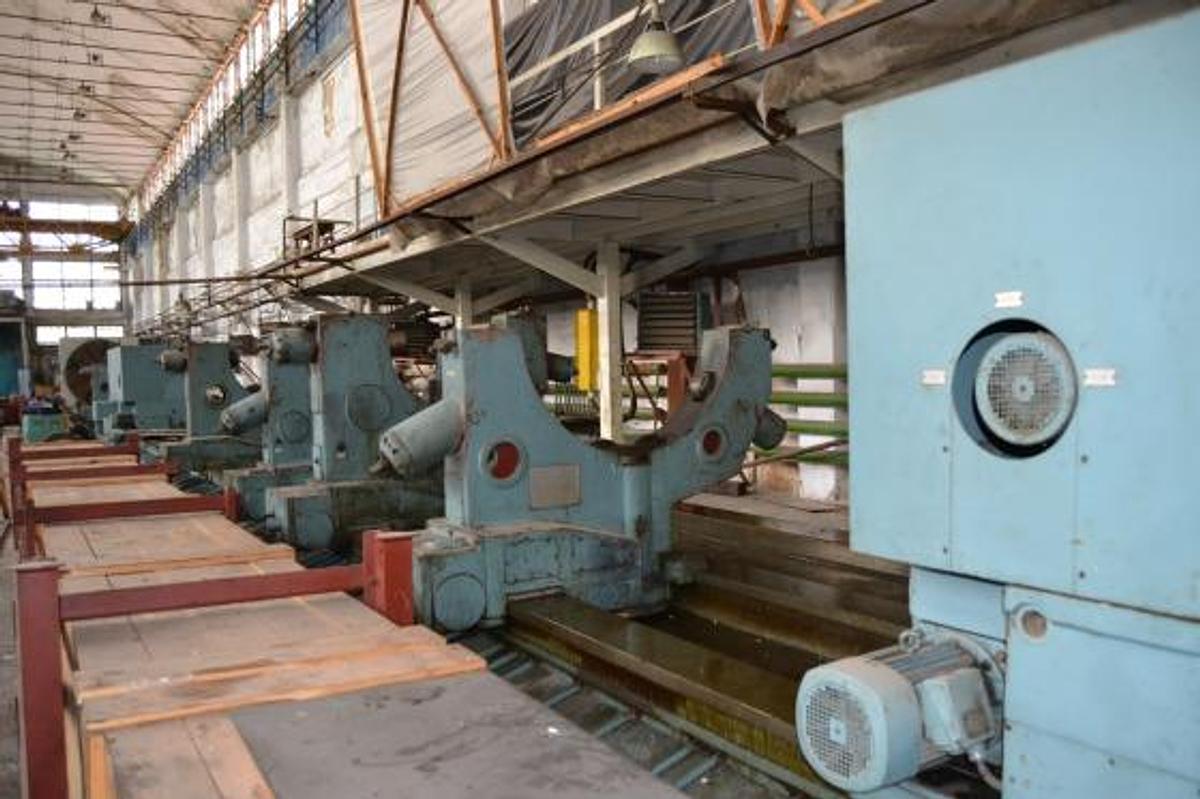

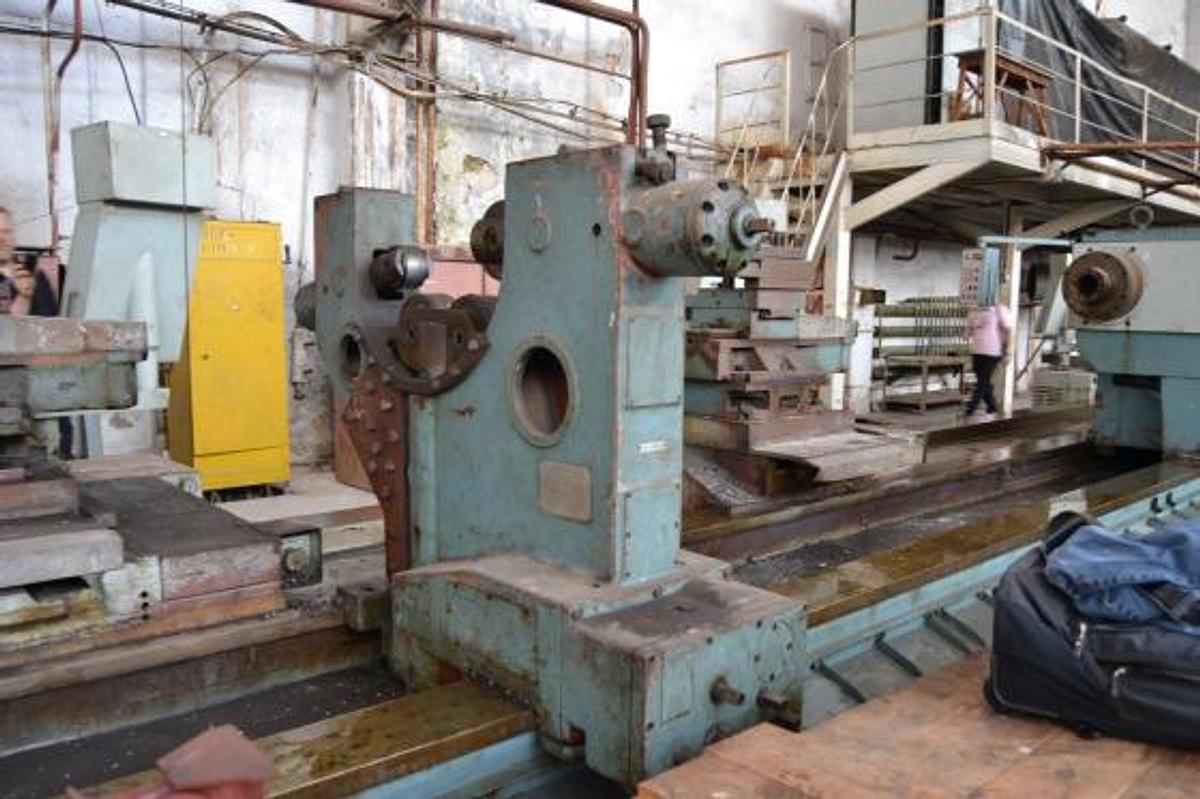

- Steady rest included
- Roller rest included

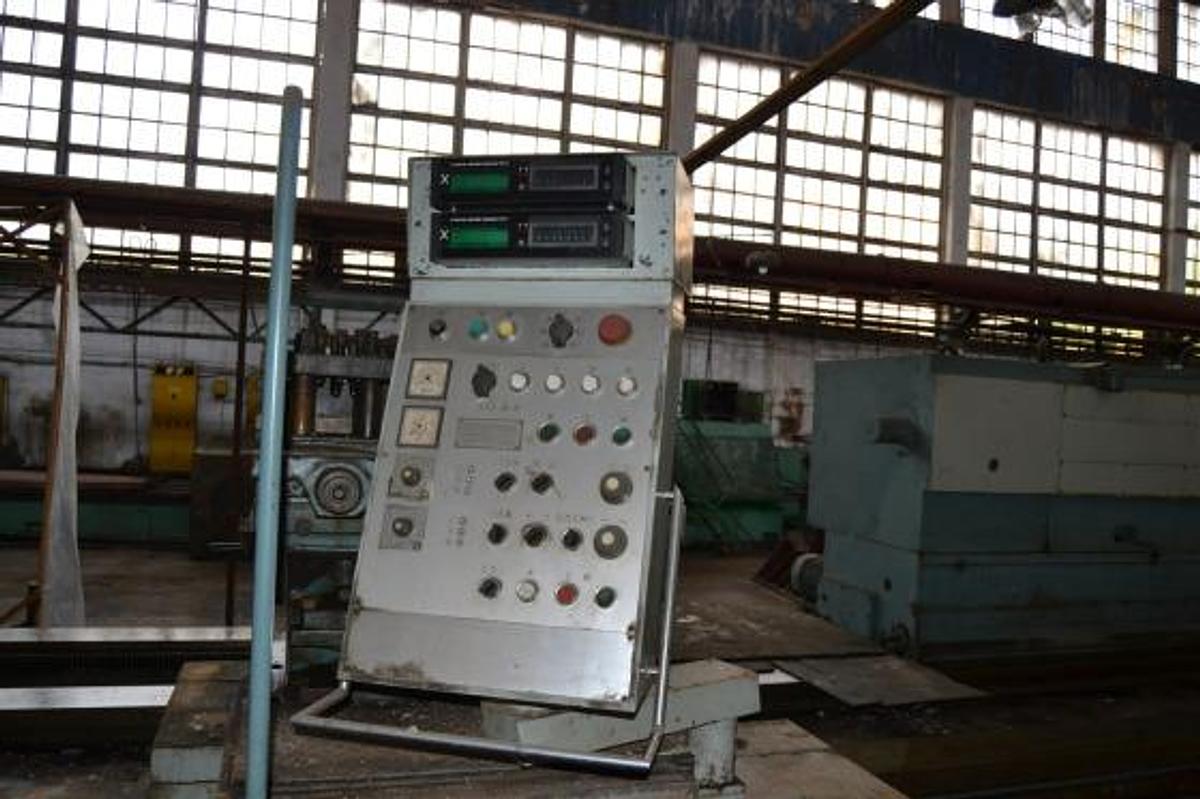

- Opperator panel with scales needs attension and replacement
- Motorized tailstock for each side left and right

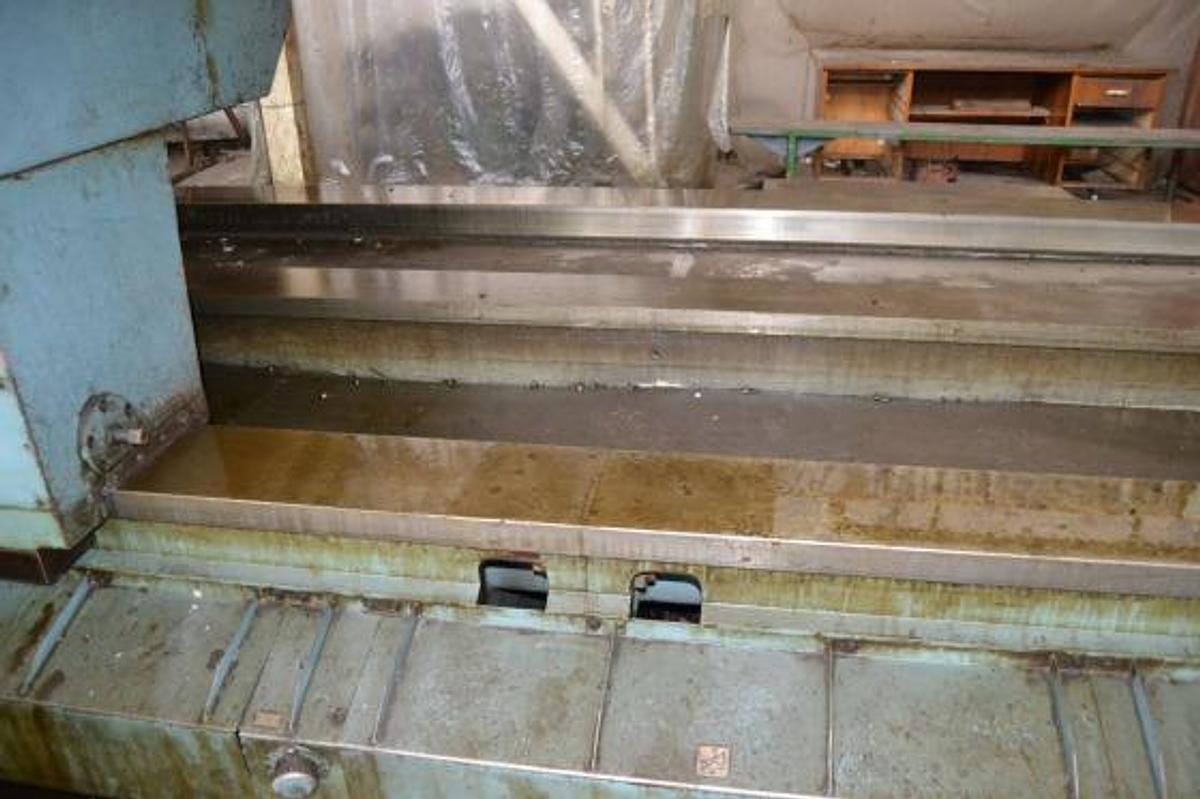

- 3 bed way construction

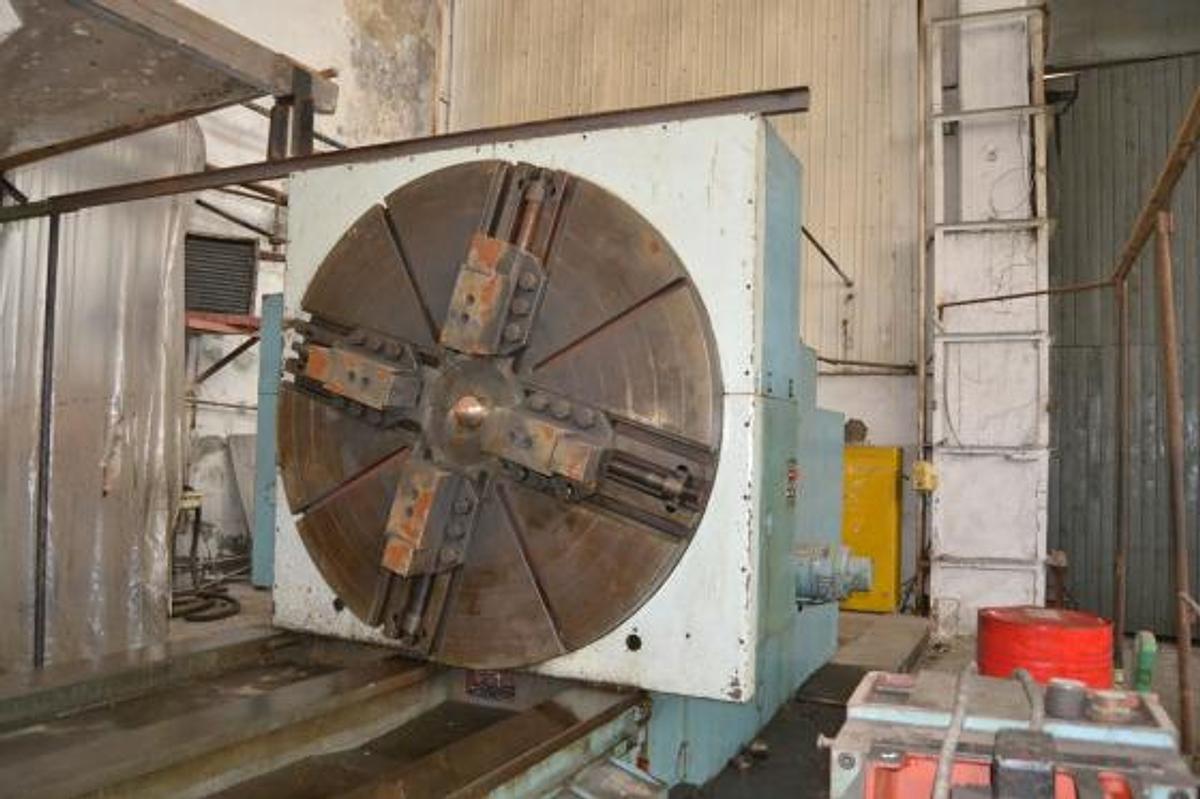

- Torq on chuck 160.000 Nm
- Minimum turning diameter Ø 315 mm
Industries for lathe:
- Ship yard
- Propeller shaft
- Hydraulic cylinder shaft
- Camshaft
- Defence & Aerospace
- Rolls and Shaft for steelmills
- Crankshaft
Specifications
| Manufacturer | Skoda |
| Model | SUT 200 TD |
| Year | 1984 |
| Condition | Used |
| Stock Number | 5654373 |
| Turning length | 35,000 mm |
| Swing over bed | 2,000 mm |
| Swing over slide | 1,600 mm |
| Chuck speed | 180 rpm |
| Tailstock diameter | 400 mm |
| Stroke pinhole | 250 mm |
| Spindle power | 75 kW |
| Spindle torque | 160,000 Nm |
| Minimum turning diameter | 315 mm |
| Bed width | 1,600 mm |
| Feeds XZ axis | 5,000 mm/min |
| Machine dimensions | 42,000 x 3,250 x 3,250 mm |
| Machine height | 3,250 mm |
