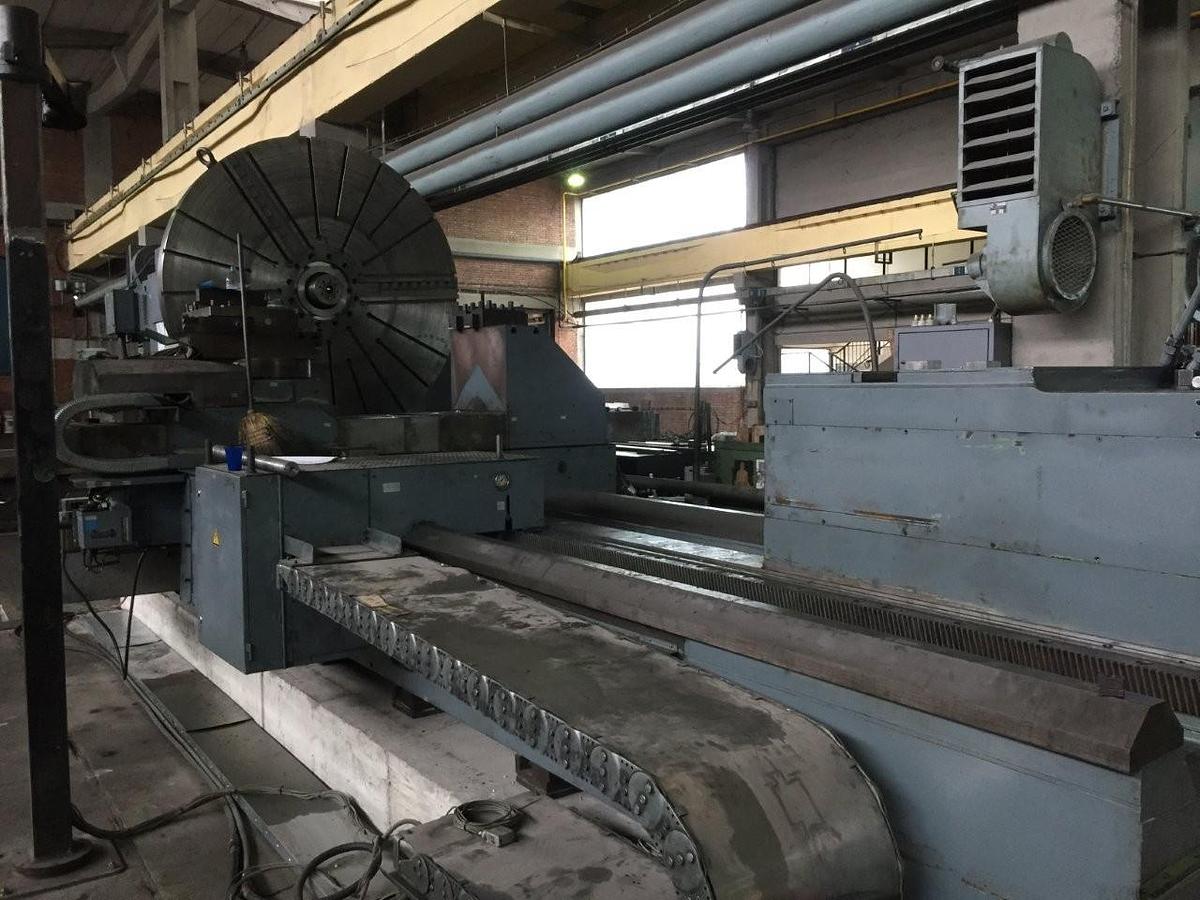

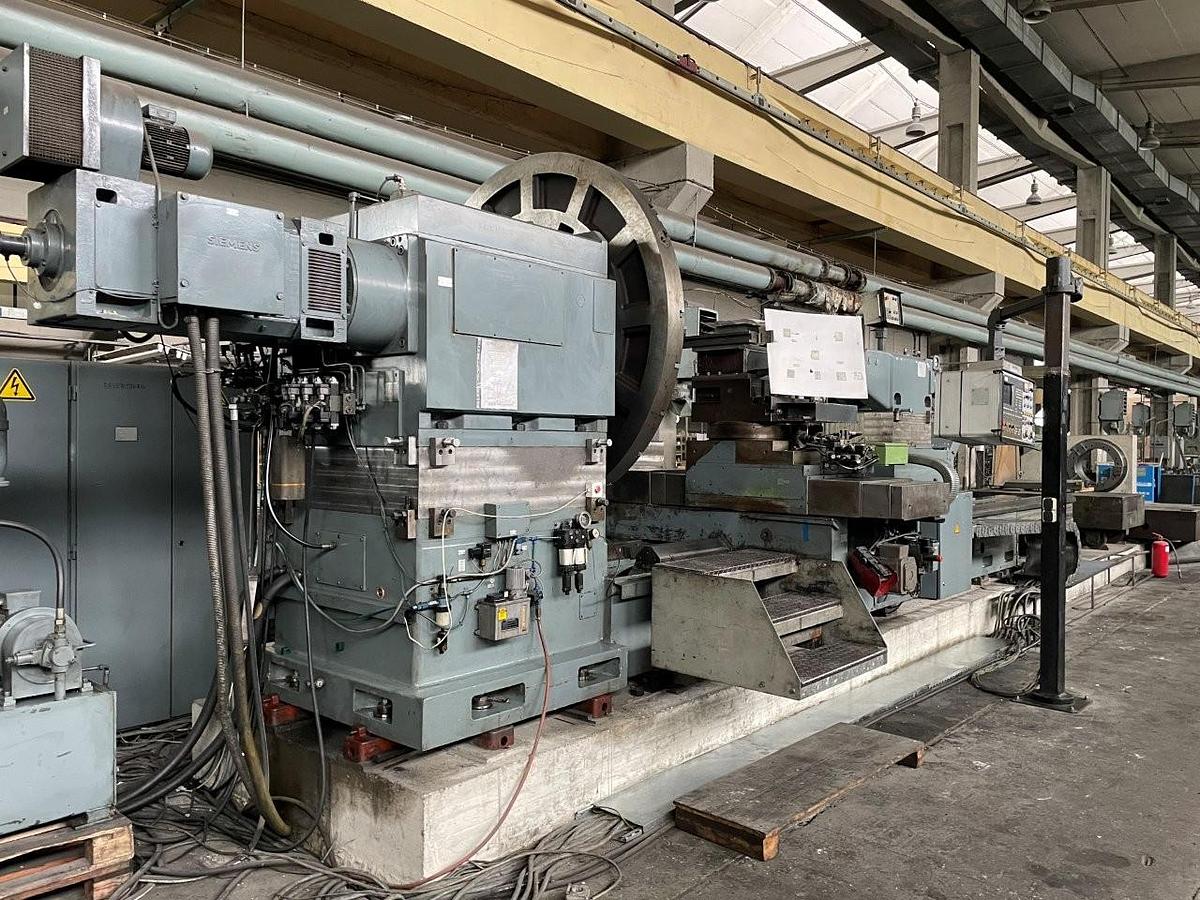

Ravensburg KL 3-800 CNC High Precision Horizontal Lathe
Ravensburg KL 3-800 CNC High Precision Horizontal Lathe
or
Call 770-509-0744
Description

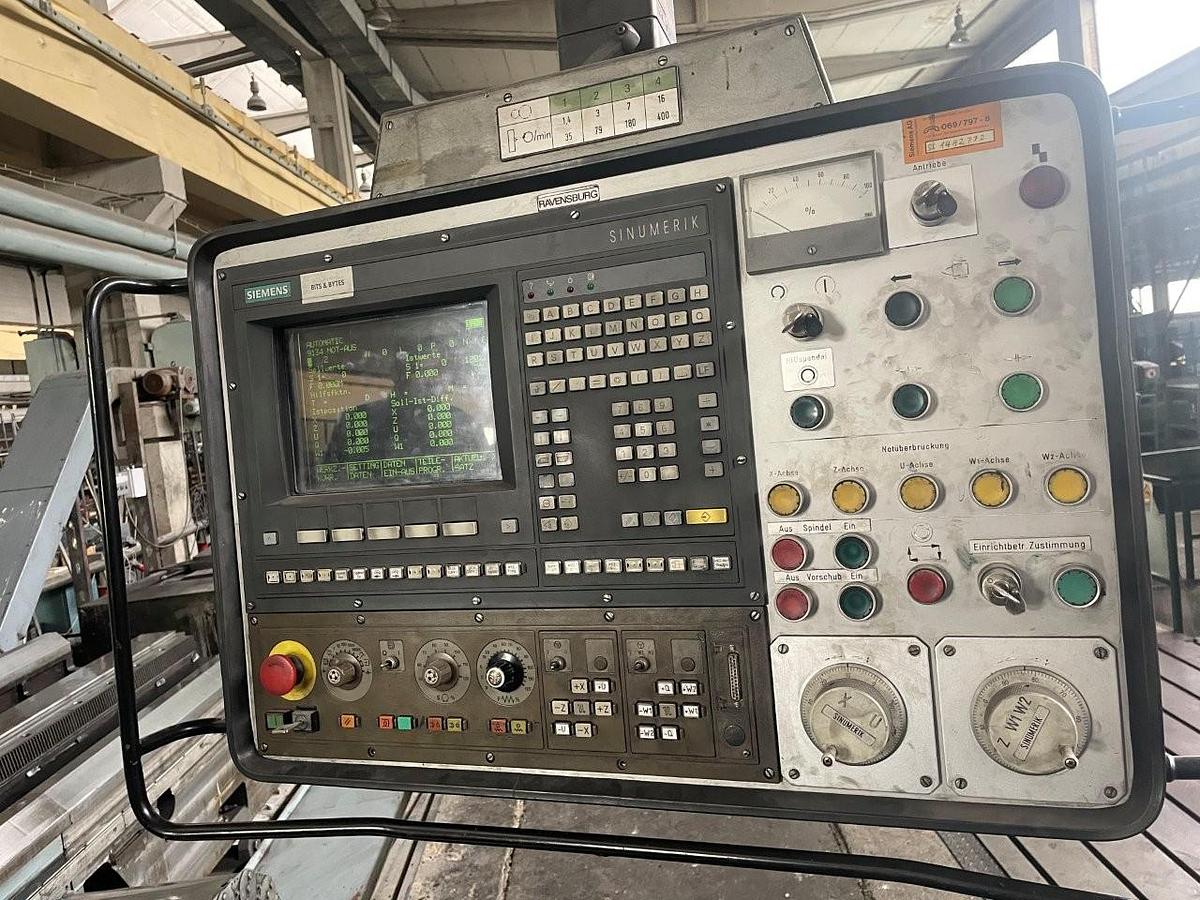

- SIEMENS 8T CNC Control

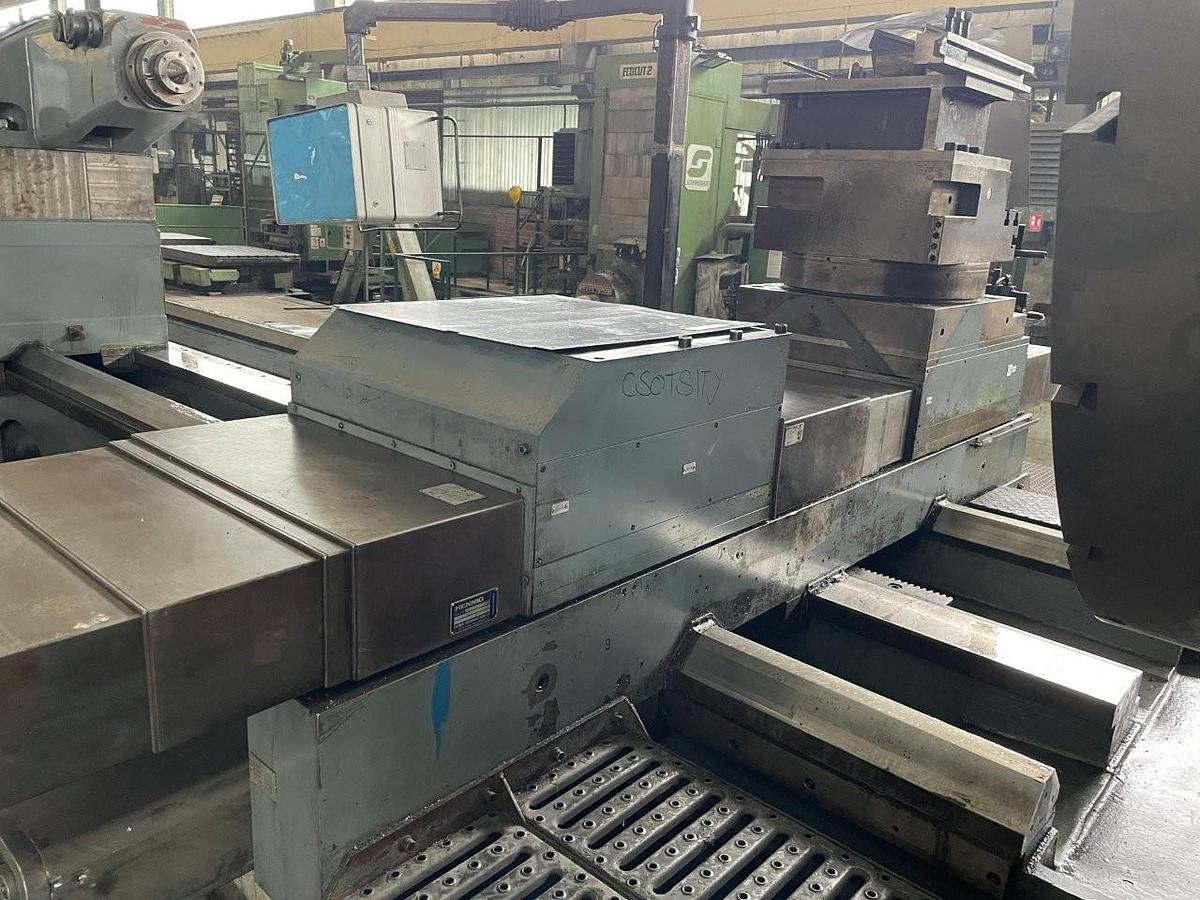

- Slide with two working positions
- Sauter 4 side tool holder
- Revolver head: 4 pcs front, 1 tool position back side

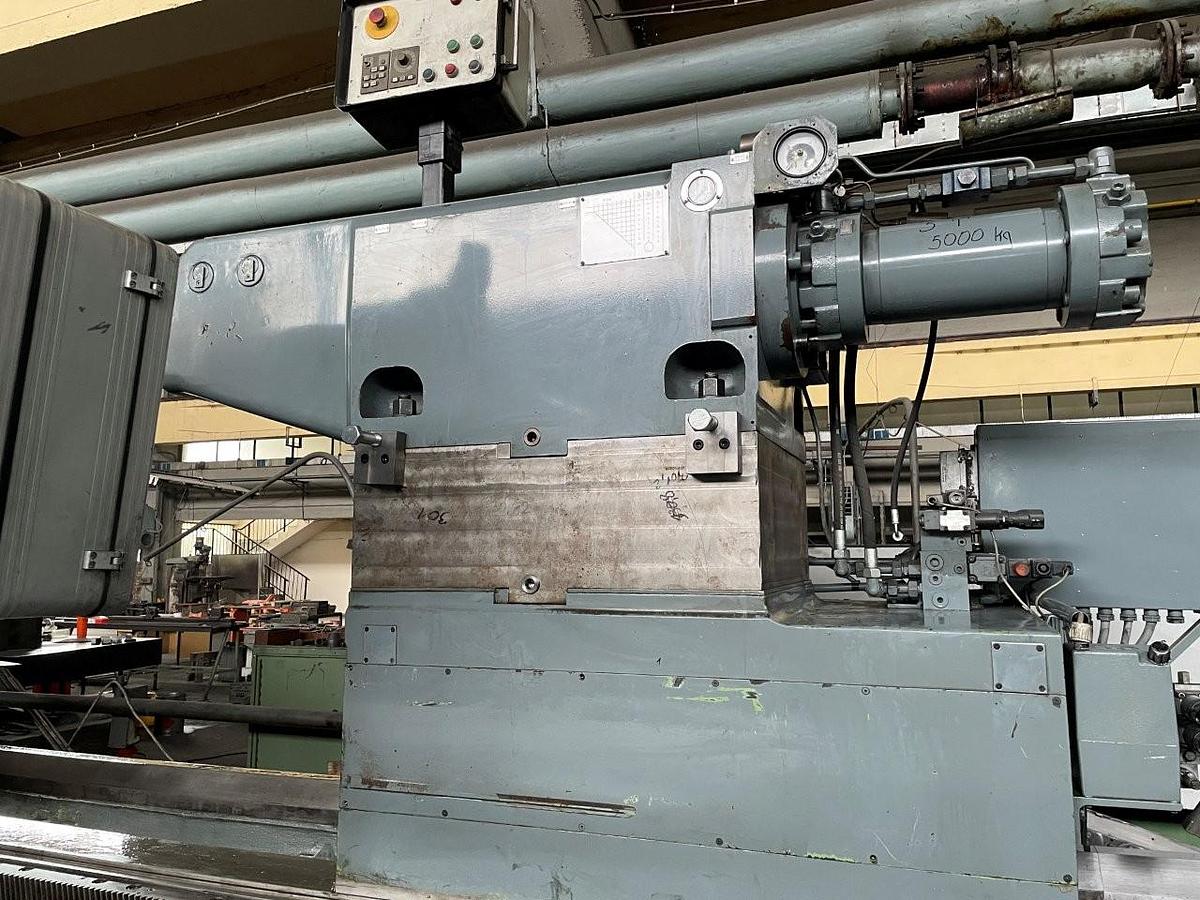

- Tailstock
- Chip conveyor
- Suitable for both
- High volume material removal
- High precision turning
Specifications
| Manufacturer | Ravensburg |
| Model | KL 3-800 |
| Year | 1988 |
| Condition | Used |
| Stock Number | 5654367 |
| Turning length | 6,000 mm |
| Capacity between centers | 4,500 - 20,000 kg |
| Swing over bed | 2,450 mm |
| Turning diameter over telescopic covers | 2,000 mm |
| Swing over slide | 1,380 mm |

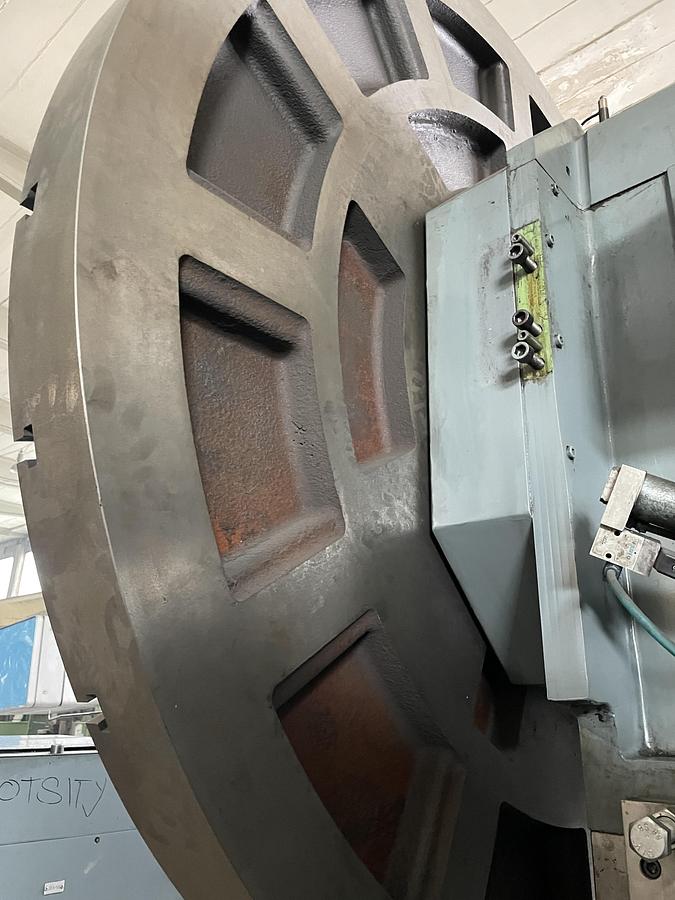

| Faceplate diameter | 2,000 mm (3 Chucks) |
| Chuck speed | 4 - 400 rpm |
| Spindle bore | 200 mm |

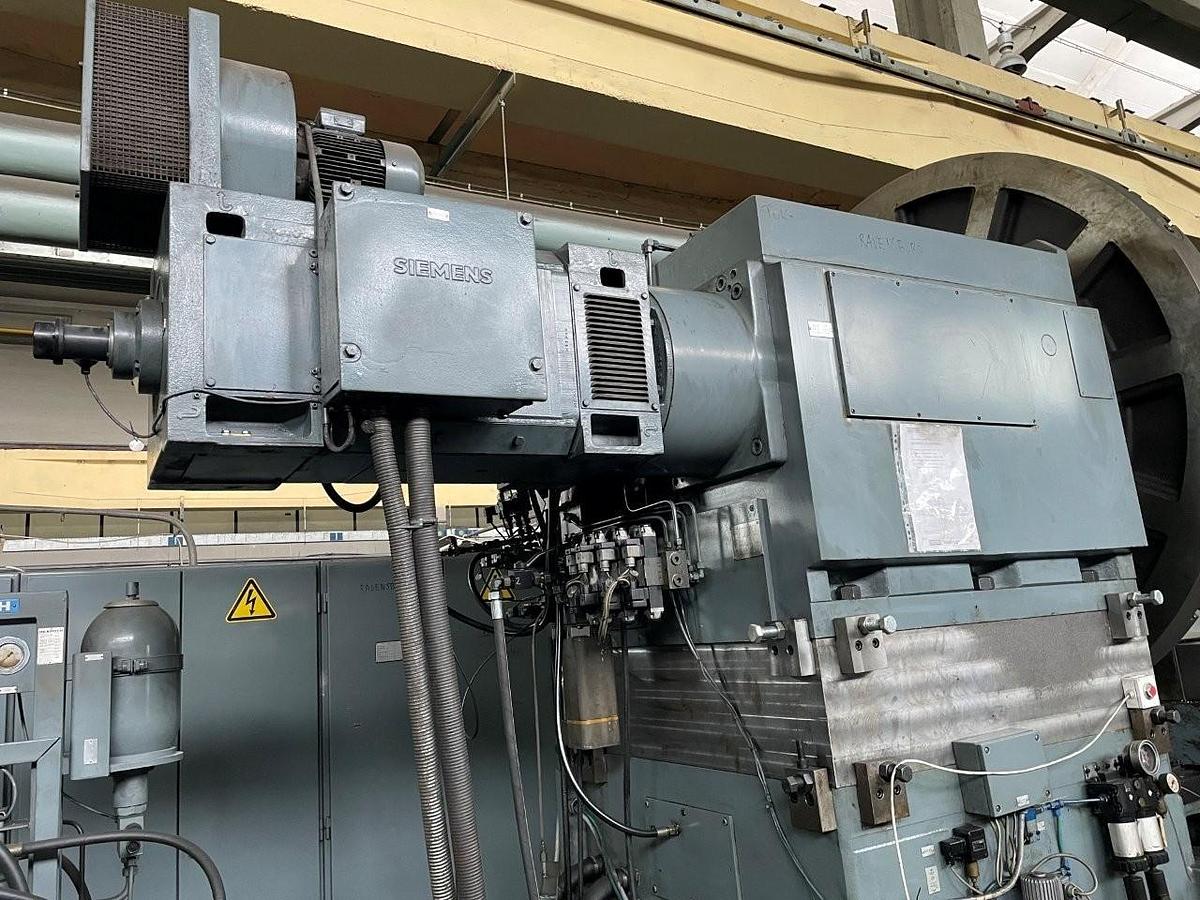

| Main motor - Siemens | 95.5 kW |
| Max torque | 40,000 Nm |
| Overall power demand | 125 kW |
| Machine weight | 48,000 kg |
