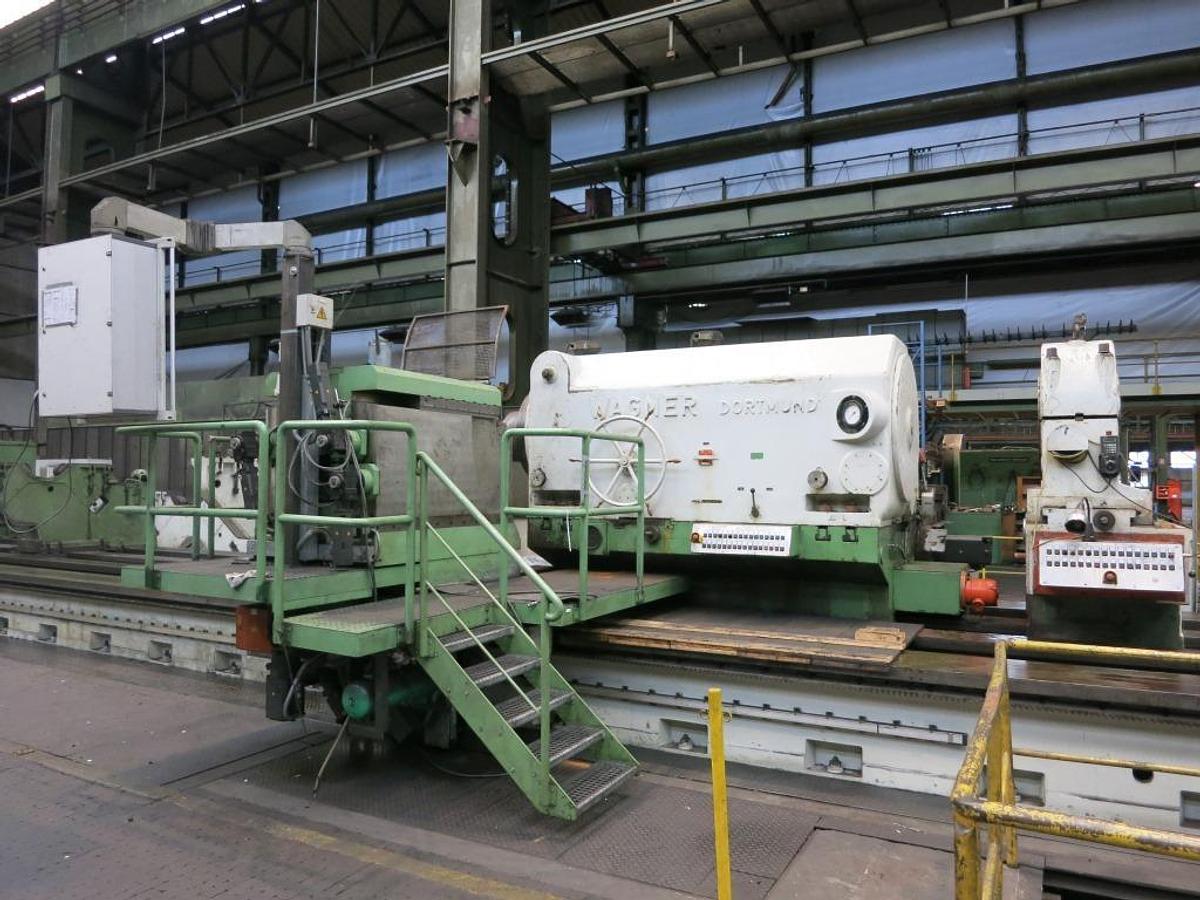

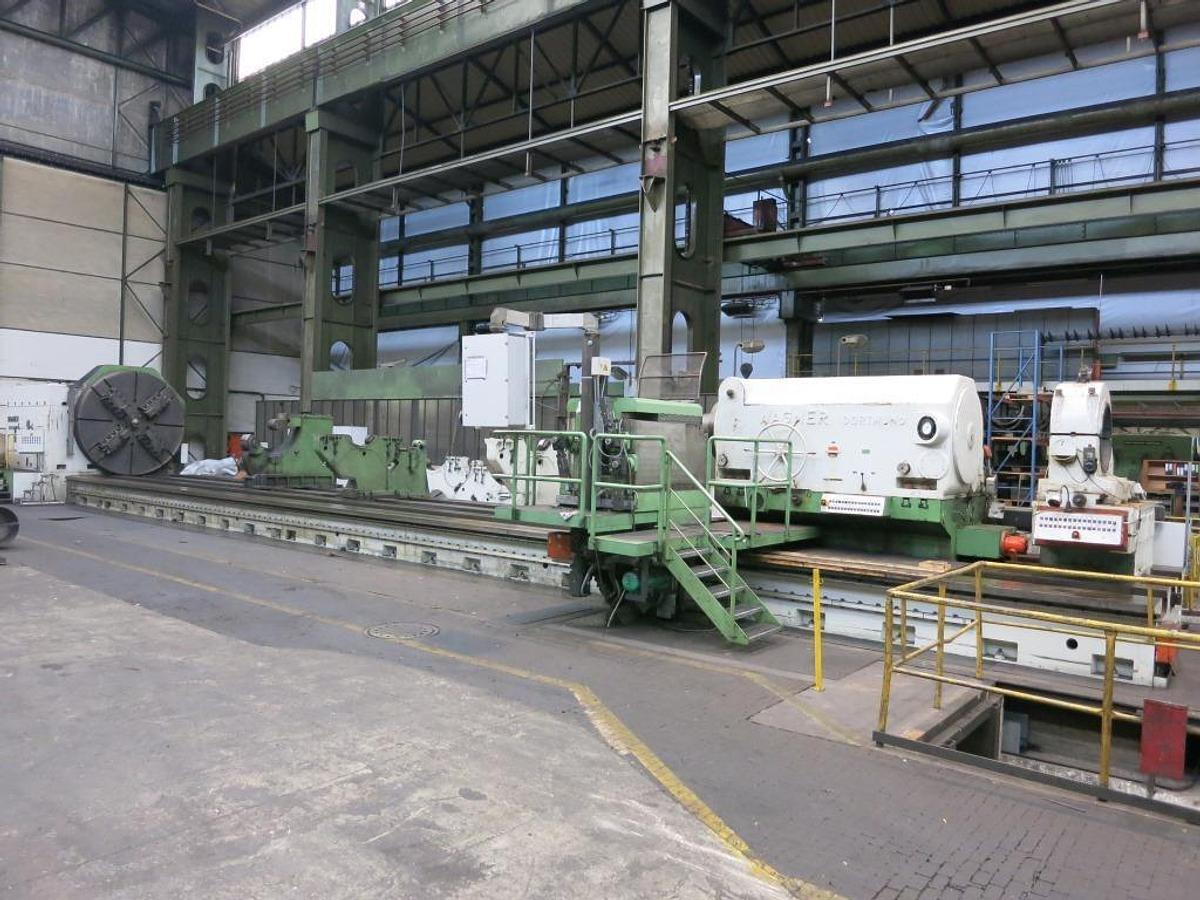

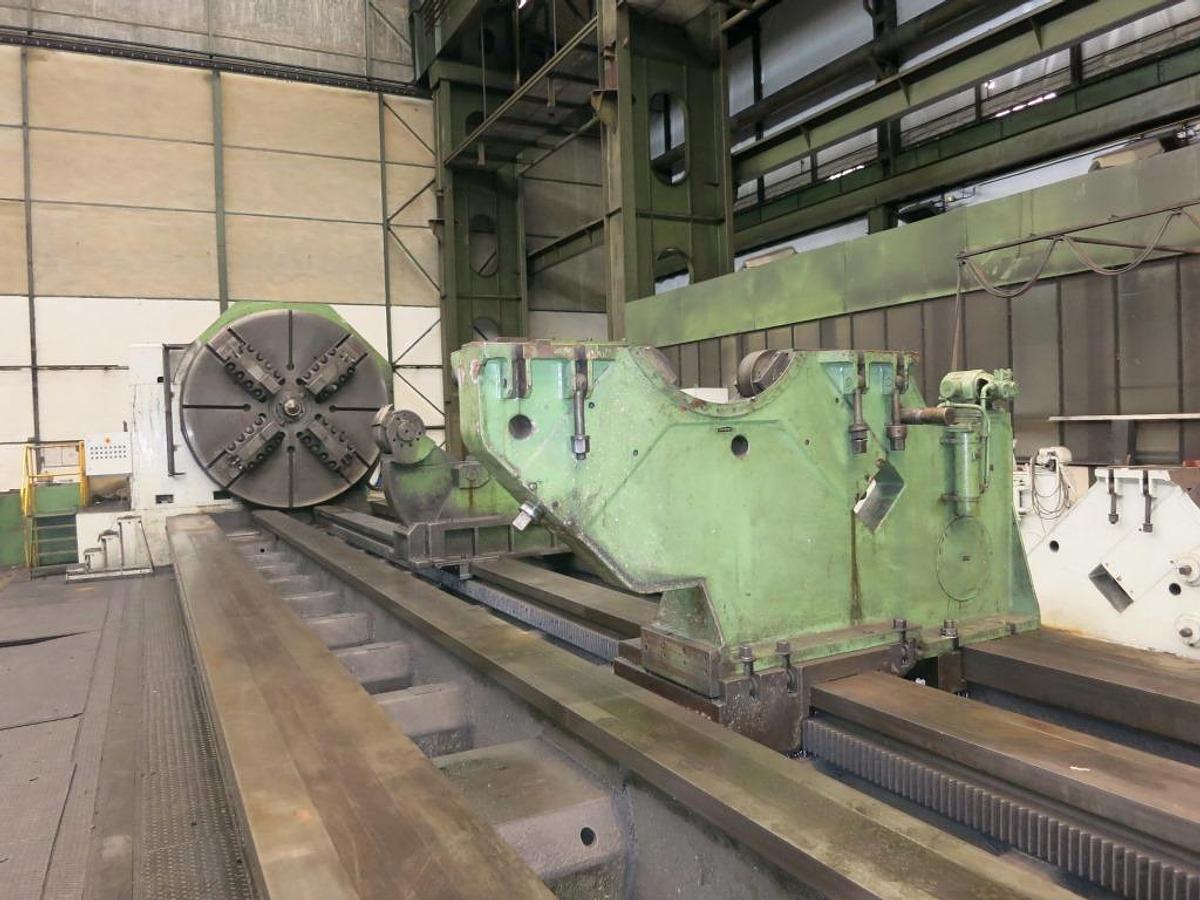

Wagner D 1500 - 15 IV - 100 CNC Heavy-Duty Lathe
Wagner D 1500 - 15 IV - 100 CNC Heavy-Duty Lathe
or
Call 770-509-0744
Description
Machine Rebuilt & Retrofitted In 2008

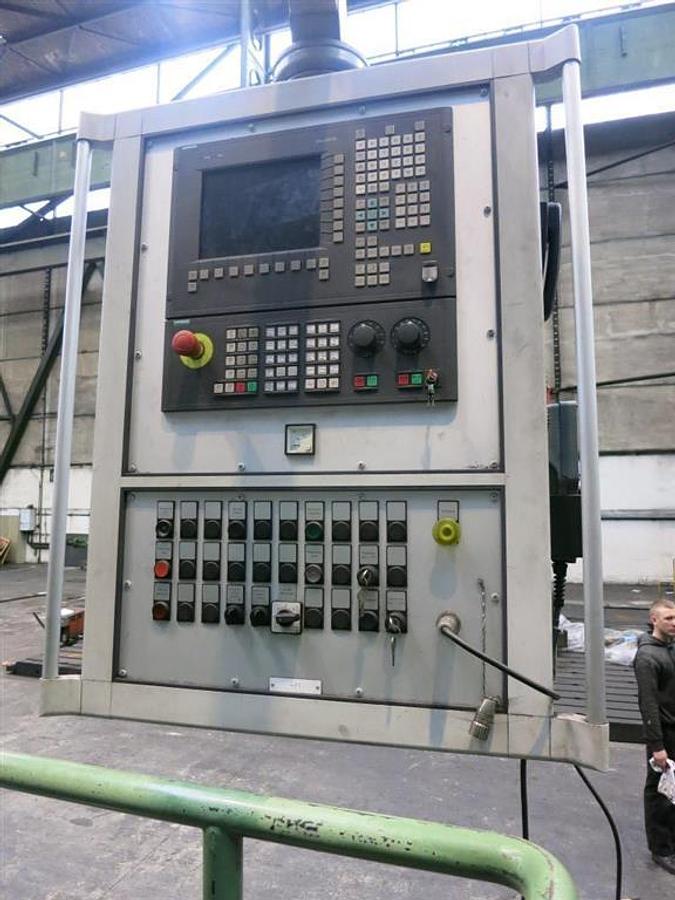

Siemens 840D CNC Control
4-guideway bed

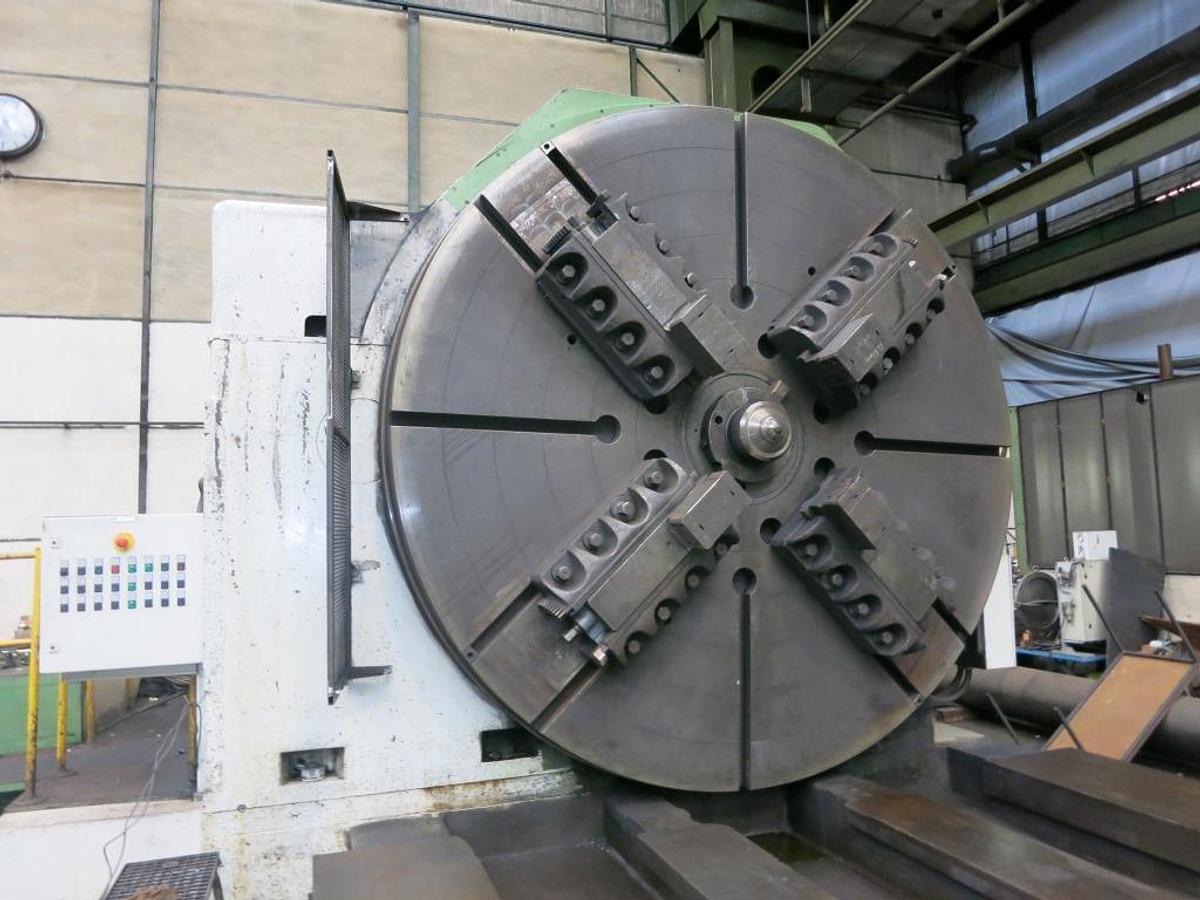

faceplate 3000 mm, 2000 mm

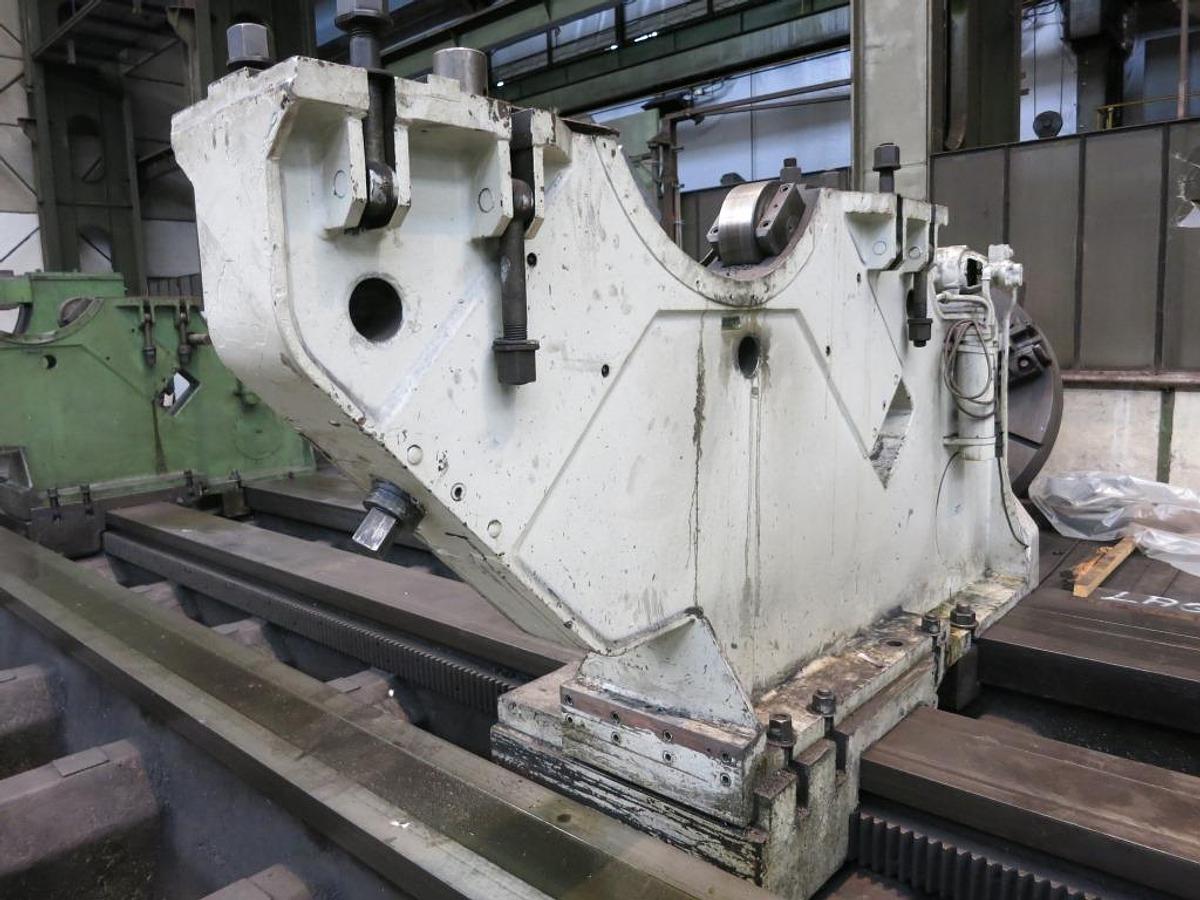

4 roller type steady rests

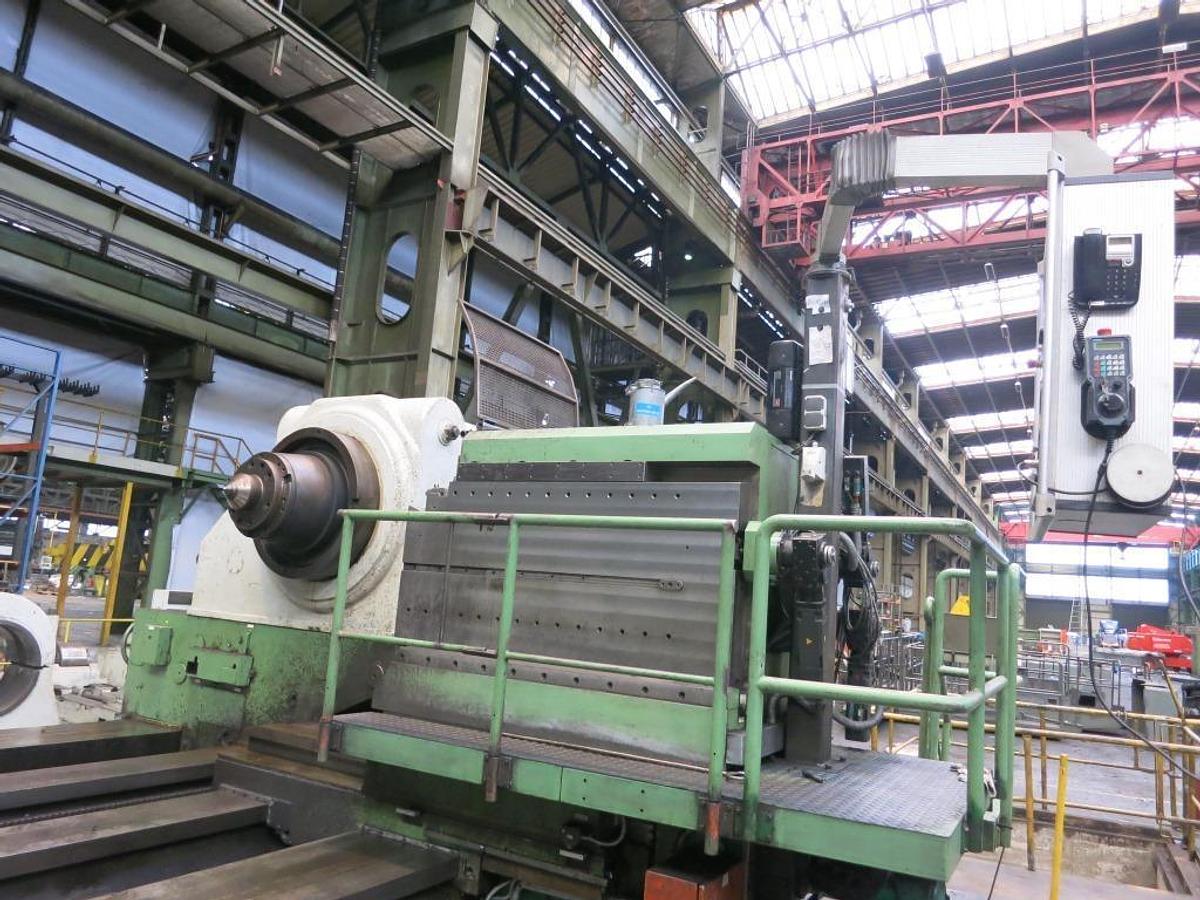

boring bars:
450 x 10,000 mm
650 x 11,000 mm
Specifications
| Manufacturer | Wagner |
| Model | D 1500 - 15 IV - 100 |
| Condition | Used |
| Stock Number | 5654365 |
| Turning length | 21,200 mm |
| Capacity between centers with steadies | 200 Ton |
| Swing over bed | 3,050 mm |
| Swing over slide | 2,500 mm |
| Chuck speed | 0.6 - 60 rpm |
| Faceplate diameter | 3,000 mm |

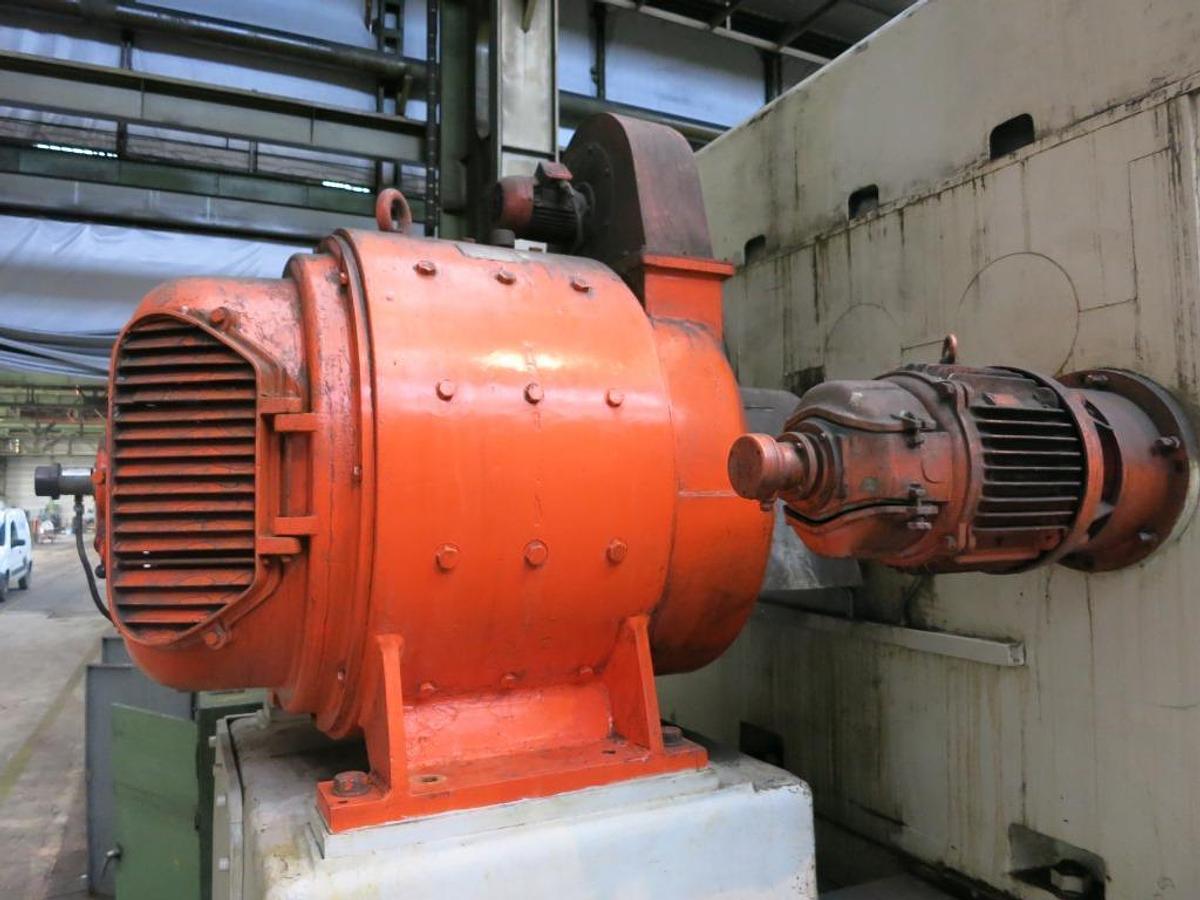

| Spindle drive motor | 120 kW |
| Total power requirement | 200 kW |
| Machine dimensions | 29 x 6.5 x 4.8 m |
| Machine weight | 320 Ton |
