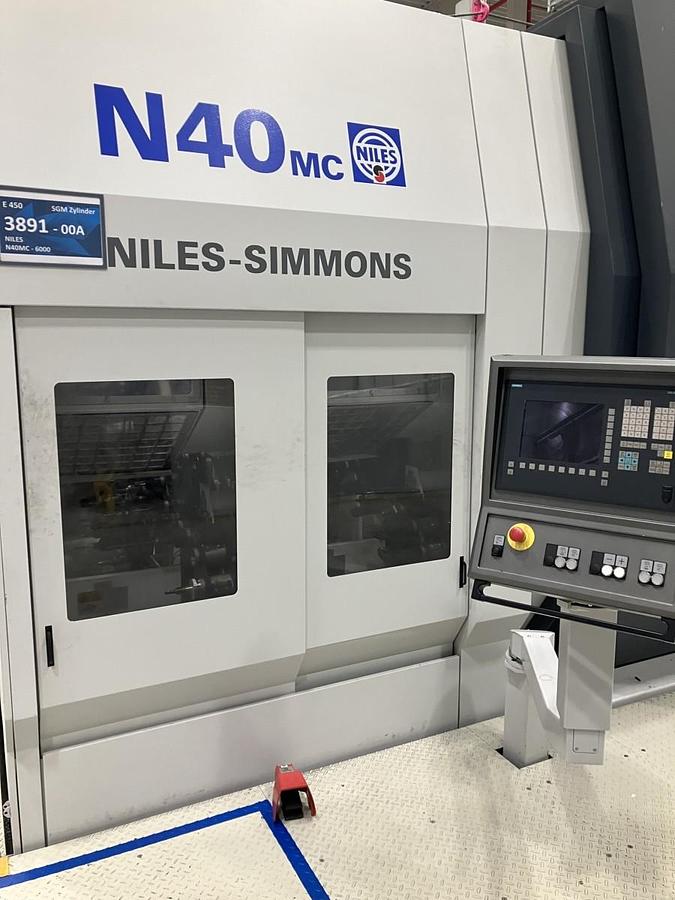

Niles N40MC-6000 CNC Turning & Milling Center
Niles N40MC-6000 CNC Turning & Milling Center
Description
Siemens 840D SI CNC Control
Collision monitoring sensor ACS 3-ARTIS

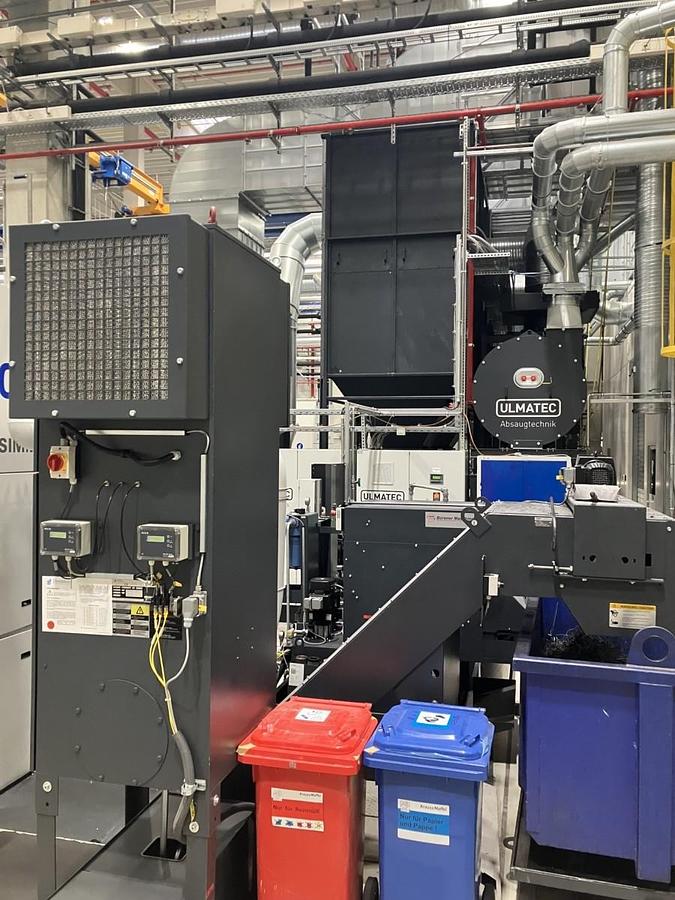

Chip conveyor system

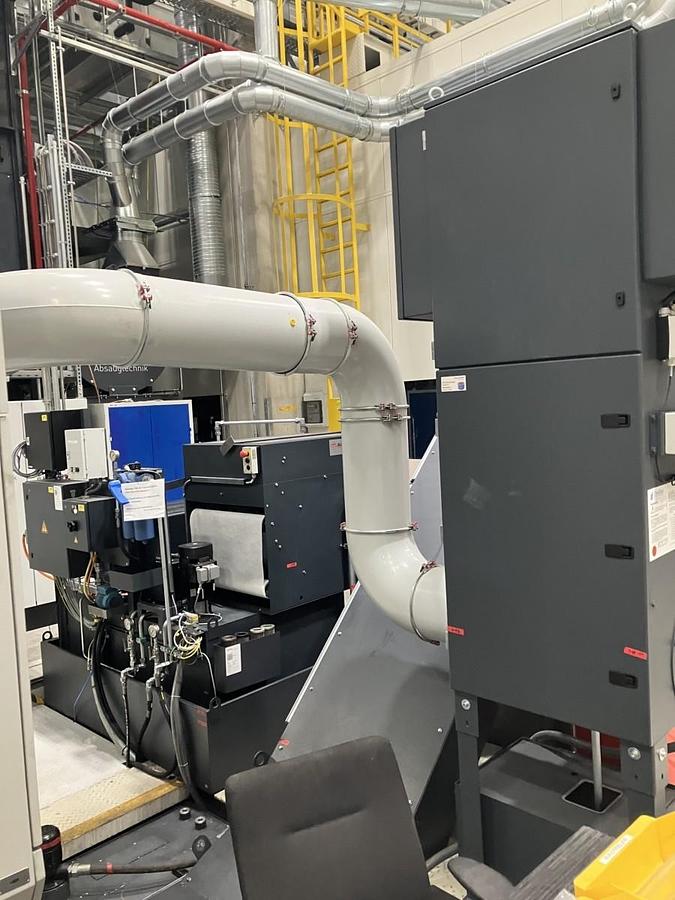

Coolant system 980l tank
Workpiece spindle:
Spindle head according to DIN 55026 A15
Bathing through 160 mm
Front diameter Bearing 240mm
2-stage gearbox, infinitely variable programmable
Drive power at 100/60% duty cycle: 78/87kW
Speed ranges: 2
Speed range I: 10-501 rpm
Speed range II: 10-1750 rpm
Torque I, 60% duty cycle: 8000 Nm
Torque II, 60% duty cycle: 2308 Nm
C-axis
Holding torque with backlash-free spindle brake: 3000 Nm
Speed: 0-50 rpm
Maximum torque (100/60% duty cycle): 3700/4430 Nm

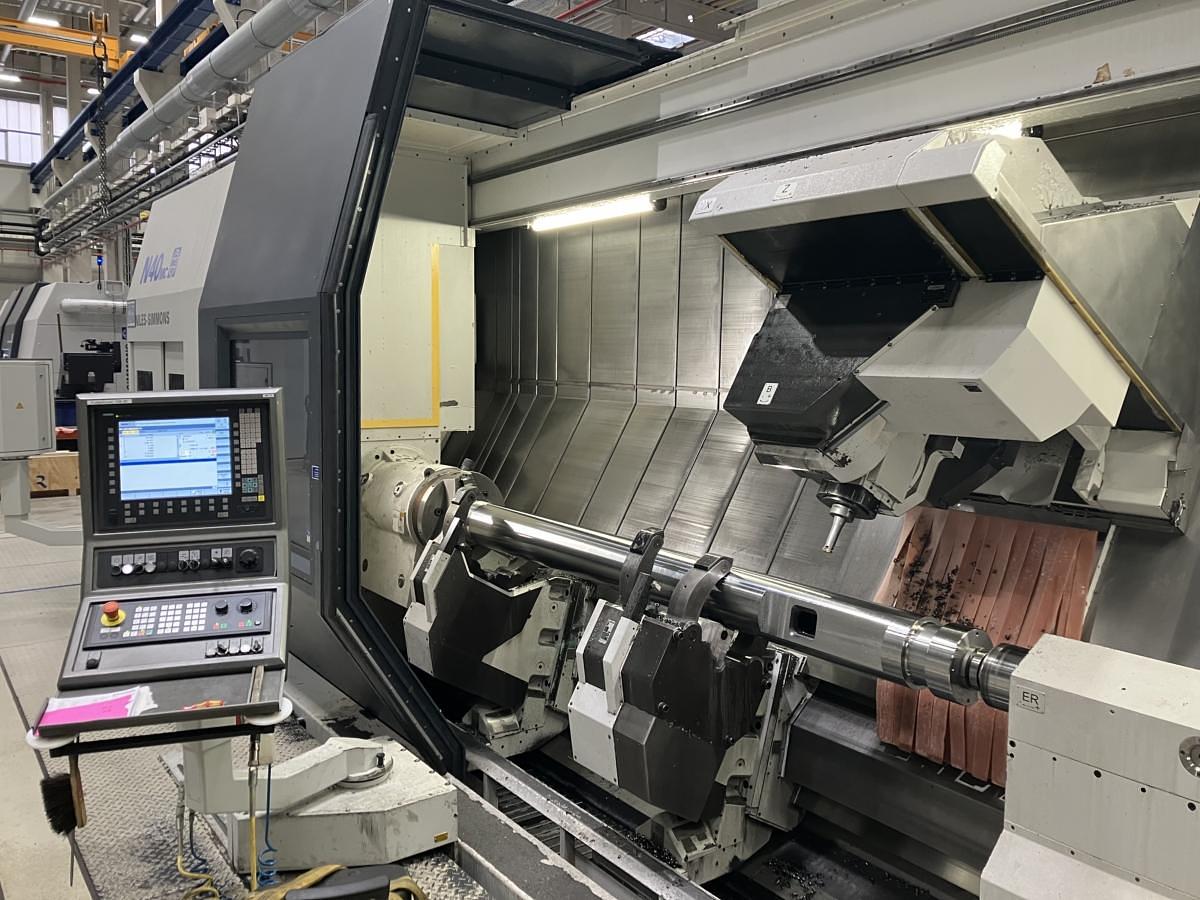

Steady rest clamping range: 70-425 mm

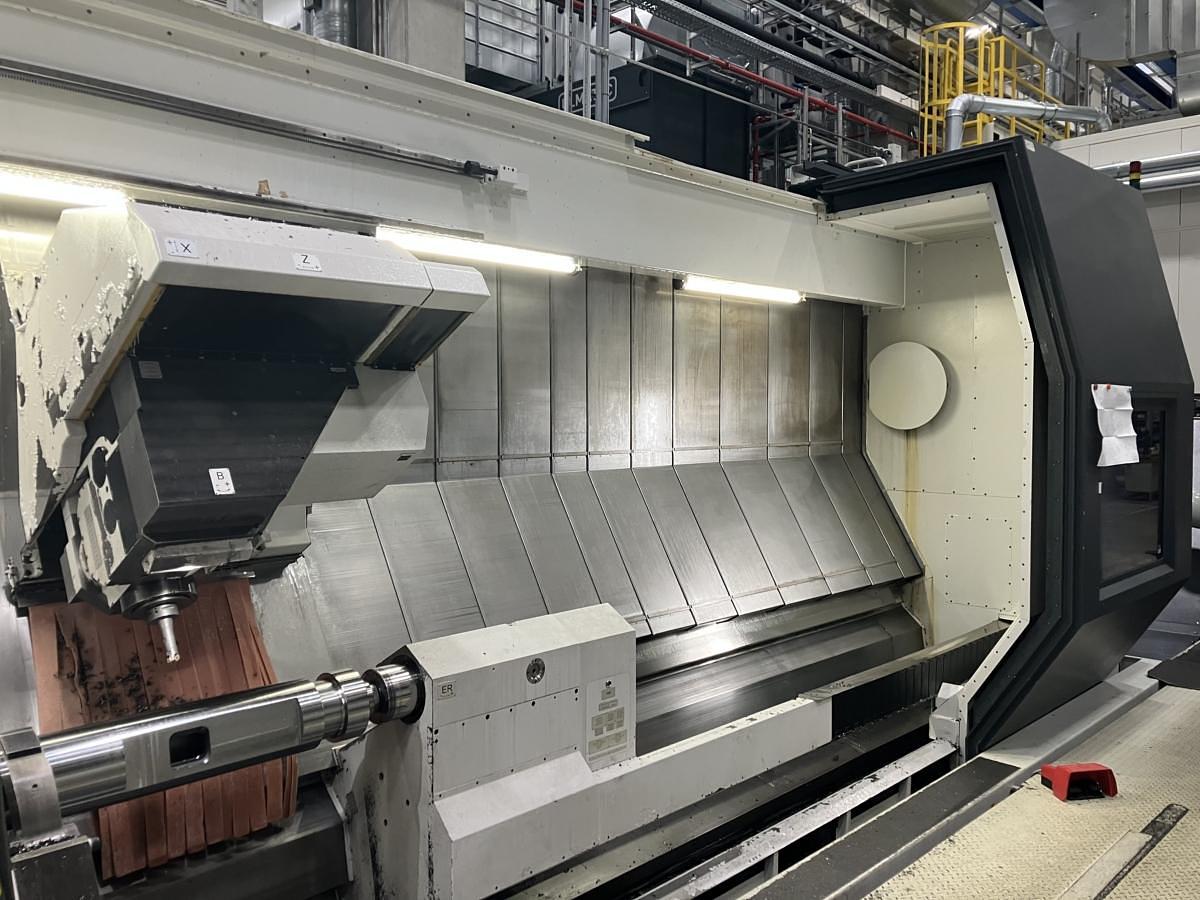

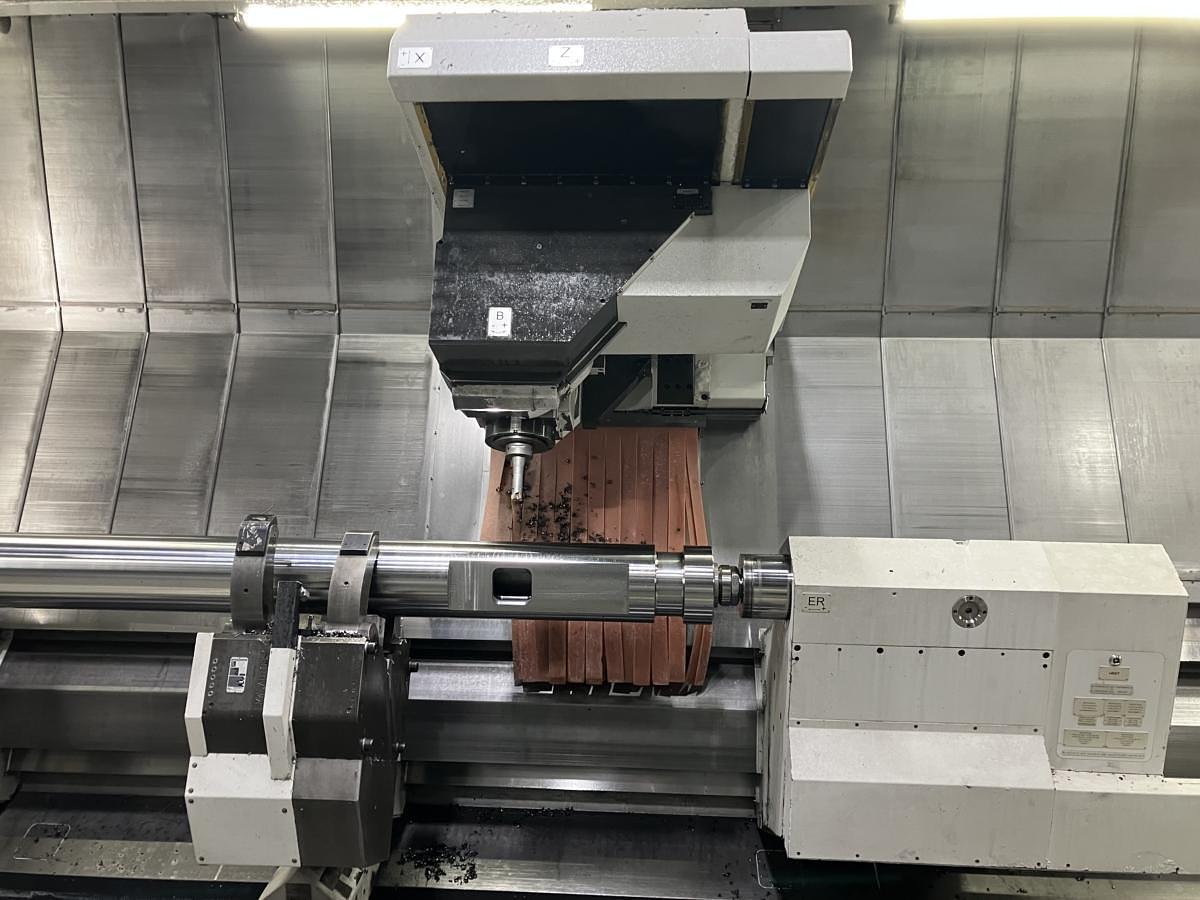

Turning, drilling, milling head
Front diameter: Bearing 110mm
Interface HSK100/C8
Tailstock
Quill diameter 180mm
Stroke 170mm
Internal taper MK6
Axially force, manually adjustable 5-30 kN
Quick tip height adjustment +/-0.15mm
Specifications
| Manufacturer | Niles |
| Model | N40MC-6000 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 5654363 |
| Turning length | 6,000 mm |
| Turning diameter | 820 mm |
| Z axis travel | 6,820 mm |
| X axis travel | +850 -25 mm |
| Total power requirement | 155 kW |
| Tailstock quill diameter | 180 mm |
| Tailstock stroke | 170 mm |
| Machine dimensions | 16,350 x 3,700 x 3,850 mm |
| Machine weight | 65 Ton |
