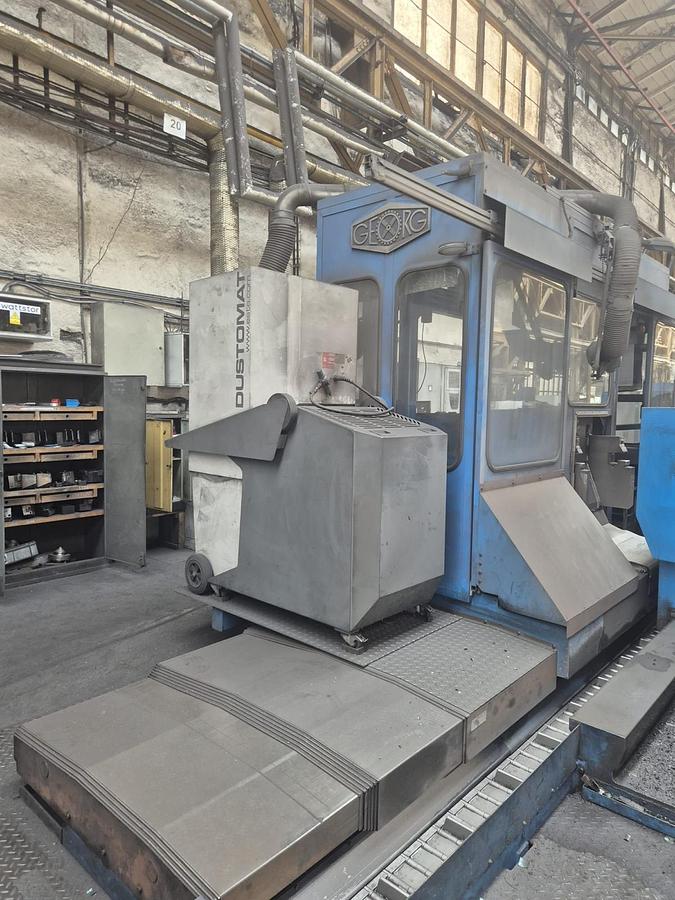

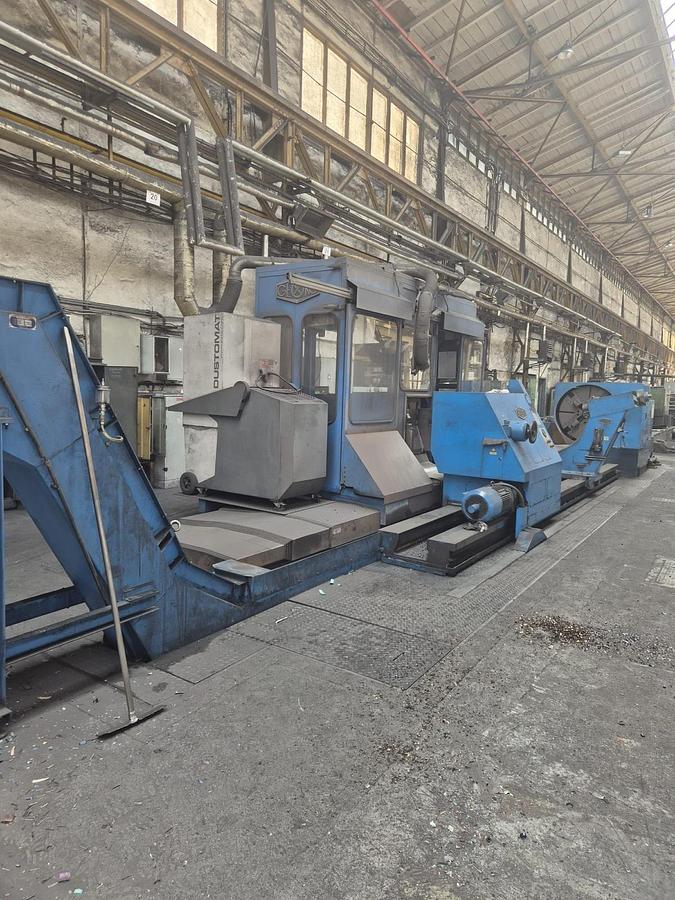

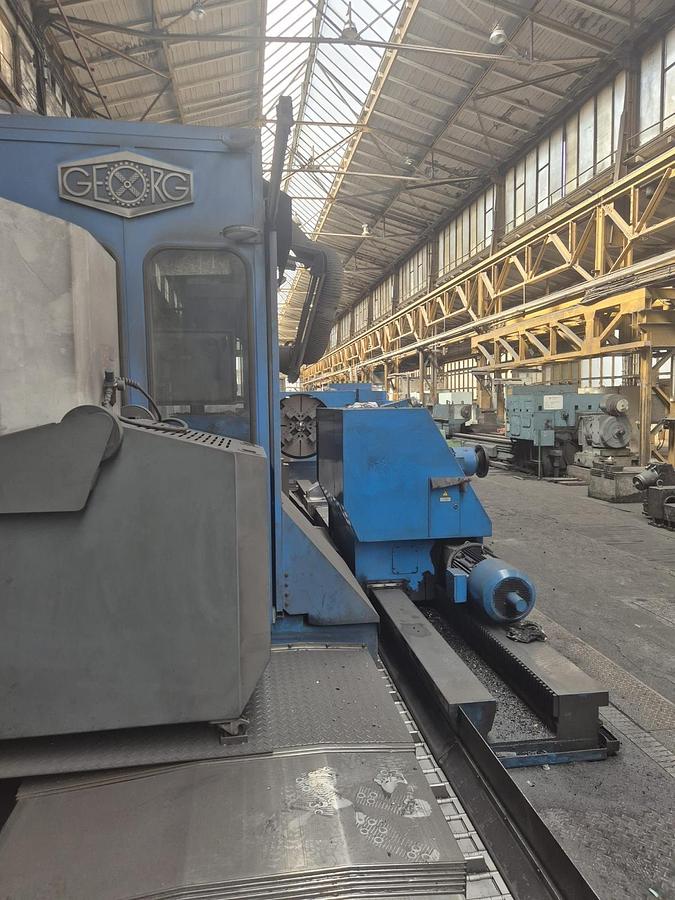

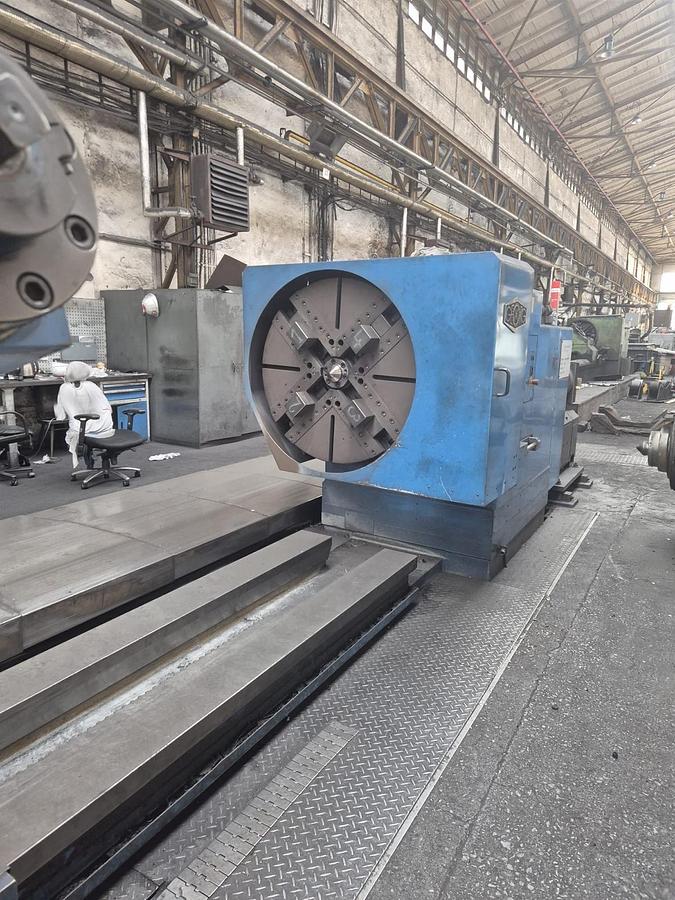

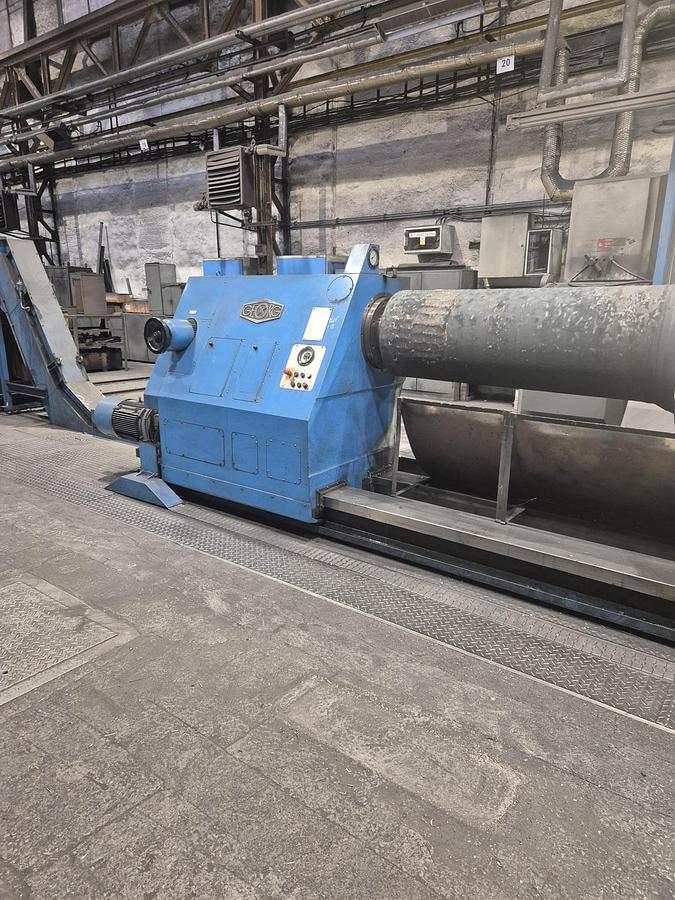

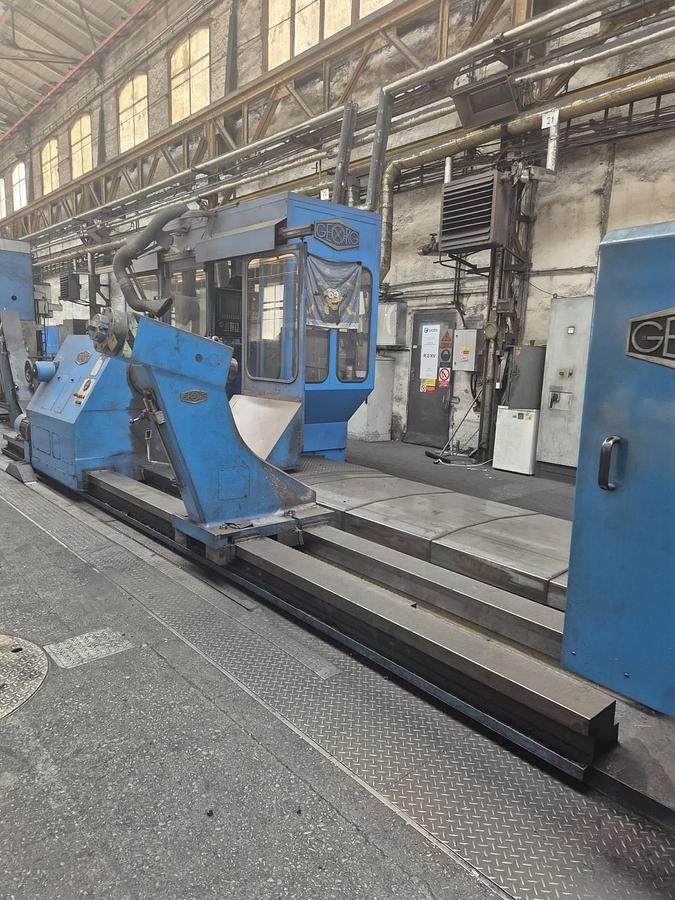

Georg GWD 1300/6000/20 CNC Horizontal Lathe
Georg GWD 1300/6000/20 CNC Horizontal Lathe
or
Call 770-509-0744
Description

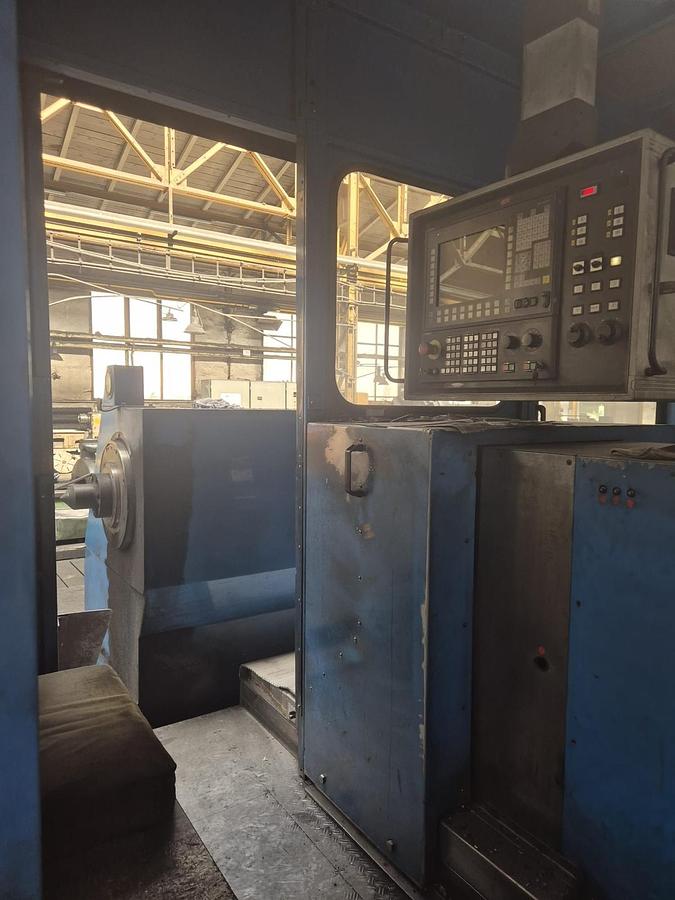

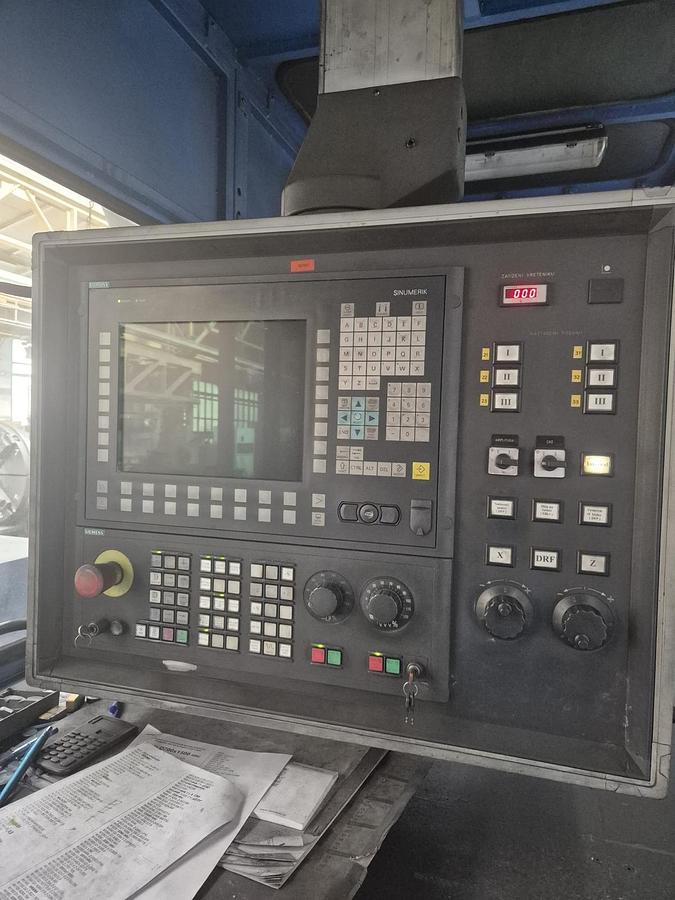

Siemens SINUMERIK 840D CNC Control

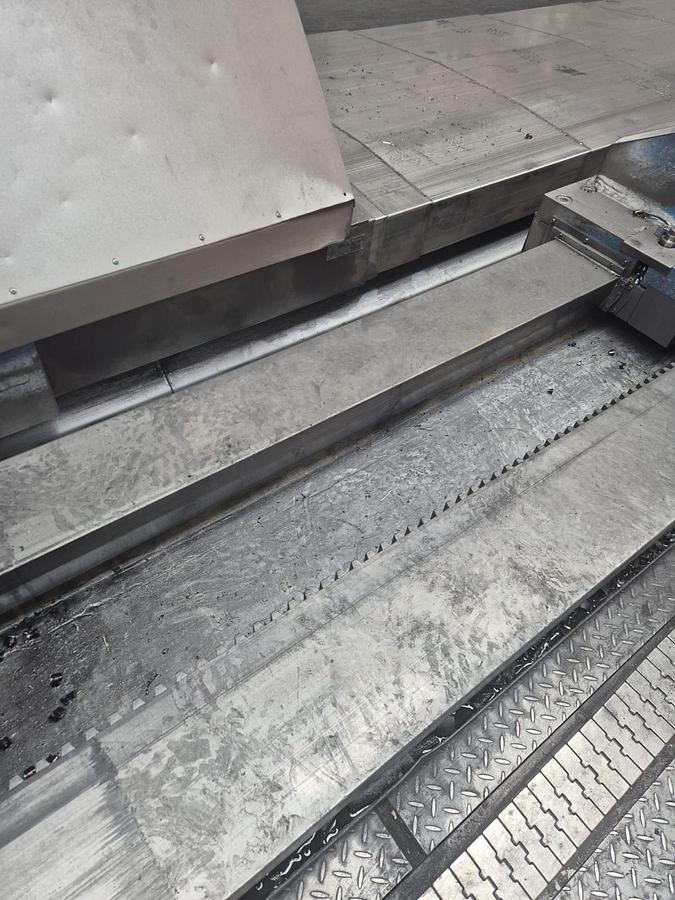

Machine Bed with Chip Conveyor and Telescopic Sheet Metal Cover for the Support Guideways
Number of Guideways - 4

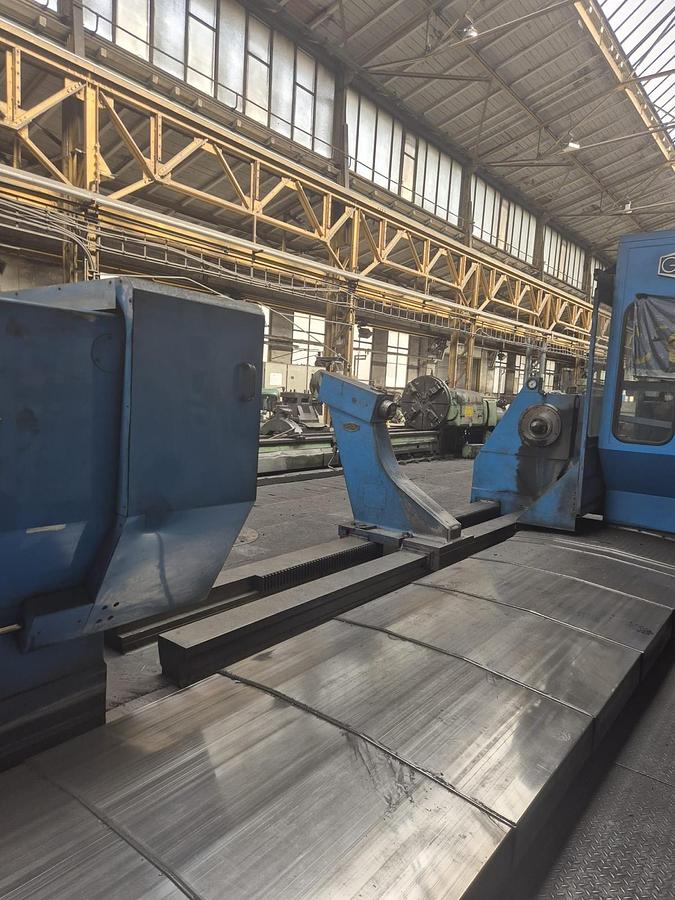

Number of Tailstock Guideways - 2
Number of Support Guideways - 2
Specifications
| Manufacturer | Georg |
| Model | GWD 1300/6000/20 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 5654362 |
| Between centers | 6,000 mm |
| Capacity between centers | 20 Ton |
| Swing over bed | 1,400 mm |
| Swing over support | 1,300 mm |
| Chuck speed | 1 - 20 - 250 rpm |
| Main motor power | 7.6 - 152 - 152 kW |
| Main motor torque | 66000 - 66000 - 18860 Nm |
| Diameter - main shaft in the front bearing area | 400/540 x 140 mm |
| Flange Bore Diameter | 100 mm |
| Tailstock quill diameter | 450 mm |
| Tailstock adjutsment speed | 2000/4000 mm/min |
| Travel support on the machine bed in X-axis | 6,500 mm |
| Travel cross slide on the main slide along the X-axis | 700 mm |
| Diameter of ball screw on X-axis | 80 mm |
| Length of machine bed | 9,900 mm |
| Width of machine bed | 2,000 mm |
| Height of machine bed | 600 mm |
