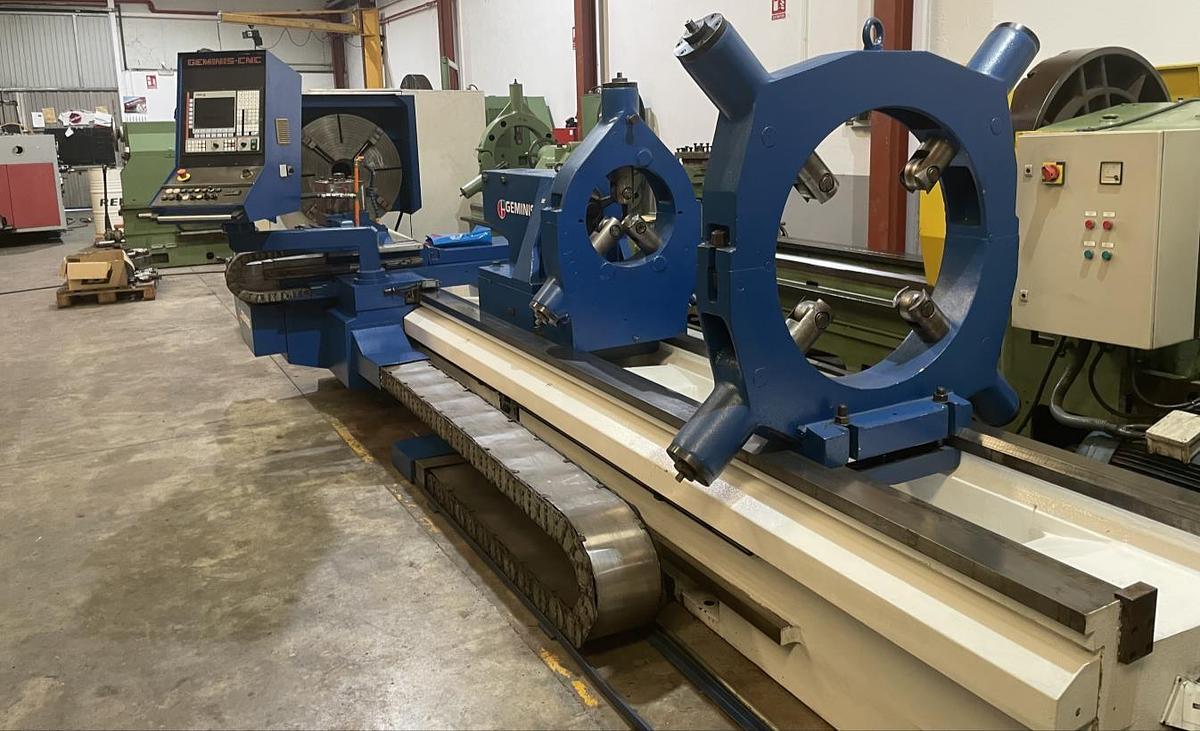

Geminis CNC 7 PLUS G2 1100x6000 Horizontal Lathe
Geminis CNC 7 PLUS G2 1100x6000 Horizontal Lathe
or
Call 770-509-0744
Description

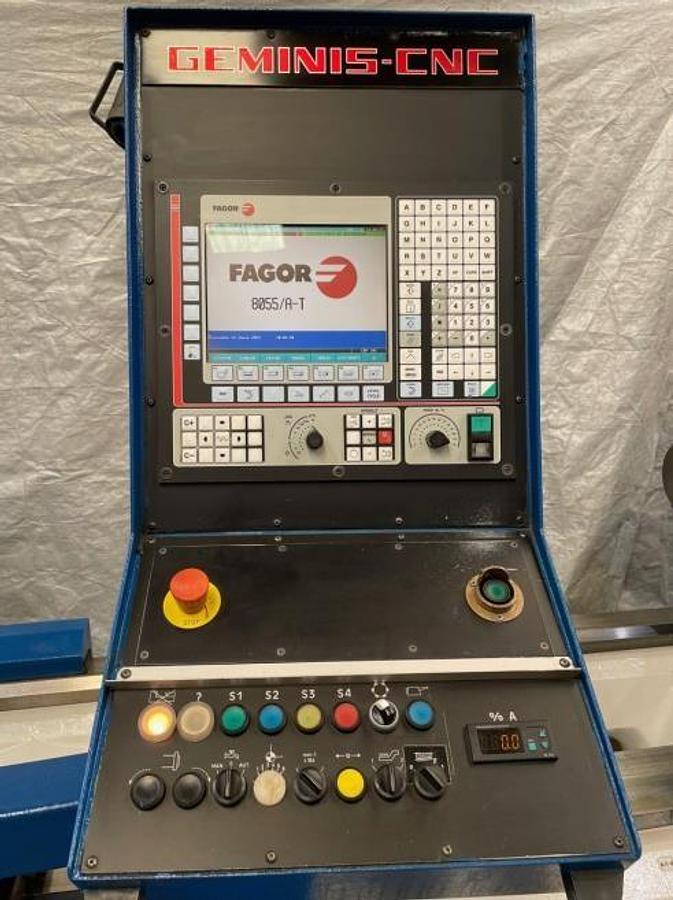

Fagor 8055 CNC Control

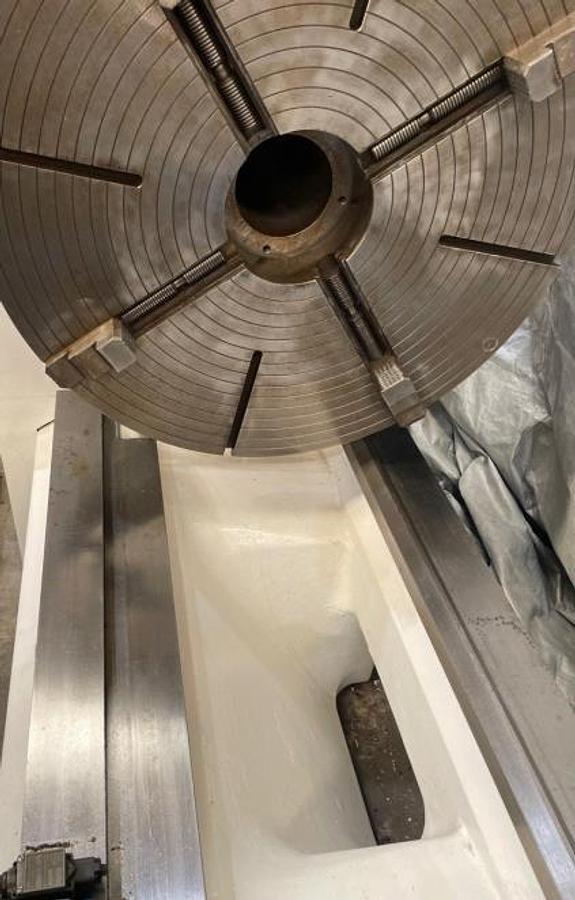

1000 mm 4-jaw chuck
600 mm 4-jaw chuck

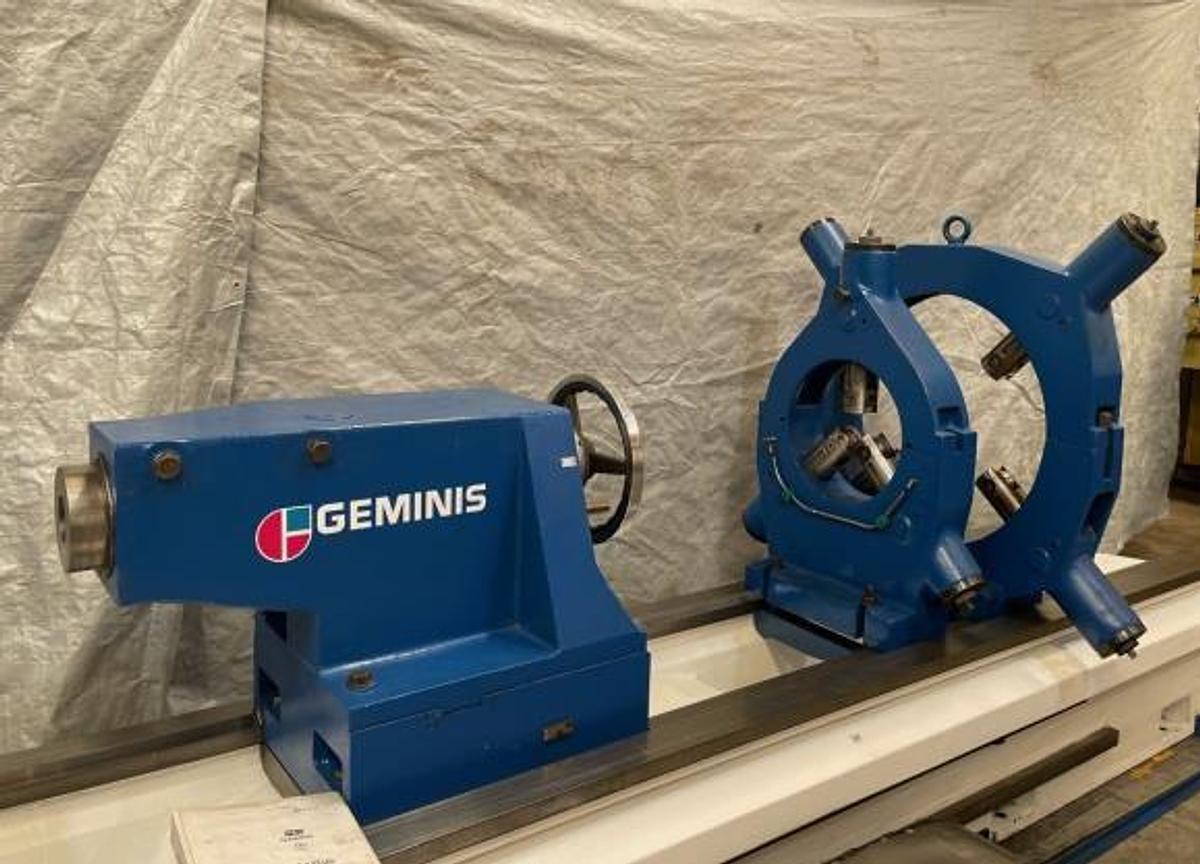

2 fixed steady rests

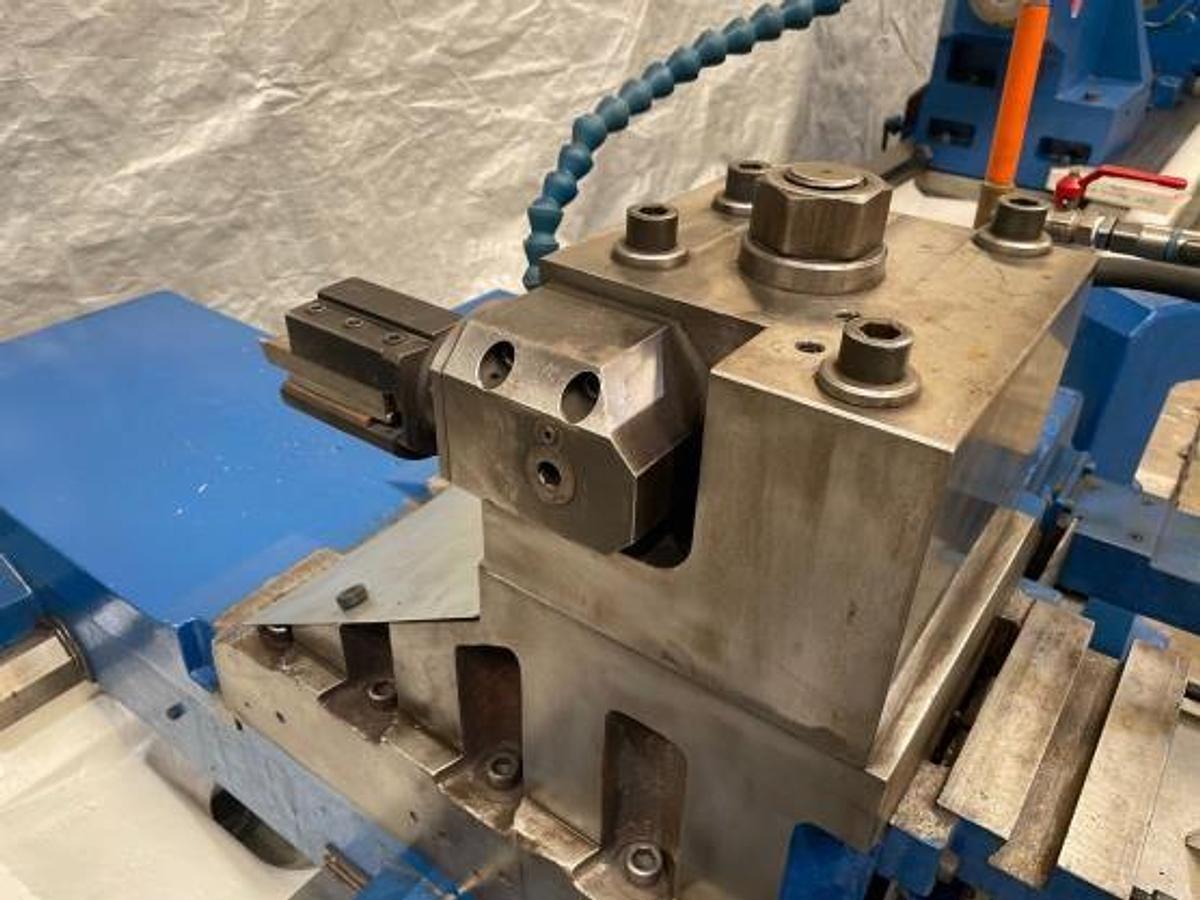

Manual turret (optional Sauter automatic turret)

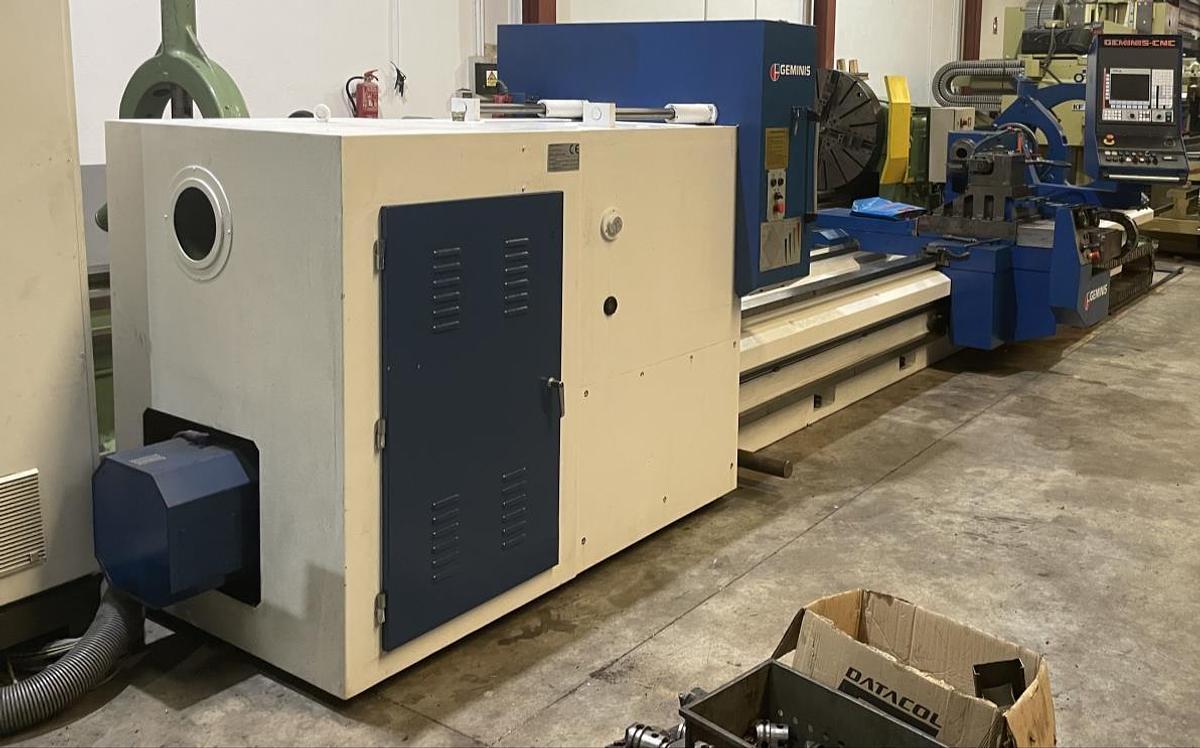

Chip extractor
Workpiece weight between centers 10,000 kg
Workpiece weight between supports (1 support) 12,500 kg
Workpiece weight between supports (2 supports) 15,600 kg
4 Speed Ranges:
Speed range I 0–100 rpm
Speed range II 0–200 rpm
Speed range III 0–400 rpm
Speed range IV 0–800 rpm
Specifications
| Manufacturer | Geminis |
| Model | CNC PLUS 7/6000 |
| Year | 1997 |
| Condition | Used |
| Stock Number | 5654360 |
| Between centers | 6,000 mm |
| Capacity between centers, without steady | 10,000 kg |
| Swing over bed | 1,100 mm |
| Swing over slide | 740 mm |
| Chuck speed, 4 speed | 800 rpm |
| Tailstock diameter | 180 mm |
| Tailstock quill stroke | 300 mm |
| Longitudinal cross travel | 1,200 mm |
| Center height | 550 mm |
| Table width | 800 mm |
| Bench height | 650 mm |
| Main motor power S1/S6 | 42 kW |
| Max torque | 10,800 Nm |
| Main shaft nose | DIN 55026-11 |
| Cross carriage travel | 680 mm |
| Longitudinal carriage rapid traverse | 8 m/min |
| Rapid traverse of cross-slide | 6 m/min |
| Machine weight | 15,000 kg |
