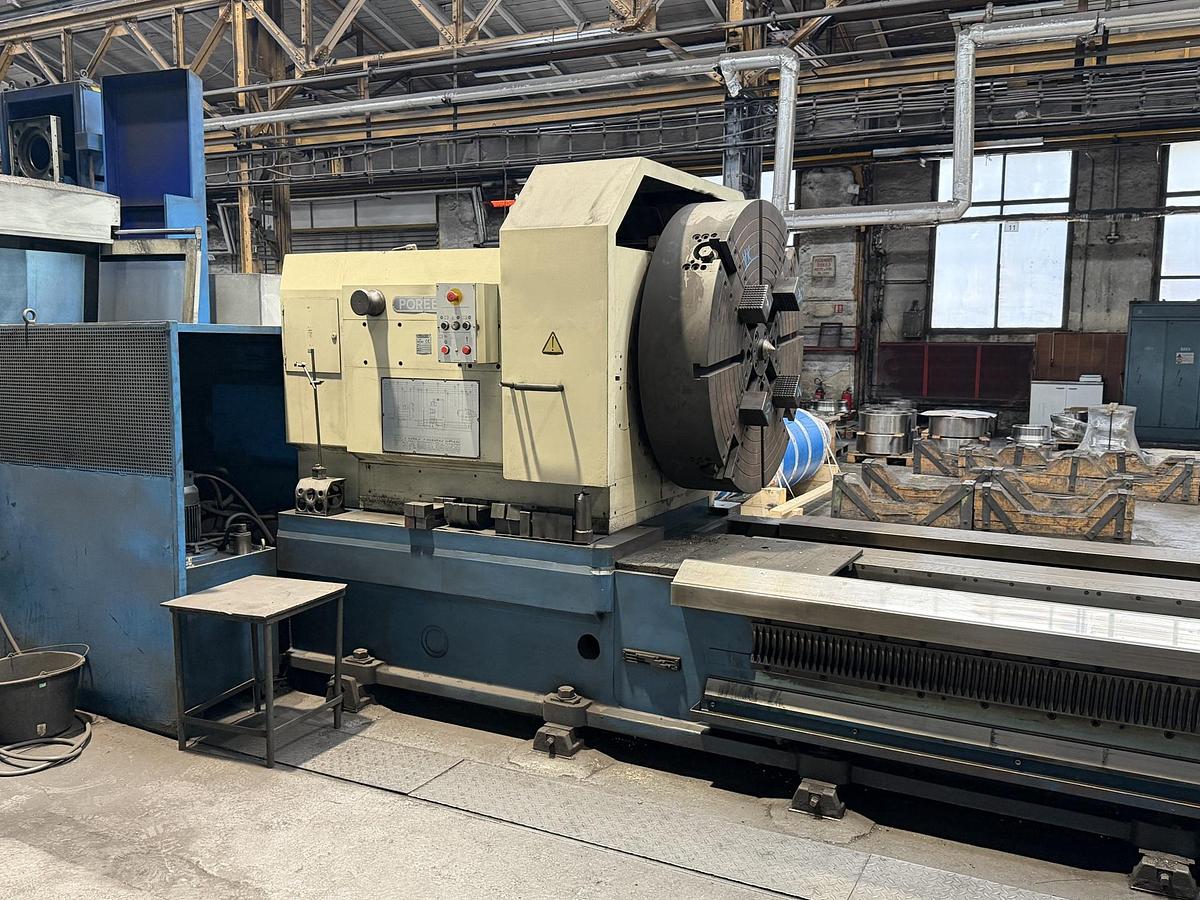

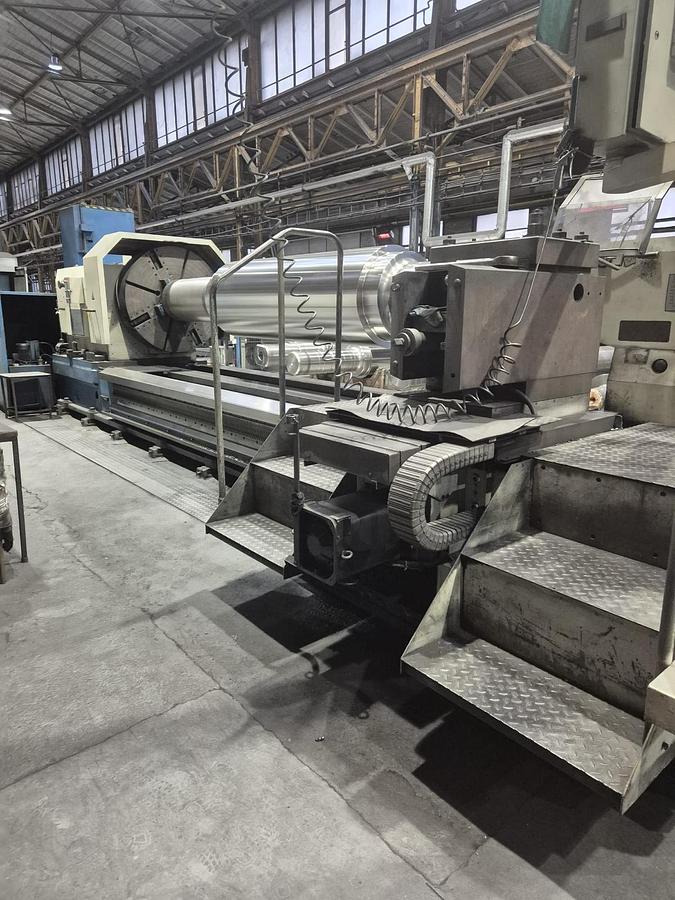

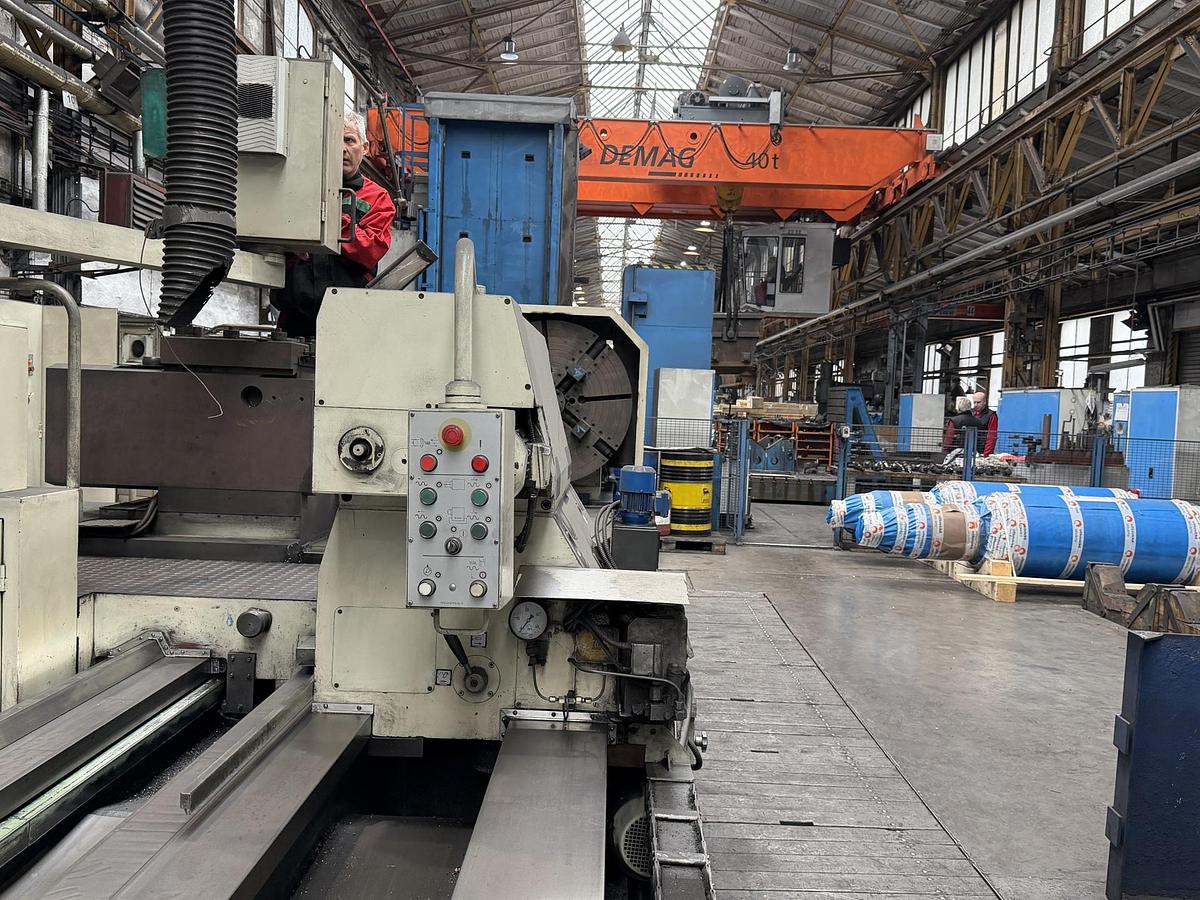

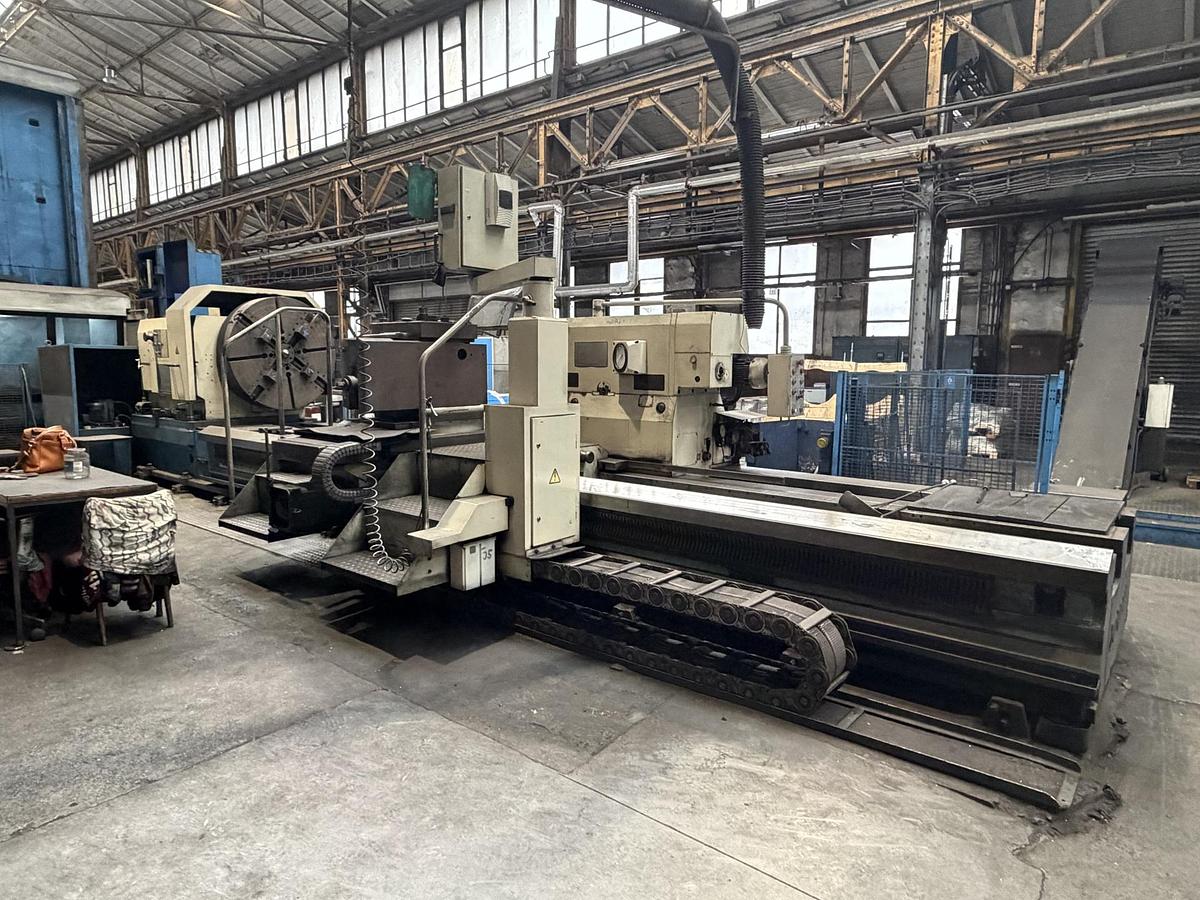

Poreba TCF 160 x 6000 CNC Three Slides Horizontal Lathe

Poreba TCF 160 x 6000 CNC Three Slides Horizontal Lathe

or
Call 770-509-0744

Description

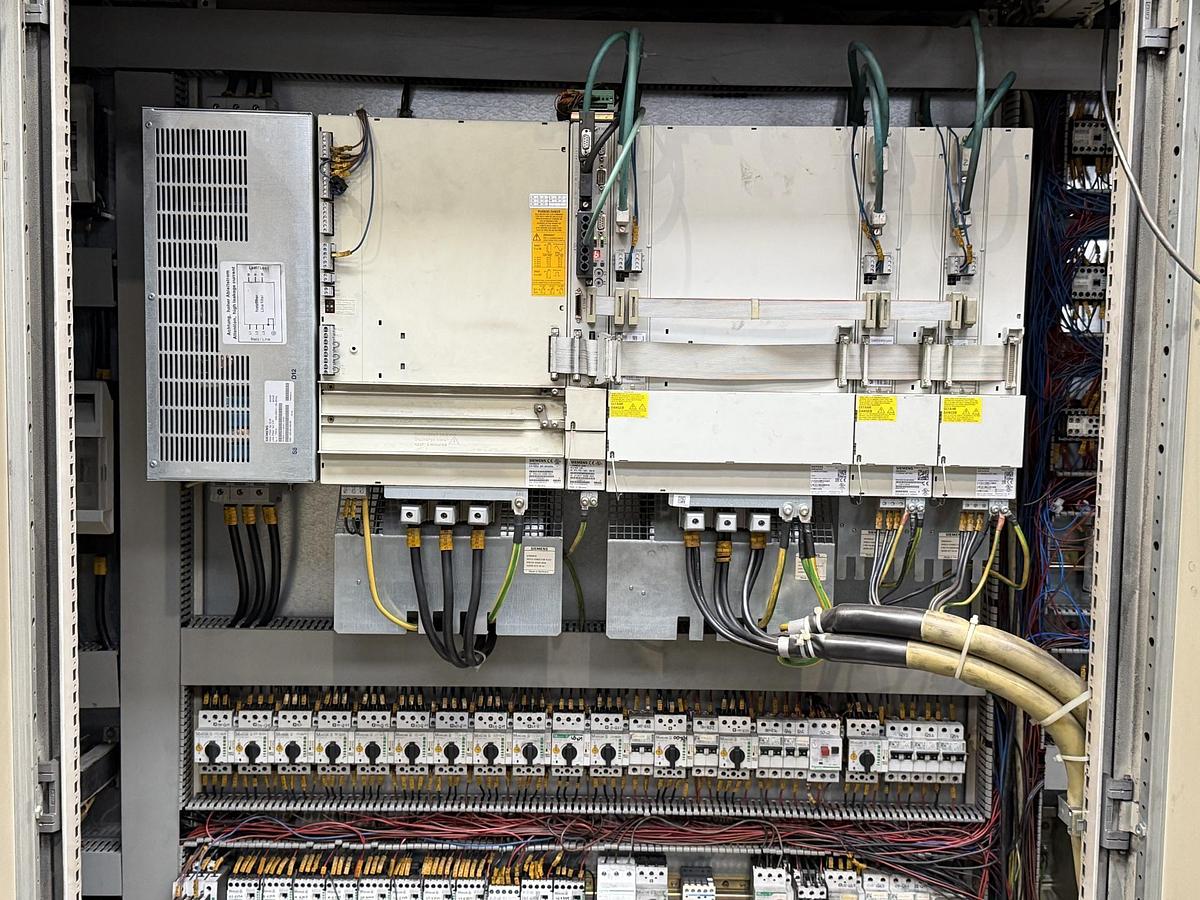

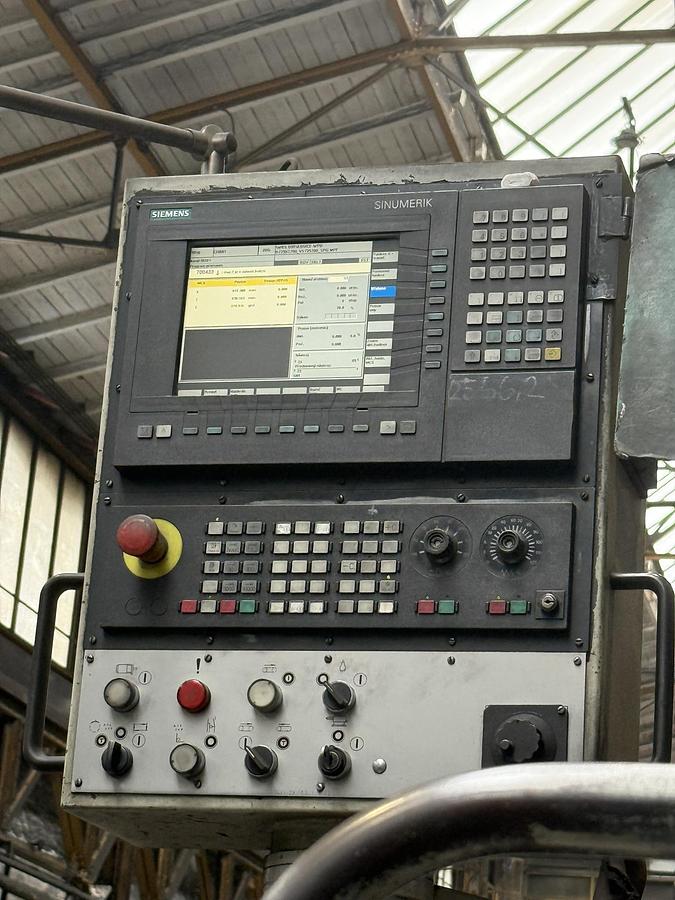

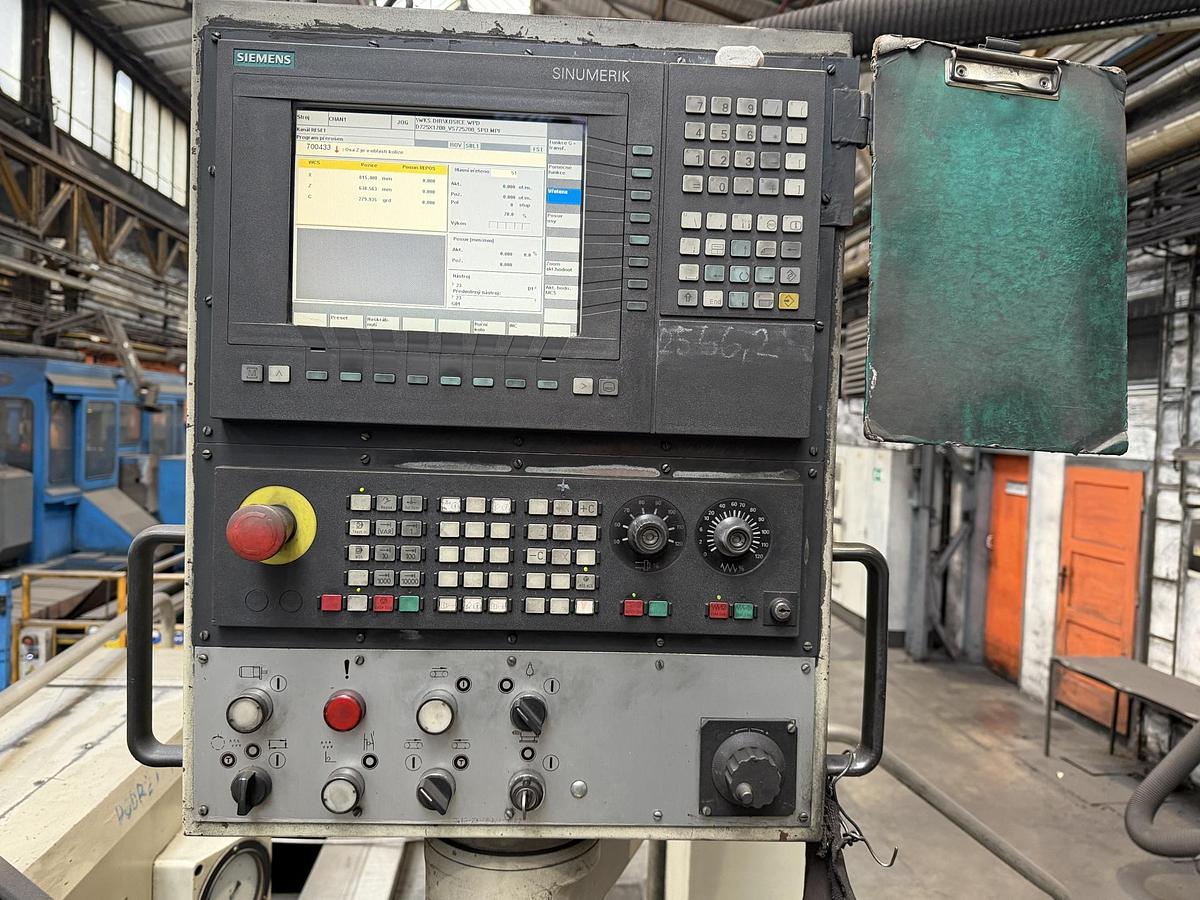

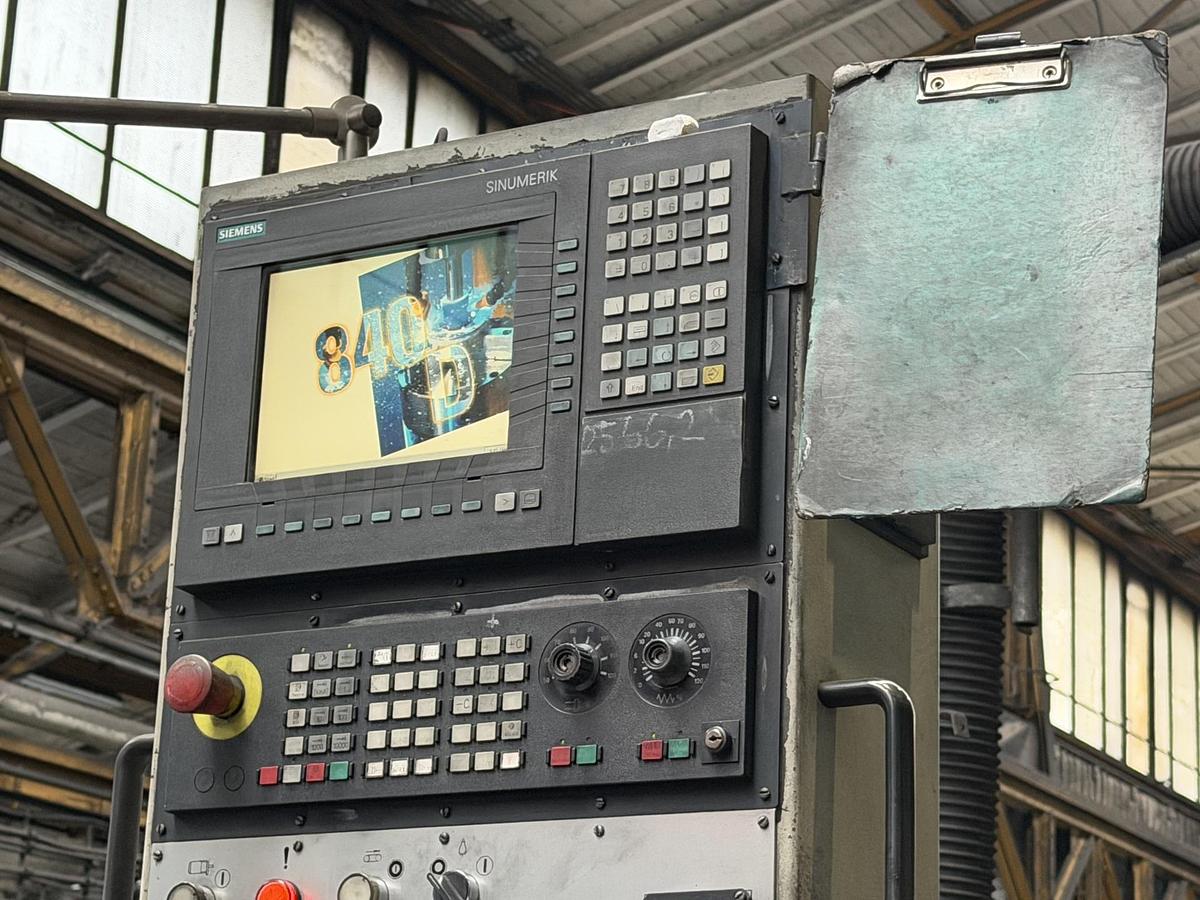

Siemens SINUMERIK 840D CNC Control

with Software Options:

  • MMC Easy Mask
  • Spline interpolation
  • Look Ahead
  • Contour re-alignment
  • Mantel surface programming
  • Full C-Axis 360.0000

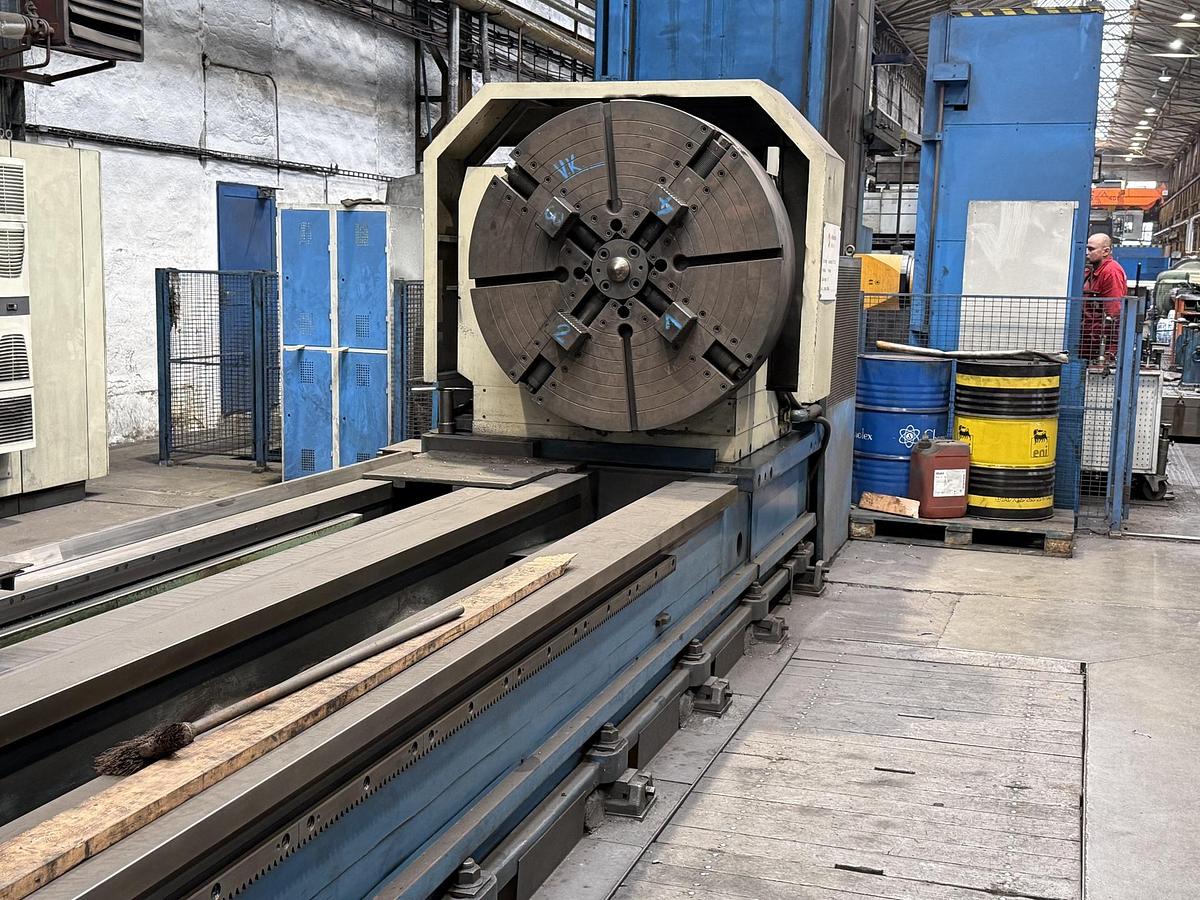

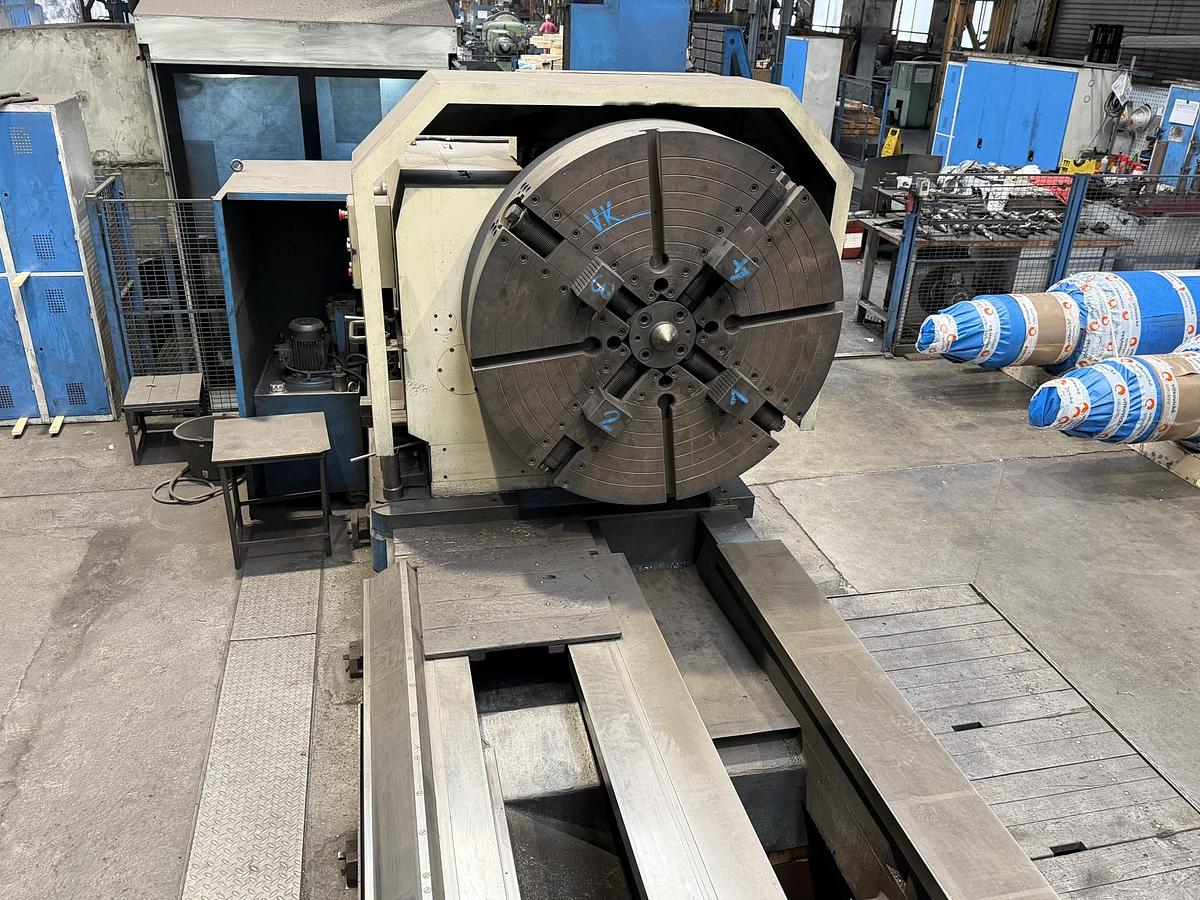

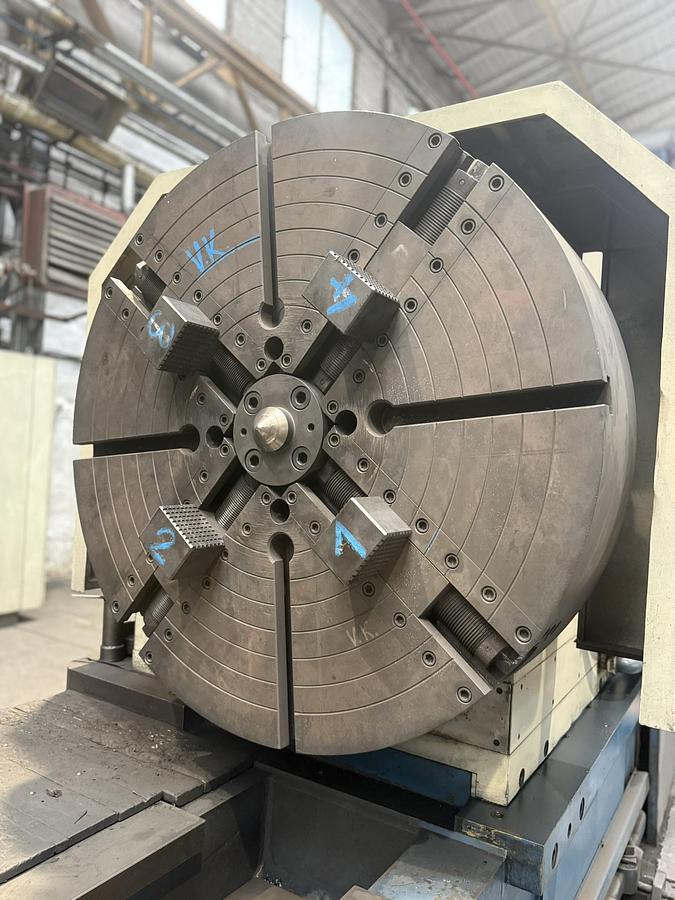

N. 1 FOUR JAWS TABLE - 1,400 mm Diameter

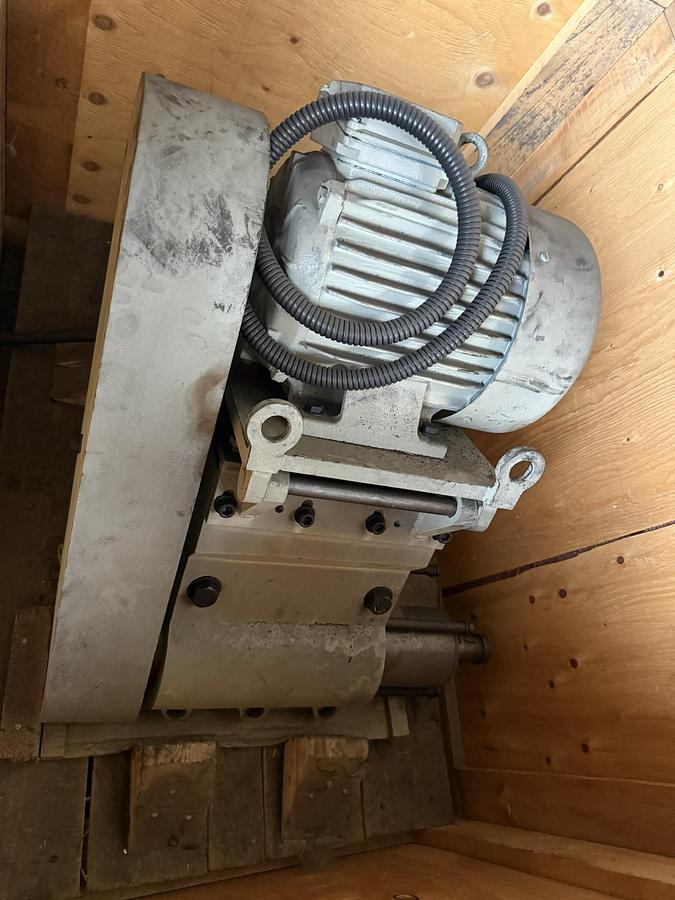

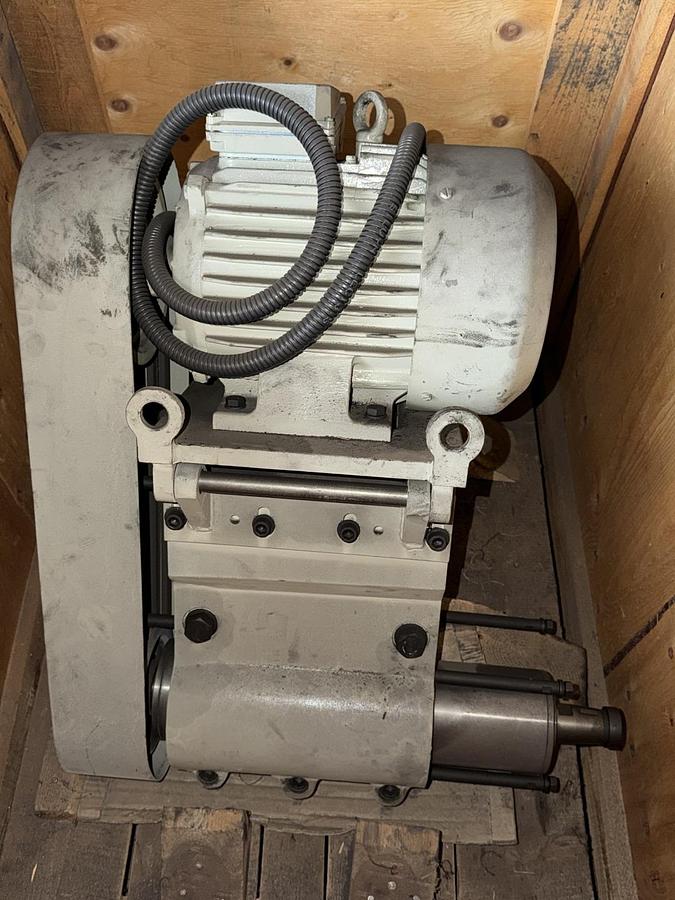

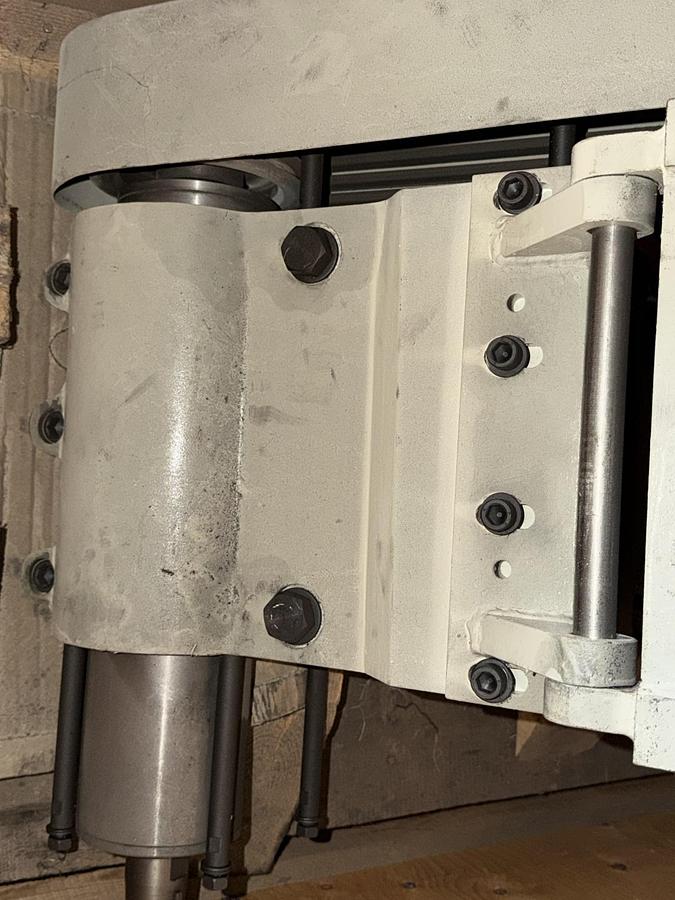

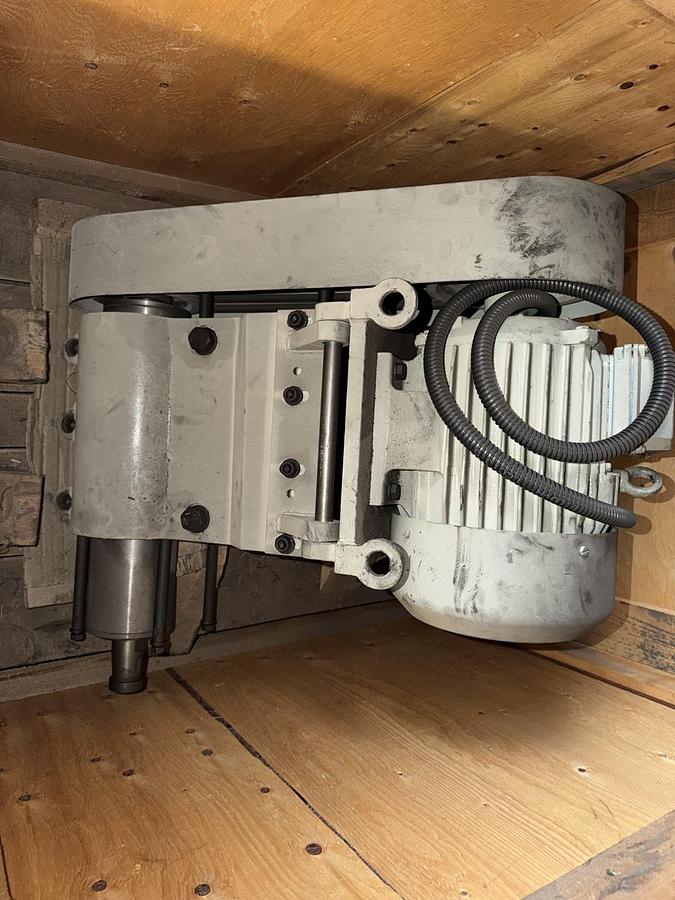

MILLING ATTACHMENT

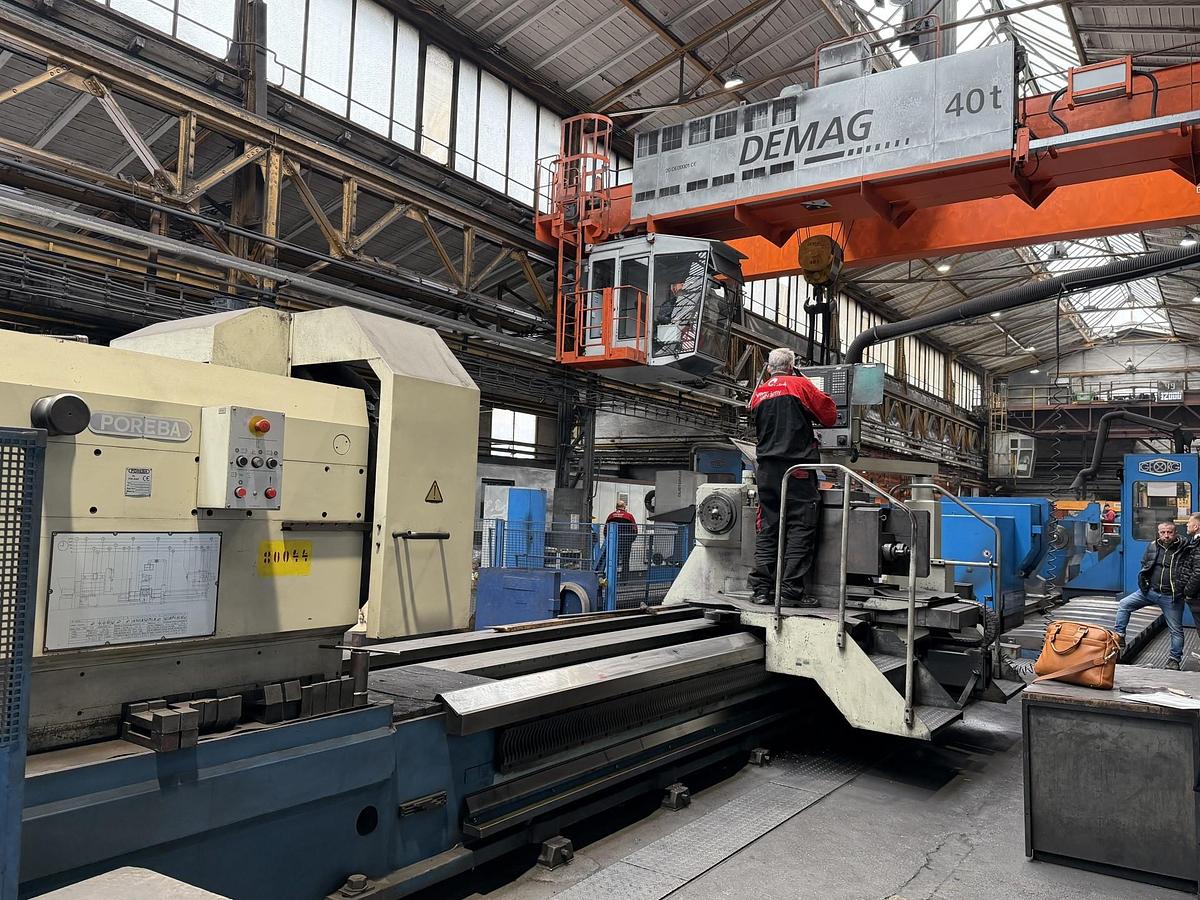

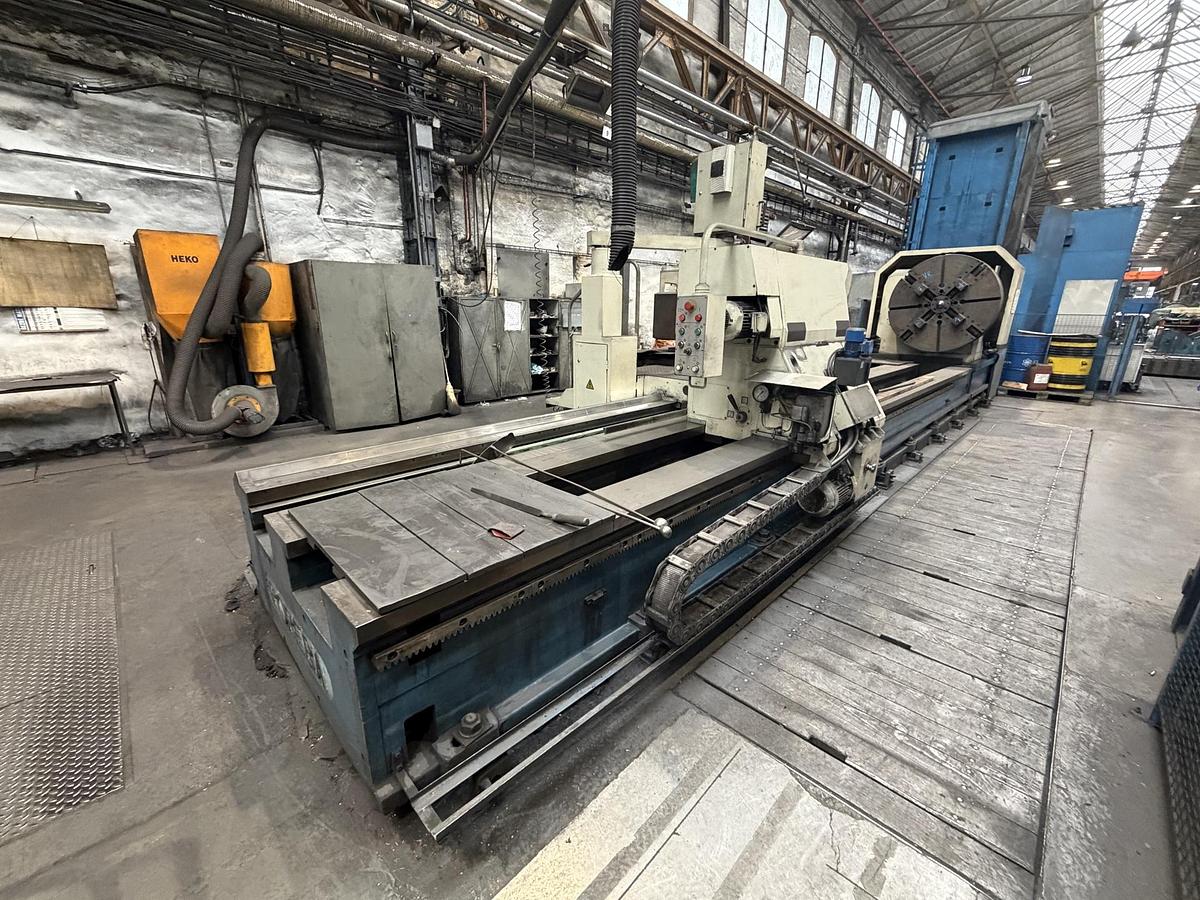

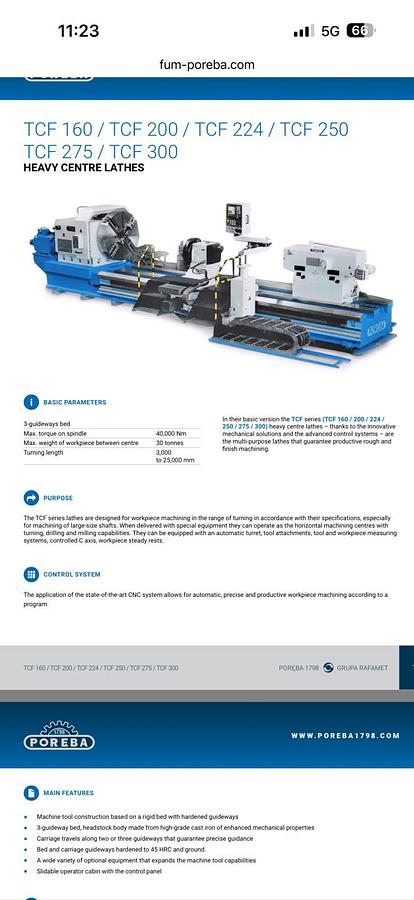

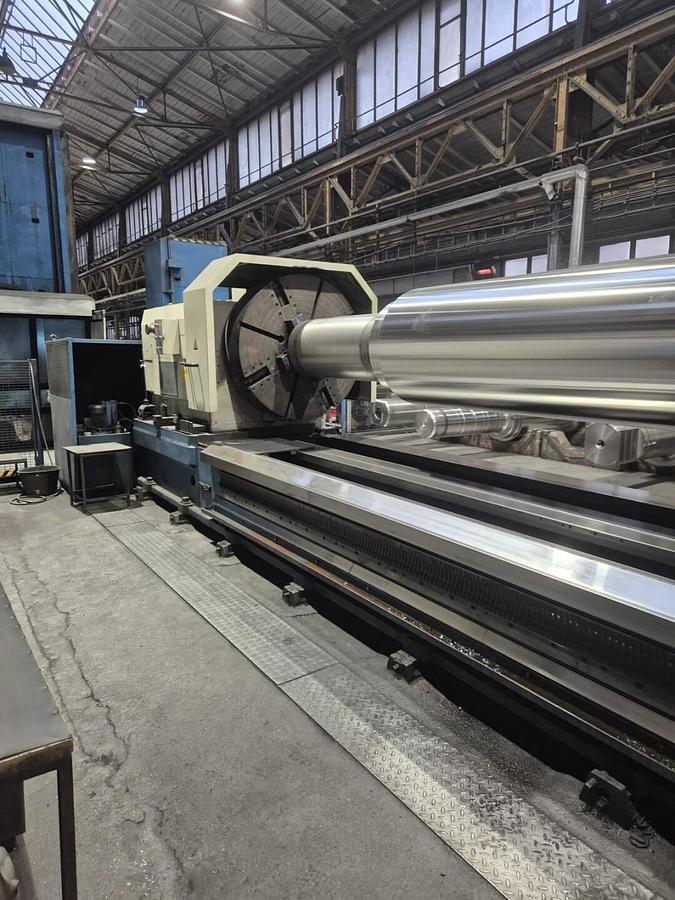

POREBA TCF 160 is a heavy-duty CNC horizontal lathe (turning machine) manufactured by POREBA Machine Tools, a Polish industrial machine tool builder. It’s part of the TCF series, which includes several sizes designed for machining very large, heavy workpieces such as shafts, rolls, and other long cylindrical components.

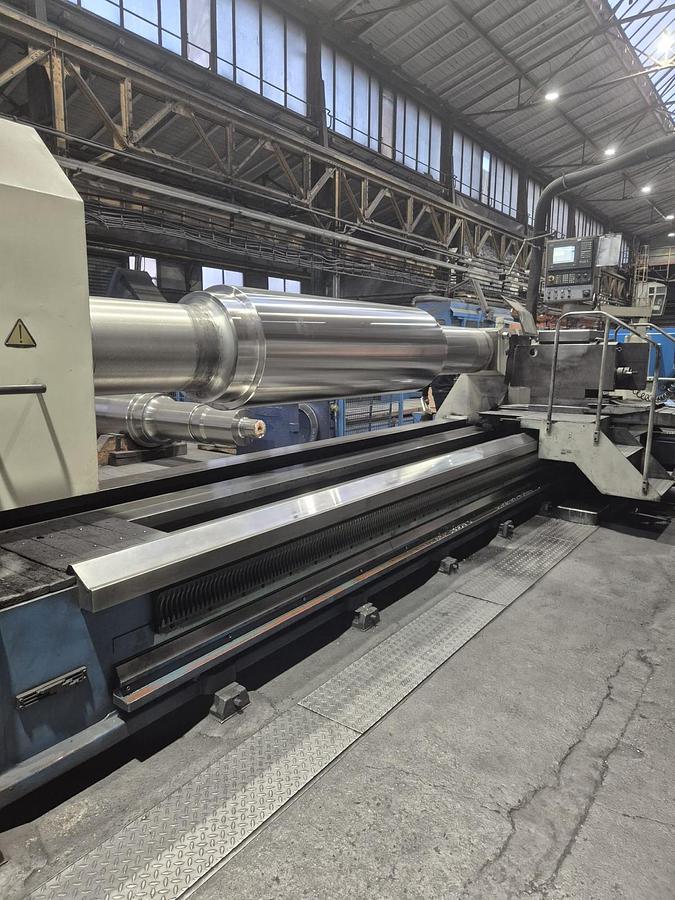

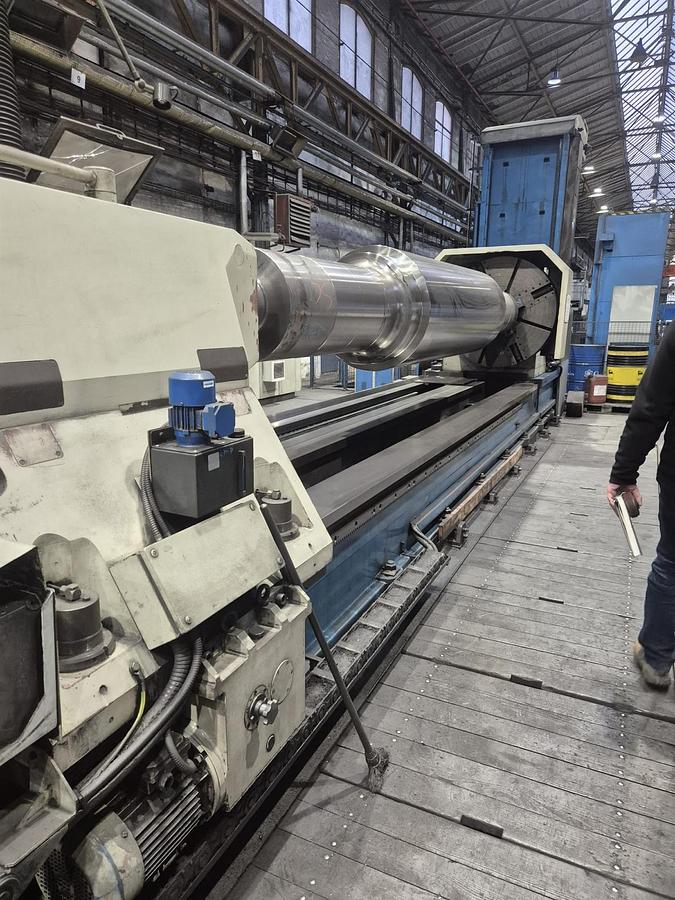

  • Turning large shafts and heavy cylindrical parts, like those used in shipbuilding, power generation, mining, and heavy machinery.
  • When equipped with optional tooling, it can also perform drilling and milling operations in addition to turning.

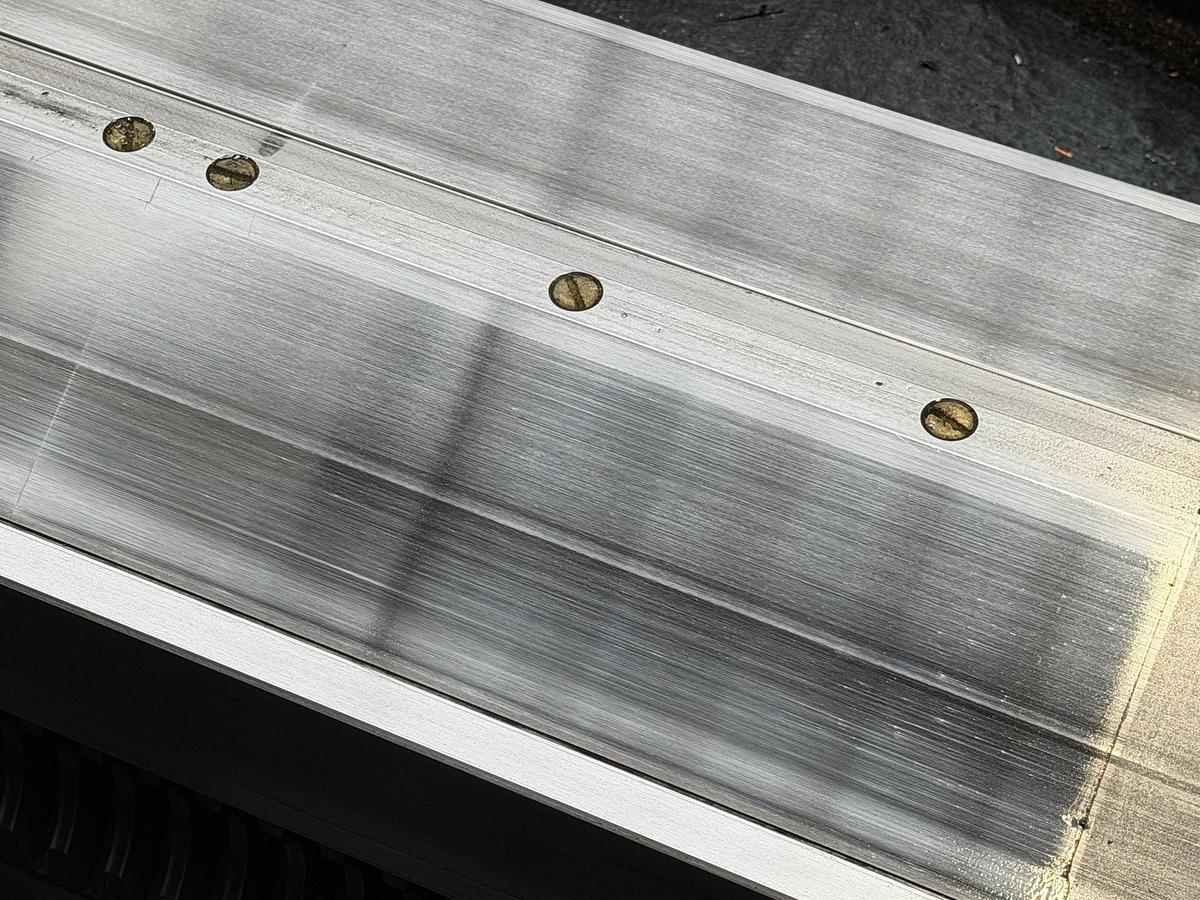

  • Rigid construction with hardened guideways and heavy cast components for stability.
  • Milling attachment 5.5 kW with Sk-40 taper

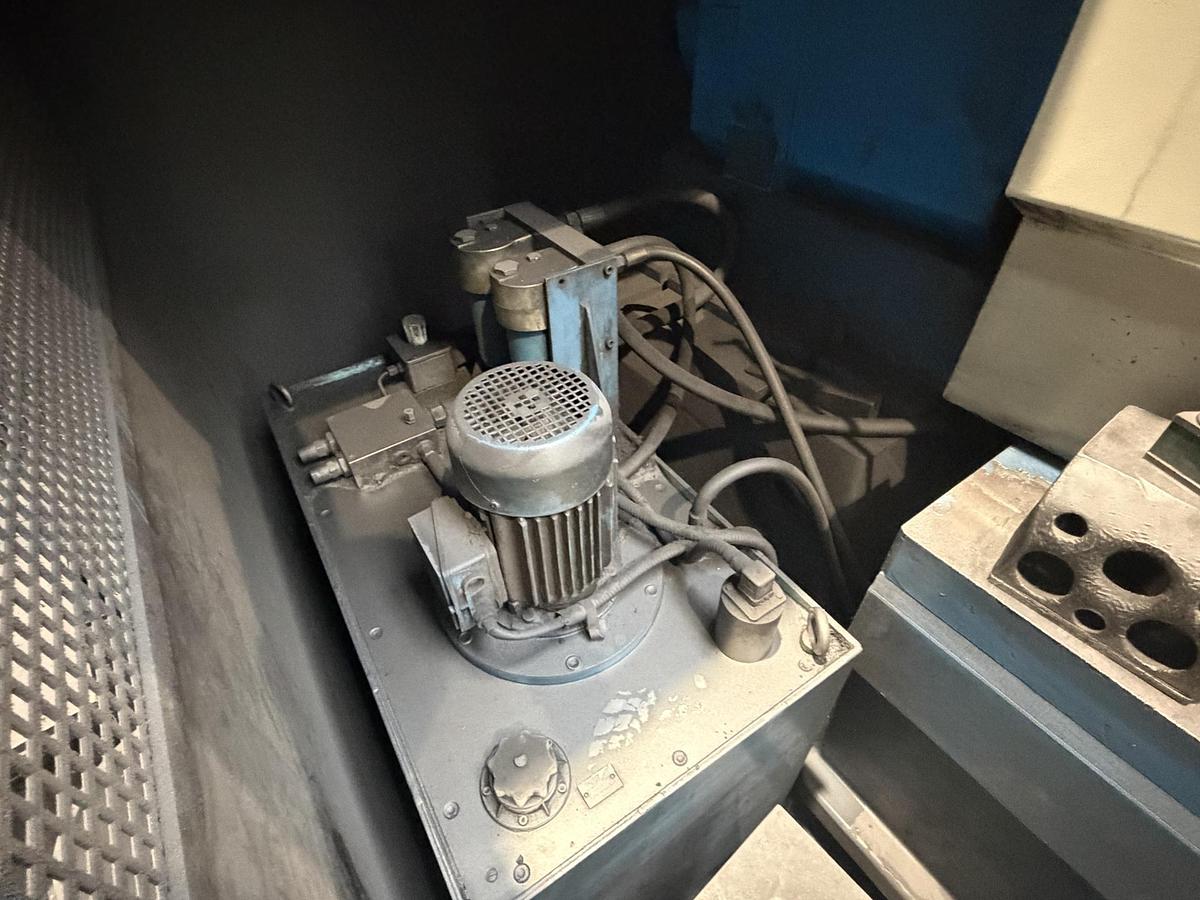

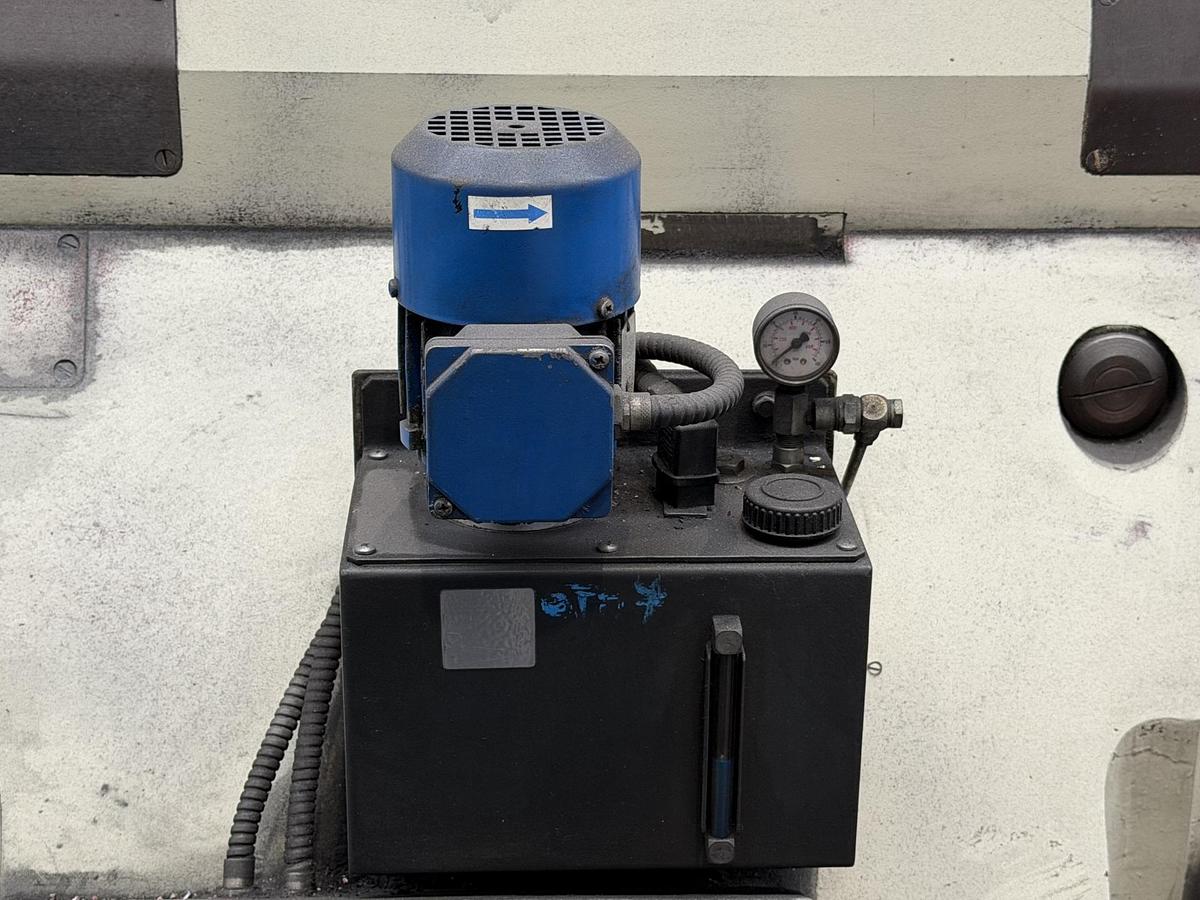

  • Central lubrication
  • Motorized tailstock
  • 4 Chuck 1300 mm


Specifications

ManufacturerPoreba
ModelTCF 160-3/2X6M
Year1999
ConditionUsed
Stock Number5654343
Between centers6,000 mm
Capacity between centers30,000 kg
Swing over bed1,600 mm
Swing over saddle1,300 mm
Chuck speed0.5 - 250 rpm
Tailstock quill diameter280 mm
Spindle power75 kW
Centers height900 mm
Stroke pinhole200 mm
Machine dimensions, approximate9,550 x 2,950 x 2,875 mm
Power125A
