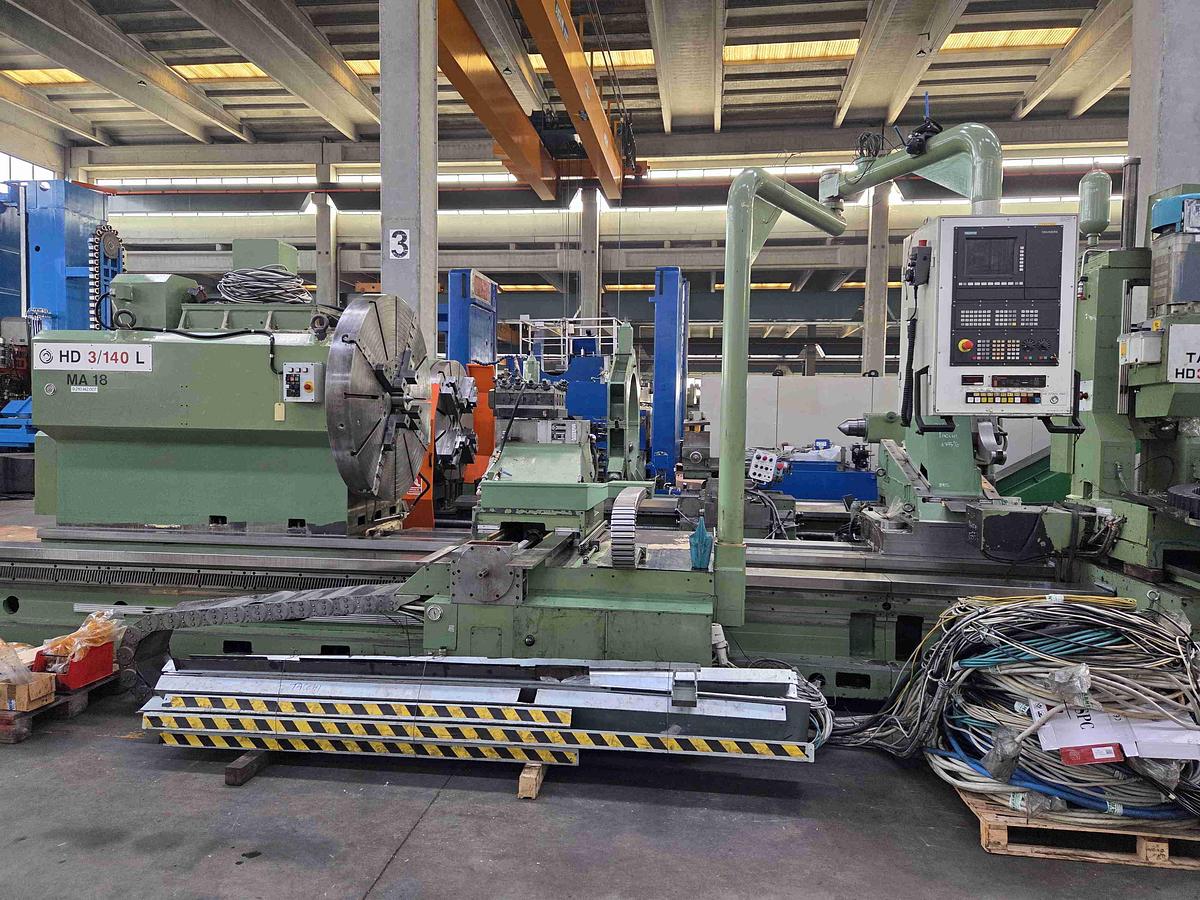

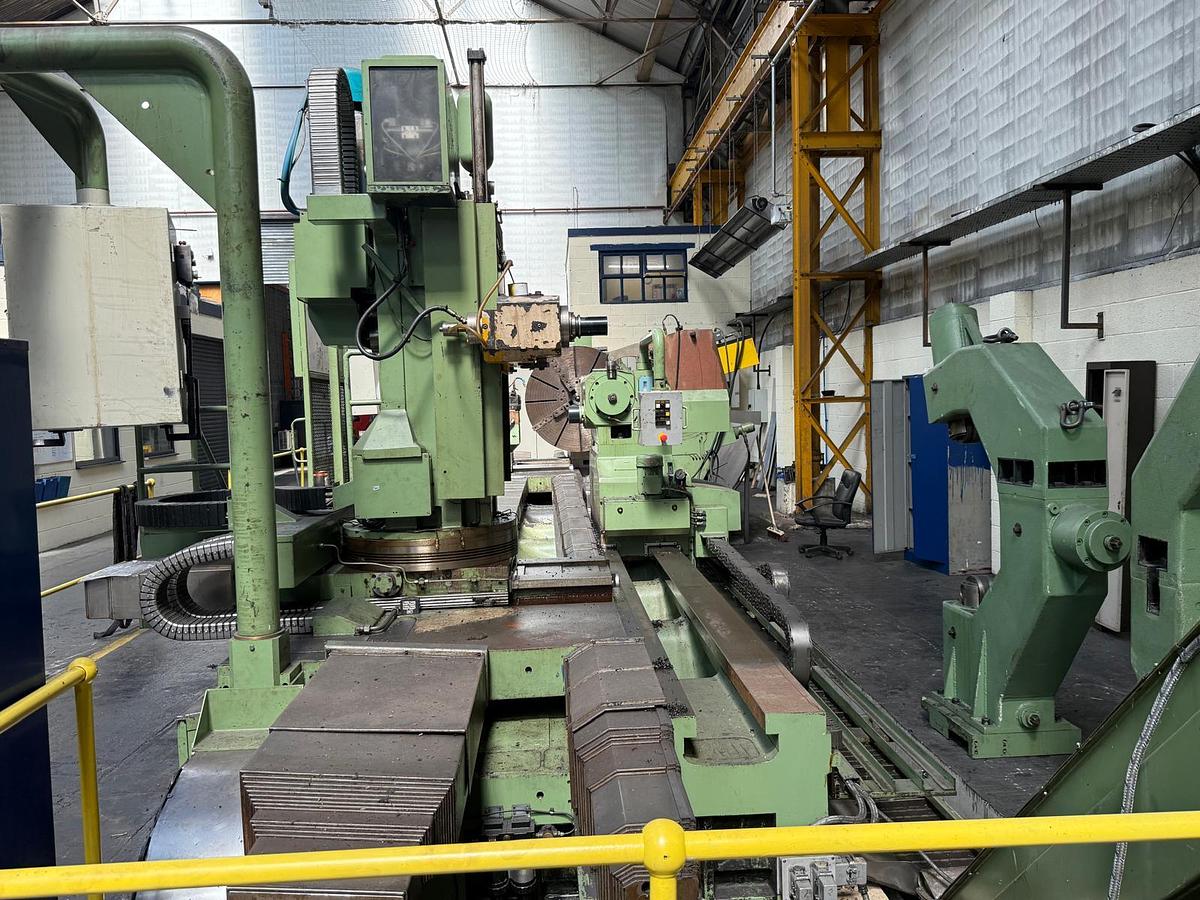

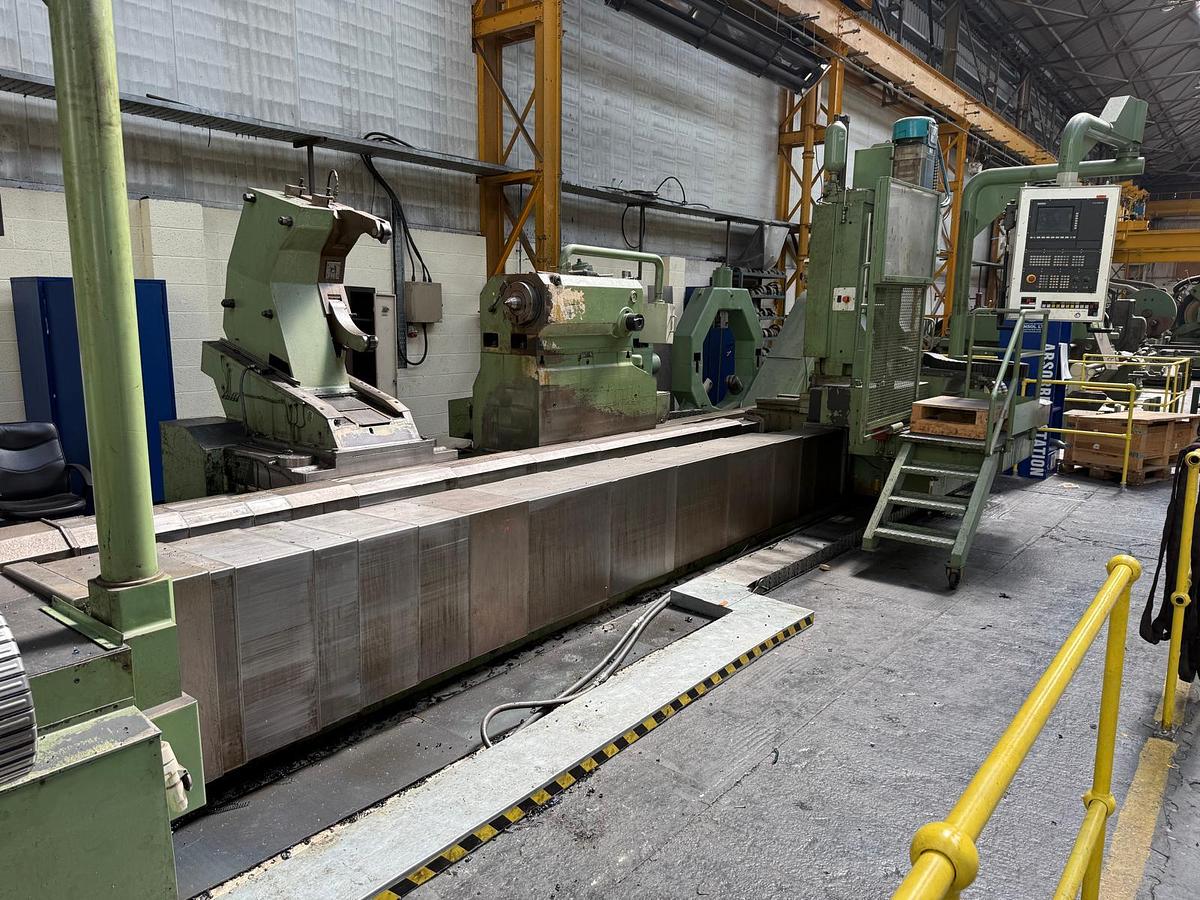

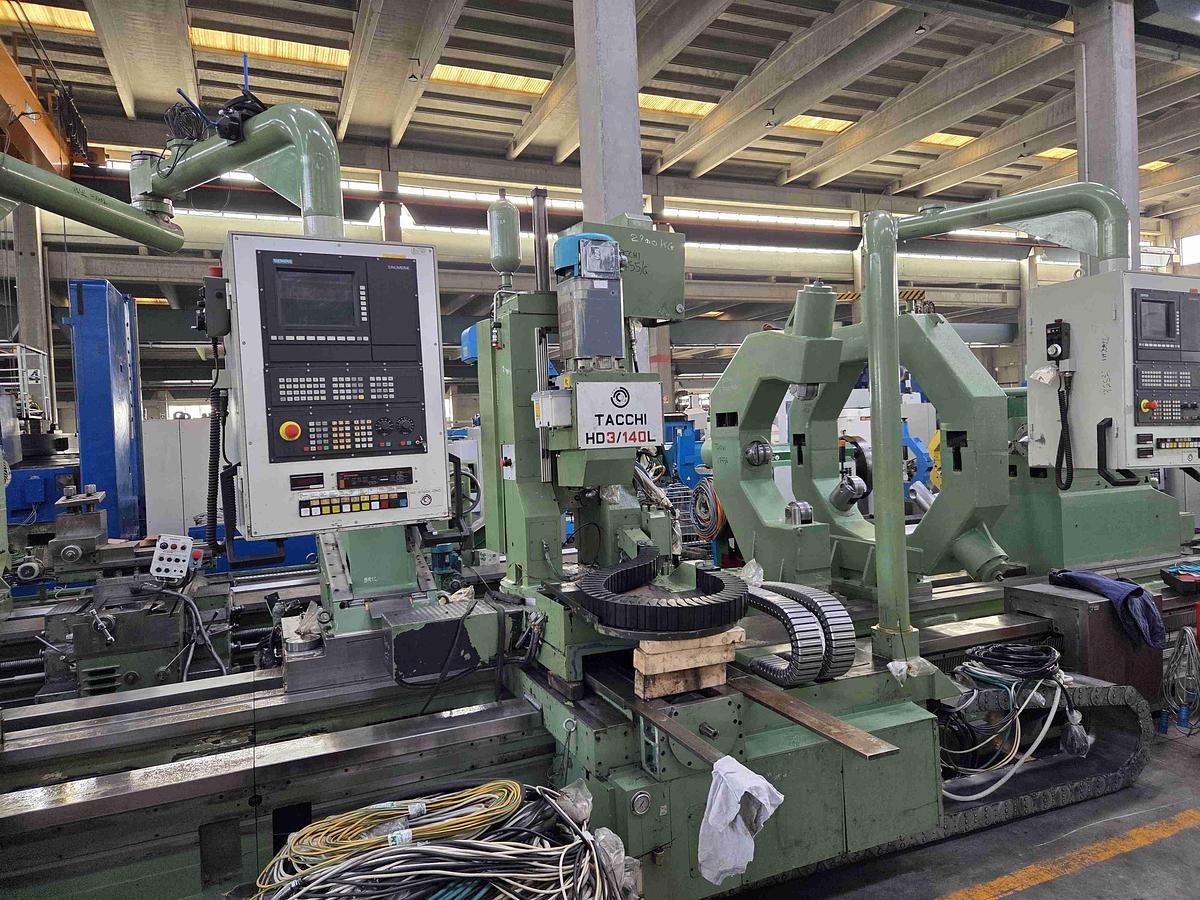

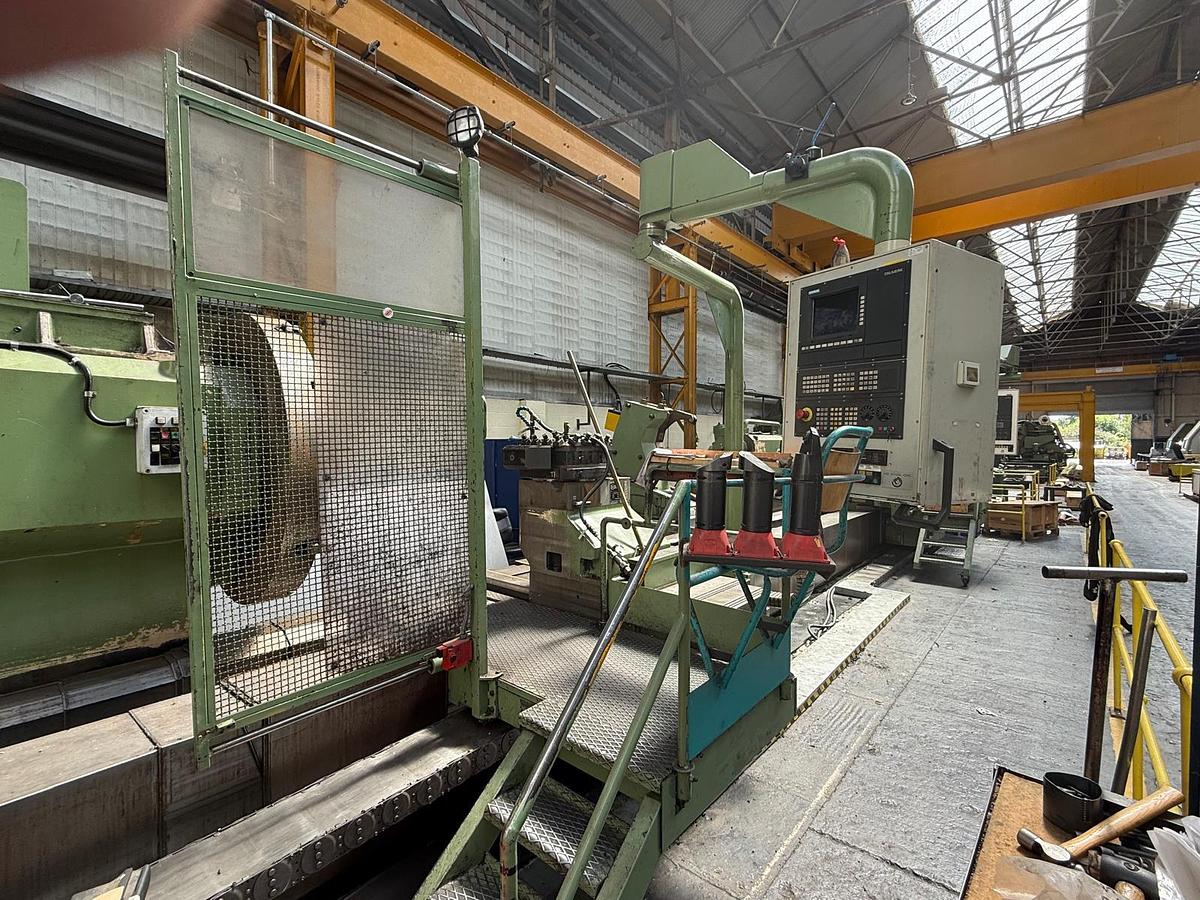

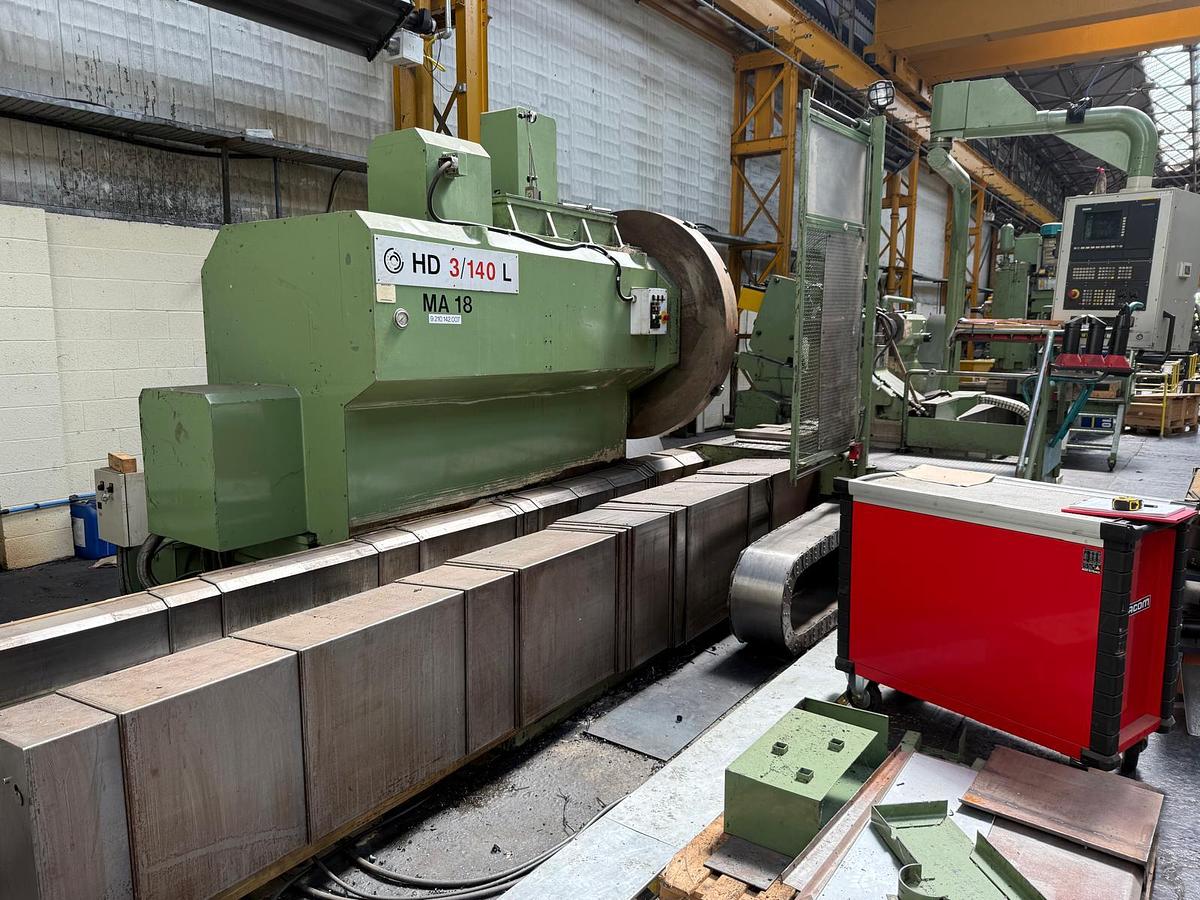

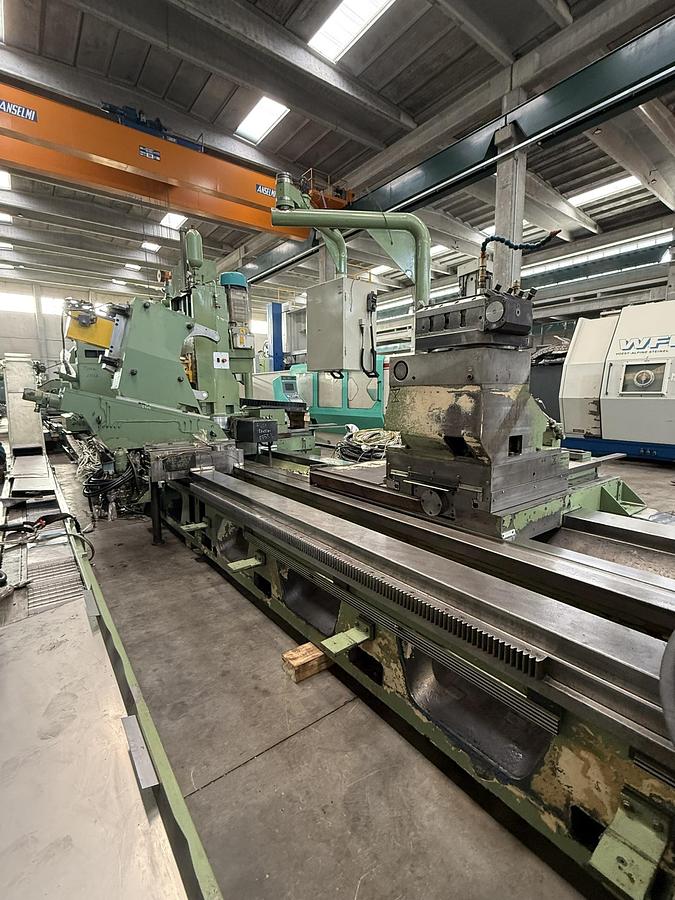

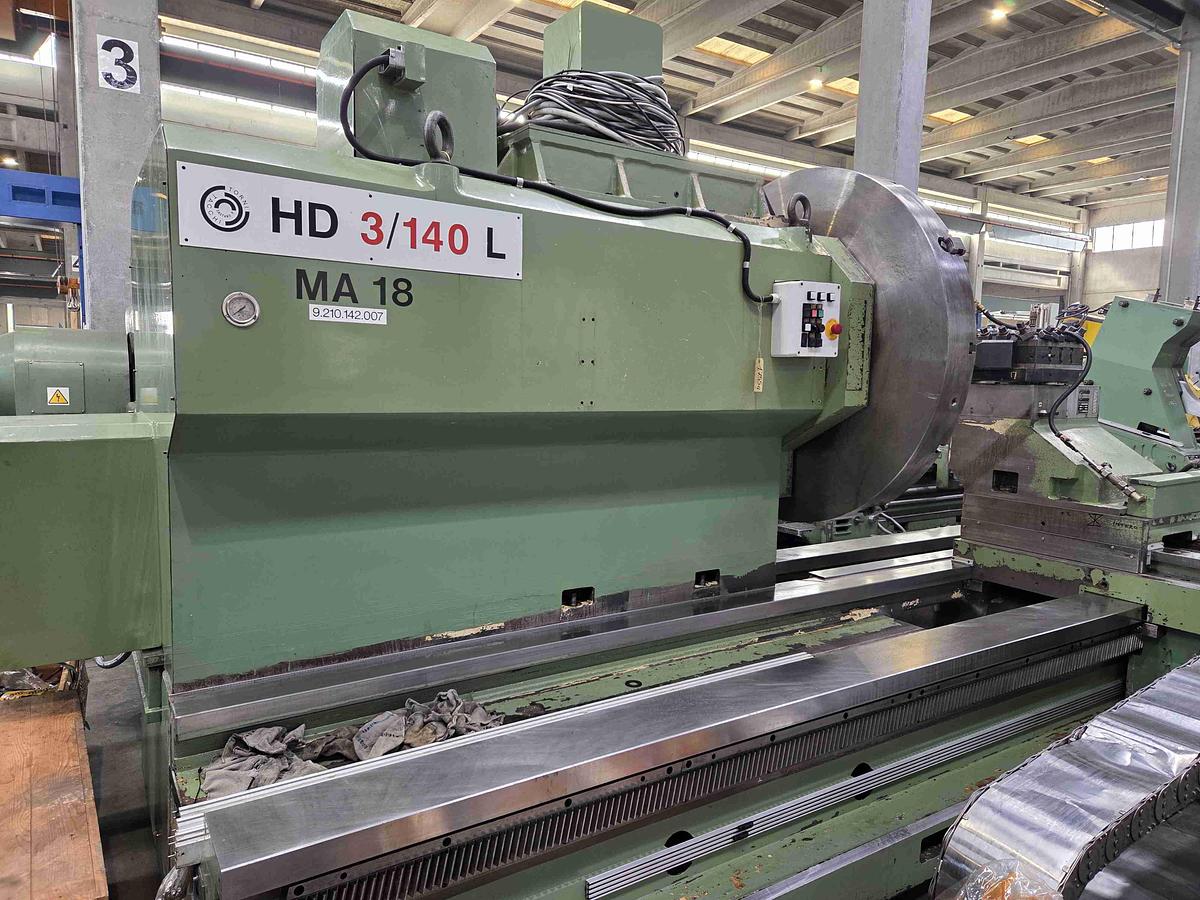

Tacchi HD3 / 140L CNC Horizontal Lathe with Live Spindle Milling Tower & C-Axis

Tacchi HD3 / 140L CNC Horizontal Lathe with Live Spindle Milling Tower & C-Axis

or
Call 770-509-0744

Description

Tacchi HD3/140L CNC heavy duty lathe with milling capability. Year 2001. Built for large diameters, long shafts, and demanding roughing with reliable accuracy. With 95 kW spindle power, a 2,000 mm swing over bed, and 8,000 mm between centers, the Tacchi HD3/140L delivers capacity and rigidity for continuous industrial use.


This used HD3/140L offers the power and stability you need for heavy cuts, confident finish quality, and fewer setups. The 3 bed way construction and 1,400 mm bed width enhance stiffness. The full C axis with 360,000 positions and a 22 kW milling tower enable complete machining in one clamping, reducing cycle time and handling.

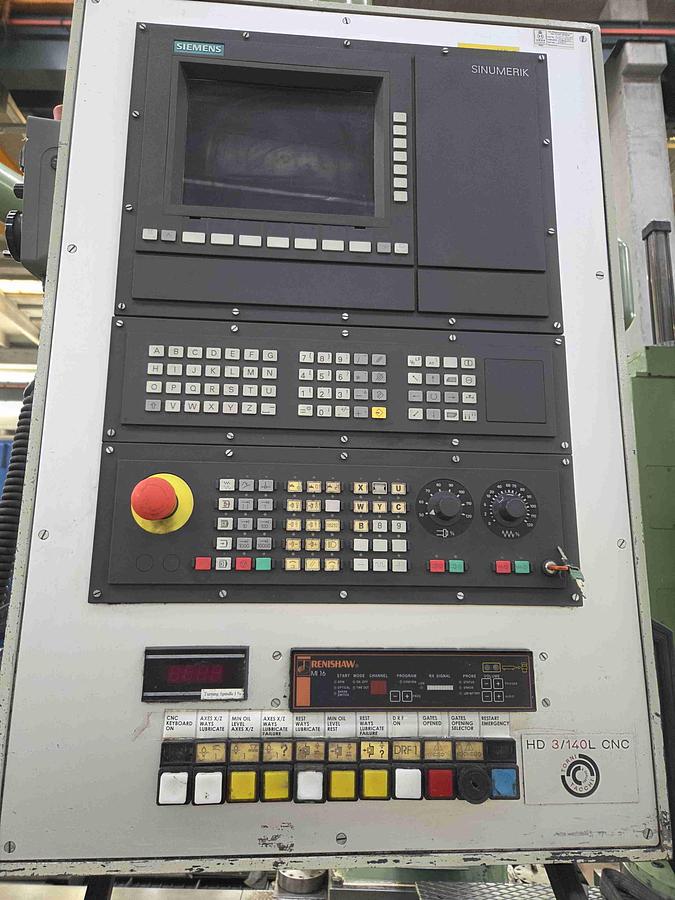

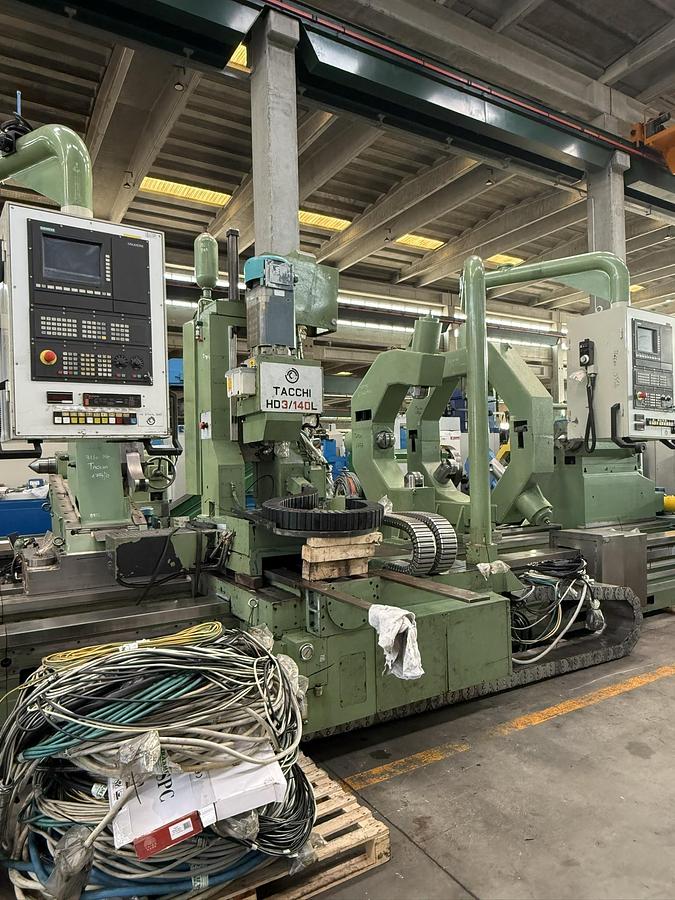

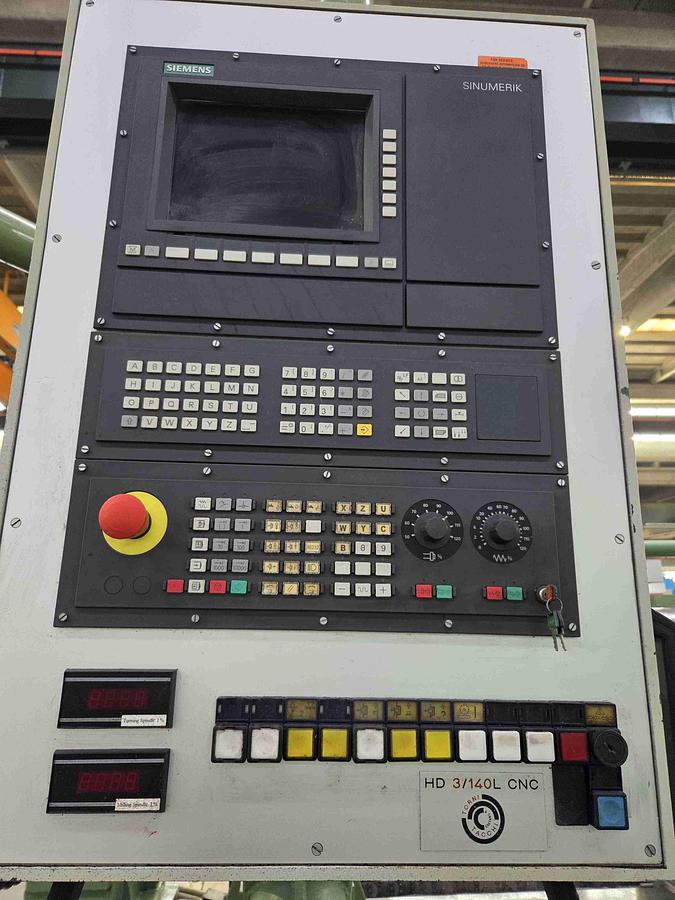

Siemens 840C CNC Control

  • “C” AXIS

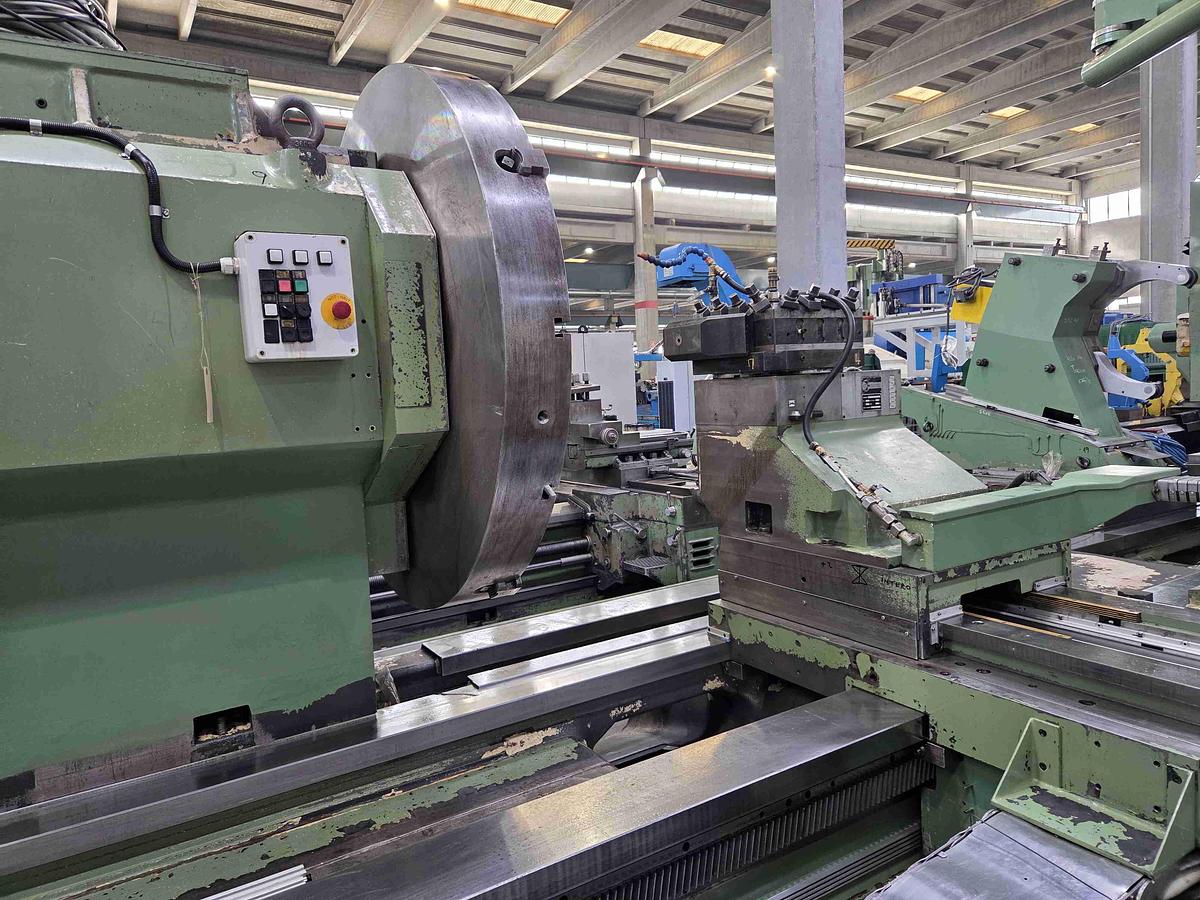

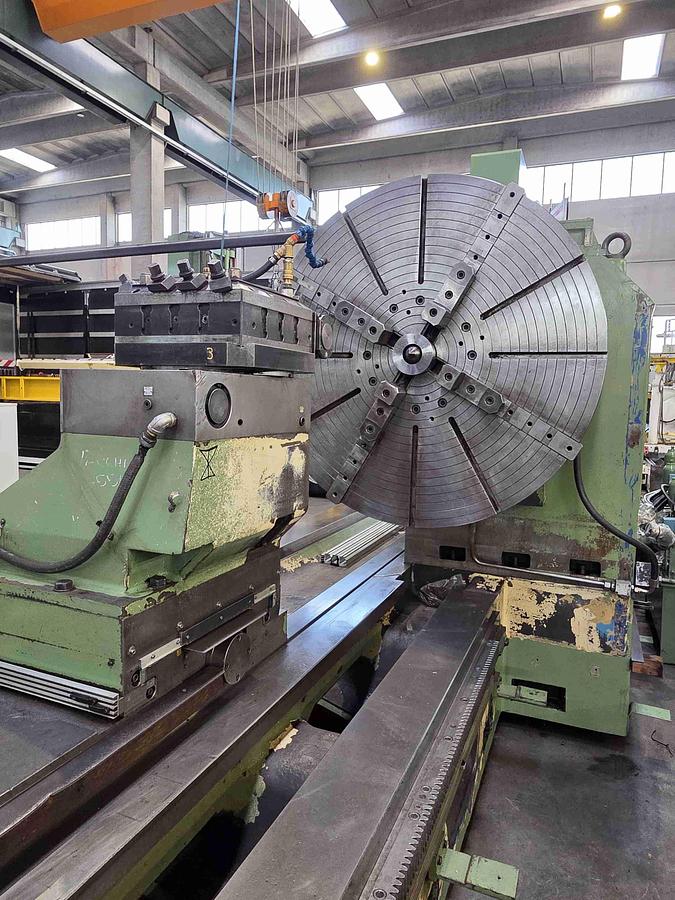

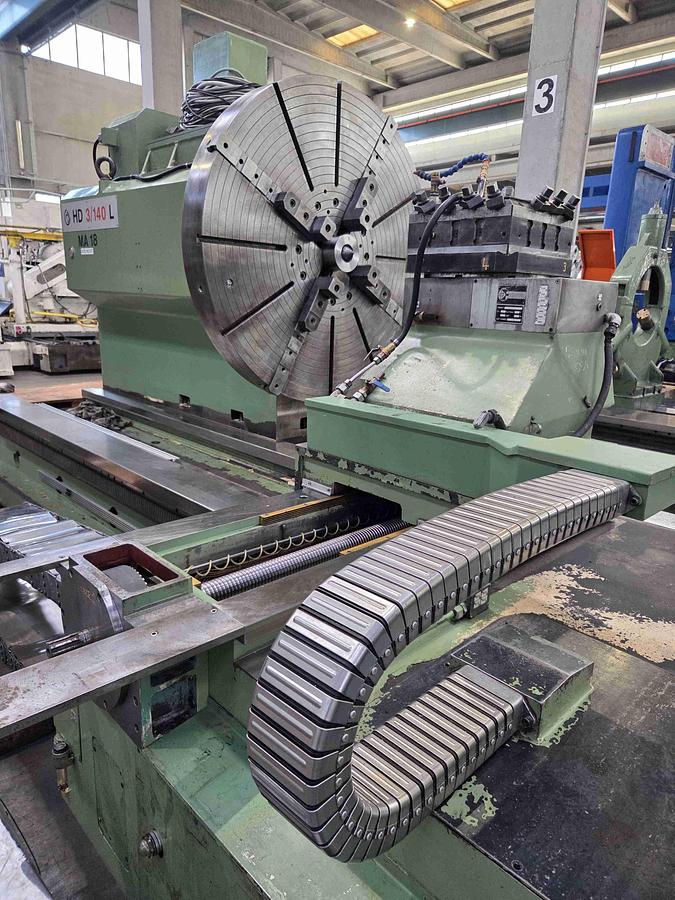

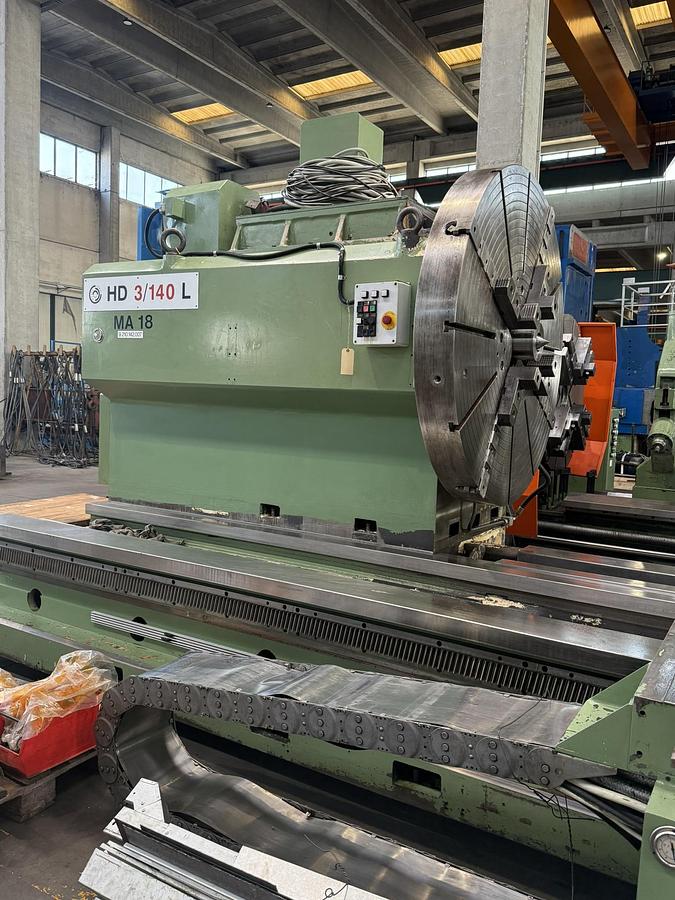

  • N. 1 FOUR JAWS TABLE Æ 1.500 MM.

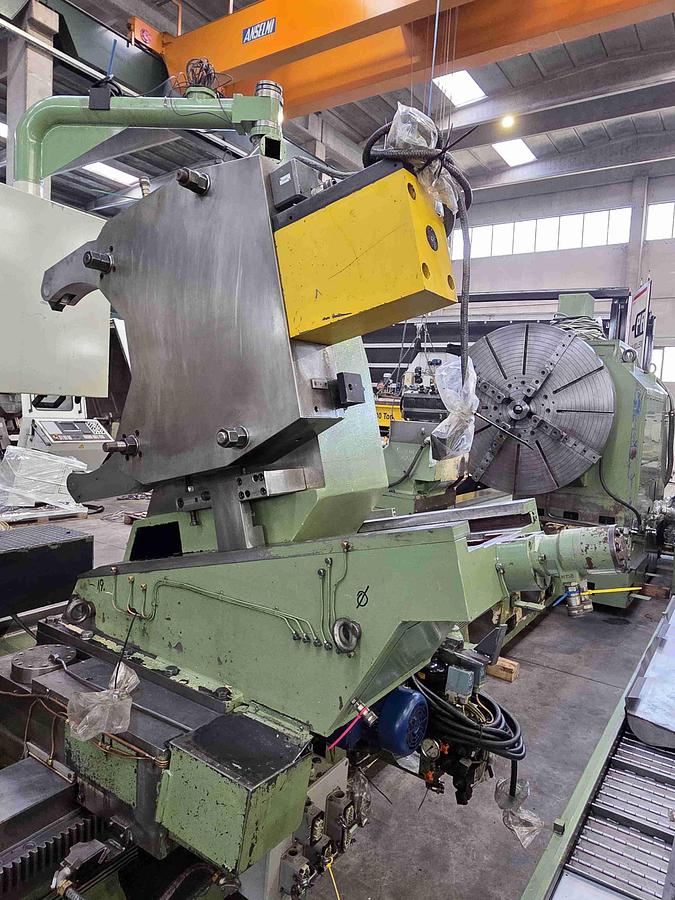

  • N. 1 CNC SADDLE WITH AUTOMATIC SQUARE TURRET

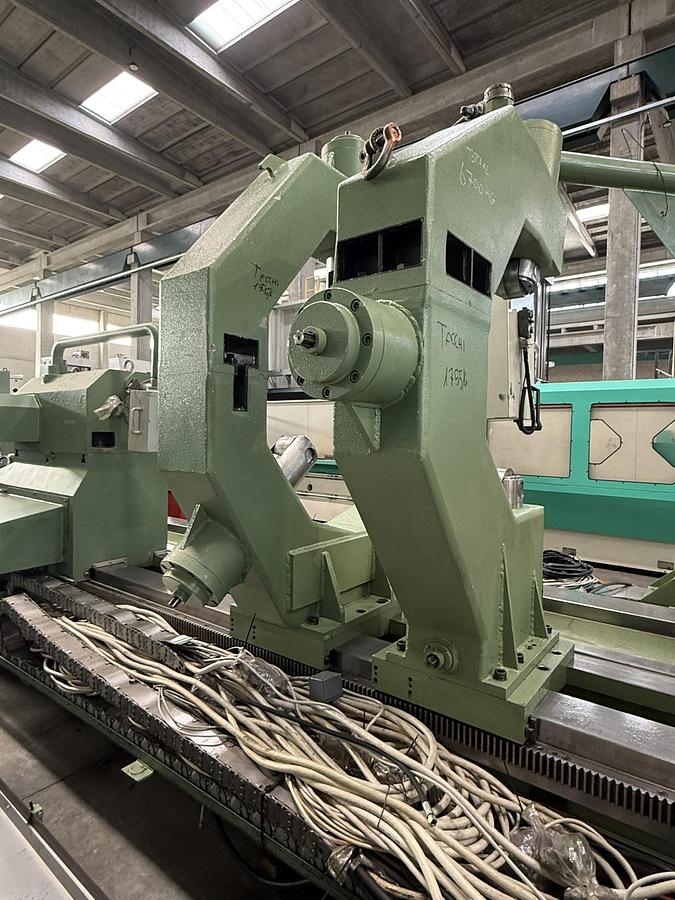

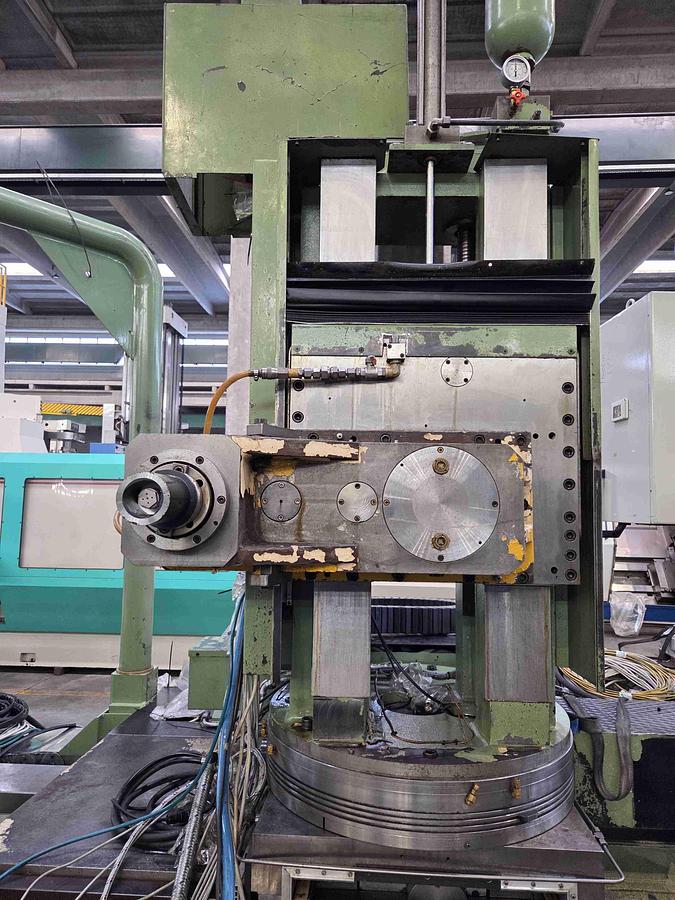

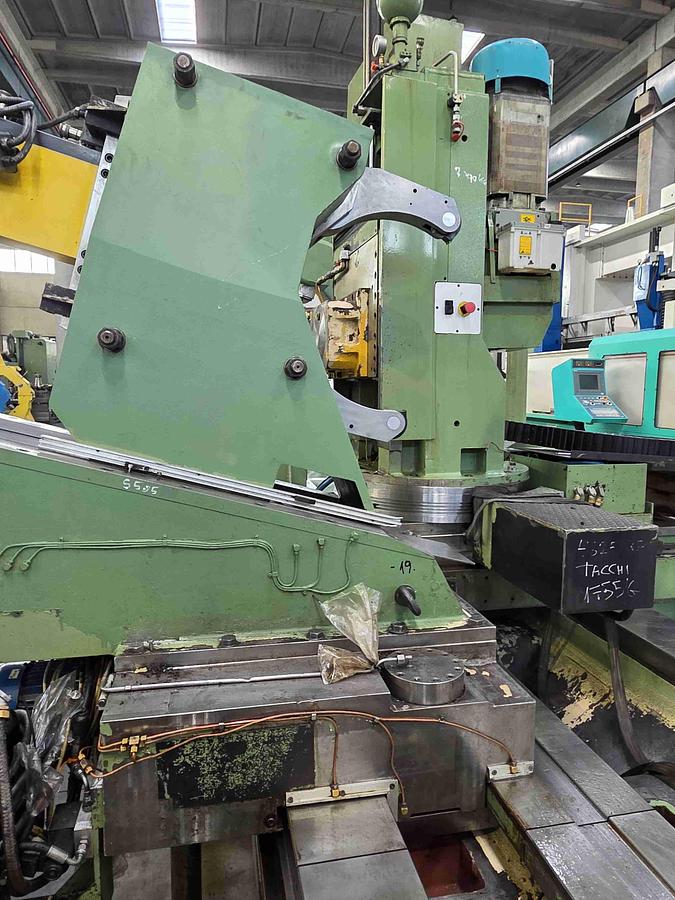

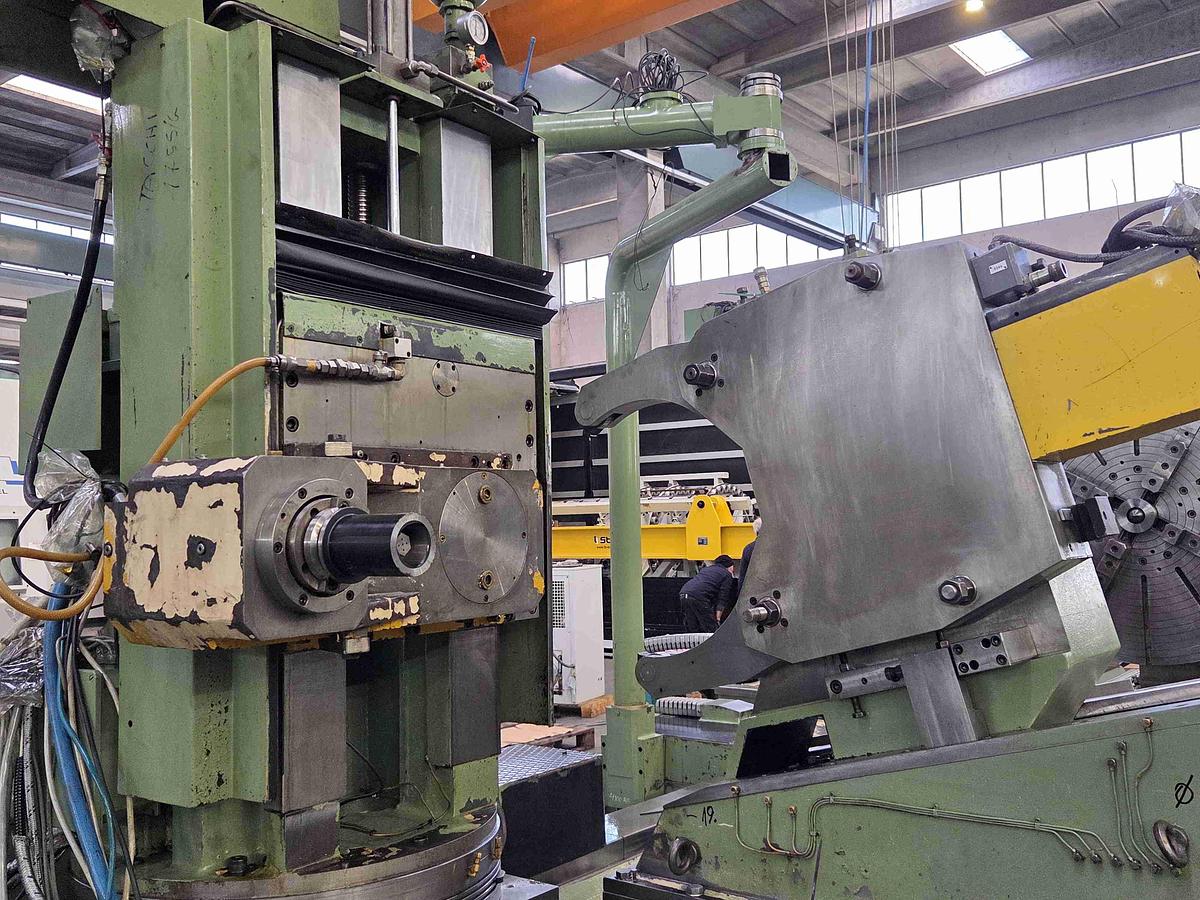

  • N. 1 CNC SADDLE WITH ROTARY MILLING COLUMN:
  • VERTICAL TRAVEL ("Y" AXIS) 500 MM.; MILLING MOTOR POWER 22 KW.; MILLING SPEEDS 0 - 1.800 RPM.; SPINDLE TAPER ISO 50
  • N. 1 HYDRAULIC SELFCENTERING STEADY

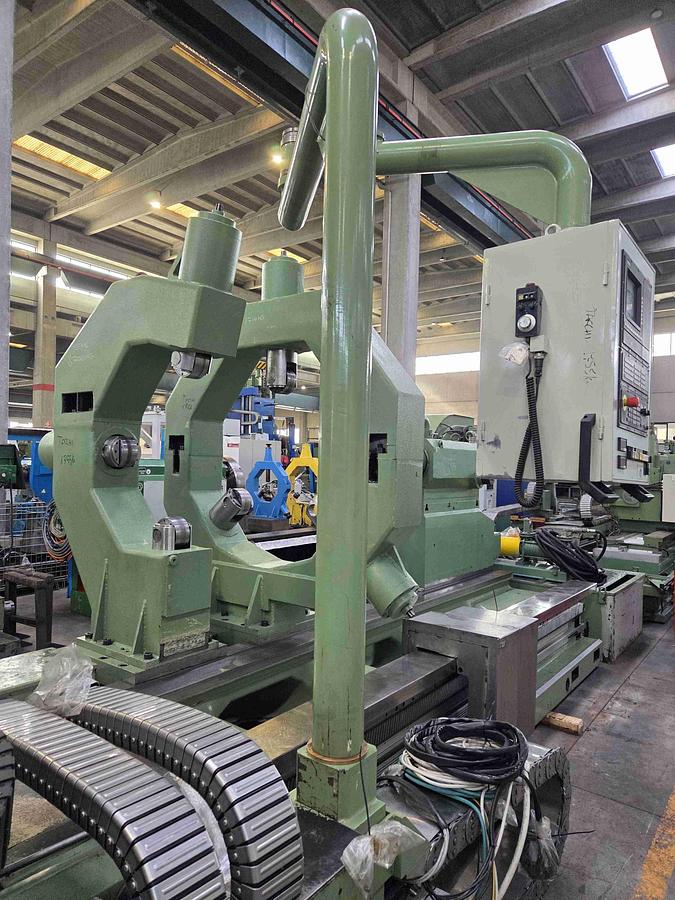

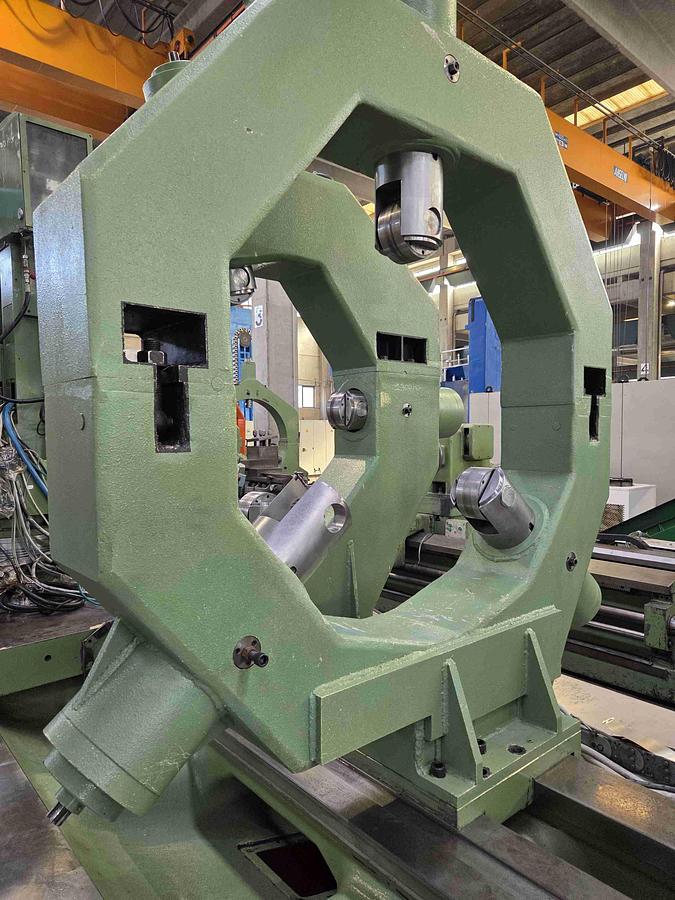

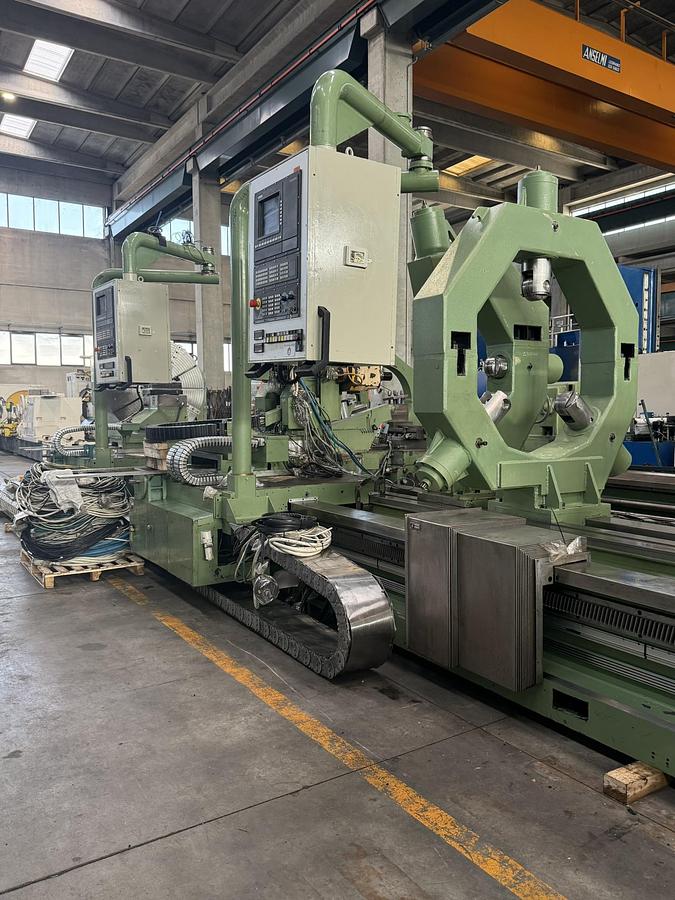

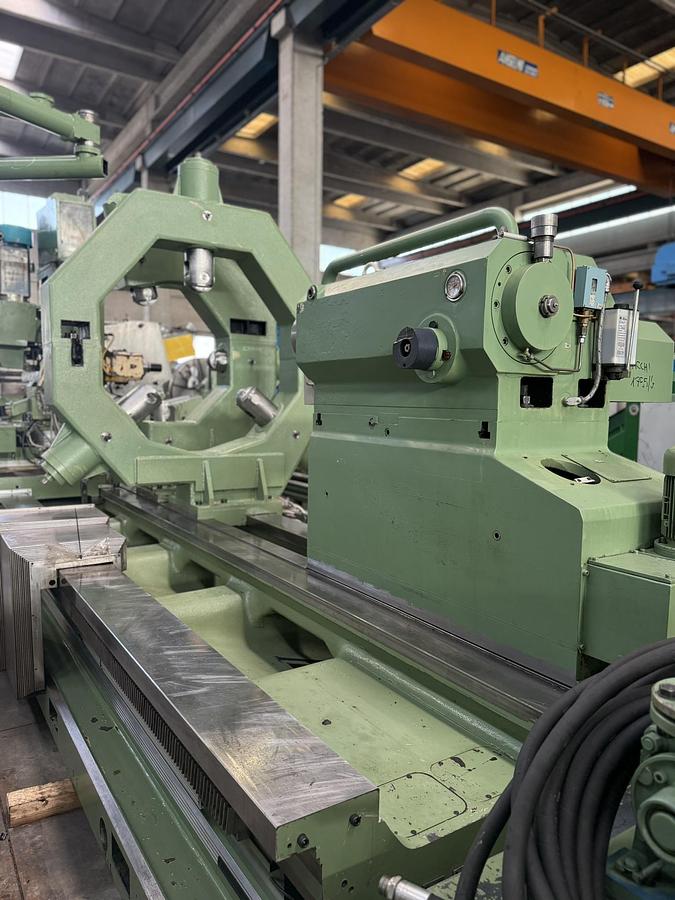

  • N. 1 CLOSED STEADY

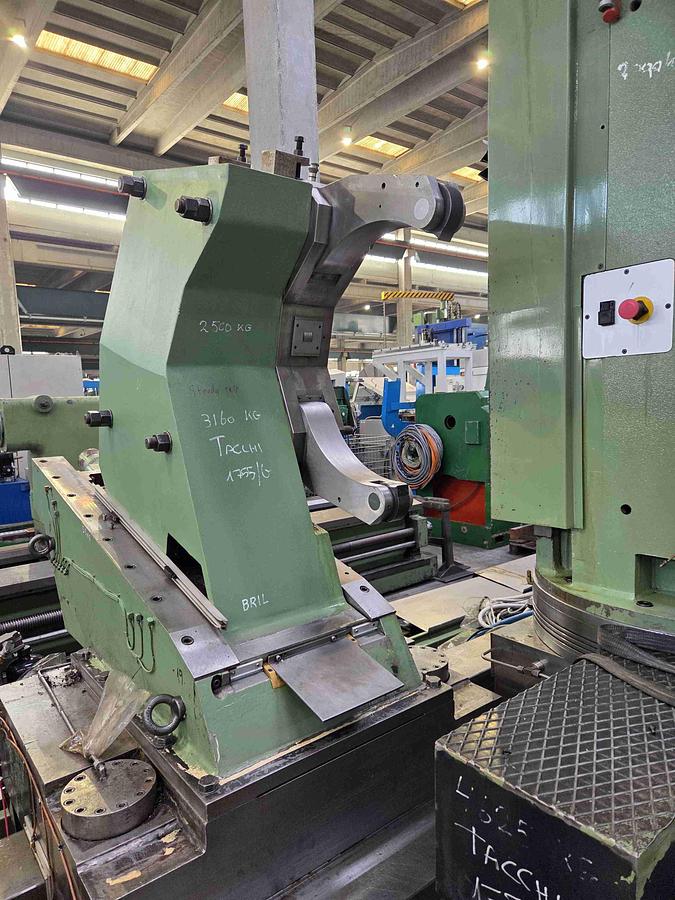

  • N. 1 "C" FRAME STEADY

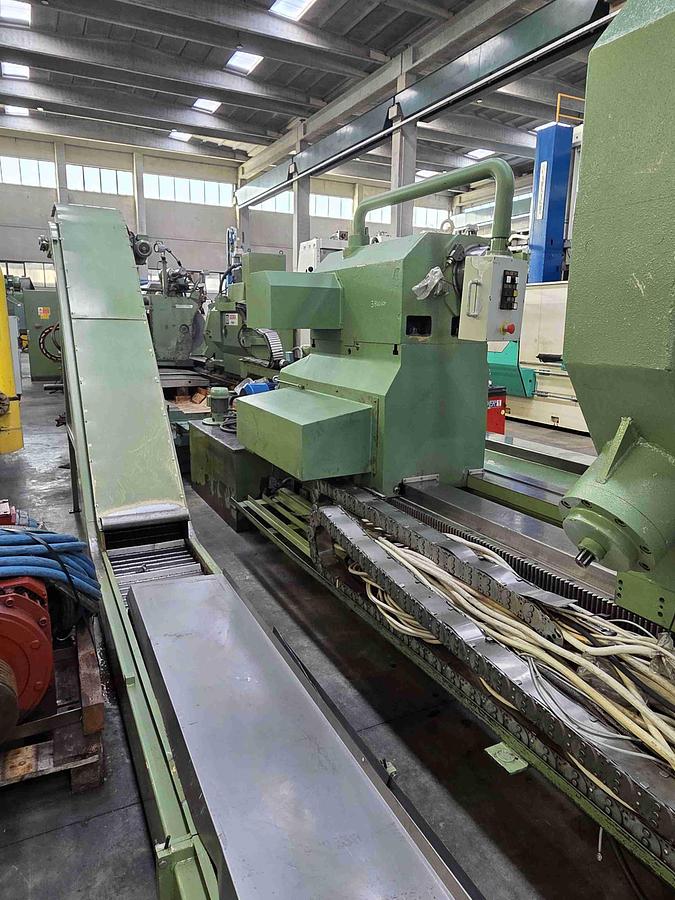

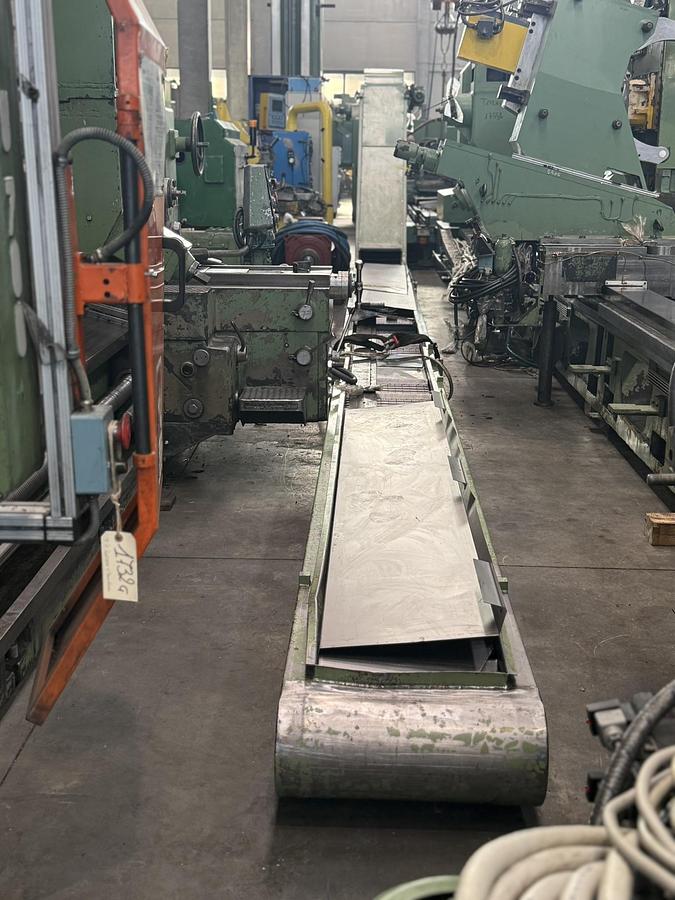

  • CHIPCONVEYOR


Specifications

ManufacturerTacchi
ModelHD3 / 140L
Year2001
ConditionUsed
Stock Number5654327
Between centers8,000 mm
Capacity between centers25,000 kg
Swing over bed2,000 mm
Swing over slide1,550 mm
Chuck speed360 rpm
Chuck diameter - 4-Jaw1,500 mm

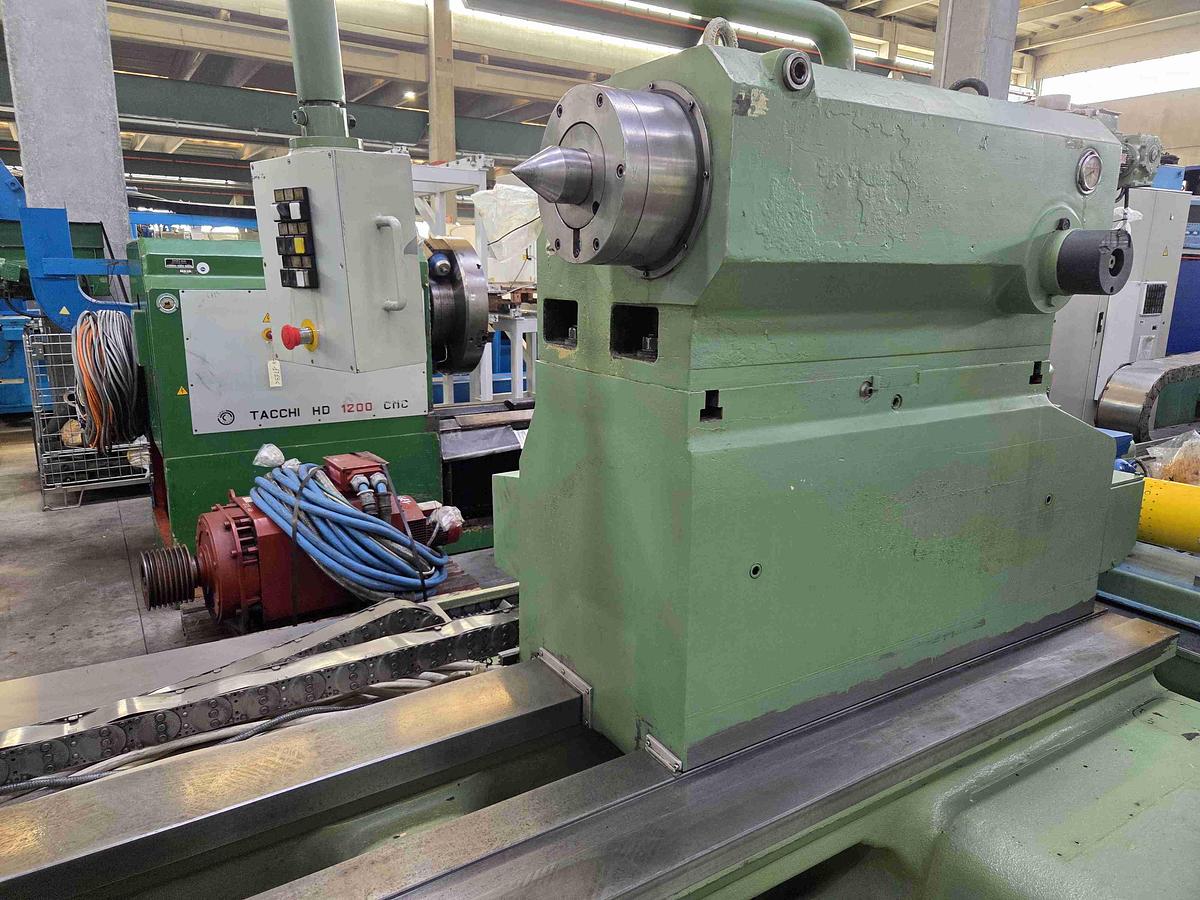

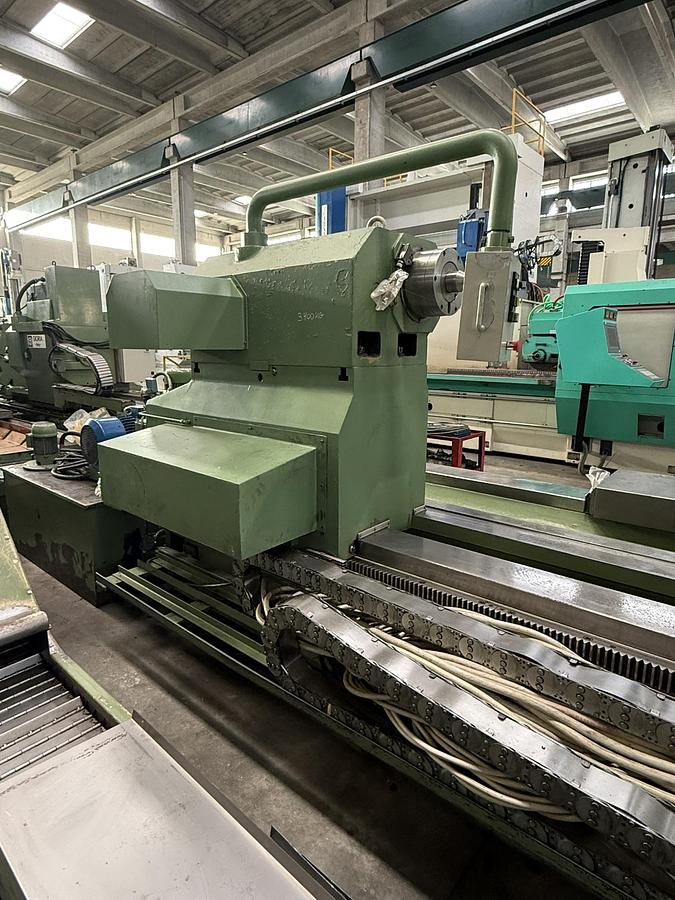

Tailstock diameter260 mm
Tailstock stroke200 mm - taper Metric 80
Spindle bore150 mm
Centers height1,000 mm
Bed width1,400 mm
Live spindle speed1,800 rpm
Live spindle power / torque22 kW / 2,800 Nm
X axis travel900 mm
Y axis travel500 mm
Stroke pinhole200 mm
Full c axis for milling positioning360,000
Main motor power95 kW
Main motor torque45,000 Nm
Feed rate X/Z0 - 6,000 mm/min
Machine dimensions16 x 5 x 3.8 m
