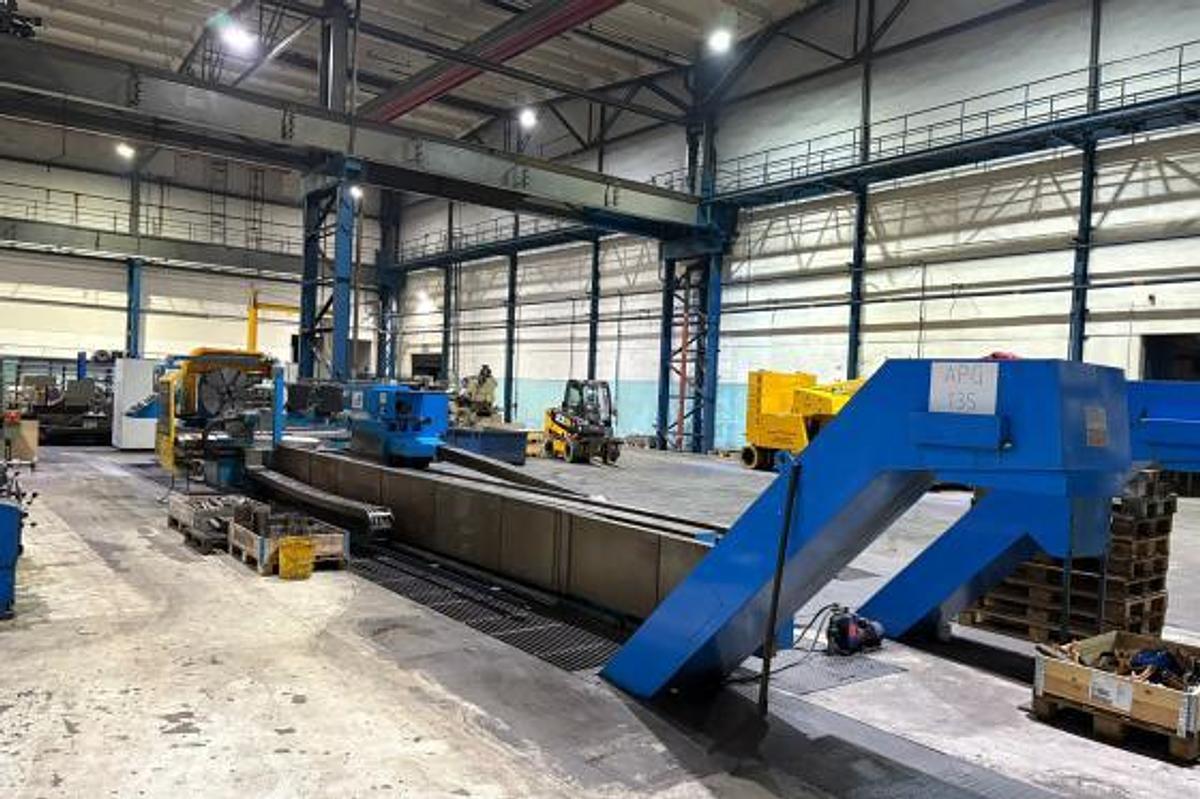

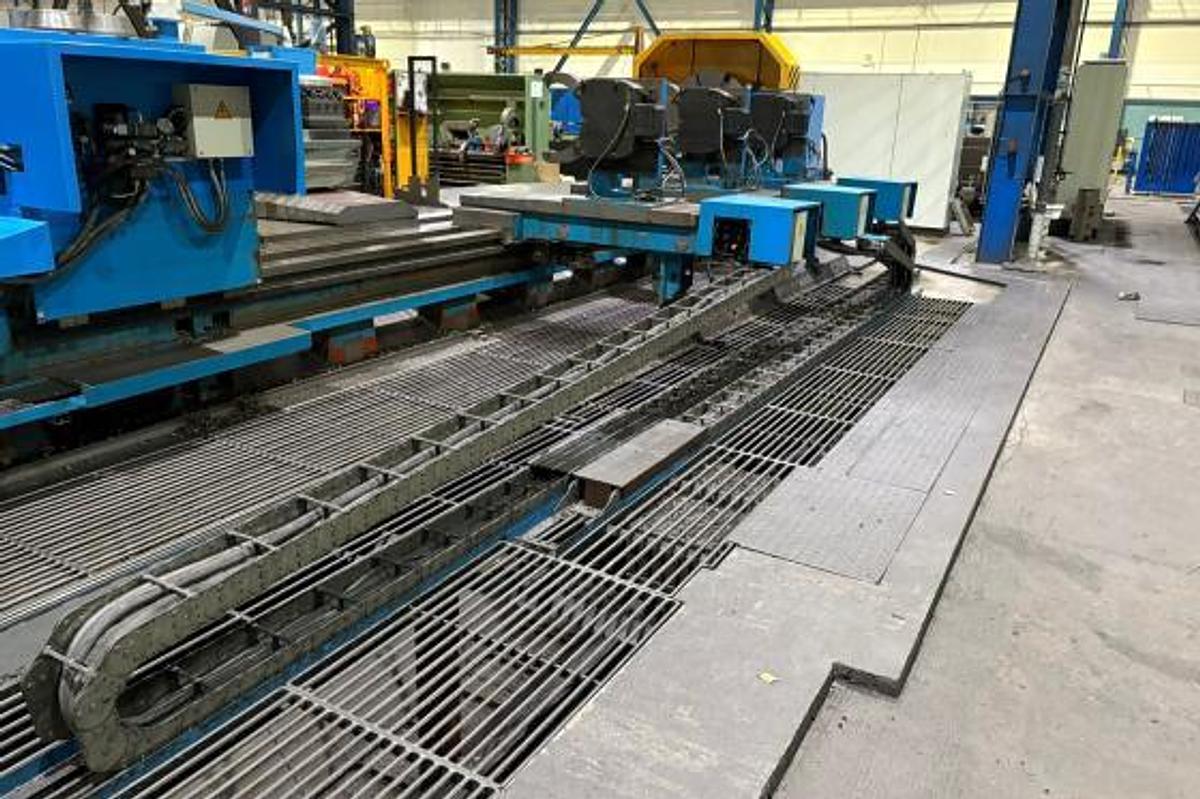

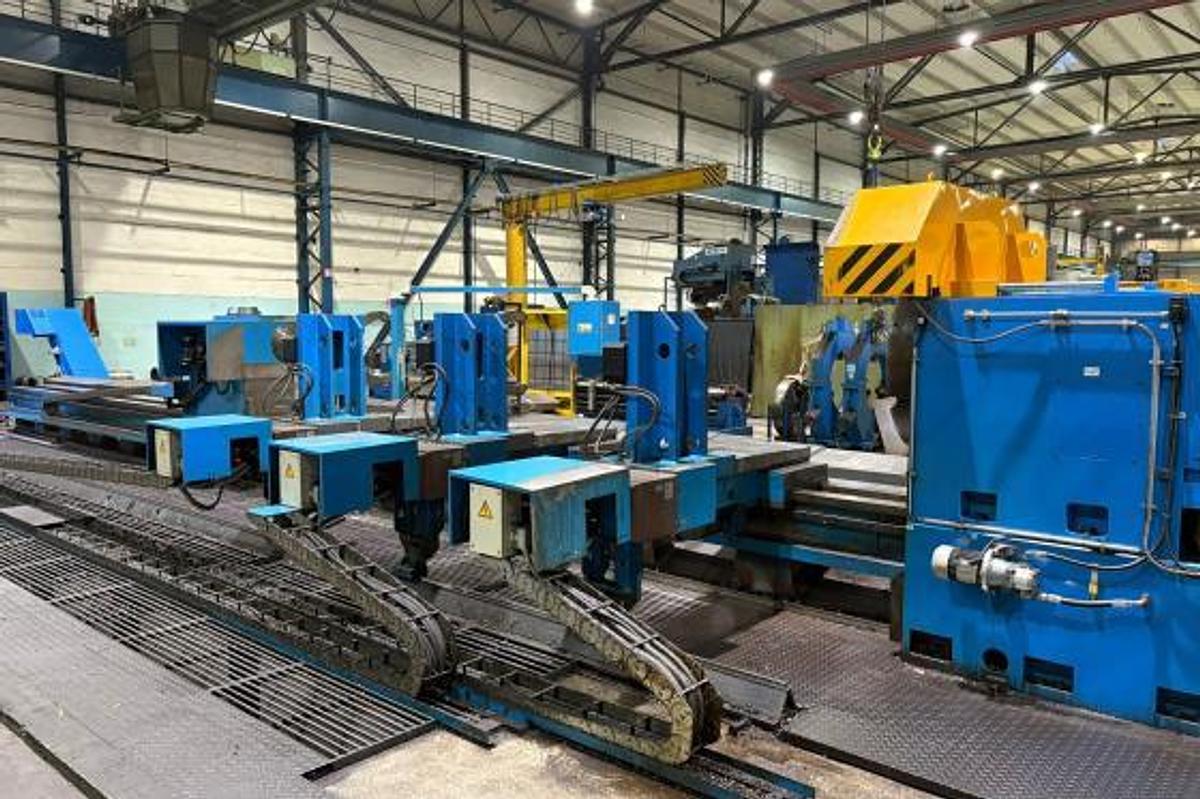

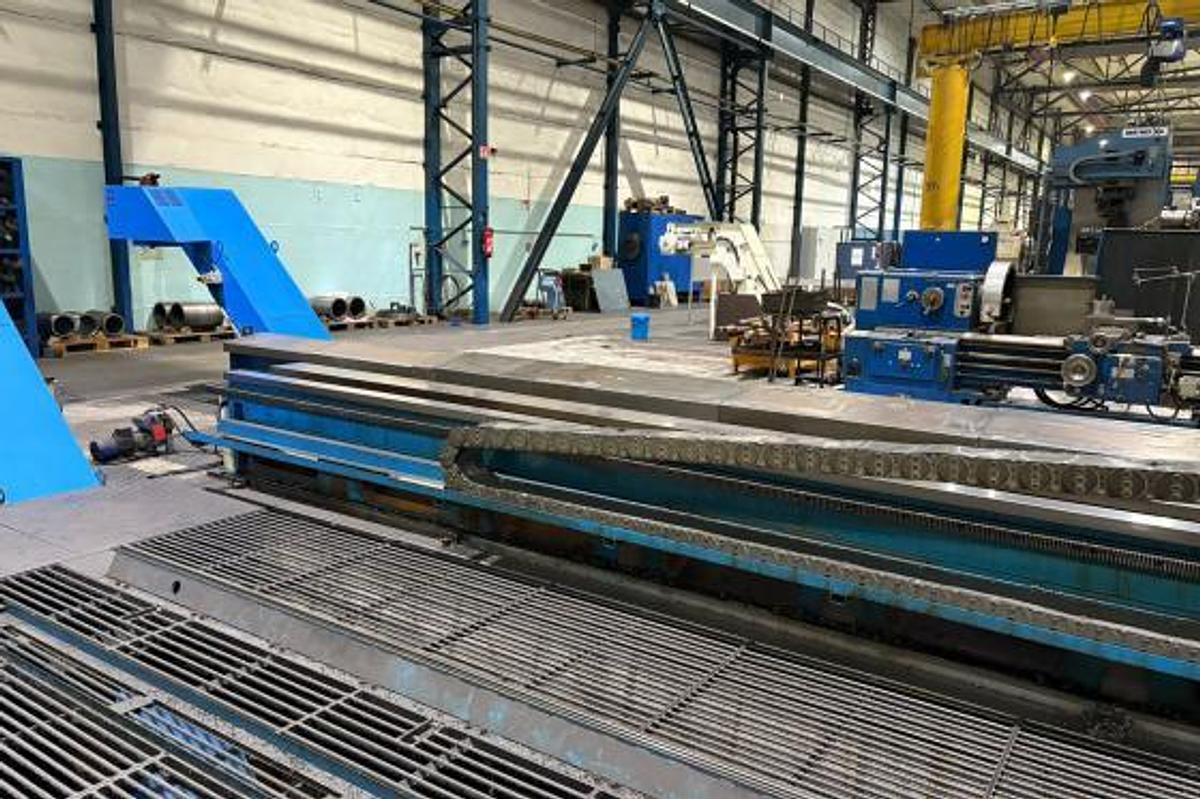

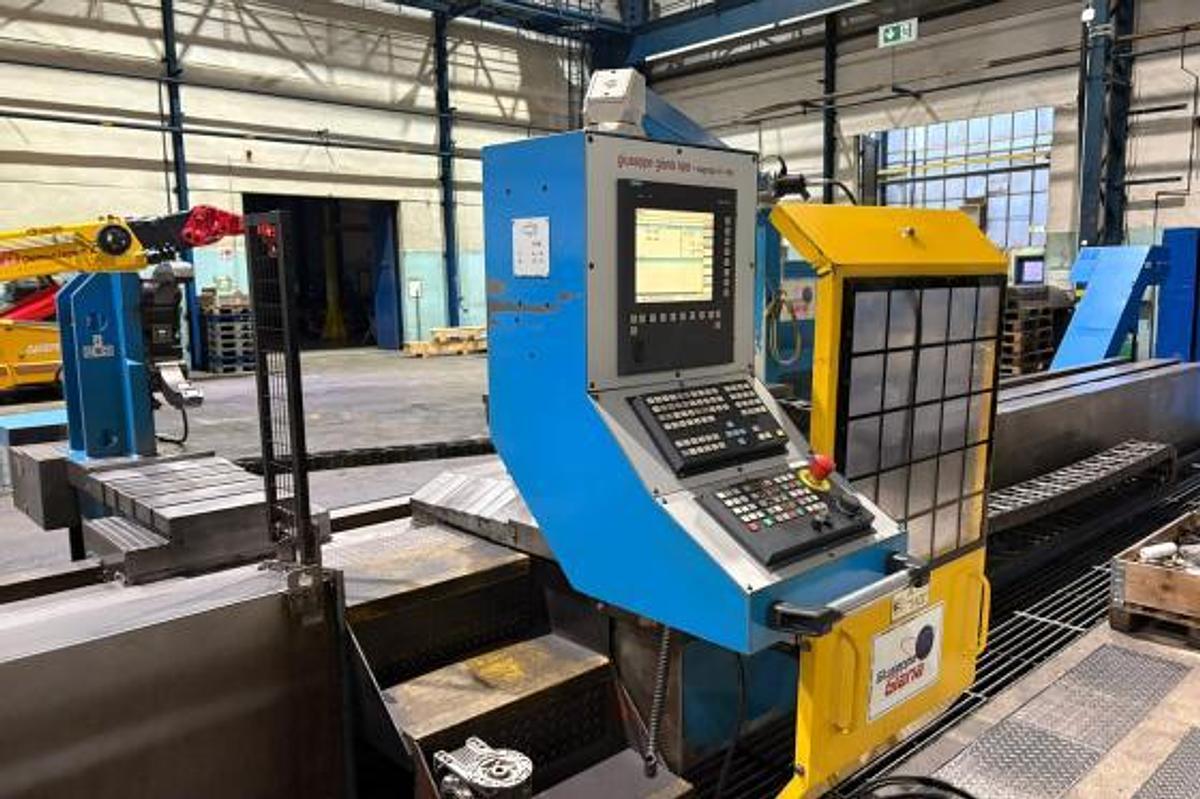

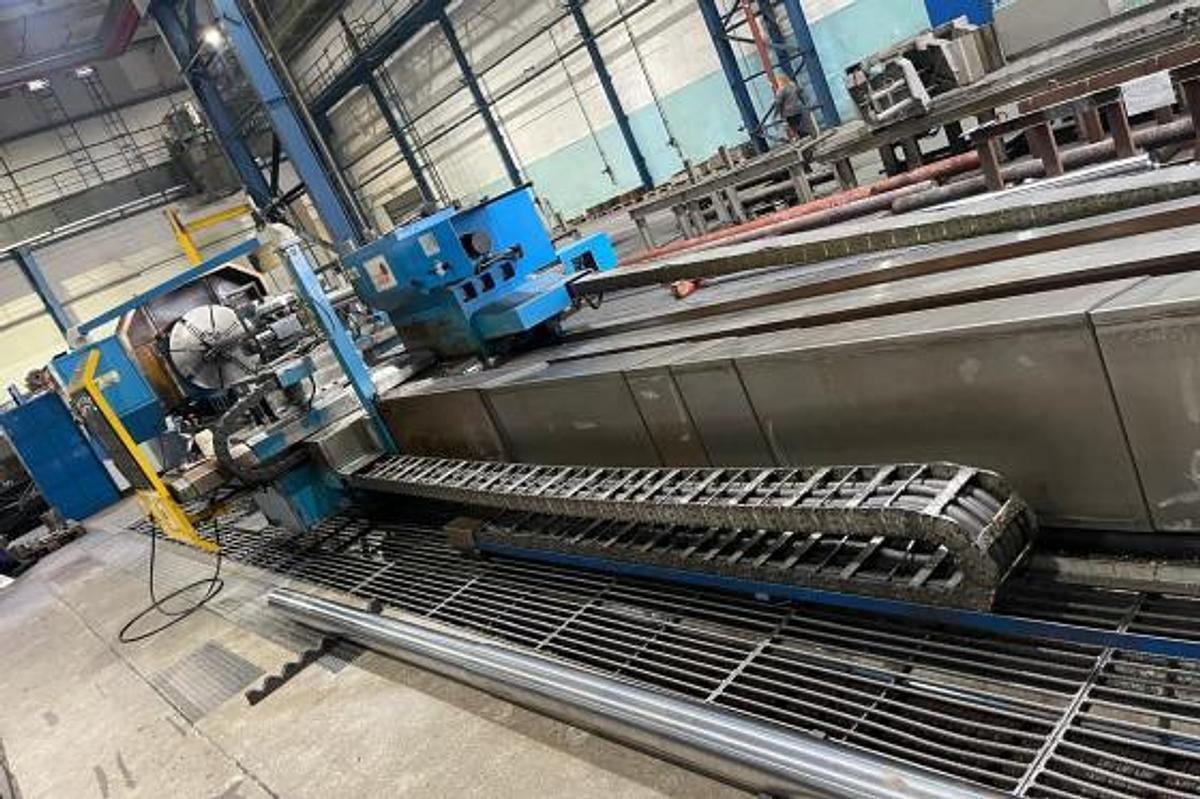

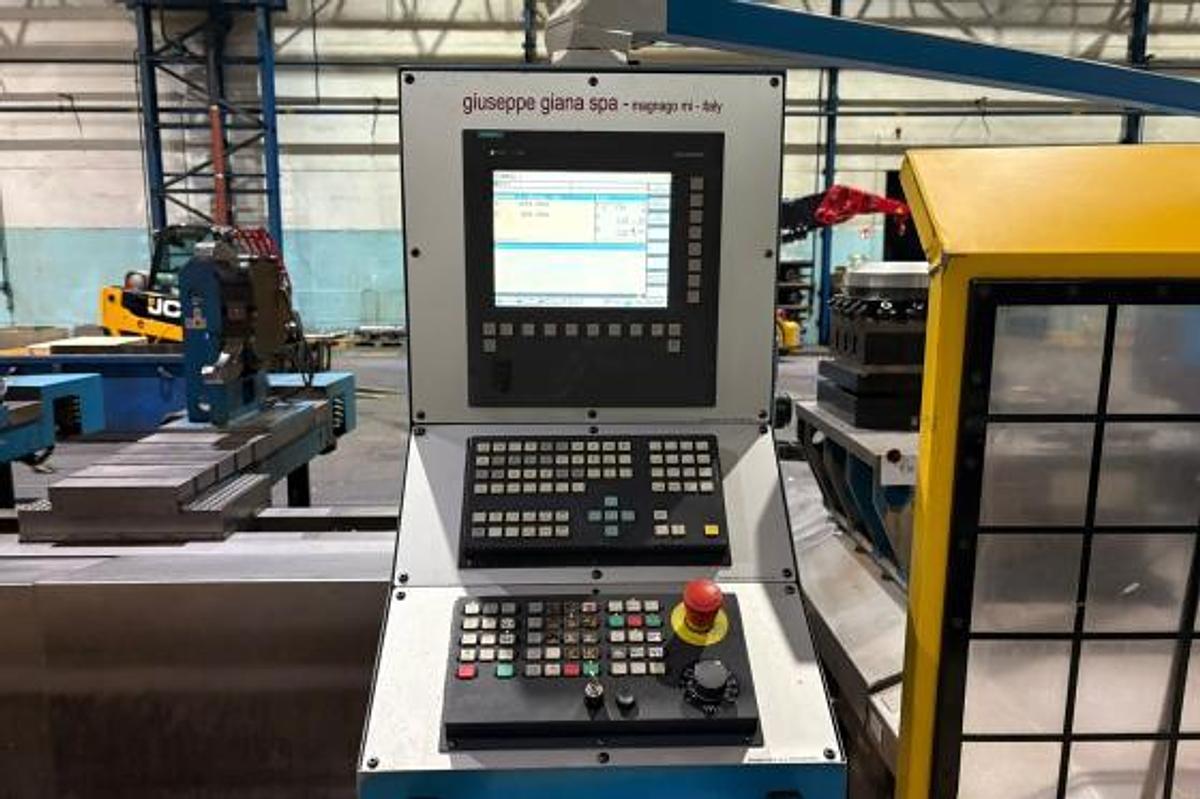

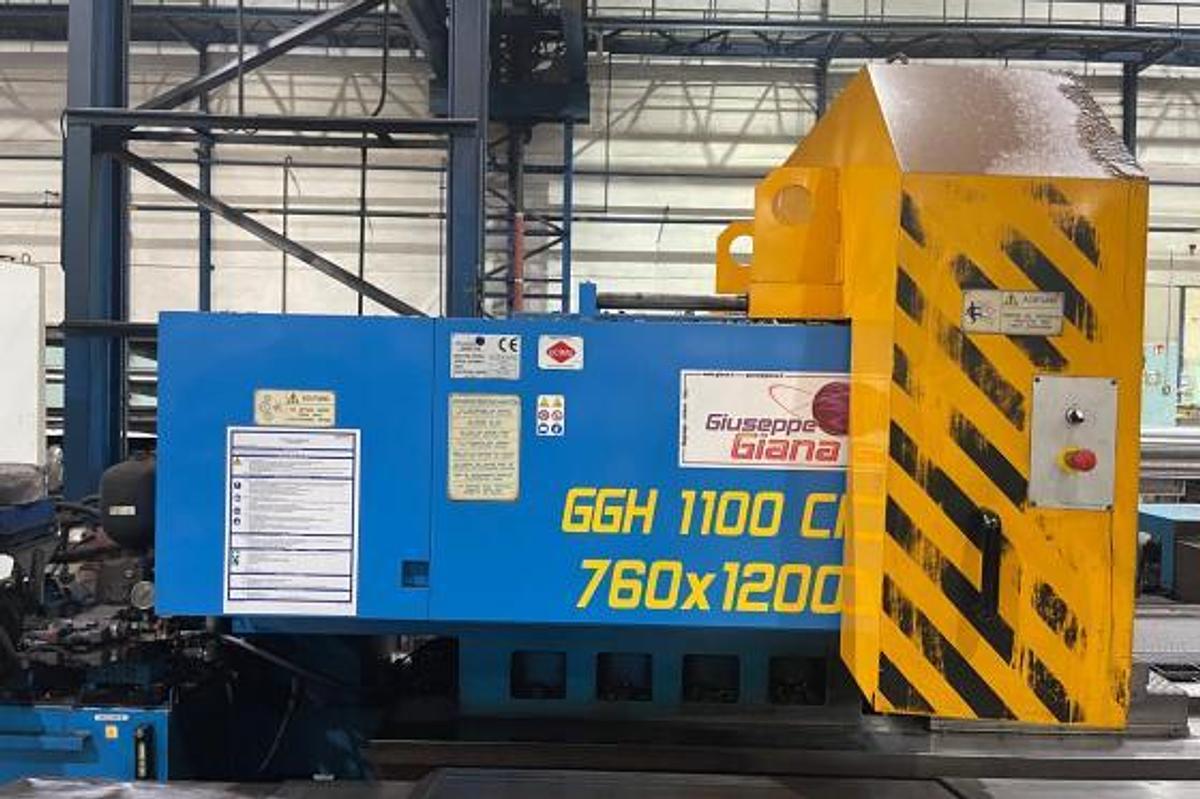

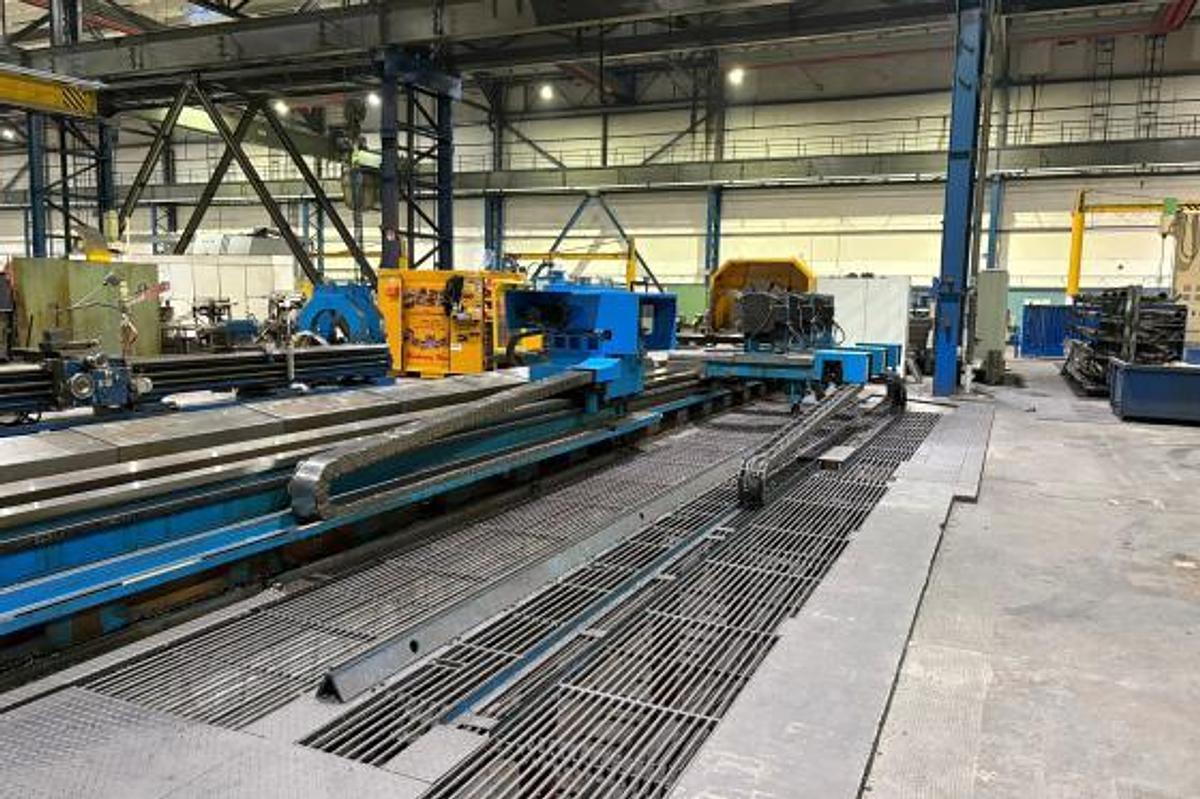

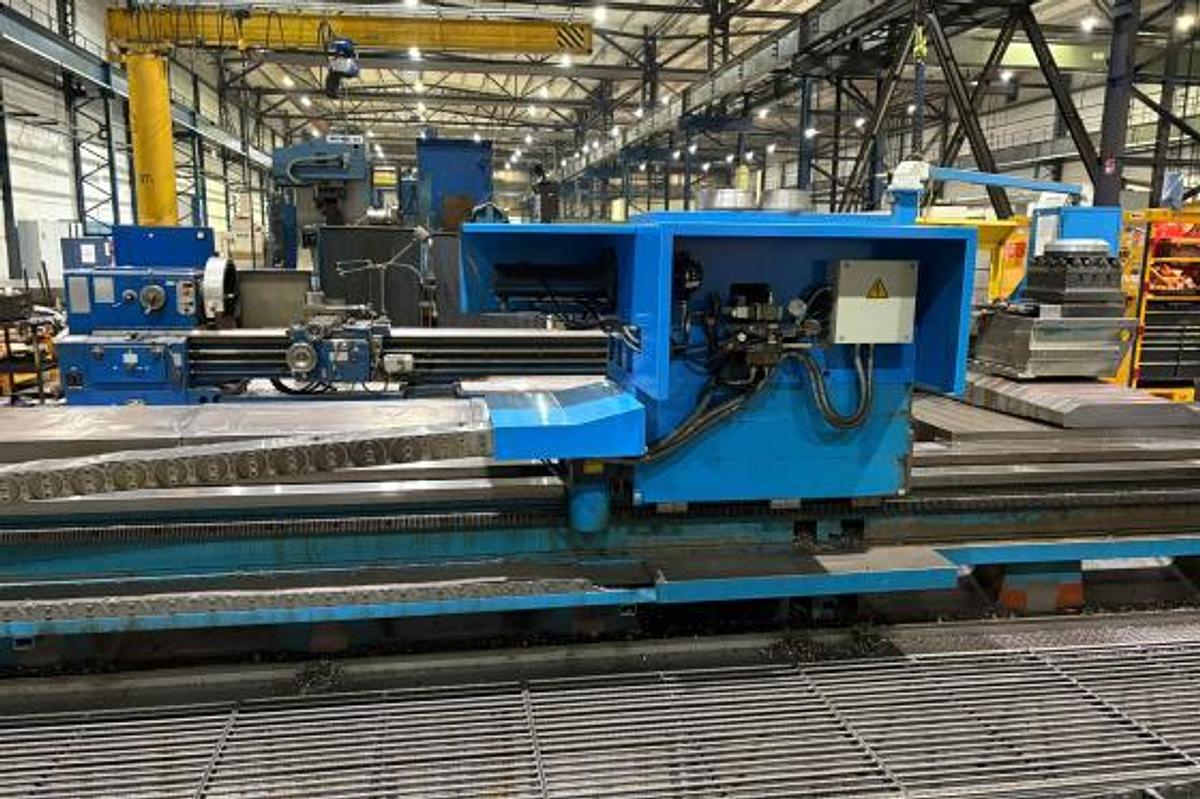

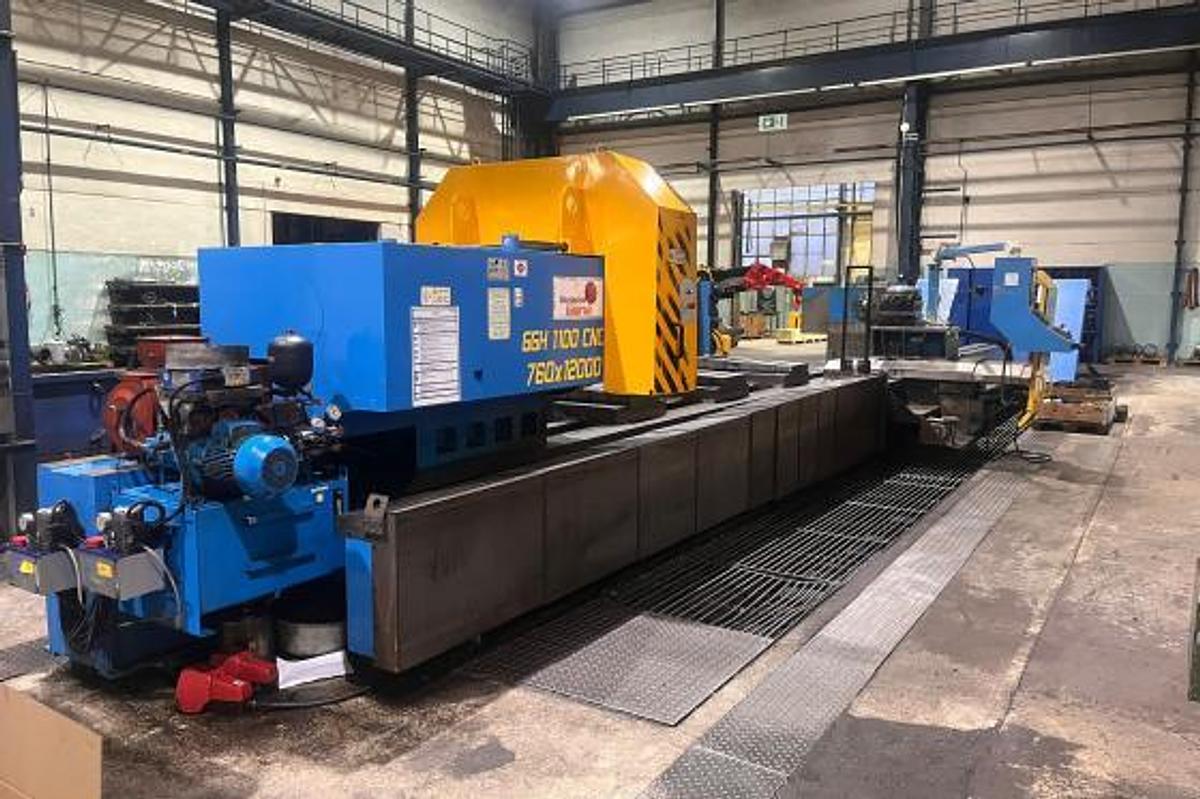

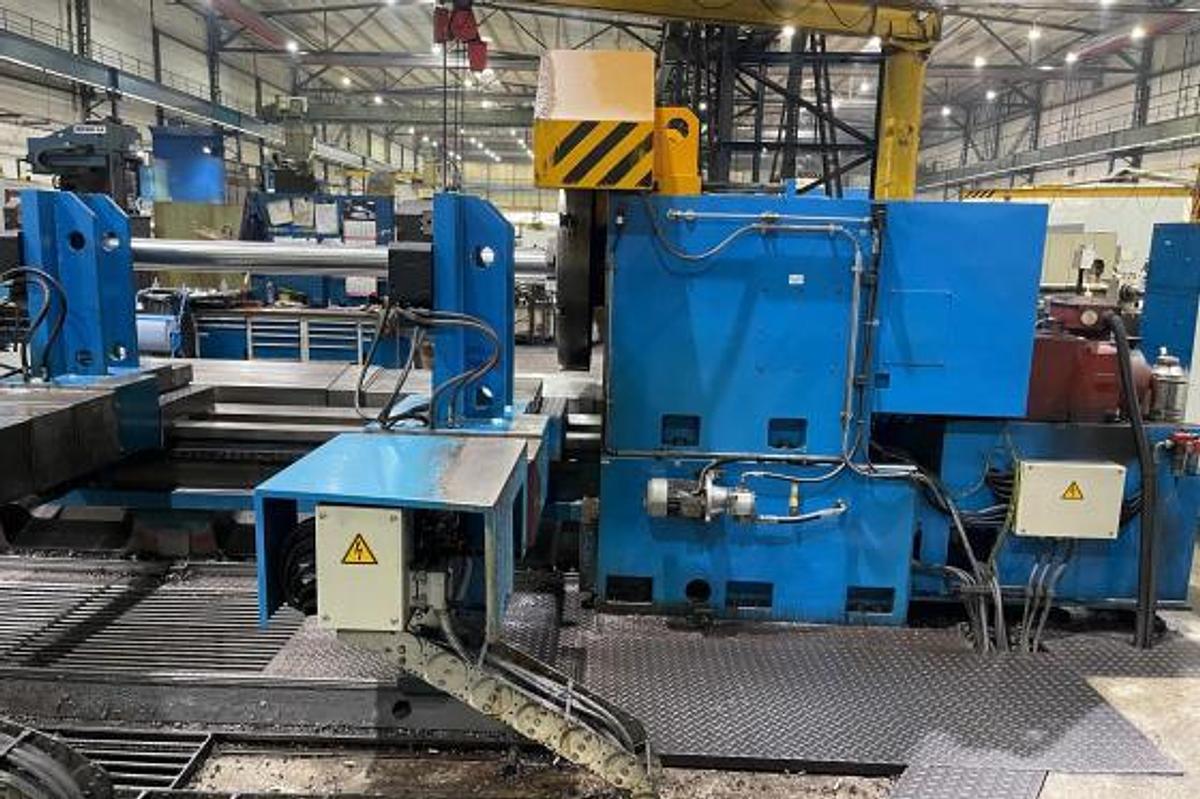

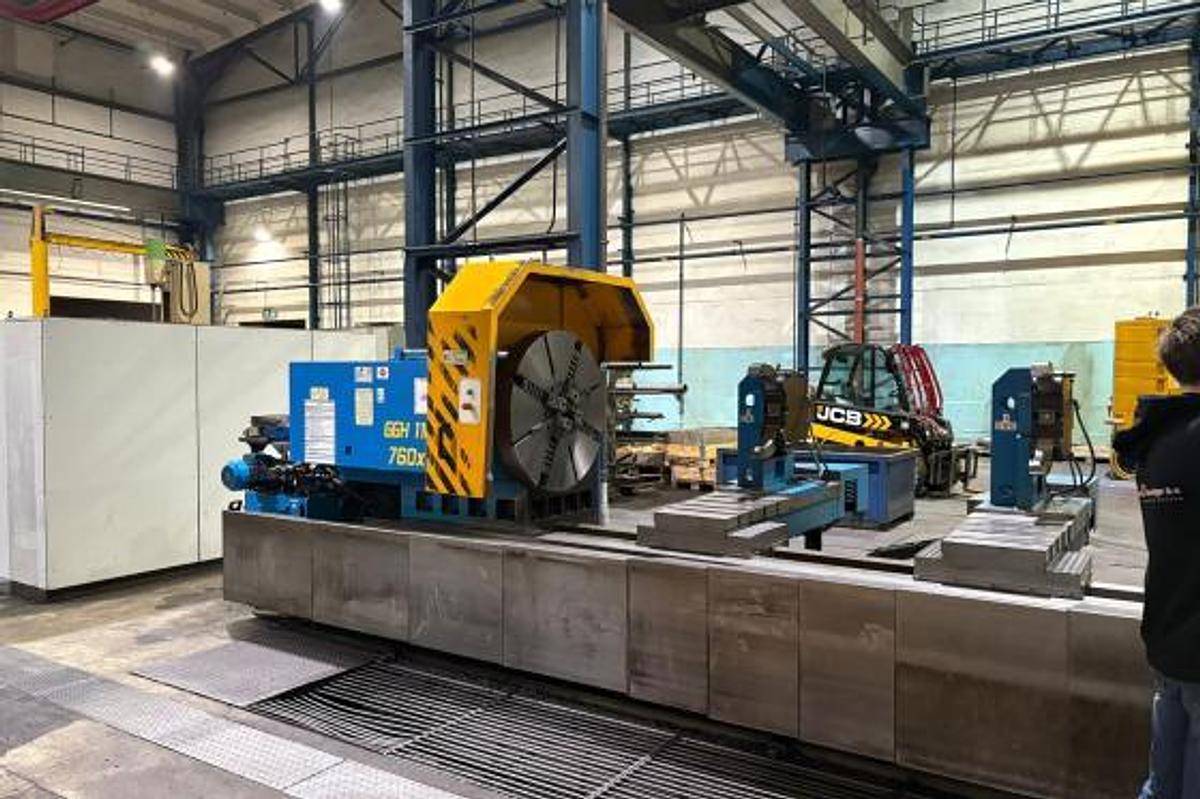

Giuseppe Giana GGH 1100/760 x 12000 CNC Horizontal Lathe
Giuseppe Giana GGH 1100/760 x 12000 CNC Horizontal Lathe
or
Call 770-509-0744
Description
3 bed way construction
Bed width 1100 mm

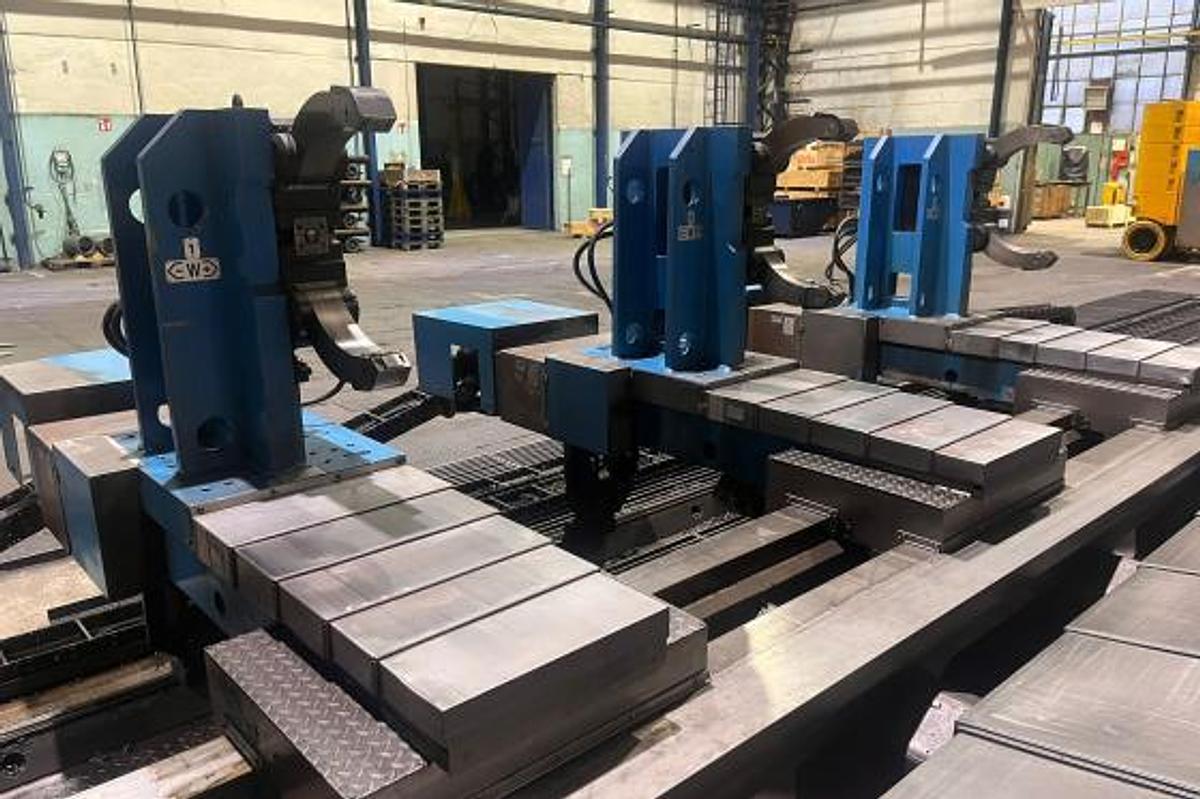

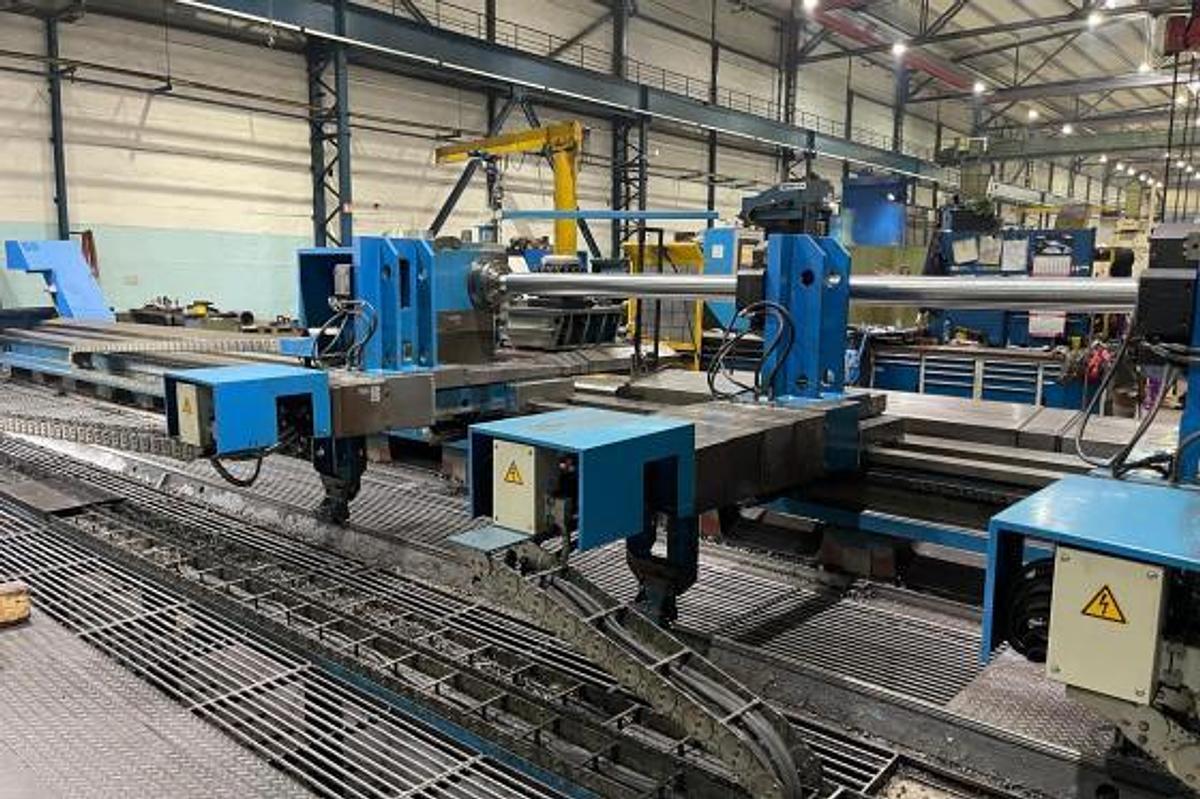

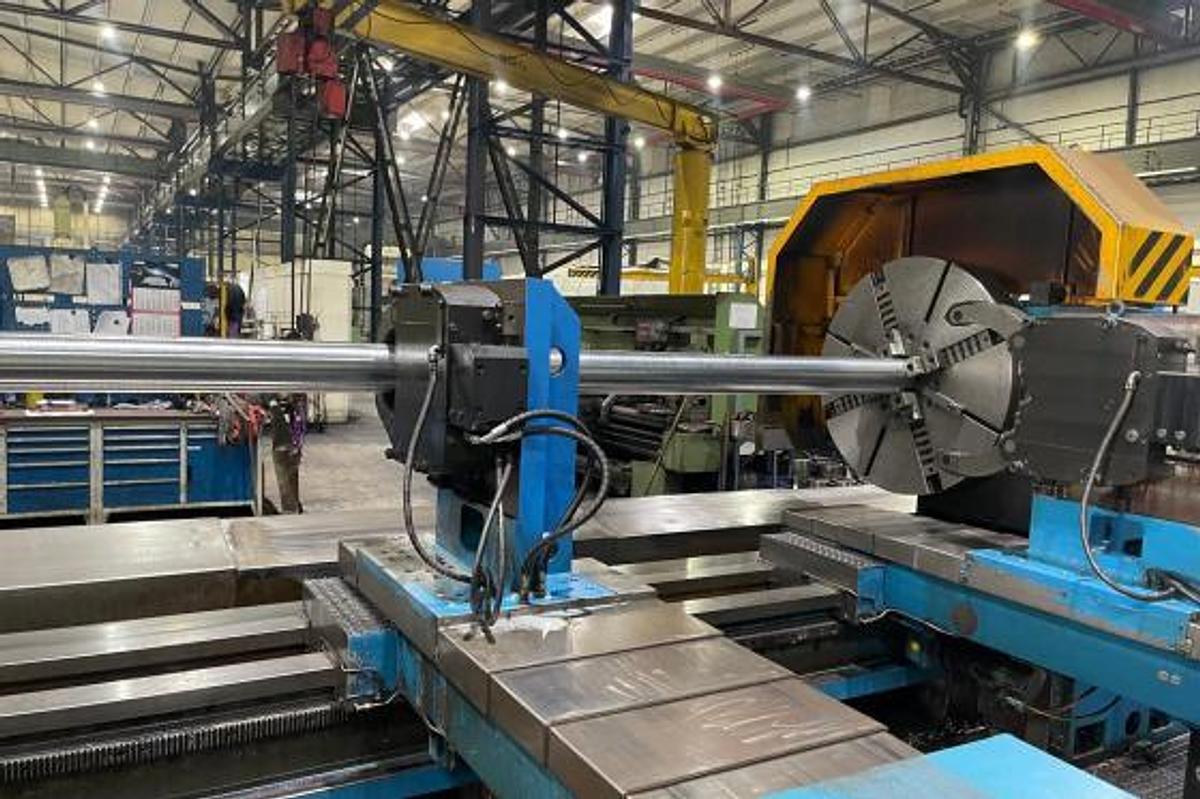

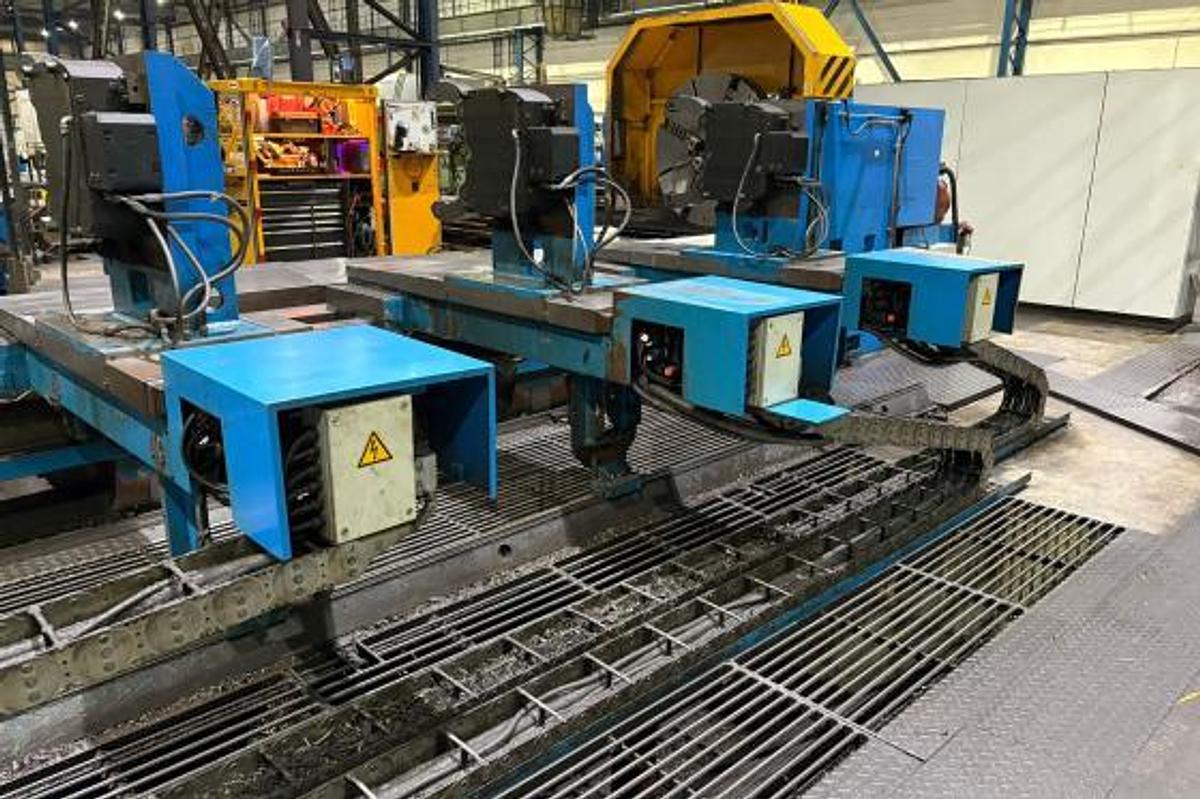

3 x C-Type Steady rest on lower base within feed

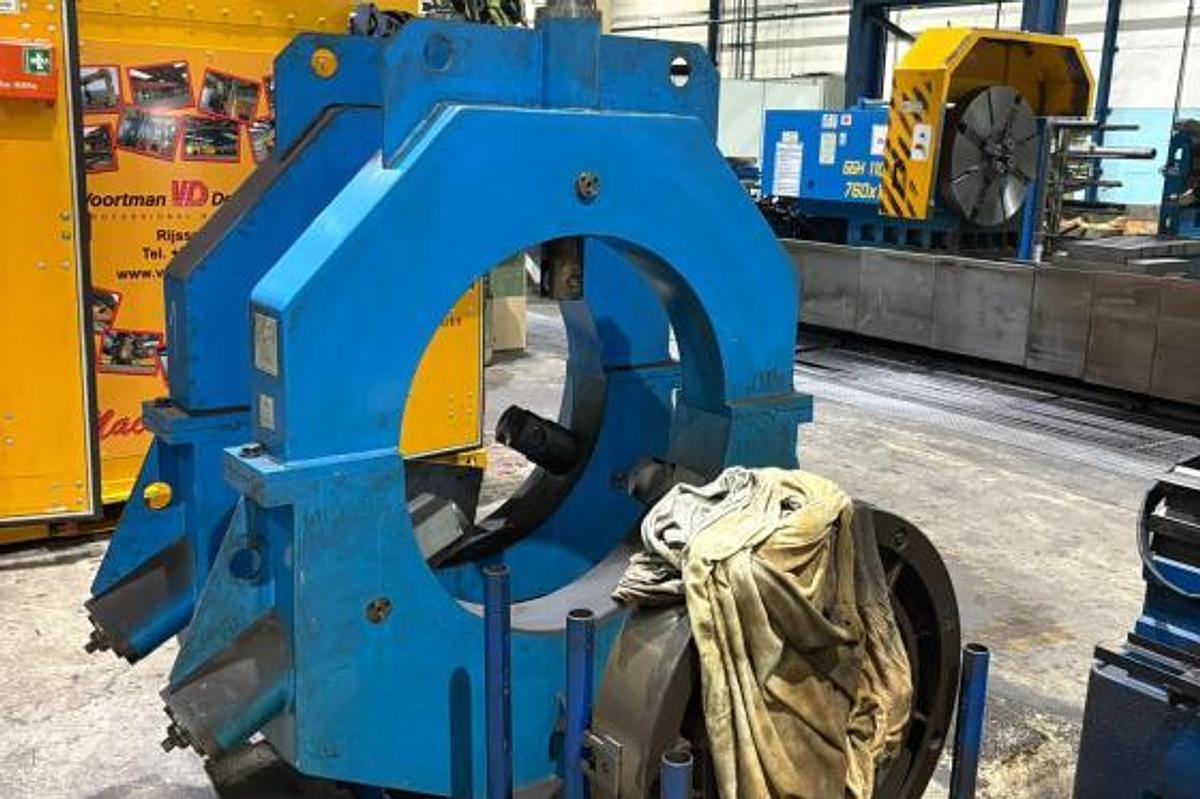

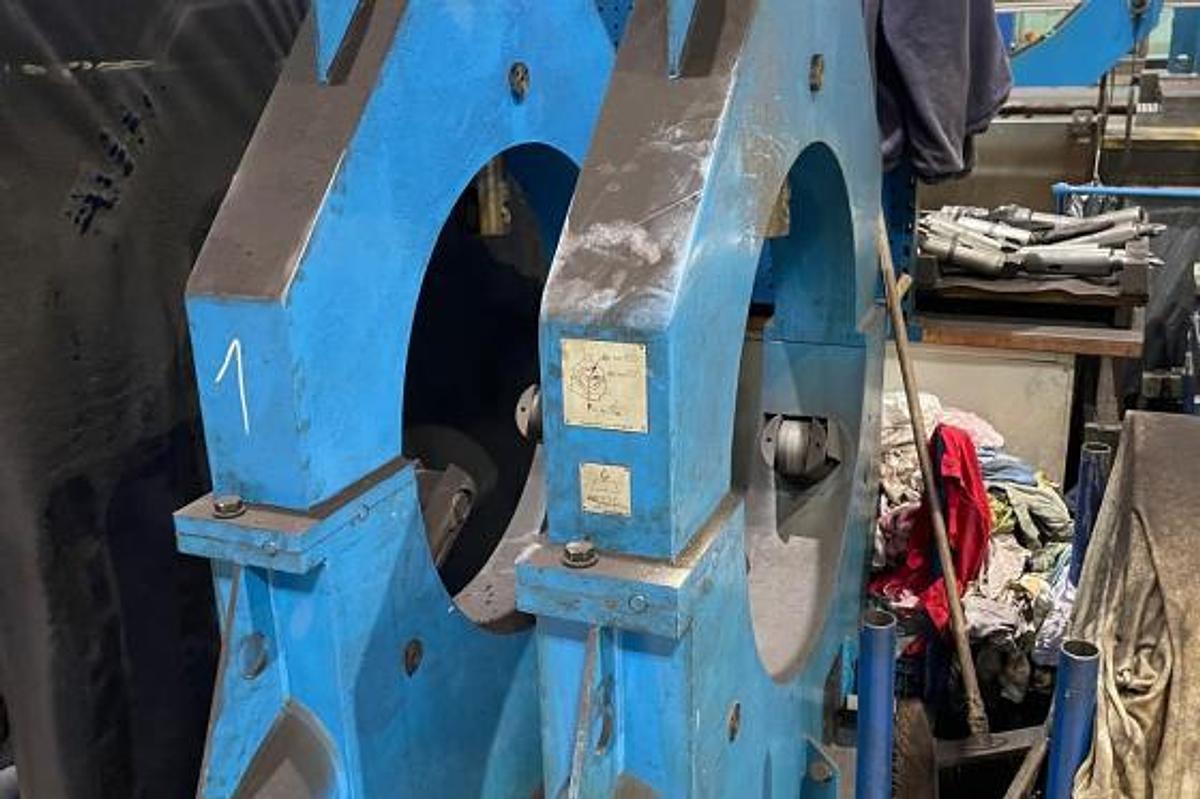

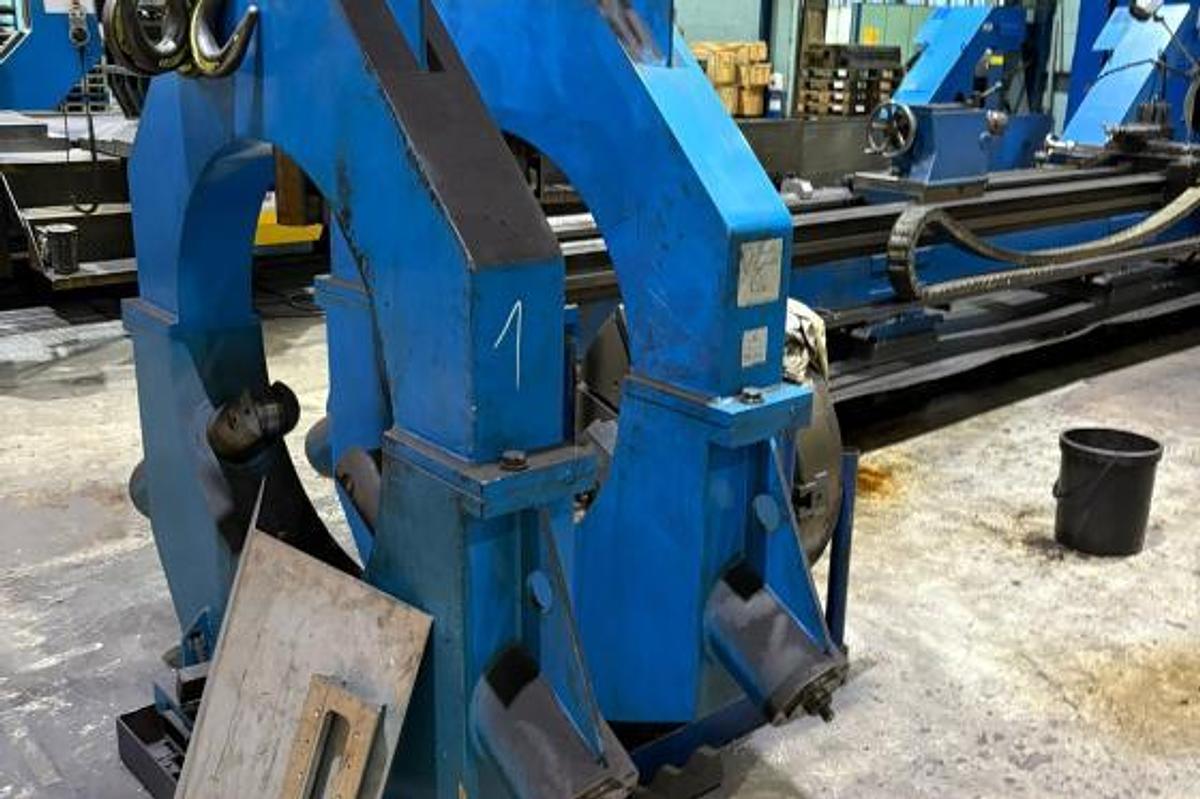

2 x Fixed steady rest 300 - 800 mm with 5 ton

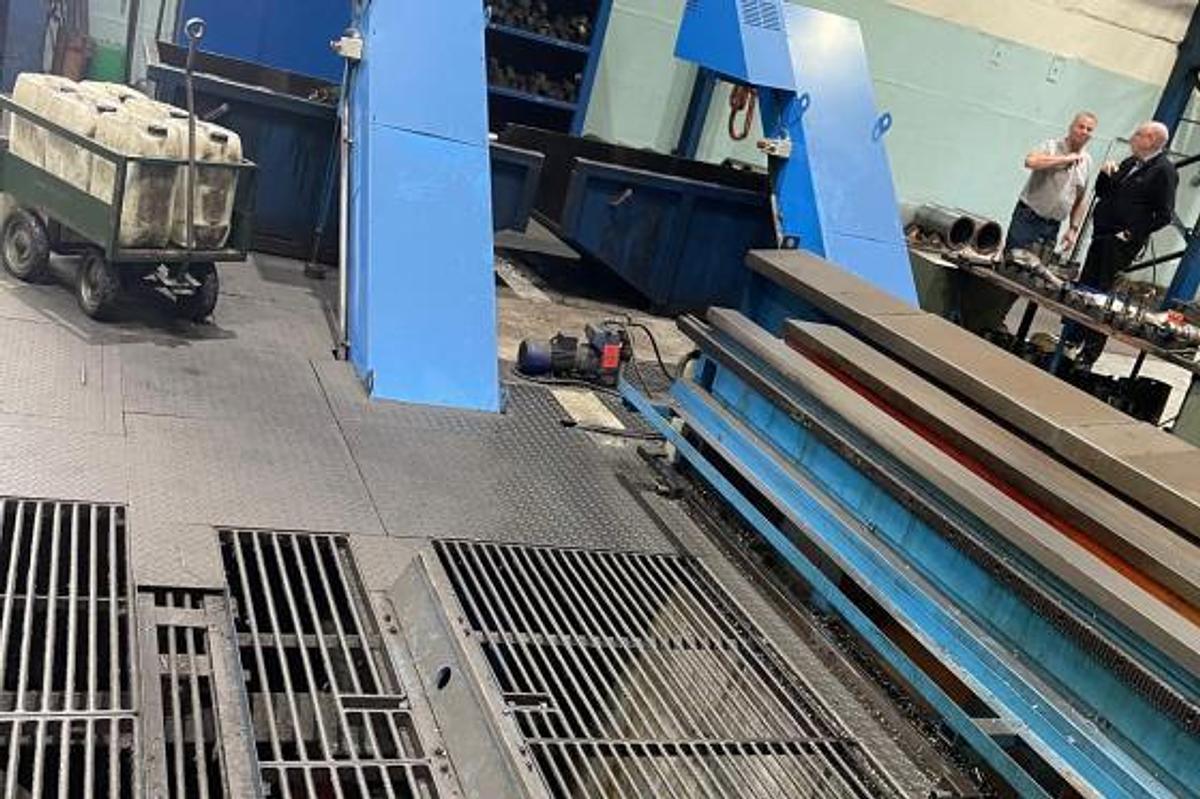

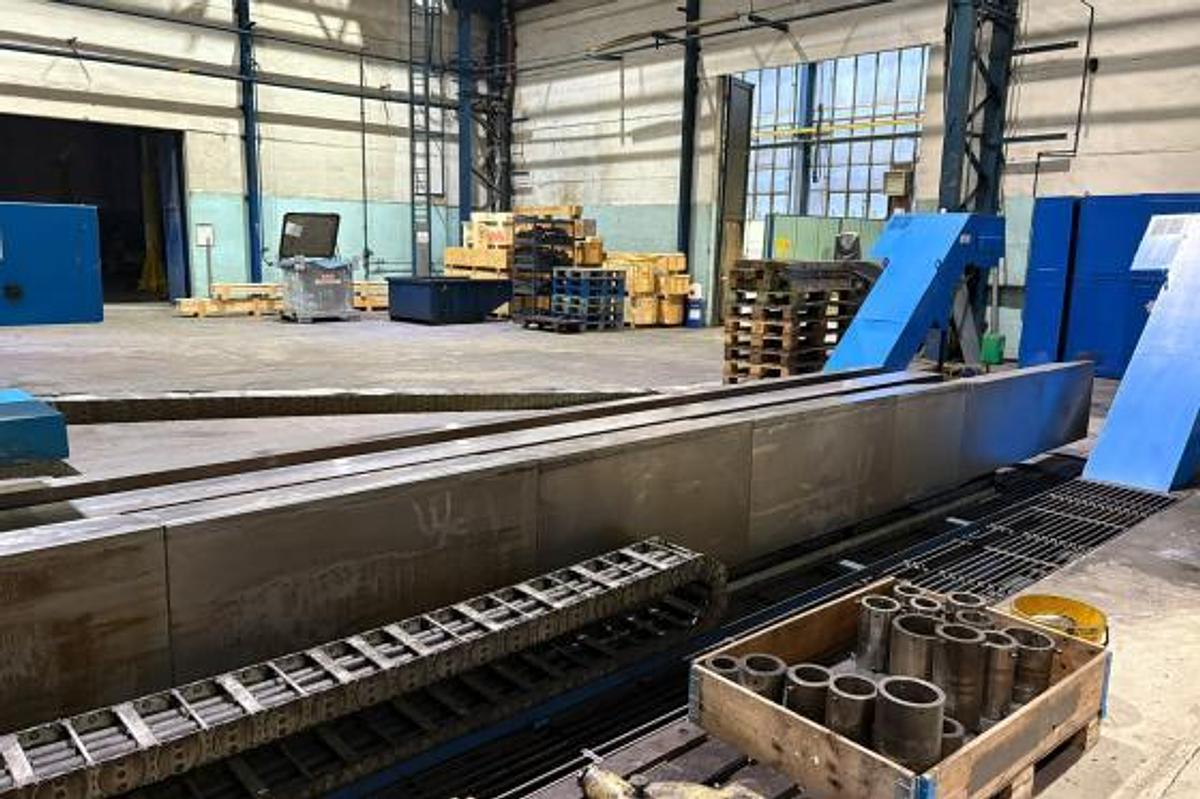

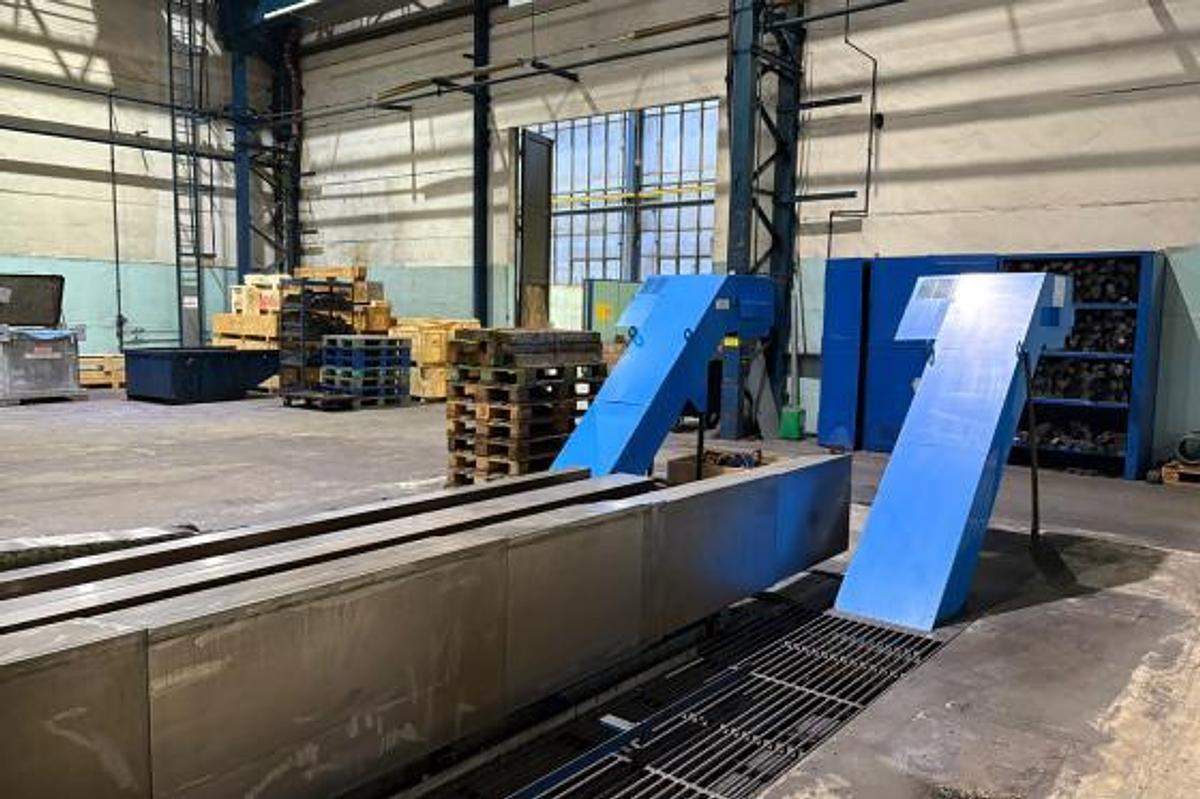

2 x Chip conveyor

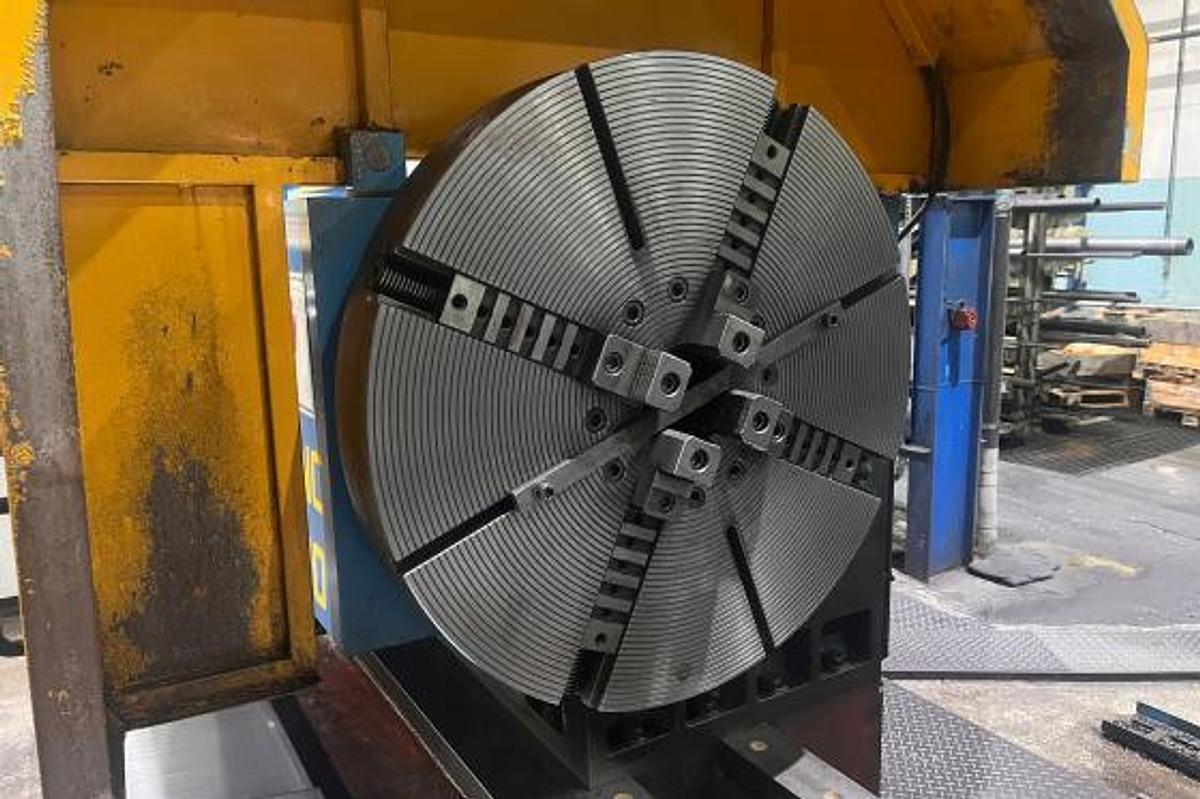

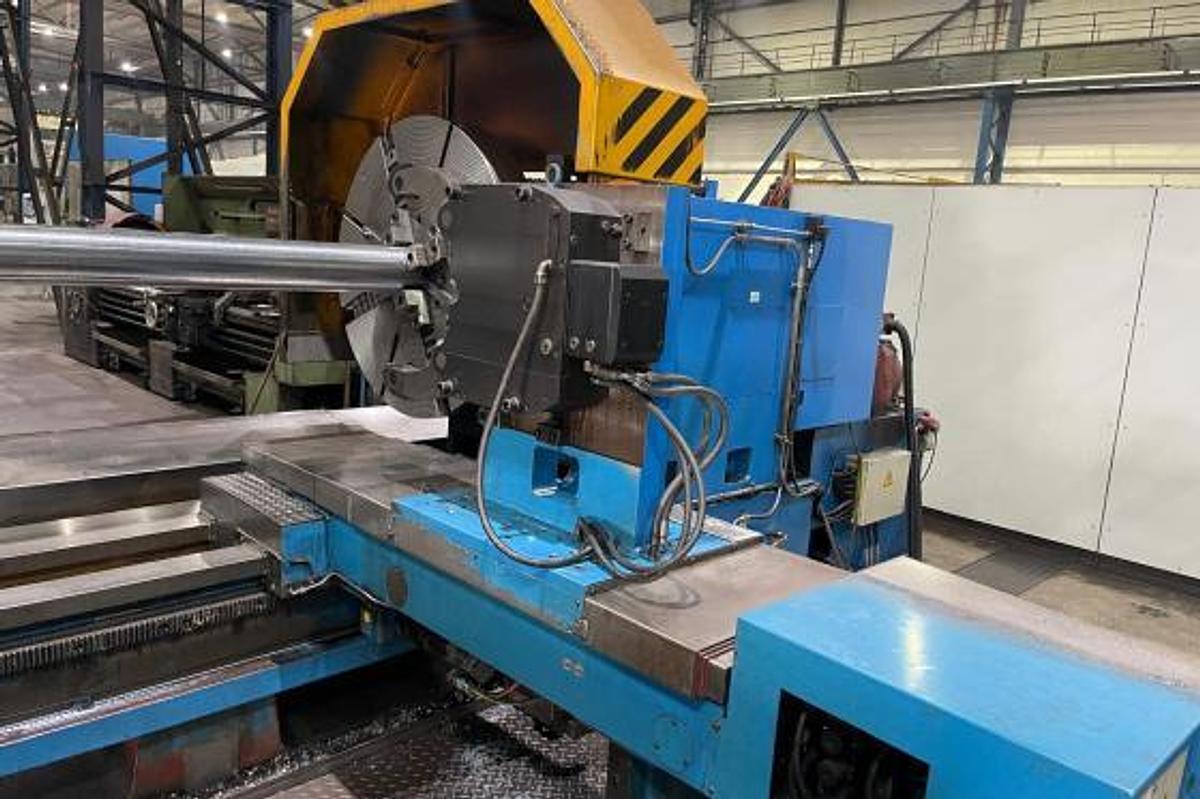

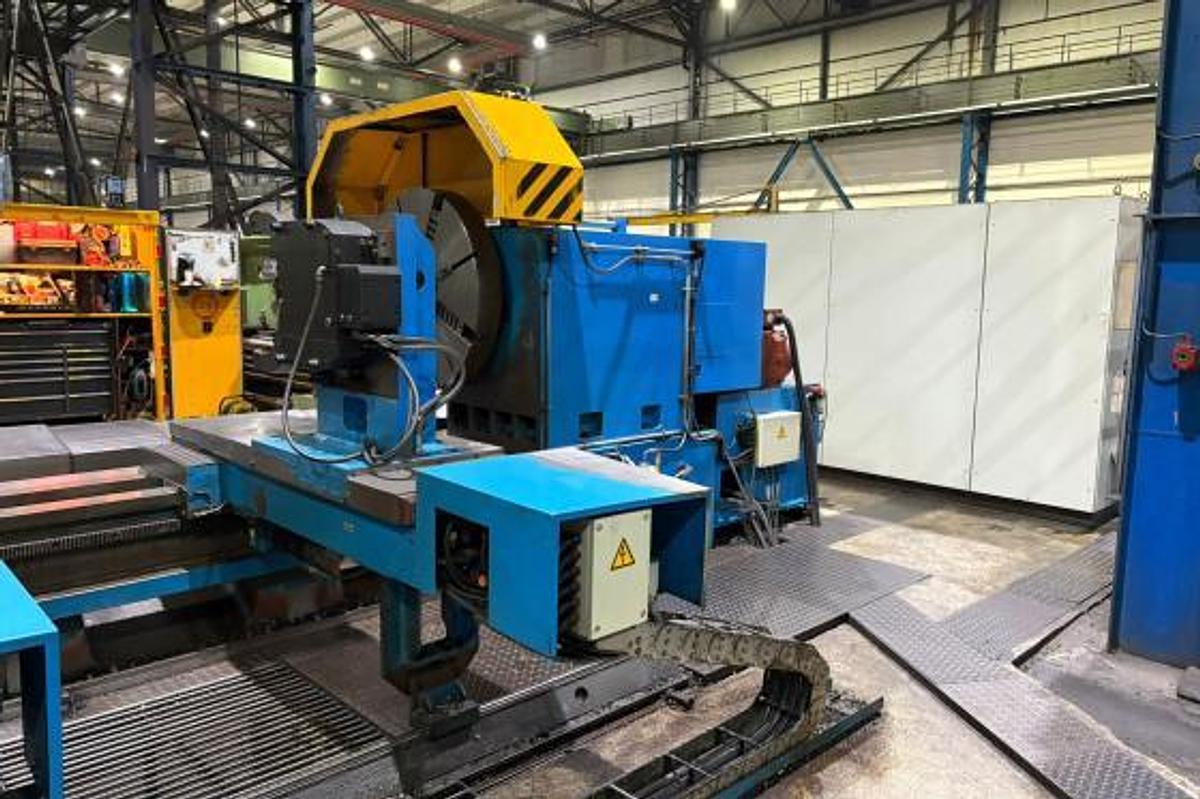

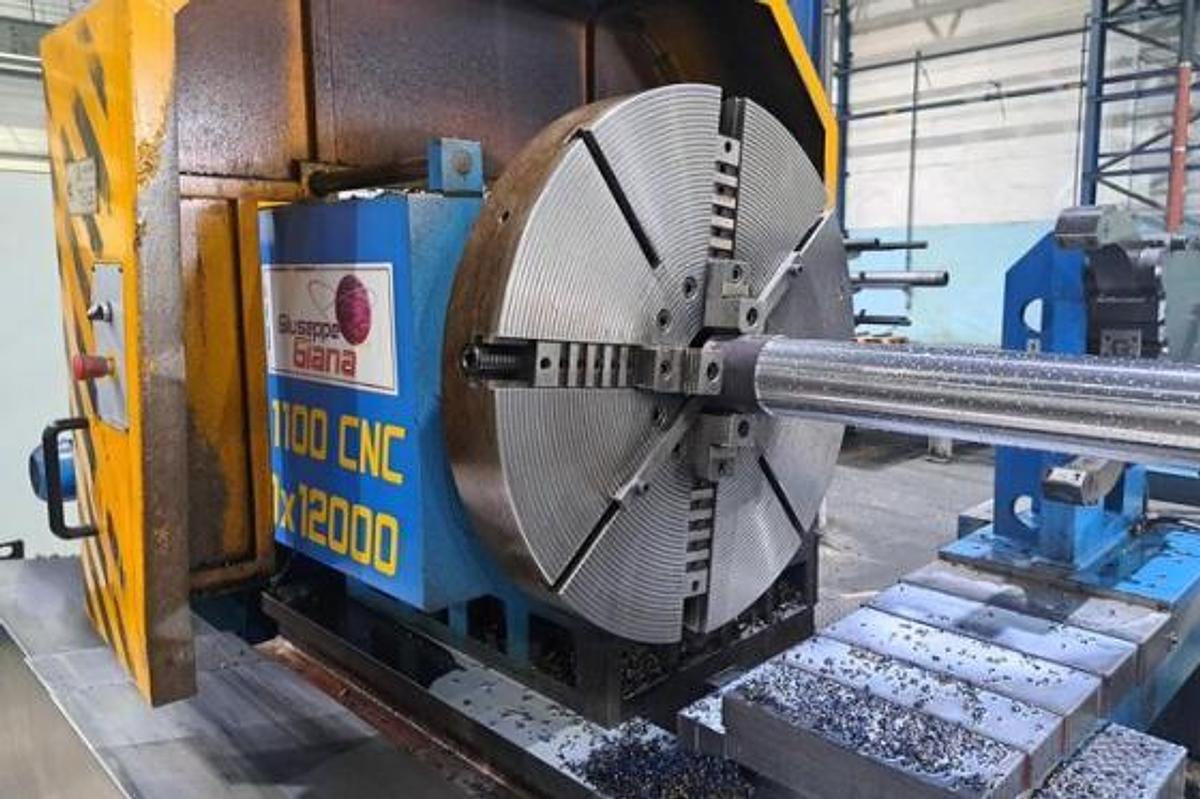

4 Chuck 1000 mm

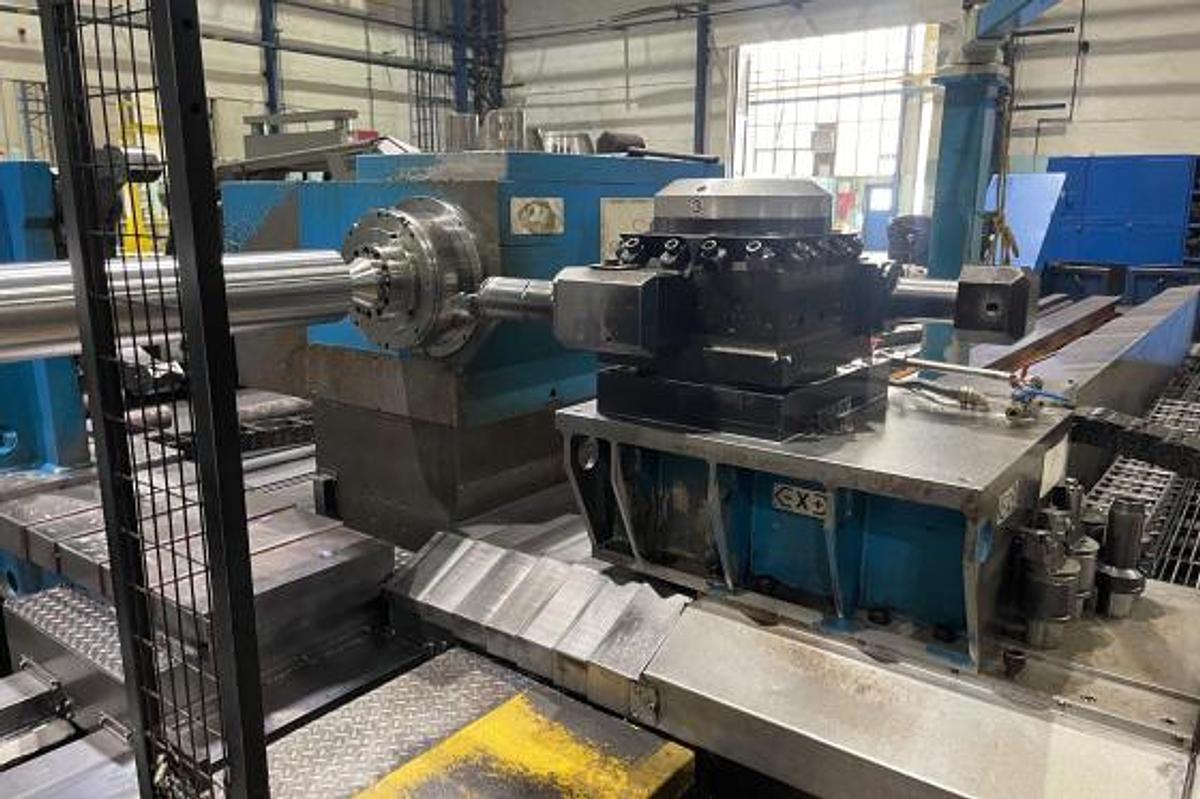

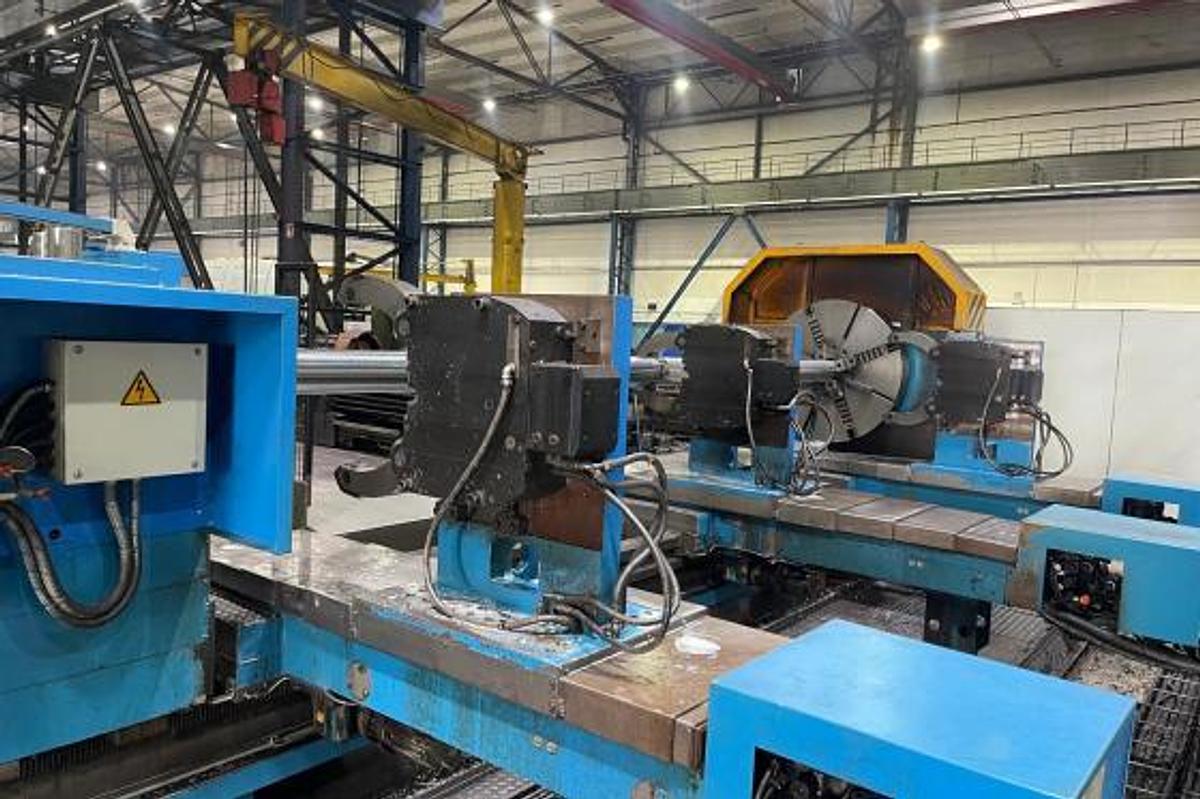

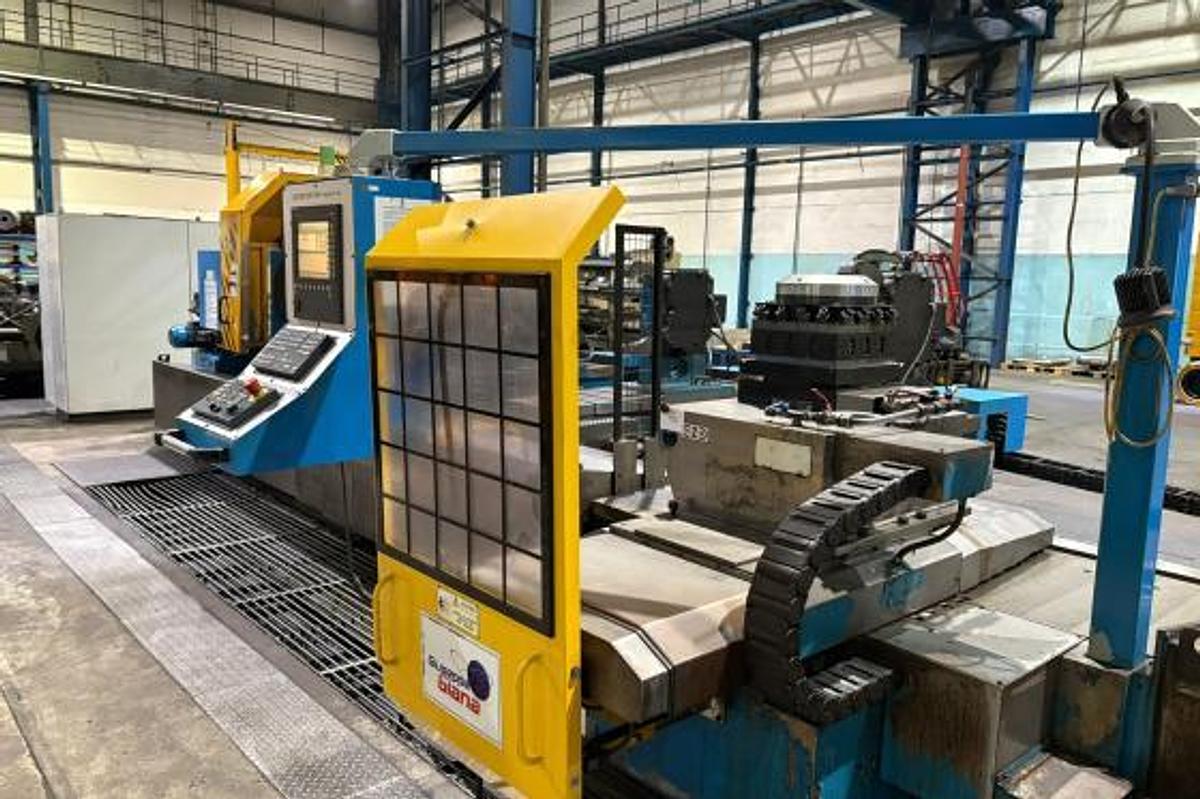

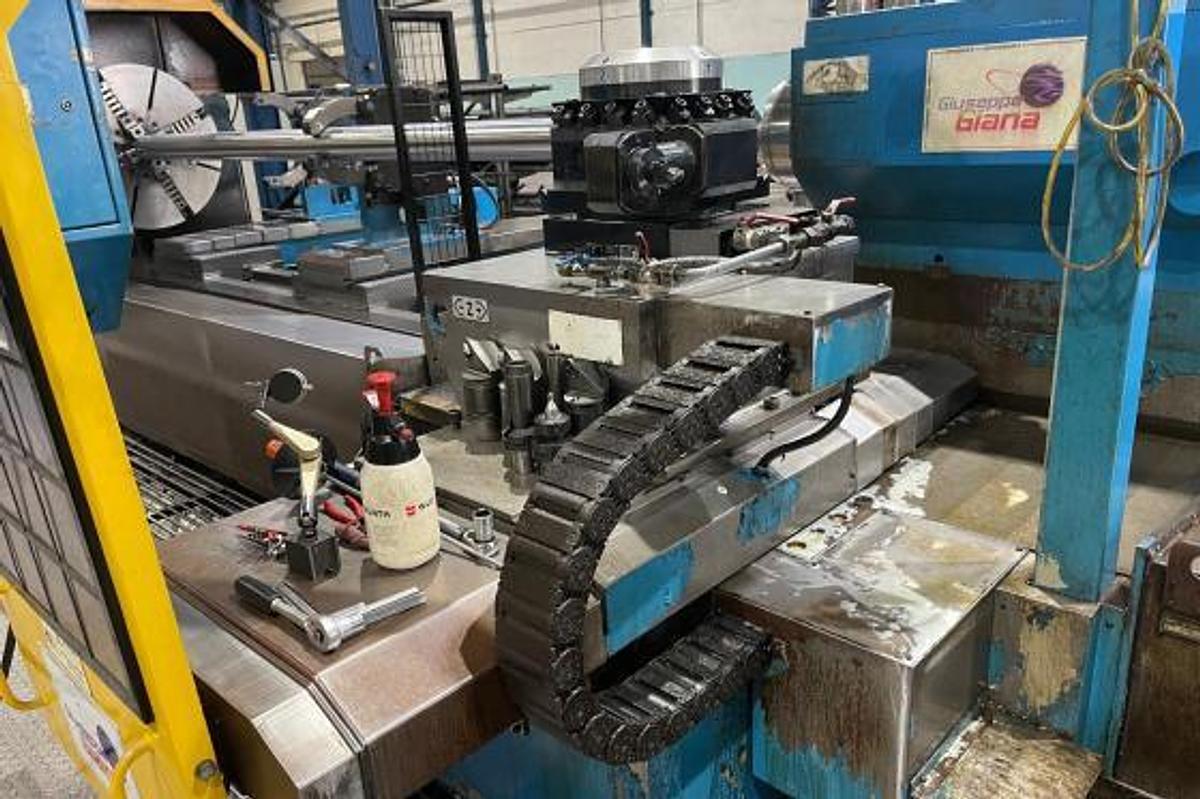

Barafuldi 4-way turret head
Specifications
| Manufacturer | Giuseppe Giana |
| Model | GGH 1100/760 x 12000 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654325 |
| Between centers | 12,000 mm |
| Capacity between centers | 20,000 kg |
| Swing over bed | 1,520 mm |
| Swing over slide | 1,140 mm |
| Speed ranges | 0 - 800 rpm |

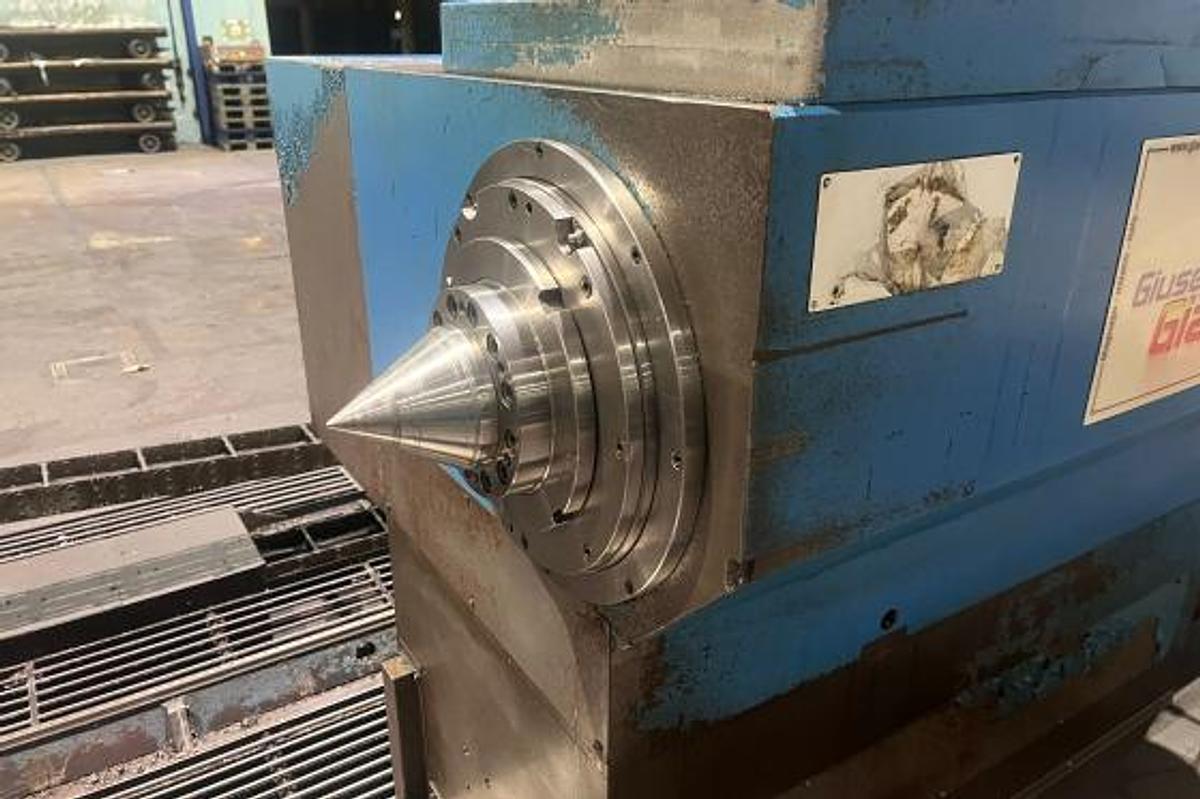

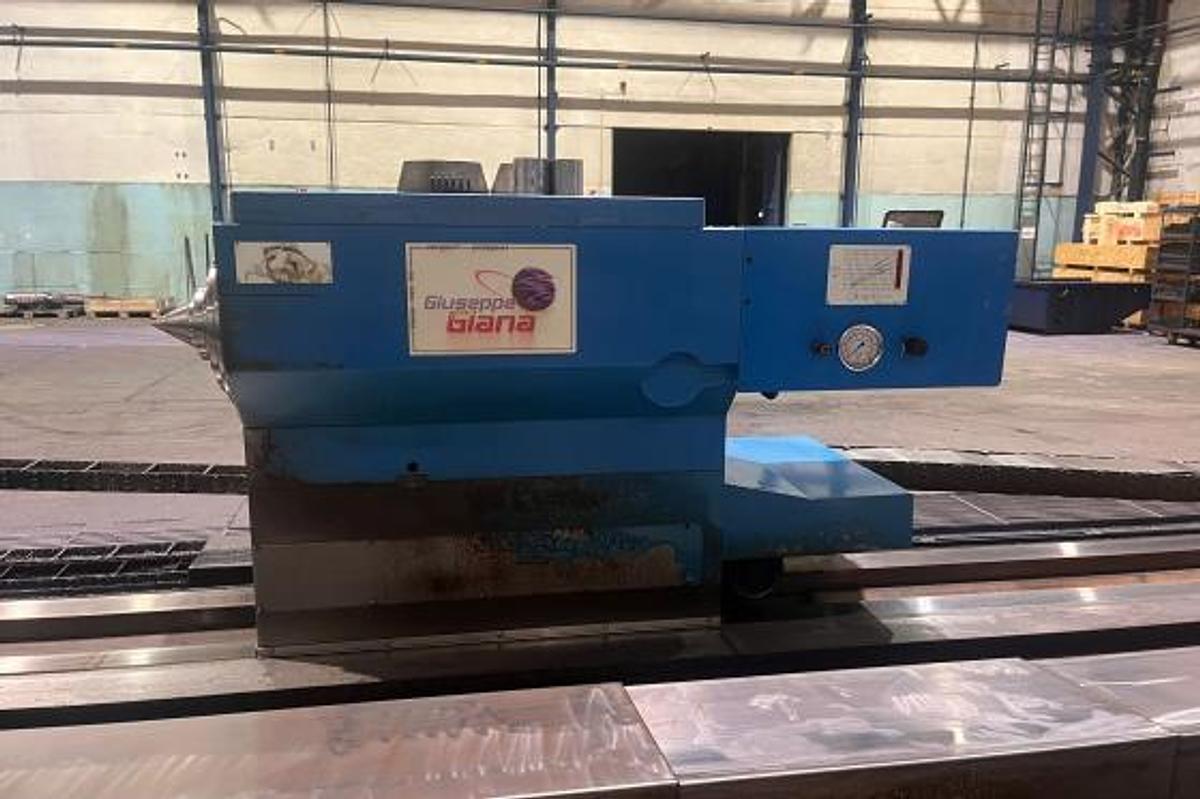

| Tailstock diameter | 310 mm |
| Spindle bore | 155 mm |
| Spindle power | 60 kW |
| Bed width | 1,100 mm |
| Feed rate X/Z | 0 - 8,000 mm/min |
| Machine dimensions | 23 x 7.6 x 3.8 m |
| Spindle taper | 1:4 taper Mk |
| Stroke pinhole | 300 mm |
| Power | 80 A |
