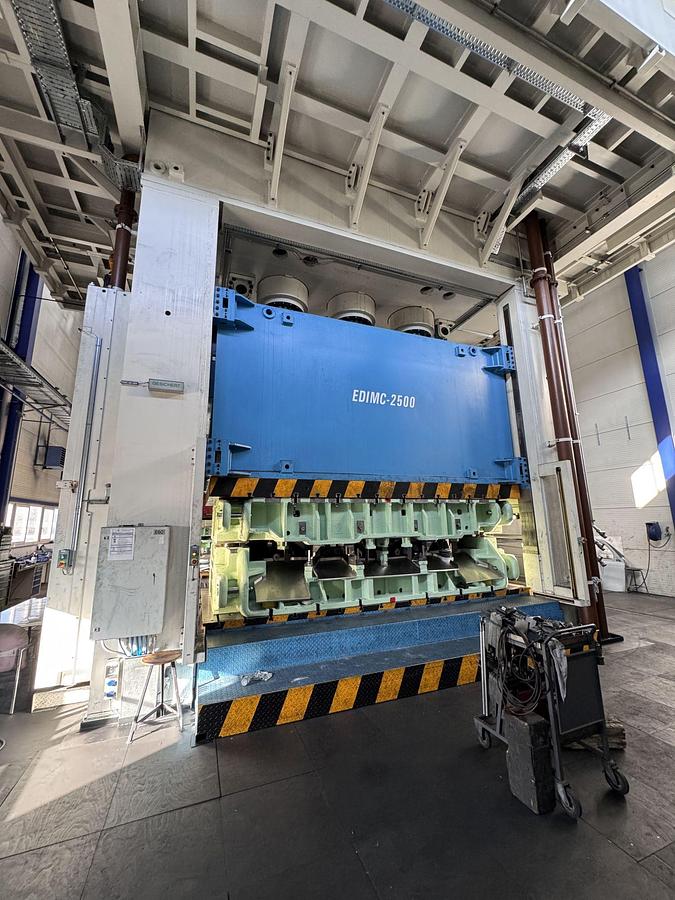

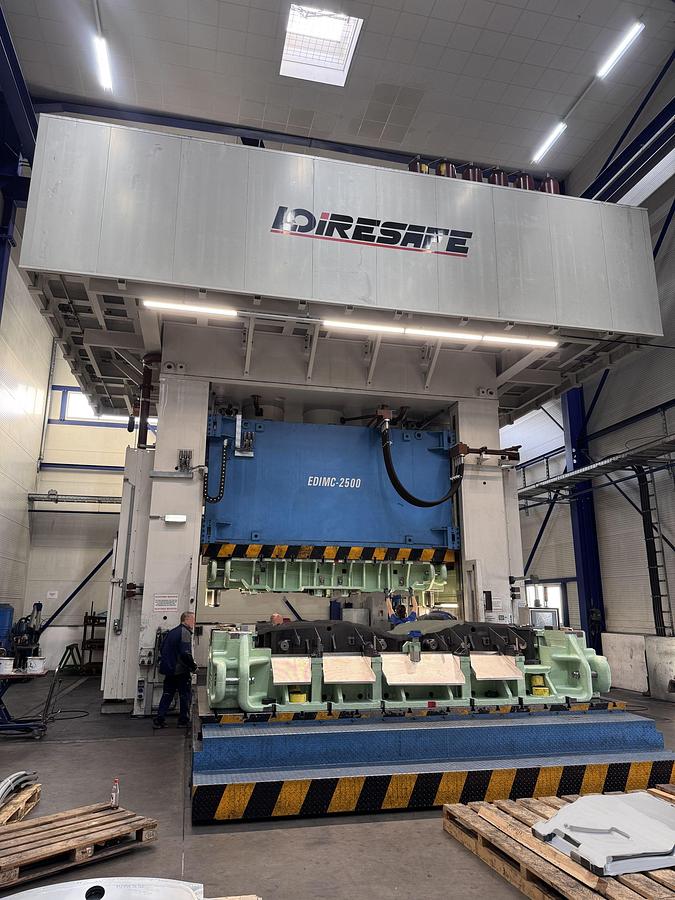

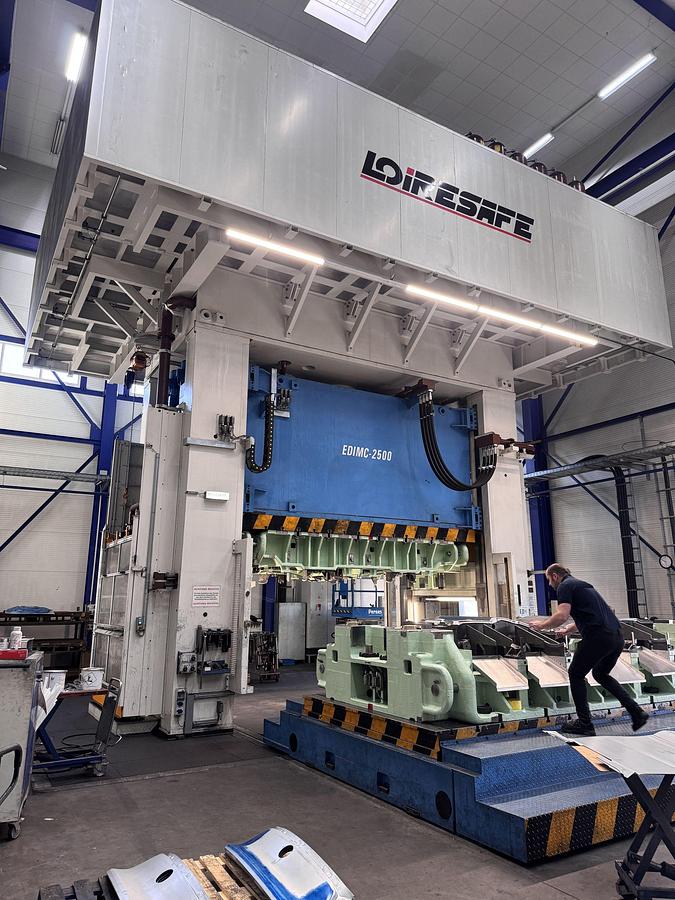

Loire EDIMC 2500-250 2500 Ton Press with Sliding Table
Loire EDIMC 2500-250 2500 Ton Press with Sliding Table
or
Call 770-509-0744
Description
2,500 tons Press with sliding table - 3-part drawing cushion in the table - drawing device in the ram - cutting impact damping / parallel holding

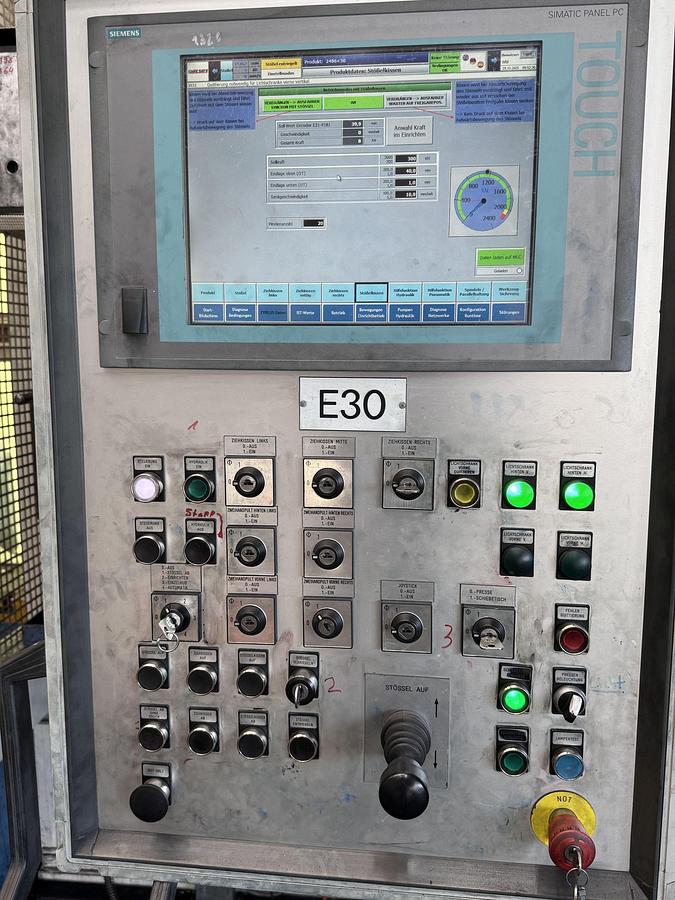

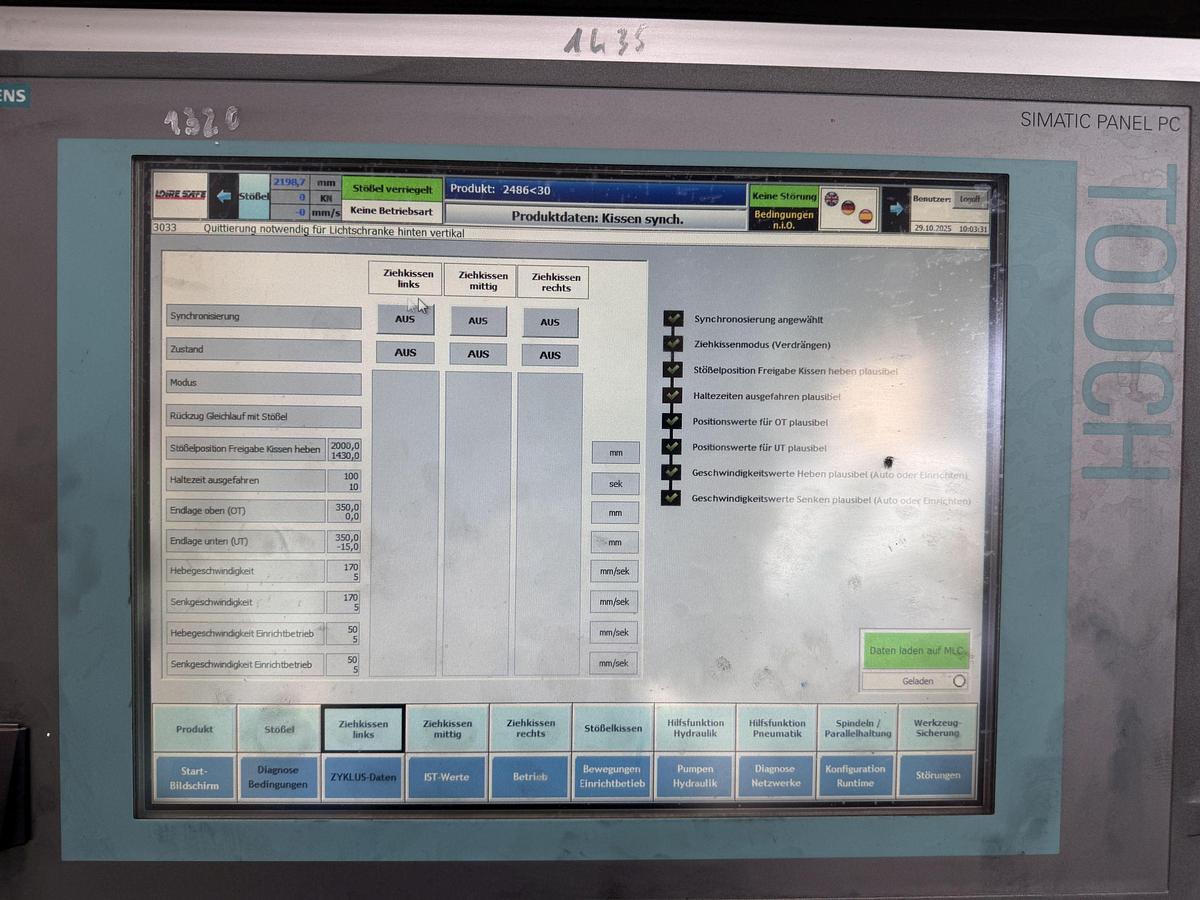

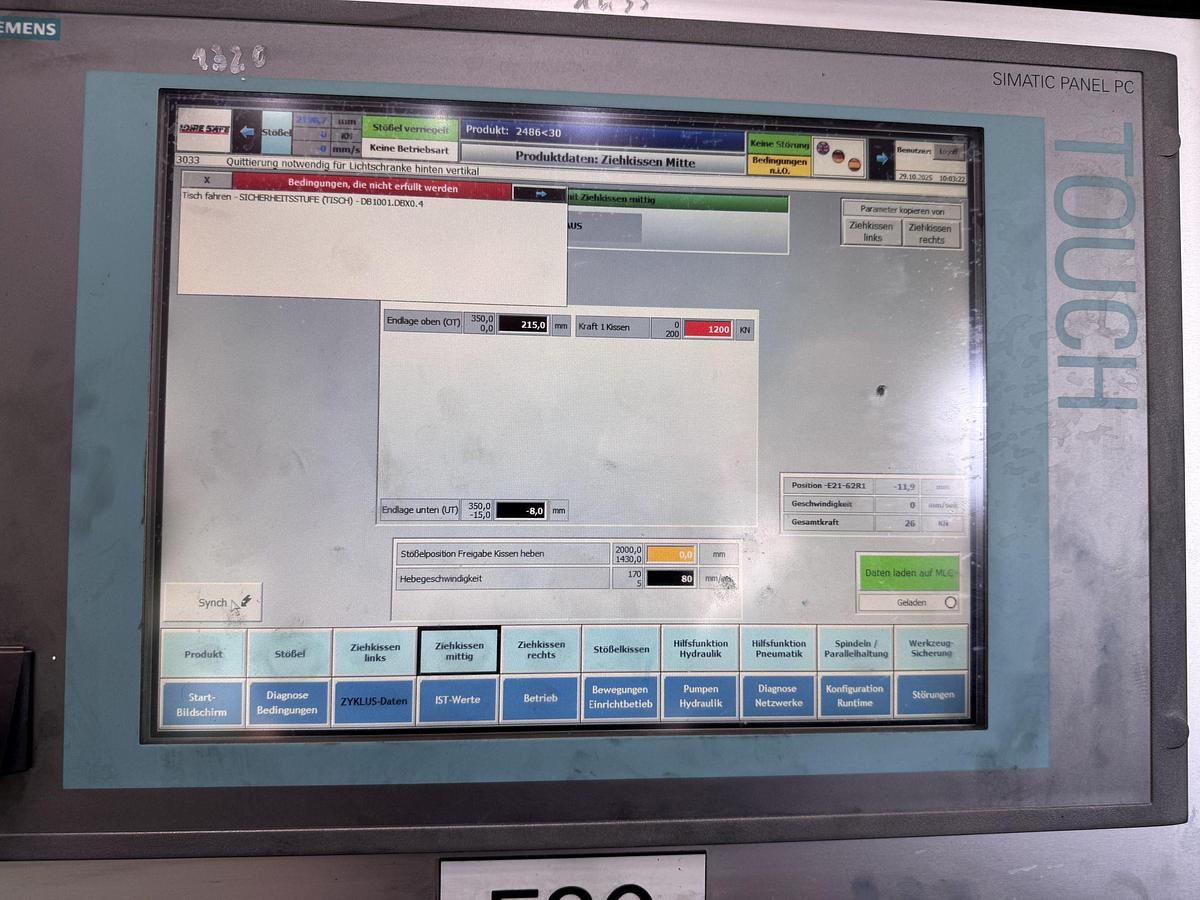

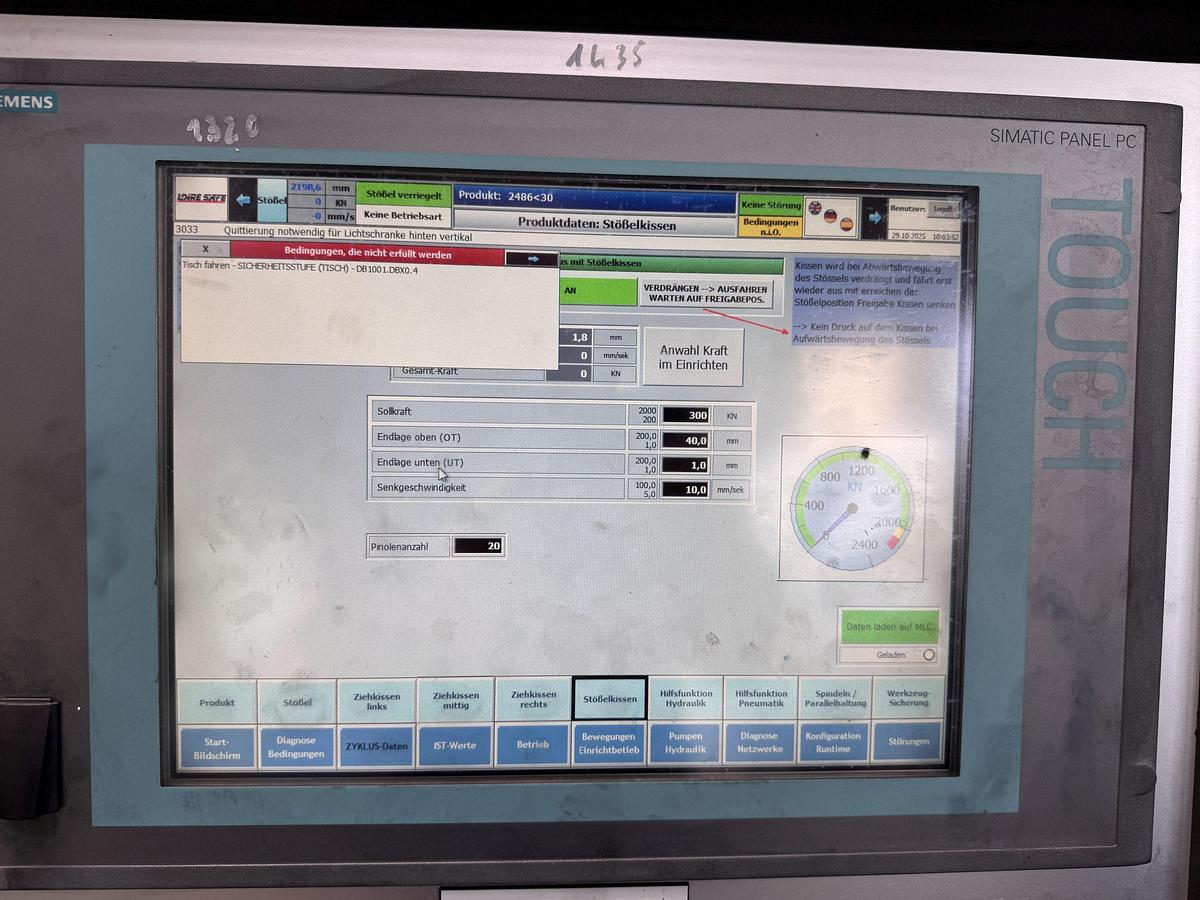

SIEMENS SIMATIC HMI TOUCH CNC Control
Frame Design H-Frame

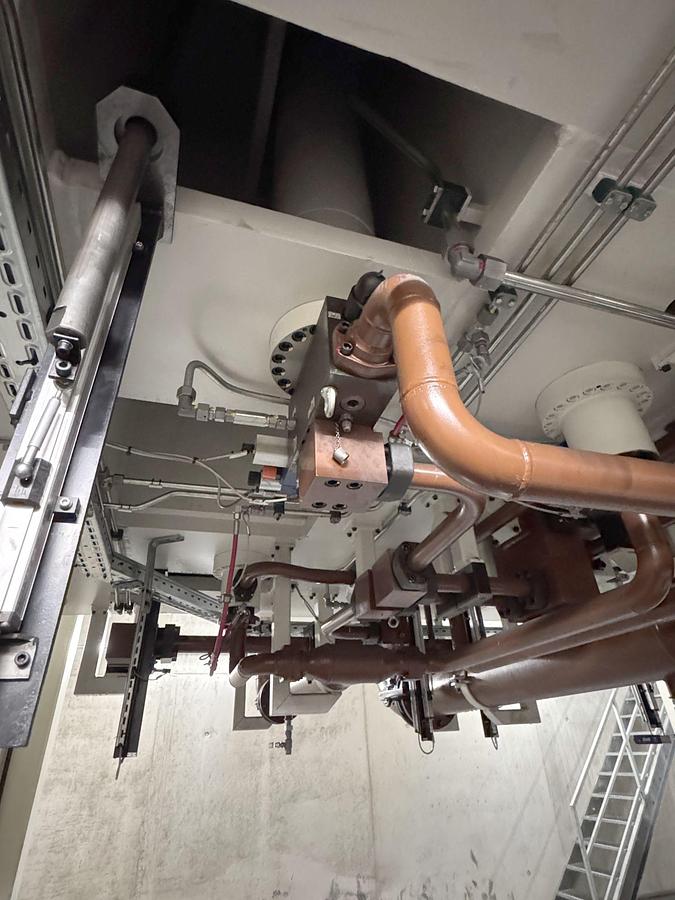

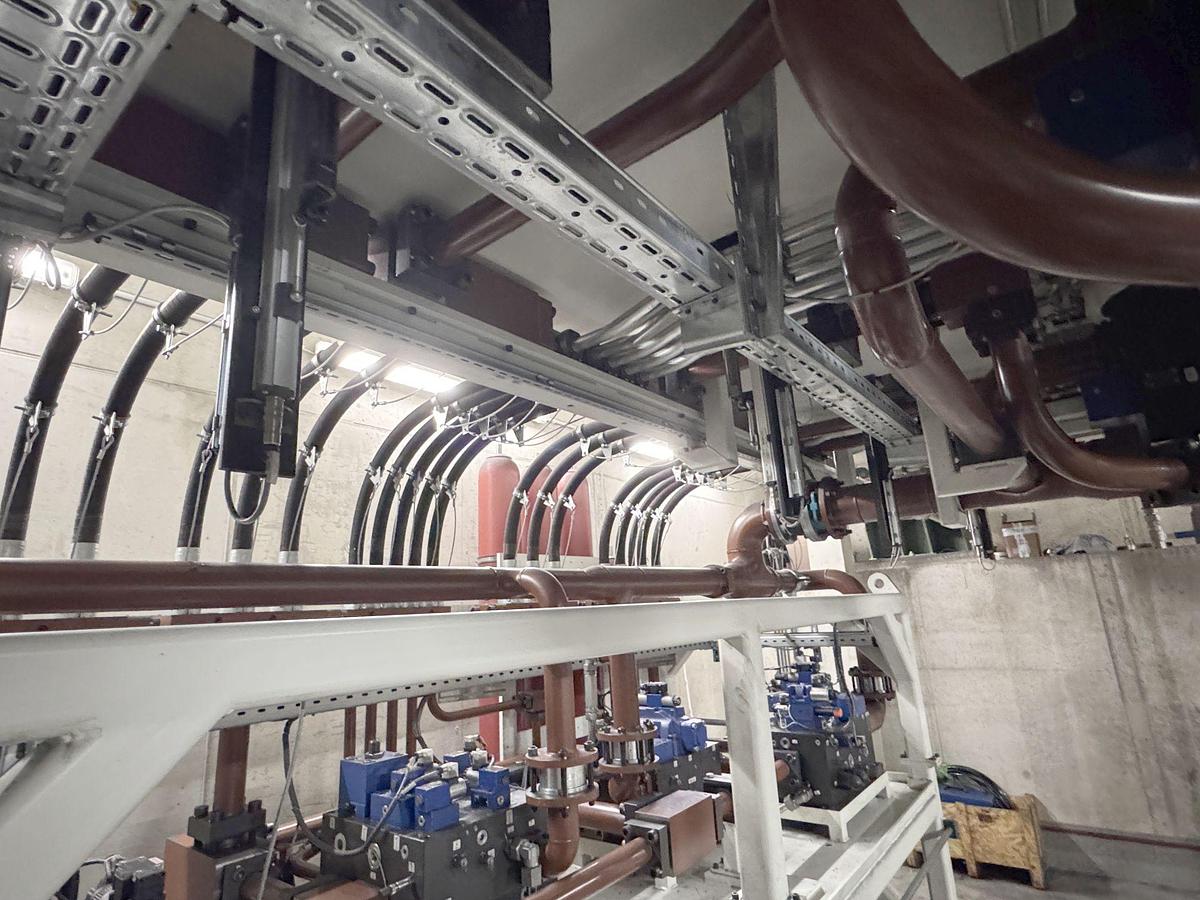

Hydraulic Drive Type
Openings in Uprights
Number of Cushions - 3
Moving Bolster
Light Barrier
Cutting Impact Damping System
Hydraulic Overload Protection
Specifications
| Manufacturer | Loire |
| Model | EDIMC 2500-250 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654321 |
| Press Total Force (Nominal) | 2500 Ton |
| Press table dimensions | 5,000 x 2,500 mm |
| Ram clamping surface | 5,000 x 2,500 mm |
| Ram stroke | 1,700 mm |
| Ram (Hydraulic Press) number of main cylinders | 3 |
| Approximate max velocity | 380 mm/s |
| Working max velocity | 200 mm/s |
| Ram ejectors stroke | 200 mm |
| Ram ejectors force | 200 Ton |
| Die cushion (table cushion) number | 3 |
| Force of cushion | 200 Ton |
| Die cushion stroke | 350 mm |
| Distance table to ram max | 2,200 mm |
| Tool length max | 5,000 mm |
| Tool width max | 2,500 mm |
| Tool height max | 1,600 mm |
| Electrics | 500 kW - 400 V - 50 Hz |
| Machine weight | 533,000 kg |
