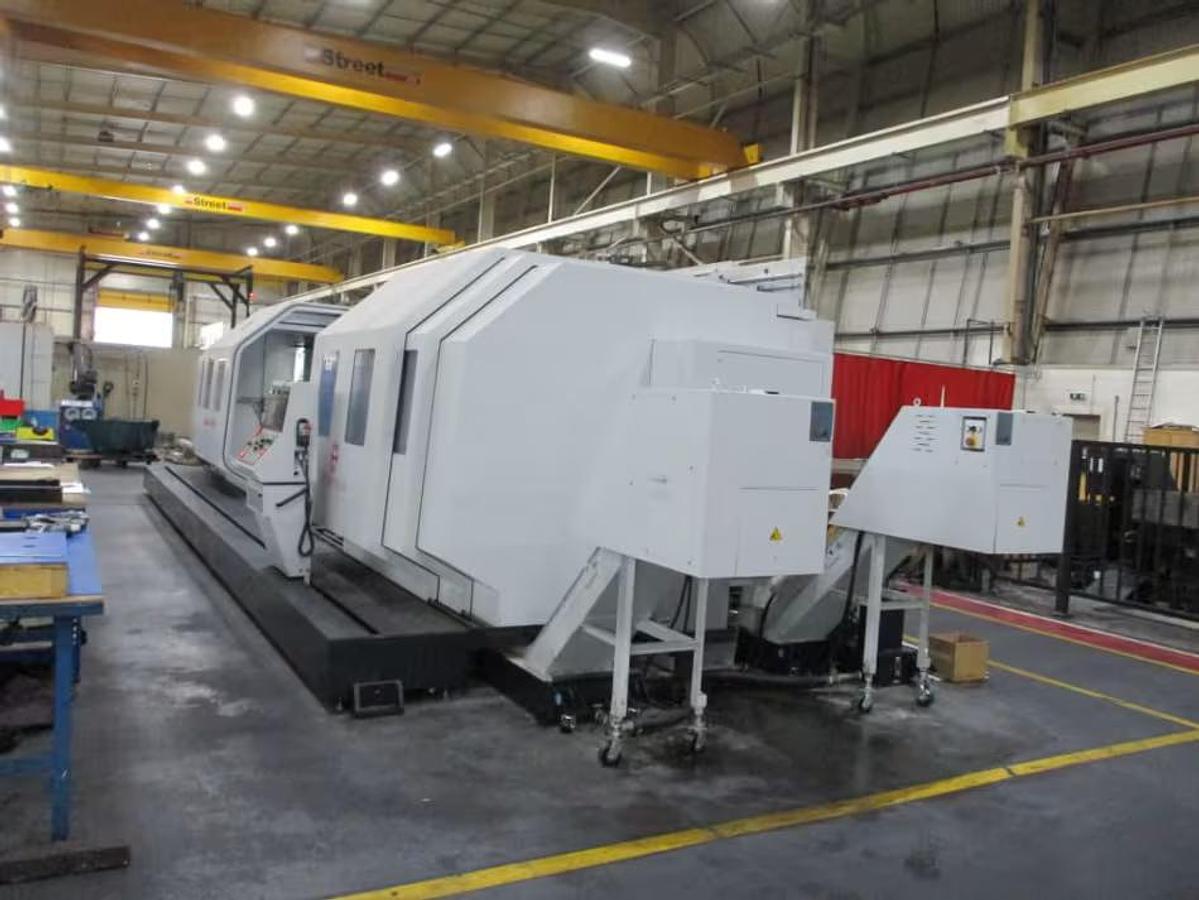

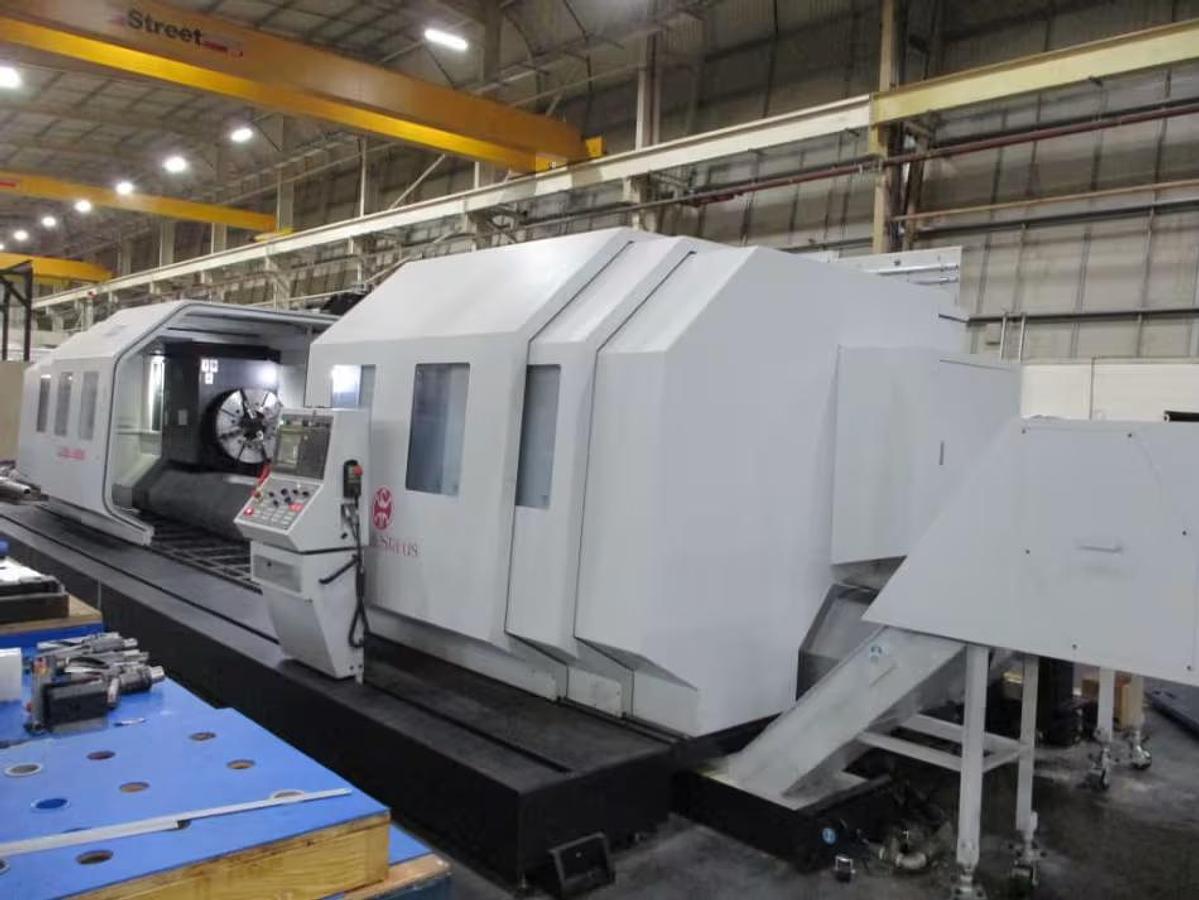

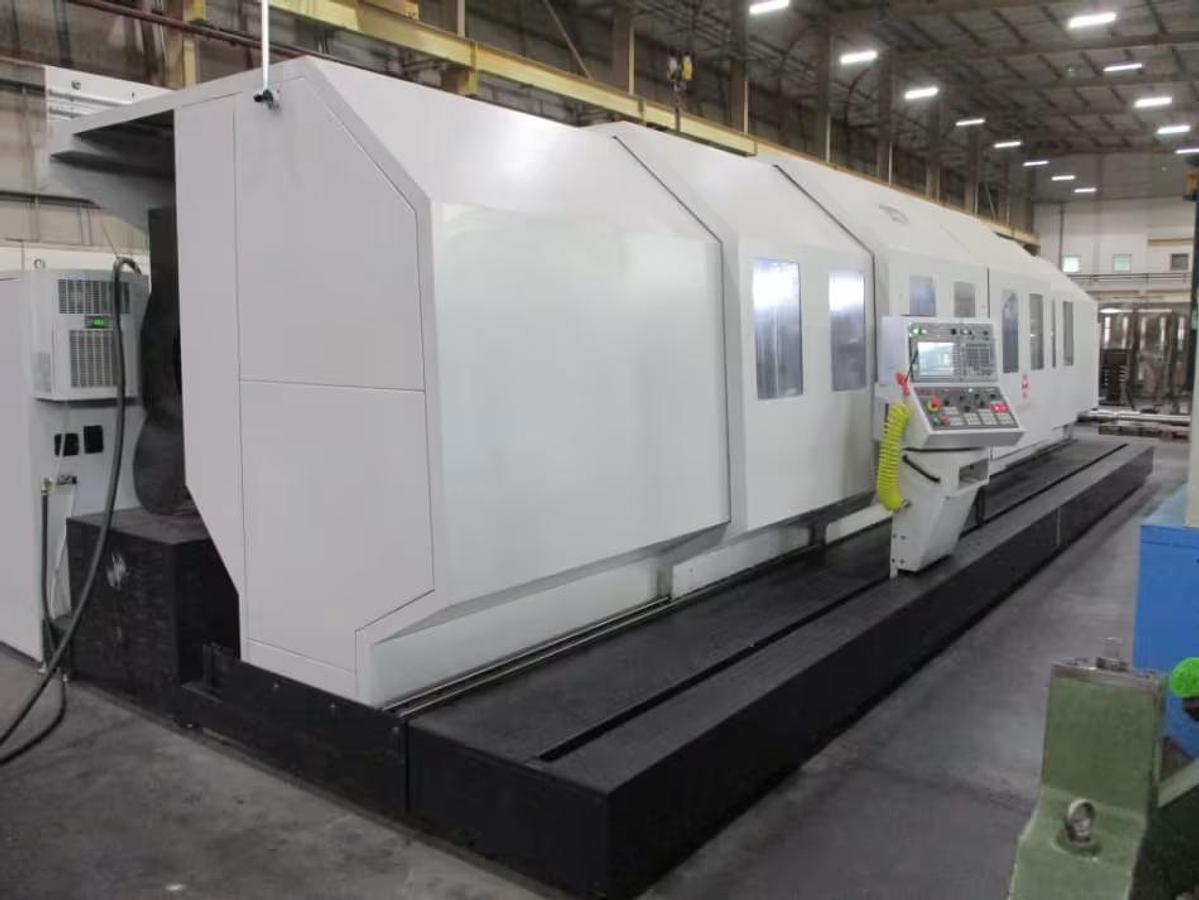

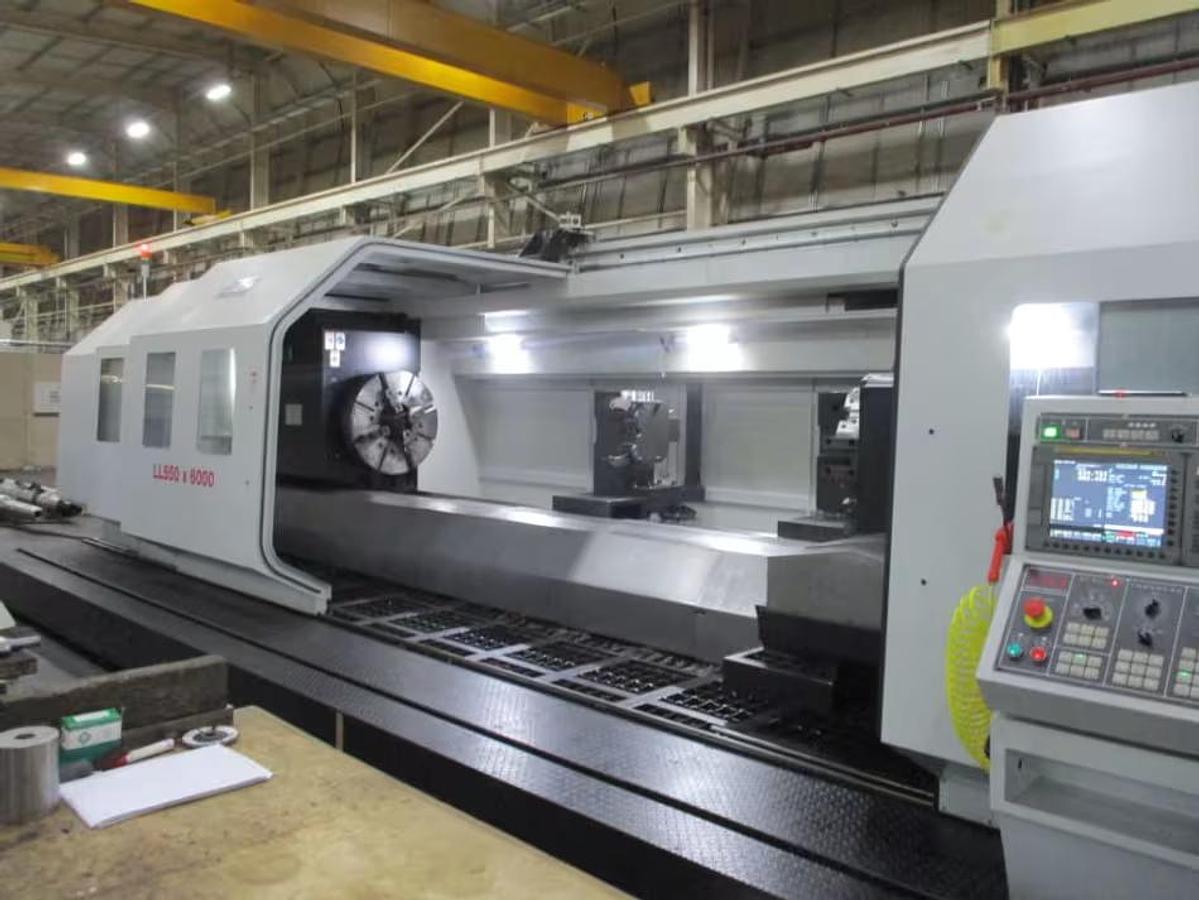

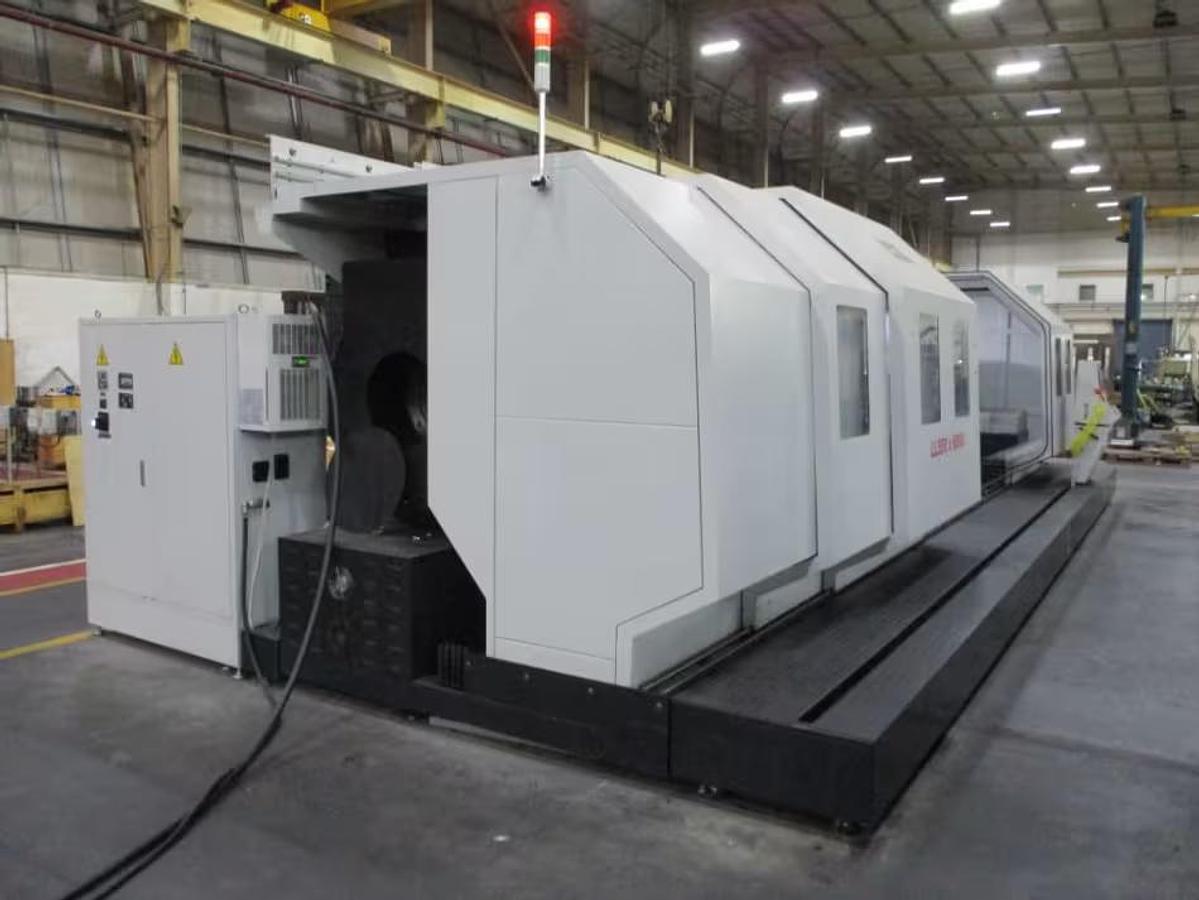

L&L Machinery TUSCAN LL550 x 6000 CNC 5-Bed Way CNC Heavy Duty Turning Boring Lathe
L&L Machinery TUSCAN LL550 x 6000 CNC 5-Bed Way CNC Heavy Duty Turning Boring Lathe
Description

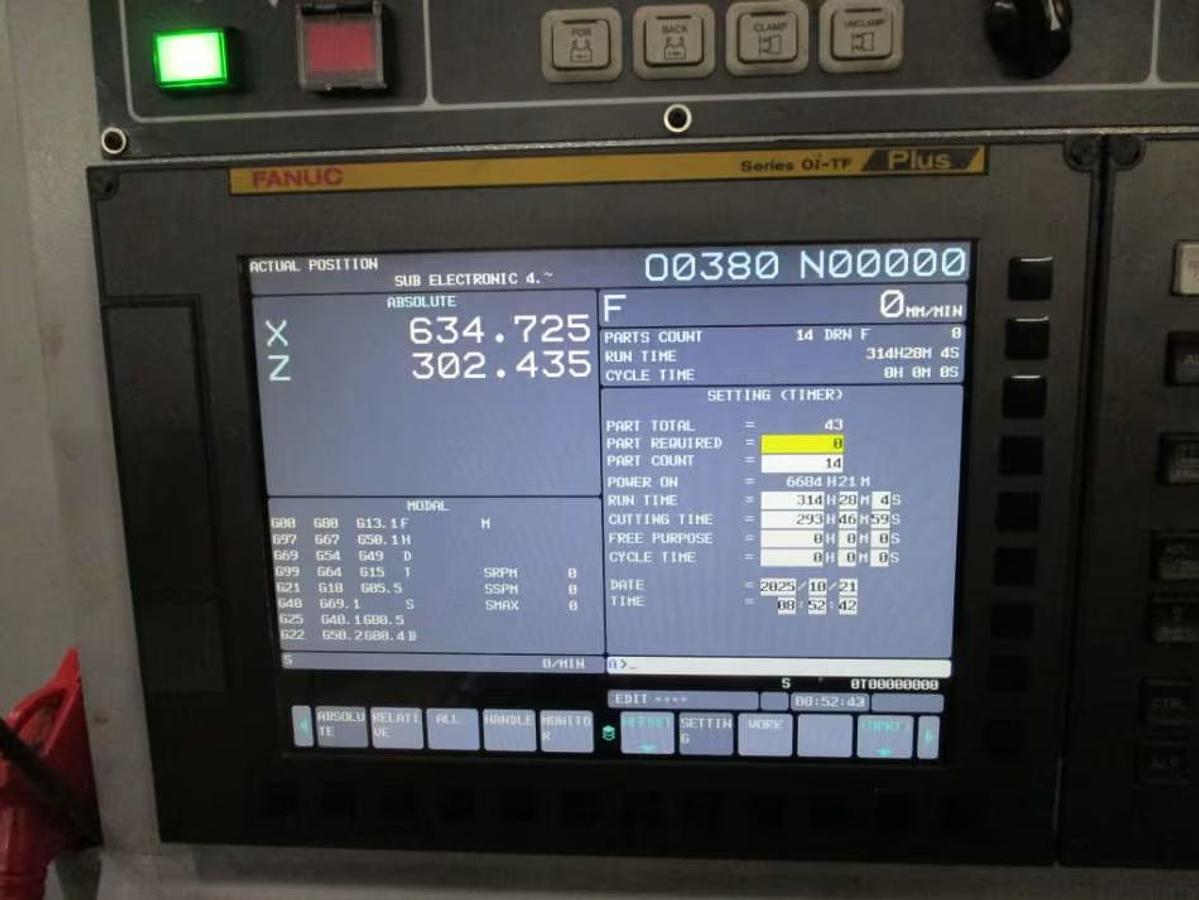

Running Time 314 Hours

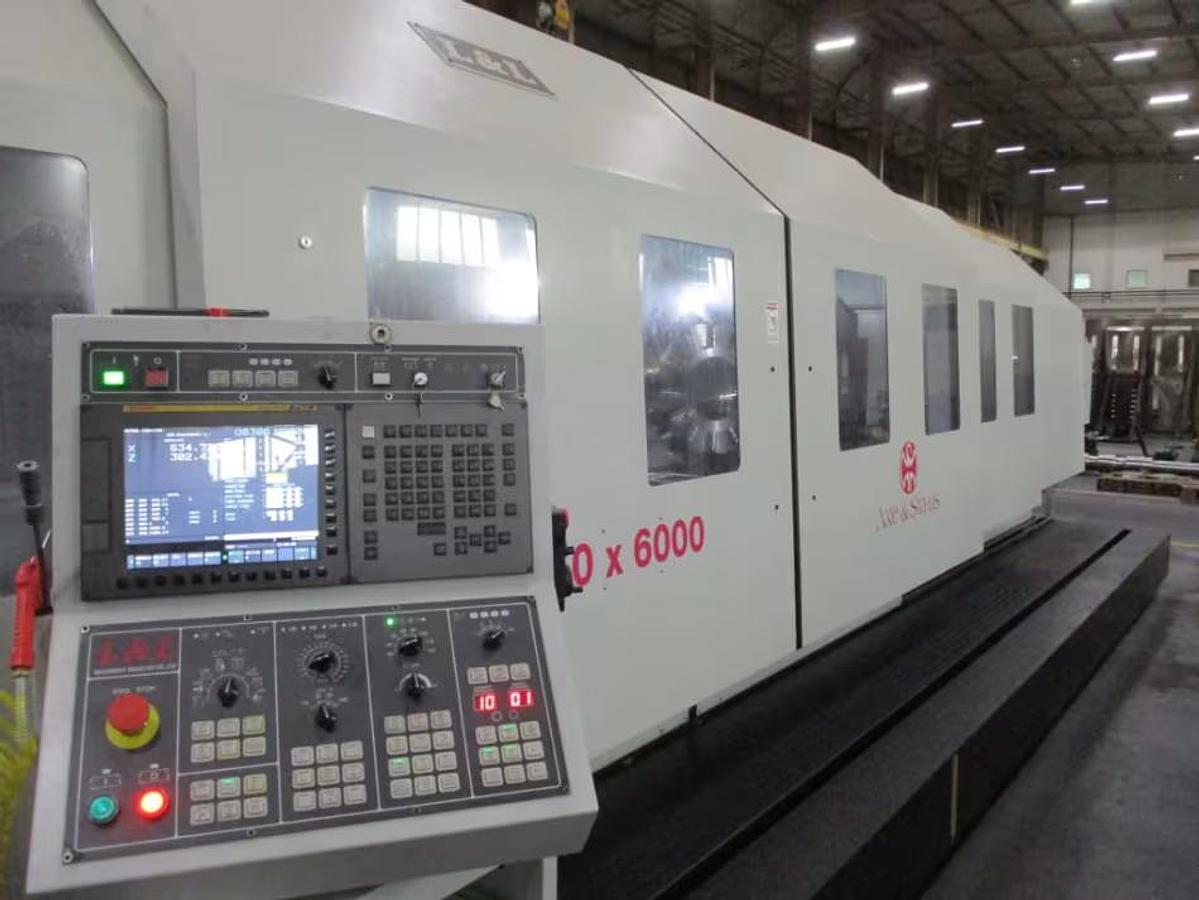

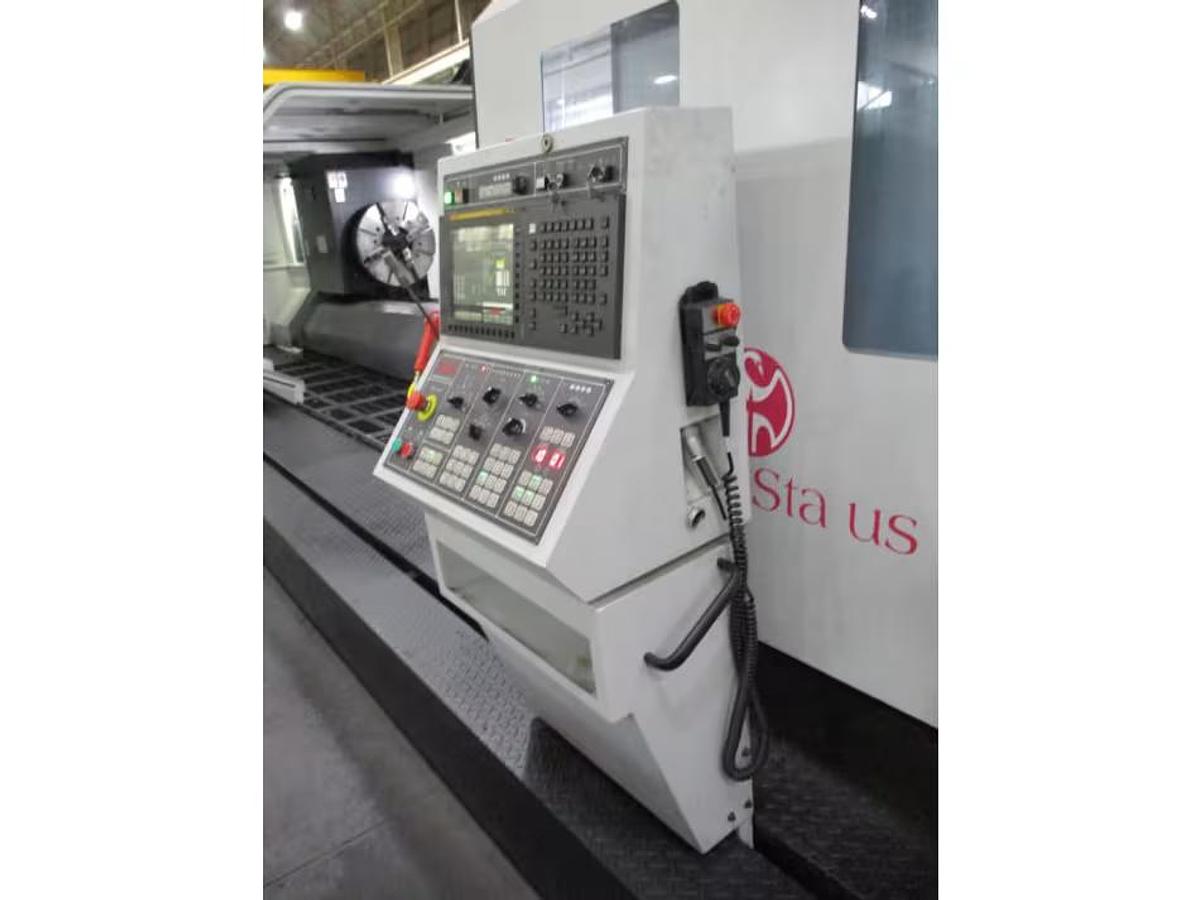

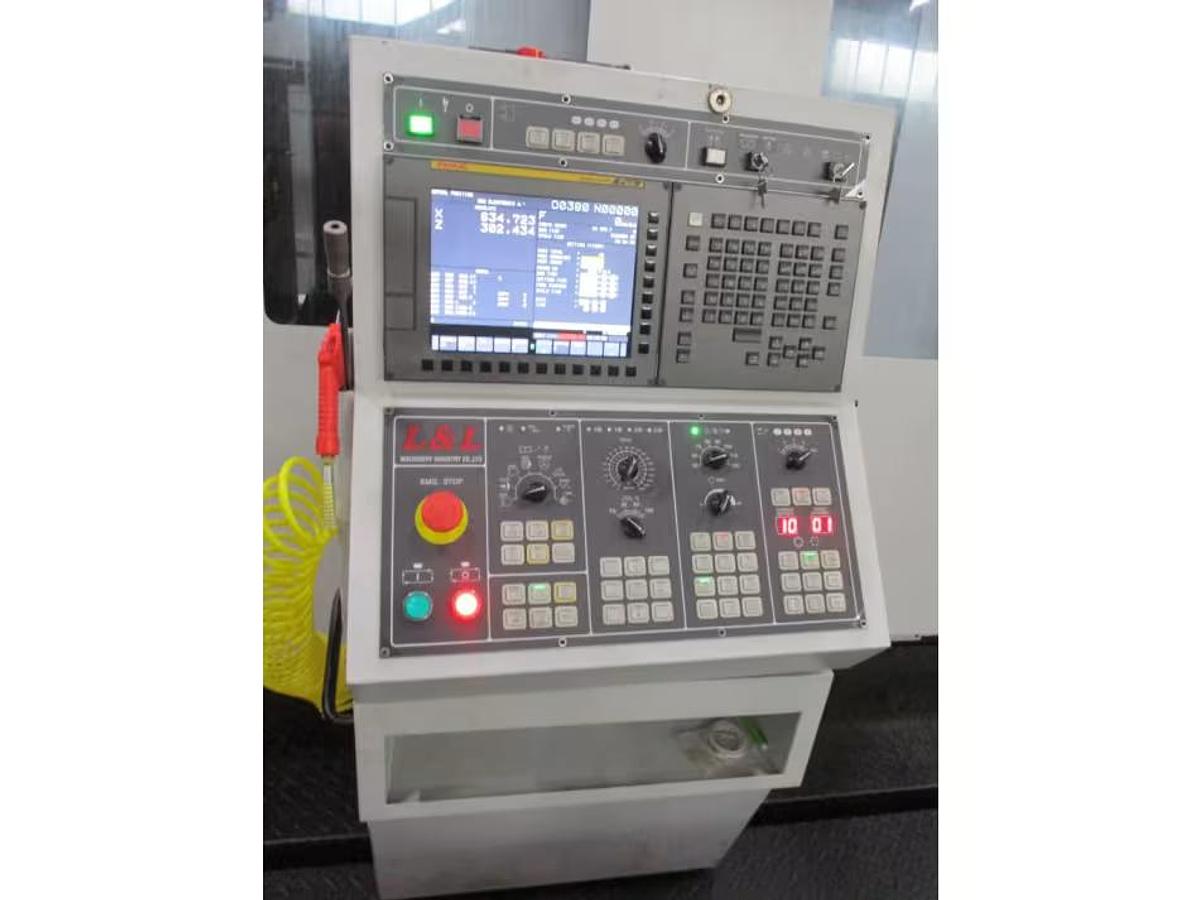

Fanuc 0I-TF PLUS CNC Control
5-Bedway
Carriage Type Box (2 Box Way)

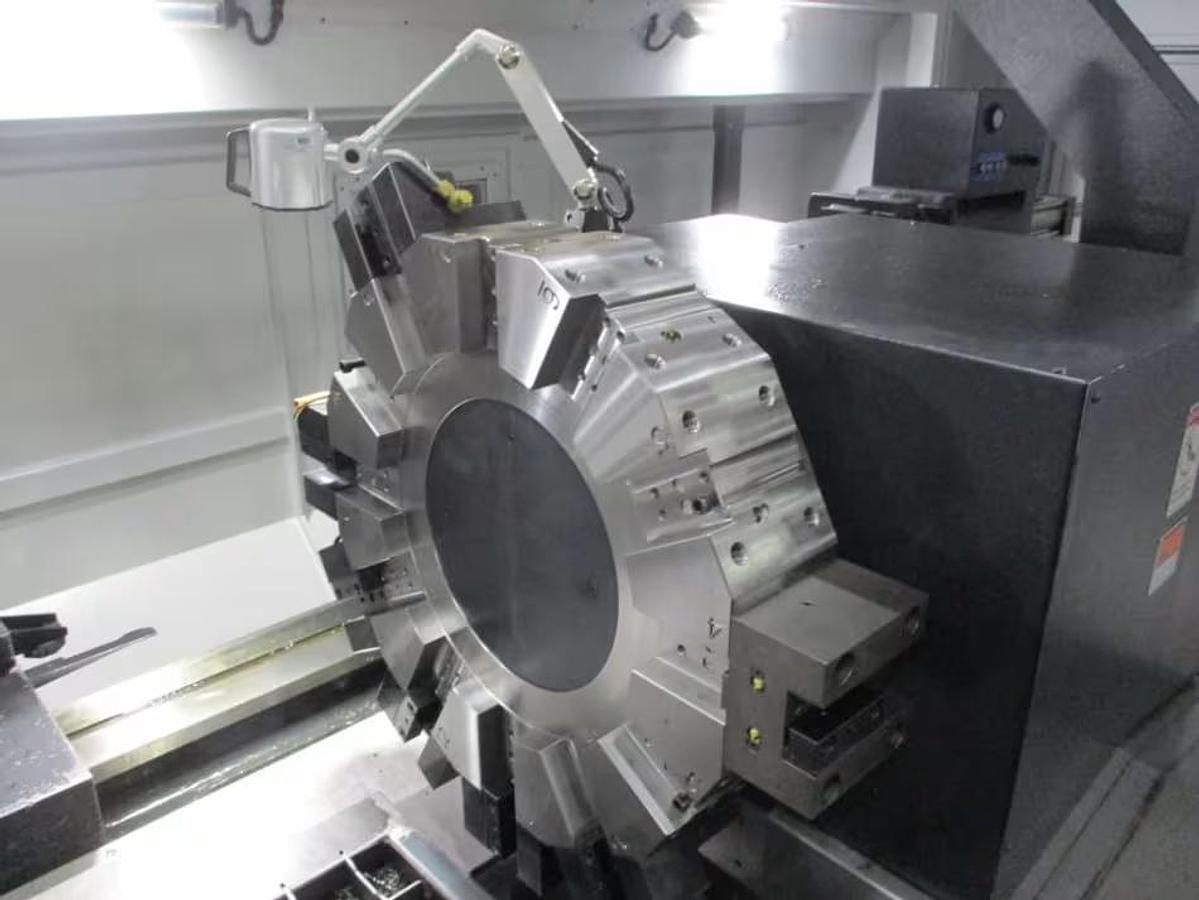

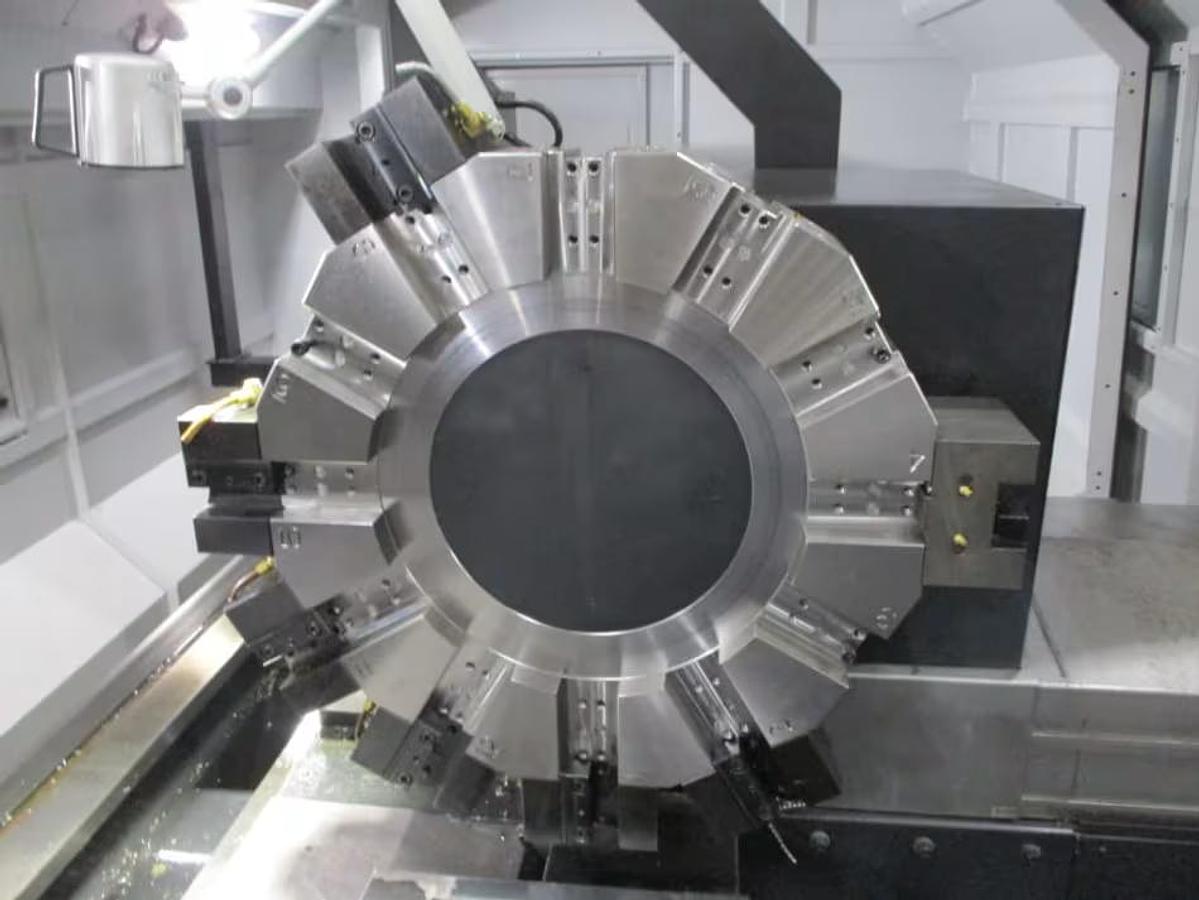

V12-200 Hydraulic 12 Station Turret - 32mm Tool Size - Ø50mm Boring Bar Holder Dimension

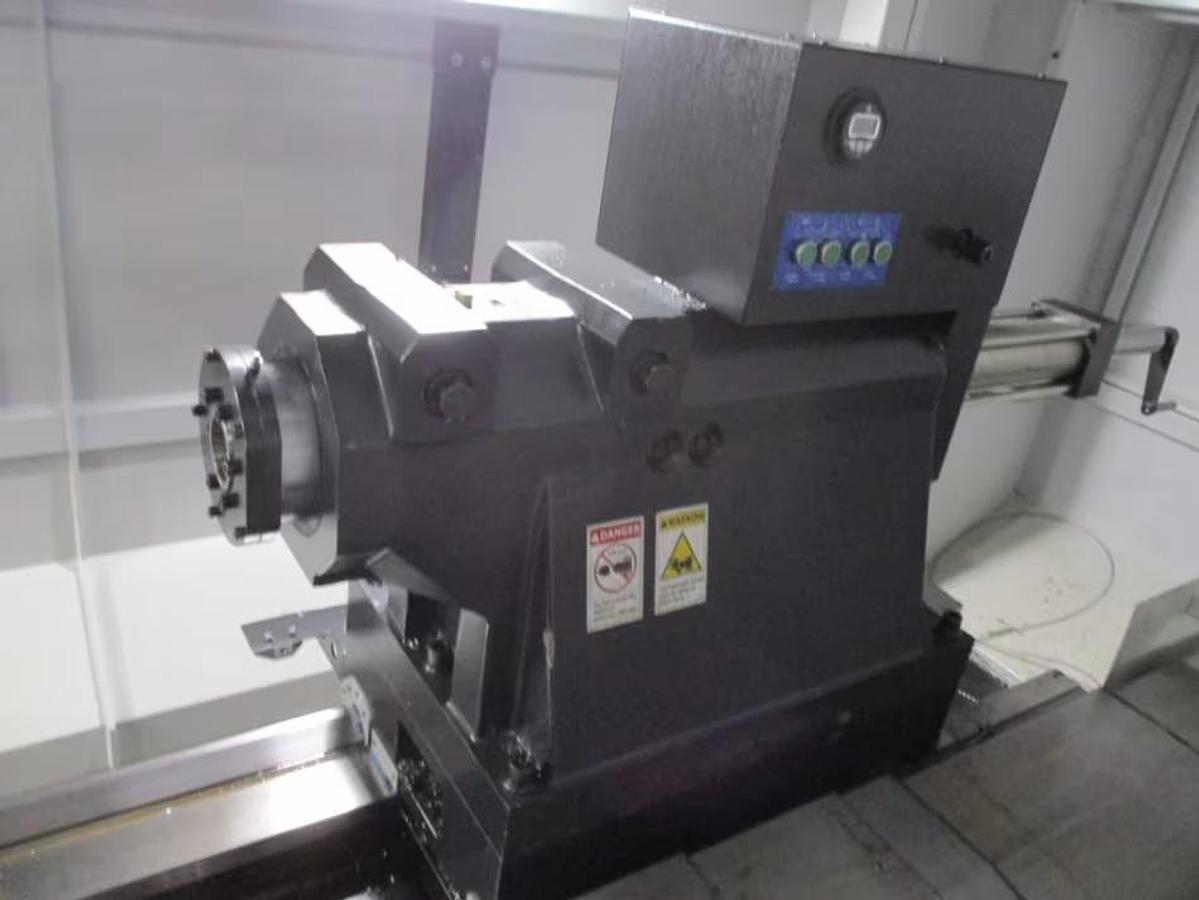

Motorized Tailstock Body Movement - Quill Ø165mm - Quill Travel 250mm - MT 6

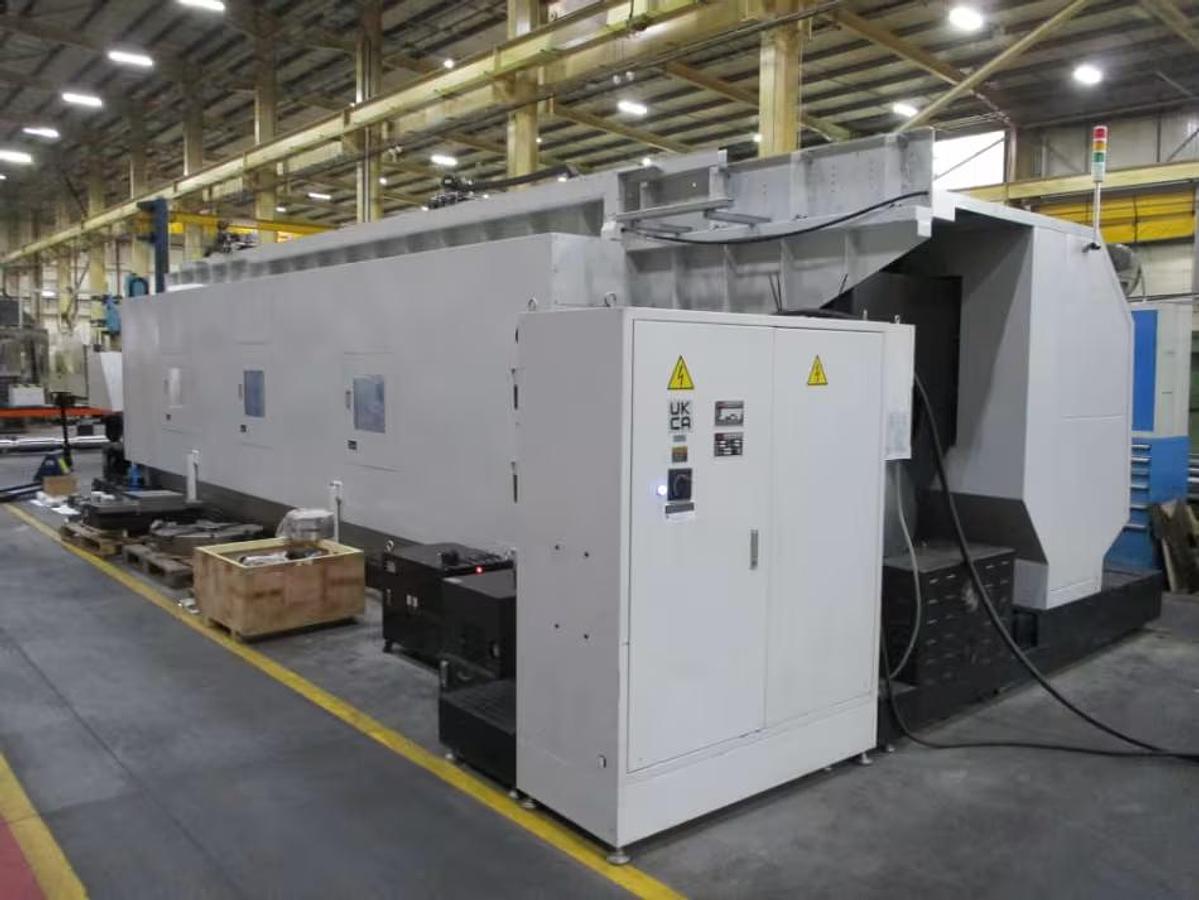

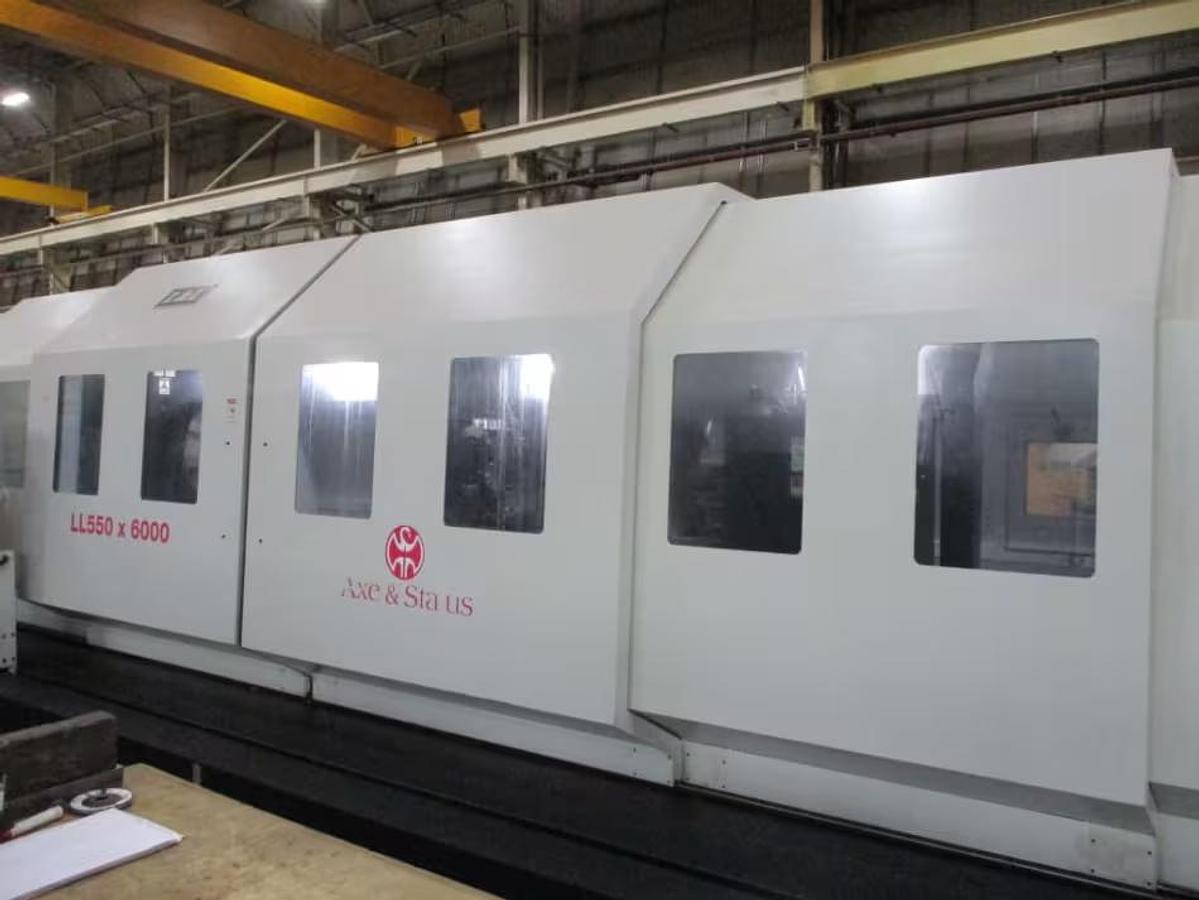

Automatic Doors & Full Cover Guard
(2) 'FCG-32C' Ø800mm x Ø320mm
Through Bore 4-Jaw Manual Chucks (Front & Back of Spindle)

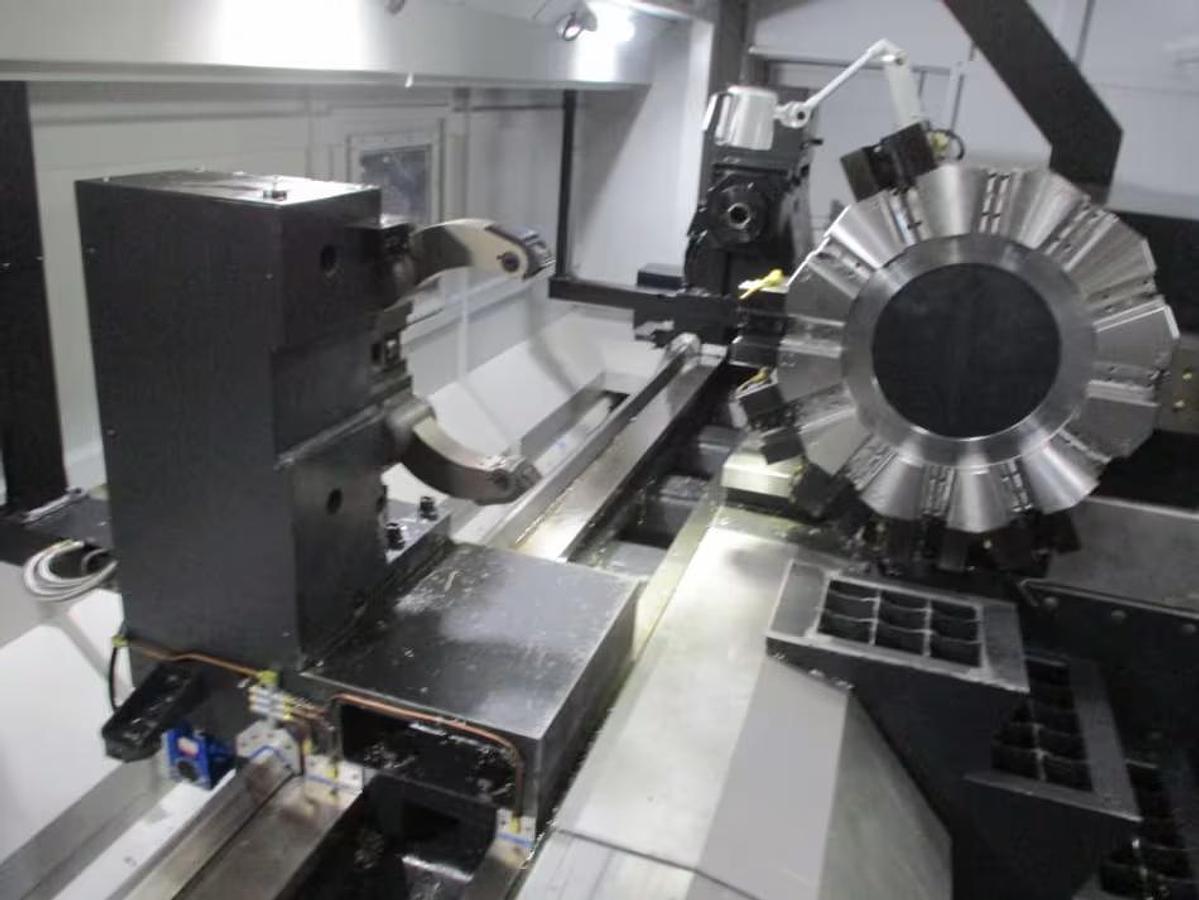

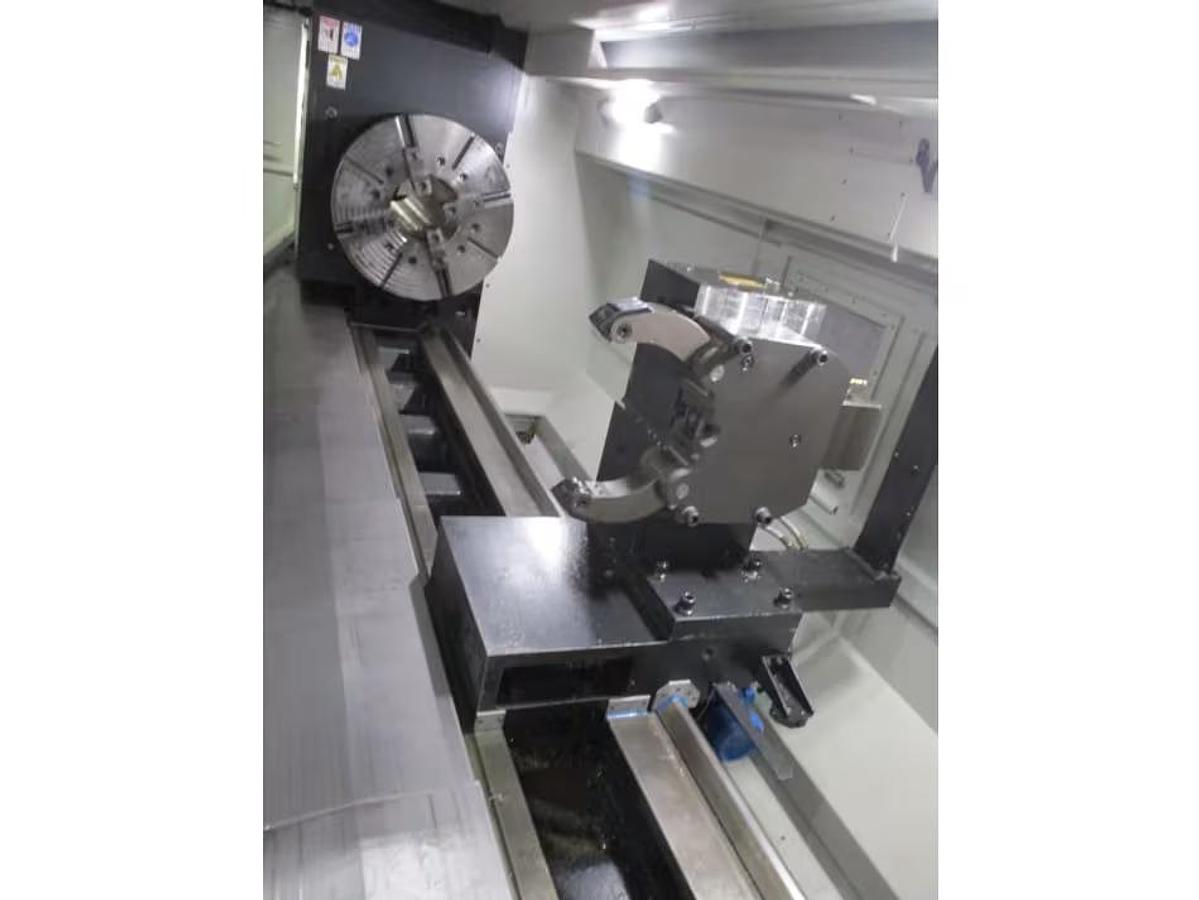

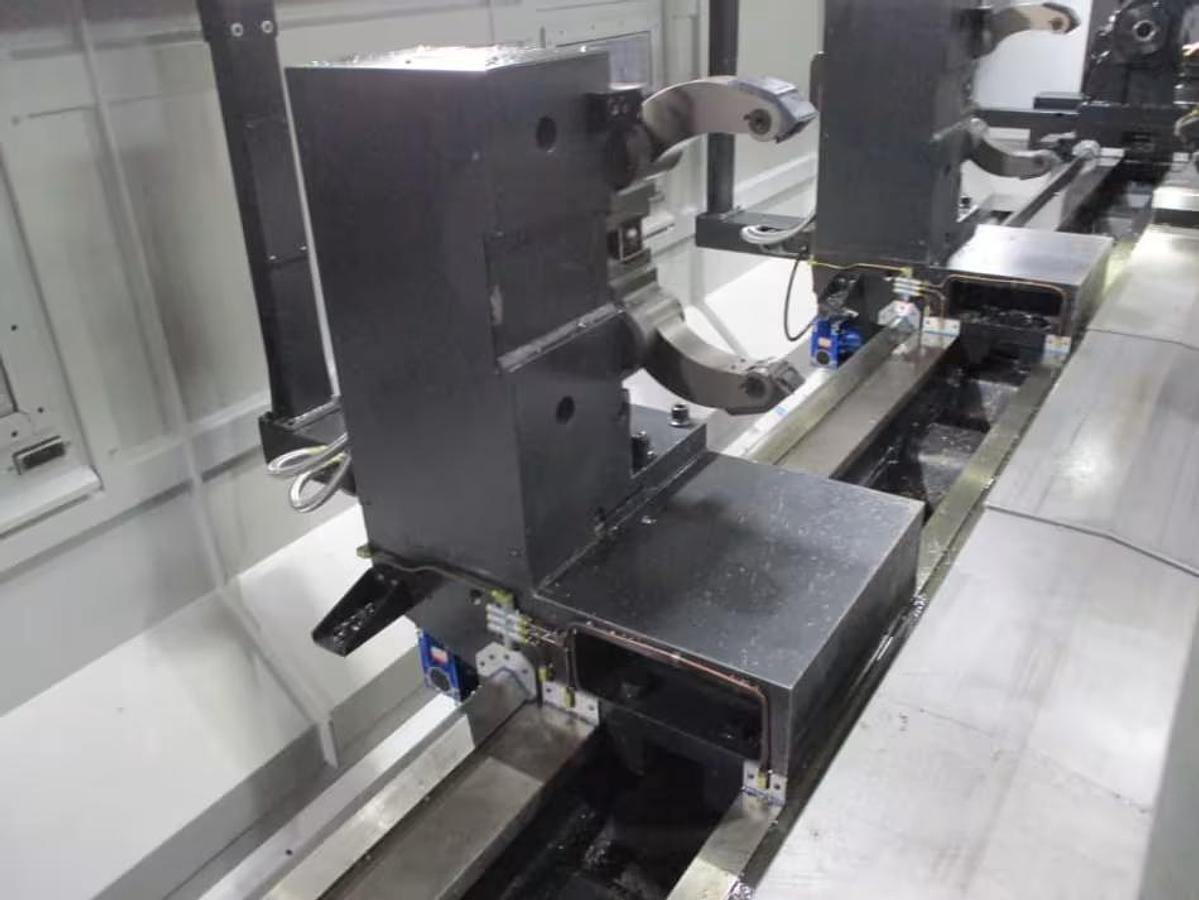

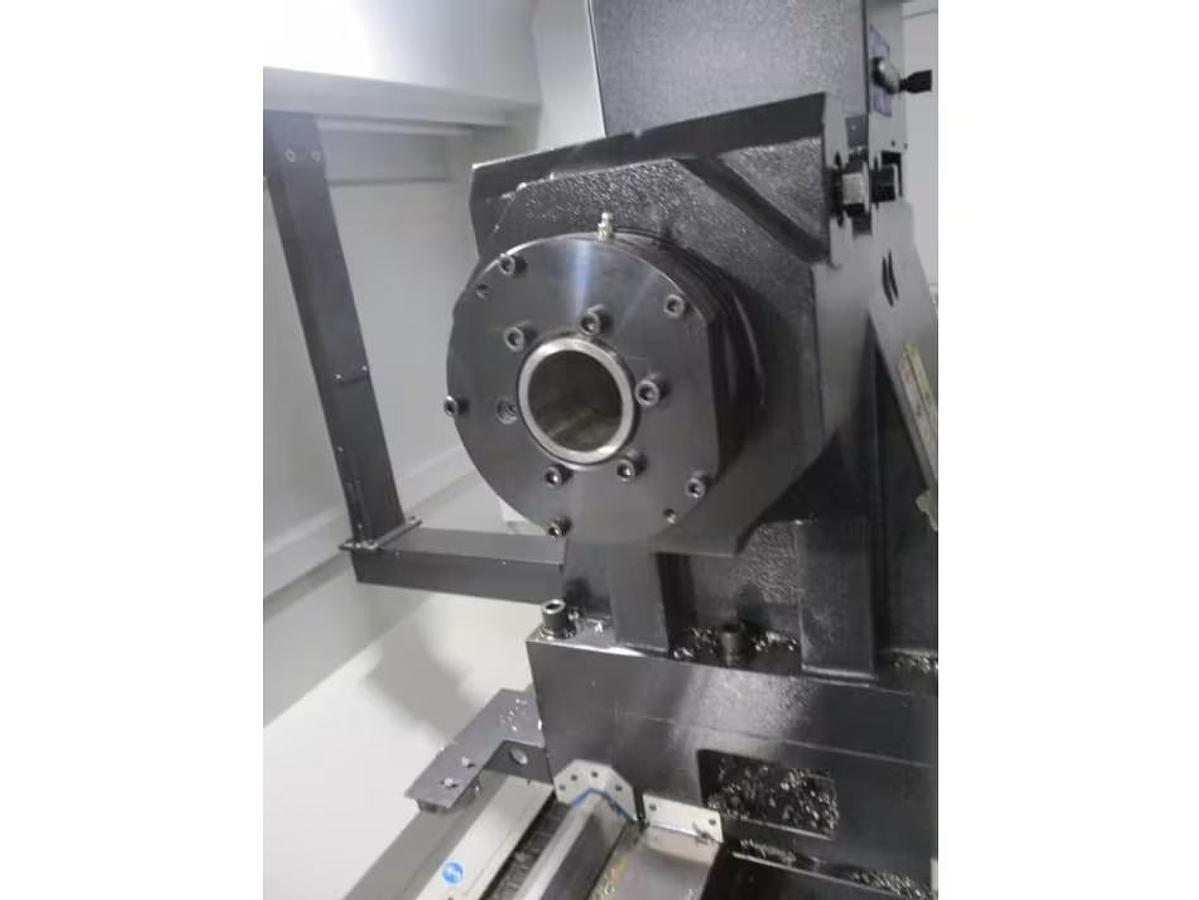

(2) SMW Autoblok 'K4 ZSW' Programmable Steadies - Range Ø52mm - 280mm

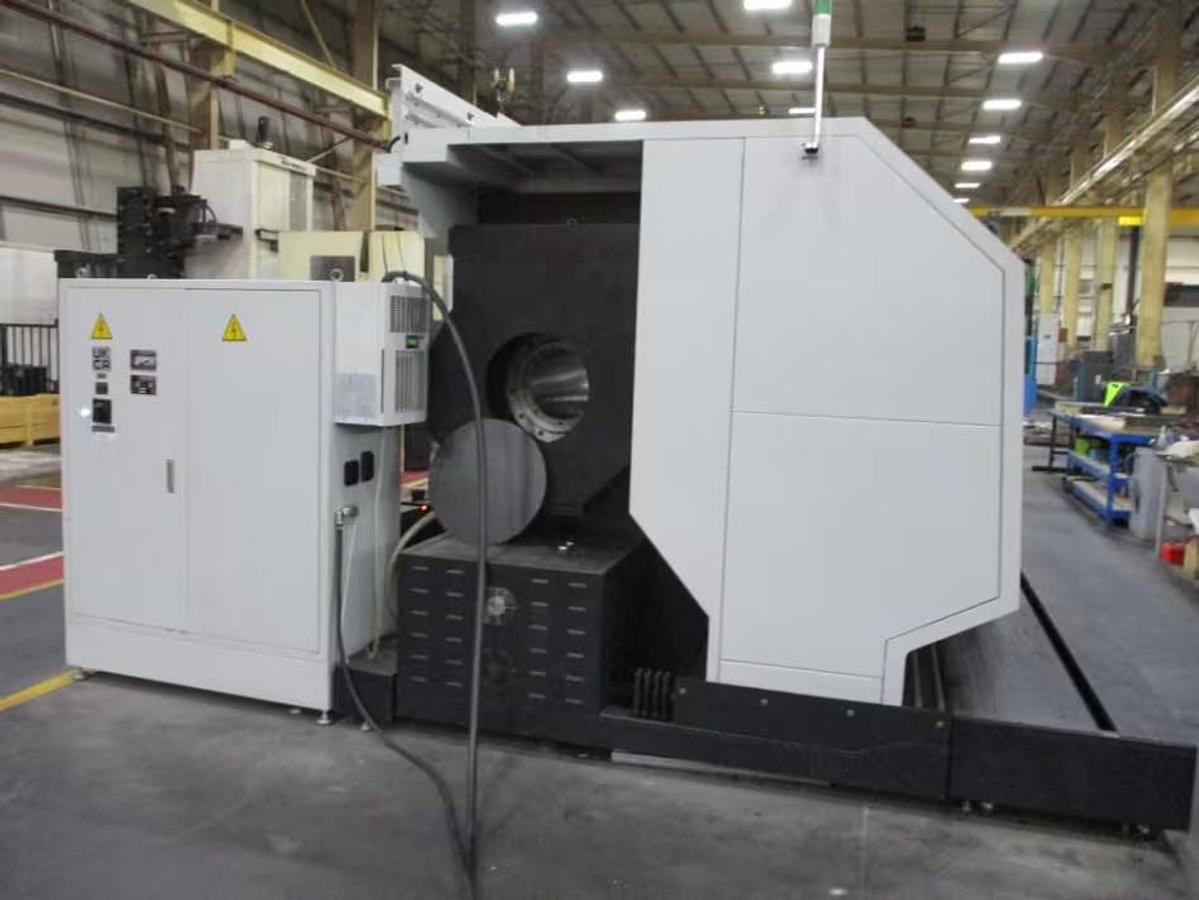

Headstock Spindle Nose A2-20
Spindle 'X' Axis Servo Motor 3kW
'Z' Axis Servo Motor 7kW

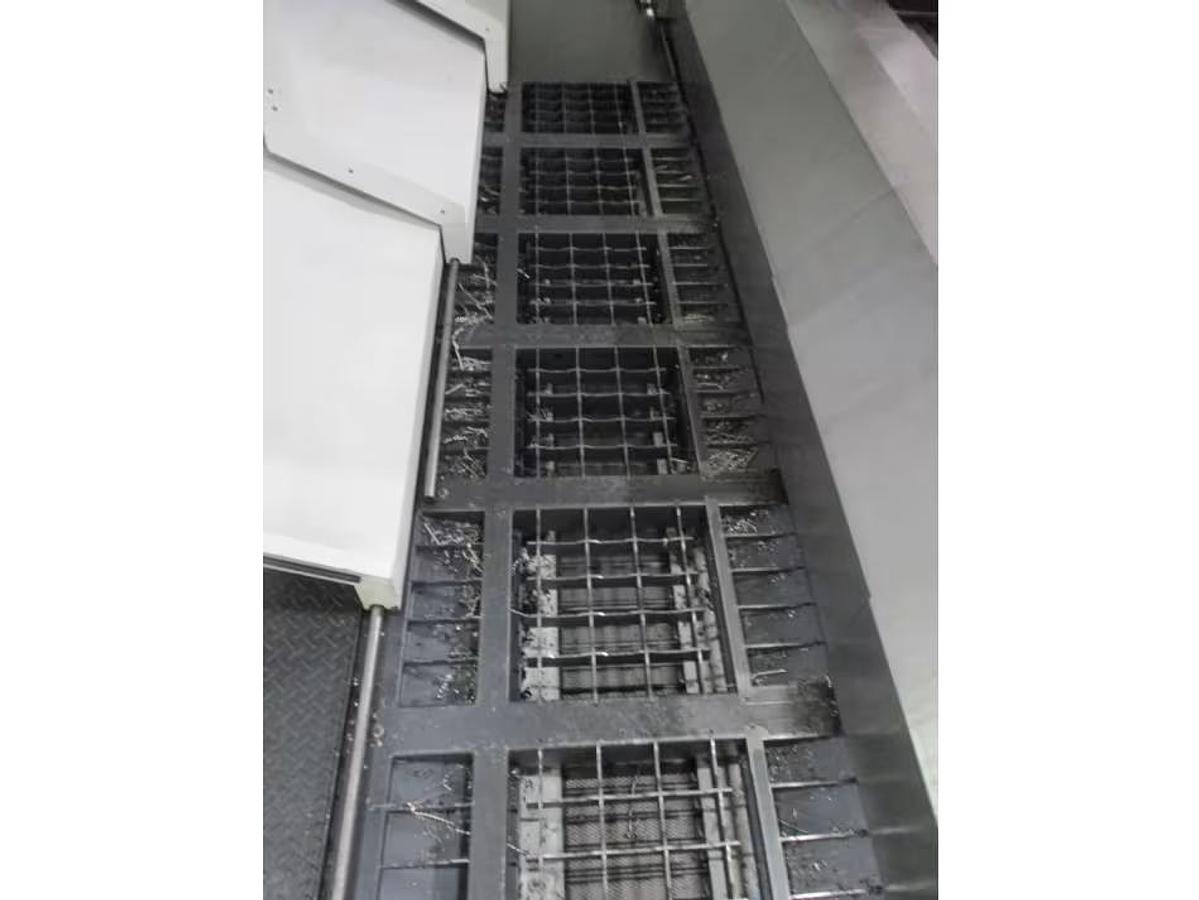

Motorized Fondex Front & Rear Chip Conveyors

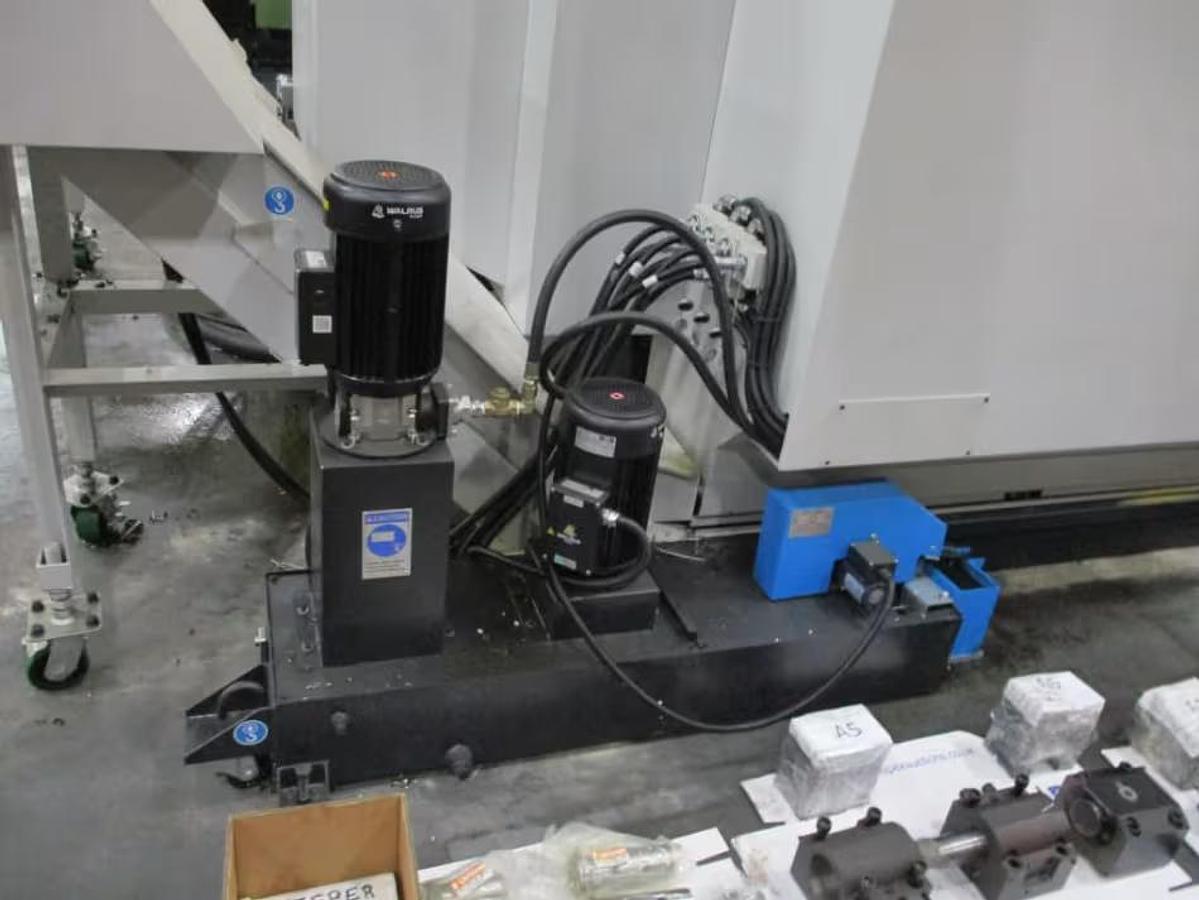

Auto Lubrication & 15-Bar Coolant System
Air Conditioned Electric Cabinet
Halogen Work Lights
Unimag DS-2030-30 Disc Type Oil Skimmer
Yong Teng E04-AL60 kVA Transformer
(2) Steel Cabinets:
(1) 500mm x 500mm x 800mm With 6 Drawers
(1) 1,000mm x 700mm x 1,000mm With 6 Drawers

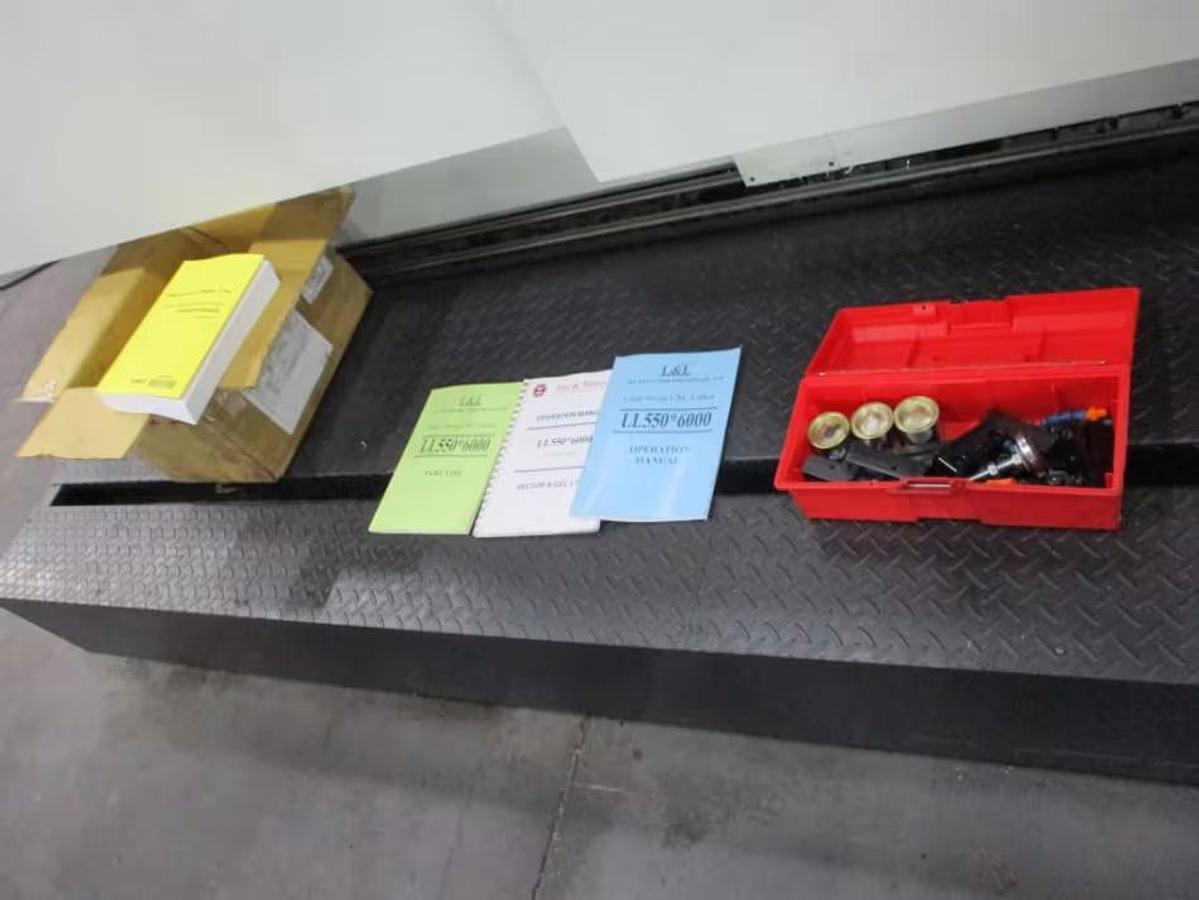

Full Range Of Machine Manuals

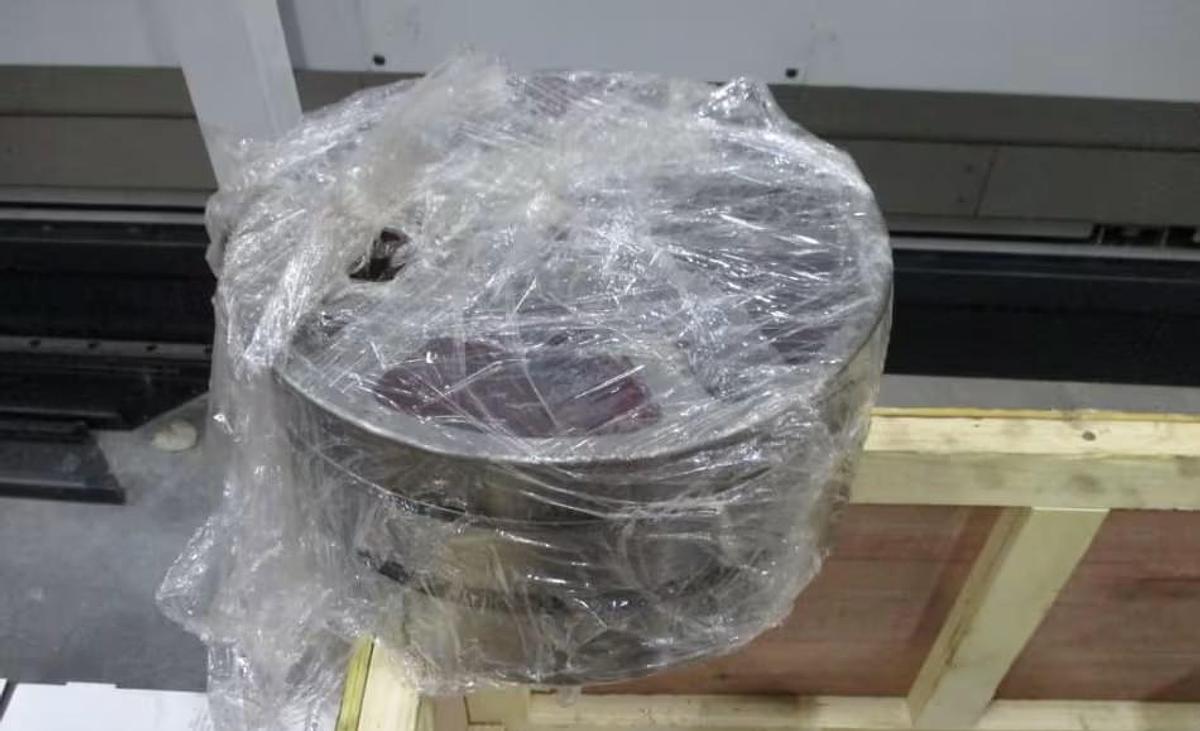

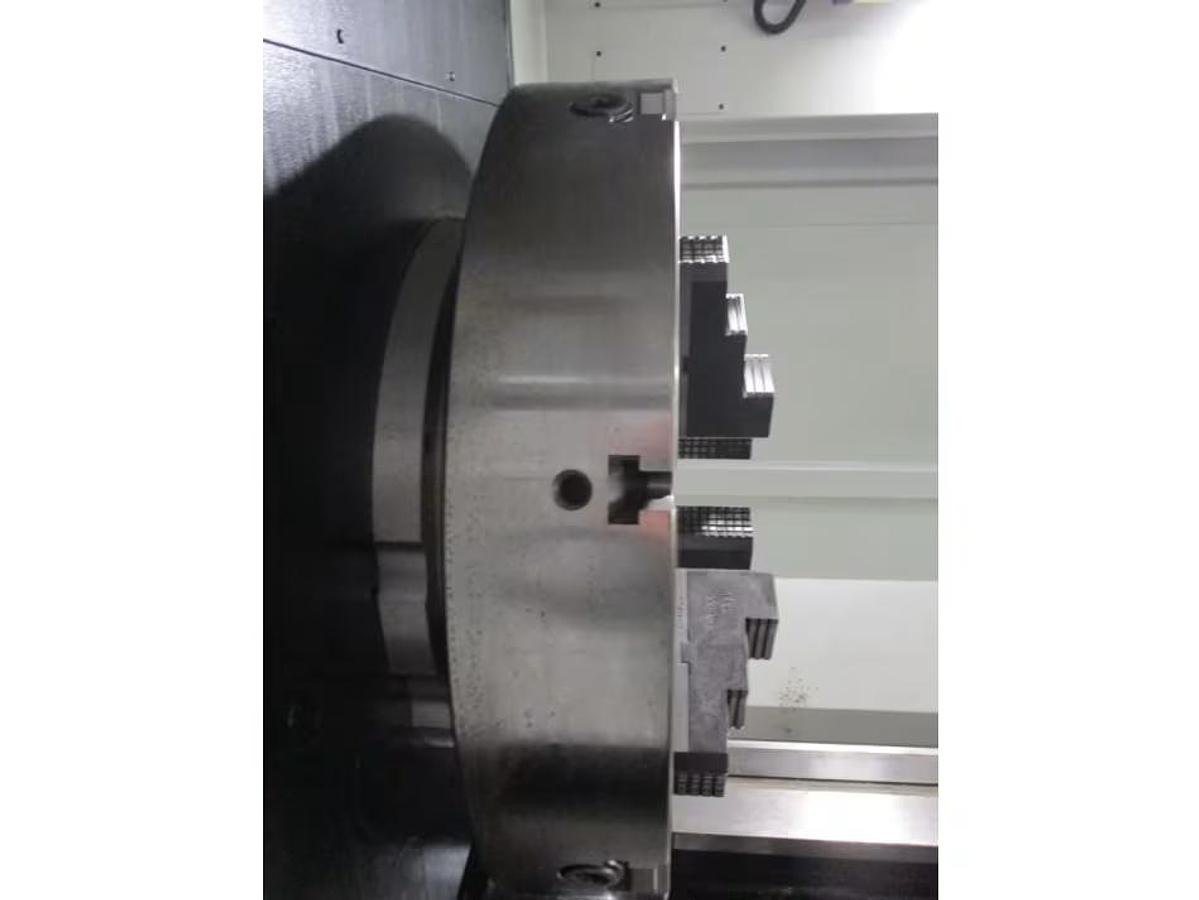

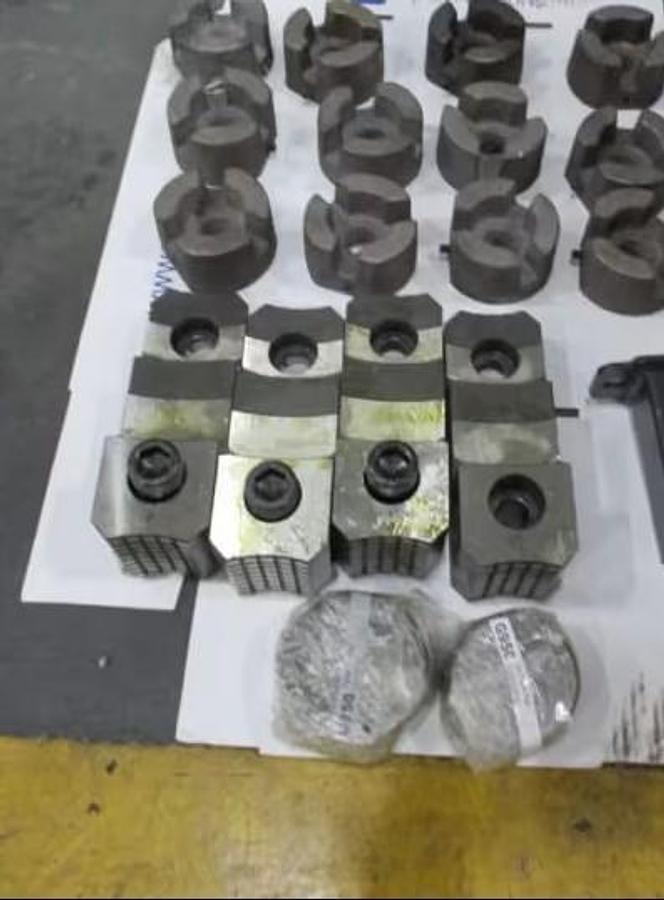

Ø800mm 4-Jaw Manual Chuck with Backing Plate & Spare Jaws
Morse Taper 6

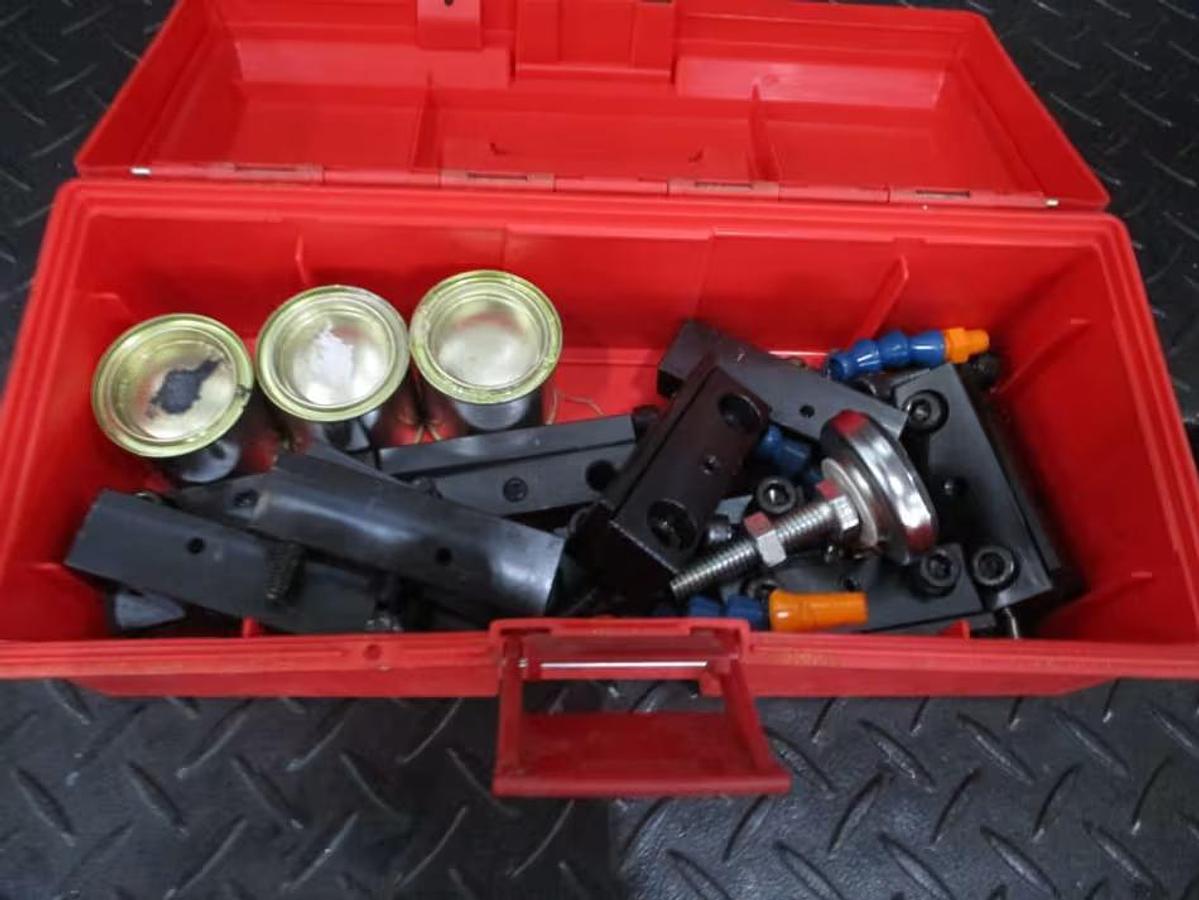

(11) Assorted C6 Capto Adaptors Including Boring Bar Holders

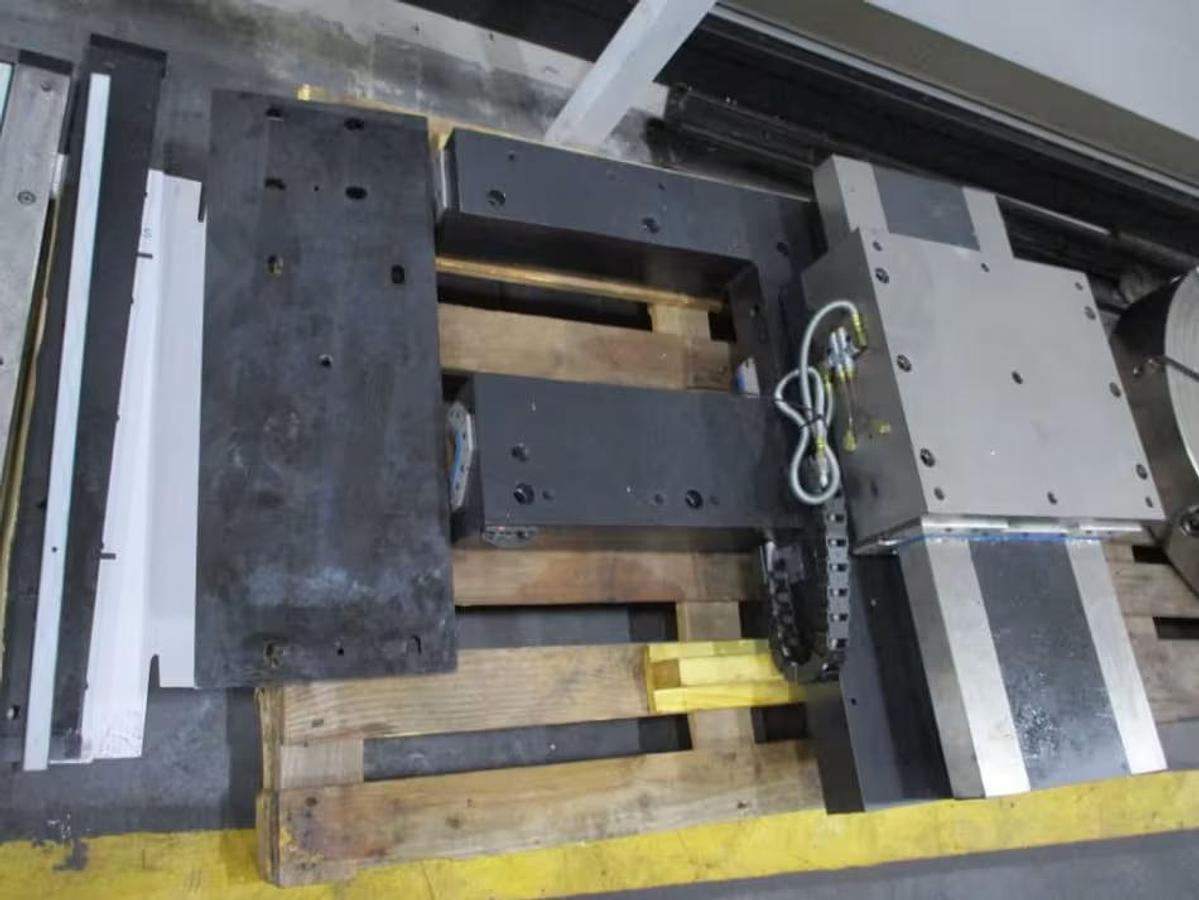

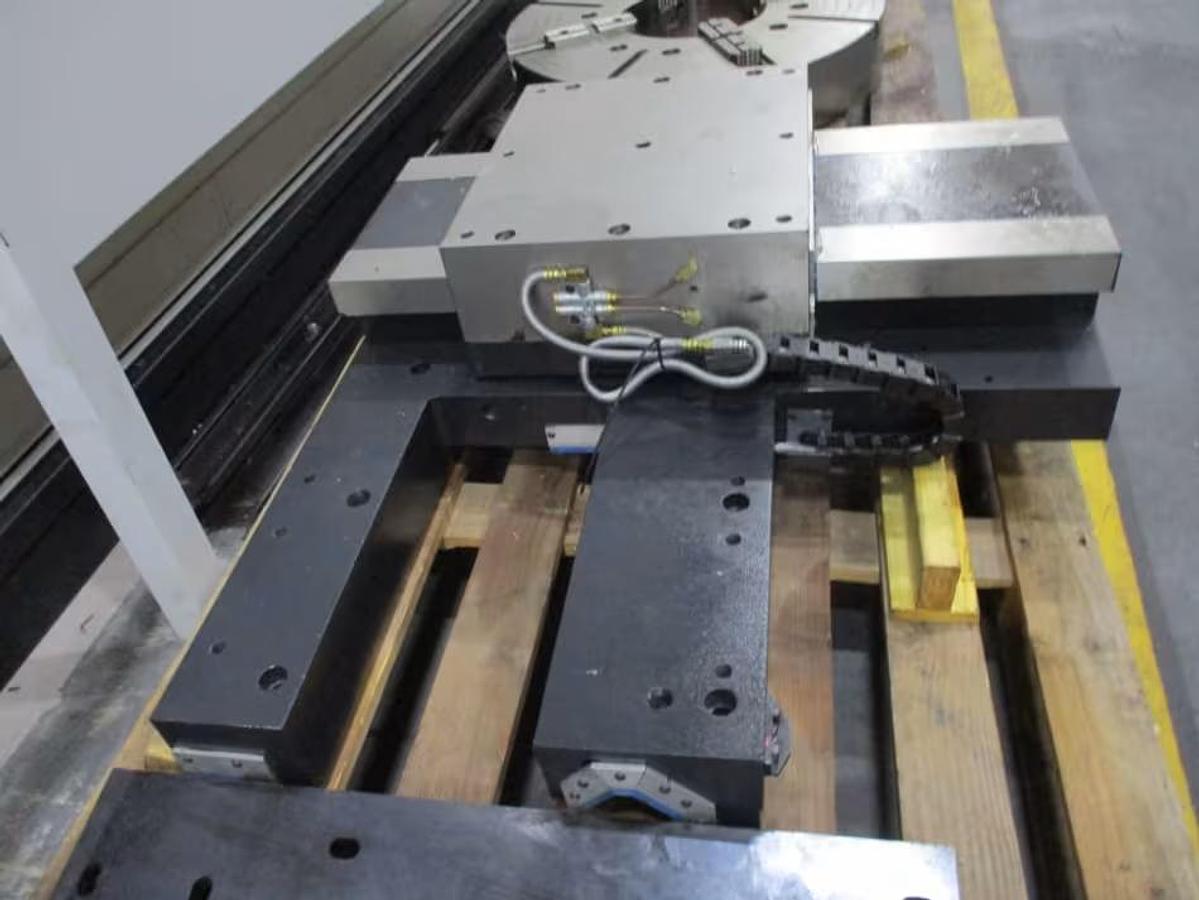

Tool Blocks & Facing Tool Holder
Boring Bar Attachment (To Hold up to 150mm)

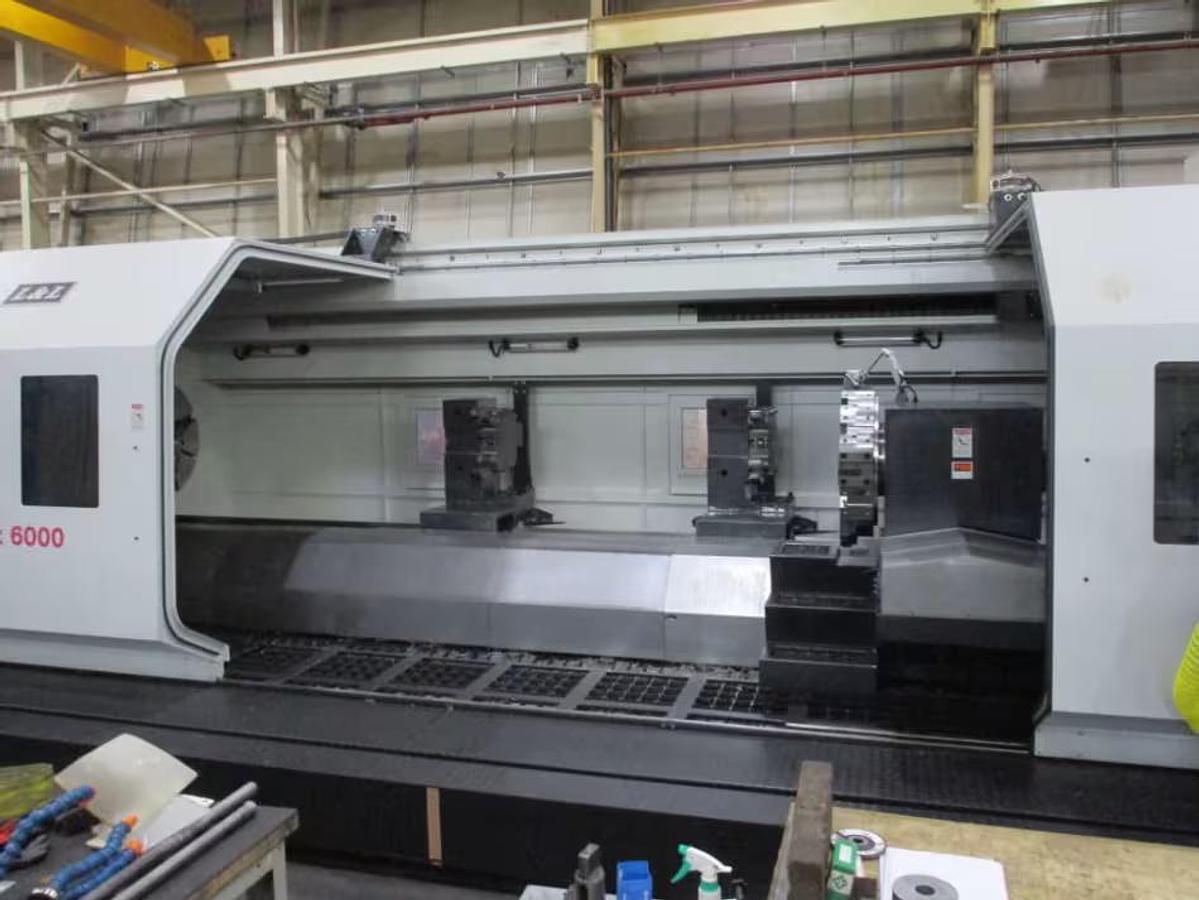

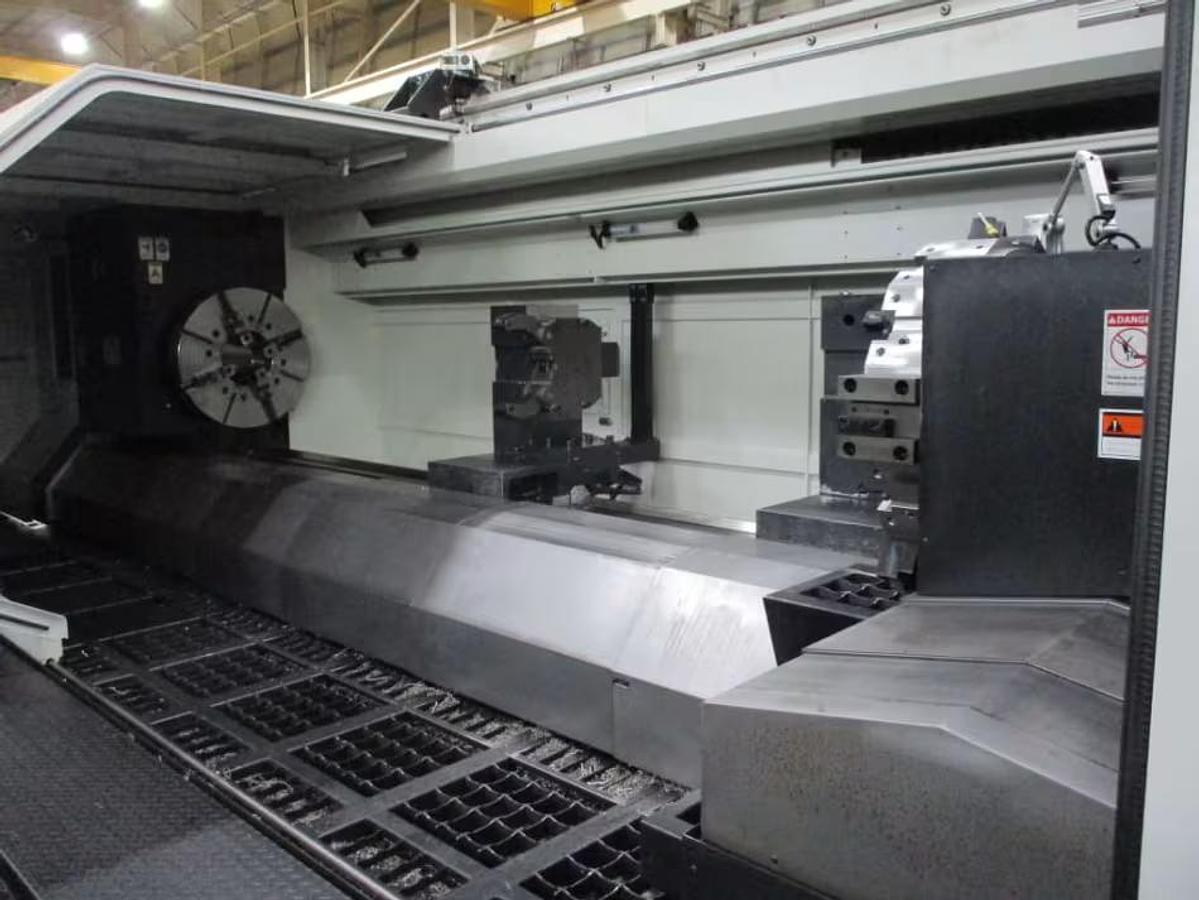

Uniquely designed with a 5-guide one-piece box-way bed structure and box-way cross slide
where the carriages can run along the full Z-axis length of bed "in front" of the workpiece without
any interference from the steady rest, boring saddle or tailstock.

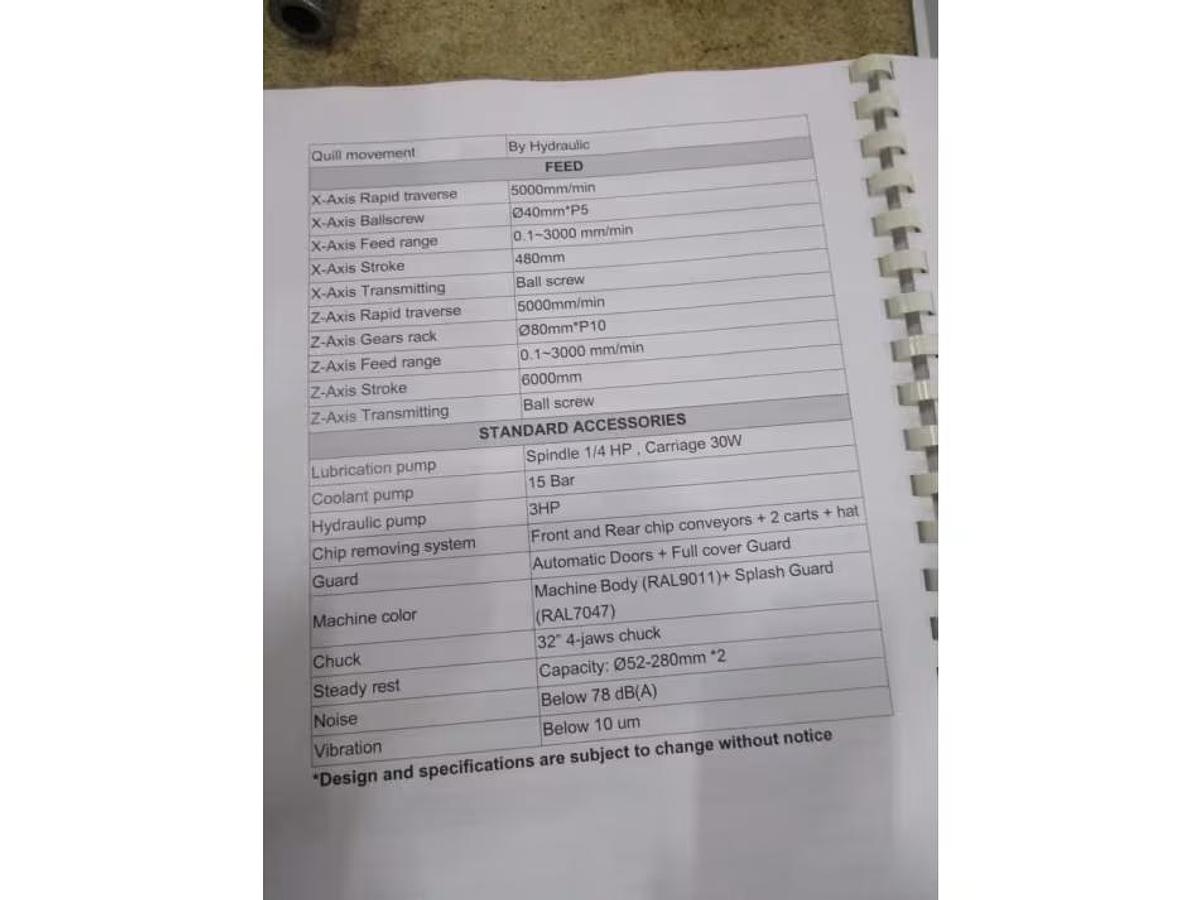

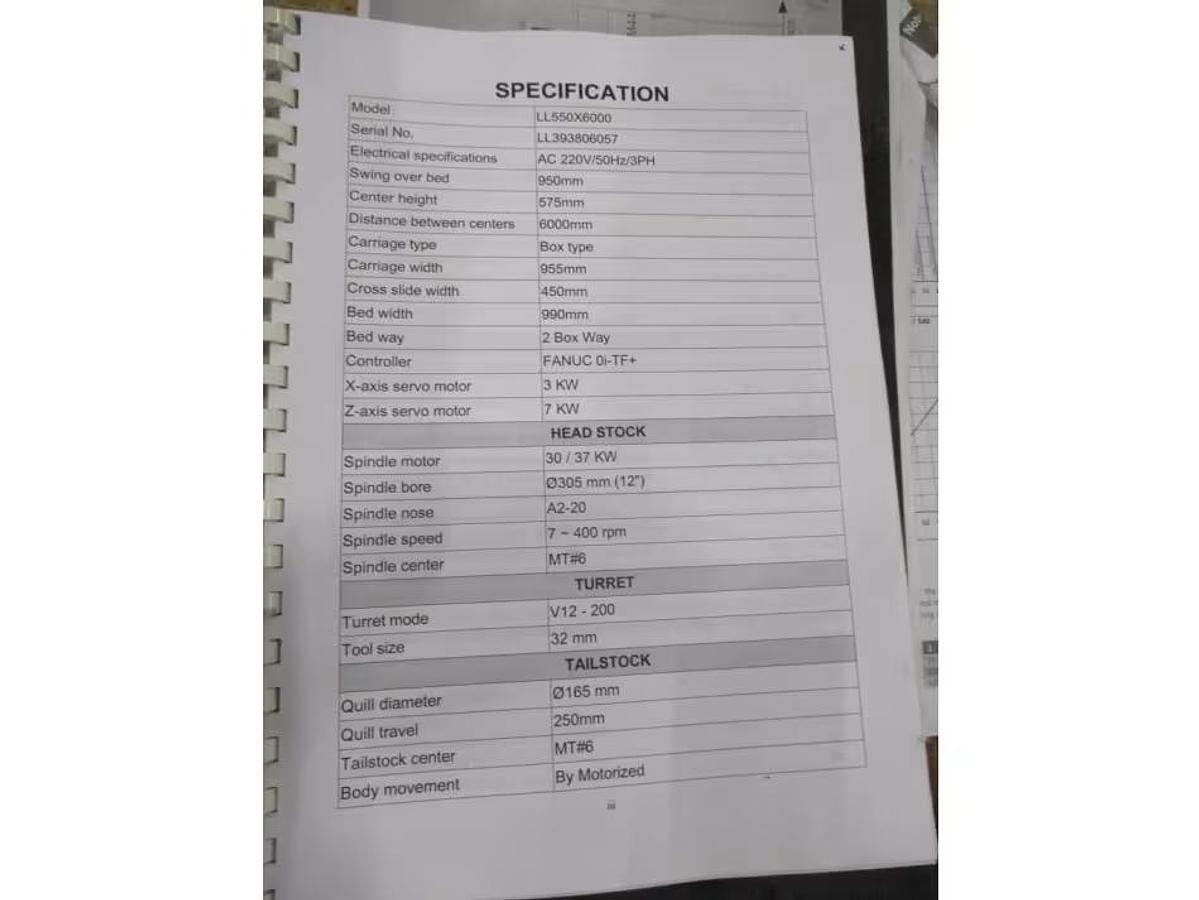

Specifications
| Manufacturer | L&L Machinery |
| Model | TUSCAN LL550 x 6000 |
| Year | 2024 |
| Condition | Used |
| Stock Number | 5654306 |
| Between centers | 6,000 mm |
| Tailstock quill diameter | 165 mm |
| Quill travel | 250 mm |
| Swing over bed | 950 mm |
| Chuck speed | 7 - 400 rpm |
| Motor power | 37 / 37 kW |
| Center height | 575 mm |
| X axis travel | 480 mm |
| Z axis travel | 6,000 mm |
| Carriage width | 955 mm |
| Cross slide with | 450 mm |
| Bed width | 990 mm |
| Spindle bore diameter | 305 |
| Feed rate X/Z | 0 - 3,000 mm/min |
| Machine dimensions | 8,470 x 3,050 mm |
| Machine height | 2,370 mm |
| Machine weight | 20,500 kg |
