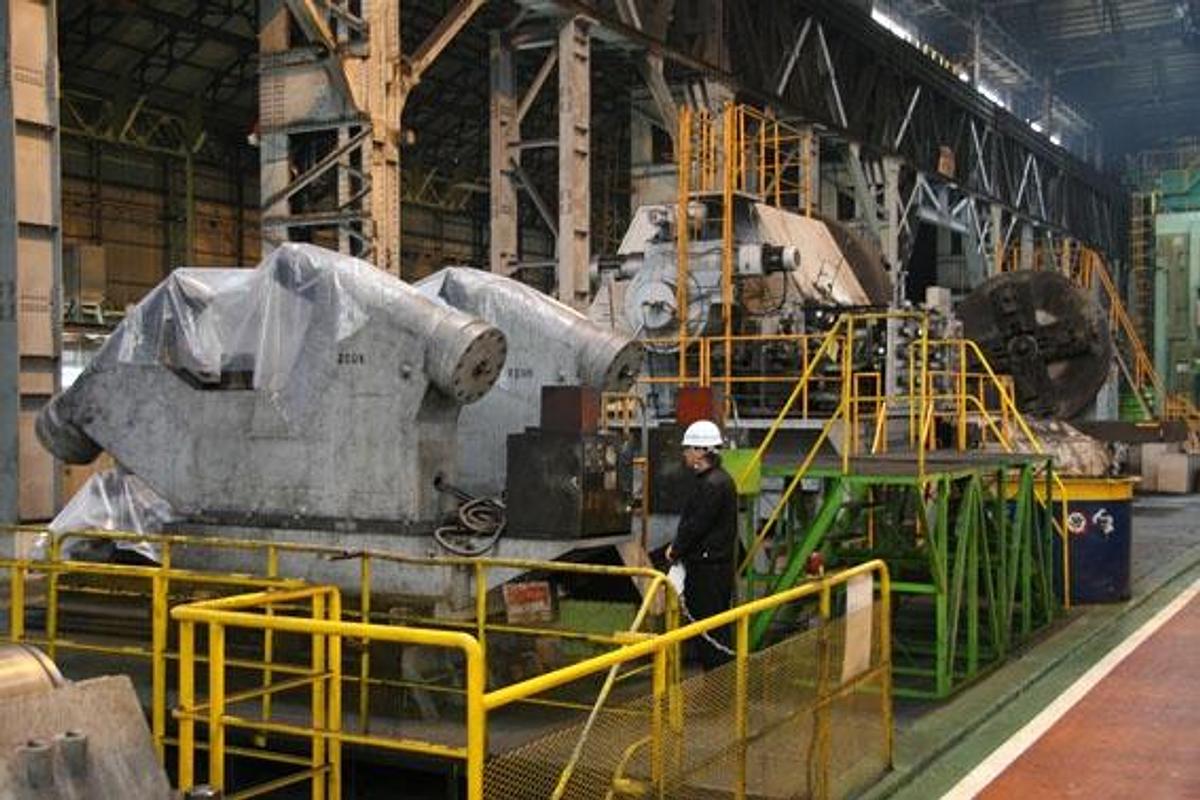

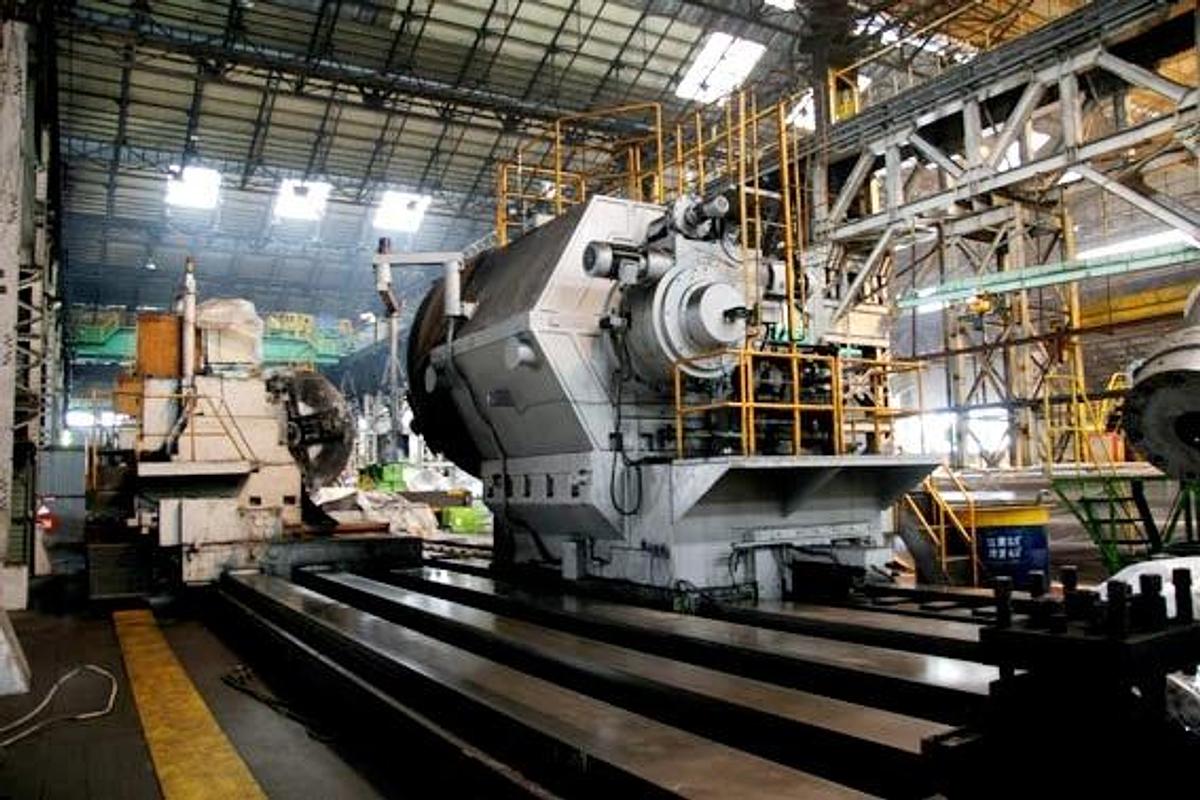

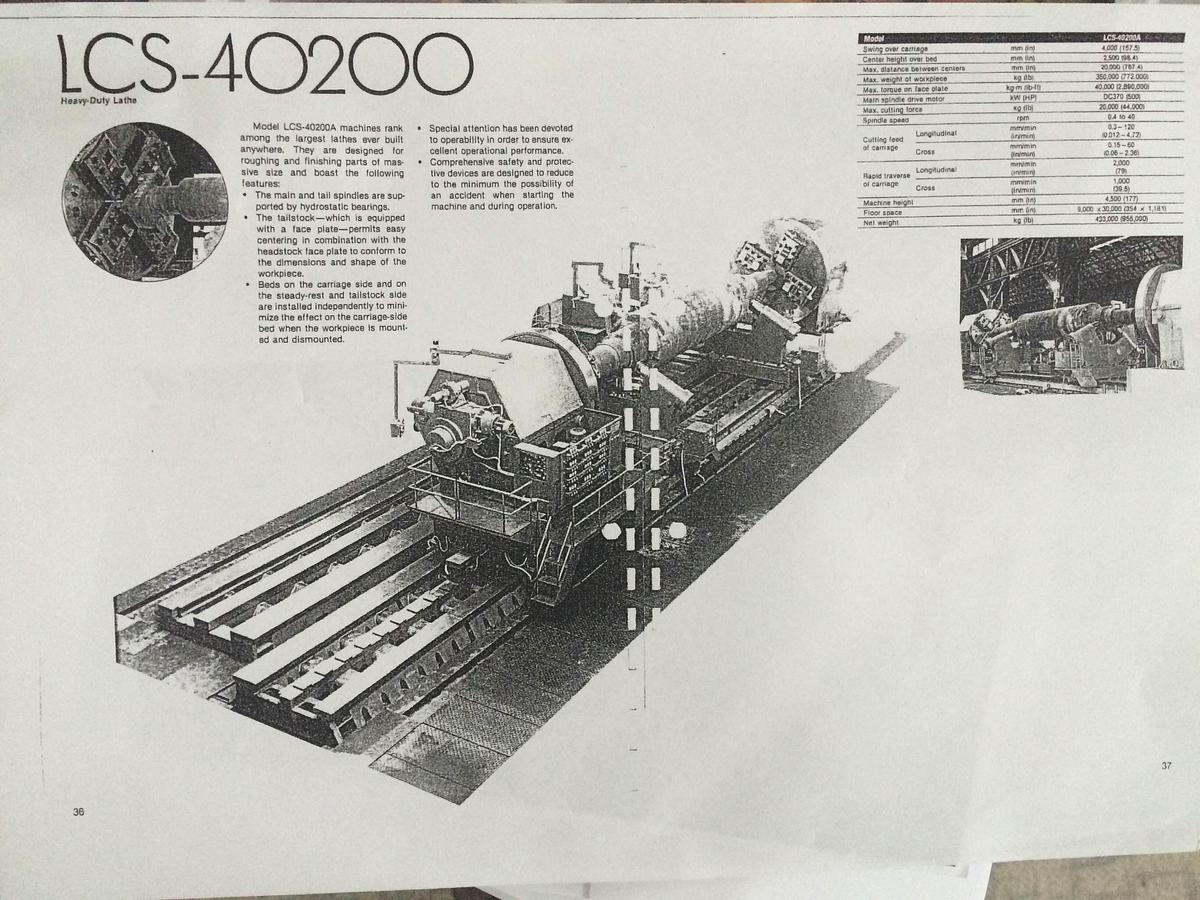

Toshiba LCS 40200A CNC Heavy-Duty Roll Lathe
Toshiba LCS 40200A CNC Heavy-Duty Roll Lathe
or
Call 770-509-0744
Description
Rebuilt & Retrofitted in 2008

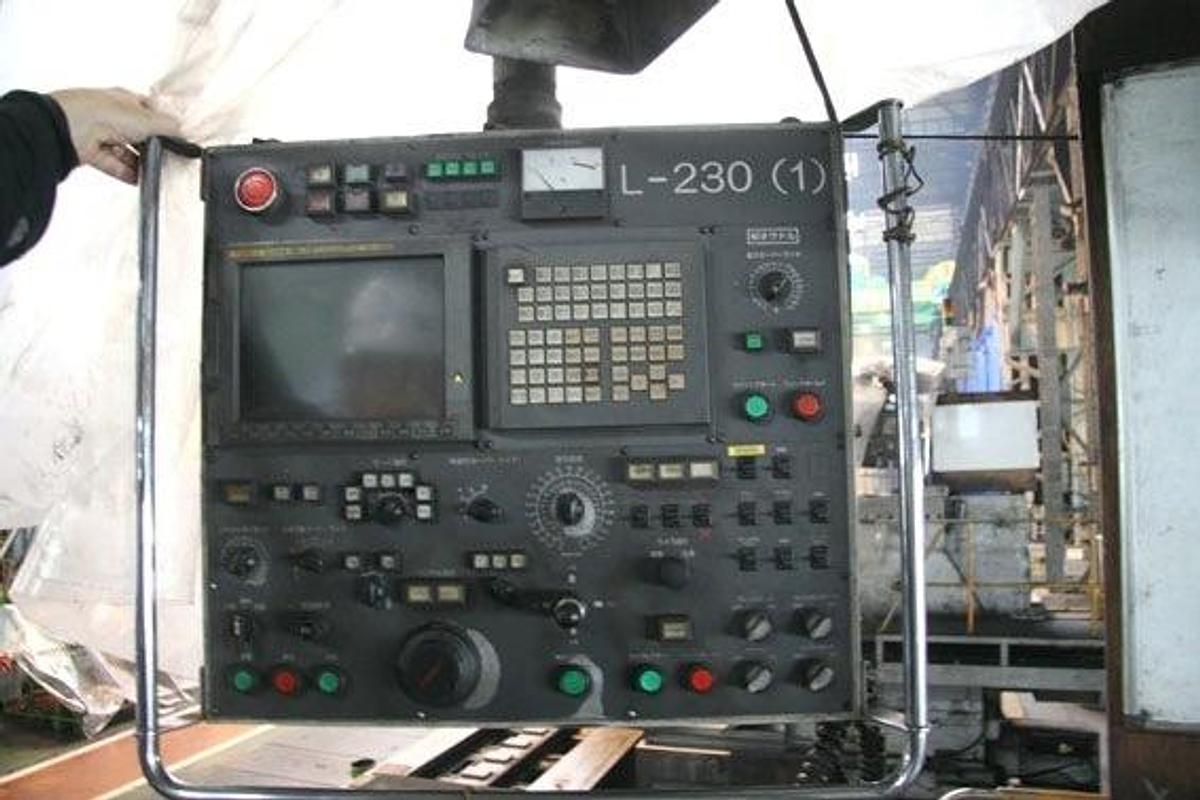

2x Fanuc 18iT B CNC Control Panels
2x Support
2x Heavy Duty Steady Rests:
200 Tons Each
Diameter - 600 - 2,000 mm
Specifications
| Manufacturer | Toshiba |
| Model | LCS 40200A |
| Year | 1976 |
| Condition | Used |
| Stock Number | 5654282 |
| Between centers | 20,000 mm |
| Capacity between centers | 350 Ton |
| Swing over slide | 5,000 mm |
| Swing over carriage | 4,000 mm |
| Center height over bed | 2,500 mm |

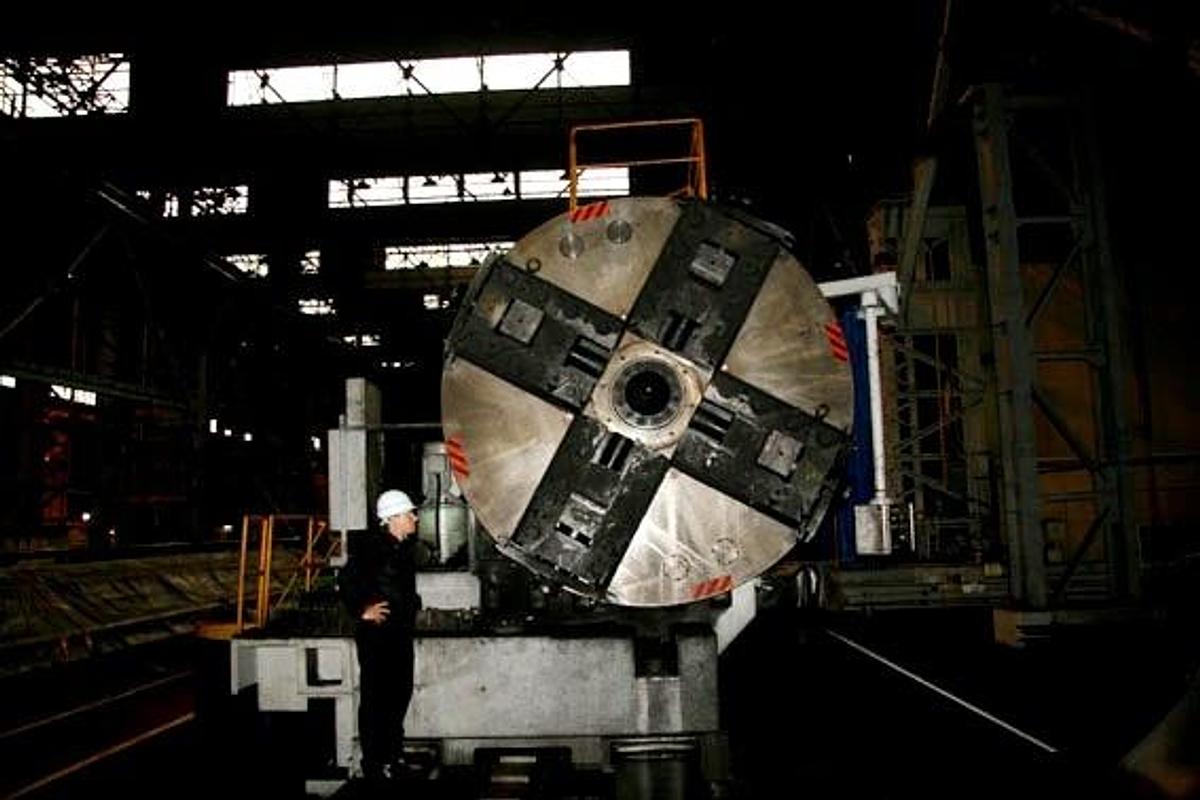

| Faceplate diameter on main spindle | 3,500 mm |
| Faceplate diameter on sub spindle | 3,000 mm |
| Chuck speed | 0.4 - 40 rpm |
| Cutting feed of carriage - longitudinal | 0.3 - 120 mm/min |
| Cutting feed of carriage - cross | 0.15 - 60 mm/min |
| Rapid traverse carriage - longitudinal | 2,000 mm/min |
| Rapid traverse carriage - cross | 1,000 mm/min |
| Spindle motor | DC 500 kW |
| Max torque on chuck | 40,000 kh/m |
| Max cutting force | 20,000 kg |
| Machine height | 4,500 mm |
| Floor space | 9,000 x 30,000 mm |
| New weight | 433 Ton |
