Innse 5500 Ton Open Die Forging Press with Rotary Table and 40 Ton Duisburg Hydraulic Rail-Bound Manipulator
Innse 5500 Ton Open Die Forging Press with Rotary Table and 40 Ton Duisburg Hydraulic Rail-Bound Manipulator
or
Call 770-509-0744
Description
Rebuilt & Retrofitted In 2005

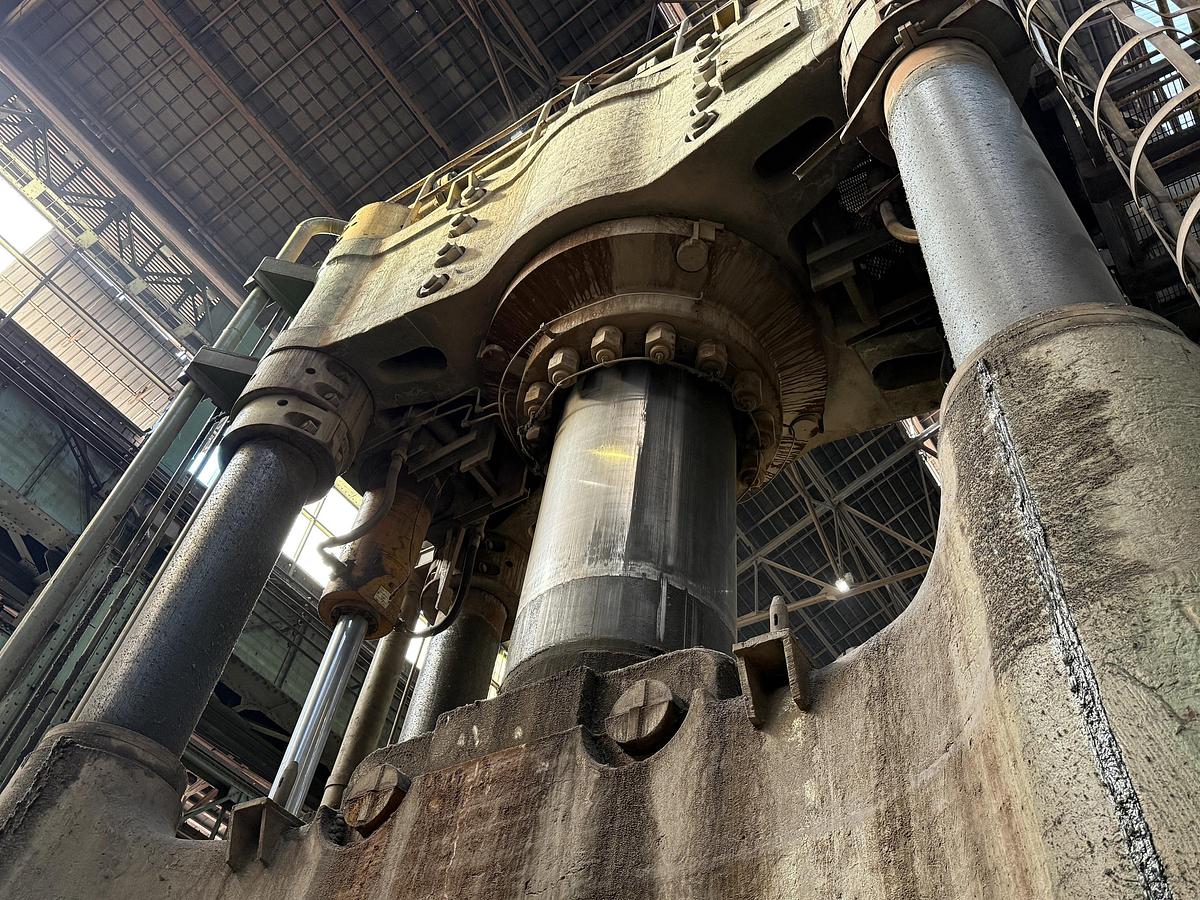

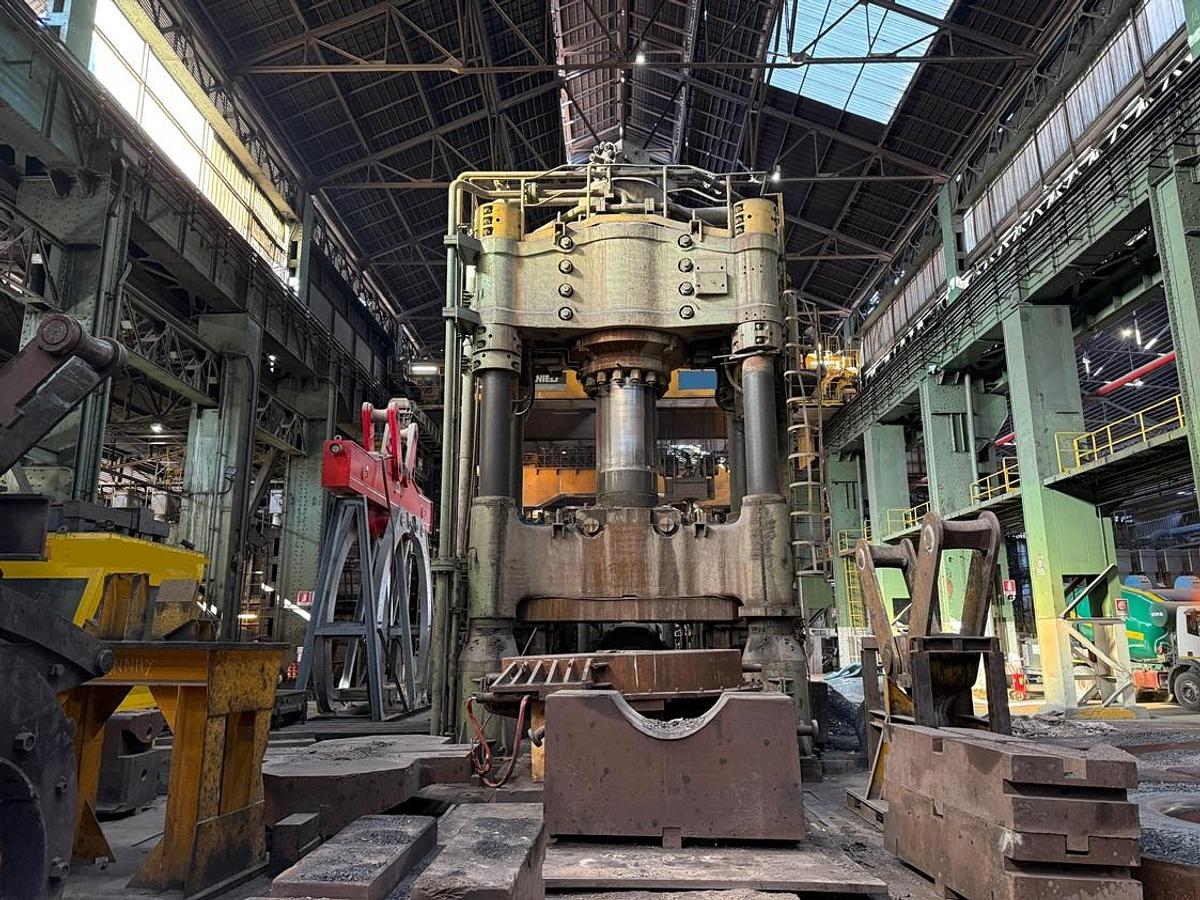

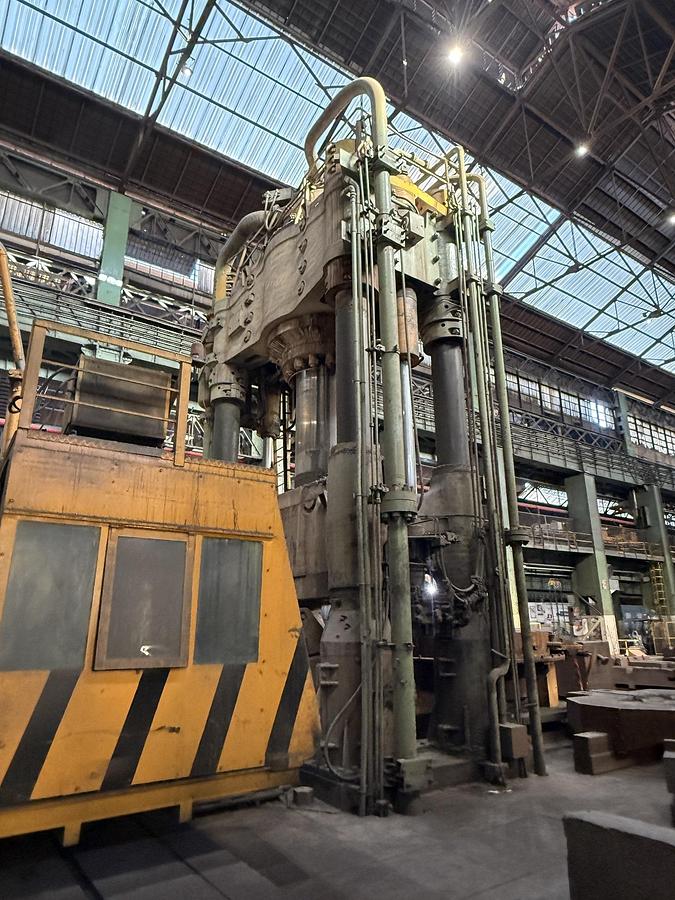

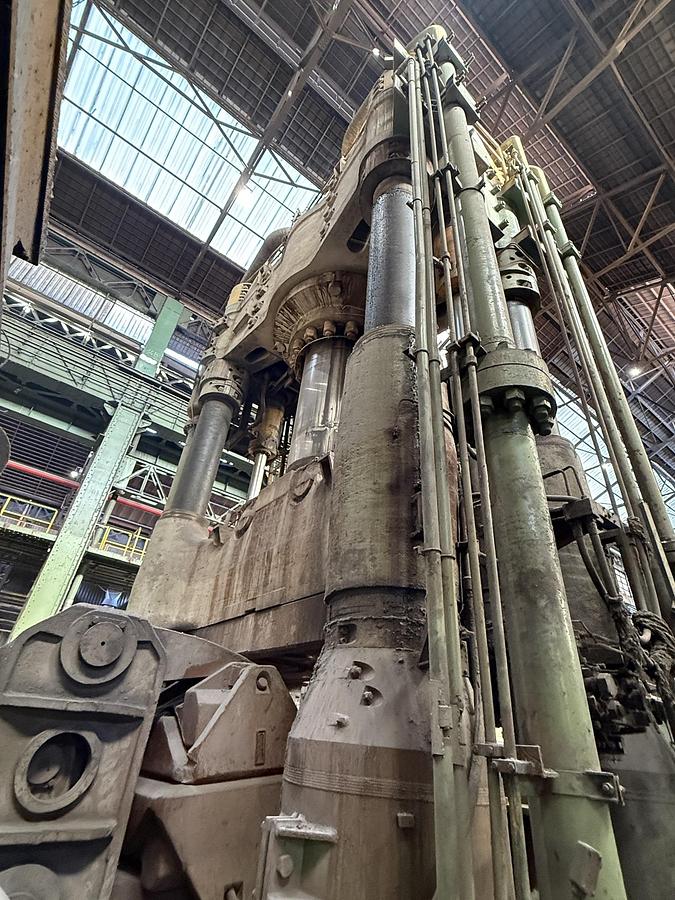

Innse Open Die Forging Press (1961 / 2005):
Press Force: 5,500 Ton
Columns: A) 4,520 mm, B) 2,000 mm
Frame: F) 3,280 mm, G) 760 mm
Die Height: 2,500 mm
Opening Height: Min: 1,920 mm, Max: 4,120 mm
Cylinders: 1
Hydraulics: Water-based
Rotary Table: 40 Ton Bearing Capacity

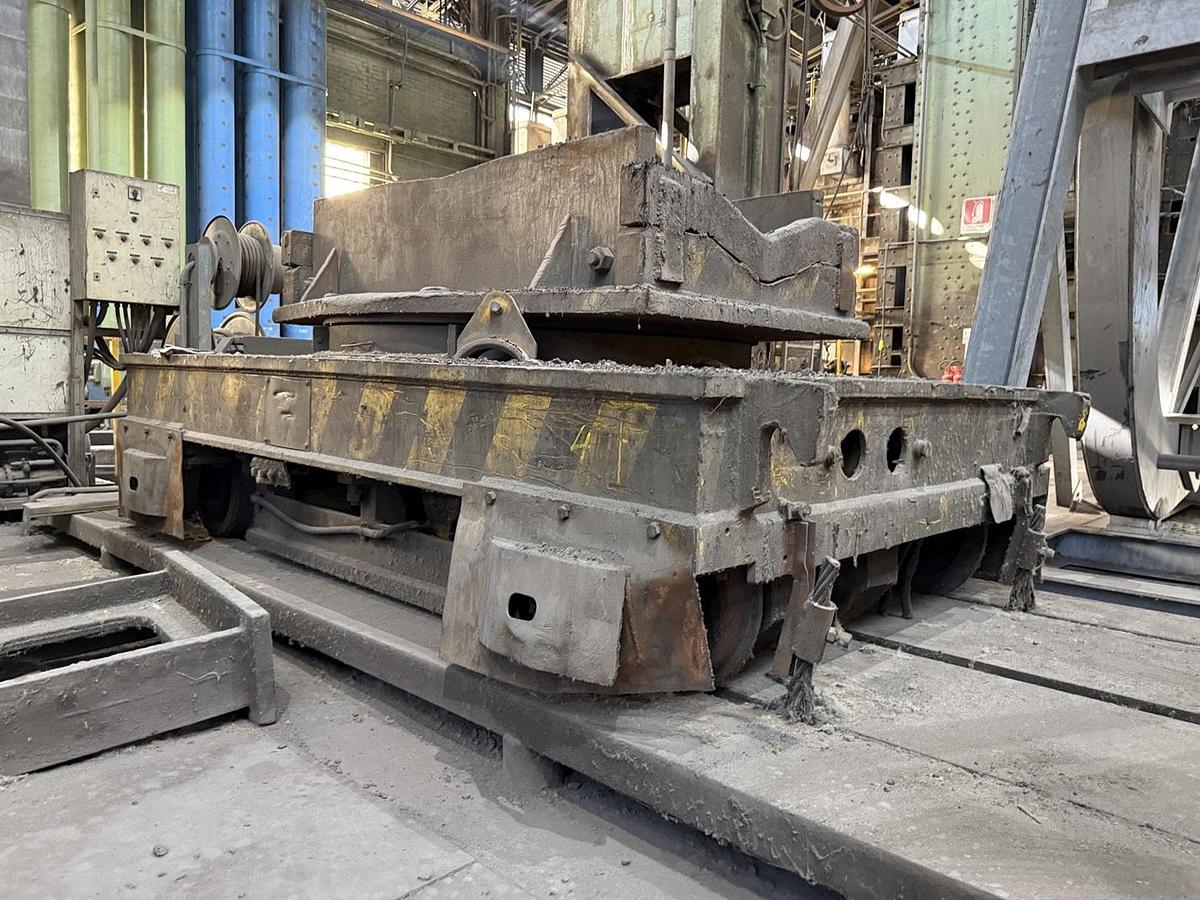

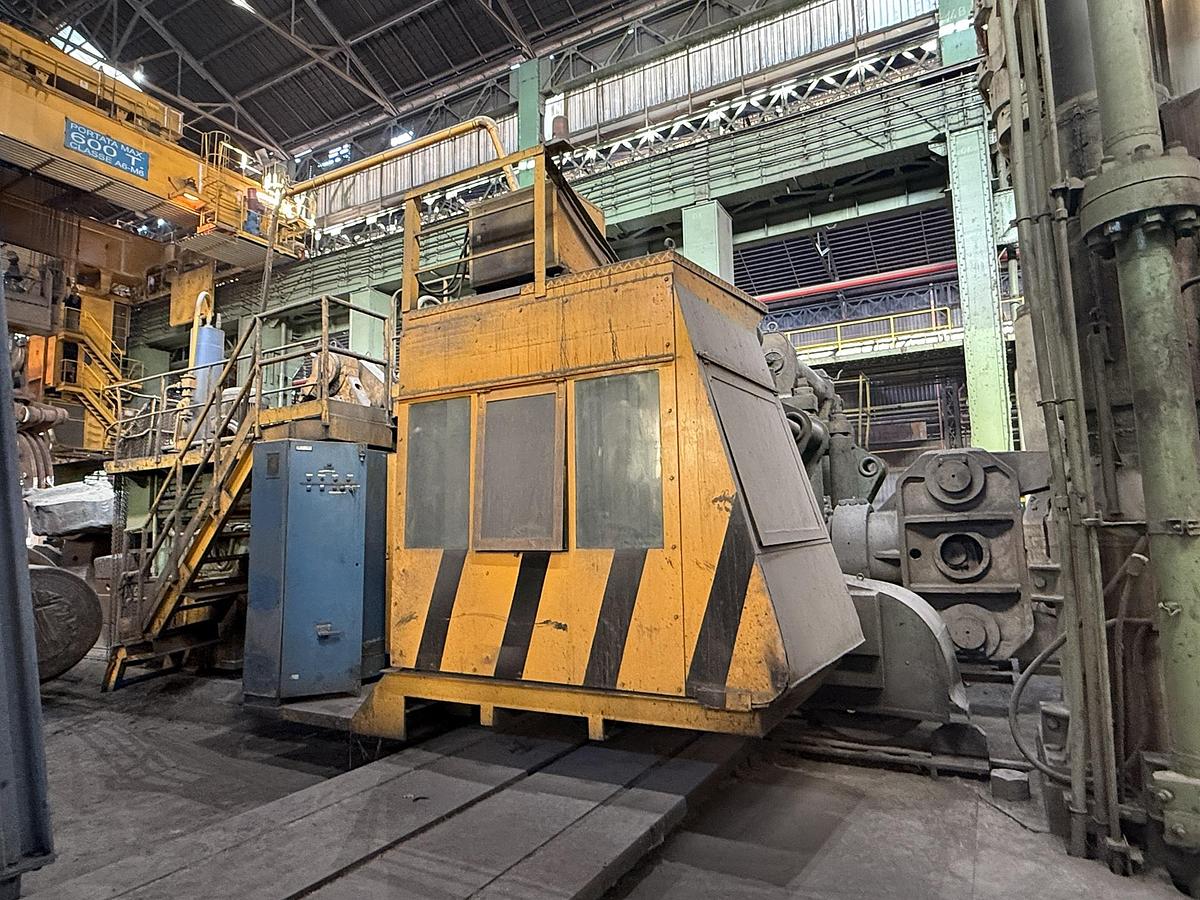

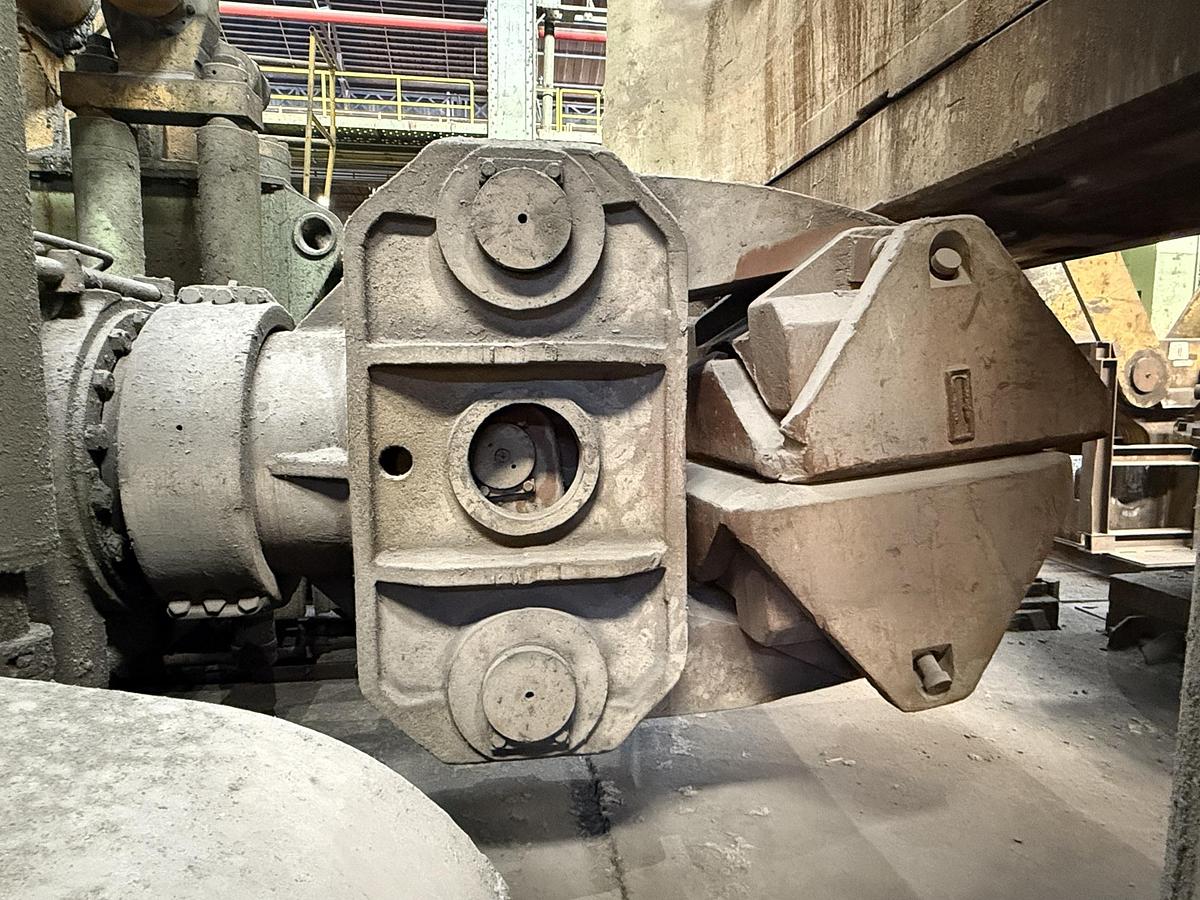

Rail-Bound Manipulator Hydraulic Duisburg (1956 / 2005):
Capacity: 40 Ton
Jaw Diameter: 250 mm (with reducer)
Jaw Diameter: 1,300 - 620 mm (without reducer)
Stroke: 7000mm
H: Min: 1,200 mm, Max: 2,000 mm
Specifications
| Manufacturer | Innse |
| Model | 5500 |
| Year | 1961 |
| Condition | Used |
| Stock Number | 5654274 |
