WFL MillTurn M65-3000 CNC Turning & Milling Center
WFL MillTurn M65-3000 CNC Turning & Milling Center
or
Call 770-509-0744
Description

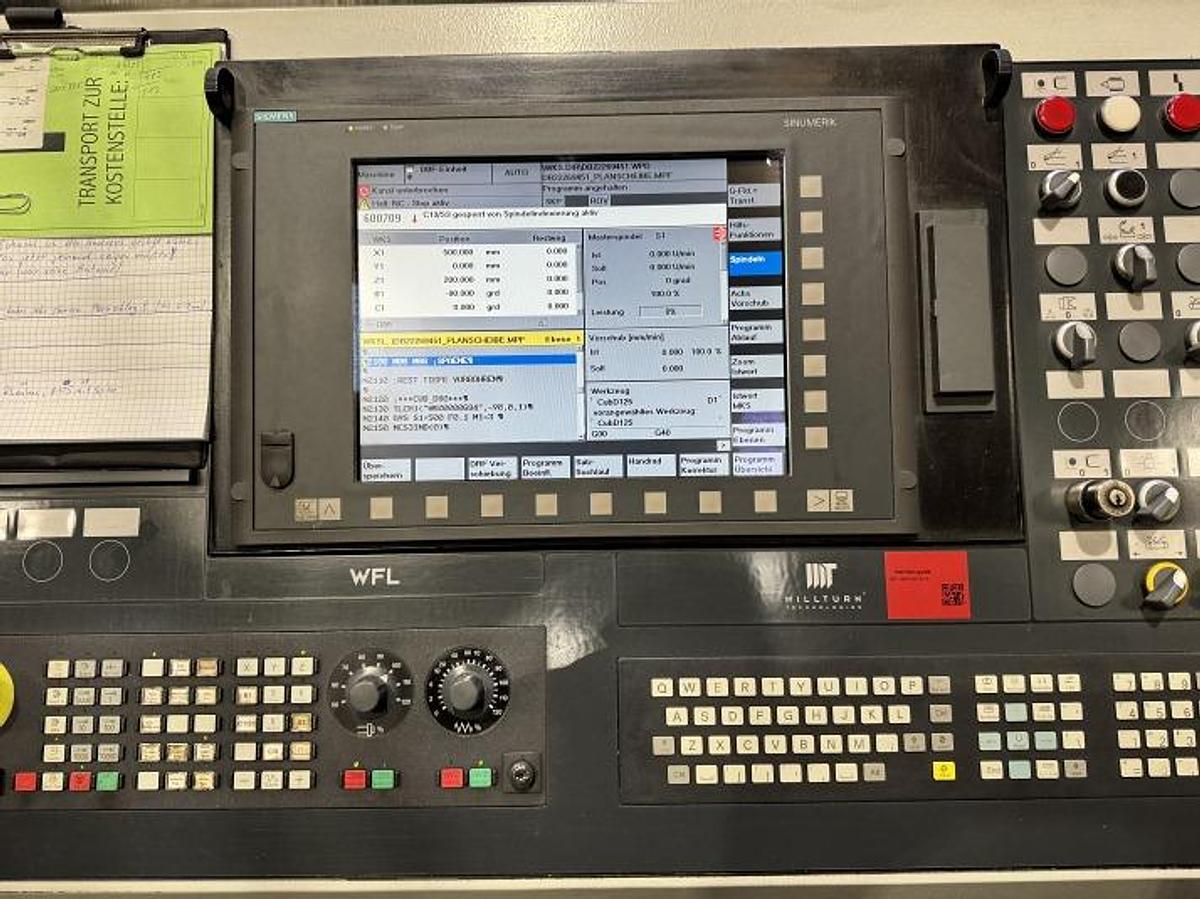

SIEMENS 840 D CNC Control

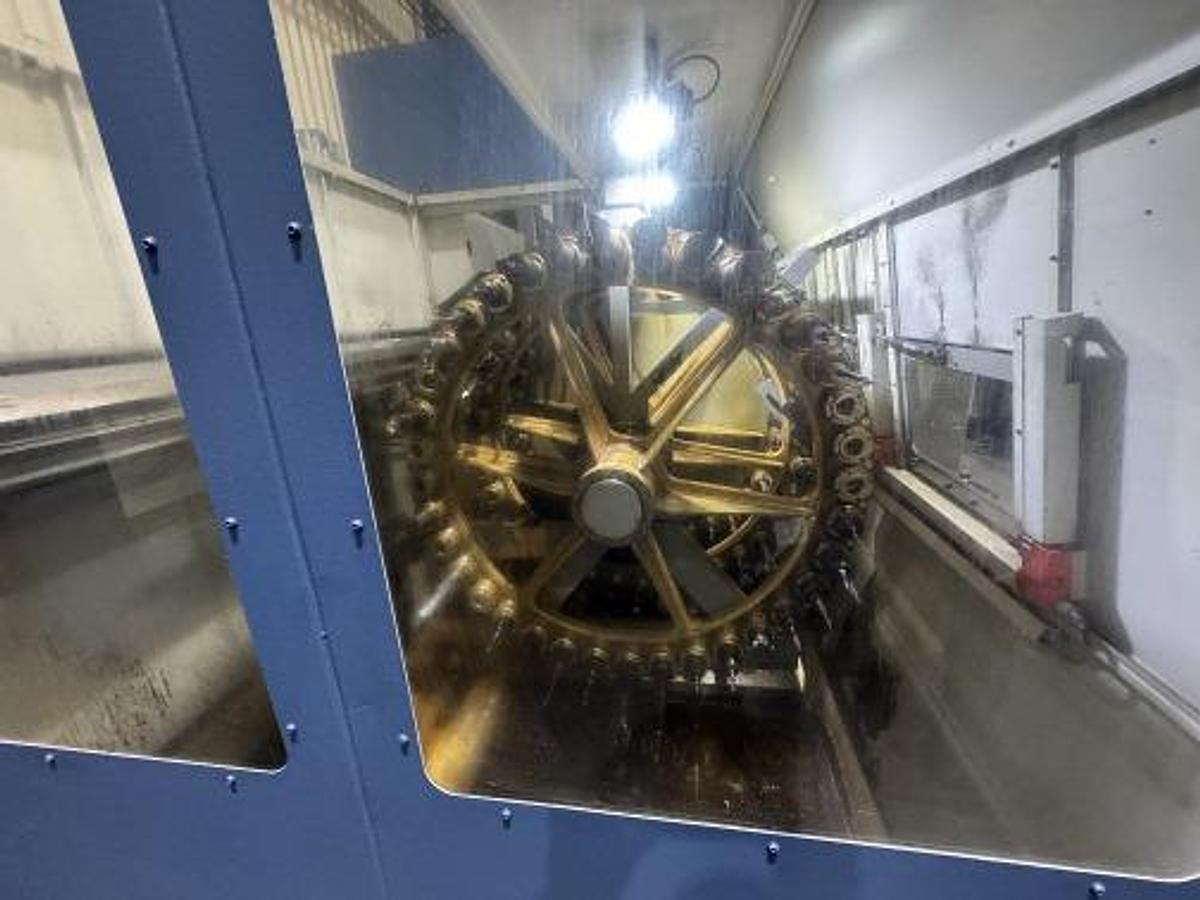

108 Position Automatic Tool Changer
Specifications
| Manufacturer | WFL |
| Model | MillTurn M65-3000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 5654216 |
| Turning length | 3,000 mm |
| Turning diameter | 680-830 mm |
| Main spindle speeds | 8 - 2,600 rpm |
| Z axis travel | 3,150 mm |
| X axis travel | 720 mm |
| Spindle drive | 60 kW |
| Drive power - drilling & milling device | 30 kW |

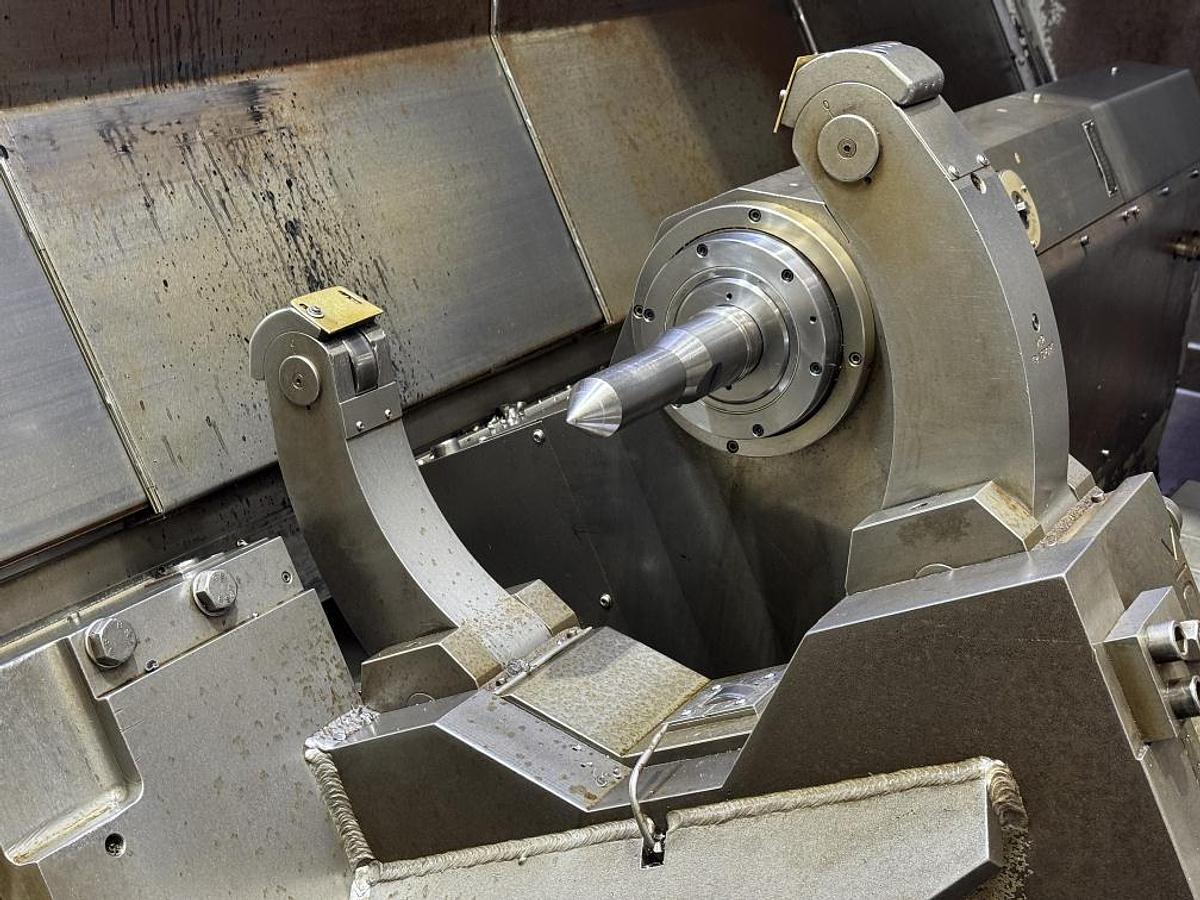

| Tailstock quill diameter | 180 mm |
| Tailstock quill travel | 200 mm |
| Max torque on spindle | 2748/687 Nm |
| Max torque on milling spindle | 315 Nm |
| Tool taper | Capto C8 |
| Spindle head | DIN 55026 / A15 |
| Rapid traverse longitudinal | 20/15 m/min |
| Feed power x+z axis | 2,000/2,000 daN |
| Machine weight | 30 Ton |
| Machine dimensions | 12.5 x 5.5 x 3.5 m |
