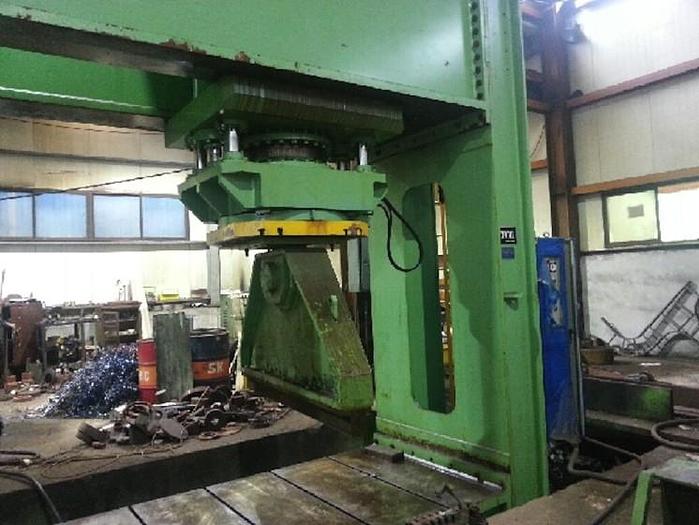

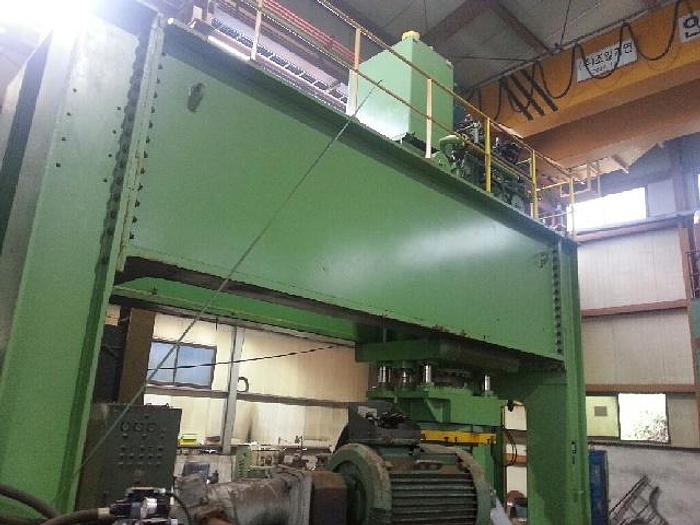

600 Ton Hydraulic Dishing Press
![Used 600 Ton Hydraulic Dishing Press](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/f48727058f3c1d0f71af56cb51613715/large-600-Ton-Hydraulic-Dishing-Press-Model-CIM-HP-600-1-746x560.jpg)
600 Ton Hydraulic Dishing Press
orCall 770-509-0744
Specifications
Model | CIM HP 600 1 |
Condition | Used |
Stock Number | 10103 |
Force | 600 Ton |
Working pressure | 220 kg/cm² |
Stroke - up/down | 900 mm |
Stroke - right/left | 1,700 mm |
Daylight | 2,200 mm |
Bolster | 5,500 / 1,500 mm |
Pressing speed | 4 mm/second |
Down speed | 100 mm/second |
Up speed | 150 mm/second |
Oil tank | 100 Liter |
Approximate machine weight | 65 Ton |
Machine dimensions | 6.7 x 5 x 5.8 m |
