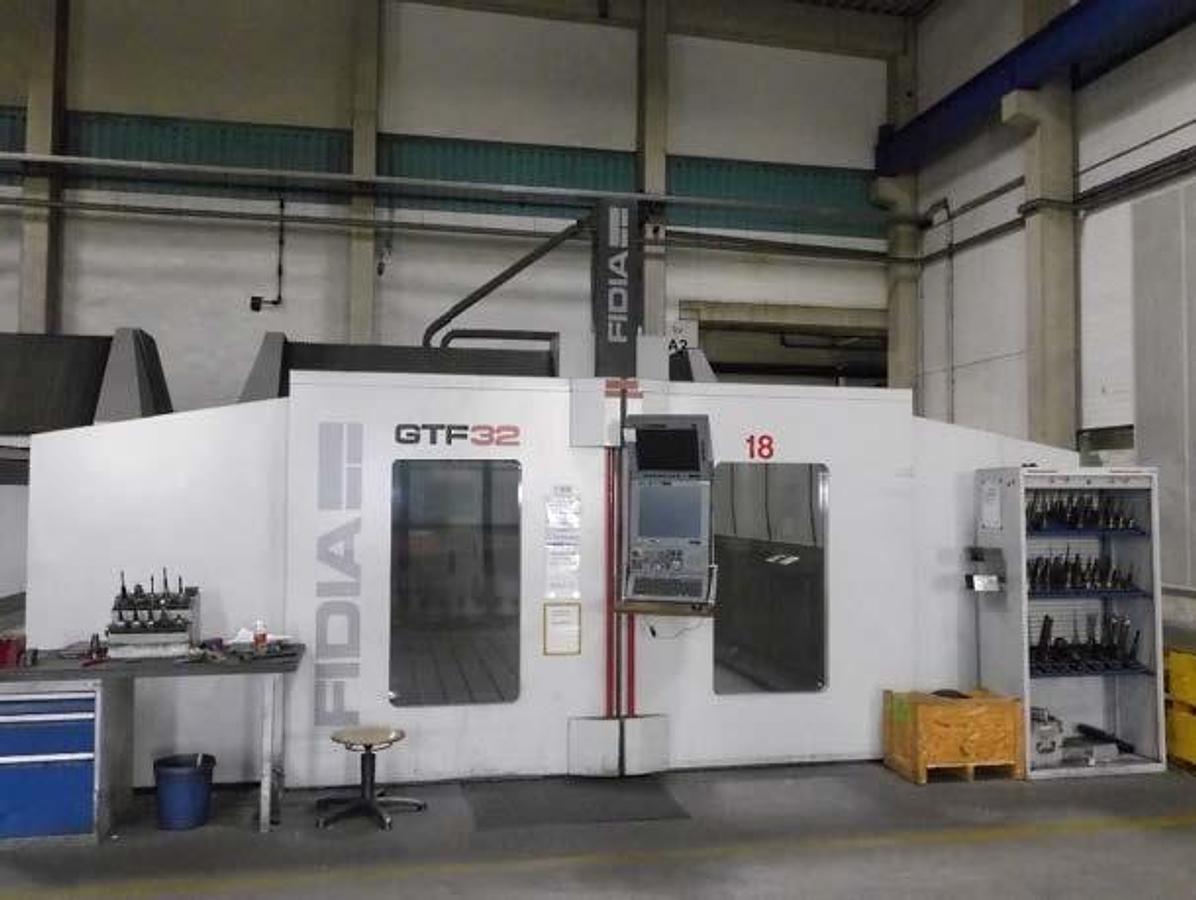

Fidia GTF 32 CNC 5-Axis Gantry Type Milling Machine
Fidia GTF 32 CNC 5-Axis Gantry Type Milling Machine
or
Call 770-509-0744
Description
24 Position Automatic Tool Changer
C-axis ±360°
A-axis +95° / -110°
Specifications
| Manufacturer | Fidia |
| Model | GTF 32 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 5654258 |
| Between columns | 4,000 mm |
| Spindle speeds | 24,000 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 1,400 mm |
| Table clamping area | 6,000 x 3,000 mm |
| Table capacity | 4,000 kg/m² |
| Feed rate | 30,000 mm/min |
| Rapid Feed X/Y/Z | 30,000 mm/min |
| Spindle taper | HSK 63A |
| Spindle power (S1 - 100%) | 42 kW |
| Spindle torque max (S1 - 100%) | 67 Nm |
