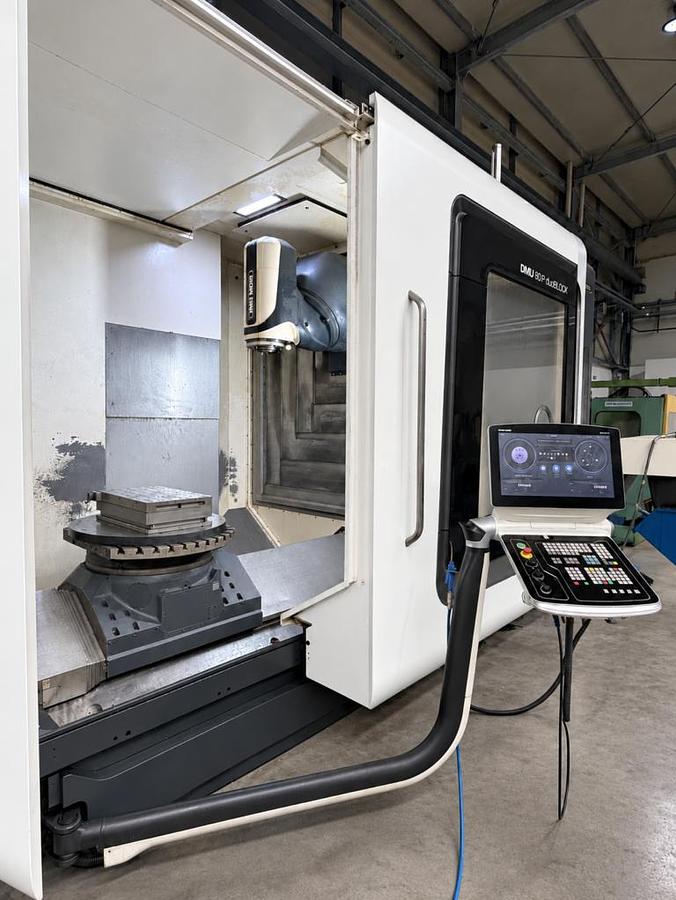

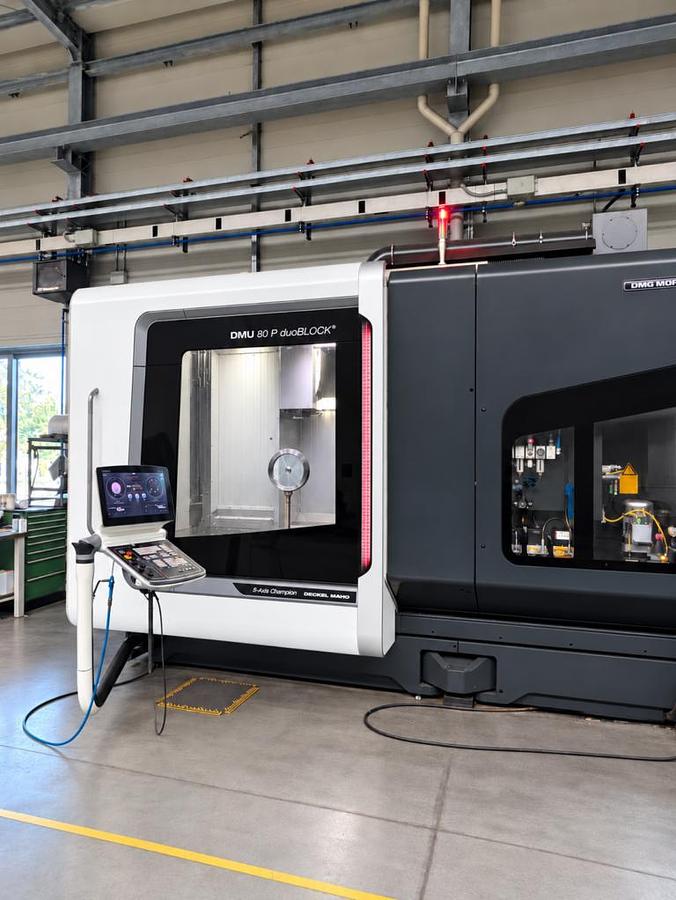

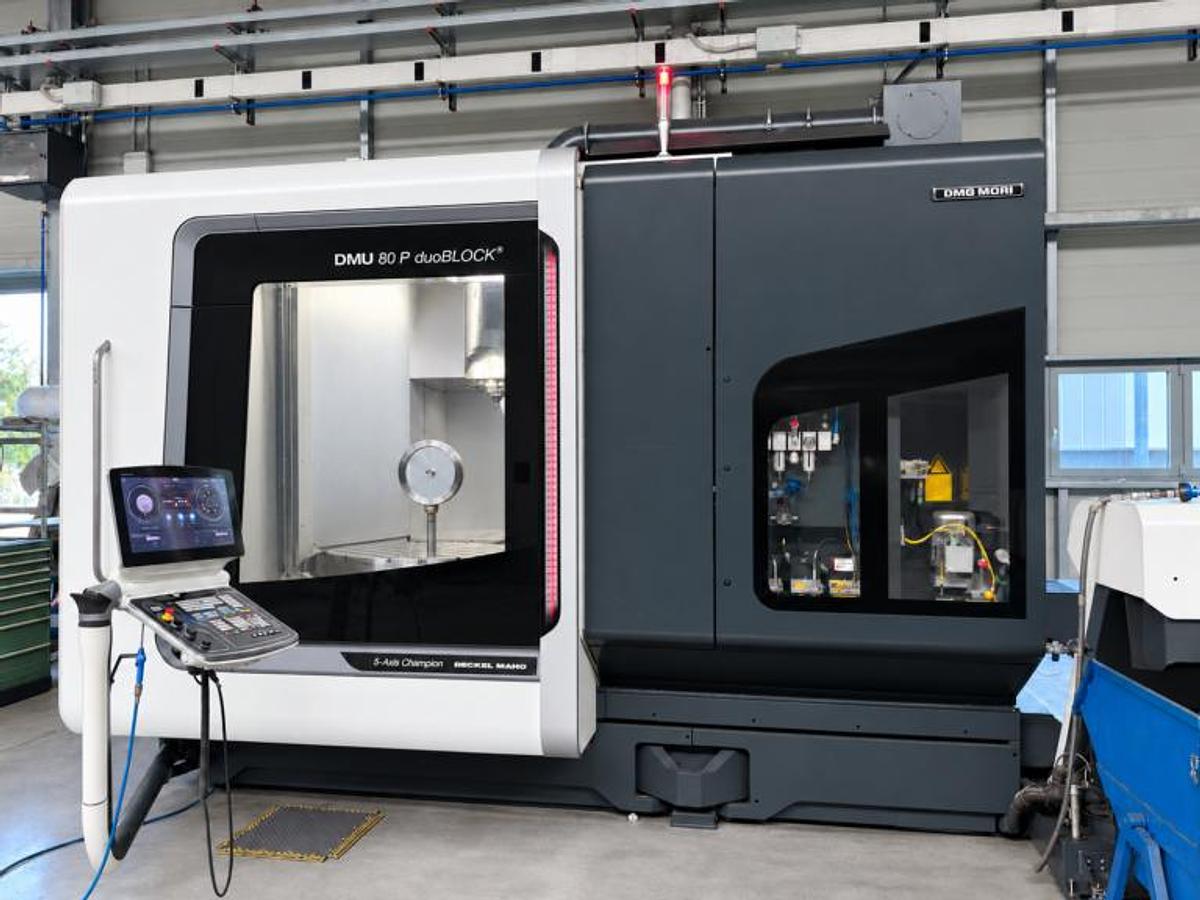

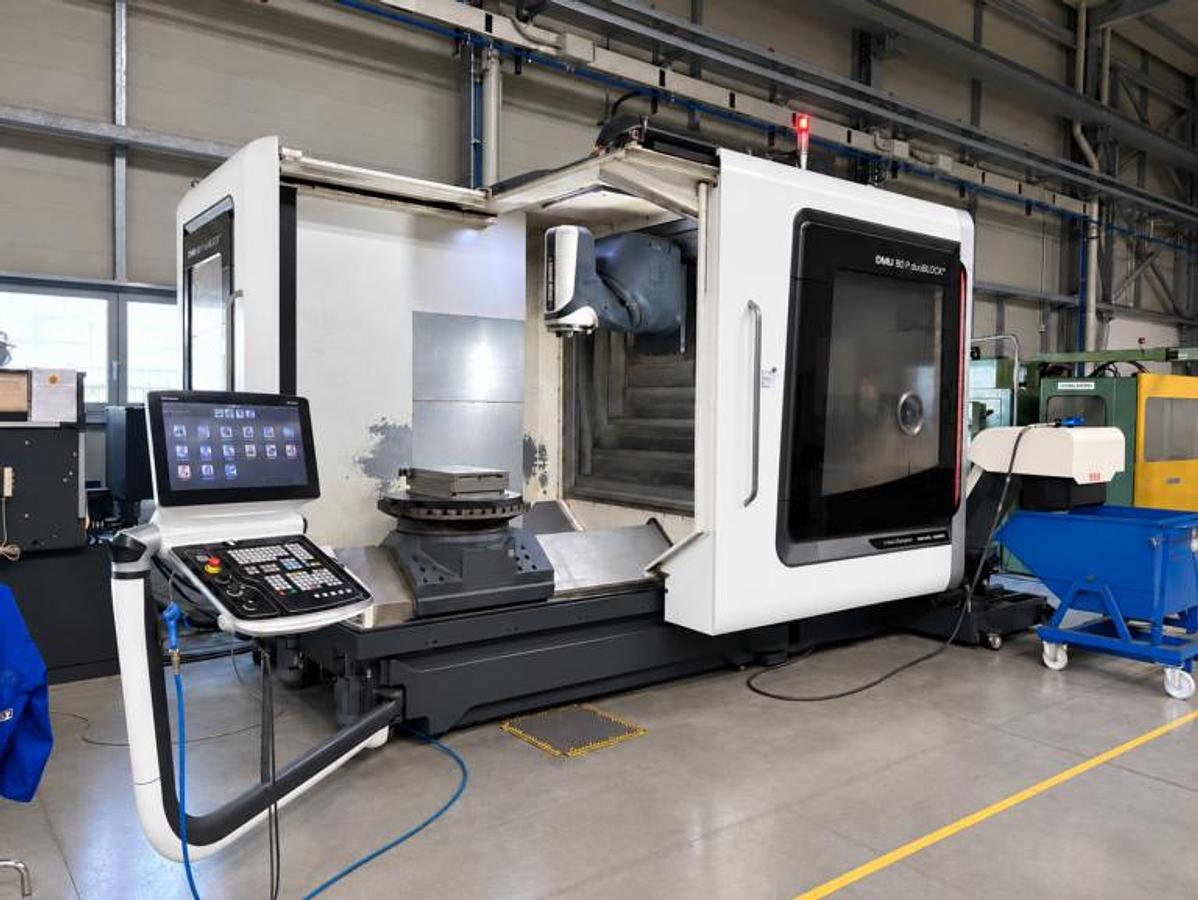

DMG DMU 80 P duoBLOCK CNC Vertical Machining Center
DMG DMU 80 P duoBLOCK CNC Vertical Machining Center
Description

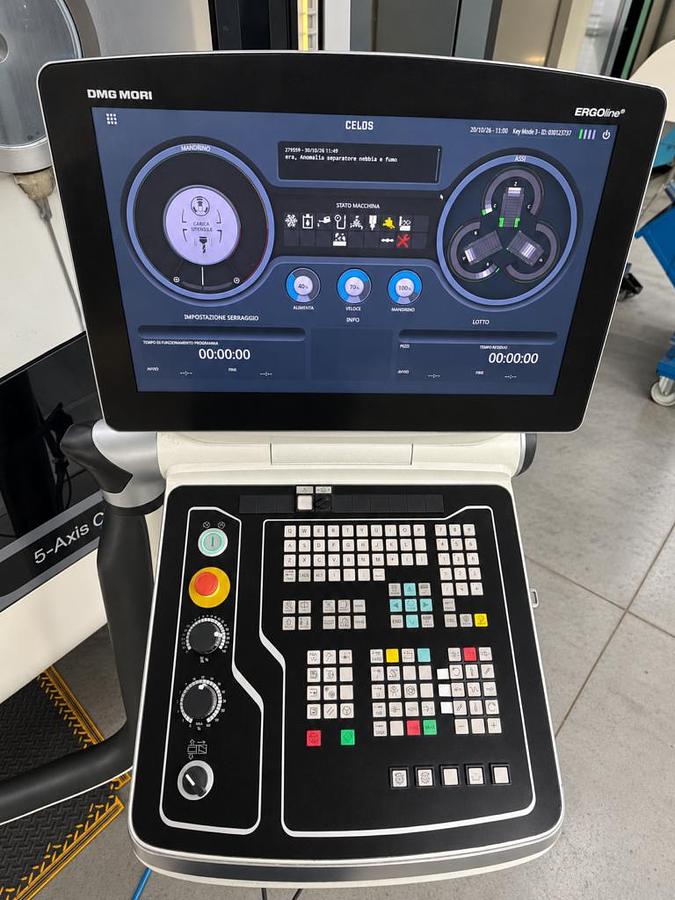

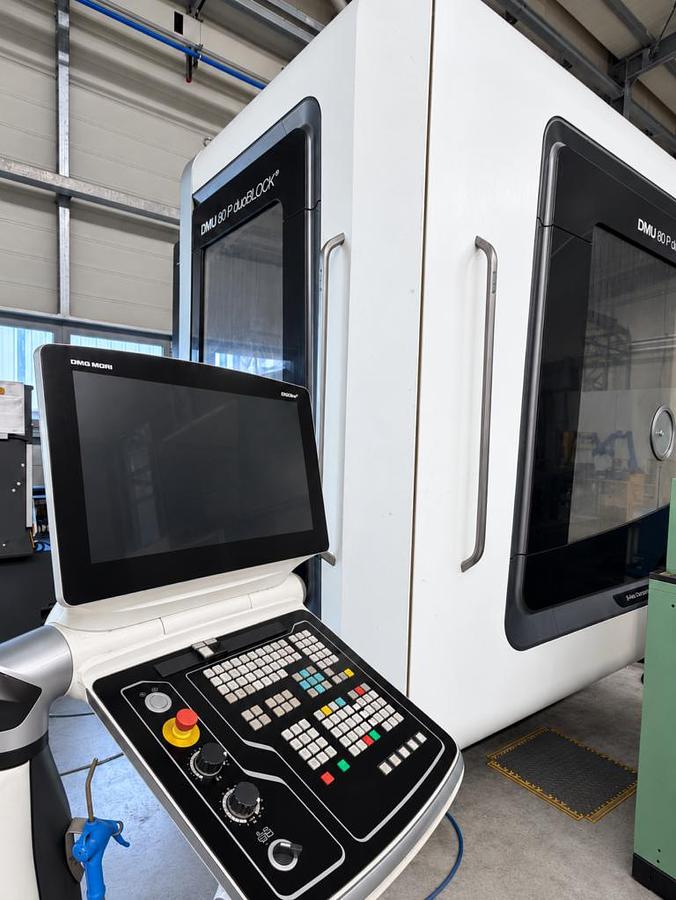

CELOS with SIEMENS 840D sl operate 21,5″ ERGOline Control with Multi-Touch Screen
Electronic Handwheel

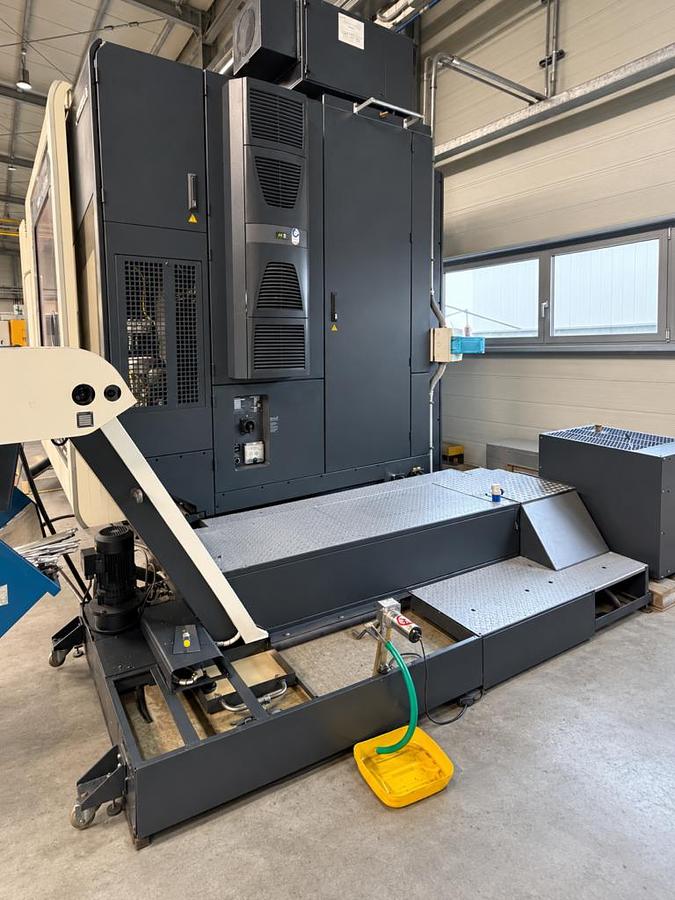

Chip conveyor
Infrared probe
Internal cooling lubricant supply
Rotating inspection windows
Rinsing gun
Operating mode 4
blowing air through spindle center selectable via M-function
Signal lamp
Tool breakage probe
Mist collector
3D quickSET
MPC – Machine Protection Control
Paper band filter
Active chatter suppression (ACC), improved surface finish with reduced machining time, extended tool life

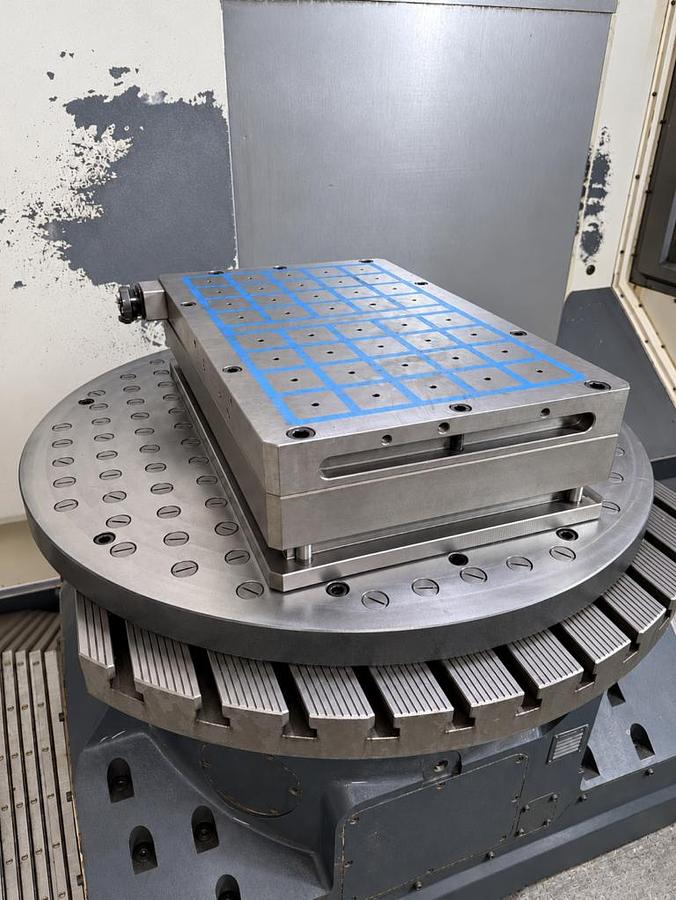

Milling/turning table nc:
Table dimensions mm: Ø900×700
Max. workpiece weight kg: 1800
Table rotation speed rpm: 40
Cooling:
Cooling through the Spindle Center bar: 40
Tank capacity: 600
Tool system:
Tool holder: HSK-A 63

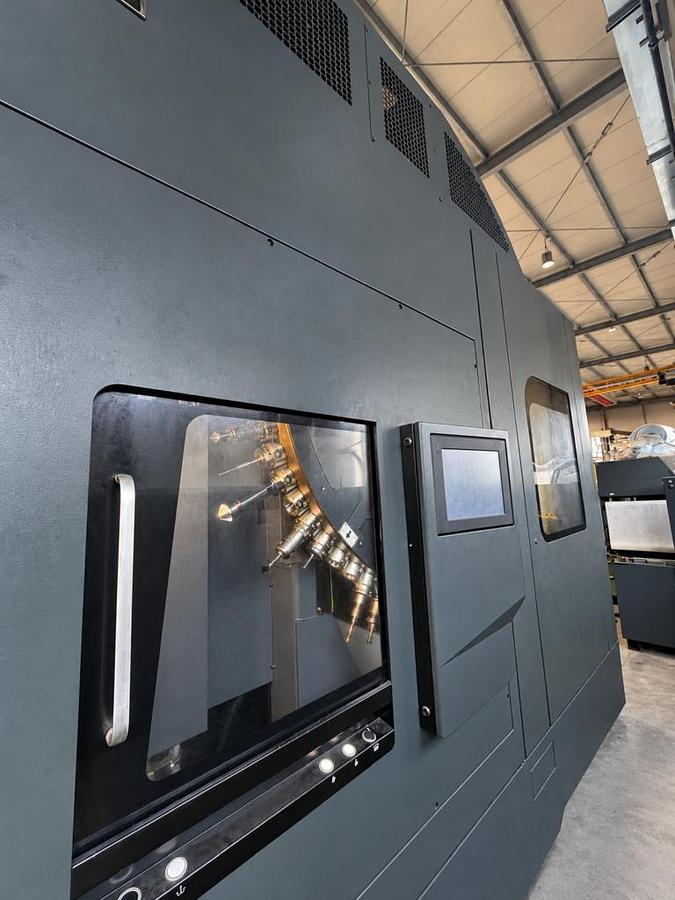

Tool magazine slots: 63
Tool changer: Double gripper
With free neighboring places mm: 120
With occupied neighboring places mm: 80
Max. Tool Length mm: 650
Max tool weight kg: 15
Chip-to-chip time s: 4.2
Specifications
| Manufacturer | DMG |
| Model | DMU 80 P duoBLOCK |
| Year | 2016 |
| Condition | Used |
| Stock Number | 5654257 |
| Spindle speeds | 18,000 rpm |
| X axis travel | 800 mm |
| Y axis travel | 1,050 mm |
| Z axis travel | 850 mm |
| C axis | 360° - 0.001° |
| B axis | -30°/180° - 0.001° |
| Feed rate | 60 m/min |
| Rapid traverse | 60 m/min |
| Table dimensions | 900 x 700 mm |
| Max workpiece capacity | 1,800 kg |
| Table rotation speed | 40 rpm |
| Spindle power (40/100% ED) | 35 / 25 kW |
| Spindle torque | 130 / 86 Nm |
