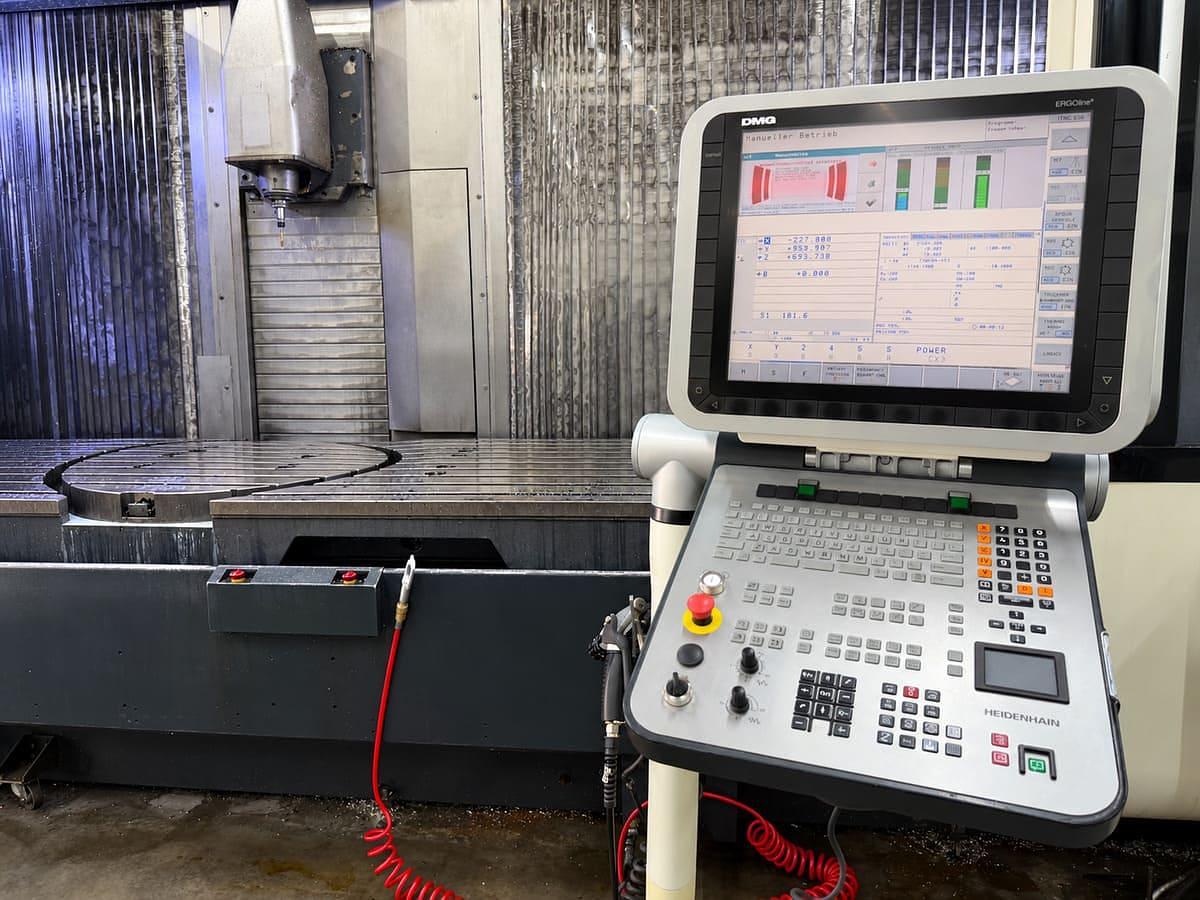

Heidenhain iTNC 530 CNC Control

Spindle:

Technology

Motorised spindle

Speed 18,000 rpm

Max. power 35 kW

Max. torque 130 Nm

Tool holder HSK 63

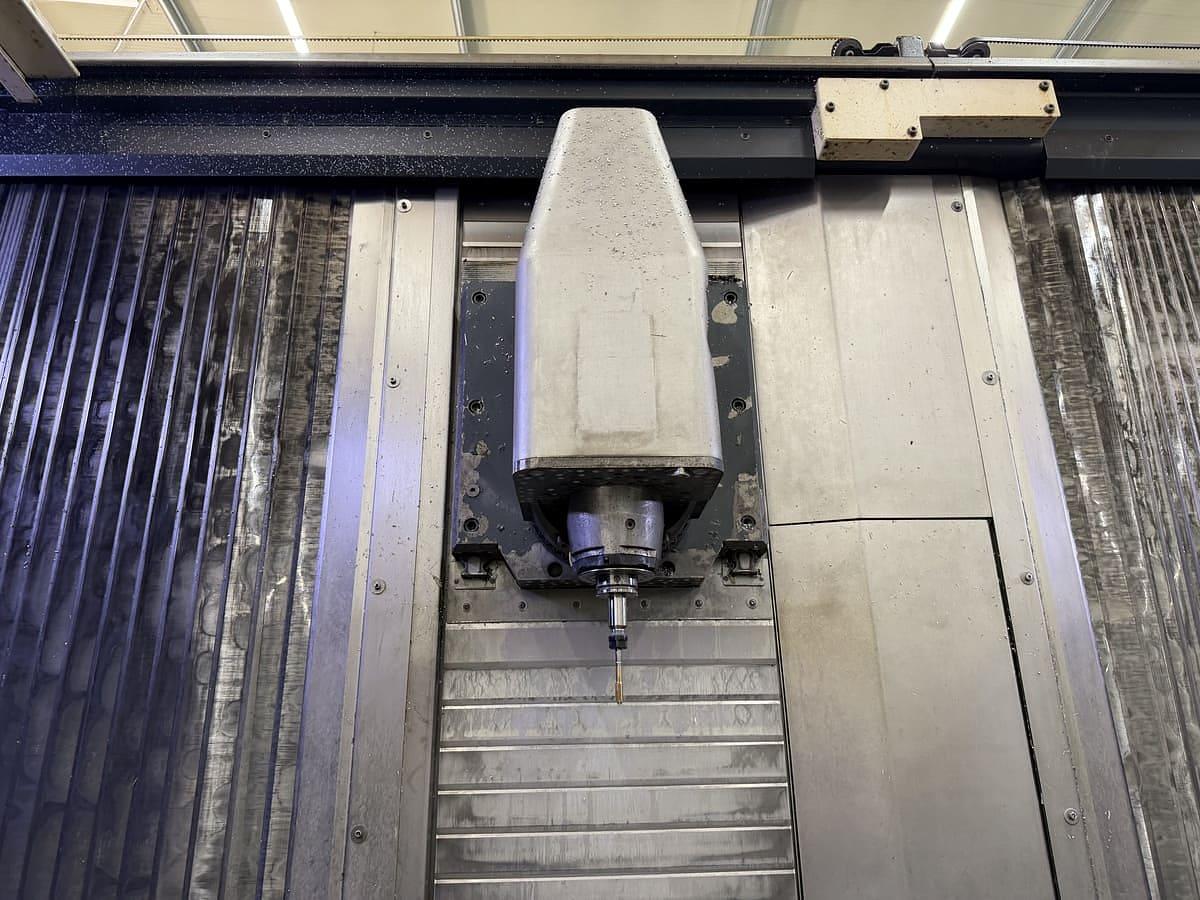

NC swivel head:

B-axis +/- 100°

Resolution 0.001°

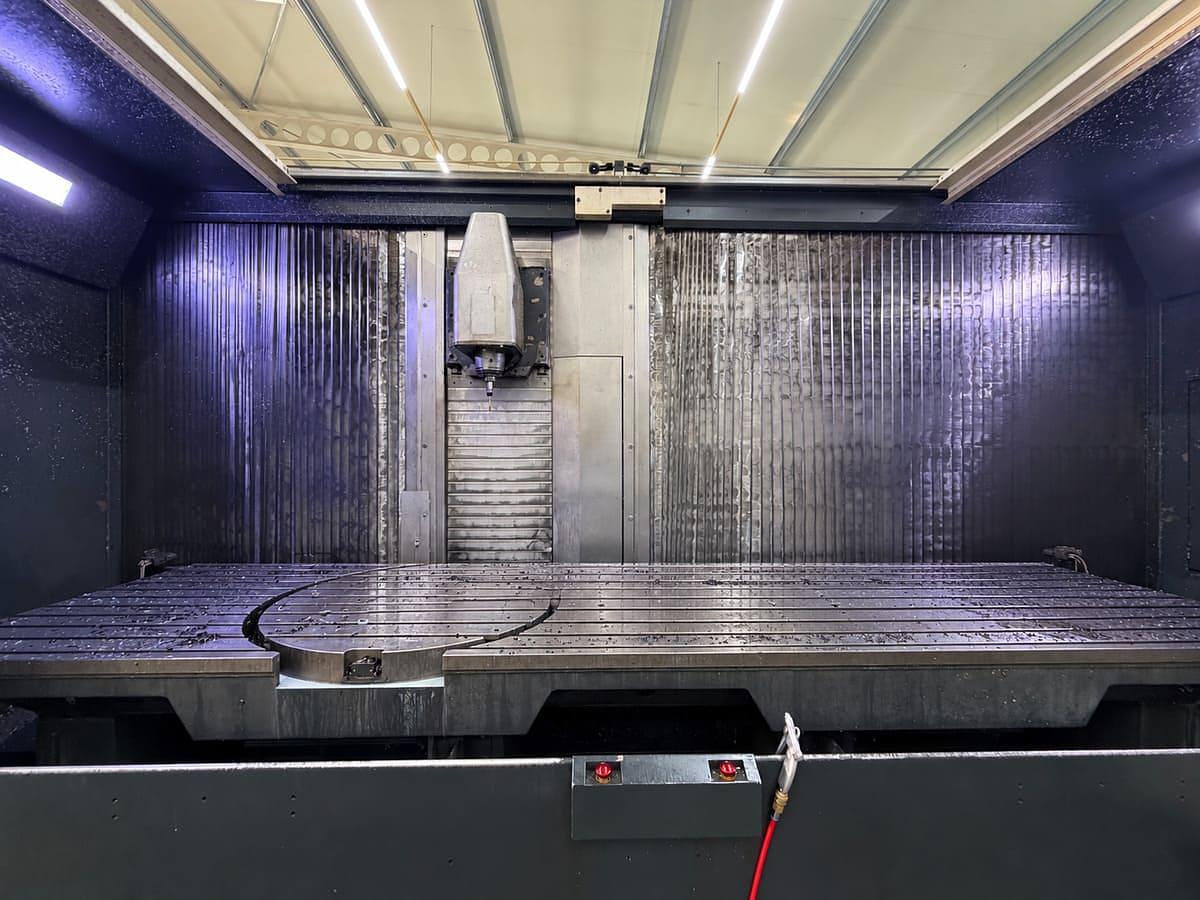

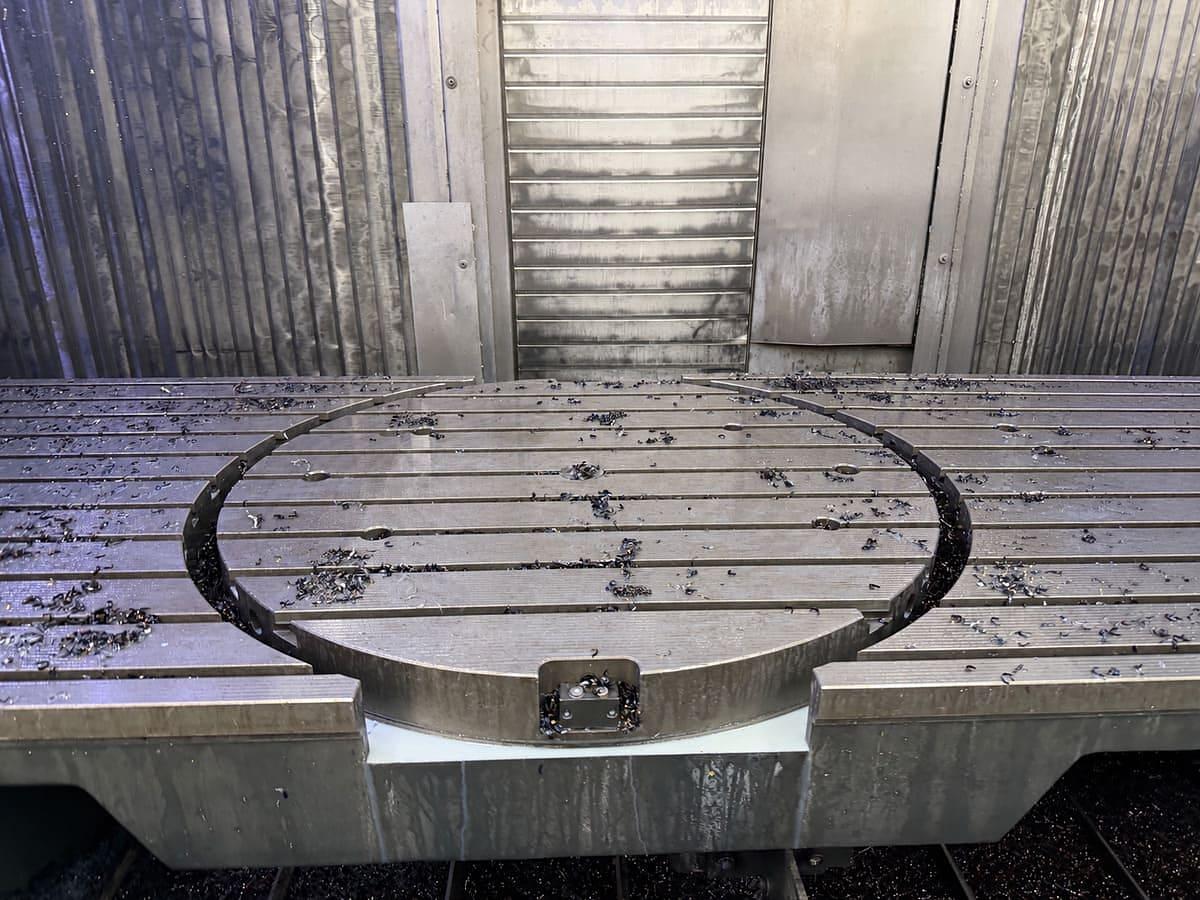

NC rotary table:

C-axis 360°

Resolution 0.001°

Clamping surface 1,050 mm

Max. table load 1,200 kg

Fixed table:

Clamping area 4,200 x 1,100 mm

Max. table load 1,200 kg/m

Tool magazine

Technology Chain magazine

Number of stations 60

Tool changer Double gripper

Max. tool length 300 mm

Max. tool diameter 80 (130) mm

Equipment:

Positioning sensors Direct scales

X-Axis Direct drive

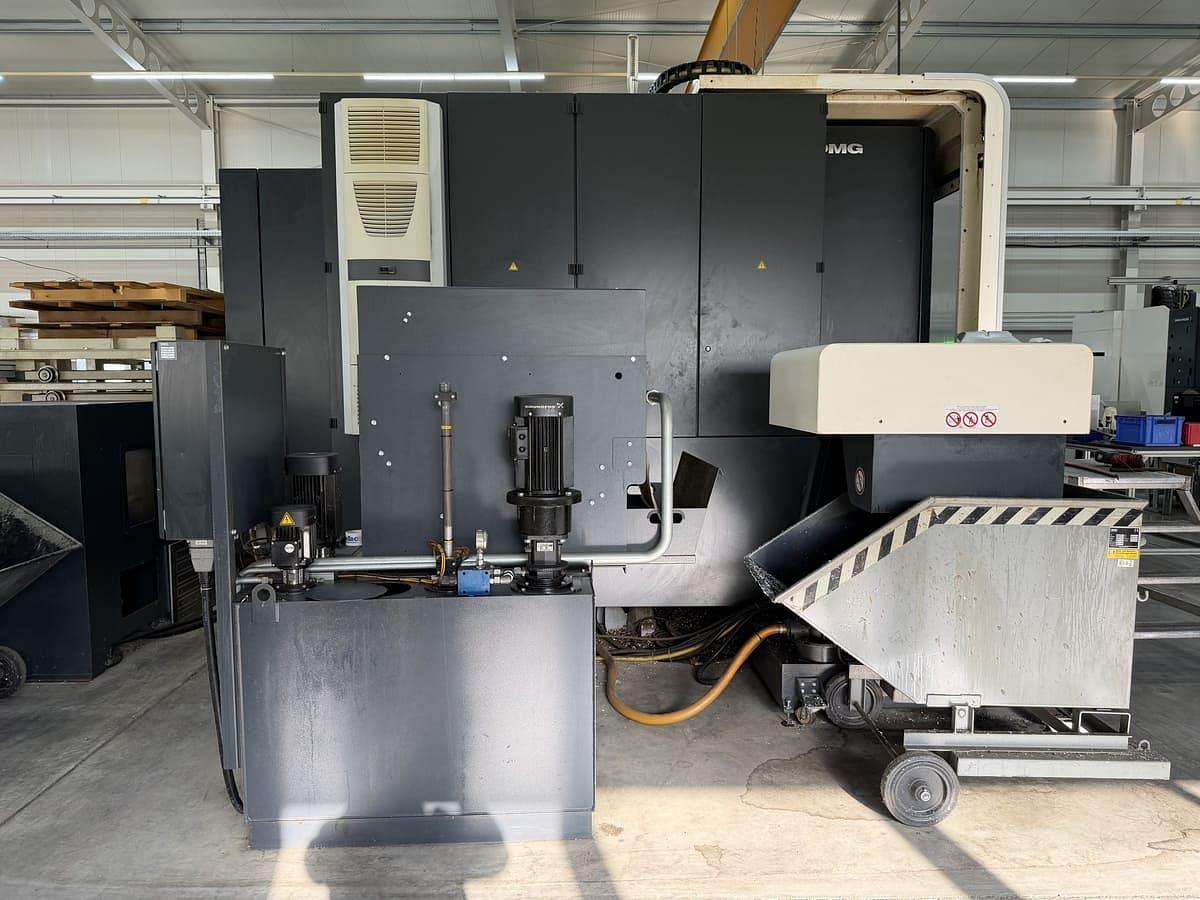

Chip removal Chip conveyor

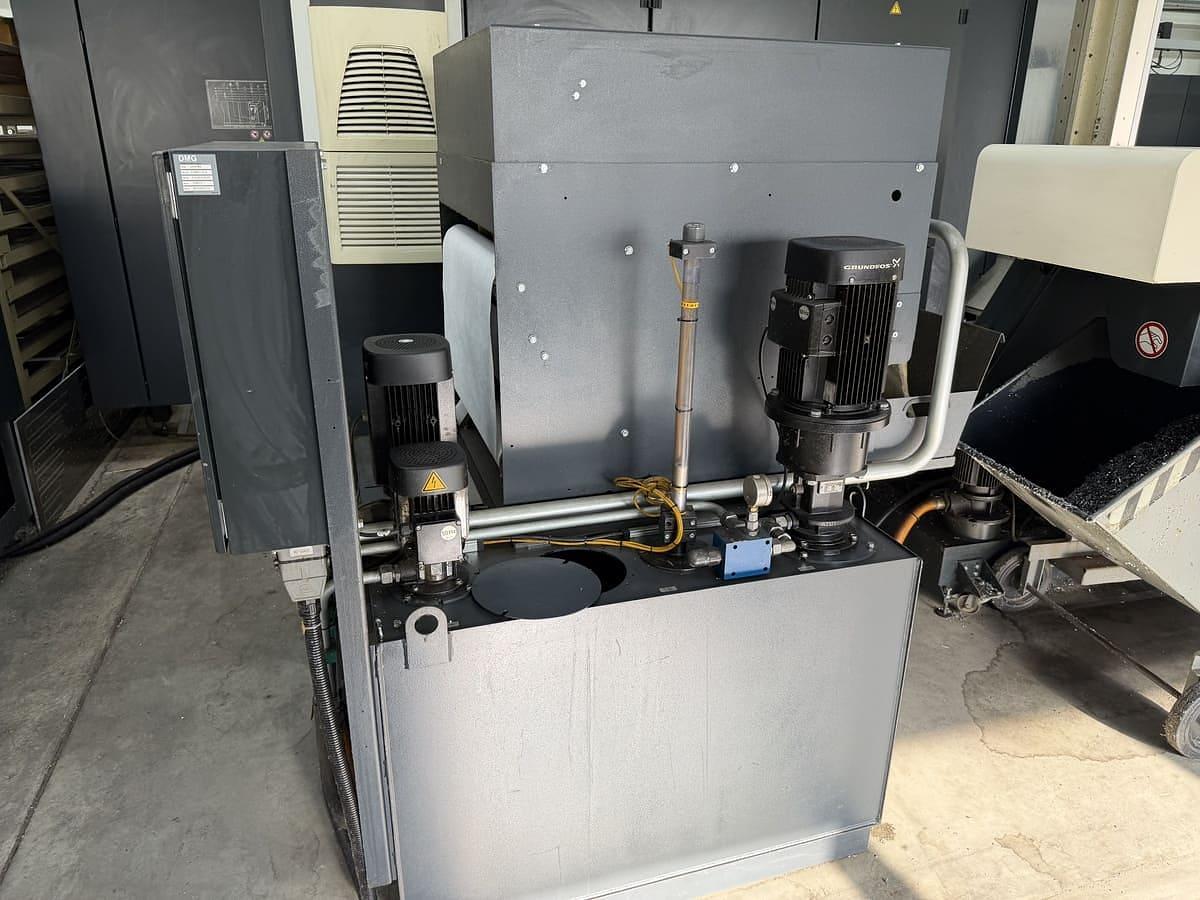

Coolant supply Internal cooling system, 40 bar

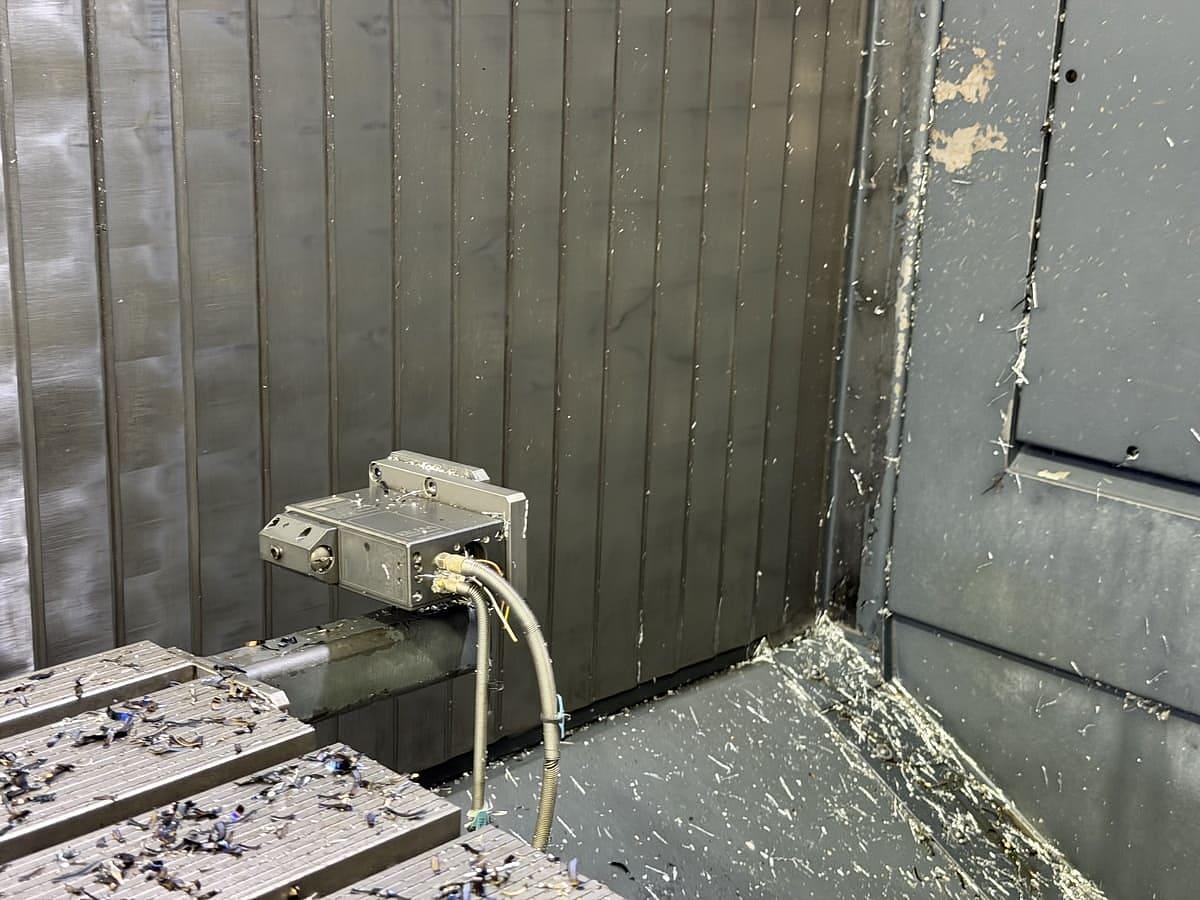

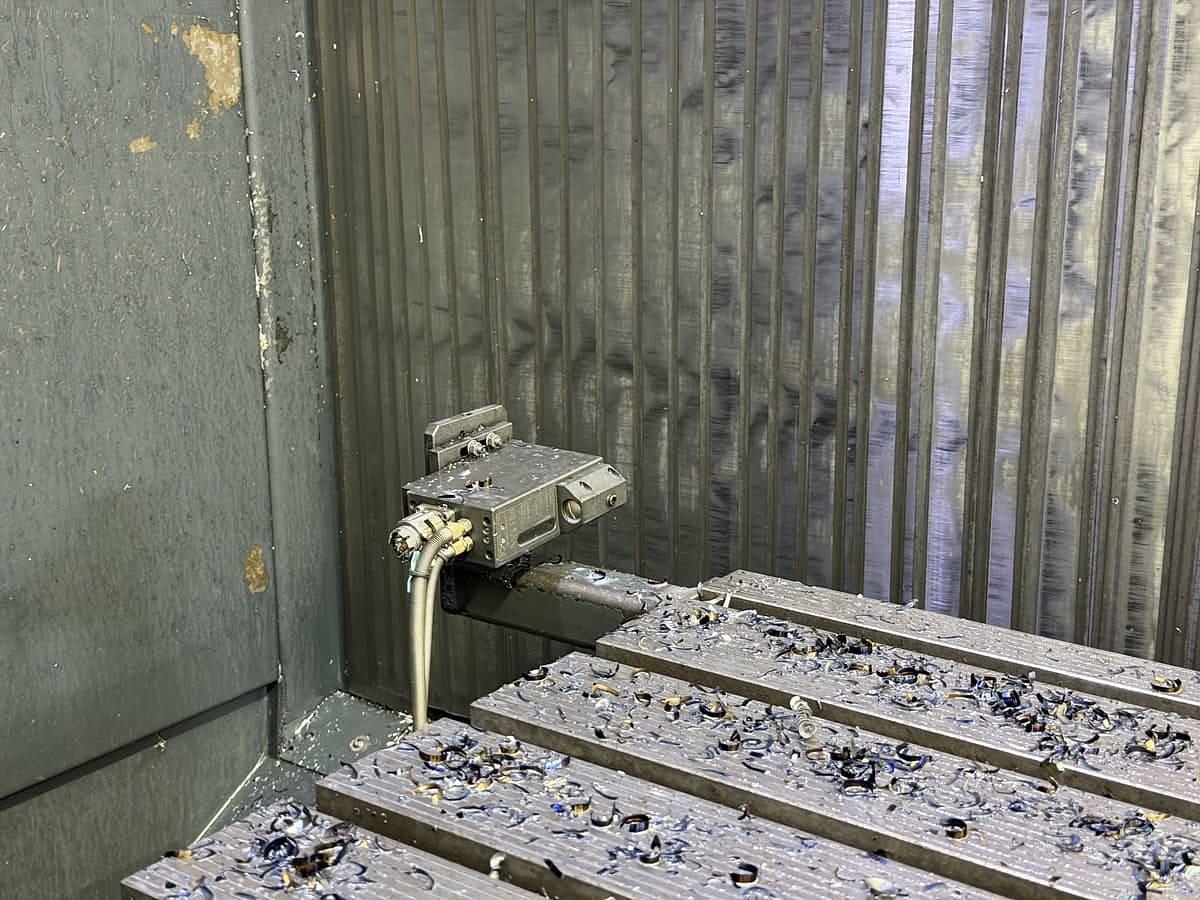

Tool measurement LASER

Workpiece measurement Touch probe

Set-up Electronic handwheel

Manufacturer	DMG

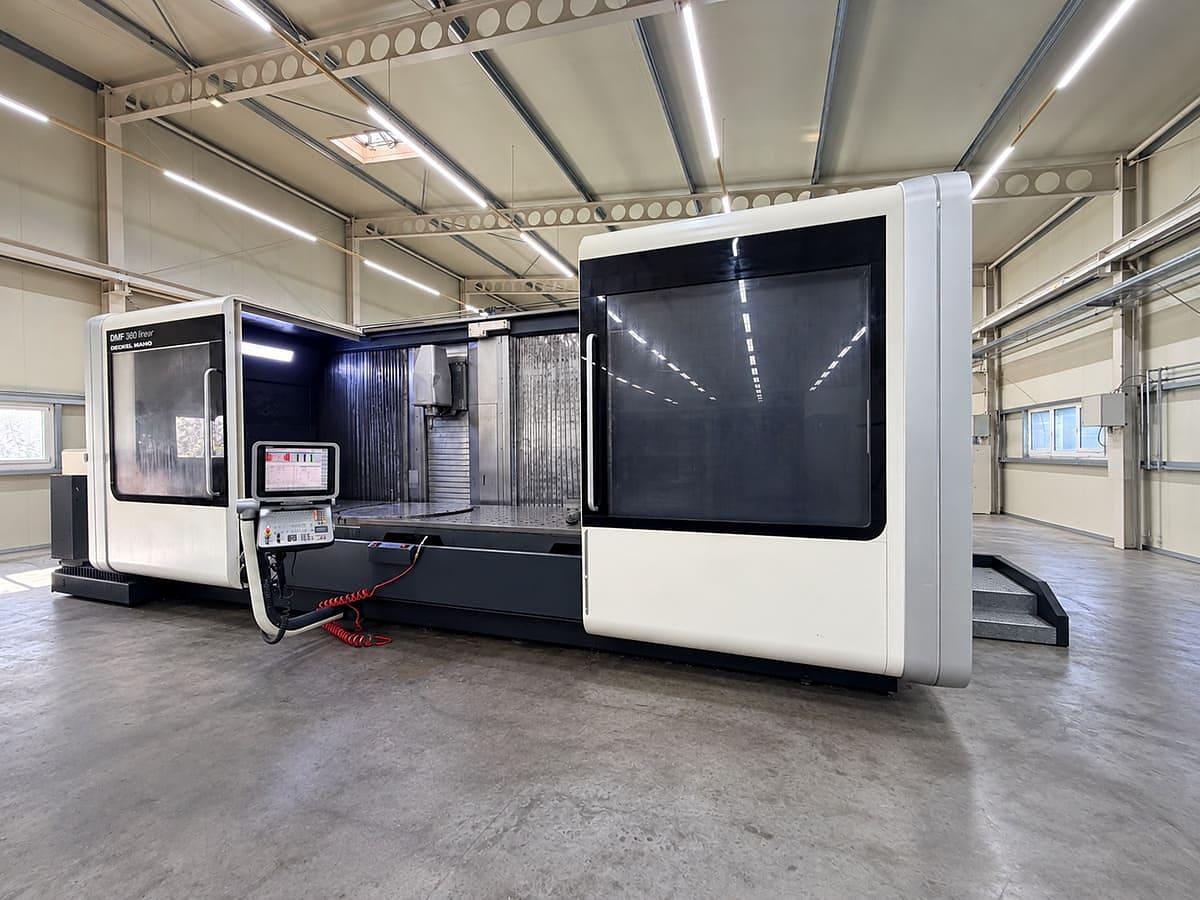

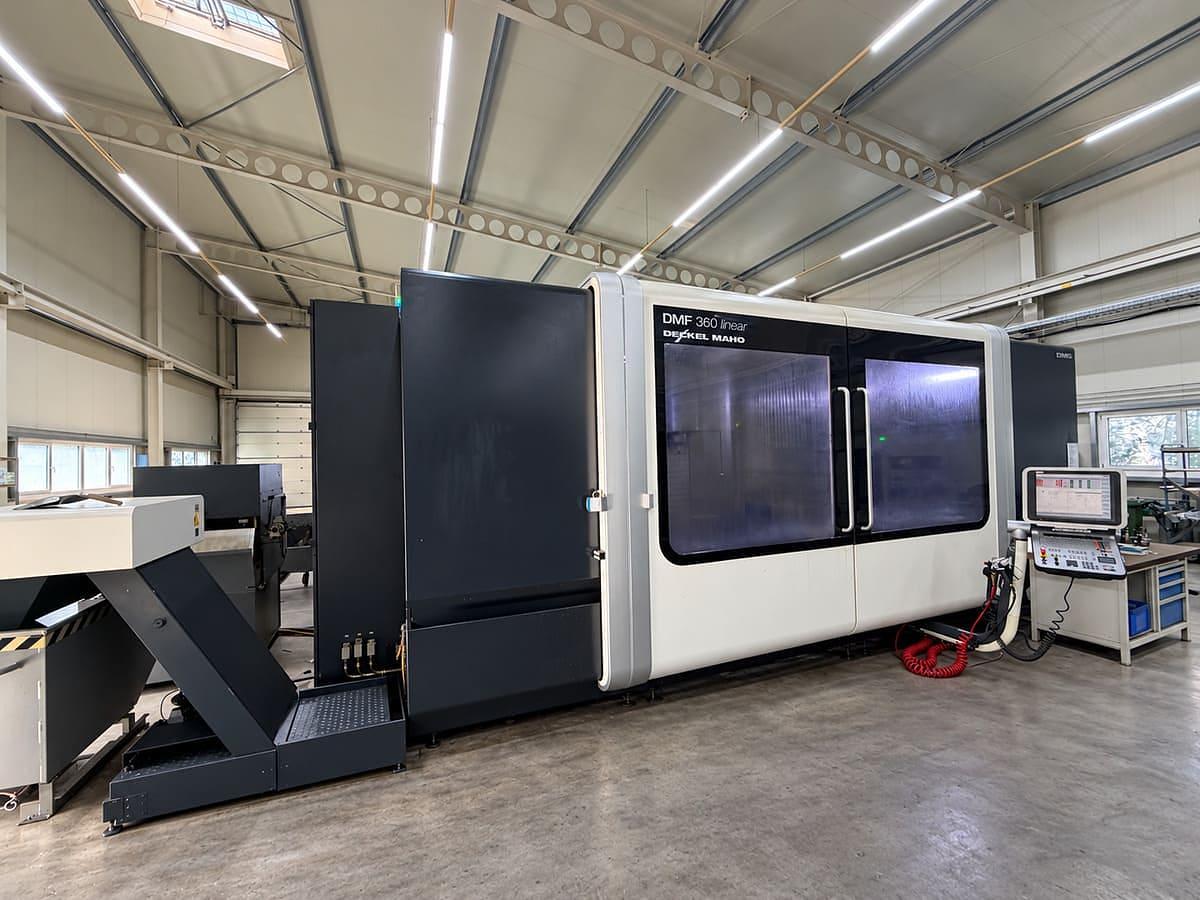

Model	DMG DMF 360 / 11 Linear CNC Universal Machining Center
Year	2012
Condition	Used
Stock Number	5654256
X-axis	3,600 mm
Y-axis	1,100 mm
Z-axis	900 mm
Spindle speed	18,000 rpm
Tool holder	HSK 63
Spindle power	35 kW
Max. Torque	130 nM
