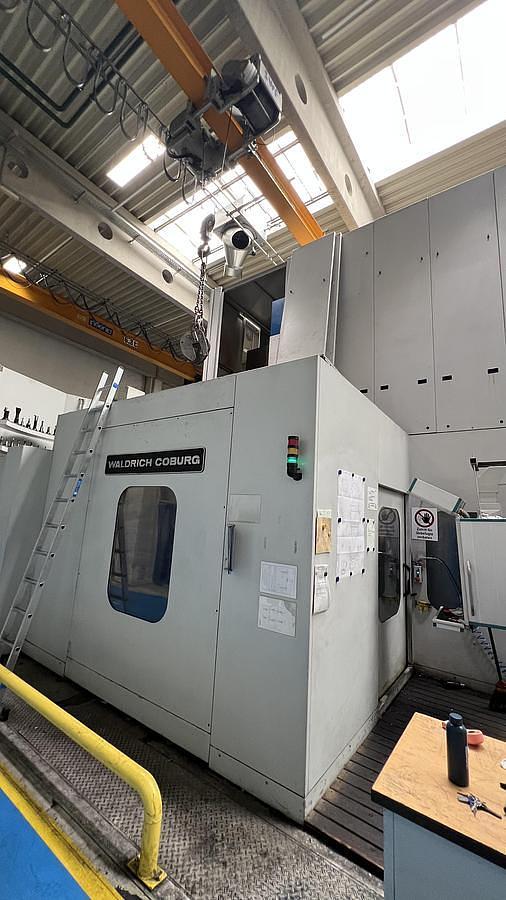

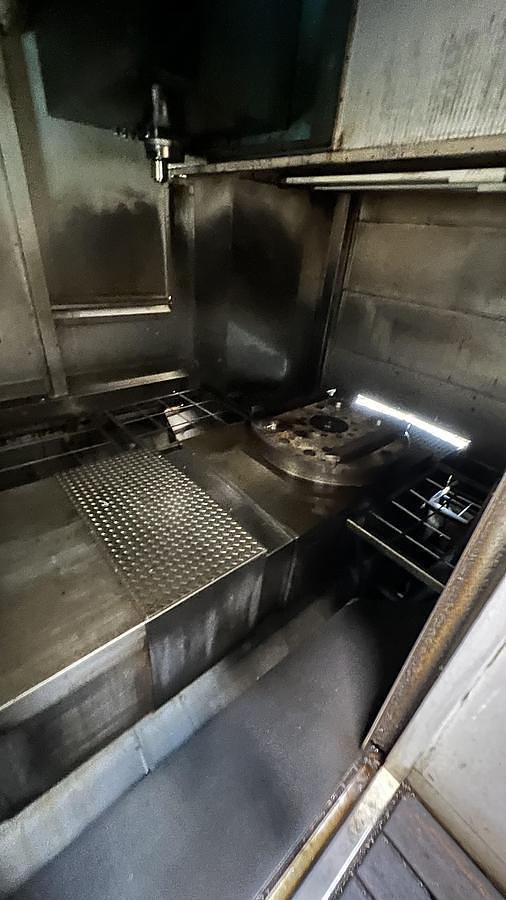

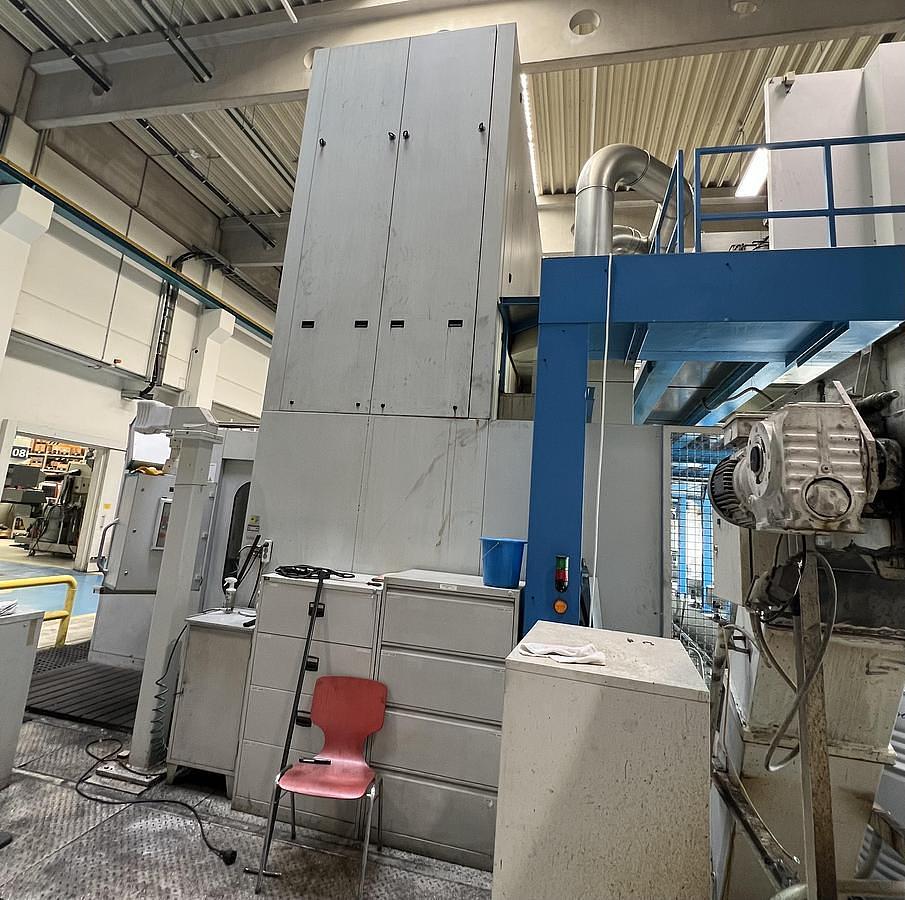

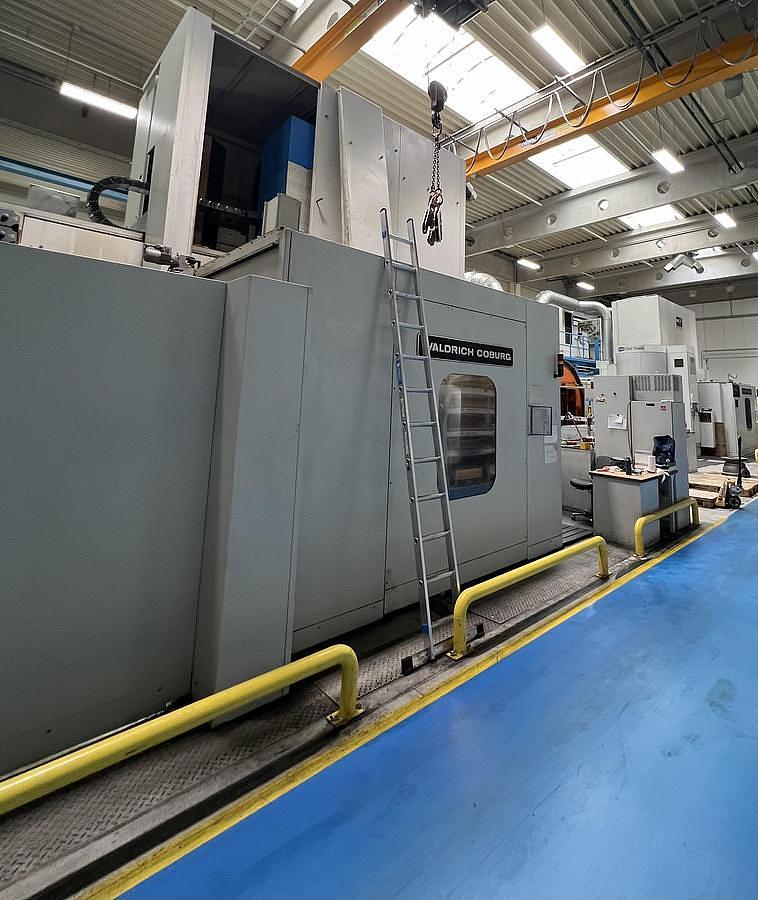

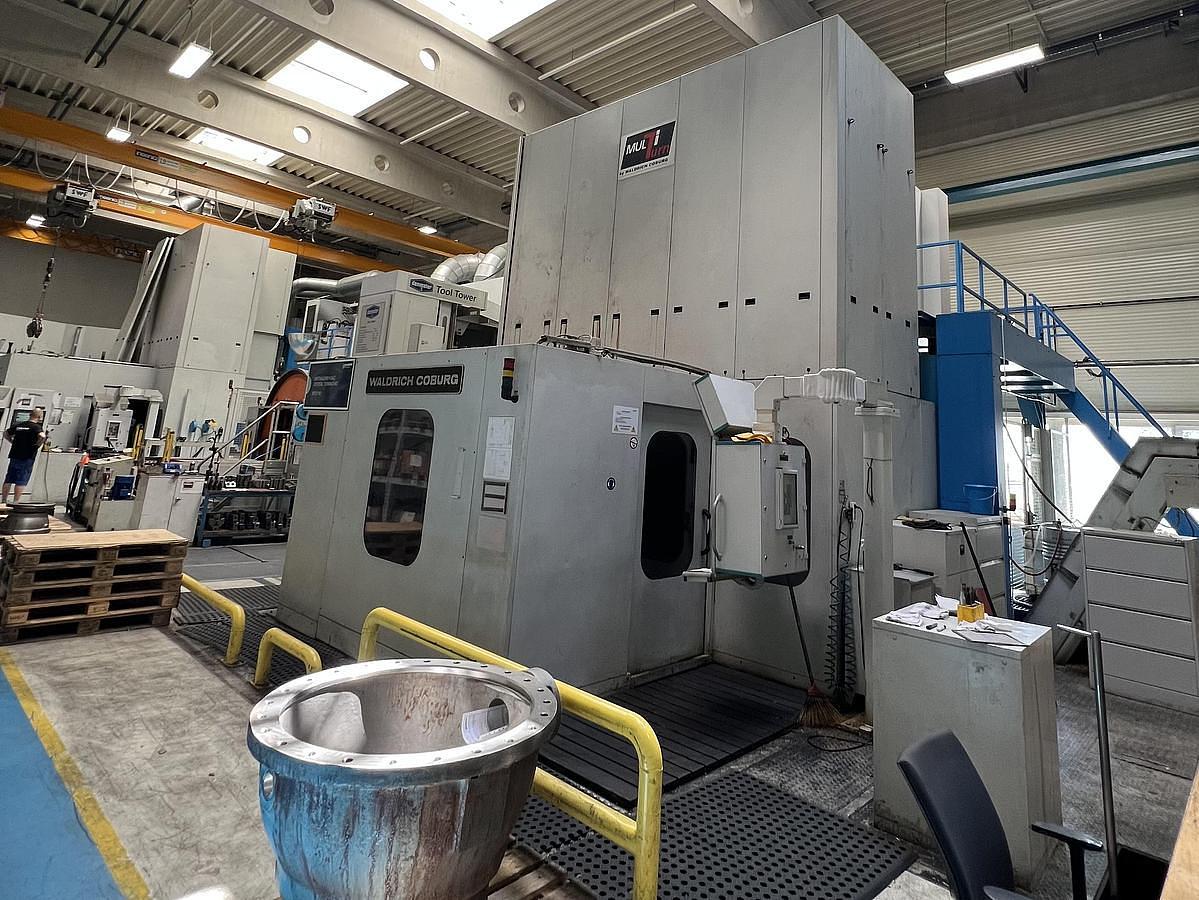

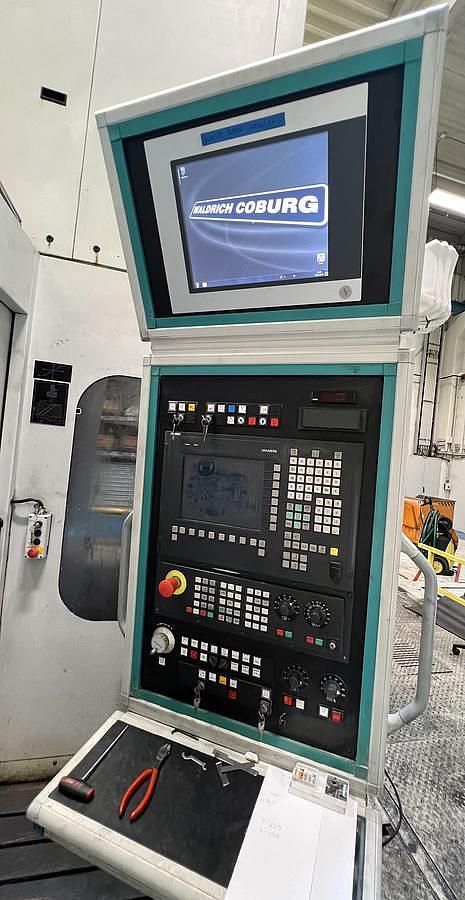

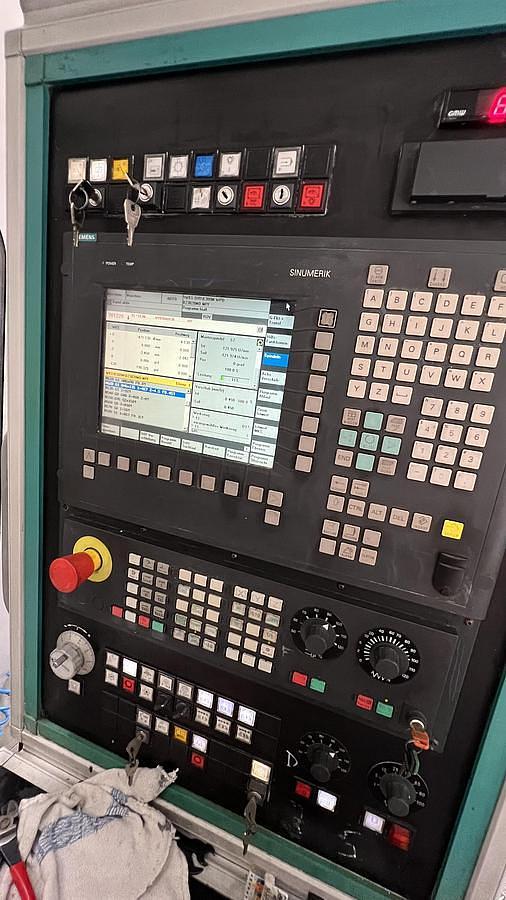

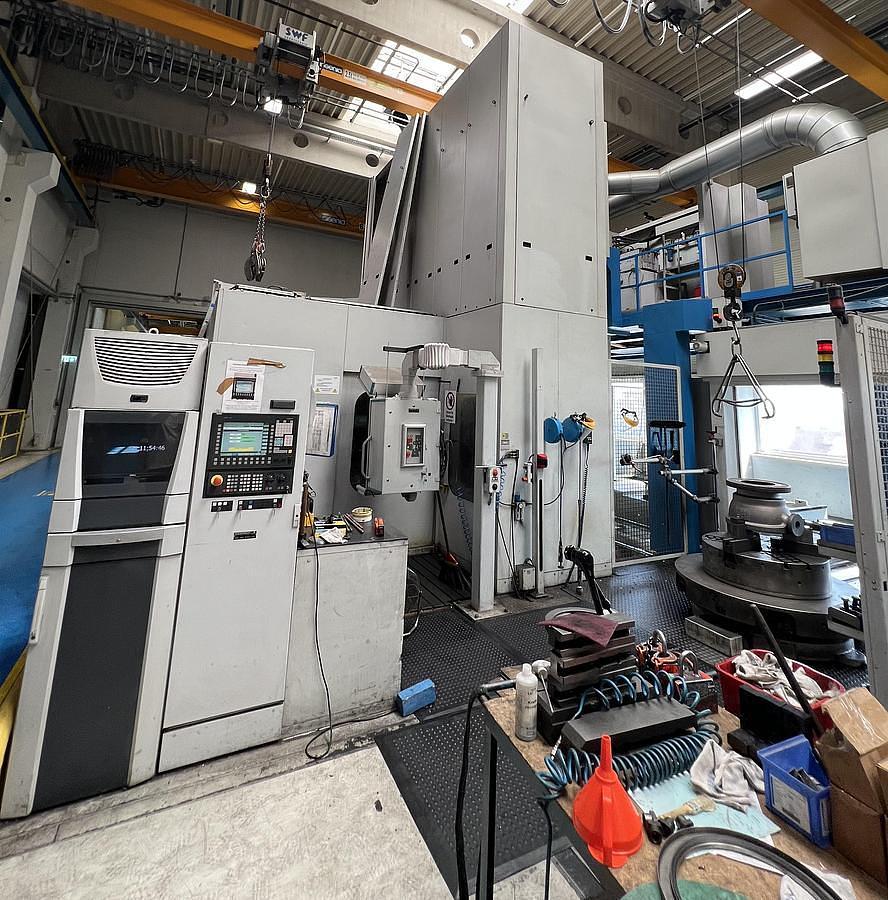

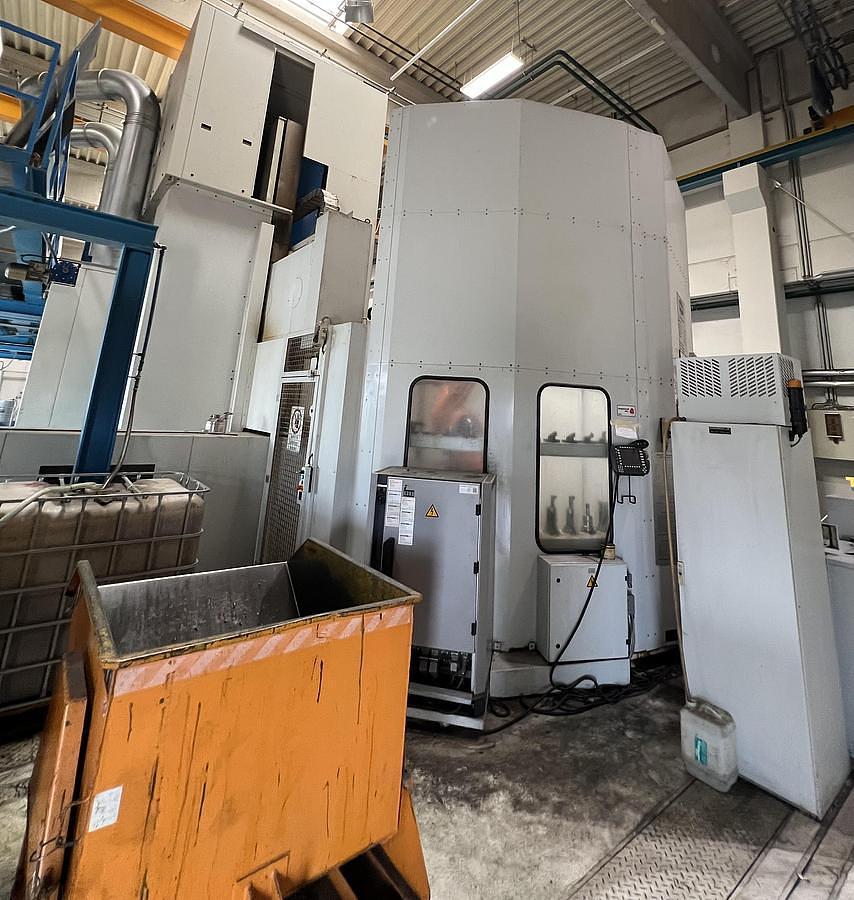

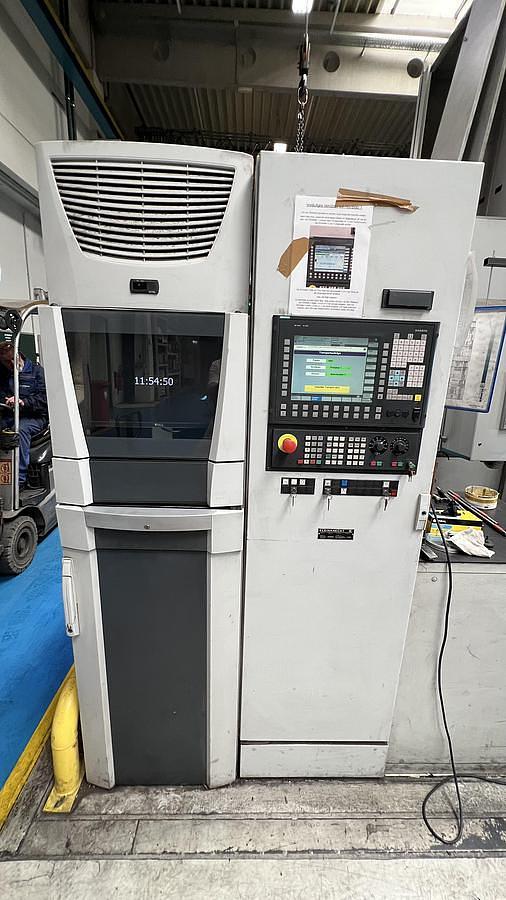

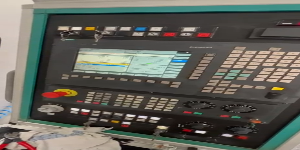

Waldrich Coburg MultiTurn 1500 FM & Waldrich Coburg MultiTec 2000 CNC Vertical Turning & Milling Centers with 2 Machines + Pallet Changing System

2 Machines

• 1 x MultiTurn 1500 FM
• 1 x Multitec 2000

Each equipped with multiple turning & milling units (vertical/horizontal)

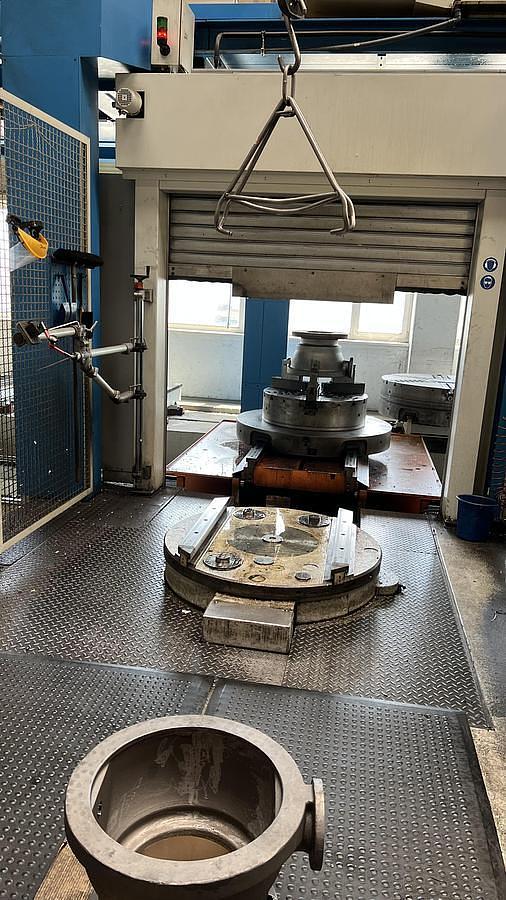

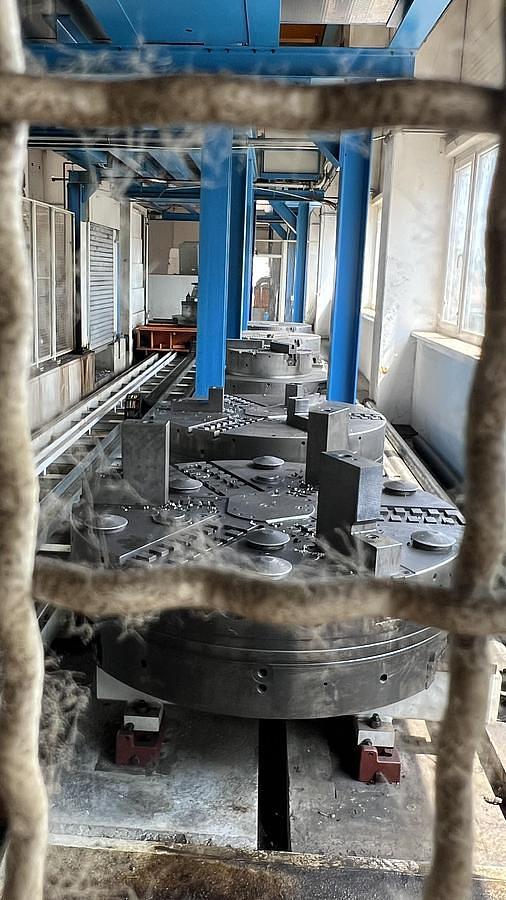

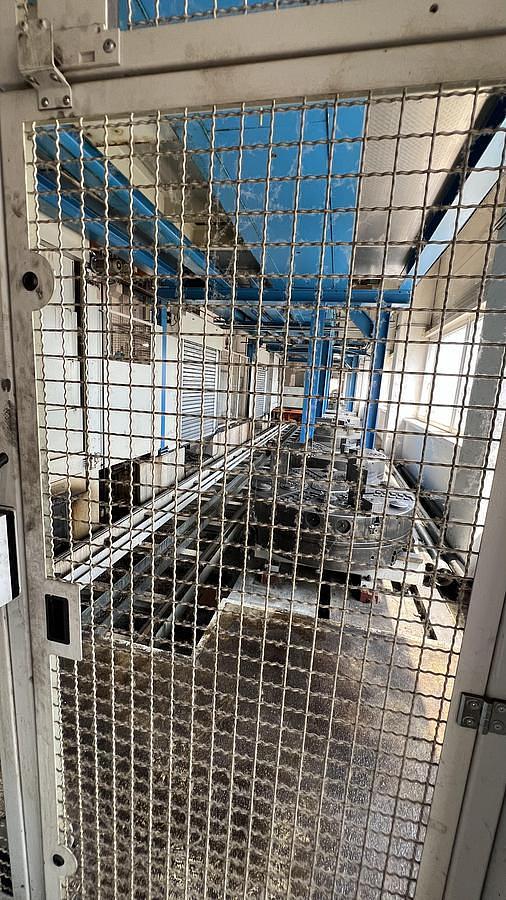

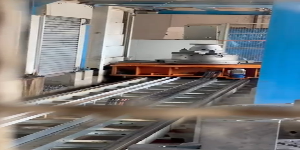

7 Pallet Storage + 2 Setup Stations

Machine #1 - MultiTurn:

Spindle – milling spindle: 30 kW, 5–1,000 and 20–4,000 rpm

Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools

Spindle power – turning: 63 kW, 0.1–200 rpm and 0.4–800 rpm

Axis travels: X +1,150/−1,150 mm; Z 1,250 mm; Y +750/−750 mm; fixed crossrail

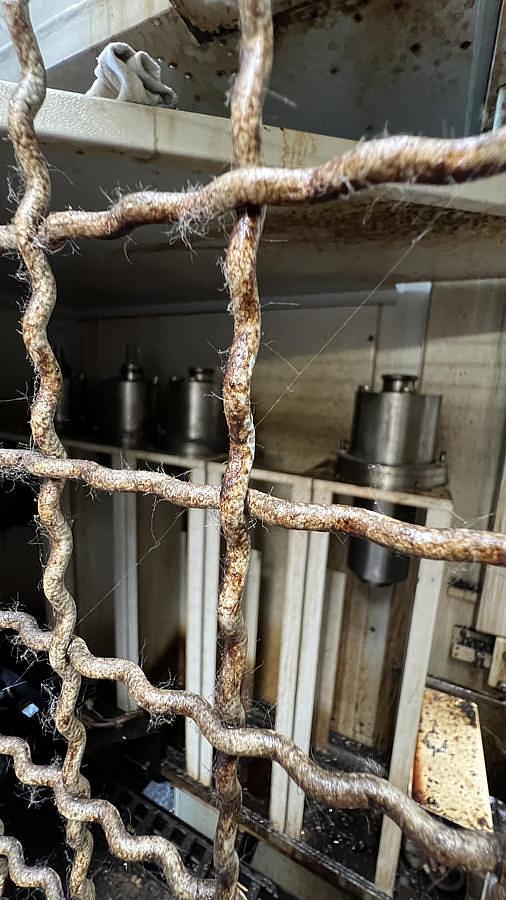

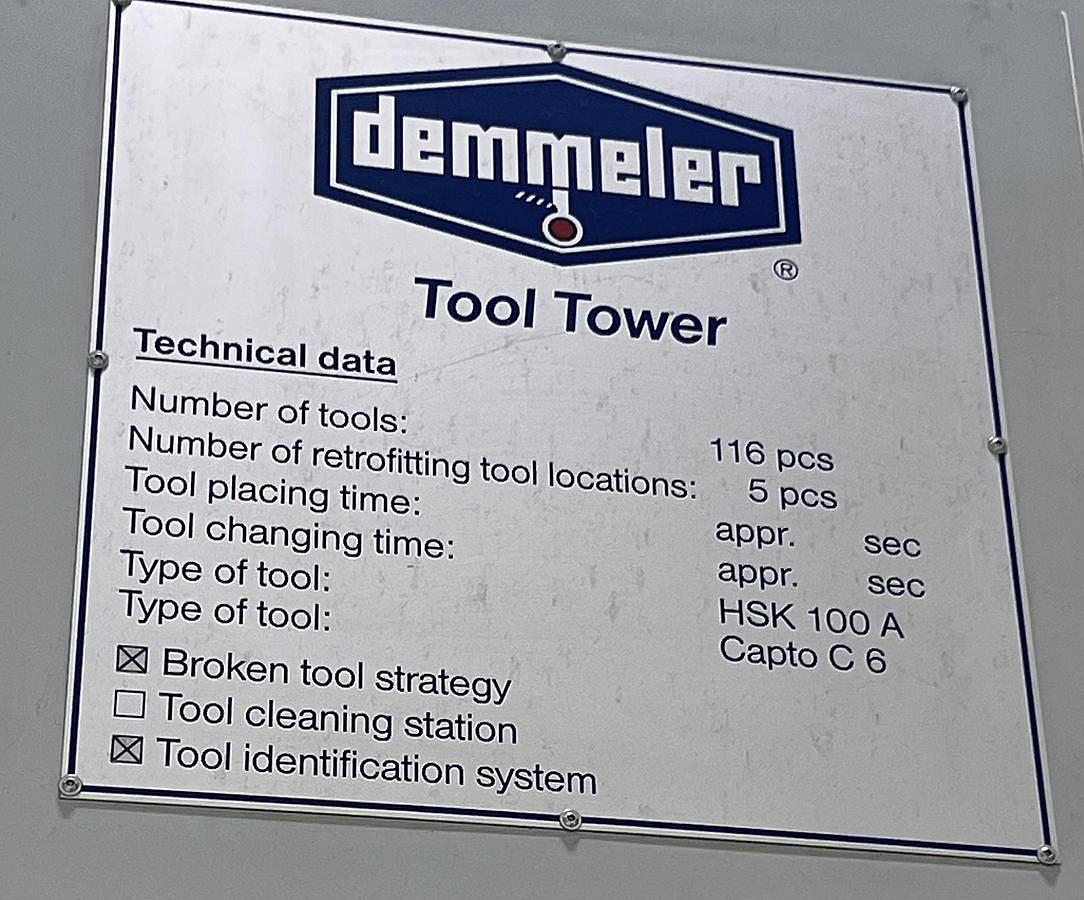

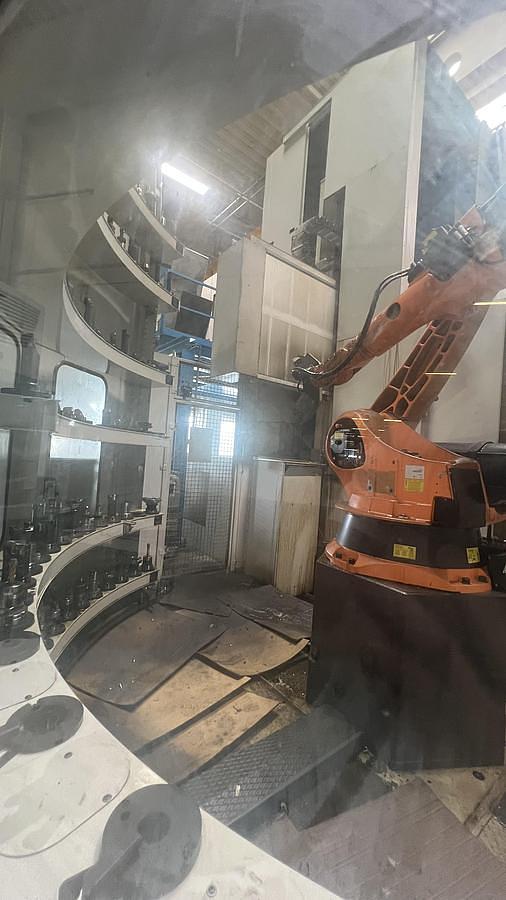

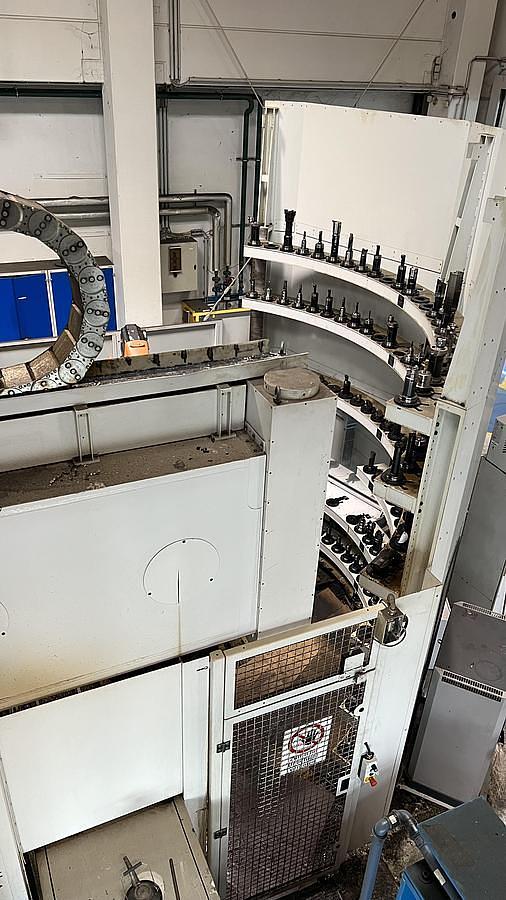

Number of tools: 116

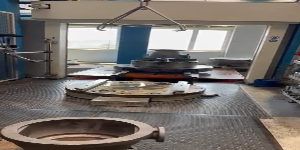

Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,000 mm

Rapid traverse speeds: X 30 m/min; Y/Z 20 m/min

Number of pallets in the system: 4 per machine; each pallet can be used on both machines

Maximum load per pallet: 2,500 kg

Tool slide cross-section: 250 × 250 mm

Swing diameter: 1,500 mm

Clearance height: 2,050 mm

• 1 × Vertical drilling/milling unit, HSK 100-A
• 1 × Horizontal drilling/milling unit, HSK 100-A
• 1 × Horizontal turning unit, Capto C6
• 1 × Long vertical turning unit, Capto C6
• 1 × Short vertical turning unit, Capto C6

Machine #2 - MultiTec:

Spindle – milling spindle: 45 kW, 5–1,300 and 23–6,000 rpm

Tool interface: HSK 100-A for rotating tools; Capto C6 for turning tools

Spindle power – turning: 63 kW, 0–400 rpm

Axis travels: X +1,000/−1,500 mm; Z 1,500 mm; Y +1,500/−1,500 mm; W crossrail vertical travel (NC axis) 1,000 mm

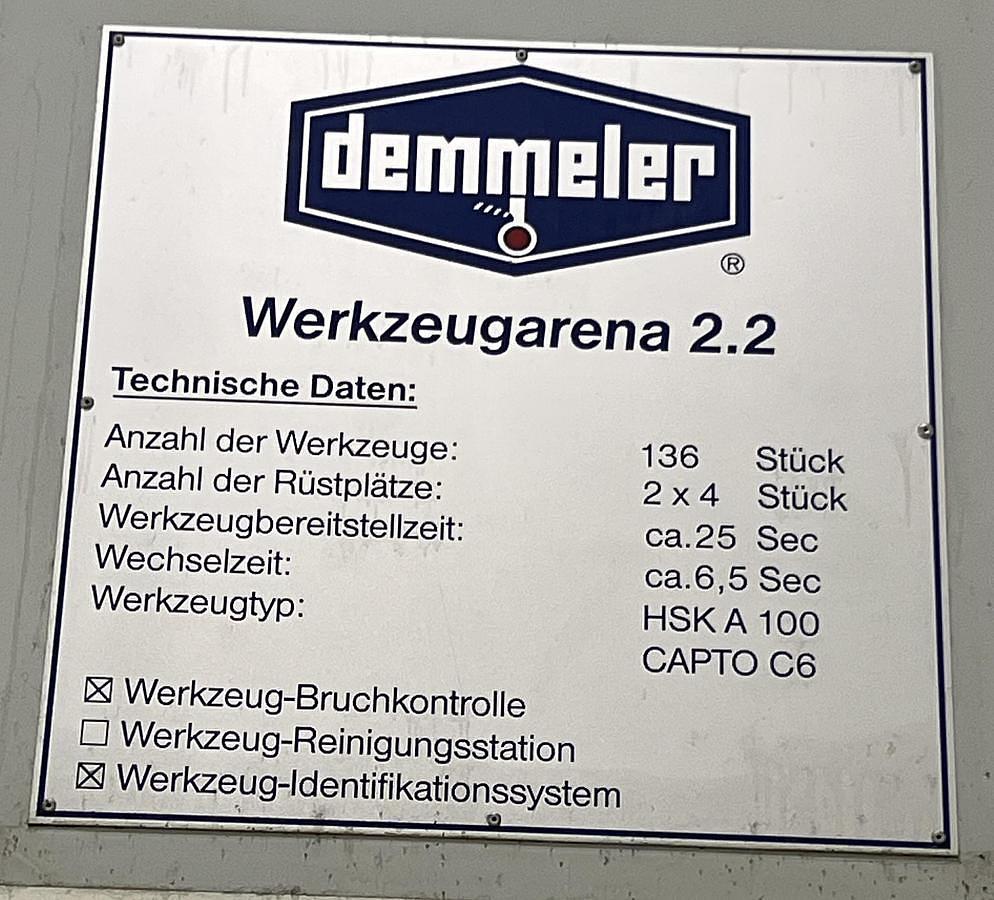

Number of tools: 130

Table size: Pallet base Ø1,250 mm; faceplate with Röhm power chuck Ø1,500 mm

Rapid traverse speeds: X/Y/Z 60 m/min; W-axis 6 m/min

Number of pallets in the system: 4 per machine; each pallet can be used on both machines

Maximum load per pallet: 6,000 kg

Tool slide cross-section: 400 × 400 mm

Swing diameter: 2,000 mm

Clearance height: 2,050 mm

• 1 × Vertical drilling/milling unit, HSK 100-A
• 1 × Horizontal drilling/milling unit, HSK 100-A
• 1 × Horizontal/combined vertical turning unit, Capto C6
• 1 × Long vertical turning unit, Capto C6
• 1 × Defective universal milling unit (swivel axis), HSK 100-A
