Doosan DCM 2740F CNC Double Column Machining Center

Doosan DCM 2740F CNC Double Column Machining Center

Description

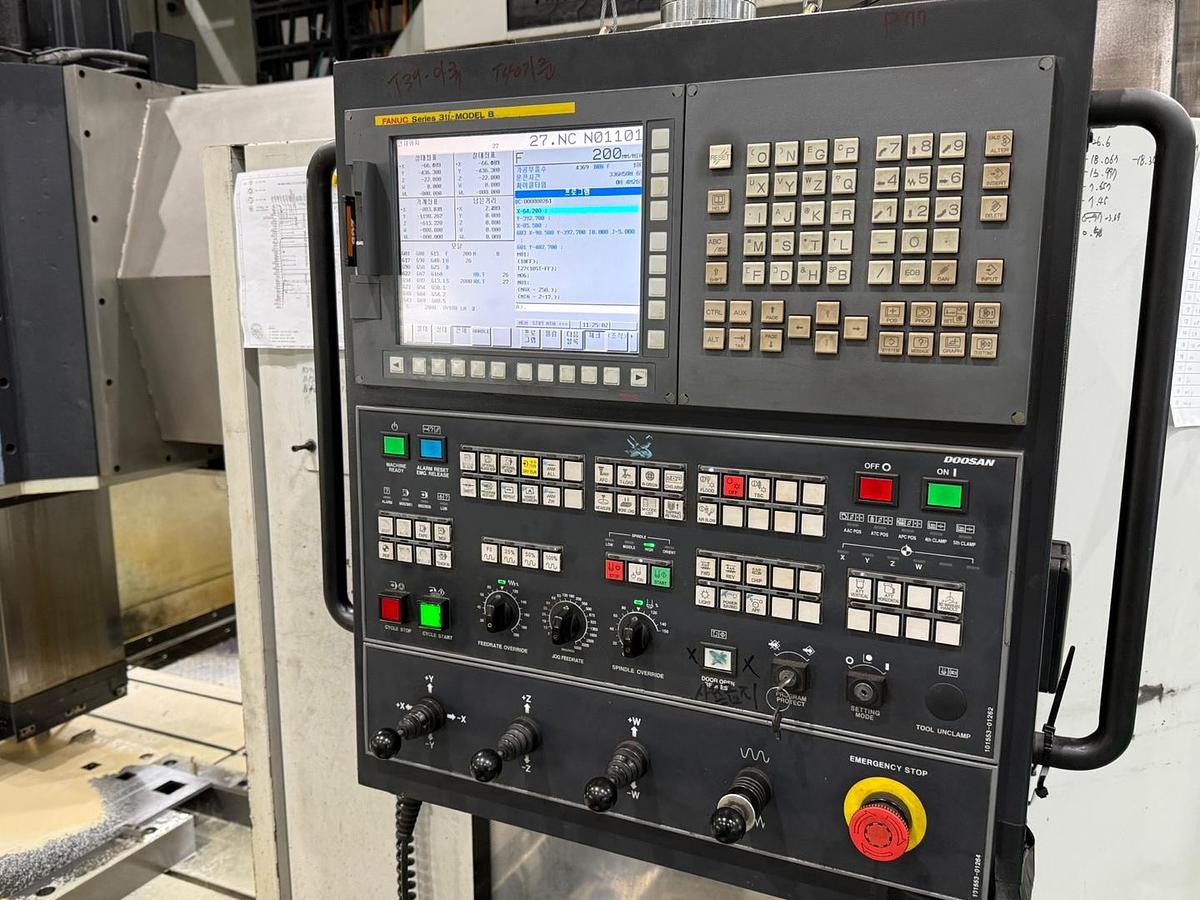

Fanuc 31iB control

Scales XYZW

90 Position Automatic Tool Changer

90° Angle Head

Automatic Attachment Changer

TSC -20bar

Tool length measurement TS-27R

2 -side Chip conveyor & Lift up Chip conveyor

Coolant Splash Guard (semi cover)

DSQ- II


Specifications

ManufacturerDoosan
ModelDCM 2740F
Year2017
ConditionUsed
Stock Number5654418
Between columns2,700 mm
Spindle speeds4,000 rpm
Table to spindle nose1,650 mm
Table dimensions2,200 x 4,100 mm
Table capacity18 Ton
X axis travel4,250 mm
Y axis travel3,200 mm
Z axis travel1,000 mm
W axis travel1,100 mm
Ram size380 x 380 mm
Spindle power37 / 30 kW
