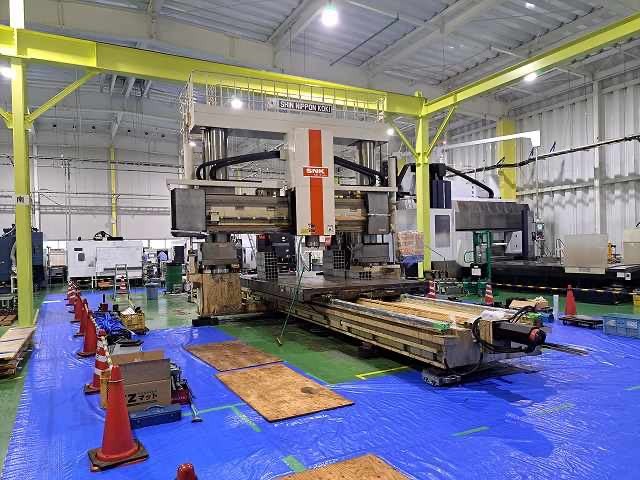

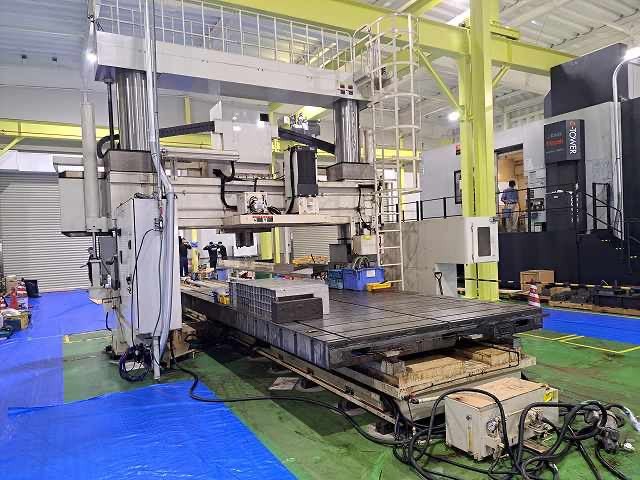

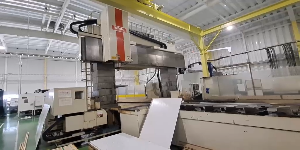

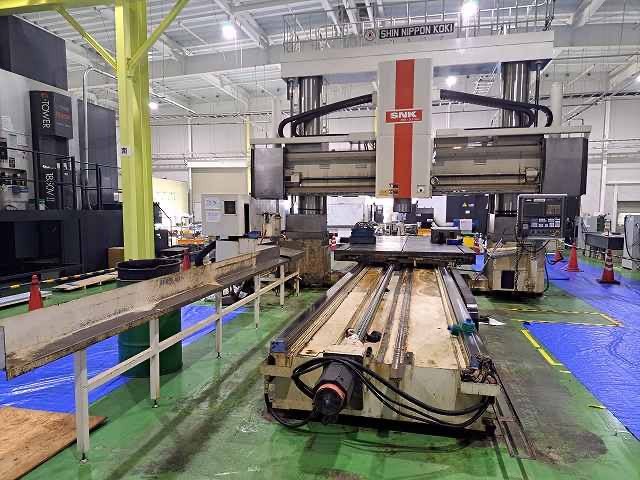

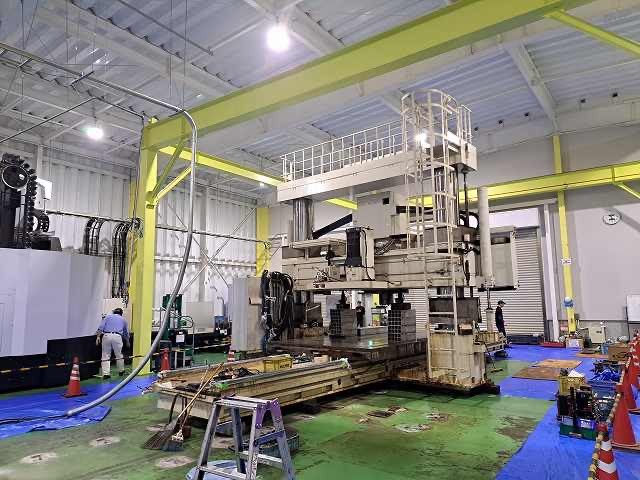

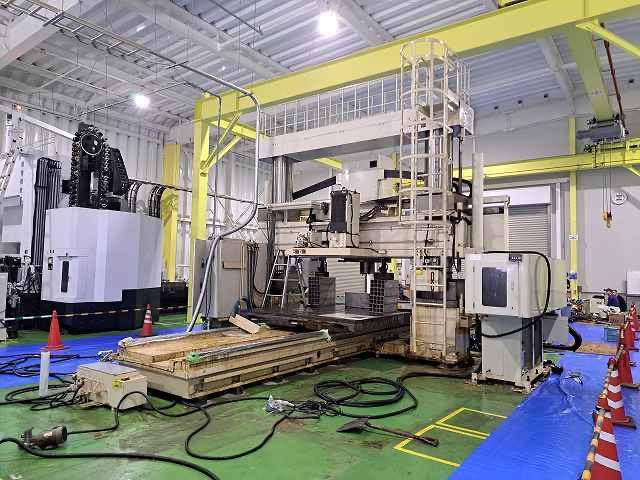

SNK RB-310M CNC 5-Axis Double Column Planer Type Milling Machine
SNK RB-310M CNC 5-Axis Double Column Planer Type Milling Machine
or
Call 770-509-0744
Description
Fanuc 18i MB CNC Control
Number of Controlled Axes - 5
Number of Simultaneous Controlled Axes - 4
Linear Interpolation - 2 Axes
Cooling Unit
Lubrication System
40 Position Automatic Tool Changer
Automatic Attachment Changer
Spindle Motor
Low Speed Range (continuous/30 min) - 18.5 / 22 kW
High Speed Range (continuous/30 min) - 25 / 30 kW
Specifications
| Manufacturer | SNK |
| Model | RB-310M |
| Condition | Used |
| Stock Number | 5654417 |
| Spindle speeds | 40 - 6,000 rpm |
| Spindle/quill diamater | 90/330 mm |
| Between columns | 3,100 mm |
| Table dimensions | 5,000 x 2,500 mm |
| Distance table to spindle end | 800 mm |
| Max workpiece weight | 15,000 kg |
| X axis travel | 5,260 mm |
| Y axis travel | 3,400 mm |
| Z axis travel | 600 mm |
| W axis travel | 1,400 mm |
| Spindle taper | ISO 50 |
