Kramatorsk 150-280 Bar Peeling Machine

Fully Reconditioned in 2023

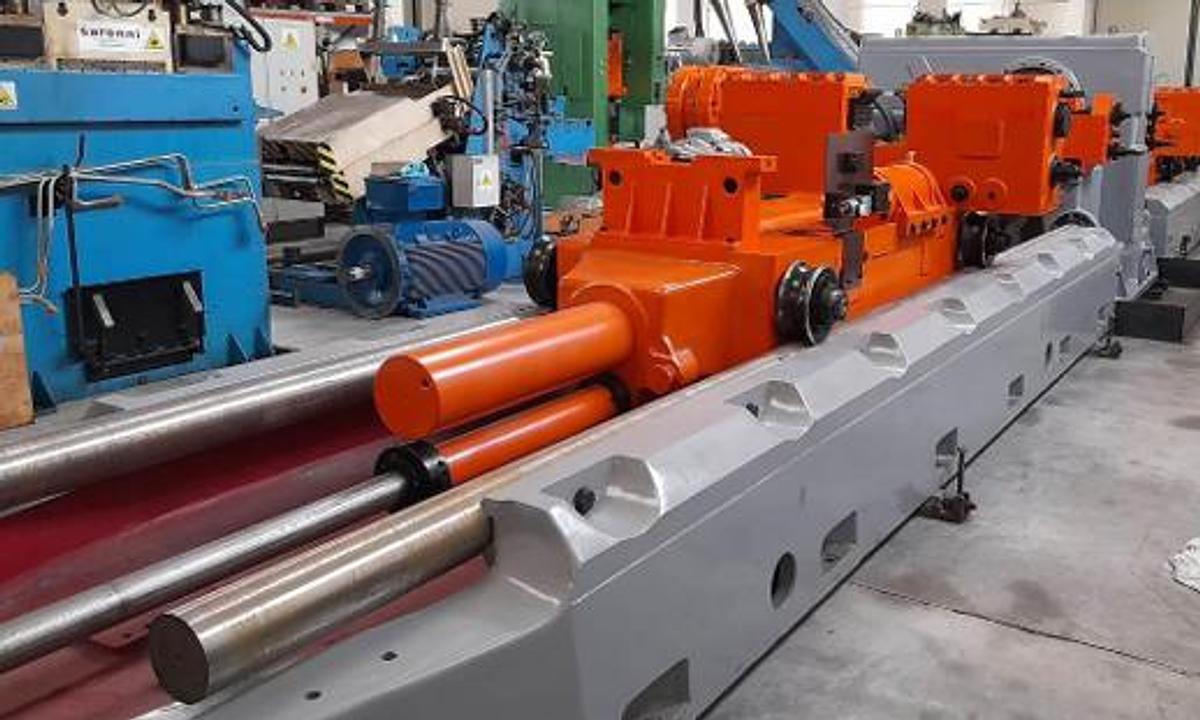

• Inlet carriage sliding guides
• Feeding carriage
• Peeling machine
• Outlet carriage sliding guides
• Pulling carriage

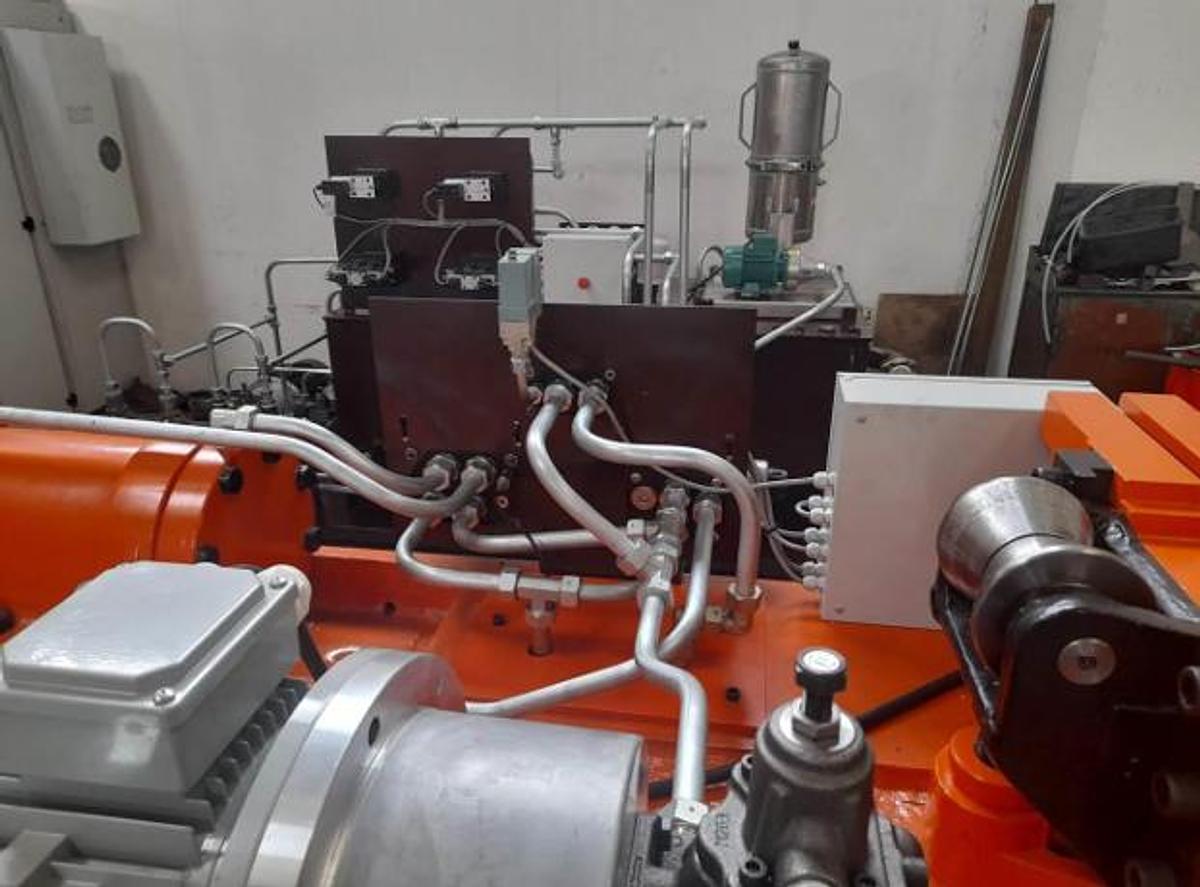

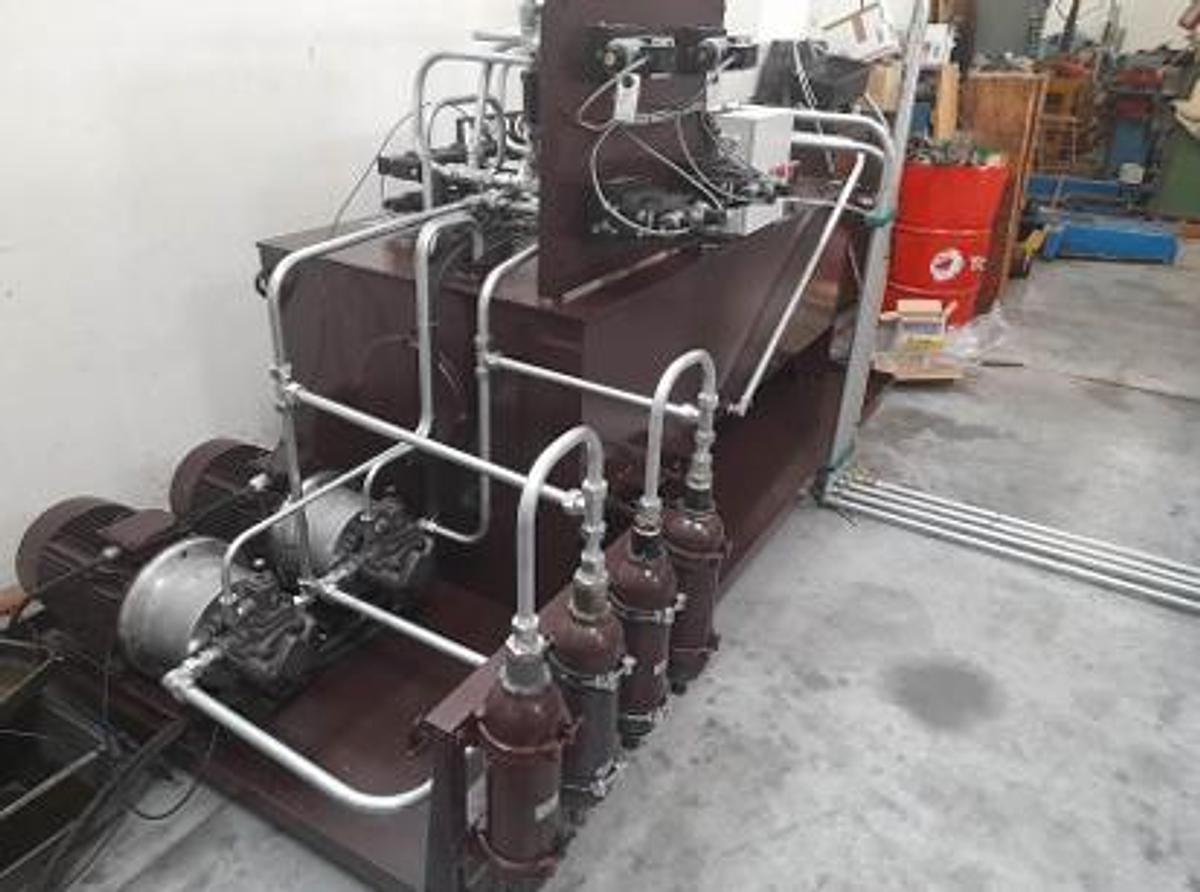

• New hydraulic equipment
• New lubricating equipment
• New electric equipment

DESCRIPTION OF THE MAIN COMPONENTS

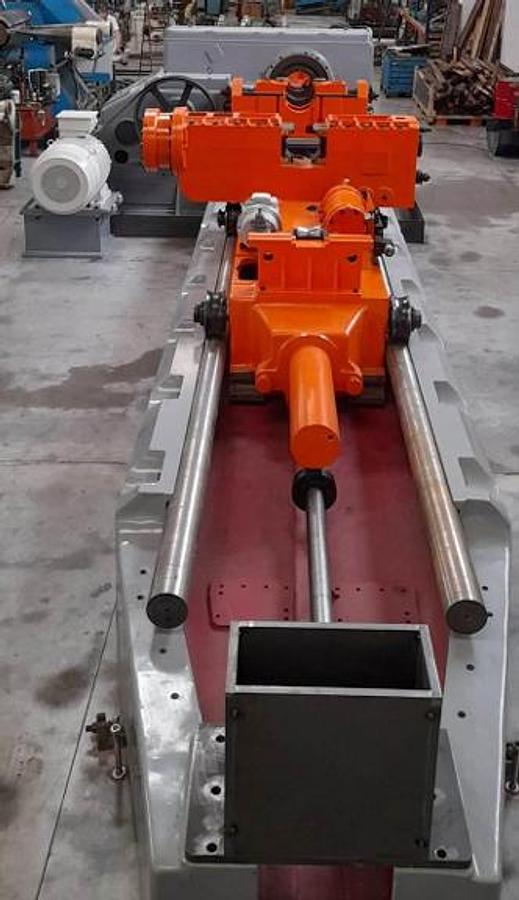

Inlet and outlet carriage sliding guides - Feeding and pulling carriages

- The carriages are driven by n°2 hydraulic cylinders that control the longitudinal advance of the bar

- The carriages are moving on rollers, sliding on two round guidance bars.

- Bar clamping system is composed by n°2 jaws hydraulically driven

- Control of the speed is given via Encoder coupled with a rack installed on the carriage guide baseframe

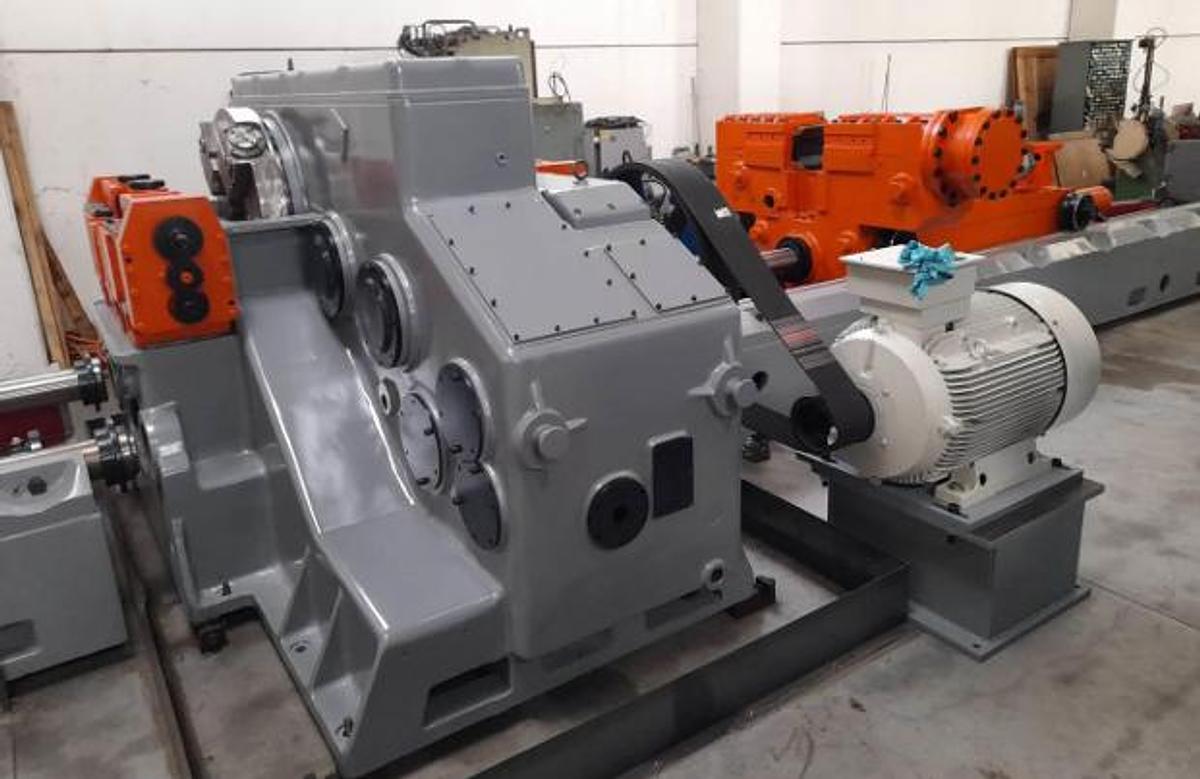

Main spindle

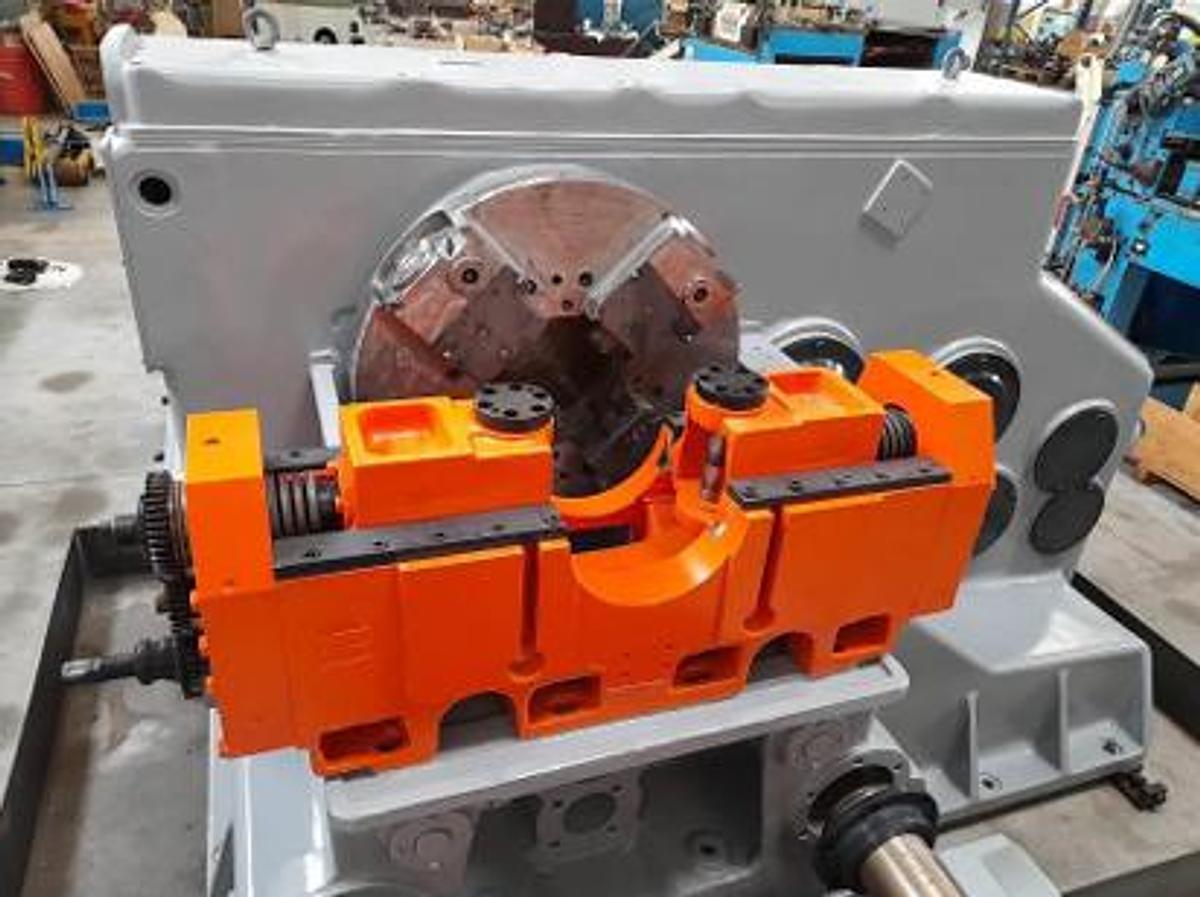

It is controlled by a gear box driven by a 200 kW a.c. motor through belt transmission. Motor speed is controlled by Inverter. Main spindle is mounted on 2 bearings of high capacity and high precision.

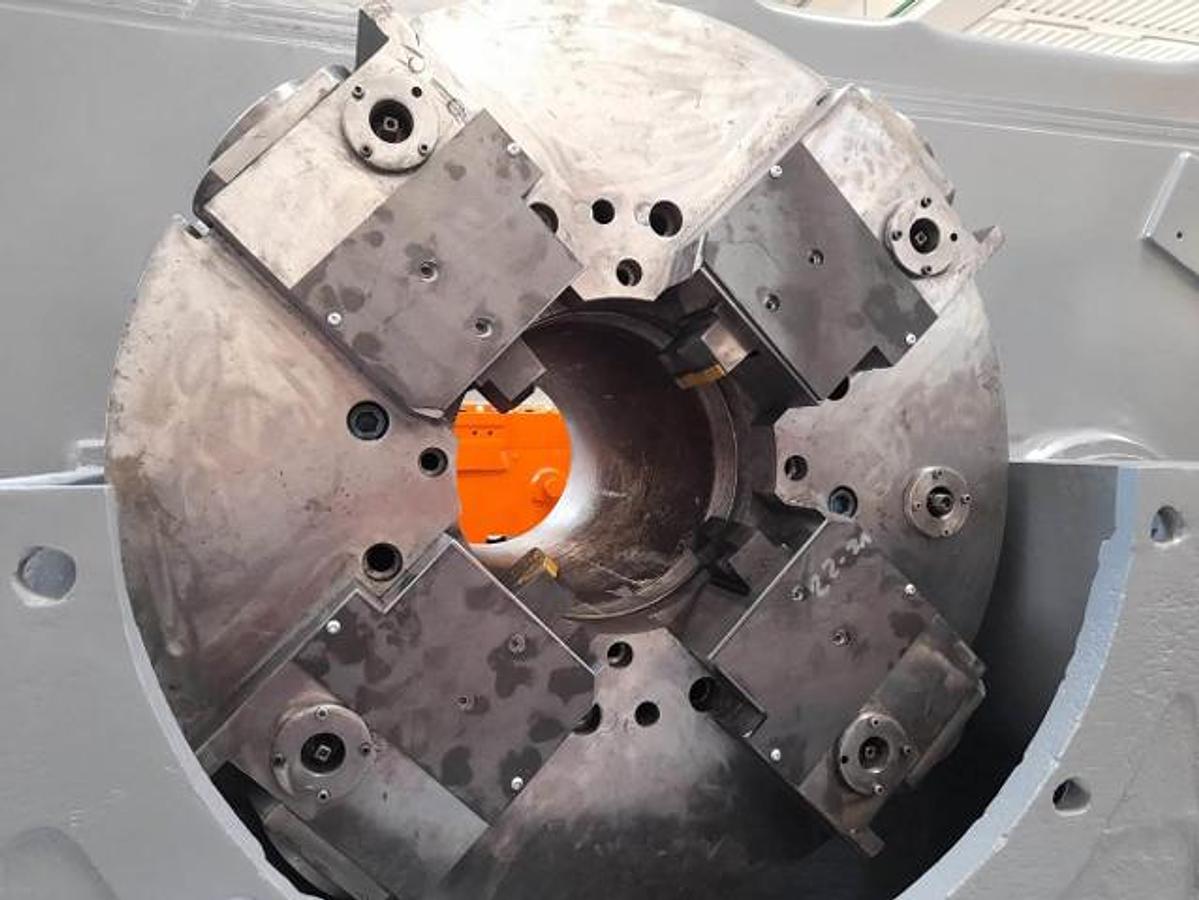

Peeling Head

Manual adjustable peeling head for diameter up to 280 mm. At both, inlet and outlet, of the peeling head a pair of rollers are installed. Distance between rollers is manually adjustable.

Lubricating Installation

Assures the lubrication of the gears mounted on the gear box and bearings of the main spindle. Oil tank and oil filtering system are inside the gear box.

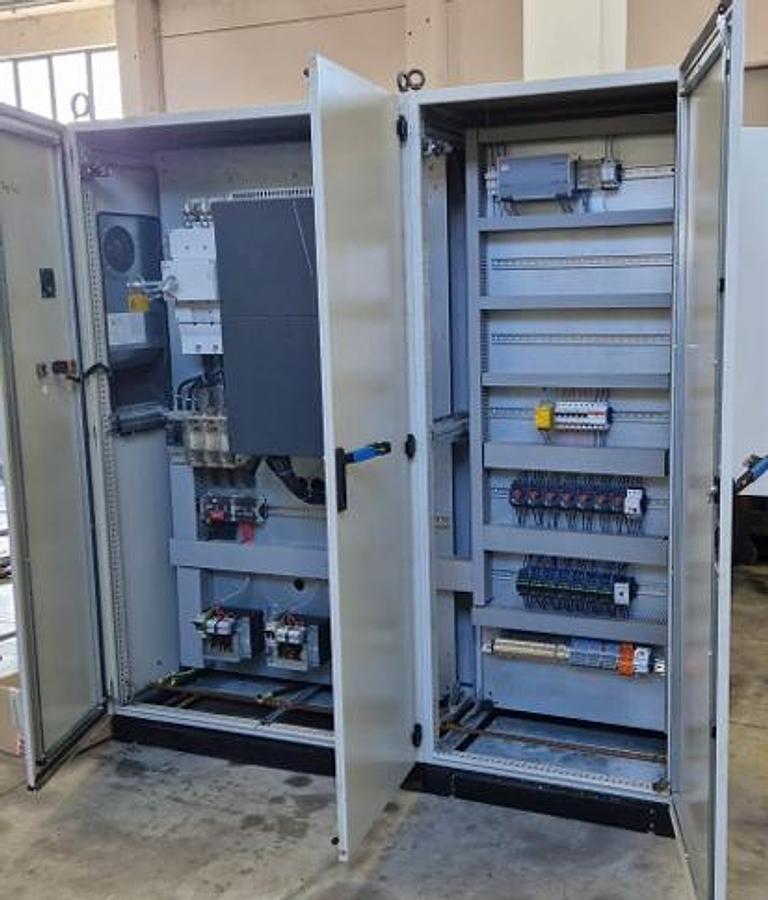

Electrical Equipment

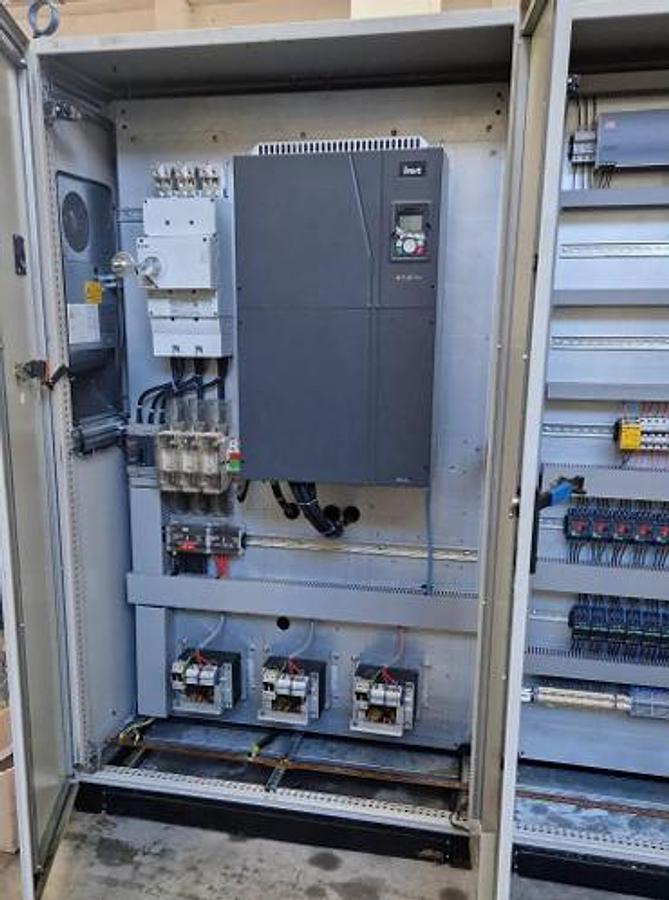

Including main switch, control and protection devices and the PLC. Electric components are housed in a suitably dimensioned modular metal cabinet provided with doors on the front.

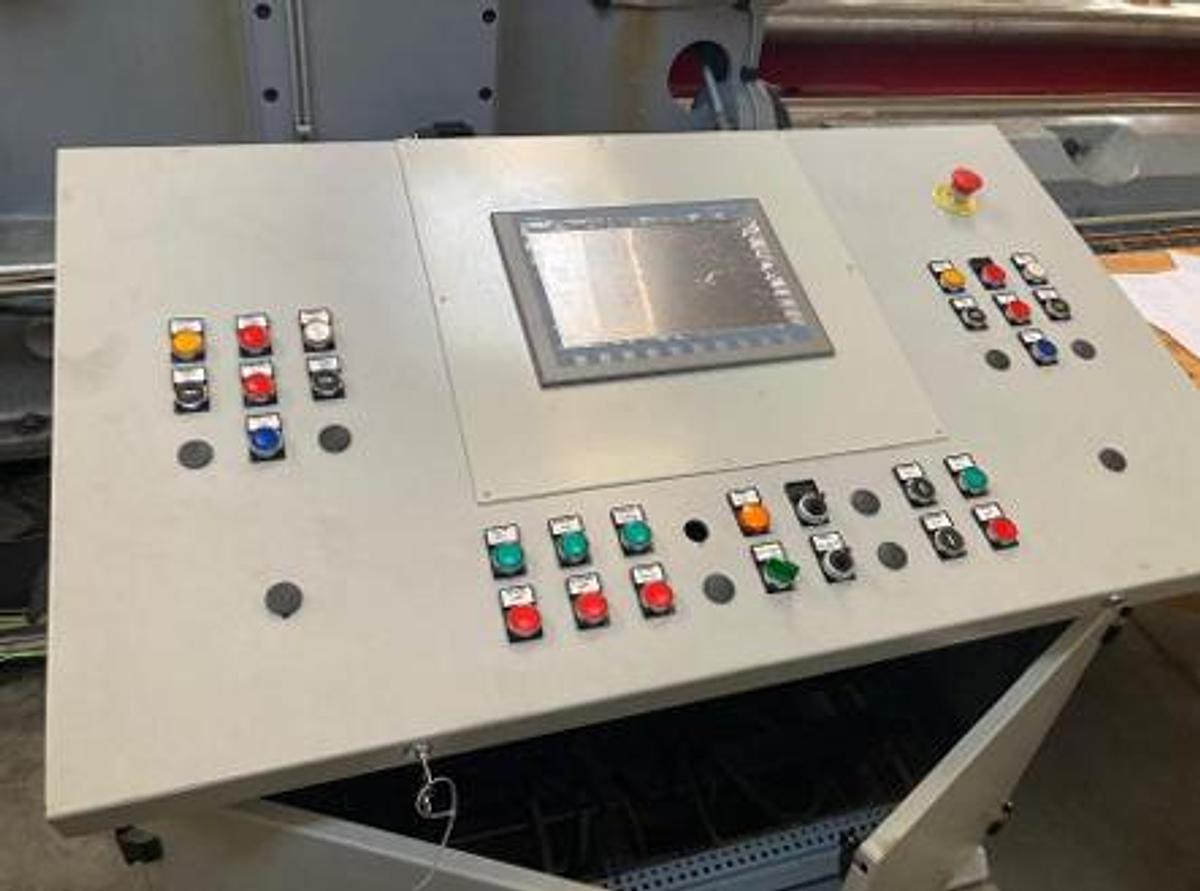

Control Panel

Control panel is placed in front of the machine in a position such as to have a good supervision of the plant. It contains all the instruments necessary for running and controlling the peeling machine. There is permanent visualization of:

- number of revolutions of the peeling head

- % of power absorbed by the peeling head

- feed in m/min

- diameter under process - Electric motors - One set of electric motors and gear motors are included, to drive the various components of the peeling line.

- protection degree: for Ac motors

LIST OF THE OVERHAULING WORKS DONE ON THE MACHINE

1.Bar clamping system - technically overhauled, redesigned parts, new electric and hydraulic action

2. Front guiding system - new rolls and parts

3. Main shaft - new bearings, we prepared new set of wearing rings

4. Gearbox - new shafts and gears, new bearings

5. N°2 Hydraulic power packs - completely new

6. Electric installation - completely new

7. Control desk - completely new

8. Terminal boxes, on-board connections - completely new

9. Technical documentations in English language
