SNK RB-7VM Double Column CNC Planer Type Milling Machine
SNK RB-7VM Double Column CNC Planer Type Milling Machine
or
Call 770-509-0744
Description

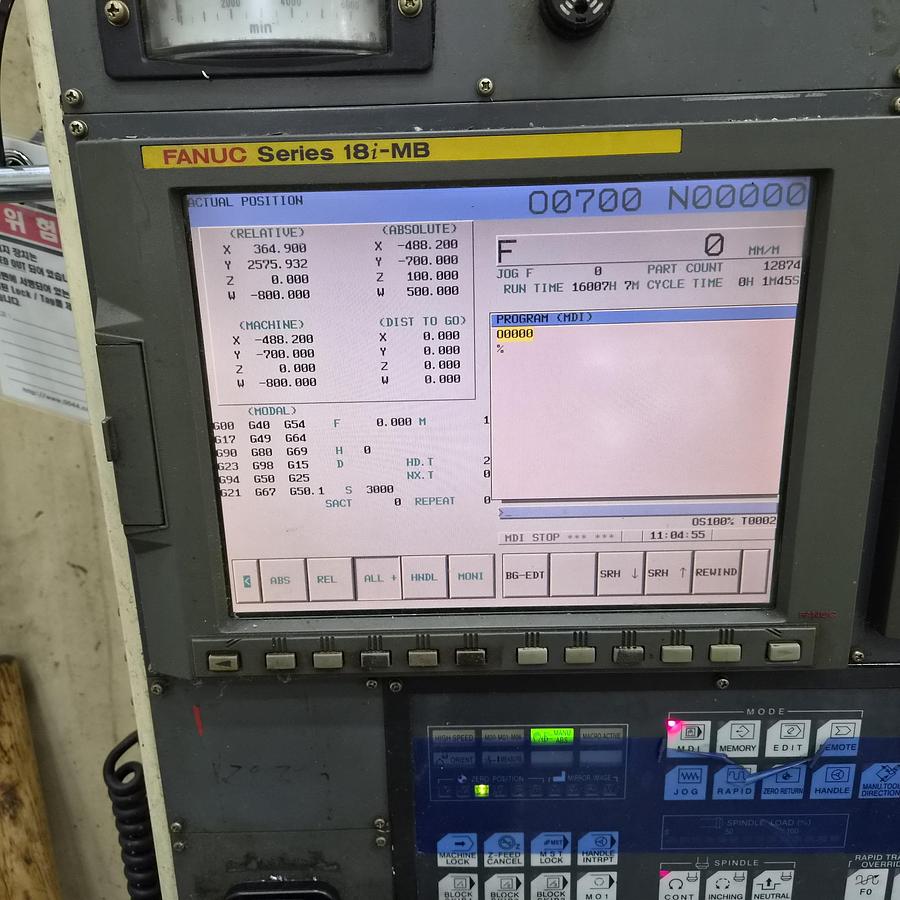

Fanuc 18iMB CNC Control
60 Position Automatic Tool Changer
Automatic Attachment Changer
Right angle head (5deg. Index)
30deg. angle head
Scale feedback system X,Y and Z axes

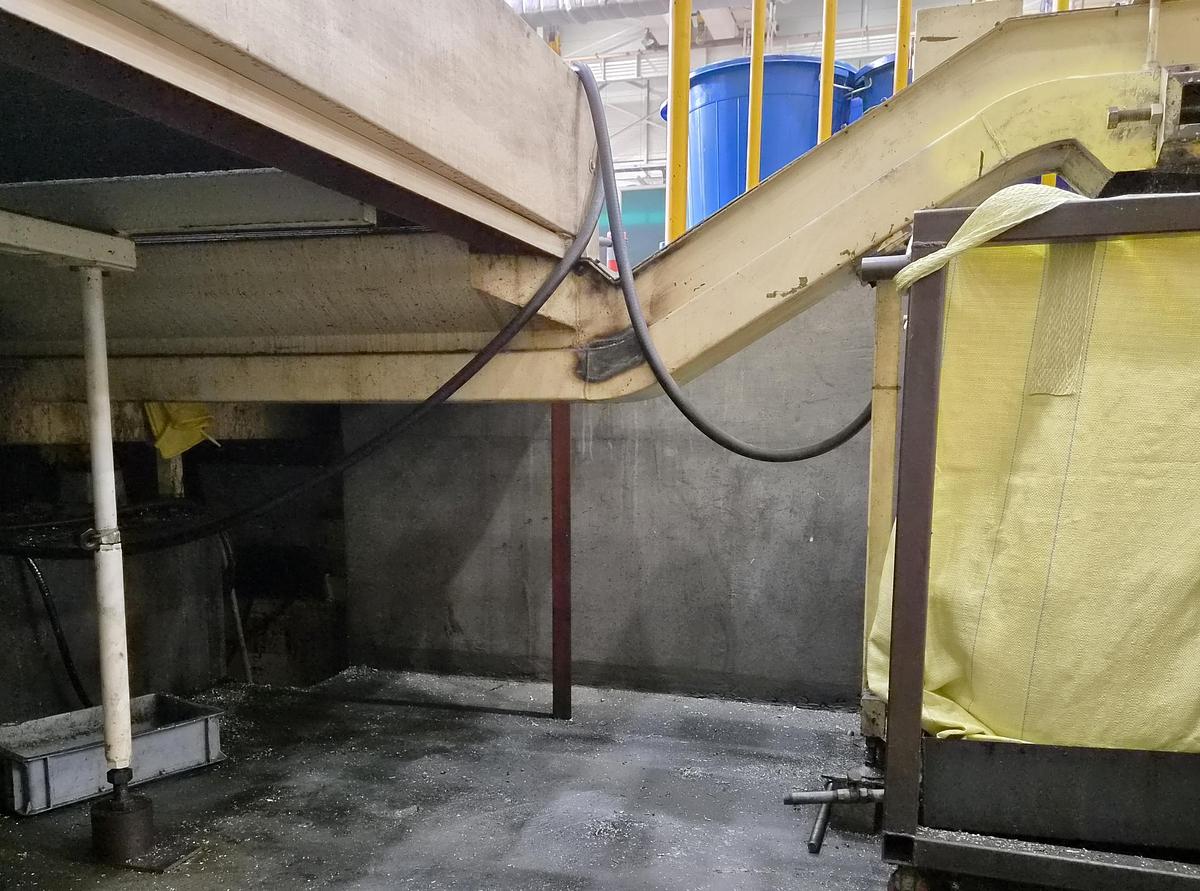

Chip Conveyor
Specifications
| Manufacturer | SNK |
| Model | RB-7VM |
| Year | 2005 |
| Condition | Used |
| Stock Number | 5654415 |
| Spindle speeds | 40 - 6,000 rpm |
| Between columns | 4,100 mm |
| Distance table top to spindle end | 0 - 2,000 mm |
| X axis travel | 8,250 mm |
| Y axis travel | 4,500 mm |
| Z axis travel | 600 mm |
| Table dimensions | 3,500 x 8,000 mm |
| Table capacity | 30 Ton |
| W axis travel | 2,000 mm |
| Spindle / quill diamater | 90 / 300 mm |
| Spindle motor | VAC 22 / 30 kW |
| Spindle taper | ISO 50 |
| Rapid feed X / Y / Z / W | 15 / 15 /8 / 4 m/min |
| Cutting feed X / Y / Z | 1 - 6,000 mm/min |
| Cutting feed W | 1 - 4,000 mm/min |
