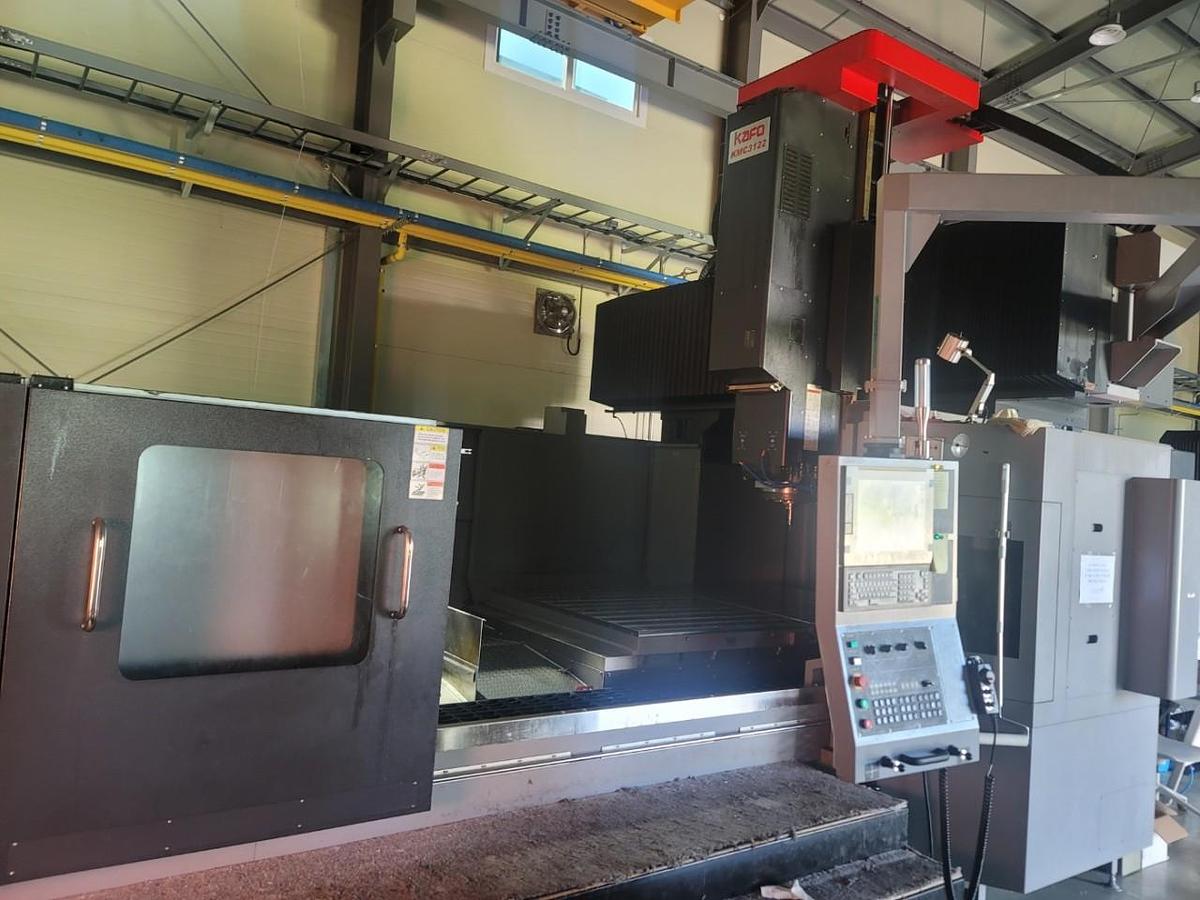

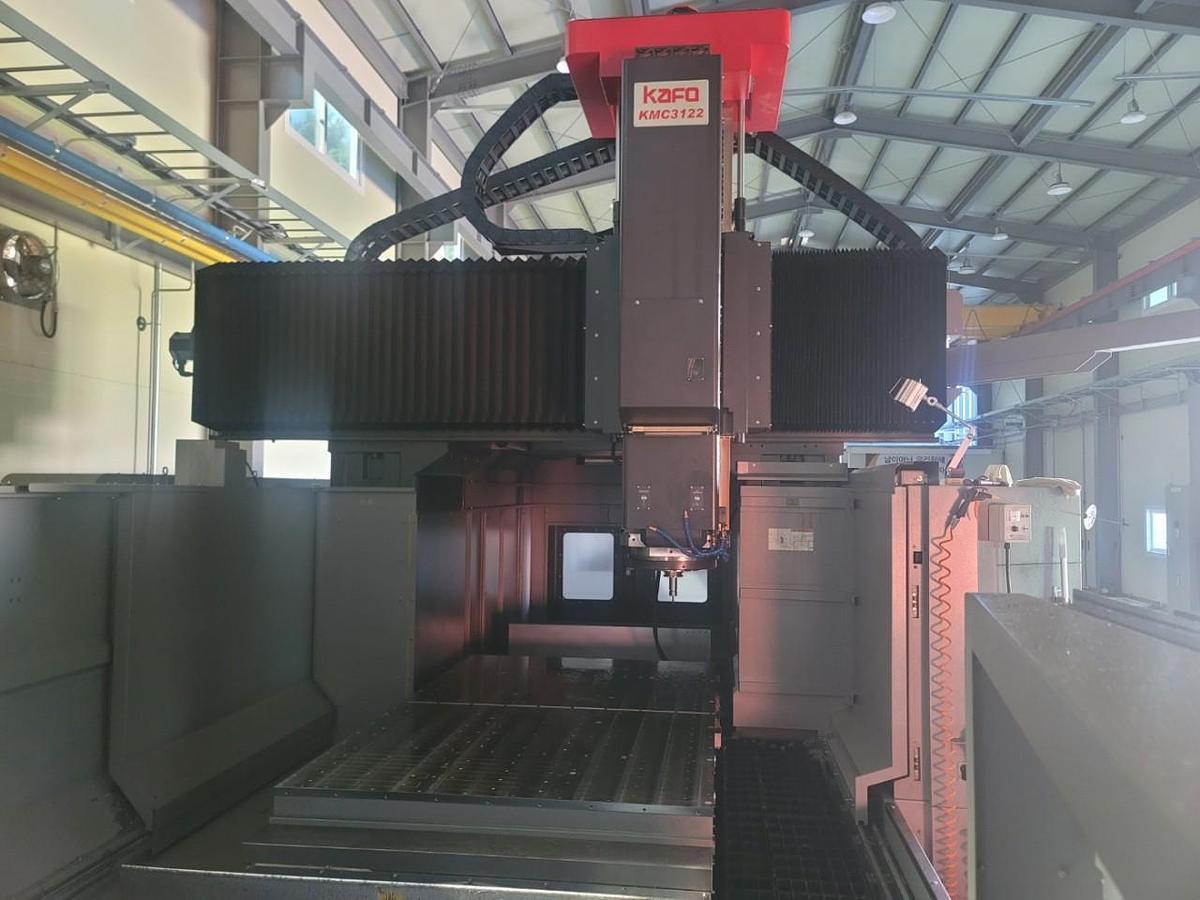

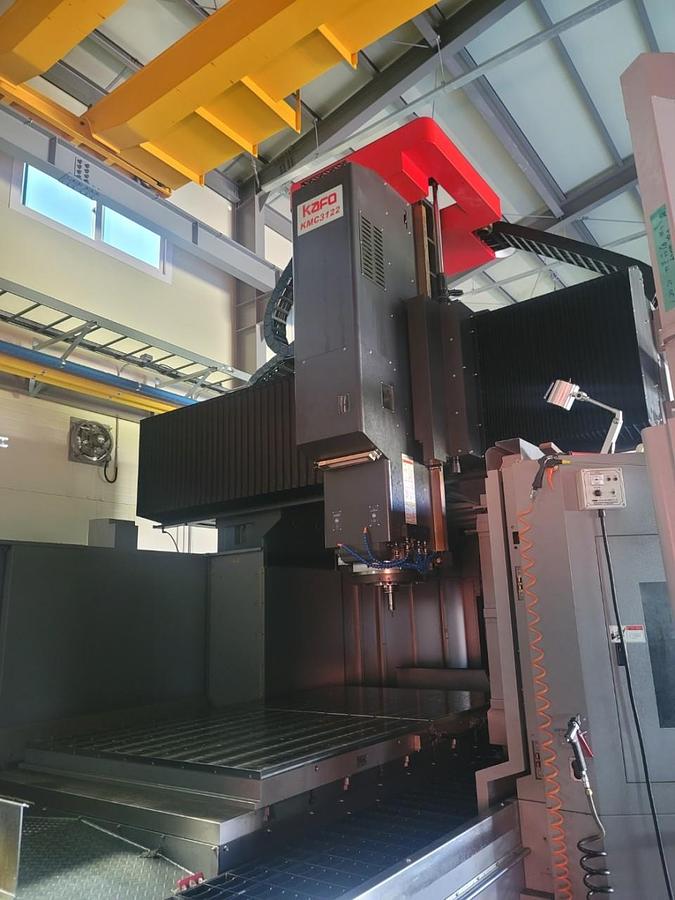

KaoFong KMC 3122 CNC Double Column Milling Machine
KaoFong KMC 3122 CNC Double Column Milling Machine
or
Call 770-509-0744
Description

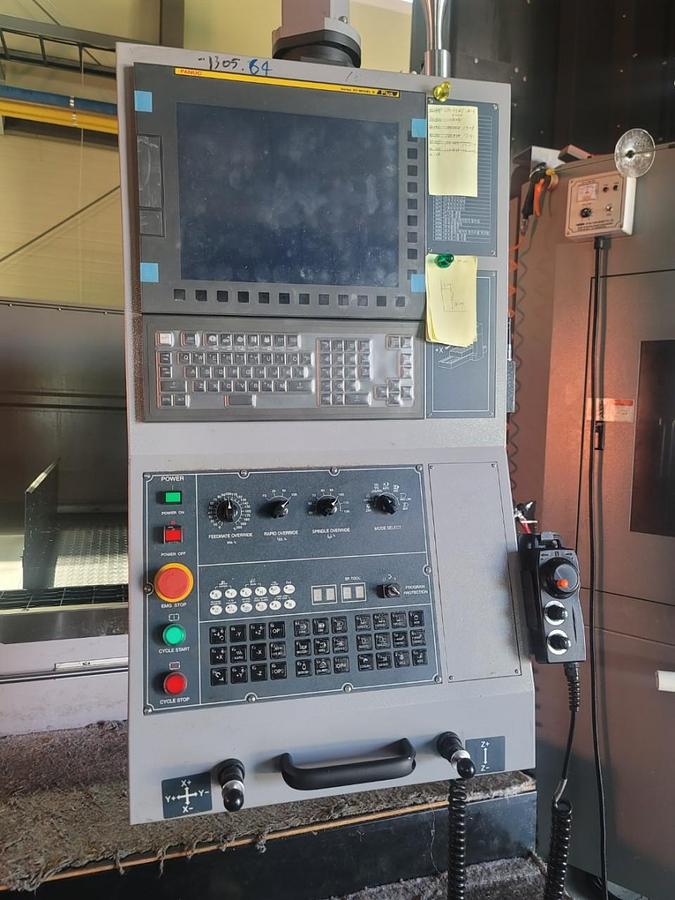

Fanuc 31iB CNC Control

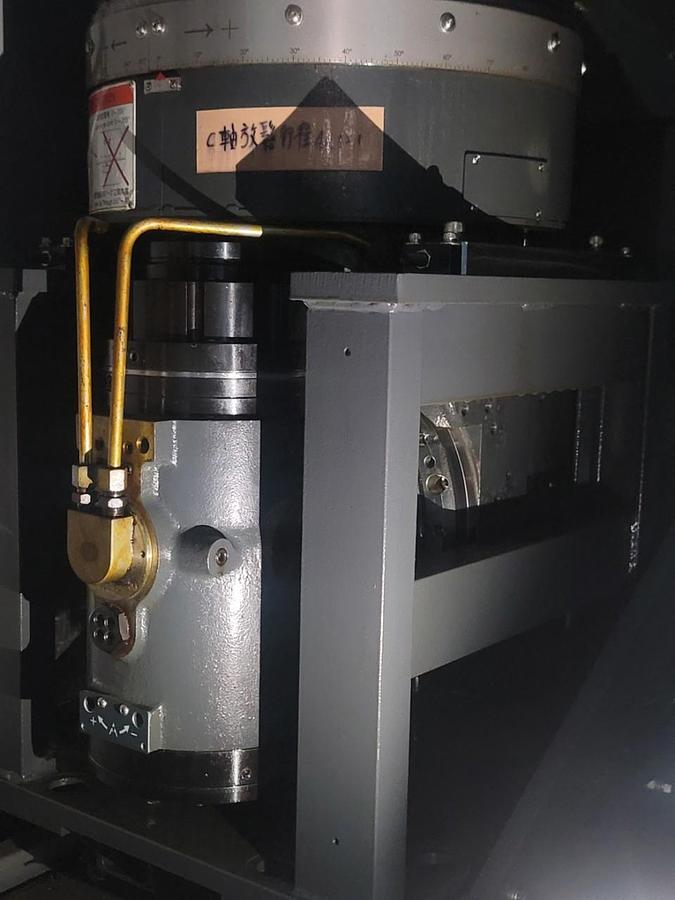

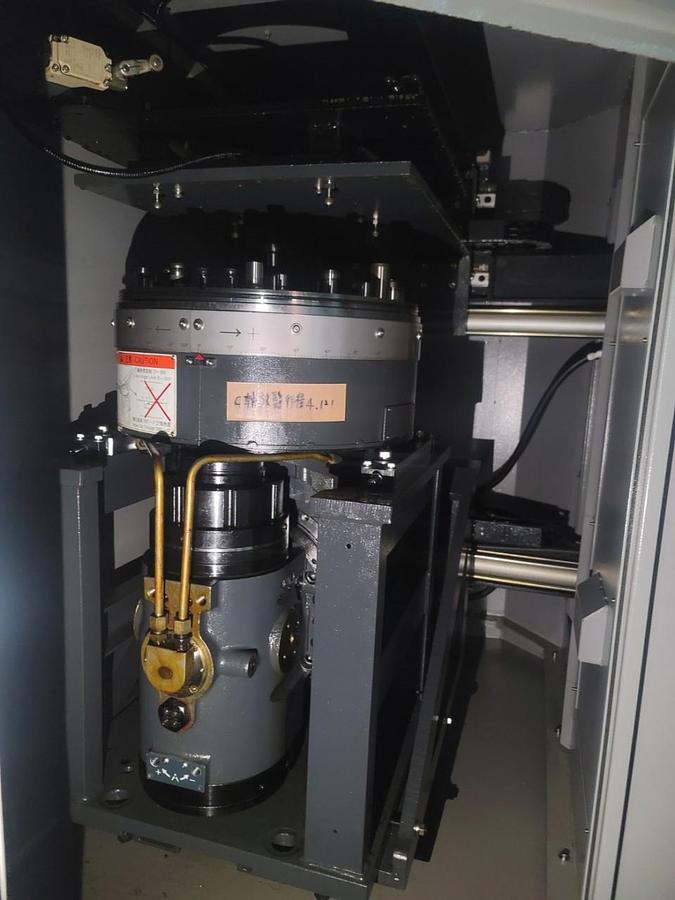

5 Degree Indexing Universal head
40 Position Autoamtic Tool Changer
Air Blow

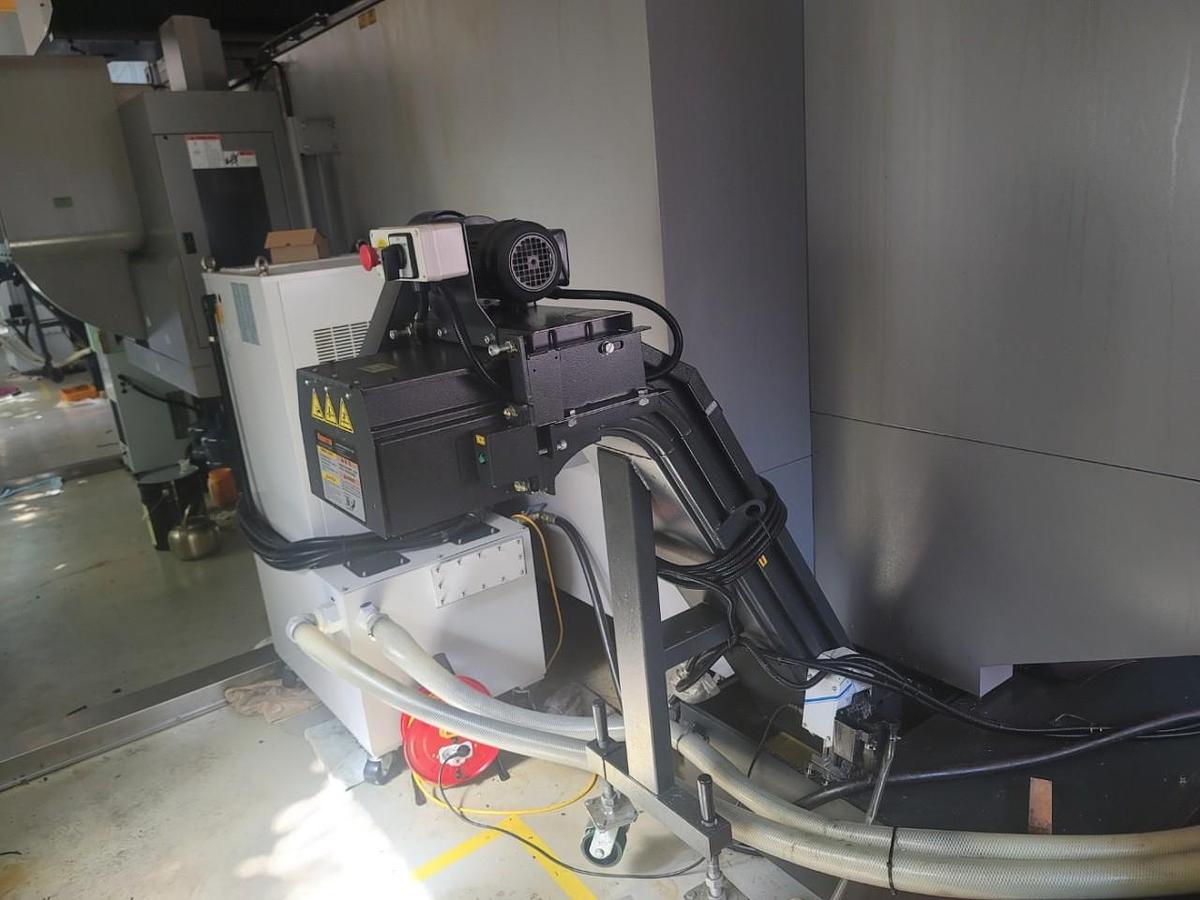

Chip Conveyor
Specifications
| Manufacturer | KaoFong |
| Model | KMC 3122 |
| Year | 2022 |
| Condition | Used |
| Stock Number | 5654414 |
| Between columns | 1,850 mm |
| Spindle speeds | 6,000 rpm (gearbox type) |
| X axis travel | 3,100 mm |
| Y axis travel | 2,200 mm |
| Z axis travel | 1,000 mm |
| Table size | 1,600 x 3,000 mm |
| Table capacity | 11,000 kg |
| Spindle taper | BT 50 |
