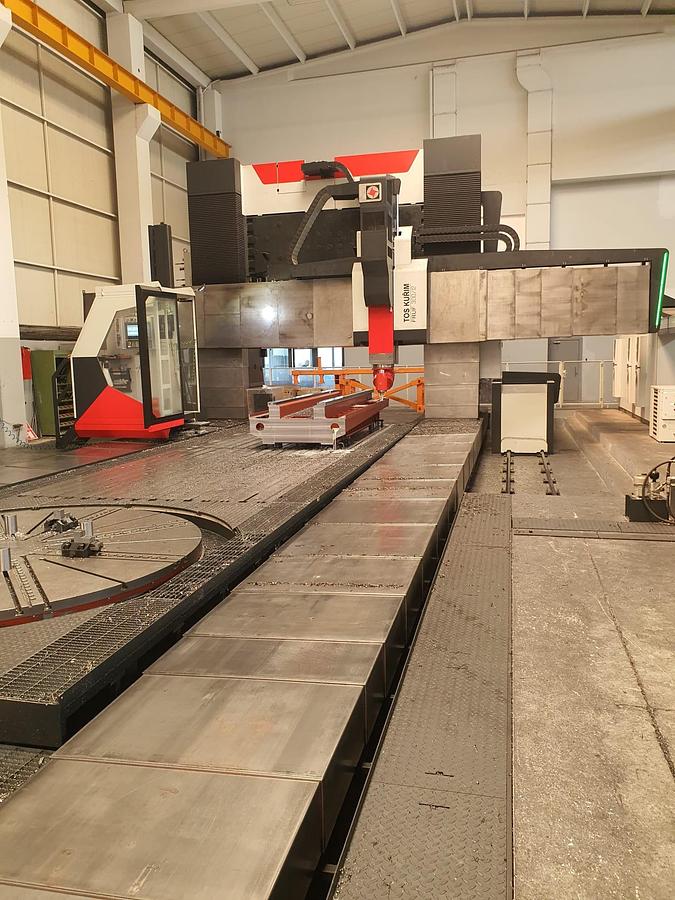

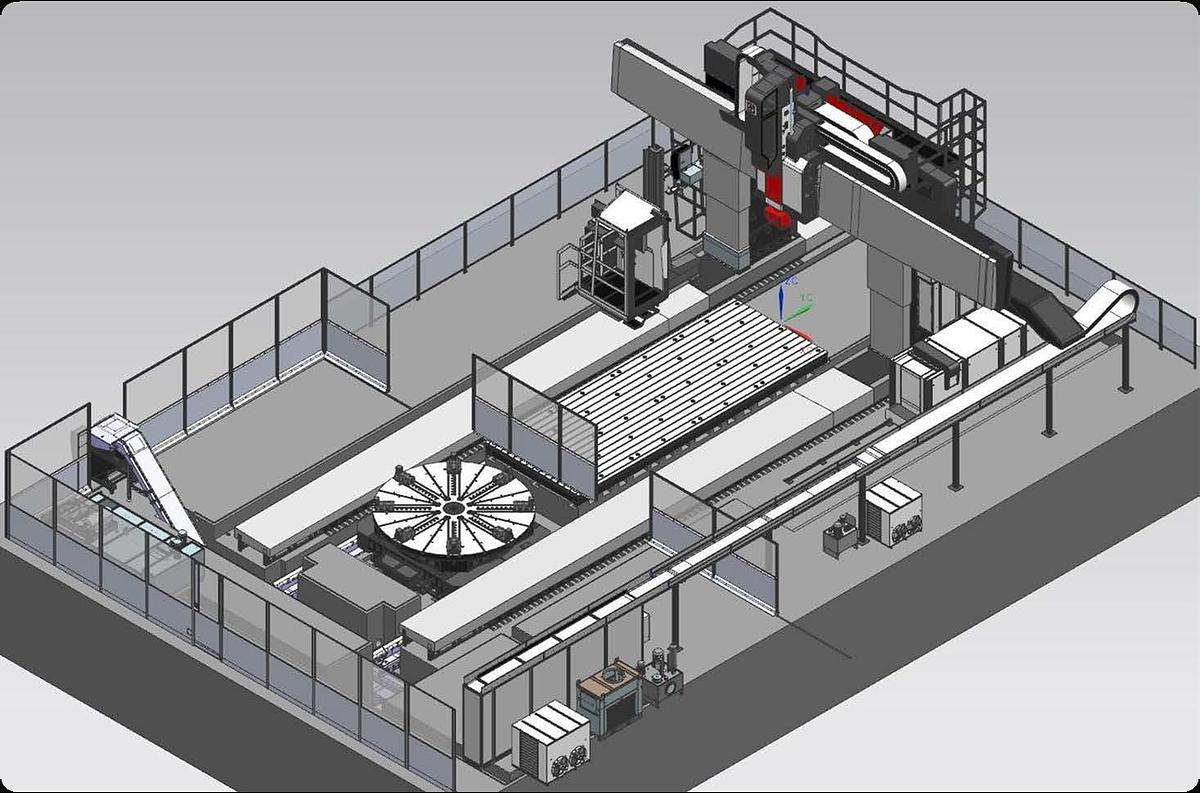

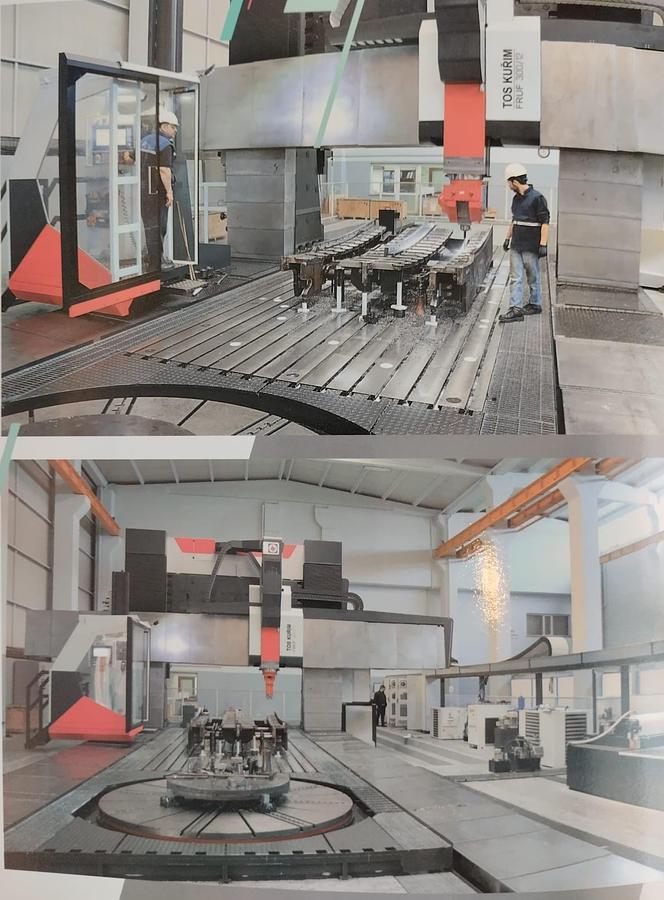

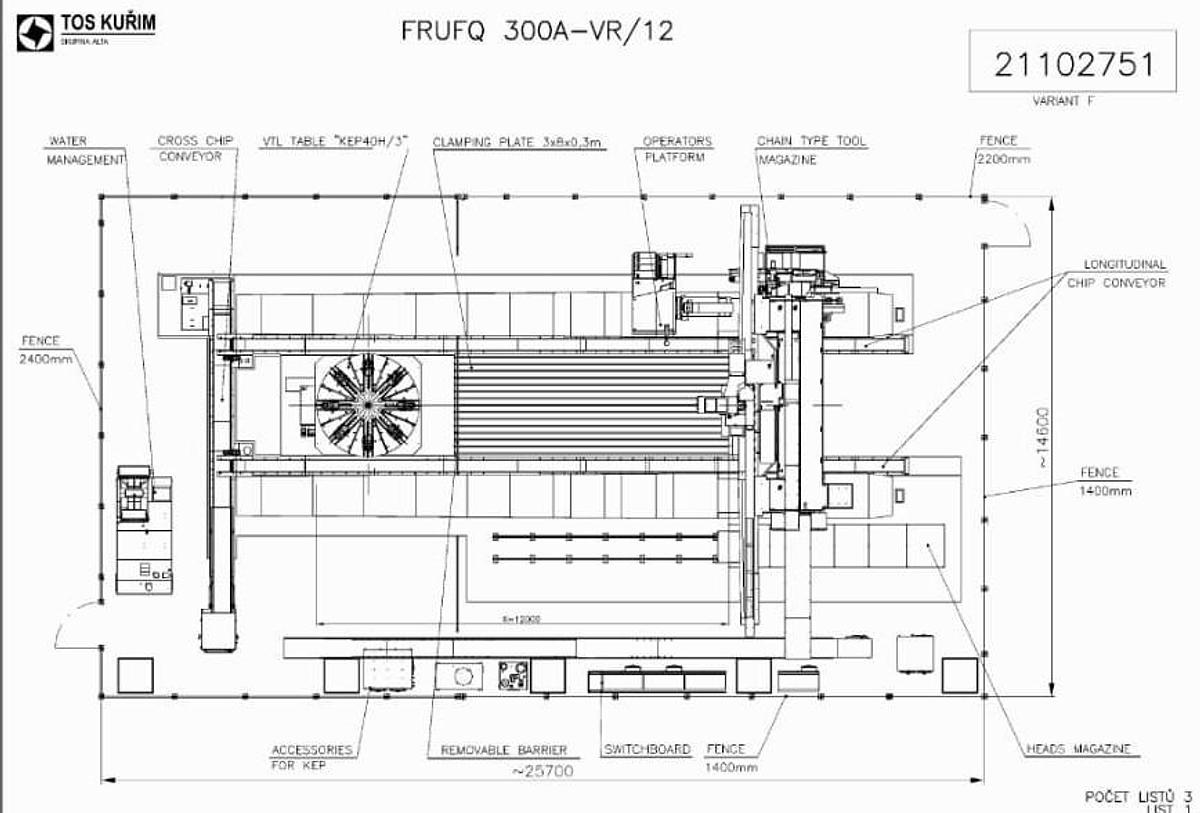

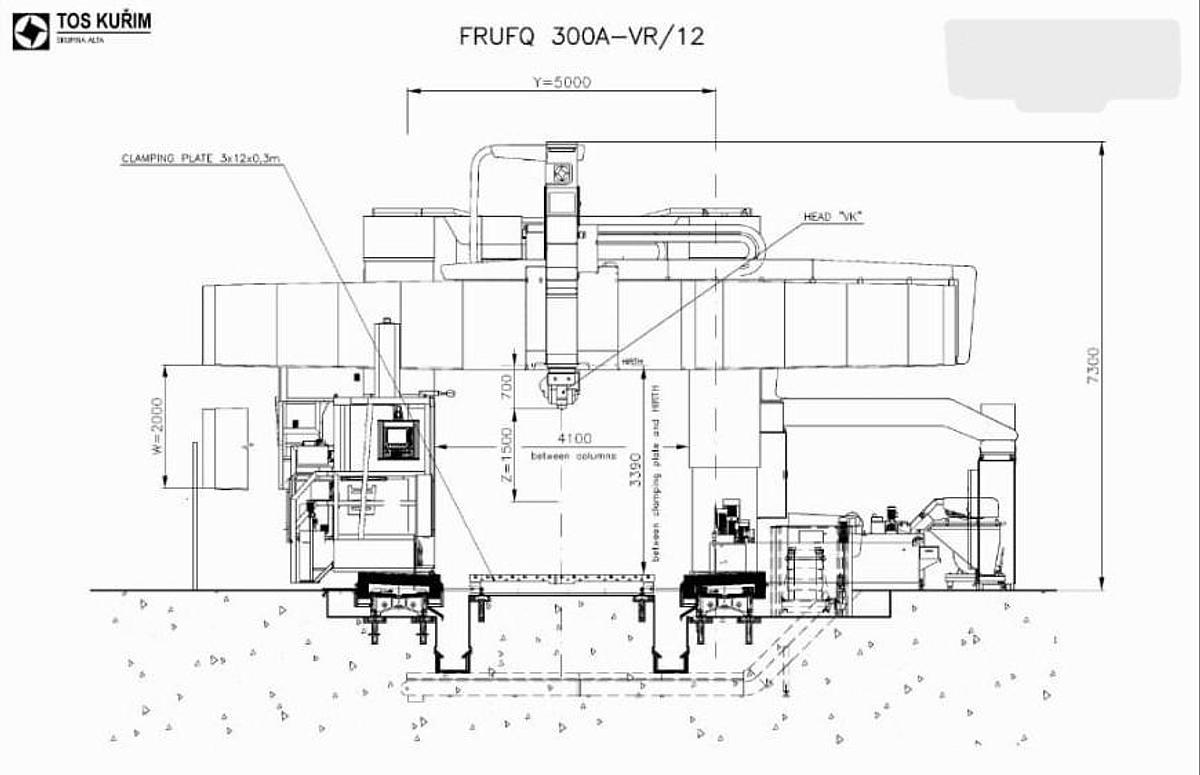

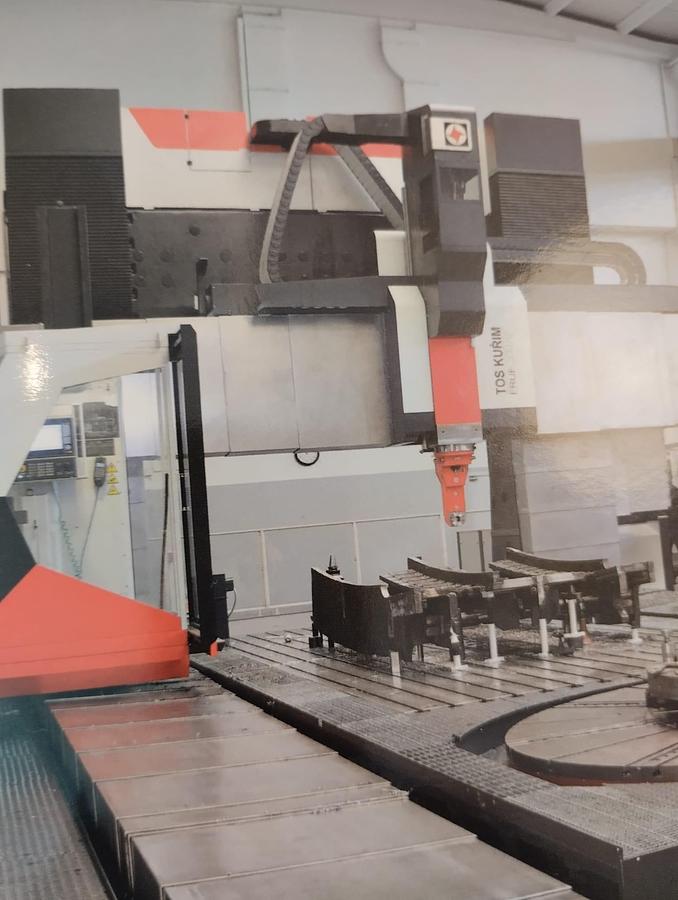

TOS KURIM FRUF 300/12 CNC Gantry Type Milling Machine with 3000mm Diameter VTL Rotary Table and 2-Axis Sweeping Head

Siemens SINUMERIK 840D SL CNC Control

Chain Type Tool Magazine R60 with Panel HT8

Chip Conveyor

Low Pressure Coolant for External - 3000 L Tanks - 10 bar pump - 60 l/mi

High Pressure Coolant for Internal - 40 bar pump - 30 l/min

Fixed Operator Space on Working Platform Vertically Adjustable - 2,000 mm

Measuring system rotary axis rotary encoders from HEIDENHAIN

Linear incremental measuring HEIDENHAIN

Spindle and feed drive - digital drive SINAMICS S120

Portable Control Panel for Machine Control - Radio Hand Wheel Hubitron HBG800 DP

Workpiece probe RMP 60 1 pcs.

Tool probe NC4 1 pcs.

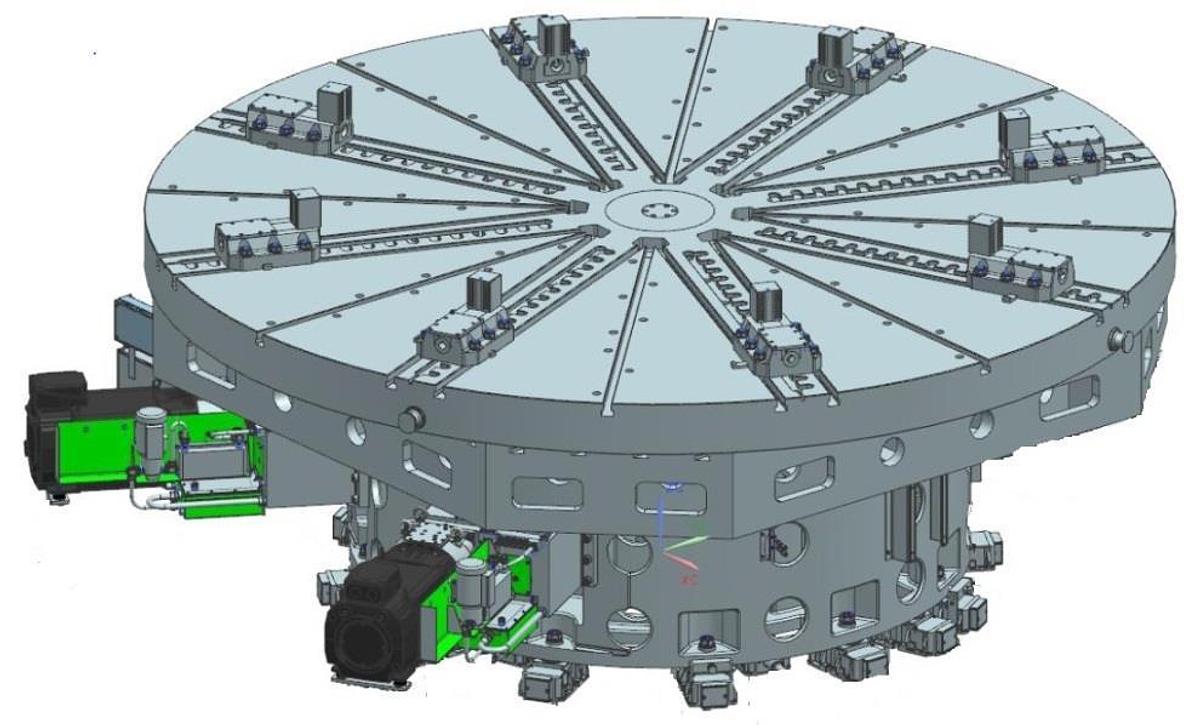

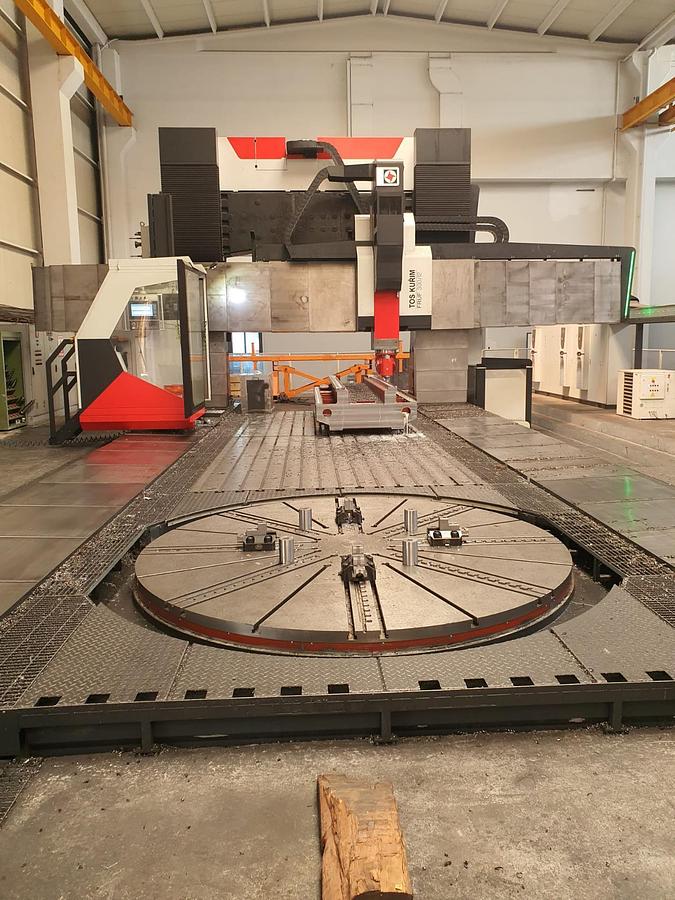

Rotary VTL table “KEP 40H/3 –Table diameter 3000mm, load Capacity 40 tons

Dimensions of clamping table surface ᶲ3000 mm

Range of working speed of rotation in rotary axis for turning 1 - 100 rpm

Table loading – centric 40,000 kg

Motor output in rotary axis 2x60 kW

Max. torque at rotation 30,000 Nm

Programming unit (milling) 0.0001˚

Clamping jaws 8 Pcs

Clamping Plate:

The plate consists of castings from grey část. On upper part of plate are cross clamping T-slots.

Table dimension

- width 3000 mm

- length 8000 mm

- height 300 mm

- height from floor 0 mm

Clamping T-slots longitudinal

– number 15 pcs

– pitch 200 mm

– dimension

– width at table center 28 H7 mm

- width of other slots 28 H11 mm

Max. loading 6000 kg/m2

MILLING HEAD EXCHANGE Moveable head magazine with baskets for heads VZN1, VK, VO, VG spec., VA4 and VP14 1 pcs

Milling Heads:

• Exchangeable milling head of type VK (2 axes head), ISO 50 4000 rev./min 1 pc
• Exchangeable milling head of type VO (universal head), ISO 50 4000 rev./min 1 pc
• Turning holder VZN1 with 2 positions for CAPTO C6 1 Pc
• Grinding head VG spec. 1 Pc
• Exchangeable milling head of type VA4 (straight head), ISO 50 4000 rev./min 1 pc
• Exchangeable milling head of type VP14 (angle head), ISO 50 4000 rev./min 1 pc

BED AND LONGITUDINAL SLIDES

Longitudinal working stroke of portal axis X 12000 mm

Programming unit axis X 0,001 mm

Feed force axis X 30000 N

Feed range axis X 1 – 20000 mm/min

Positioning accuracy (in length of 2 m in current workspace) according to ISO 230-2 axis X 20 μm

One-side repeatability of positioning (in length of 2 m in current workspace) according to ISO 230-2 axis X 10 μm

PORTAL

Portal with moveable cross-rail, working stroke axis W 2000 mm

Programming unit axis W 0,001 mm

Feed range axis W 1 – 4000 mm/min

Feed force axis W 30000 N

Accuracy of positioning according to ISO 230-2 axis W 20 μm

One-side repeatability of positioning according to ISO 230-2 axis W 10 μm

Positioning accuracy (in length of 2 m in current workpiece) according to ISO 230-2 axis W 20 μm

One-side repeatability of positioning (in length of 2 m in current workpiece) according to ISO 230-2 axis W 10 μm

HEADSTOCK AND CROSS-SLIDES

Cross-slides, cross stroke axis Y 5000 mm

Programming unit axis Y 0,001 mm

Feed force axis Y 30000 N

Feed range axis Y 1 – 20000 mm/min

Positioning accuracy according to ISO 230-2 (in length of 2 m in current working space) axis Y 20 μm

One-side repeatability of positioning according to ISO 230-2 (in length of 2 m in current working space) axis Y 10 μm

Headstock for exchangeable milling heads, working stroke of the headstock axis Z 1500 mm

Programming unit axis Z 0,001 mm

Feed force axis Z 30 000 N

Feed range axis Z 1 – 15000 mm/min

Positioning accuracy according to ISO 230-2 axis Z 20 μm

One-side repeatability of positioning according to ISO 230-2 axis Z 10 μm

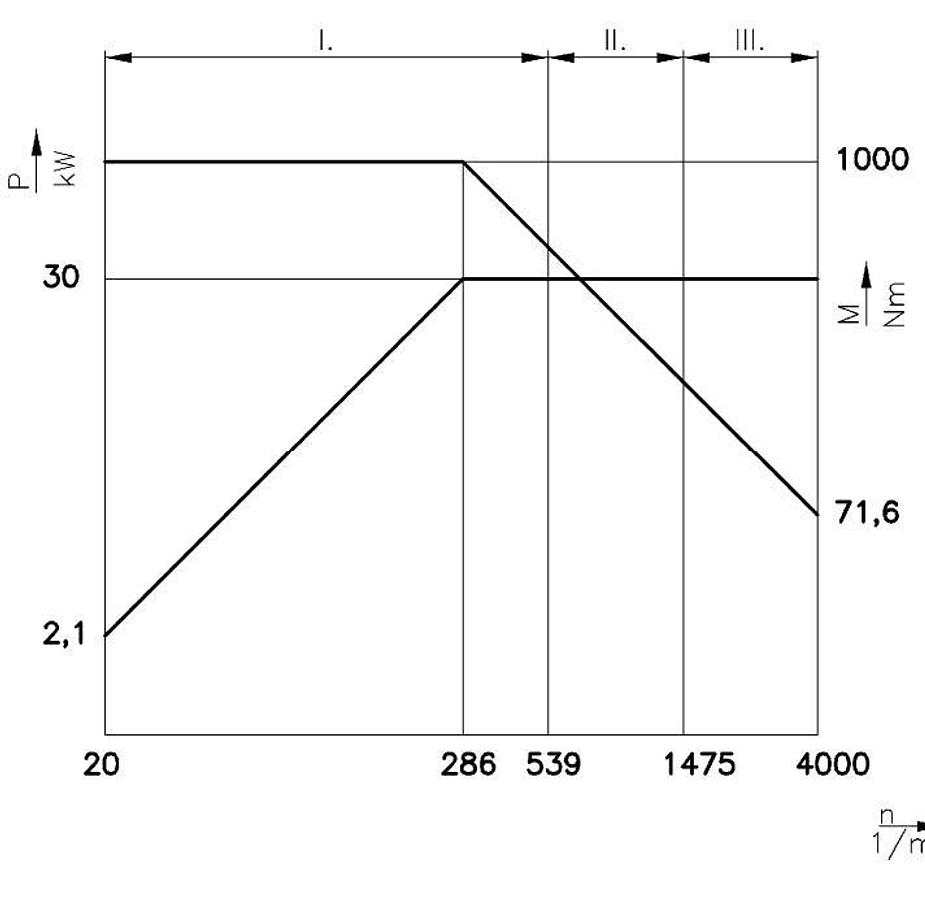

Milling Head Details:

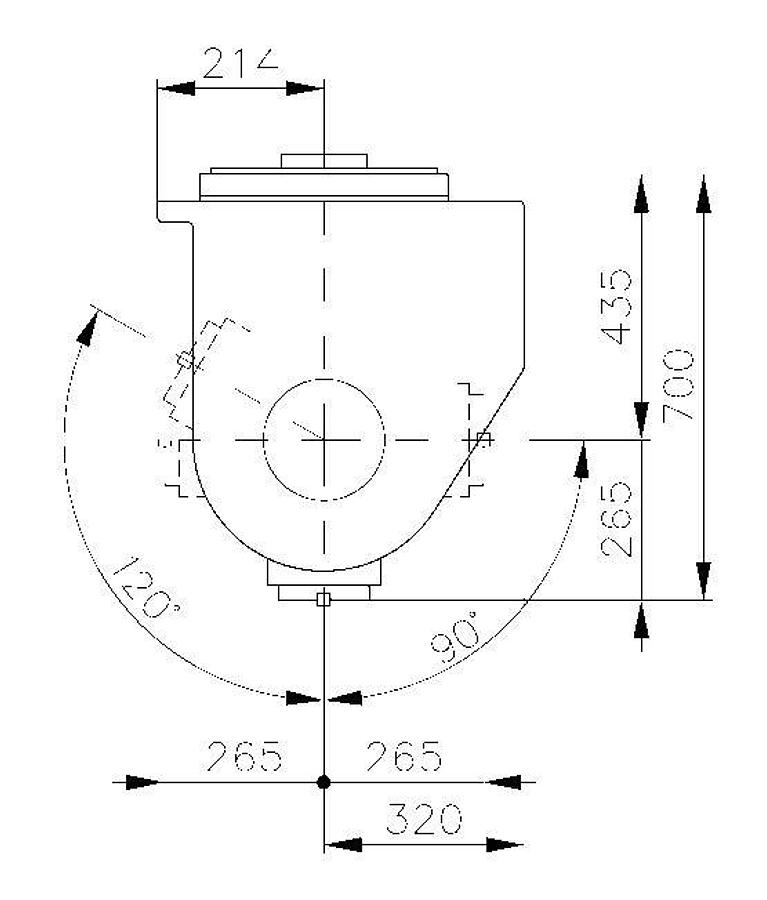

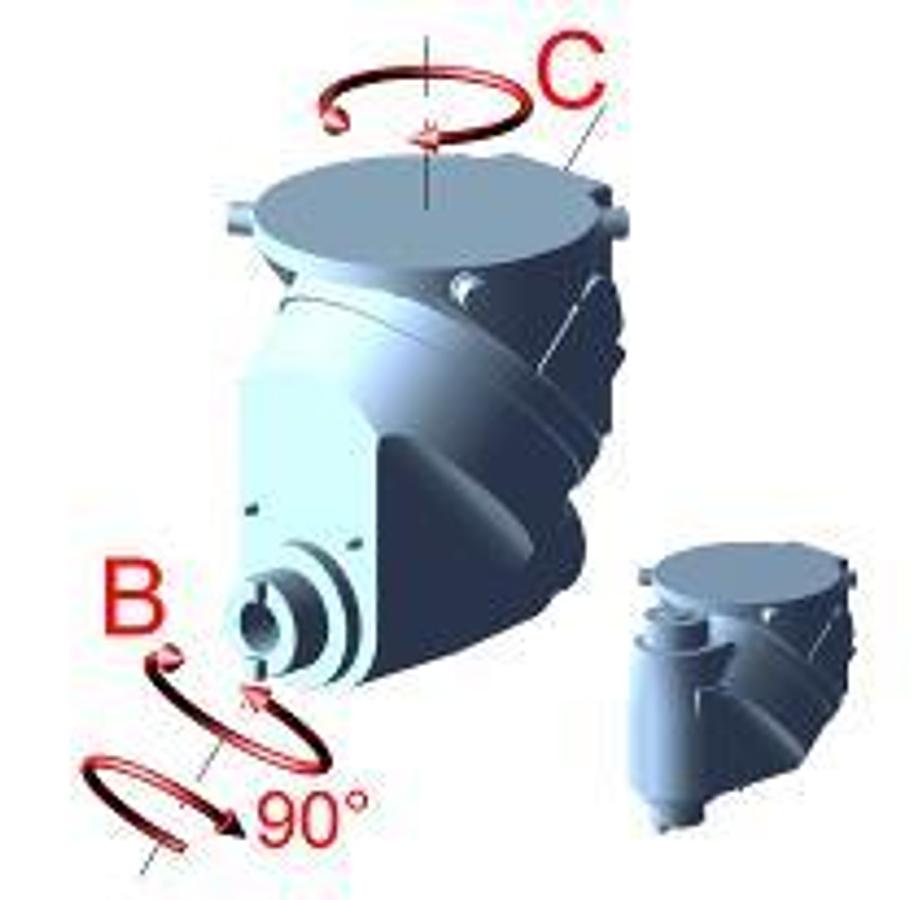

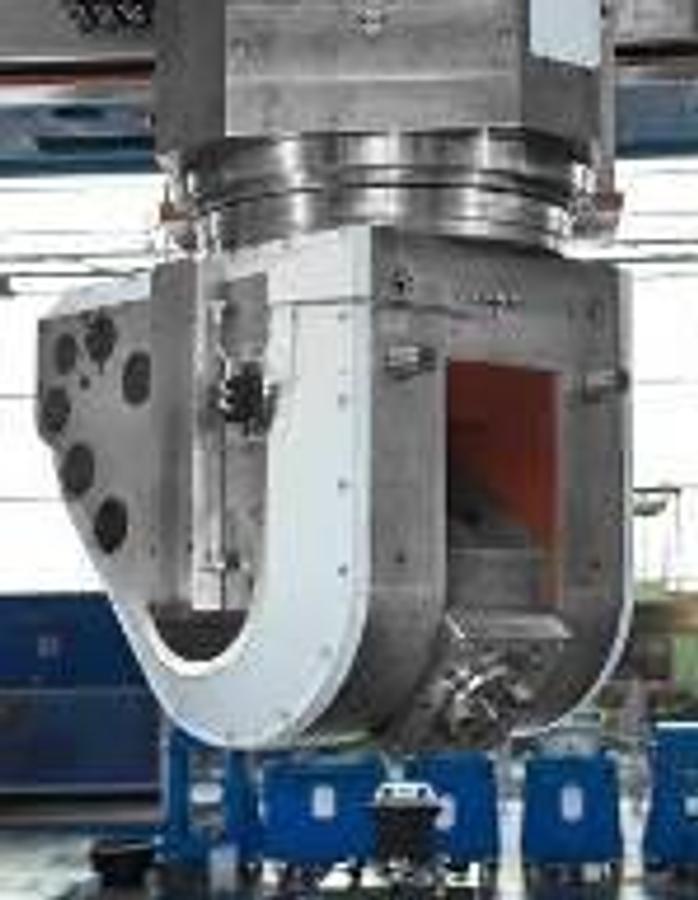

Milling head type VK (2 axes head)

Single spindle head - continuously turn able in 2 rotary axes. Around the headstock axis C in the range of ±180° with the possibility of mechanic indexing is 1° and around the axis B, which is perpendicular to this axis in the range of +120° to -90° with the possibility of damping in adjusted position by means of hydraulic controlled friction brake. Mechanism of turning around the headstock axis C with the indexing is a part of headstock. Mechanism of turning around the second rotary axis B is a part of spindle head and is provided by means of servomotor through gears, which compose of closed chain of gears with mechanical backlash elimination in the gears. Drive of spindle is provided by headstock through 3 couples of bevel gears.

The spindle is provided with an automatic tool clamping system by means of Belleville springs with clamping force multiplier, releasing is carried out with a hydraulic cylinder. The spindle bearings are lubricated with lifelong plastic lubricant. The spindle is provided with ISO 50 as per ČSN ISO 7388-1: 2011.

Spindle taper ISO 50

Spindle speed – continuously 20 – 4,000 rpm

Total motor output on main spindle 30 kW

Max. spindle torque 1,000 Nm

Speed of spindle turning around cross axis/axis to perpendicular to cross axis 1-1,800 / 1-5,400 °/min

Max. torque around cross axis / axis perpendicular to cross axis 2,500 / 2,400 Nm

Double-sided precision of A position adjustment around cross axis / axis perpendicular to cross axis (according to ČSN ISO 230-2) 16/16 "

Single-sided repeatability of R position adjustment around cross axis / axis perpendicular to cross axis (according to ČSN ISO 230-2) 8/8 "

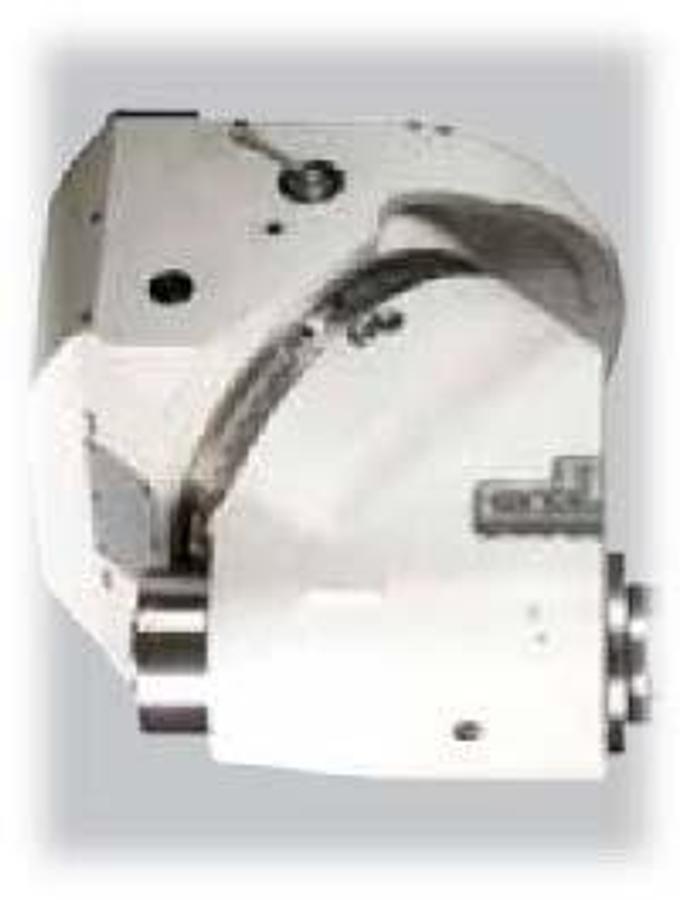

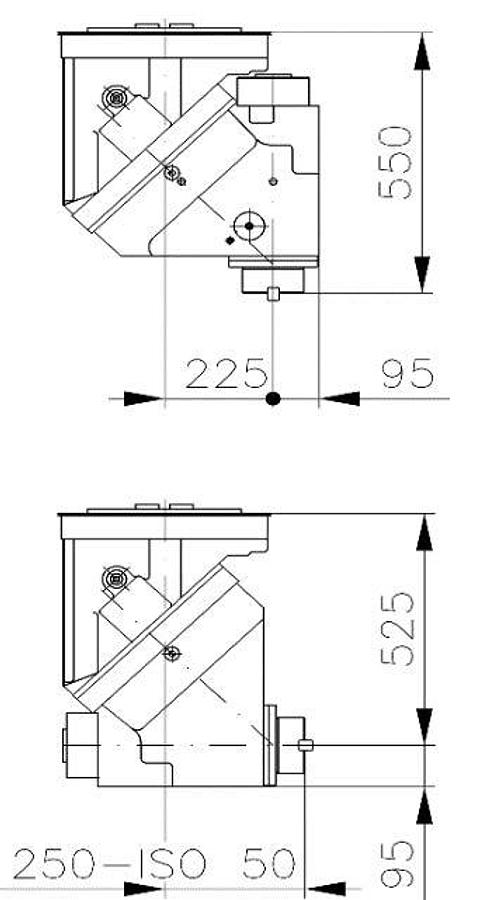

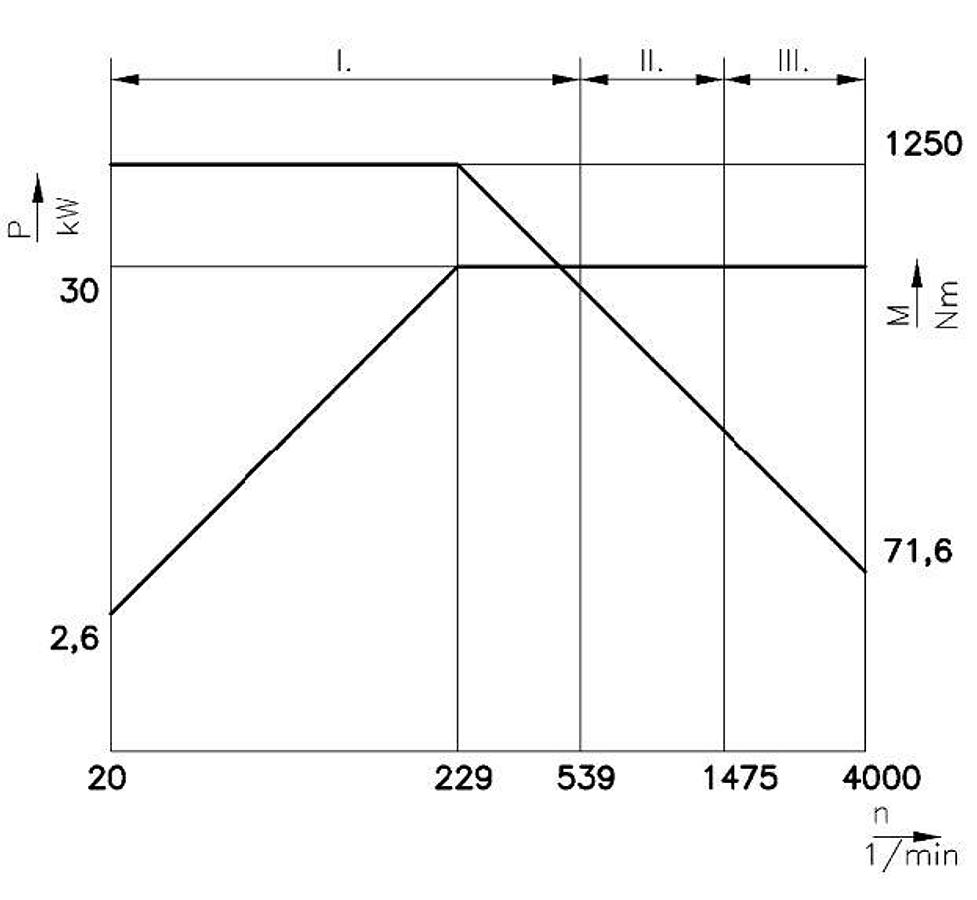

Milling head type VO (universal head)

Single-spindle head with the spindle adjustable automatically in either vertical or horizontal position – continuously revolving around the headstock axis within the range of 180o, with possibility of mechanical indexing by 1o. The drive mechanism for spindle head turning around the headstock axis

with indexing is a part of the headstock. The spindle head is also revolving around the axis inclined in the angle of 45o with respect to the headstock axis which allows automatic spindle resetting in either vertical or horizontal position or any intermediate position by 2.5o. Positioning in this axis is derived from the spindle control servo drive; the spindle part of the head is locked in gear rims in the position. The spindle drive is derived from the drive shaft of the headstock through two pairs of bevel gears. The spindle is provided with ISO 50 as per ČSN ISO 7388-1: 2011.

Spindle taper ISO 50

Spindle speed (continuously) 20 – 4 000 rev./min

Max. torque 30 kW

Motor power output on the main spindle 1 250 Nm

Speed of spindle turning around vertical axis 1 - 1 800 °/min

Max. torque around the vertical axis 2 500 Nm

Double-sided precision of A position adjustment around vertical axis C to this axis (according ČSN ISO 230-2) 16”

Single-sided repeatability of R position adjustment around vertical axis C (according ČSN ISO 230-2) 8”

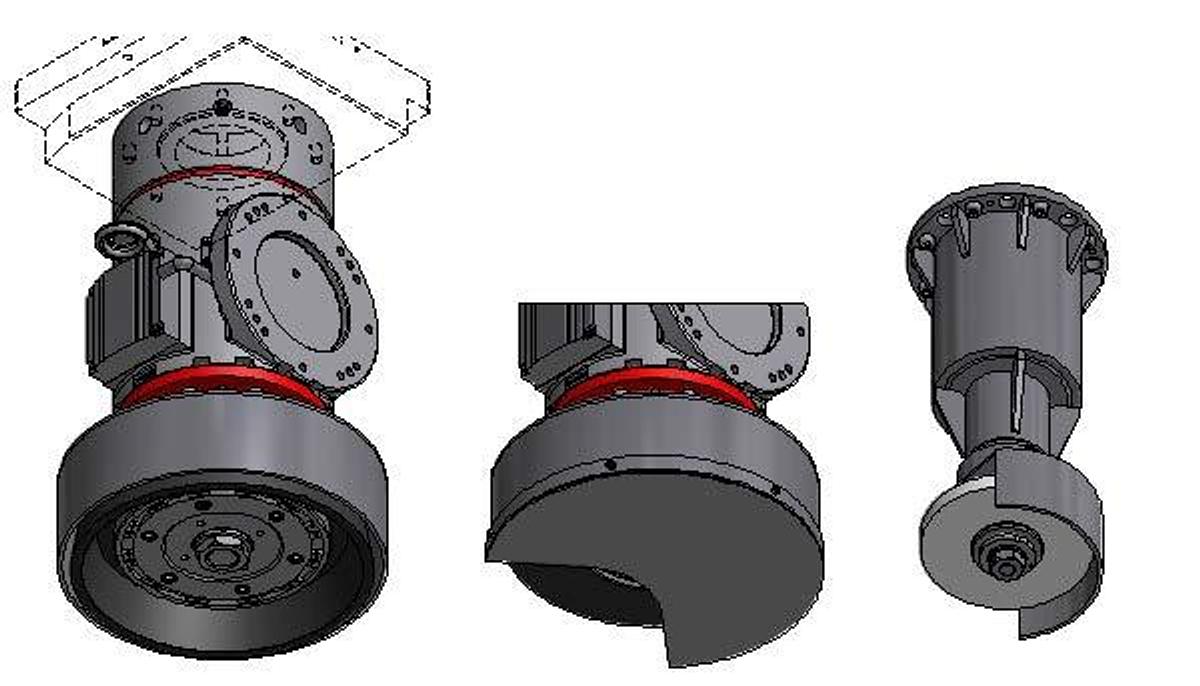

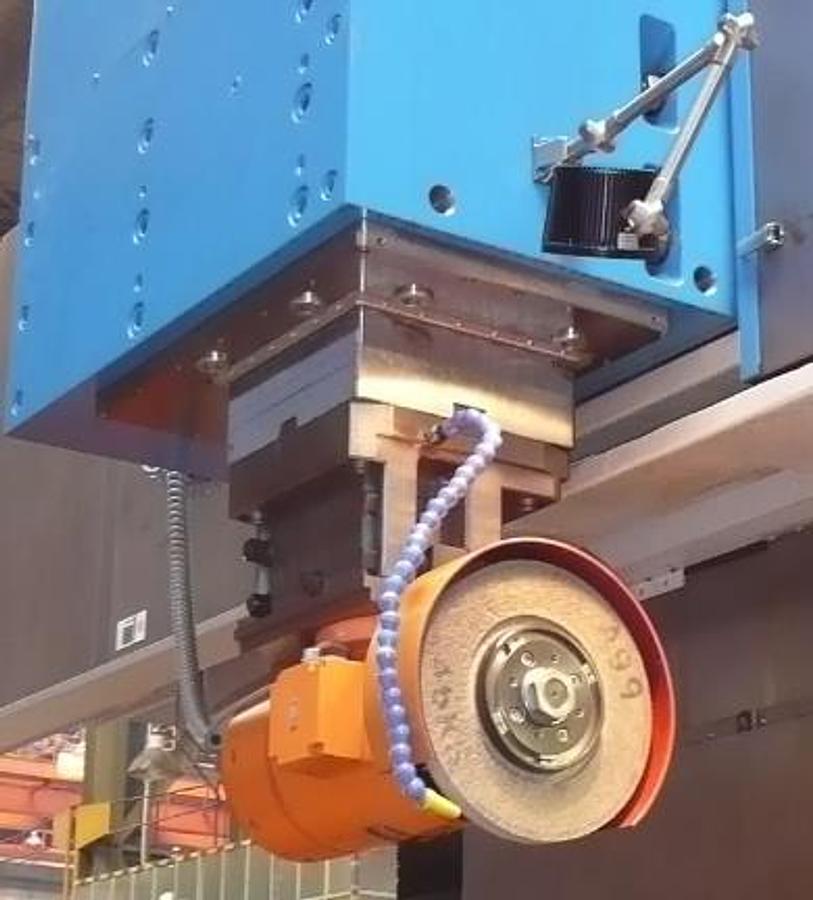

Grinding head VG spec.

The grinding head with a spindle axis perpendicular to the spindle headstock axis is intended as an optional equipment for TOS Kurim machines.

It appropriately expands their technological capabilities by enabling front and circumferential grinding of large workpiece surfaces.

Using the attachment, you can make grinding of holes.

The achievable surface roughness quality Ra = 0.8 depends on the choice of a suitable grinding wheel.

The grinding device is designed with an IP54 degree of protection, which allows cooling of the grinding wheel.

Grinding head can be manually set outside the machine in vertical and horizontal position.

Max. diameter of grinding wheel - on grinding head 350 mm

- On attachment of grinding head 200 mm

Min. diameter of grinded hole - without attachment 500 mm

- With attachment 240 mm

Spindle speed – I. range 1,415 rpm

- II. range 2870 rpm

Electromotor output - I. Range 3.7 kW

- II. Range 4.4 kW

Torque of electromotor - I. Range 29.4 Nm

- II. range 14.6 Nm

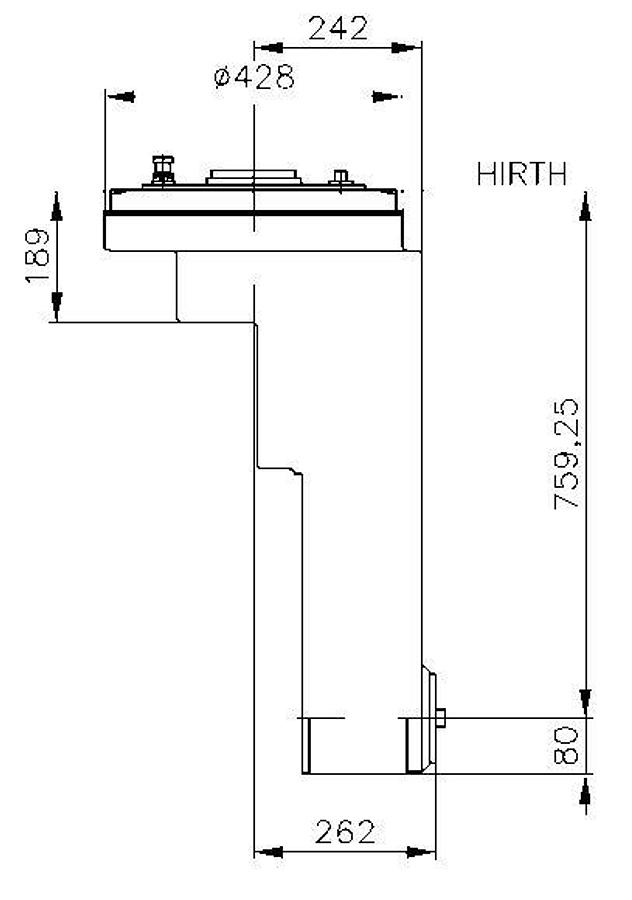

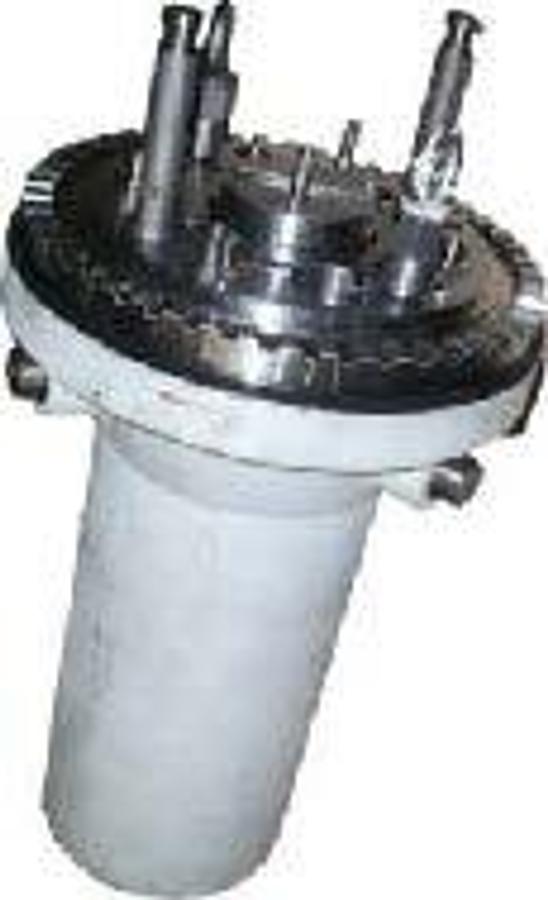

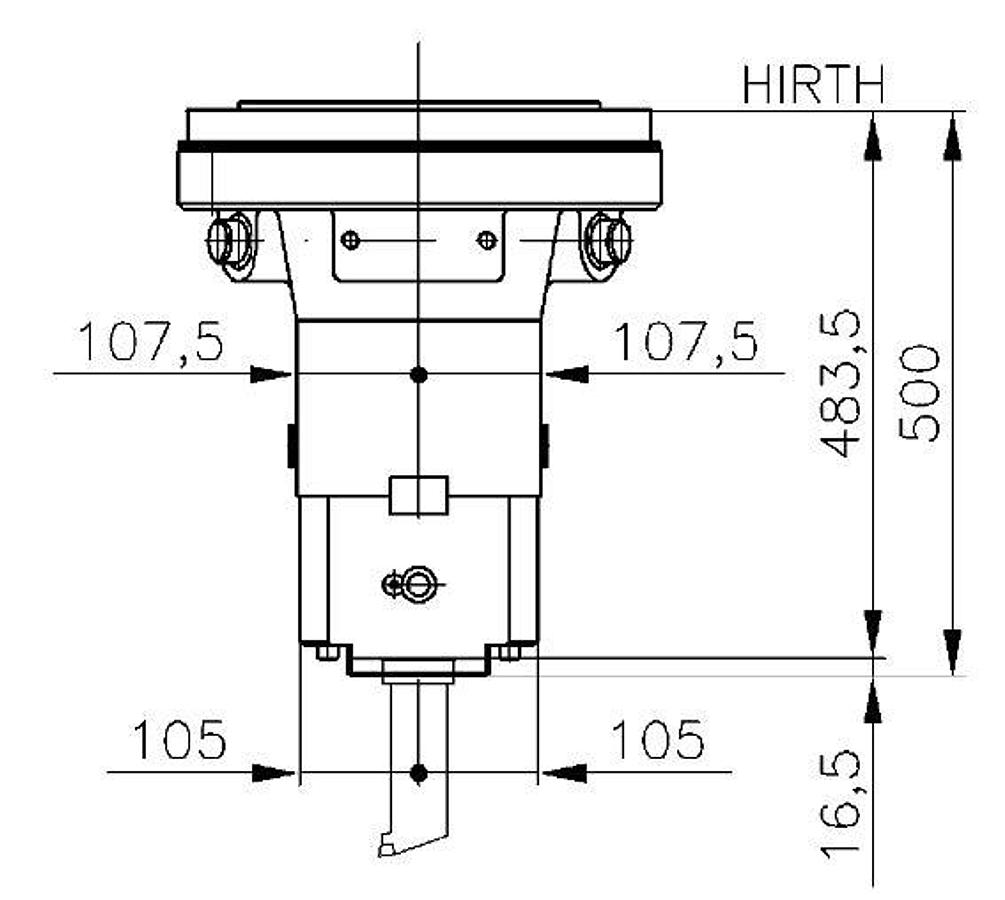

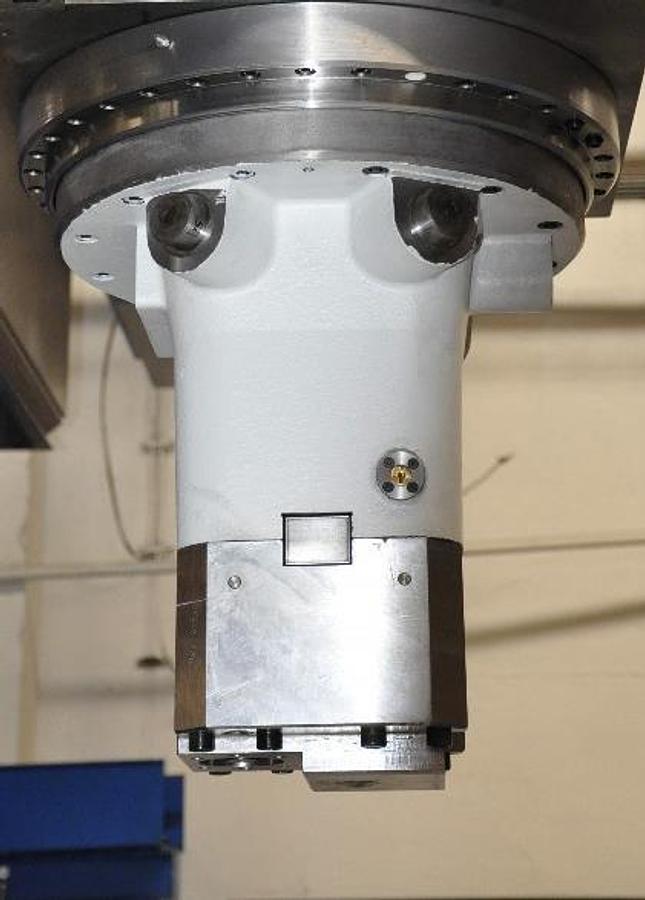

Knife holder type VZN1

Automatic exchangeable knife head for turning with horizontal and vertical tool clamping (knifes) - CAPTO C6

Total length of the knife holder (face/axis Hirth) – viz. chart – 500 mm.

Notice: according the customer requirement is possible to offer different length of knife holder.

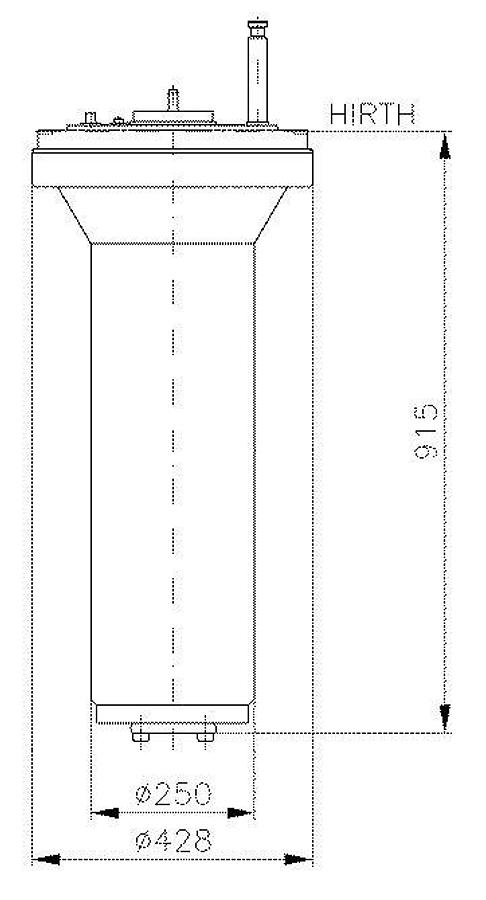

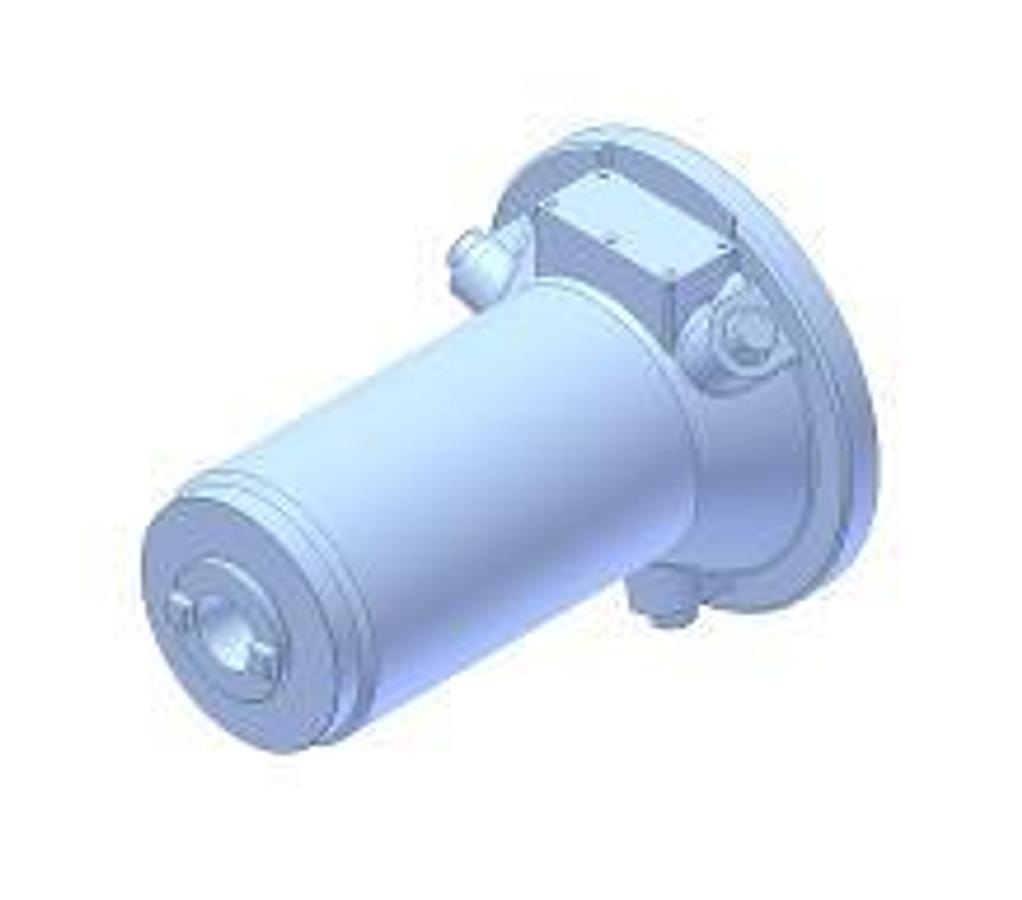

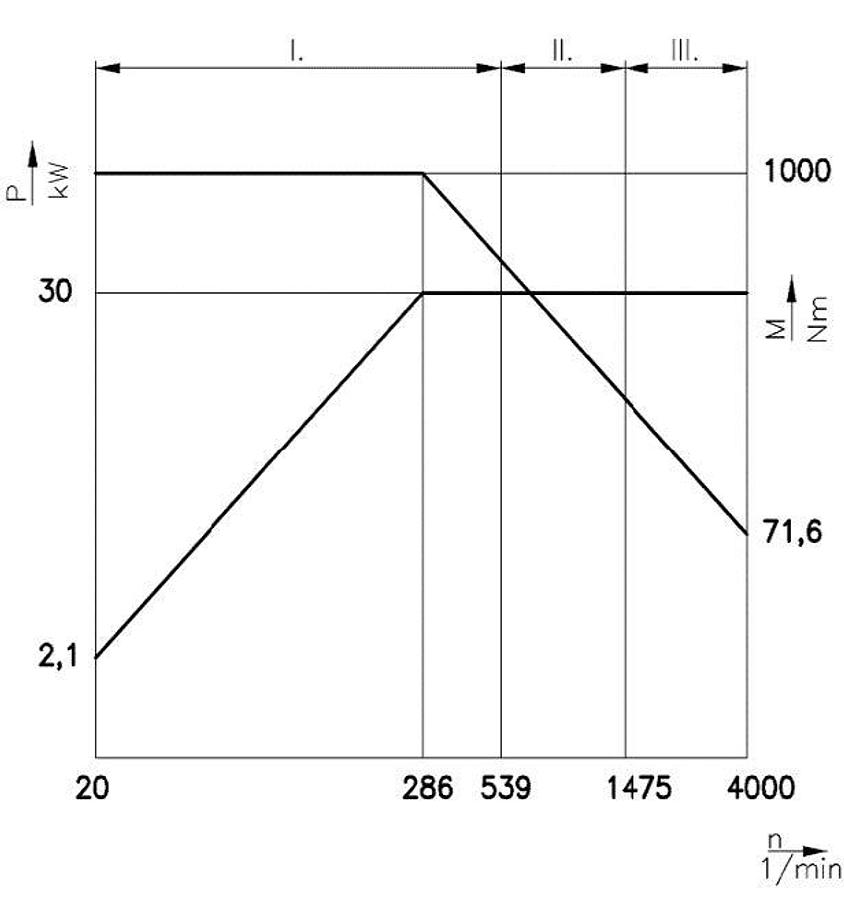

Milling head type VA4 – straight head

Spindle taper ISO 50

Spindle speed 20 – 4 000 rpm

Total motor output on main spindle 30 kW

Max. torque of spindle 1,000 Nm

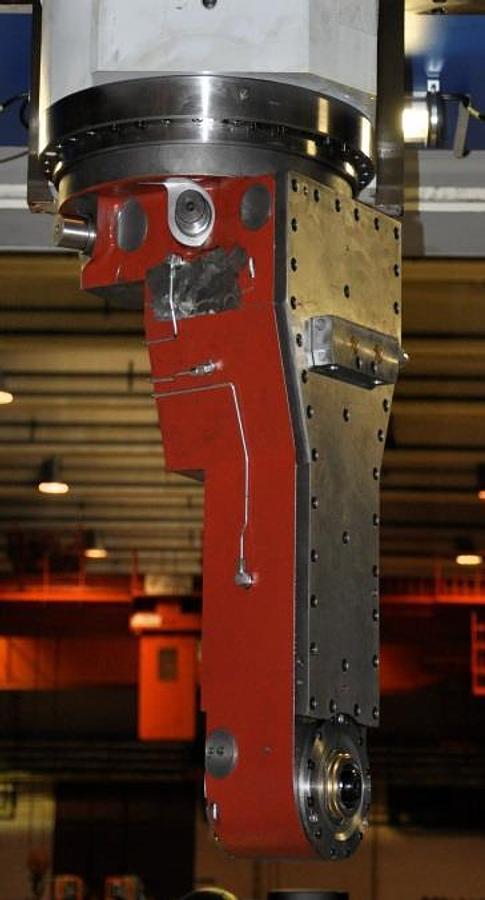

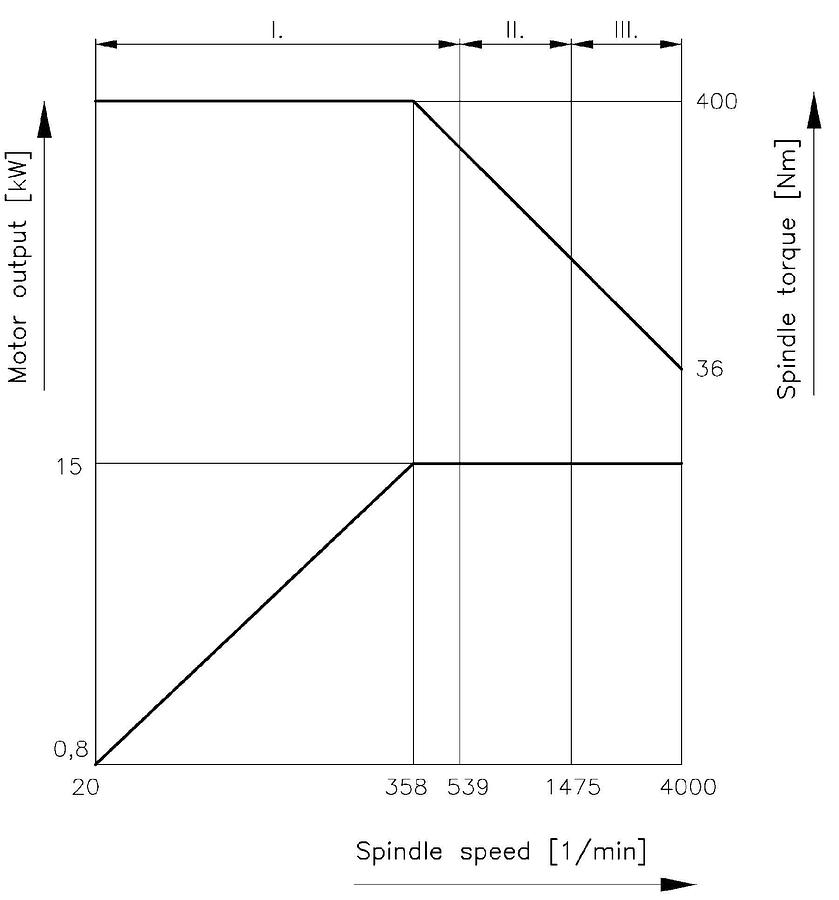

Angular milling head „VP14“

Head is turnable around axis of headstock in range 180° with possiblity of mechanical indexing by 1°.

Tool cooling outer

Head rotation around axis of headstock ±180°

Max. torque around axis of headstock 2500 Nm

Rotation speed around axis of headstock 1 – 1800 °/min

Spindle taper ISO 50

Spindle speed - continuously 20 – 4000 rpm

Output of main drive 15 kW

Max. torque of spindle 400 Nm

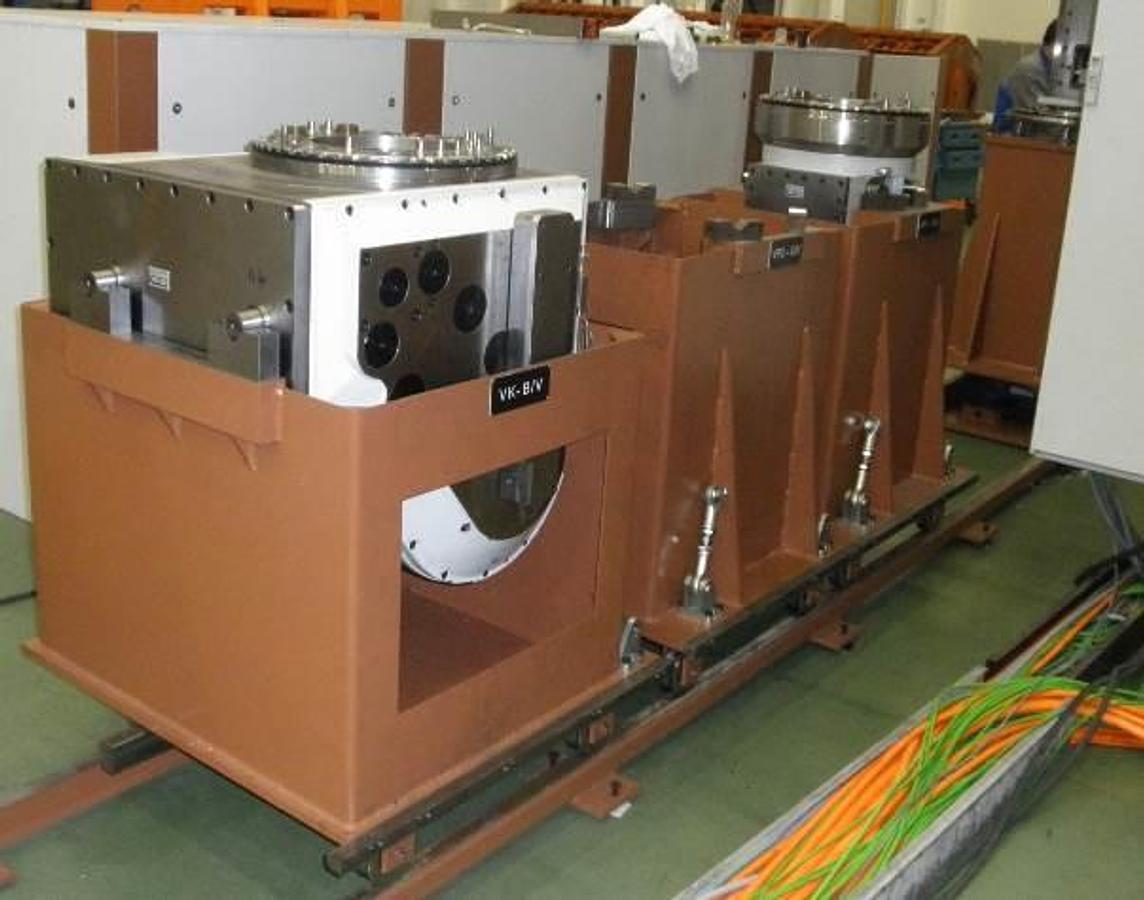

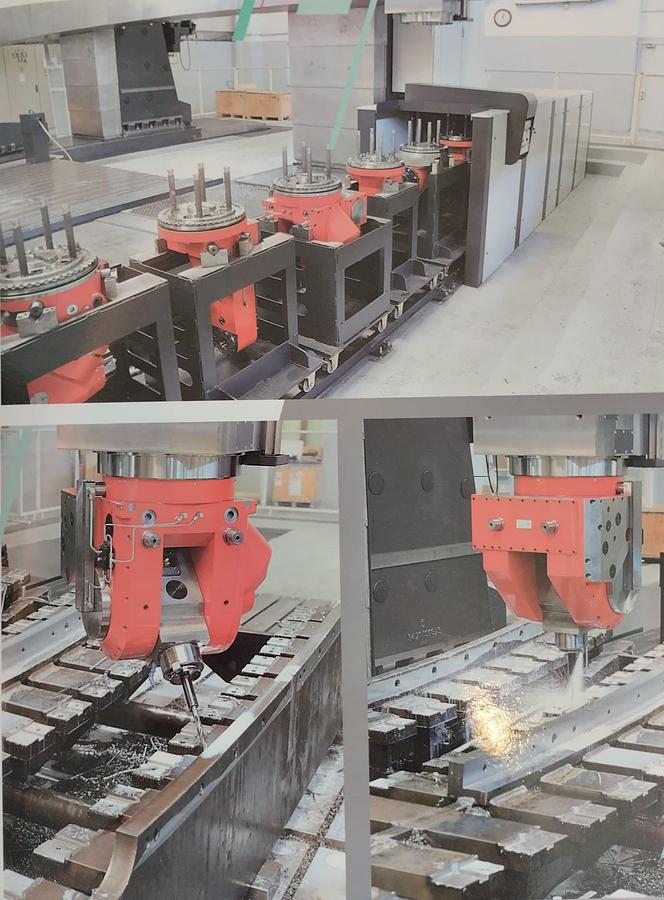

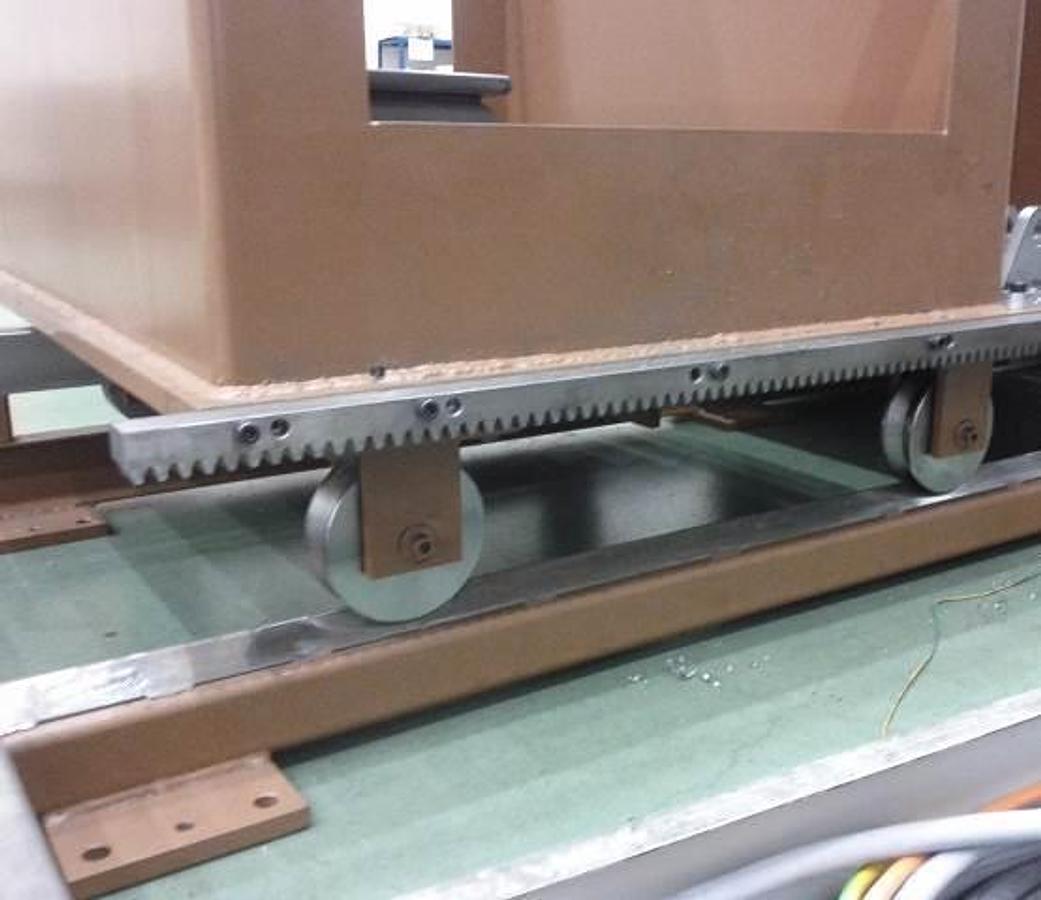

Movable milling head/holder magazine trolley

Moveable head magazine, which is placed outside of right machine column along the axis X. It contains connected moveable baskets for heads, VK, VO, VZN1, VG spec., VA4 and VP14, which move on the rails and make possible the automatic exchange all these heads.
