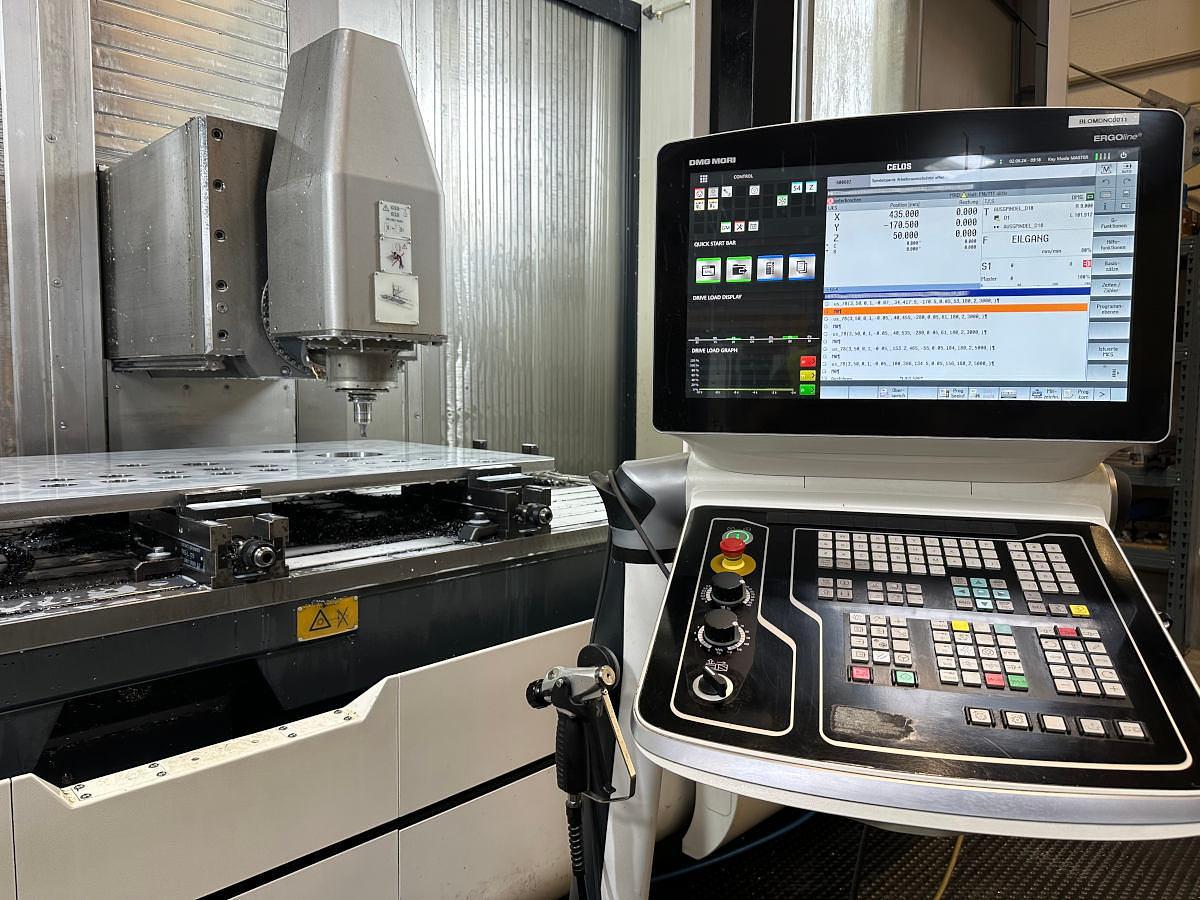

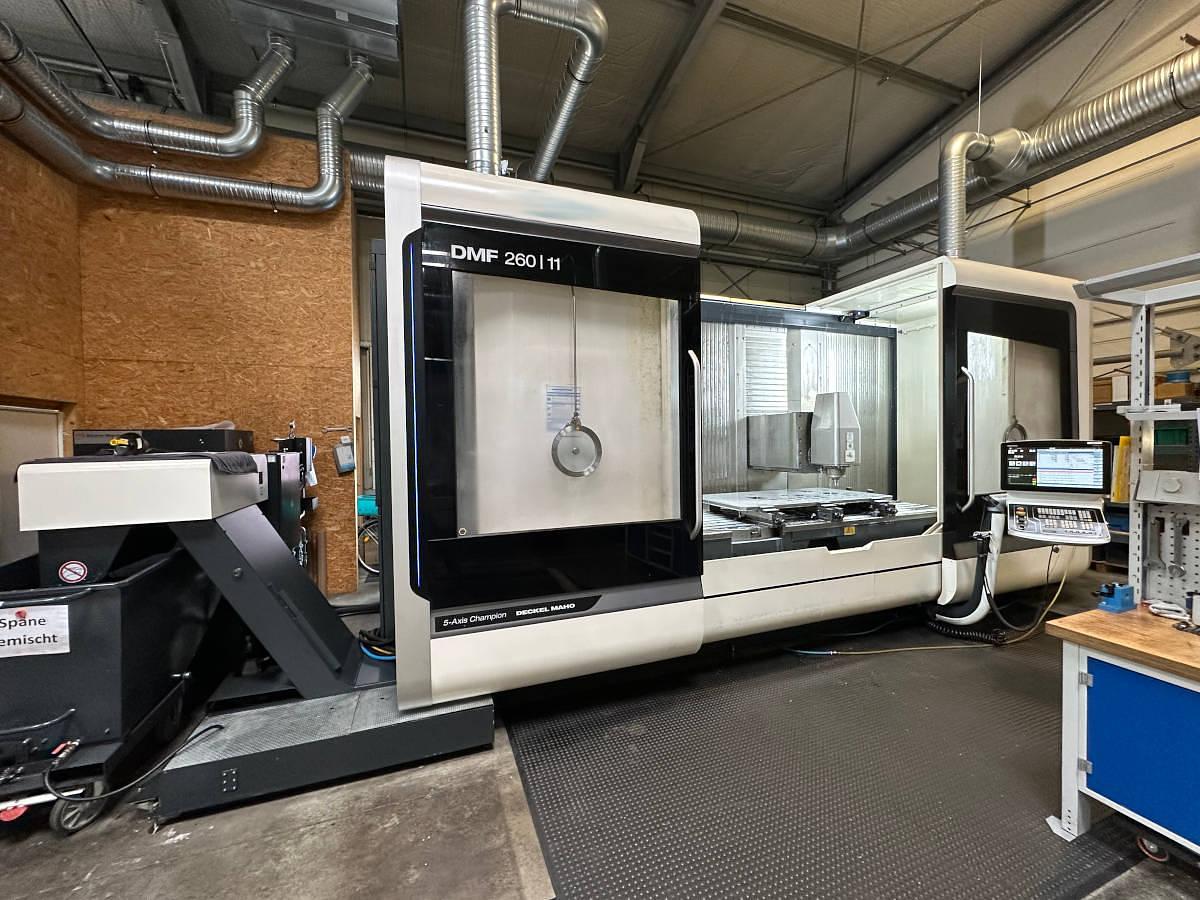

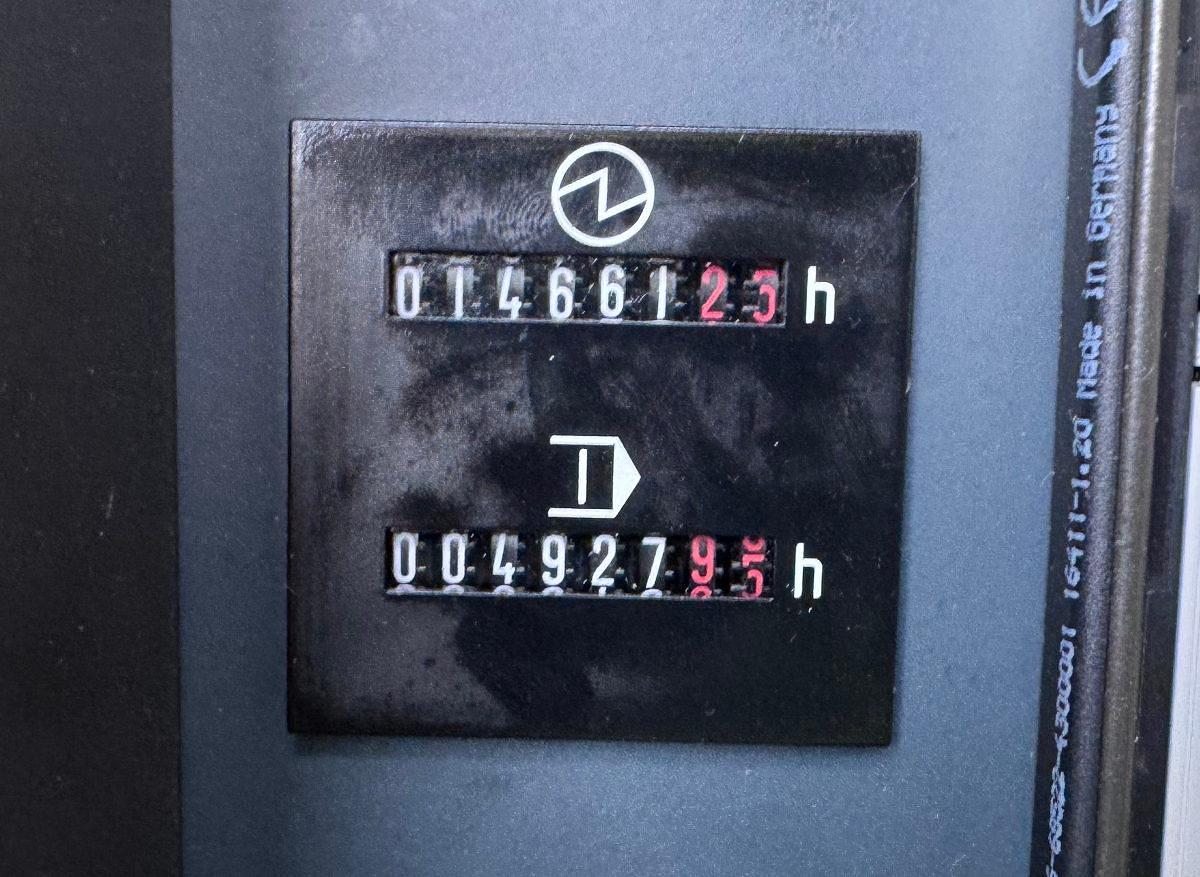

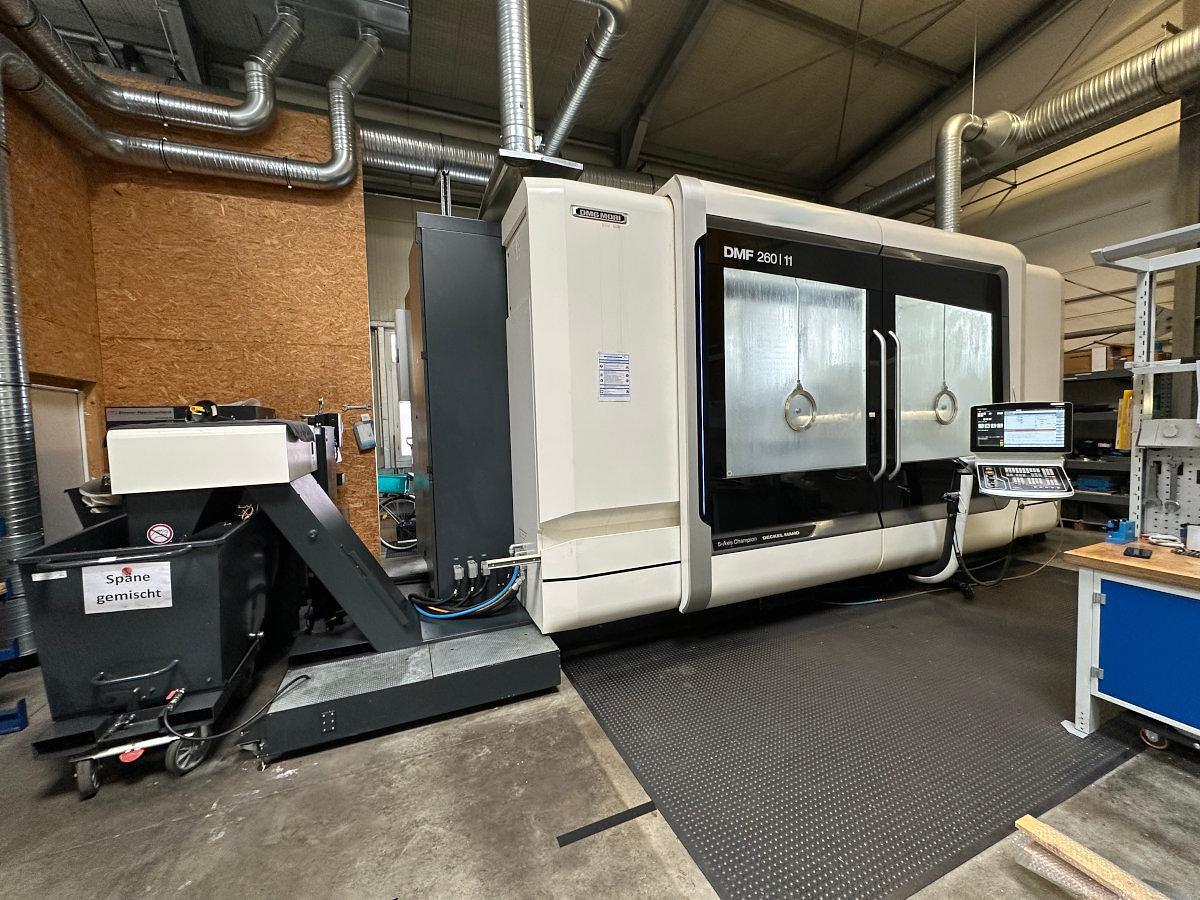

Siemens 840 DSL - Celos CNC Control

12 Position Autoamtic Tool Changer - Double Gripper with ATC Shuttle

Max Tool Diameter 130 mm

Max Tool Length 300 mm

Position measurement systems - Direct on all axes (glass scales)

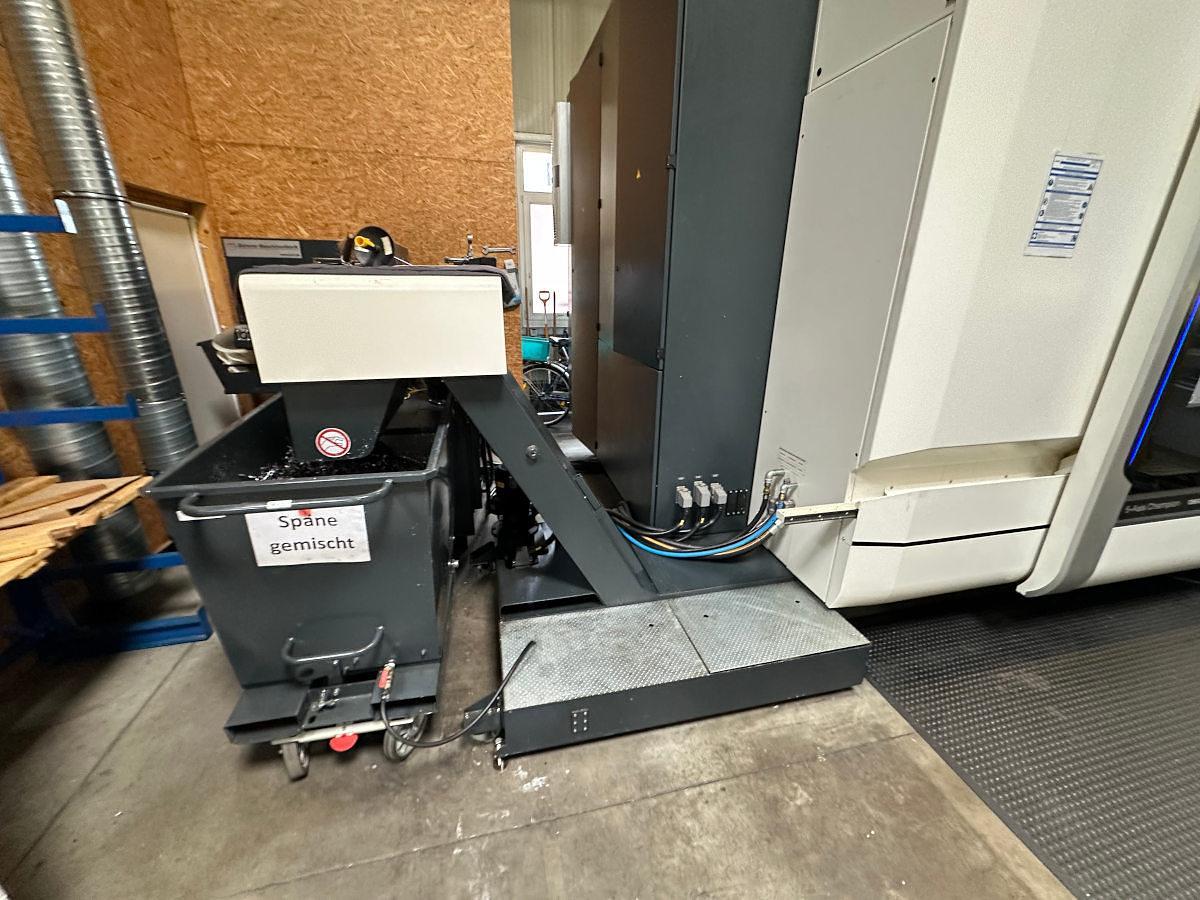

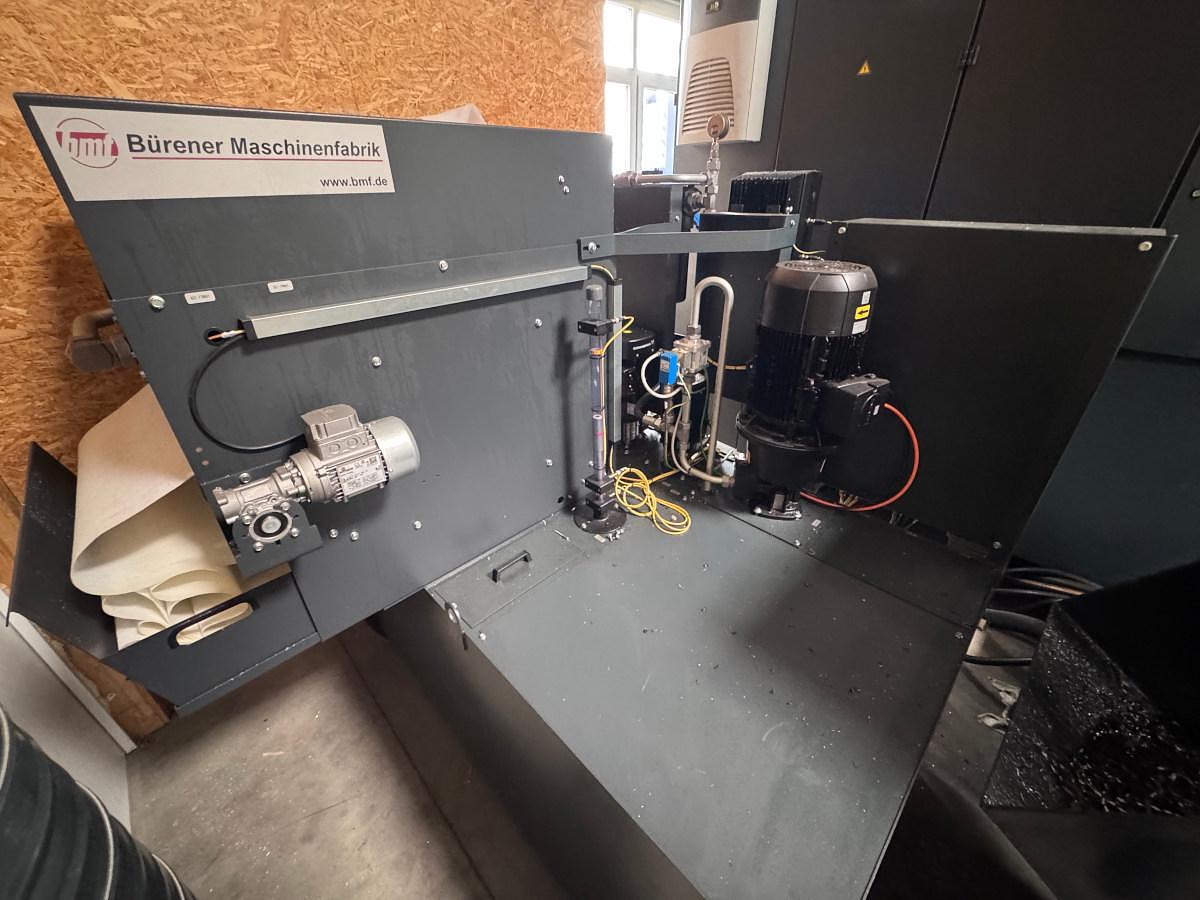

Chip conveyor

Coolant supply - CTS system, 80 bar

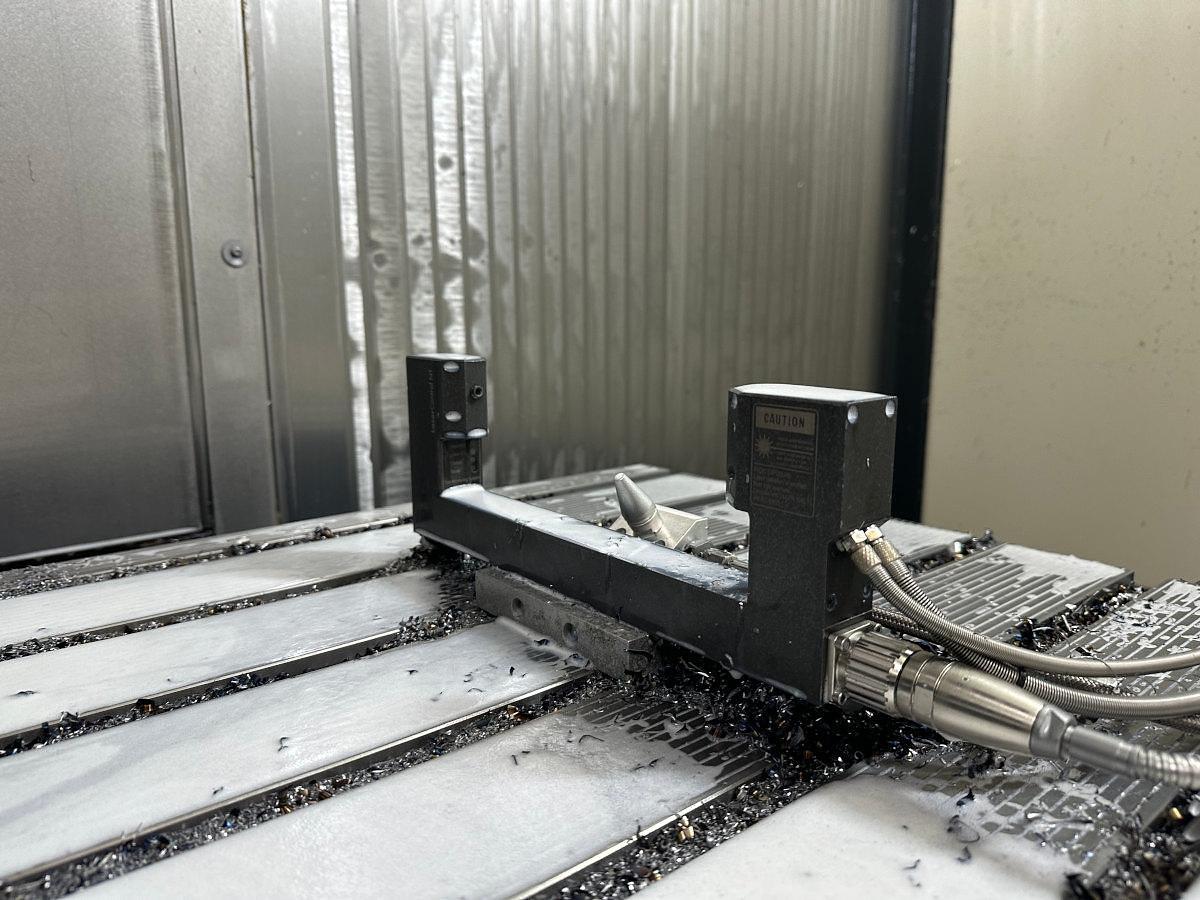

Tool measurement - BLUM laser

Workpiece measurement - Heidenhain TS 460

Kinematics measurement - 3D quickSET ready

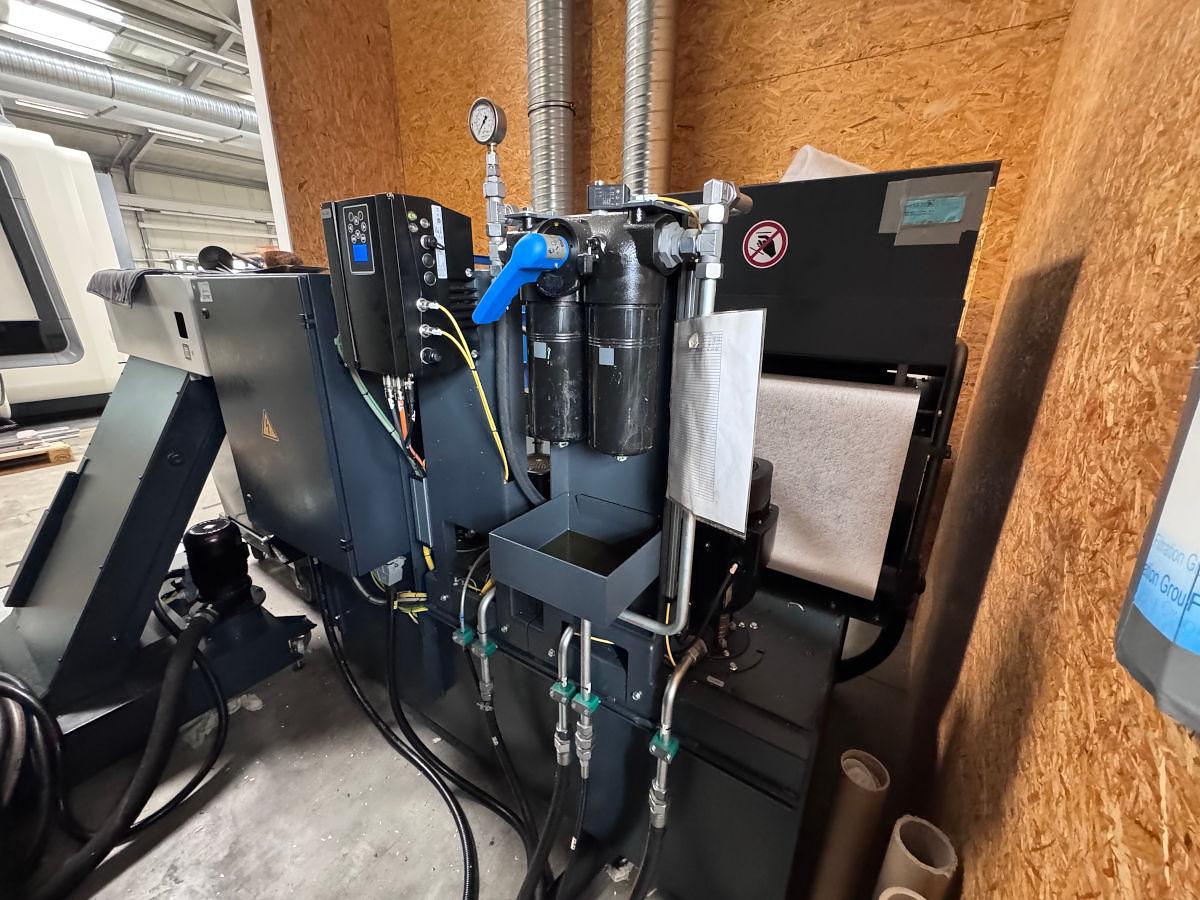

Emulsion mist separators - 2 units, mechanical

Process monitoring - Operating mode 4

Set-up mode - Electronic handwheel

Spindle:

Technology - Direct drive spindle

Speed - 20,000 rpm

Max. power - 35 kW

Max. torque - 120 Nm

Tool holder - SK 40

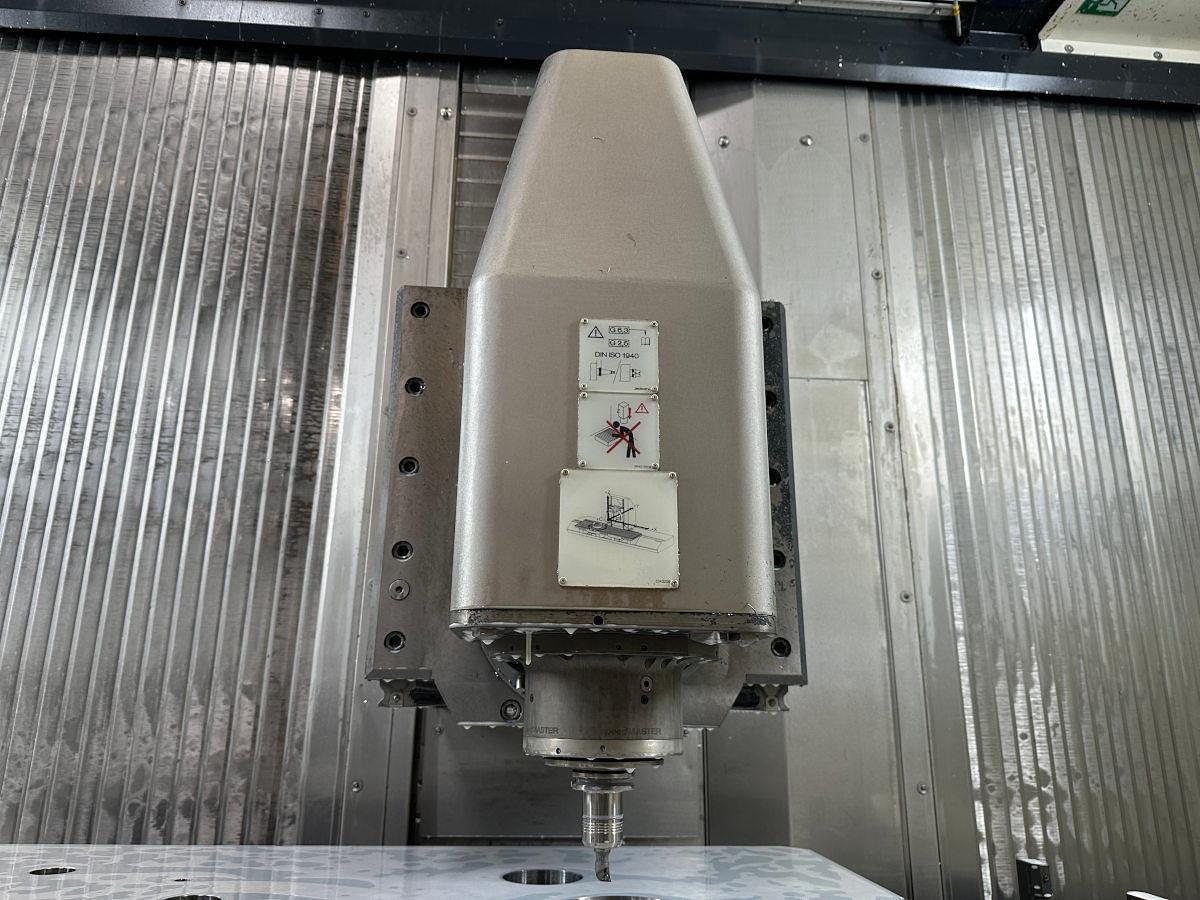

NC swivel head:

Technology - Swivel axis (B-axis)

Travel range - +/- 100°

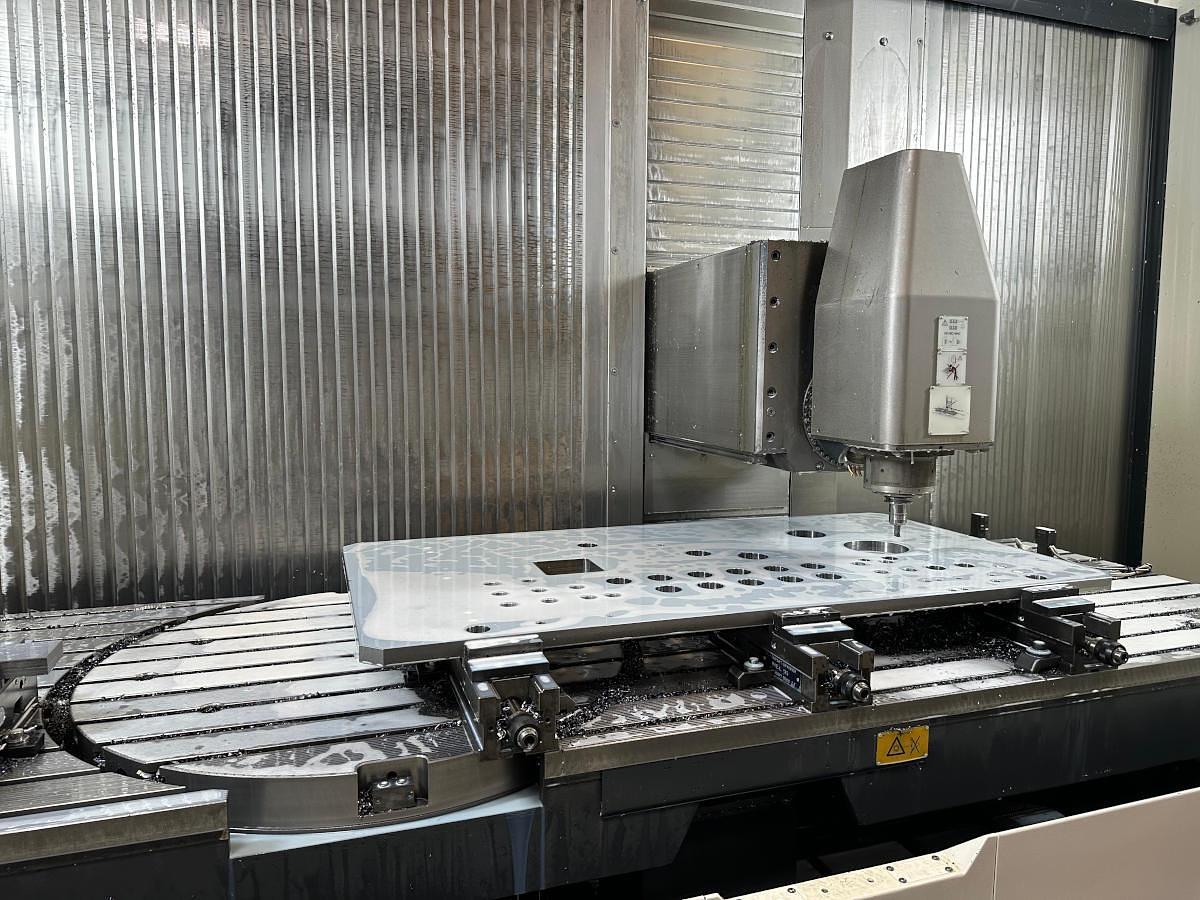

Work table:

Technology - Fixed table with integrated NC rotary table

Total clamping area - 3,200 x 1,100 mm

Total table load capacity - 4,000 kg/m

Clamping area of NC rotary table - 1,050 mm

Max. table load capacity of NC rotary table - 1,200 kg/m

C-axis - 360°
