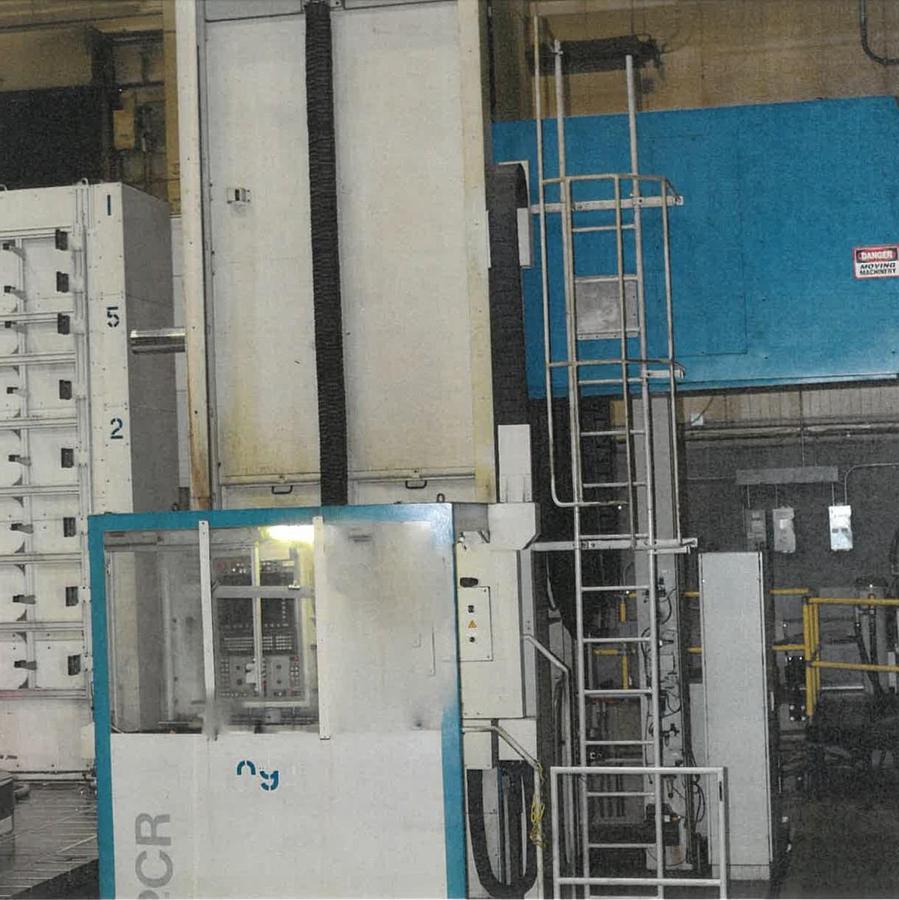

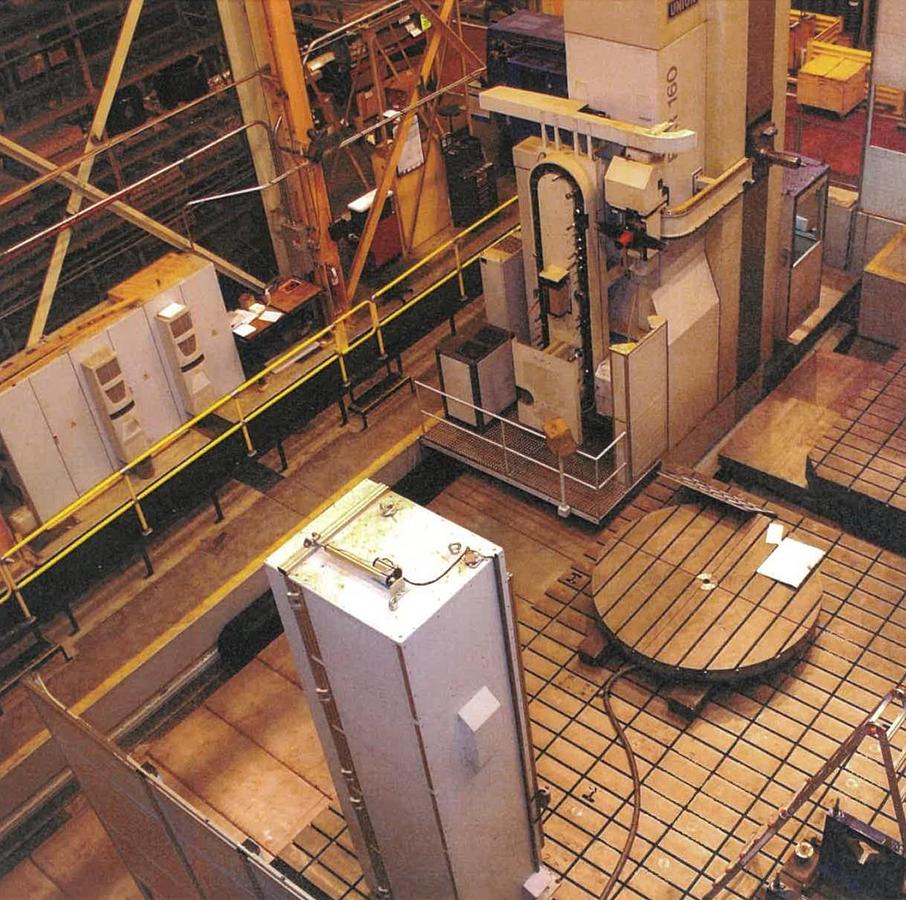

Union PCR 160 Plus CNC Floor Type Horizontal Boring Machine
Union PCR 160 Plus CNC Floor Type Horizontal Boring Machine
or
Call 770-509-0744
Description
Milling Units:
- Vertical Milling Unit KF-D4
Speed - 2,800 rpm
Power rating from 286 rpm - 30 kW
Spindle Taper - ISO 50 (ANSI B5.50)
Torque at 286 rpm - 1,000 Nm
Swivel Range - 1 x 360°
- Two-Axes NC Fork-Type Milling Head
Speed - 3,000 rpm
Power rating at 441 rpm - 37 kW
Torque at 441 rpm - 800 Nm
- Facing & Boring Head U-Tronic 5-630 S
Head Diameter 630 mm
Rapid Traverse 200 mm
Feed Power - 5,000 N
Speed - 250 rpm
Torque 2,868 Nm
Rotary Table:
Dimensions 4,000 x 4,000 mm
Center bore 100 mm
V-Axis Travel 2,500 mm
B-Axis Rotation 360°
Table Load 90,000 kg
Operator Cabin
Chip Conveyor Along the 11 Meters of X
High Pressure Coolant
60 Position Cahin Tool Changer
5 Position pickup station for head attachments
Floor Plates, 3 Parts - 7,000 x 6,000 mm x 300 mm
Specifications
| Manufacturer | Union |
| Model | PCR 160 Plus |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654404 |
| Spindle diameter | 162 mm |
| Spindle speeds | 2,800 rpm |
| X axis total | 11,000 mm |
| X axis limited for pickup | 9,750 mm |
| Y axis travel | 4,000 mm |
| Z axis travel | 1,500 mm |
| W axis travel | 700 mm |
| Main drive | 60 kW |
| Max torque | 2,868 Nm |
