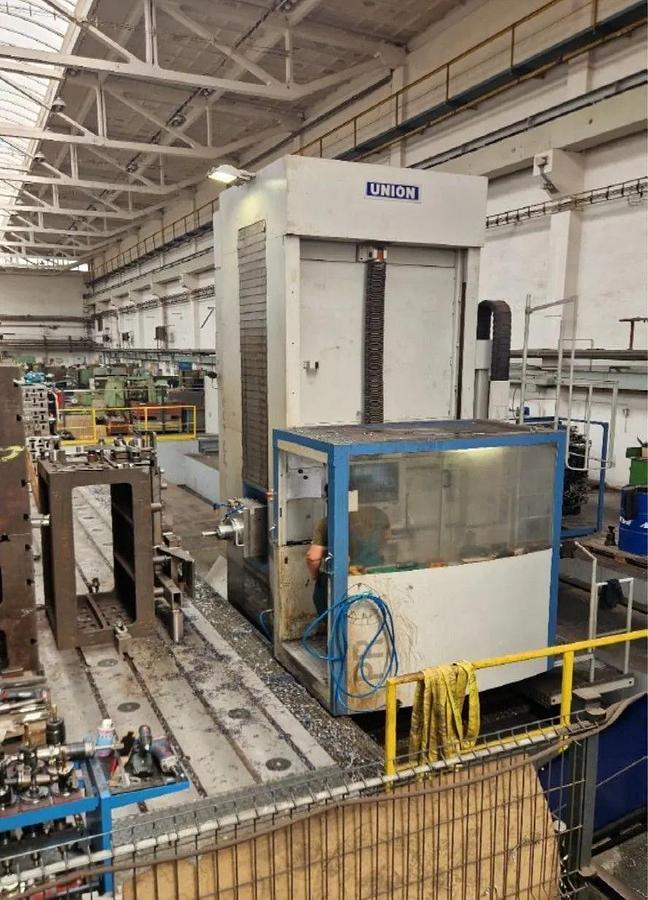

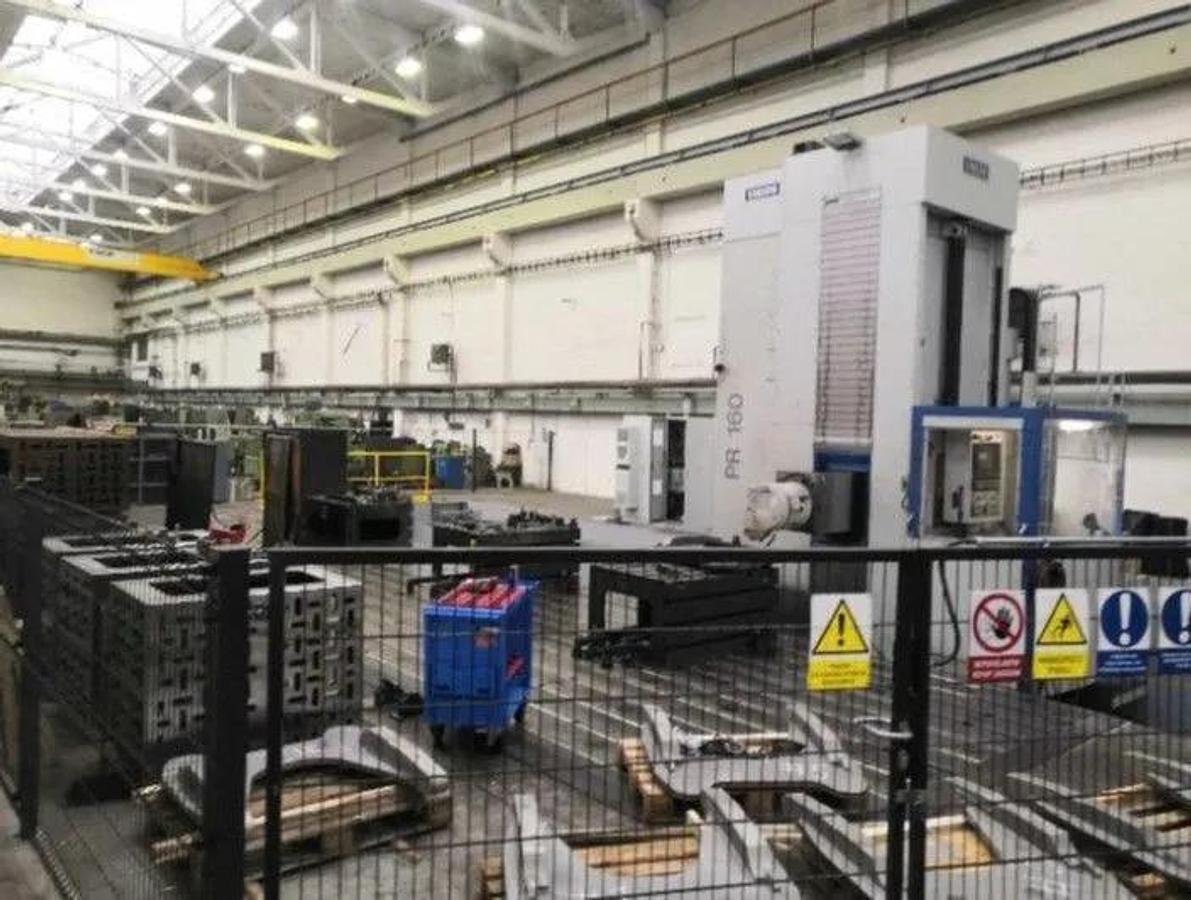

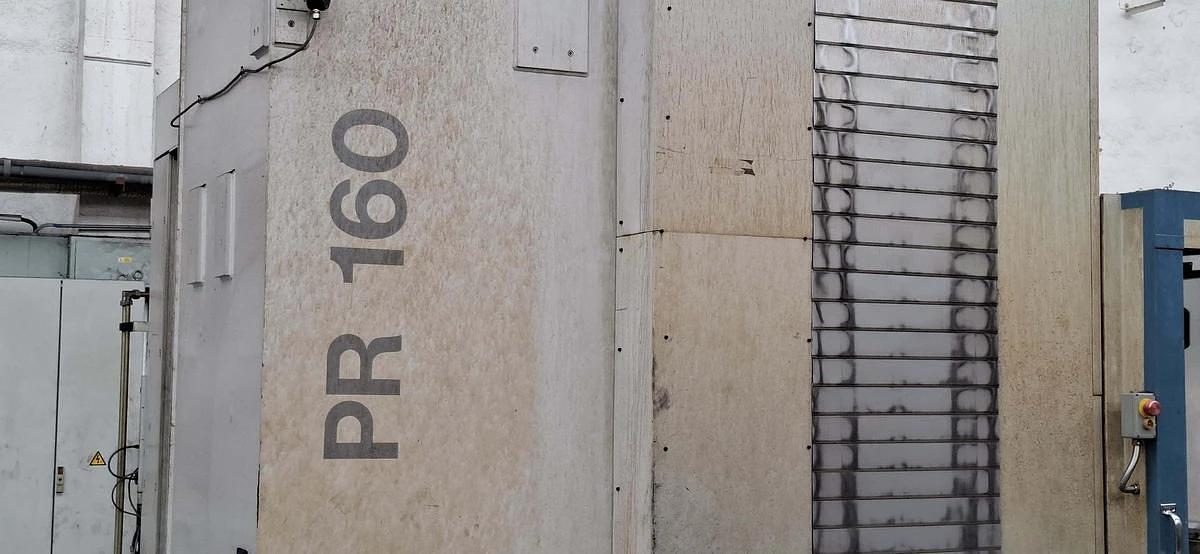

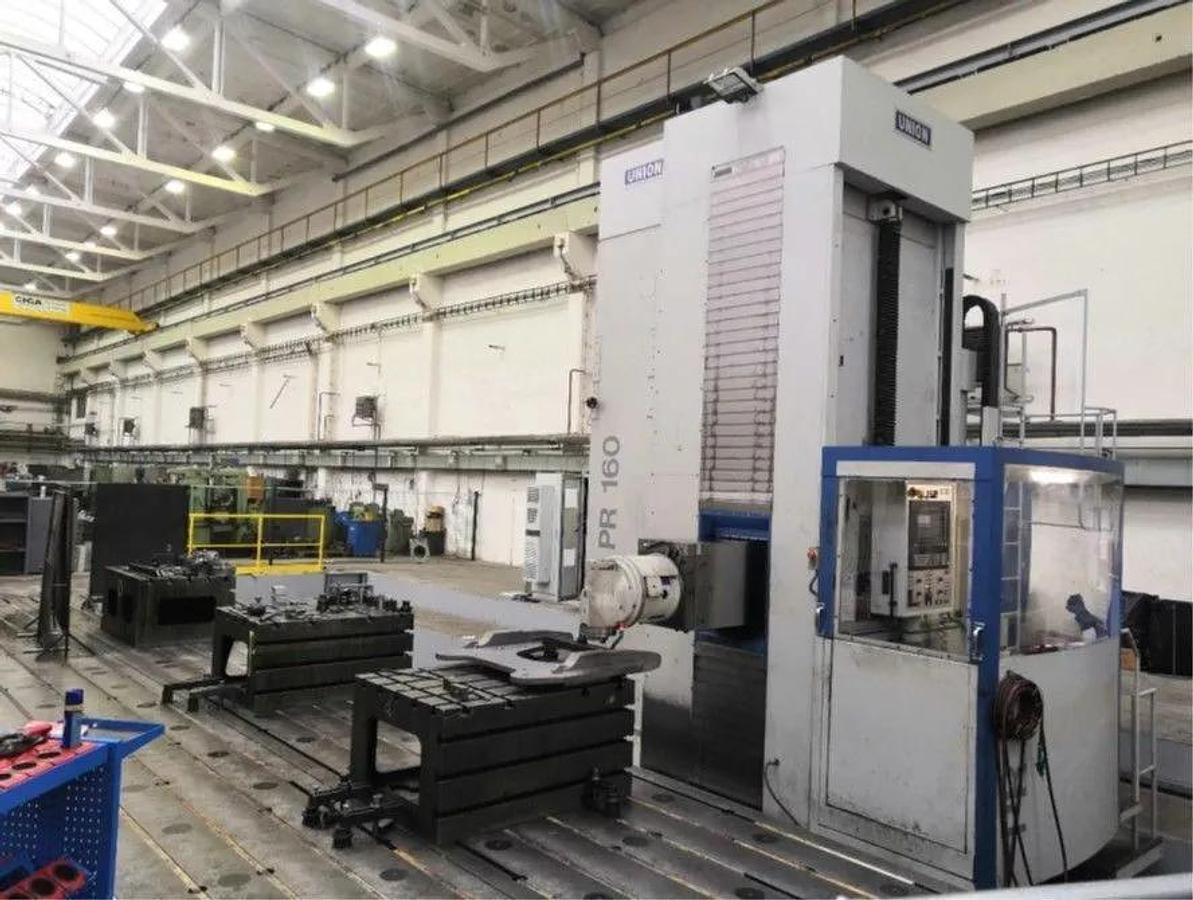

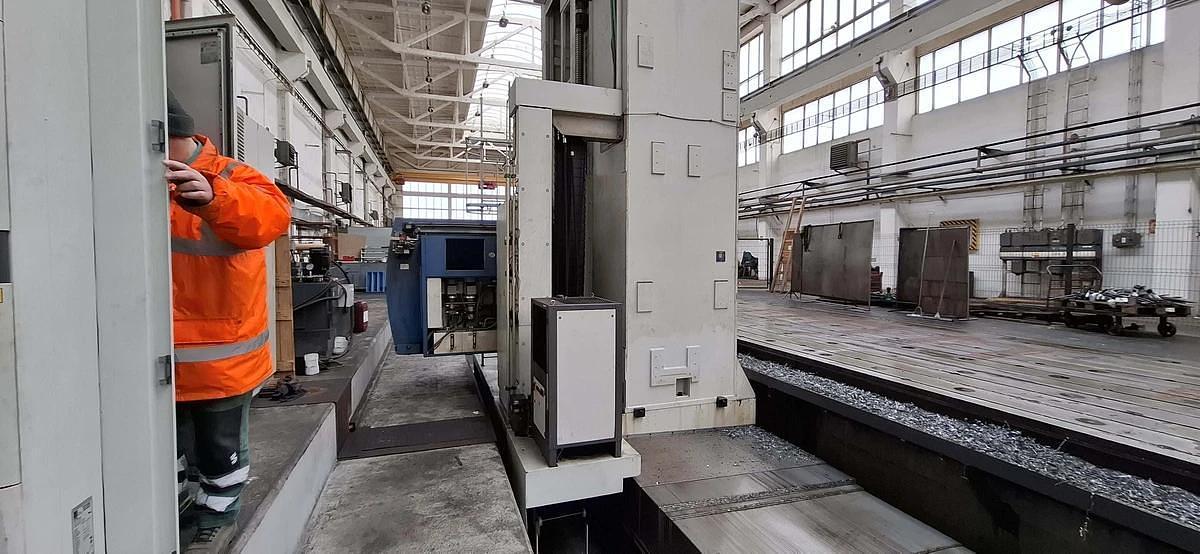

Union PCR 160 CNC Floor Type Horizontal Boring Machine
Union PCR 160 CNC Floor Type Horizontal Boring Machine
or
Call 770-509-0744
Description

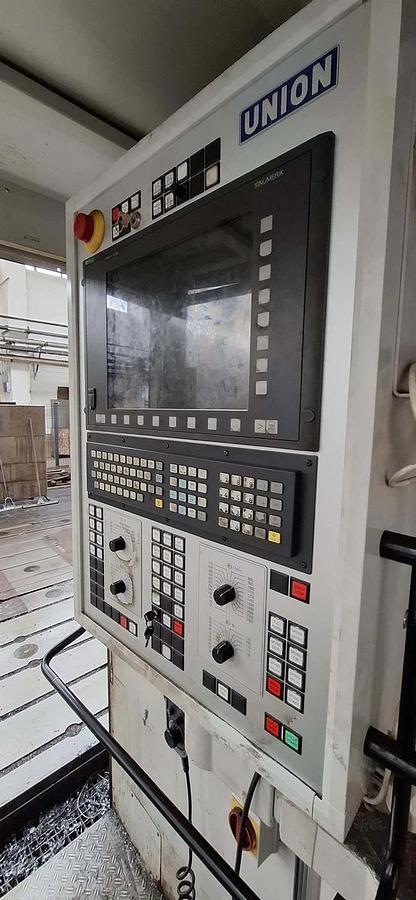

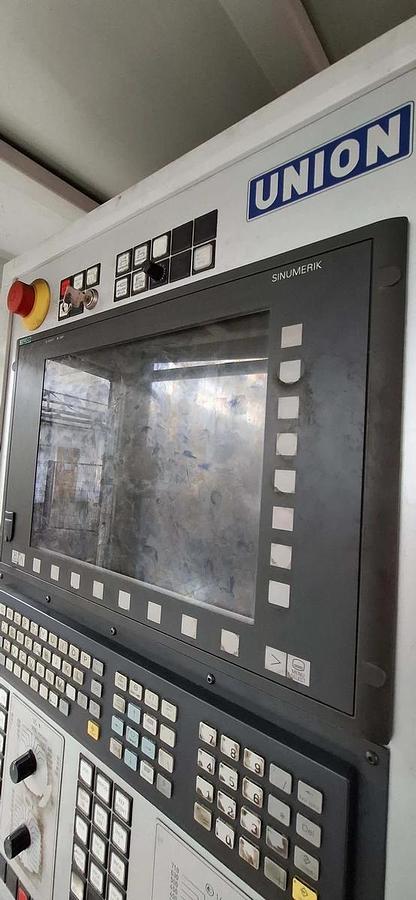

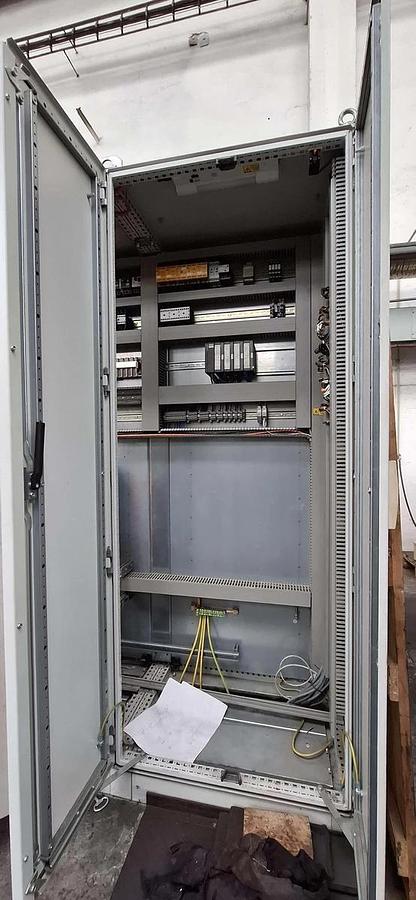

Siemens Sinumerik 840D CNC Control

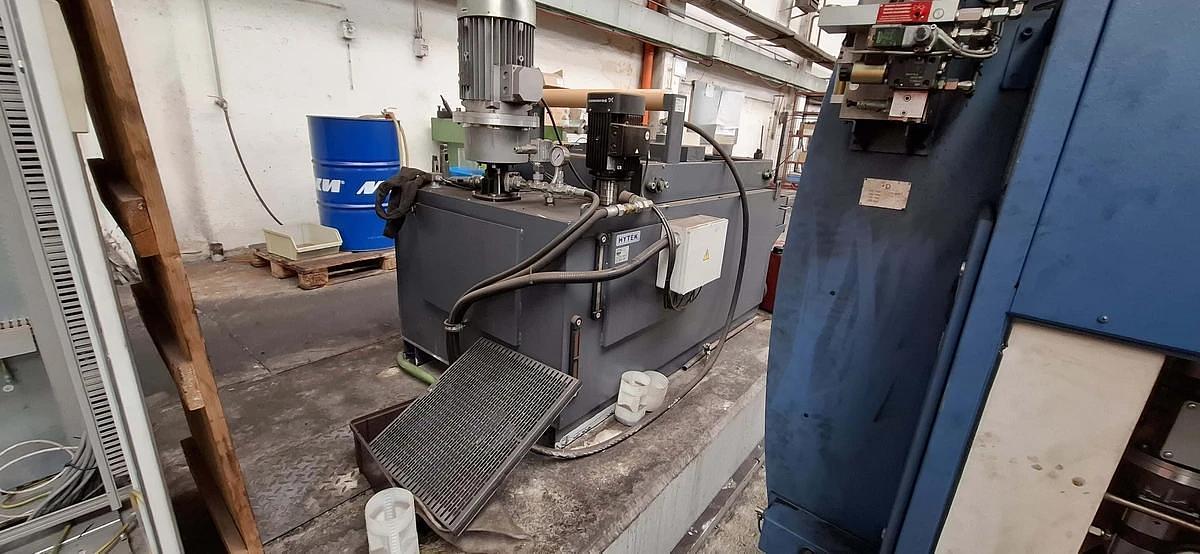

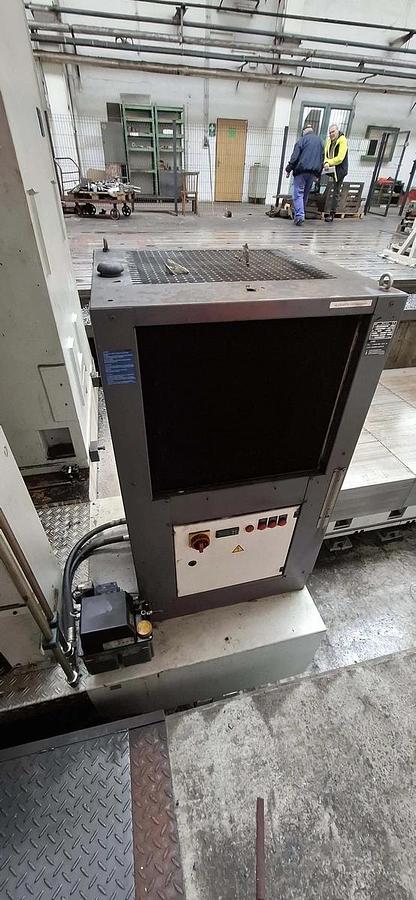

Cooling by rinsing (6 bar) and high-pressure cooling through the spindle center (max. 70 bar), Right-angle milling head KDF4/90 see below

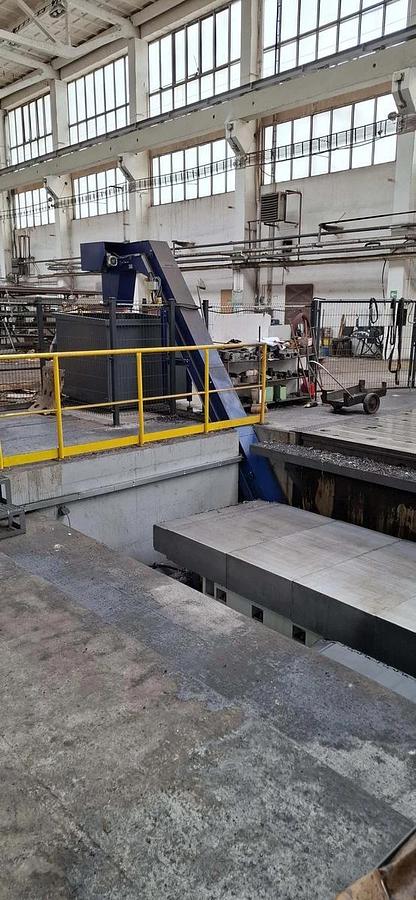

Swarf conveyor X=11 m
Workpiece probe

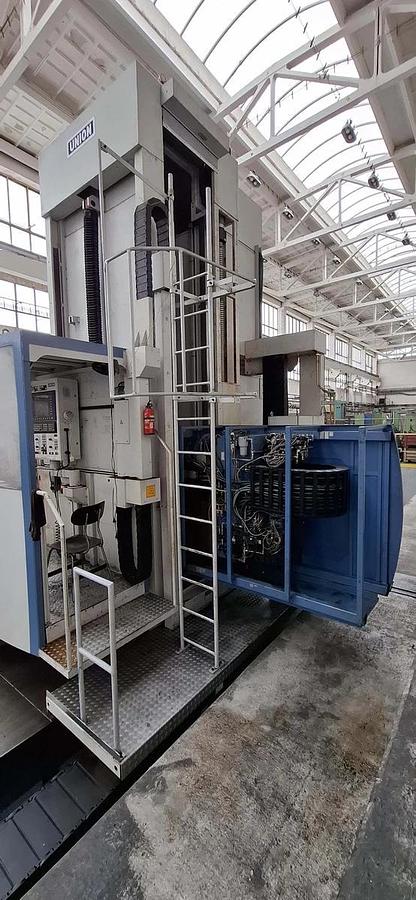

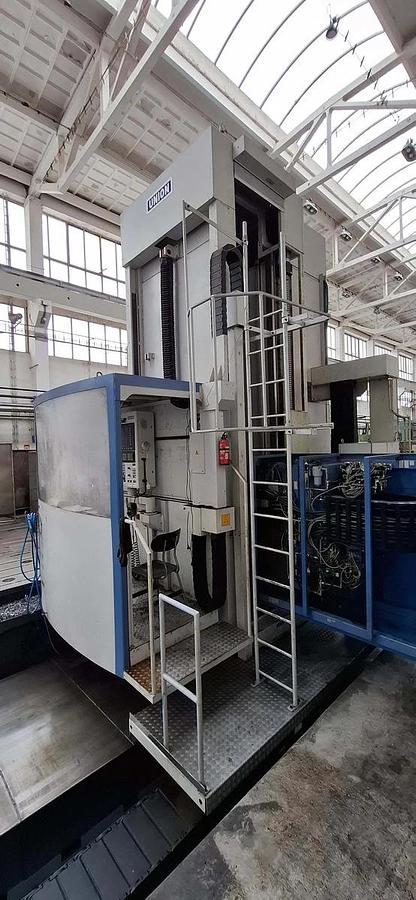

Operator lifting cabin

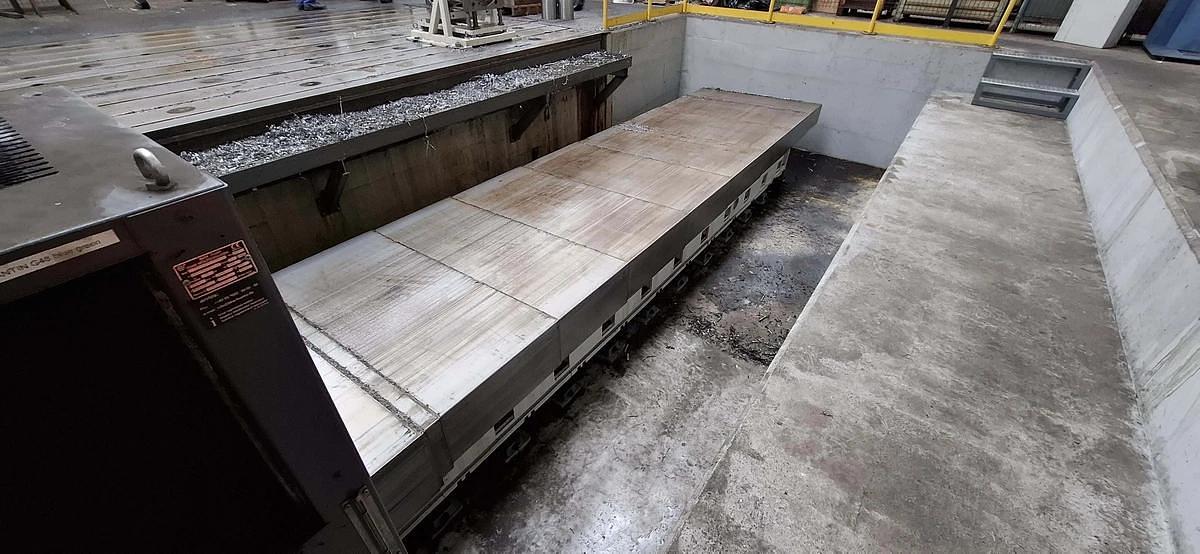

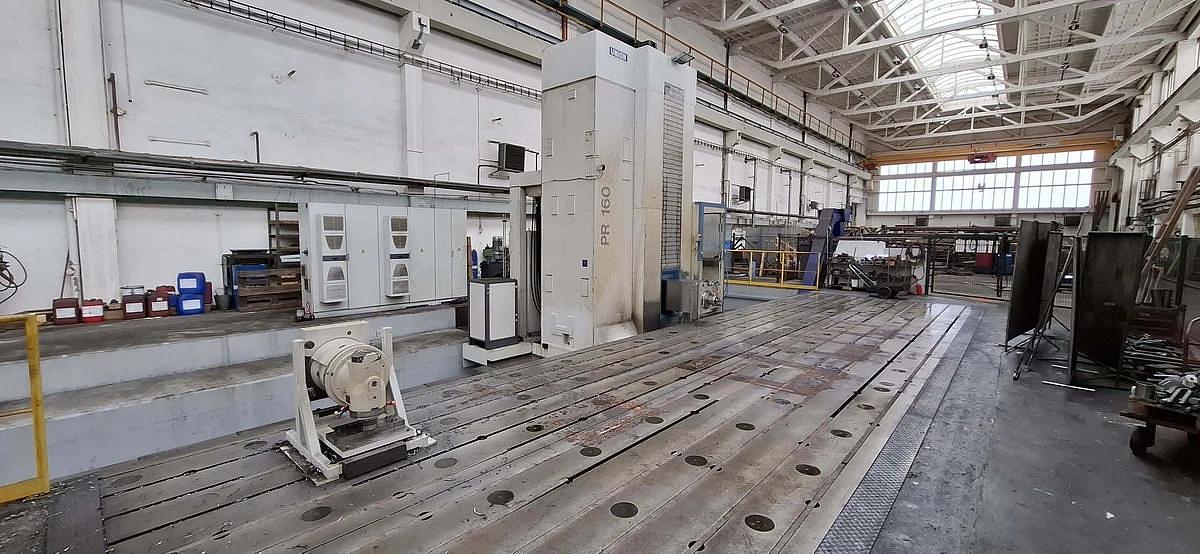

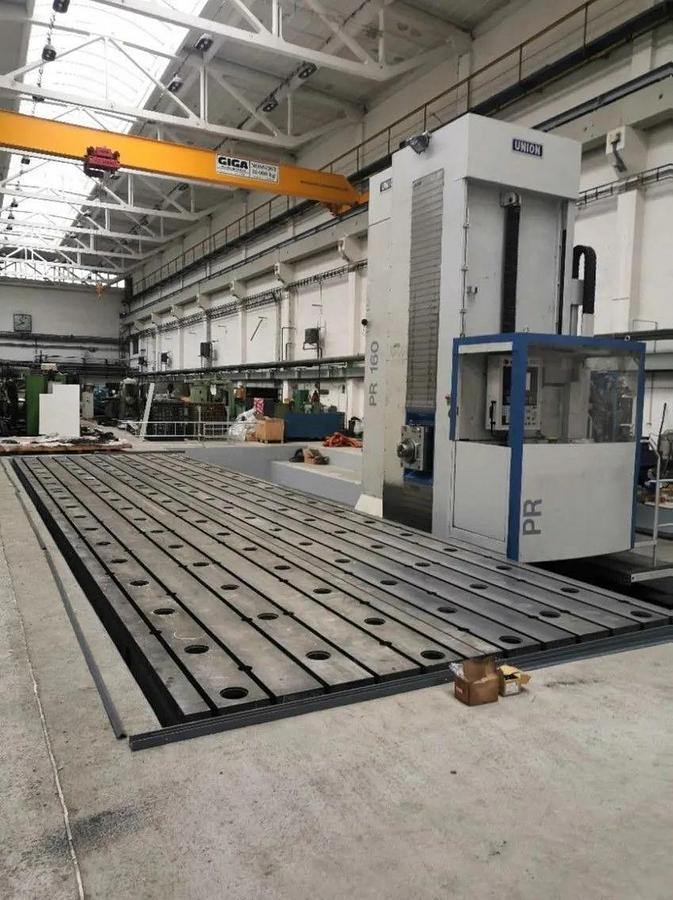

Clamping plates……..total dimensions 13,600 x 3,770 mm, divided into 4 parts

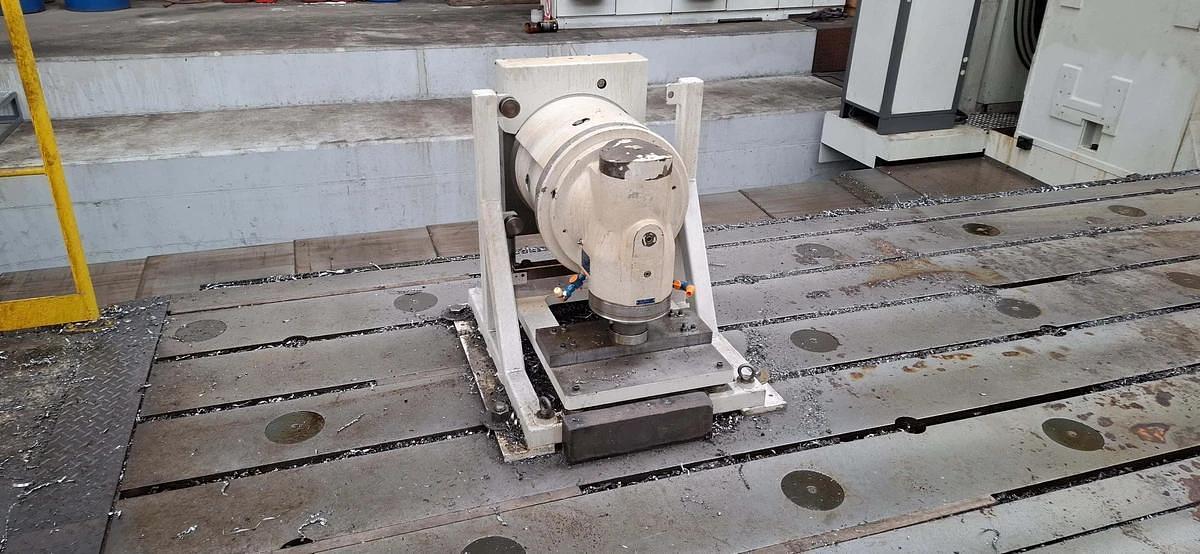

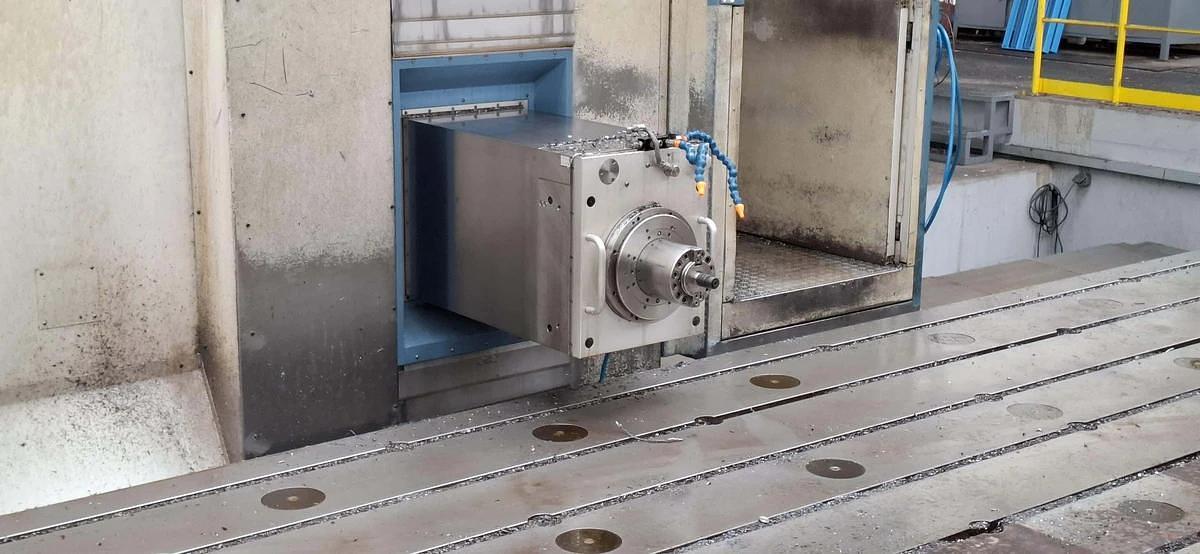

Right-angle milling head KFD4/90:
Automatic head clamping on the quill
Automatic tool clamping
Specifications
| Manufacturer | Union |
| Model | PCR 160 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654403 |
| Spindle diameter | 160 mm |
| Spindle speeds | 2,800 rpm |
| X axis travel | 11,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,000 mm |
| W axis travel | 700 mm |
| Main motor power | 60 kW |
| Table dimensions | 2,500 x 3,000 mm |
| Ram dimensions | 4450 x 550 mm |
| Working feed X/Y/Z/W | 1 - 6,000 mm/min |
| Rapid feeds | 15,000 mm/min |
| Spindle taper | ISO 50 |
| Max torque | 2,868 Nm |
