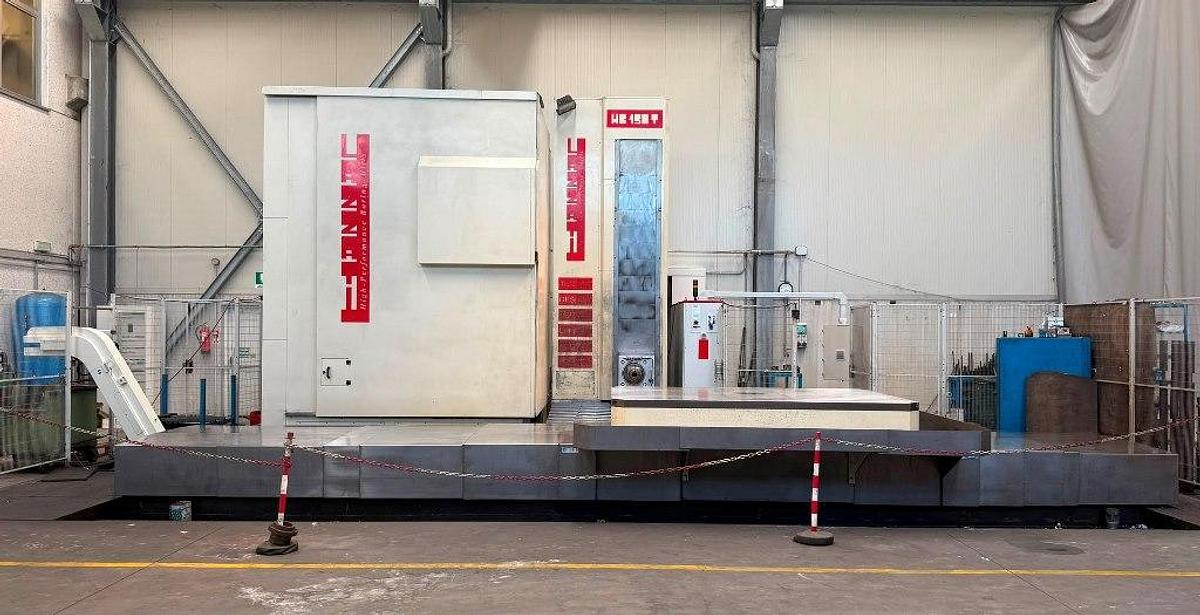

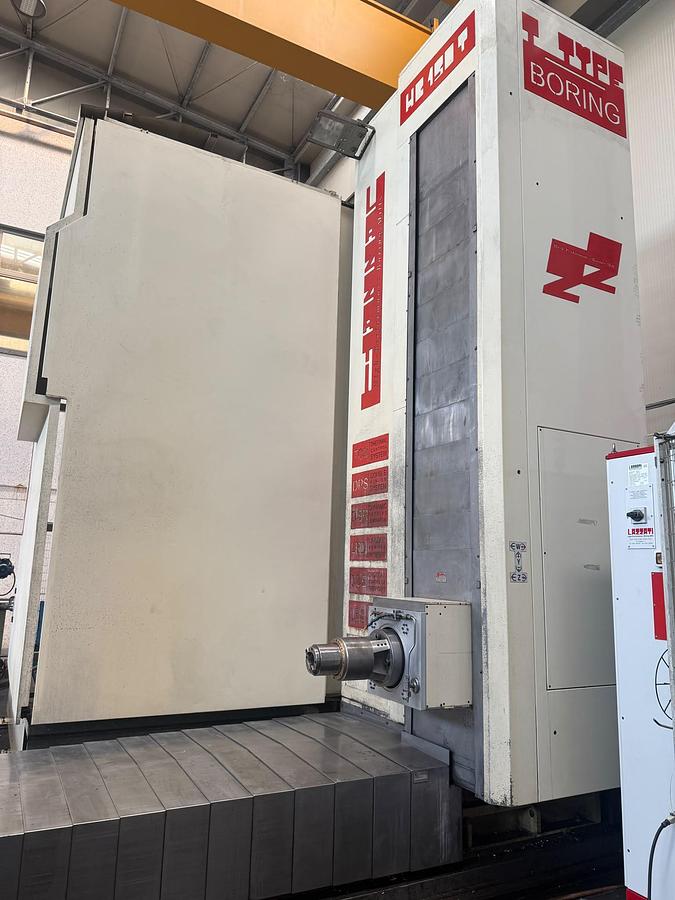

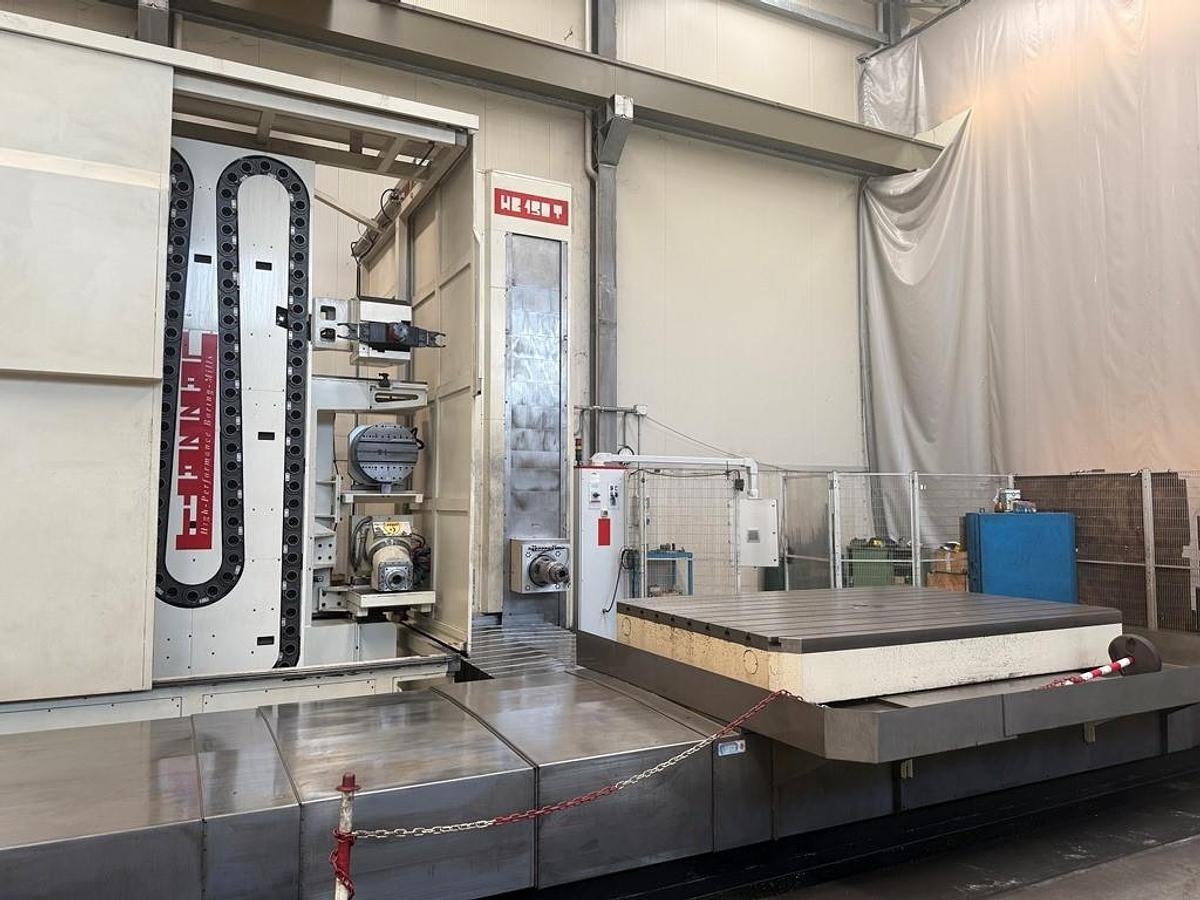

Lazzati HB 150T CNC Table-Type Horizontal Boring Machine
Lazzati HB 150T CNC Table-Type Horizontal Boring Machine
or
Call 770-509-0744
Description
New in 2015 - Installed in 2017
Heidenhain TNC 530 CNC Control
120 Position Automatic Tool Changer
Chip Conveyor

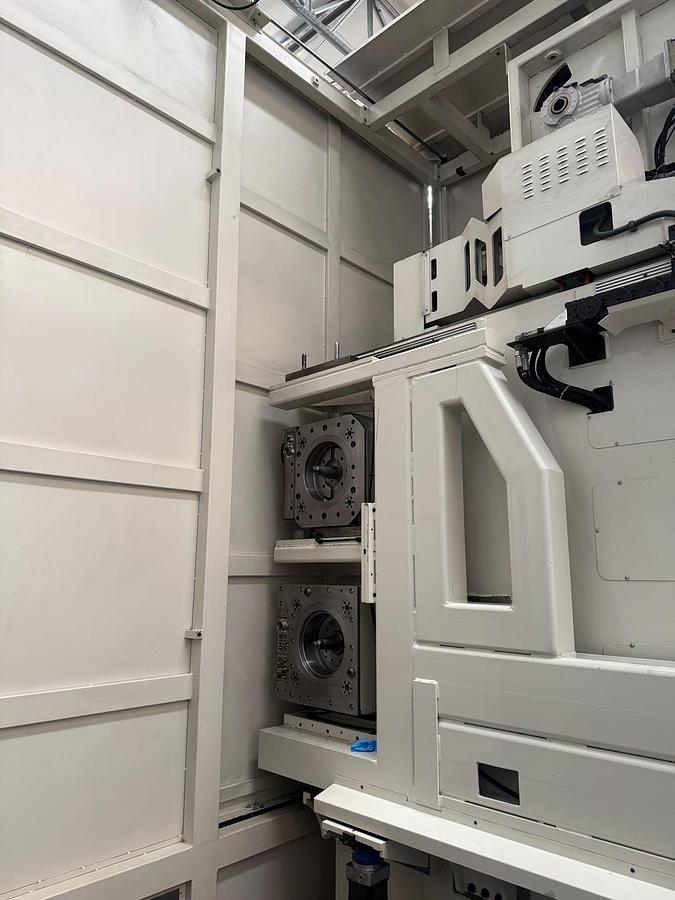

Pick Up Head Change 3 positions
Through spindle cooling 35 bar, coolant tank capacity 1.000 lt
Max axial thrust in drilling N. 25.000

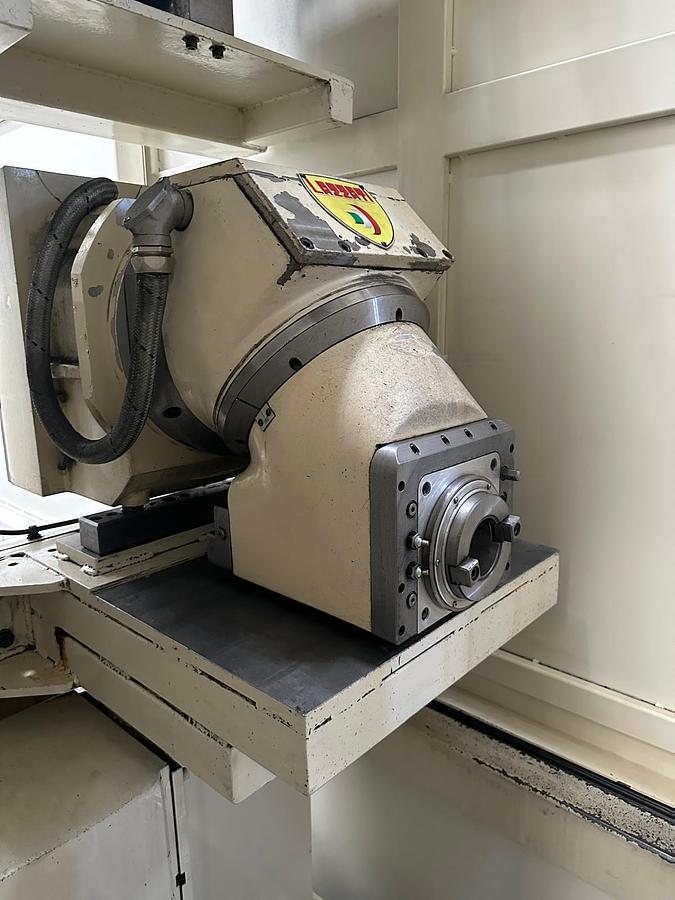

Automatic Universal Head 1°X 1°

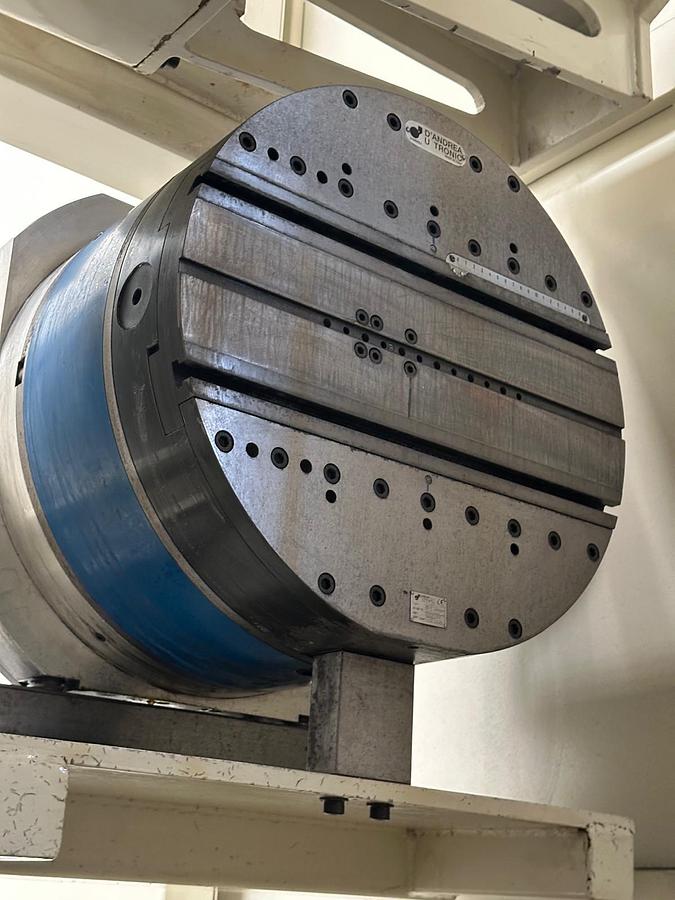

D'Andrea UT5/500s Head
Specifications
| Manufacturer | Lazzati |
| Model | HB 150T |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654400 |
| Spindle diameter | 150 mm |
| Spindle speeds | 3,250 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 2,600 mm |
| Z axis travel | 2,300 mm |
| W axis travel | 900 mm |
| Spindle taper | ISO 50 BIG PLUS DIN 7388 |

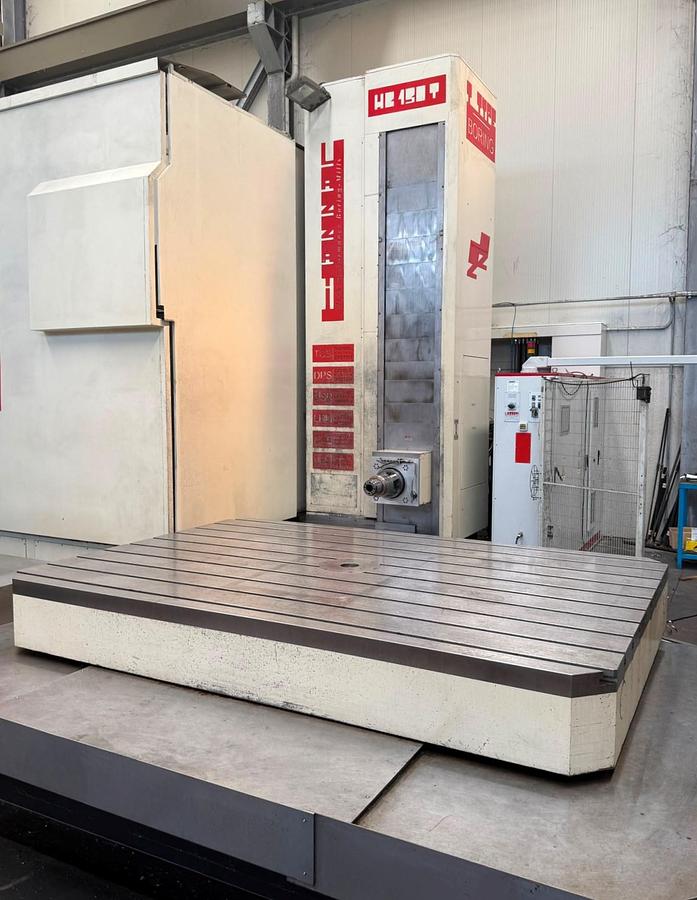

| Table dimensions | 2,000 x 3,000 mm |
| Table capacity | 30 Ton |
| Machine dimensions | 9,700 x 5,200 x 7,400 mm |
| Rapid feed X | 12 m/min |
| Rapid feed Z/Y | 15 m/min |
| Rapid feed W | 7.5 m/min |
