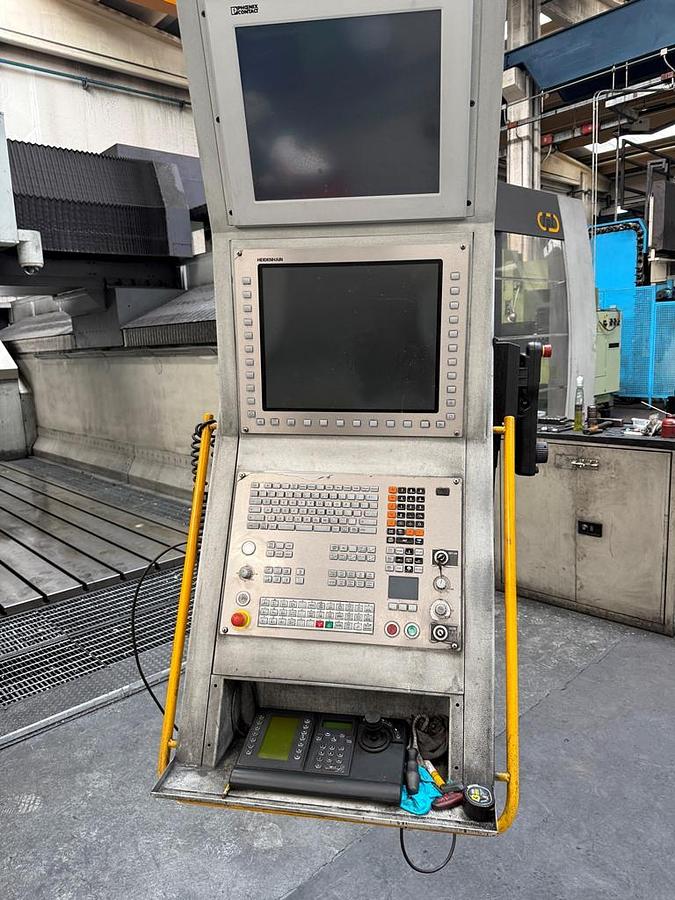

Heidenhain 640 iTNC CNC Control

n.1 Universal bi-rotary head with continuous positioning

Spindle speed rpm 5.000

Tool taper ISO 50 DIN 69871

n.1 head (fork type) with 2 continuous axes 33 kW

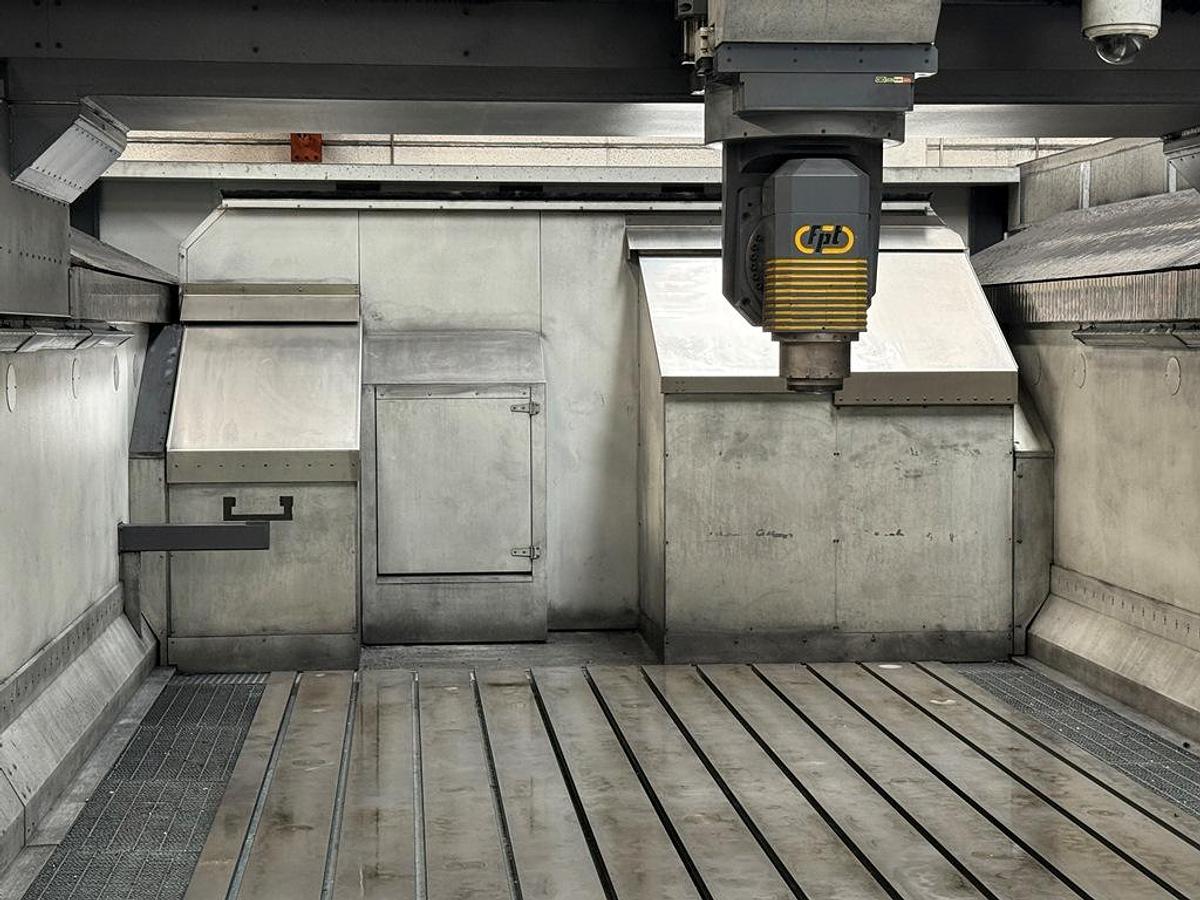

5-axis head with electrospindle

1st axis rotation +/- 180°

2nd axis rotation +/- 92,5°

Spindle speed rpm 18.000

Spindle taper HSK63A

Tool magazine 40 positions: 40

n. 25 positions ISO 50 taper

n. 15 positions HSK63A taper

Rigid tapping for electrospinde (for each milling head)

Rigid tapping for mechanical milling head

Automatic head magazine with 3 positions

Internal coolant 20 bar

Air pressure internal coolant

External coolant 4 bar

n. 1 chip conveyor front of the table

n. 2 chip conveyors lateral to the table

Spindle extension mm 400 ISO 50 with cooling, rpm 5.000

Remote control panel, Handwheel HR 550 FS

Laser probe and sw with tool measuring system wear, lenght and radius

Static RTCP system

Working area videosurveillance system

Manufacturer	FPT

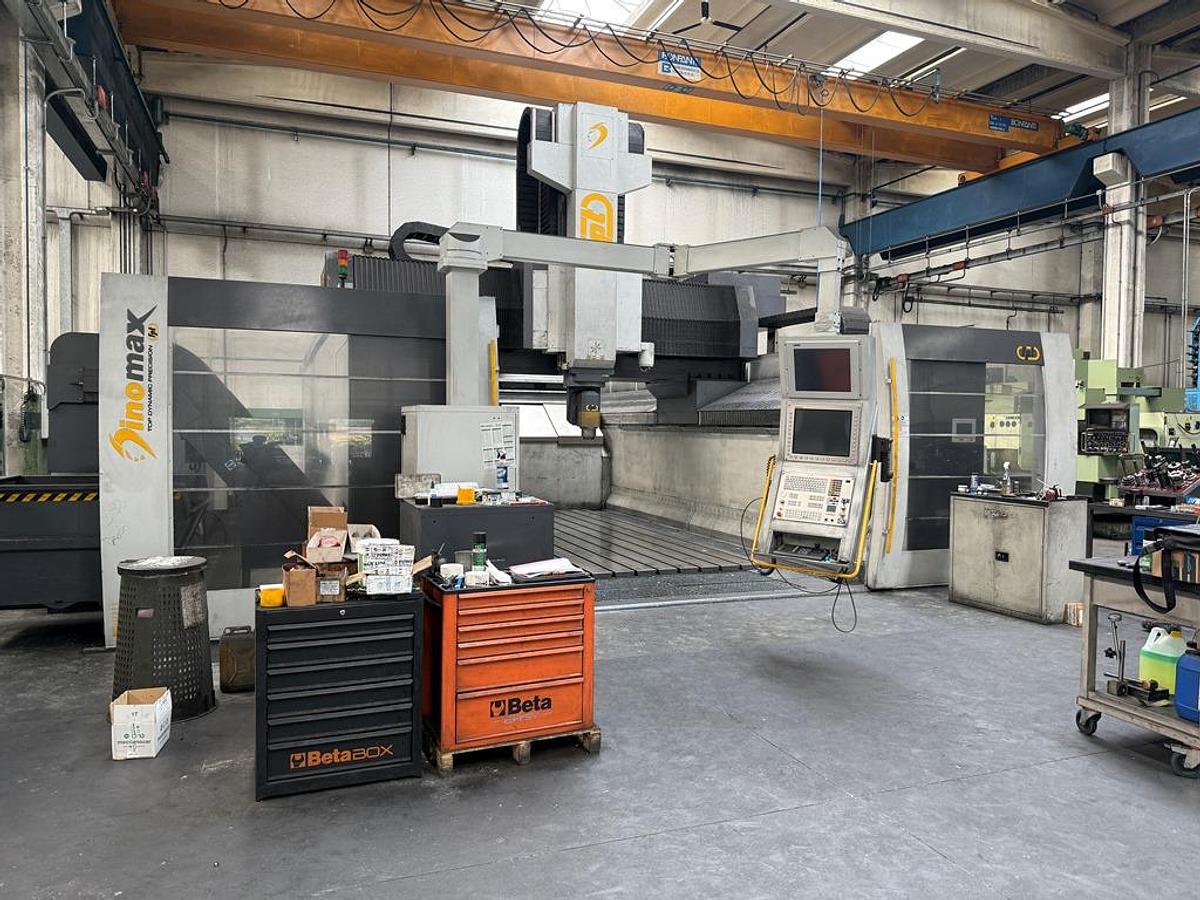

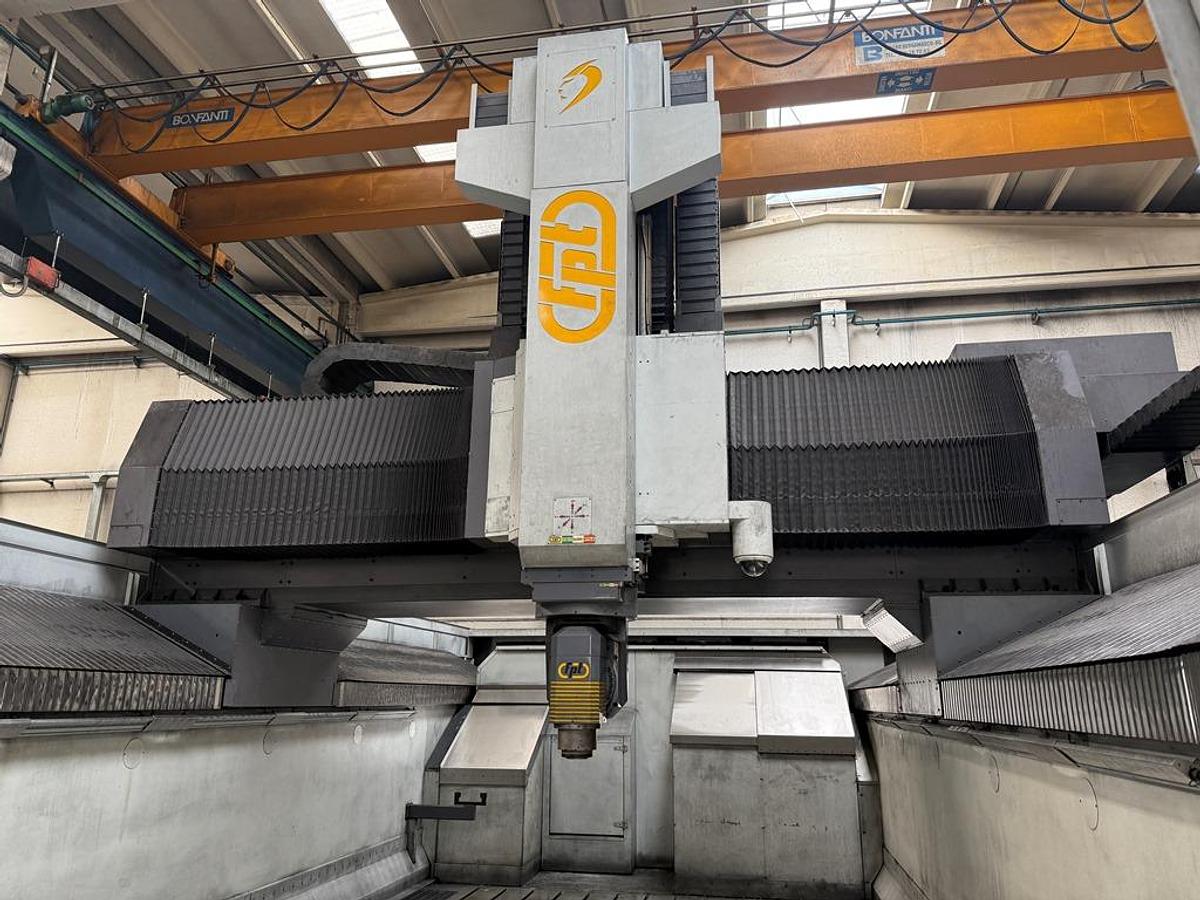

Model	DINOMAX 2 L60
Year	2016
Condition	Used
Stock Number	5654398
Spindle speeds	18,000 / 5,000 rpm
X axis travel	7,000 mm
Y axis travel	3,200 mm
Z axis travel	1,500 mm

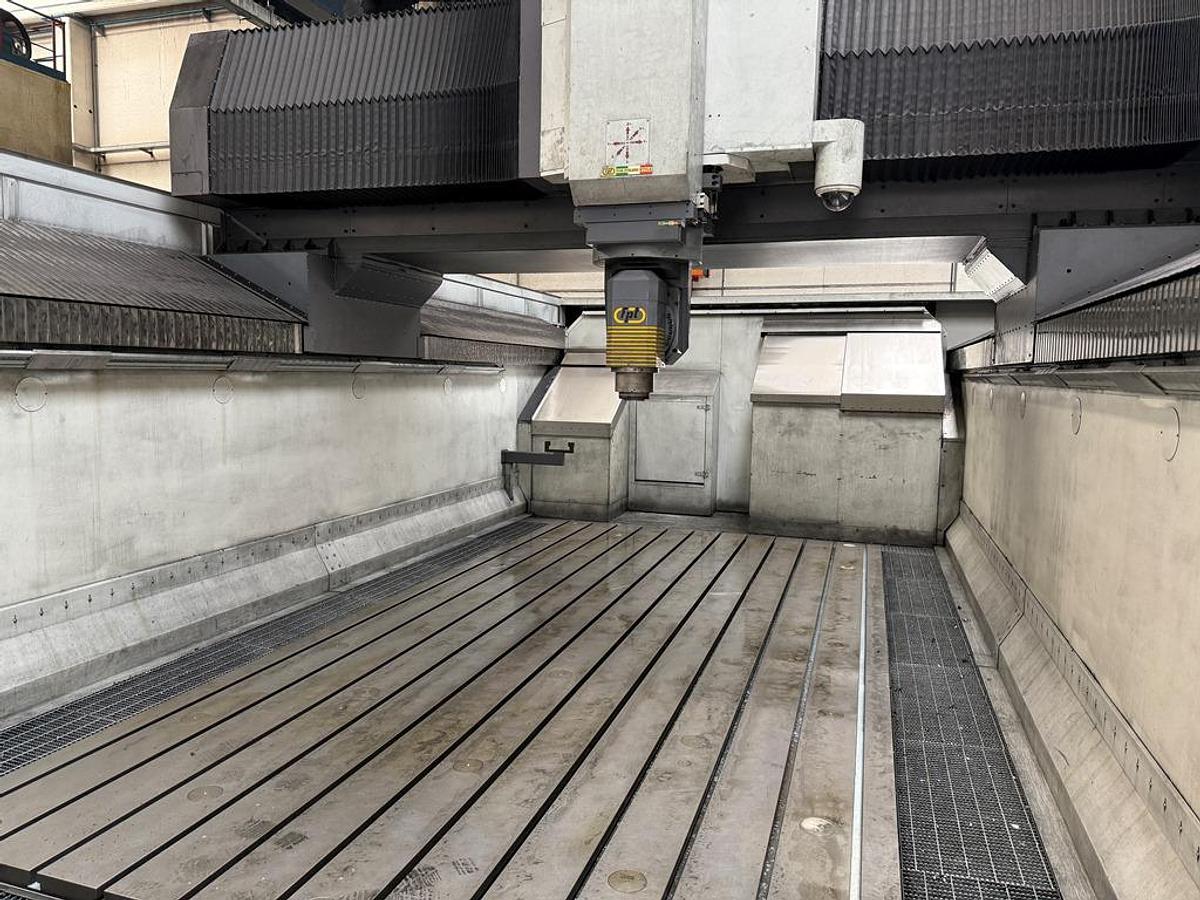

Table dimensions	3,000 x 6,000 mm
Table capacity	15 t/m²
Max axis feed speed	50,000 mm/min
Max horizontal clearance	4,200 mm
Max verical clearance under crossbeam	2,330 mm
Table height from ground	350 mm
Overall dimensions	10,500 x 7,475 x 5,380 mm
Machine weight	80,000 kg
