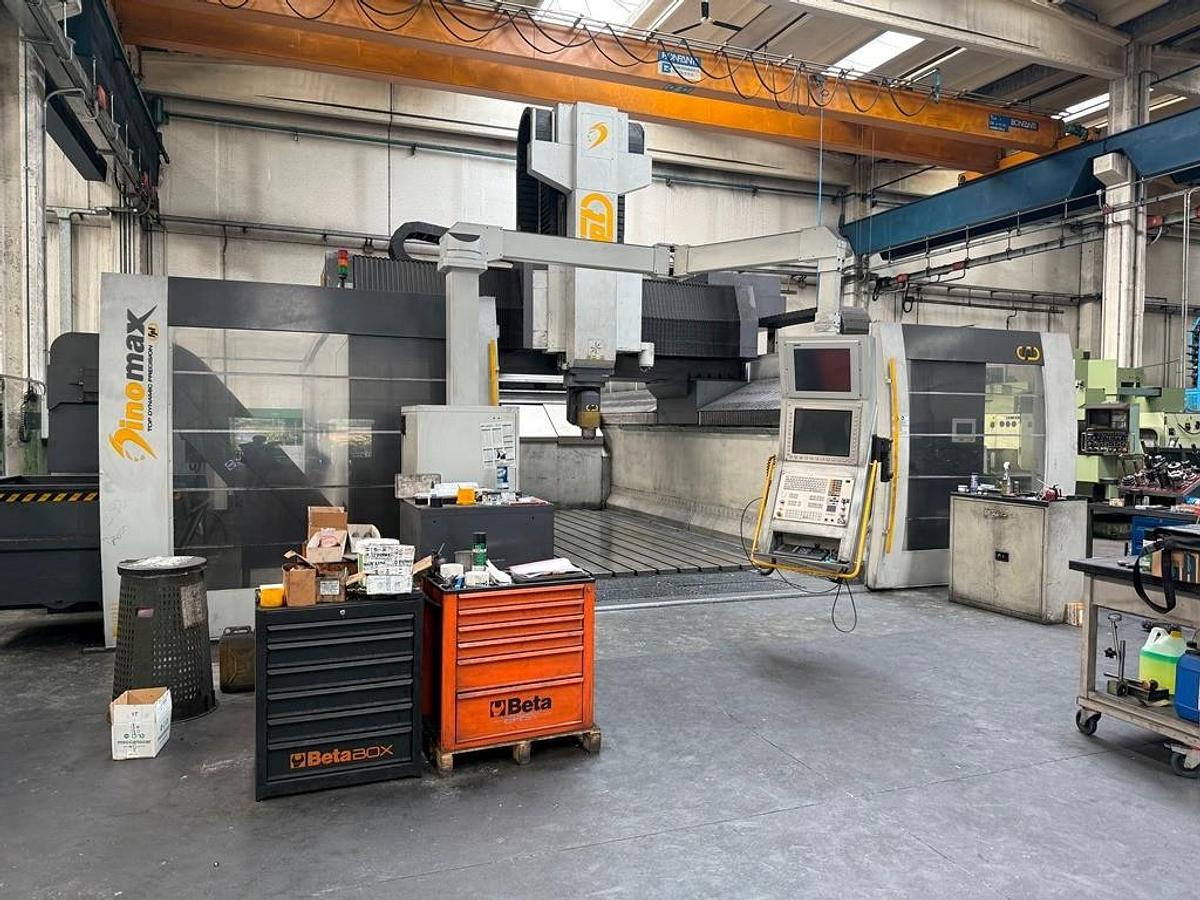

FPT DINOMAX3 L70 CNC 5-Axis Gantry Type Milling Machine
FPT DINOMAX3 L70 CNC 5-Axis Gantry Type Milling Machine
or
Call 770-509-0744
Description
- Heidenhain 640 iTNC CNC Control
- n.1 Universal bi-rotary head with continuous positioning
- Spindle Speed 5,000 rpm
- Tool taper ISO 50 DIN 69871

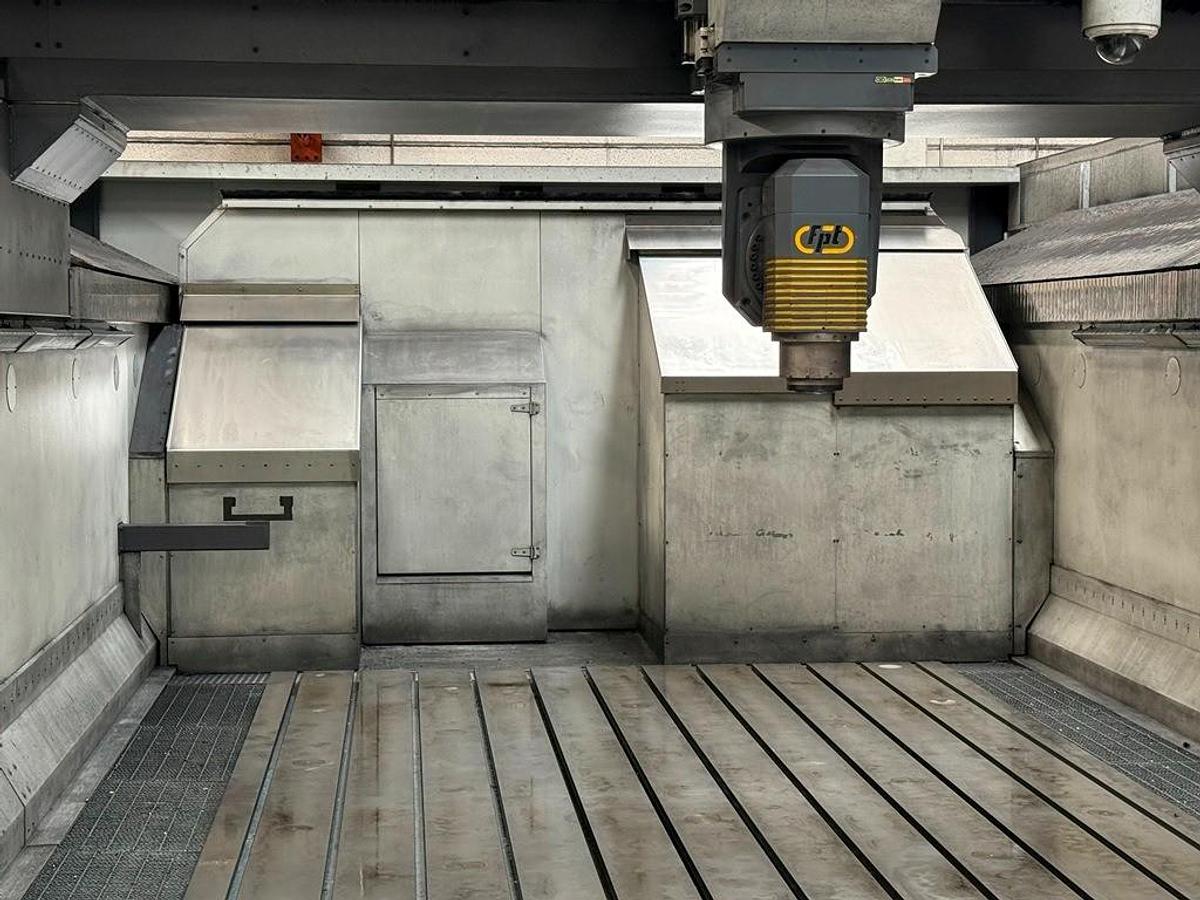

- n.1 head (fork type) with 2 continuous axes
- 33 kW 5-axis head with electrospindle 1st axis rotation +/- 180° 2nd axis rotation +/- 92,5°
- Spindle speed 18,000 rpm
- Spindle taper HSK63A

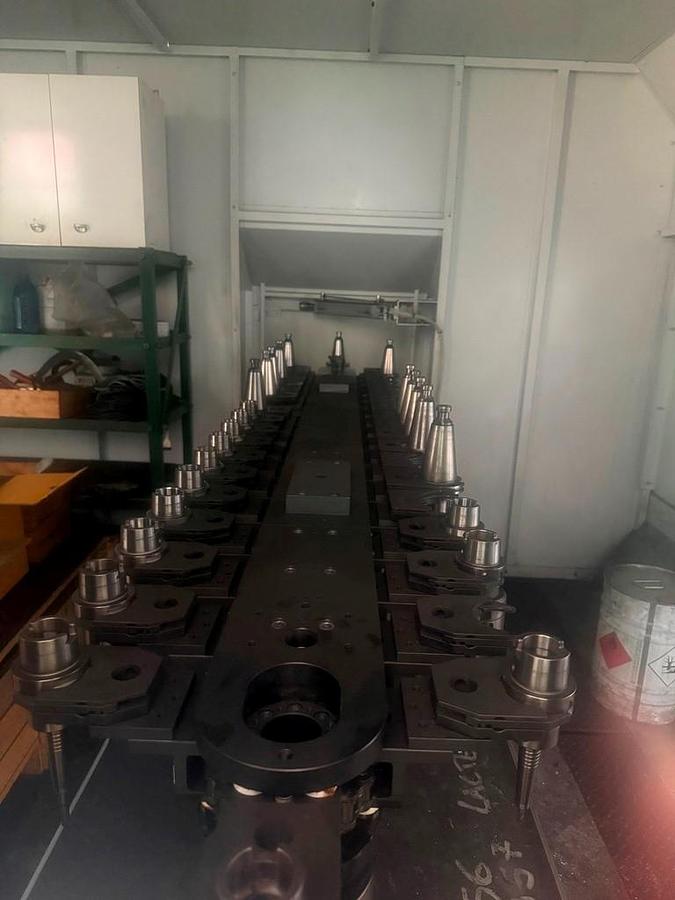

- 40 Position Tool Changer
- 25 Position ISO 50 Taper
- 15 Position HSK 63A Taper
- Rigid tapping for electrospinde (for each milling head) Rigid tapping for mechanical milling head
- Automatic head magazine with 3 positions
- Internal coolant 20 bar
- Air pressure internal coolant - External coolant 4 bar
- n. 1 chip conveyor front of the table
- n. 2 chip conveyors lateral to the table
- Spindle extension 400mm - ISO 50 with cooling - 5,000 rpm
- Remote control panel, Handwheel HR 550 FS Laser probe and sw with tool measuring system wear, lenght and radius Static RTCP system Working area videosurveillance system
Specifications
| Manufacturer | FPT |
| Model | DINOMAX3 L70 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 5654396 |
| Spindle speeds | 5,000 rpm |
| Table height | 300 mm |
| X axis travel | 7,000 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 3,000 x 6,000 mm |
| Table capacity | 15 t/m |
