Blansko SKSJ 1A CNC Single Column Vertical Turning & Boring Machine with Live Spindle

Blansko SKSJ 1A CNC Single Column Vertical Turning & Boring Machine with Live Spindle

or
Call 770-509-0744

Description

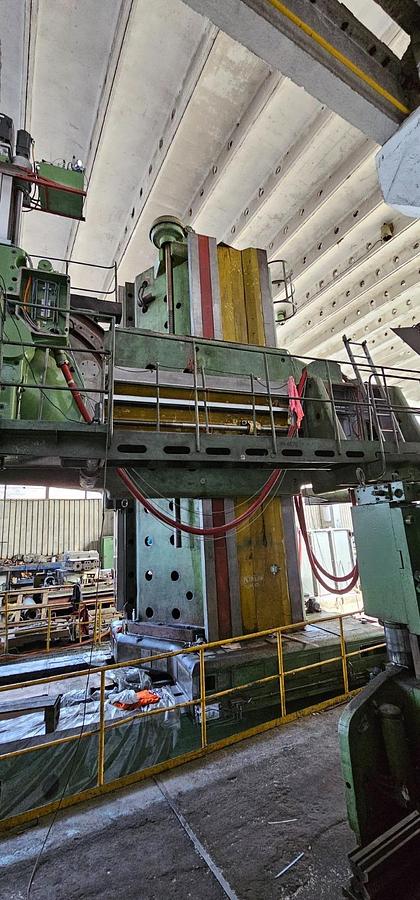

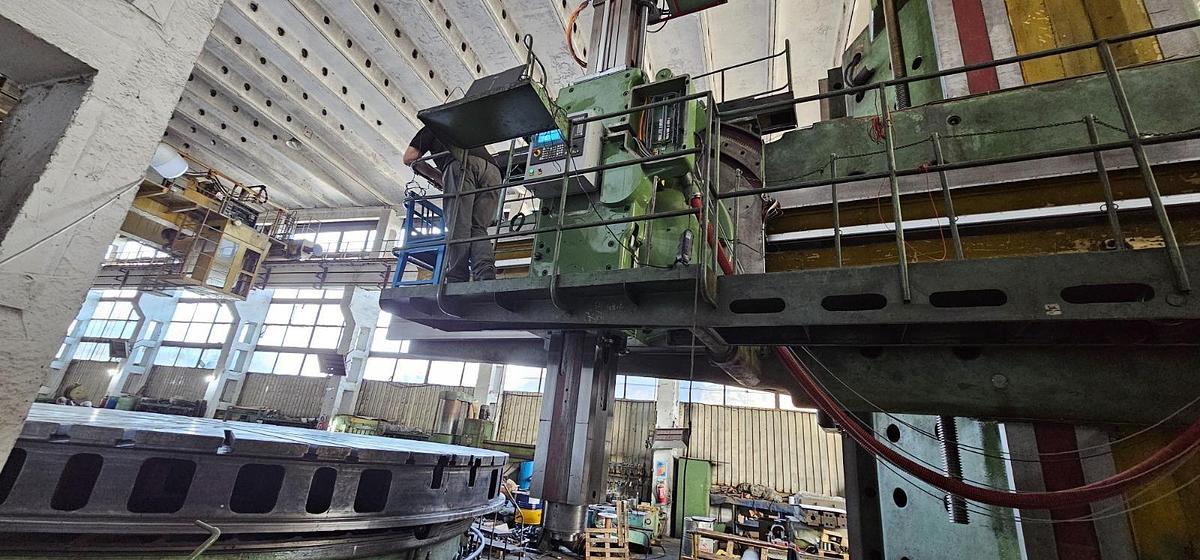

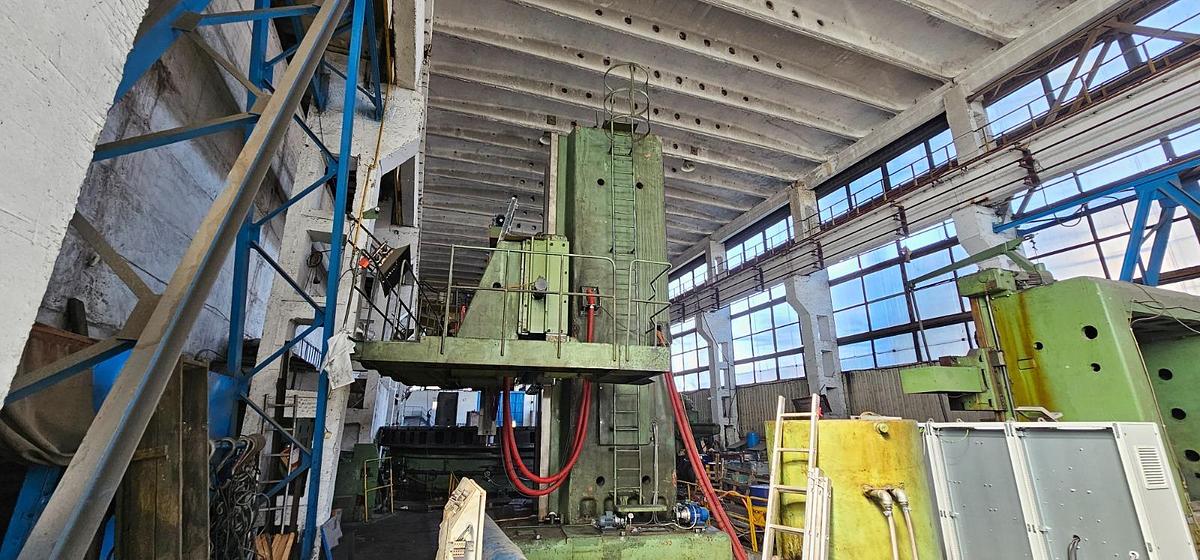

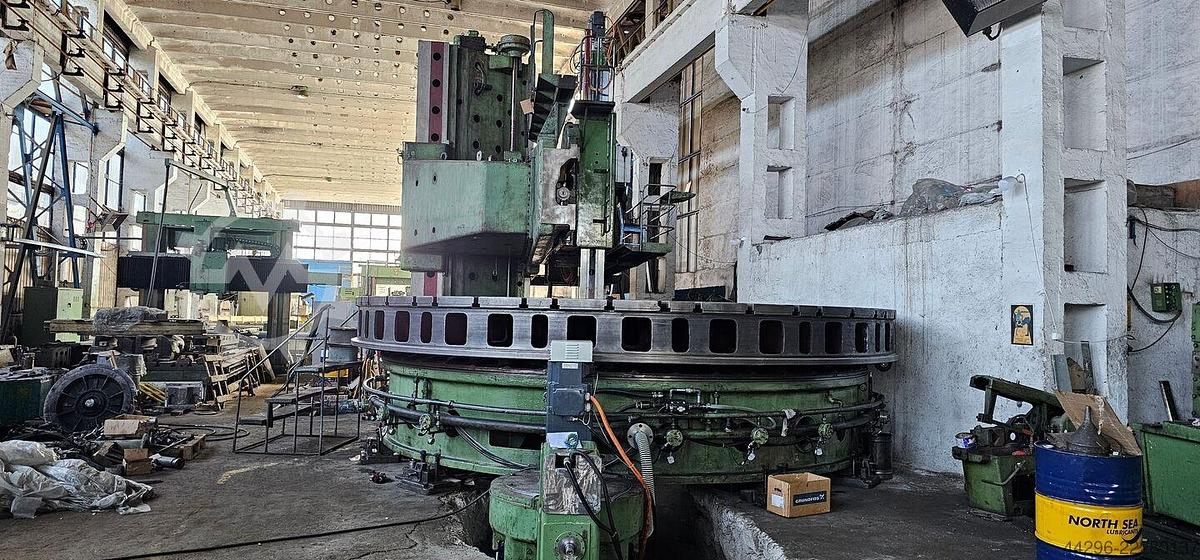

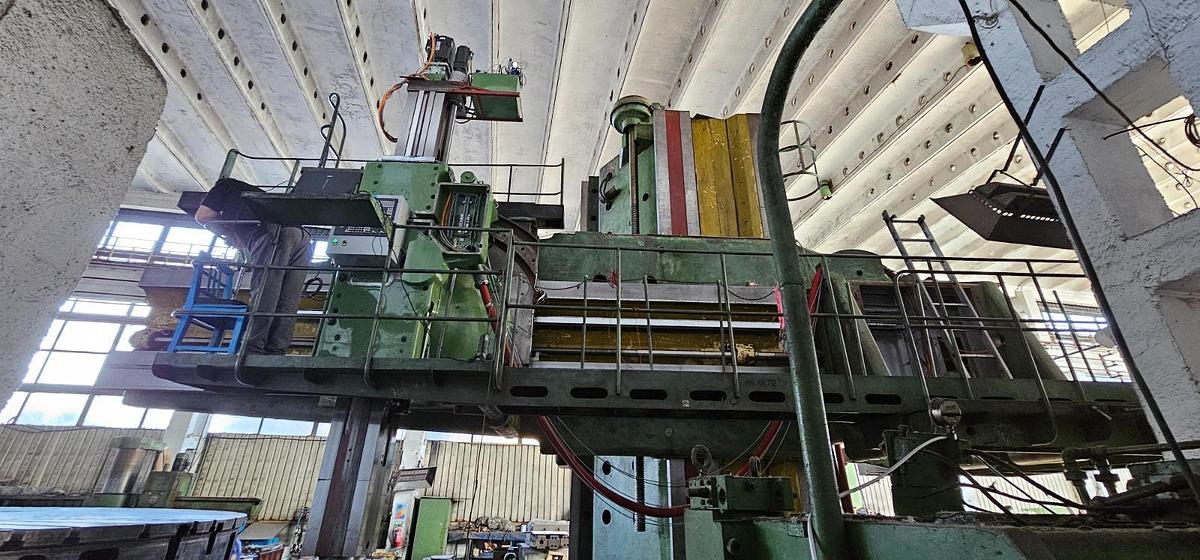

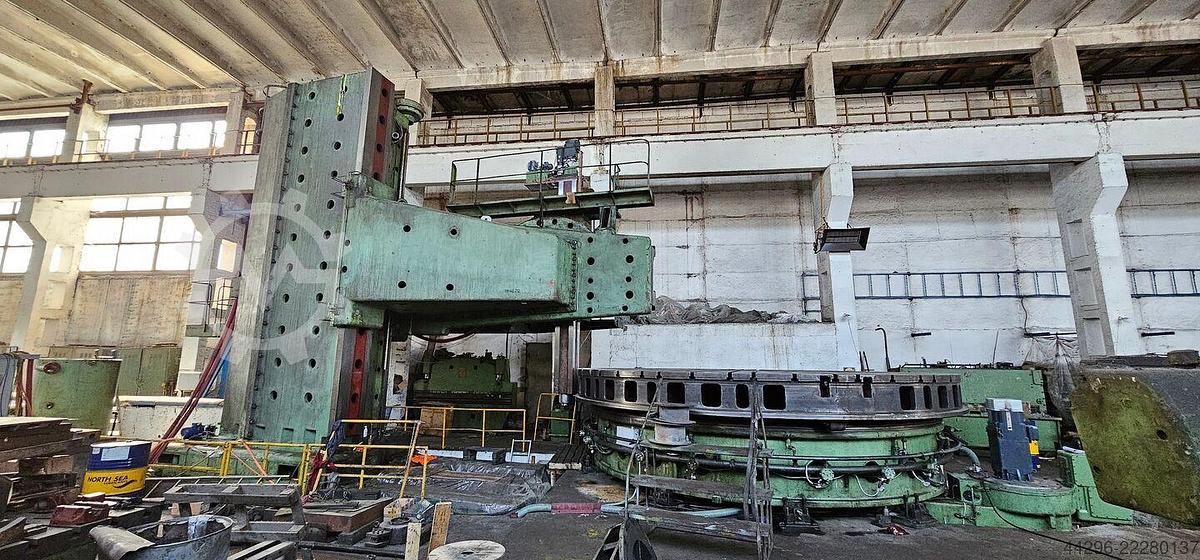

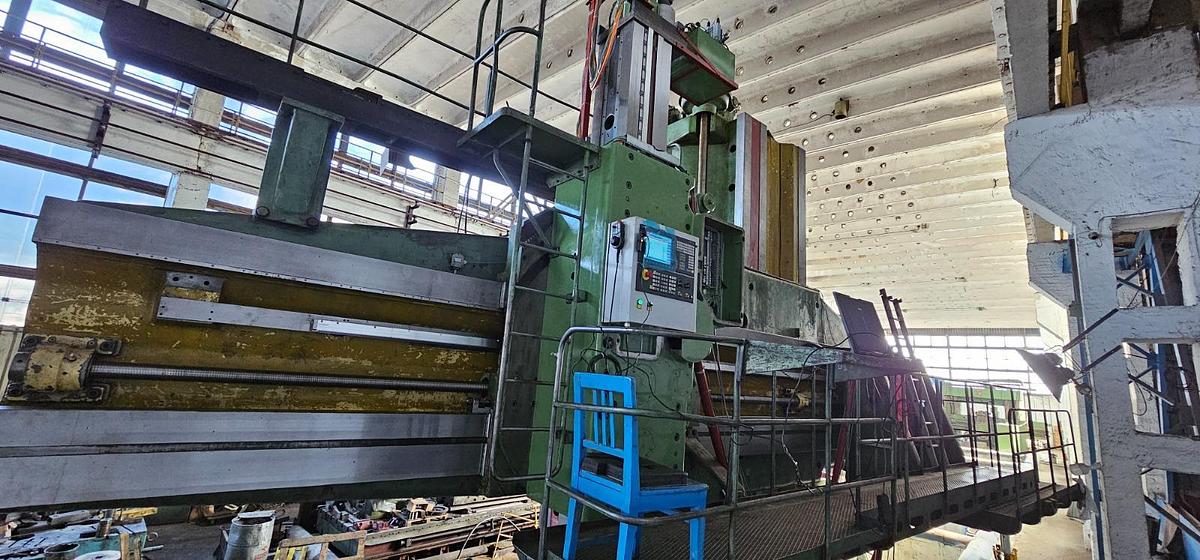

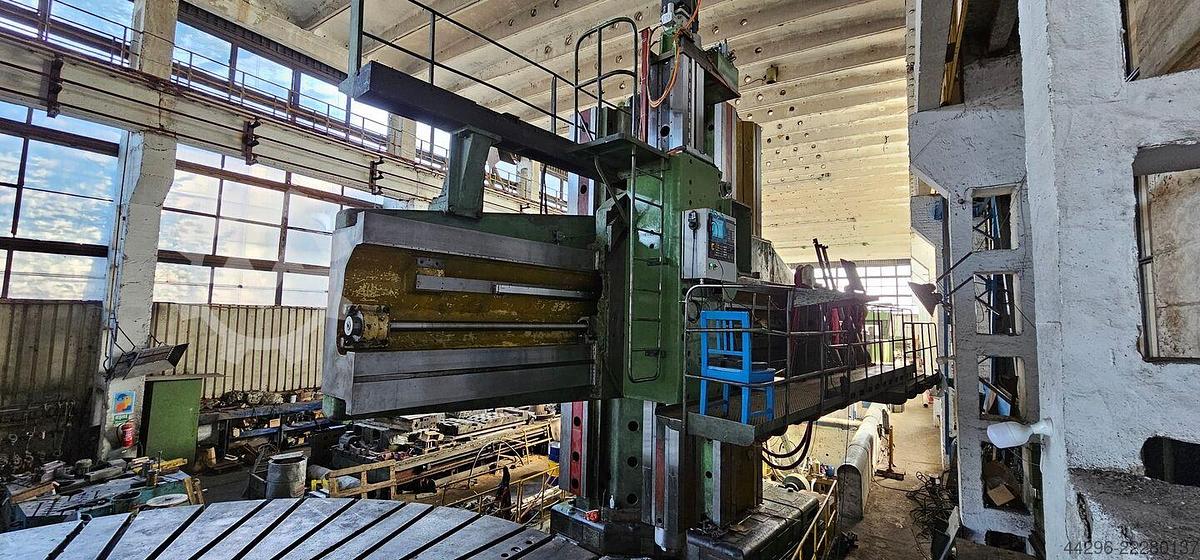

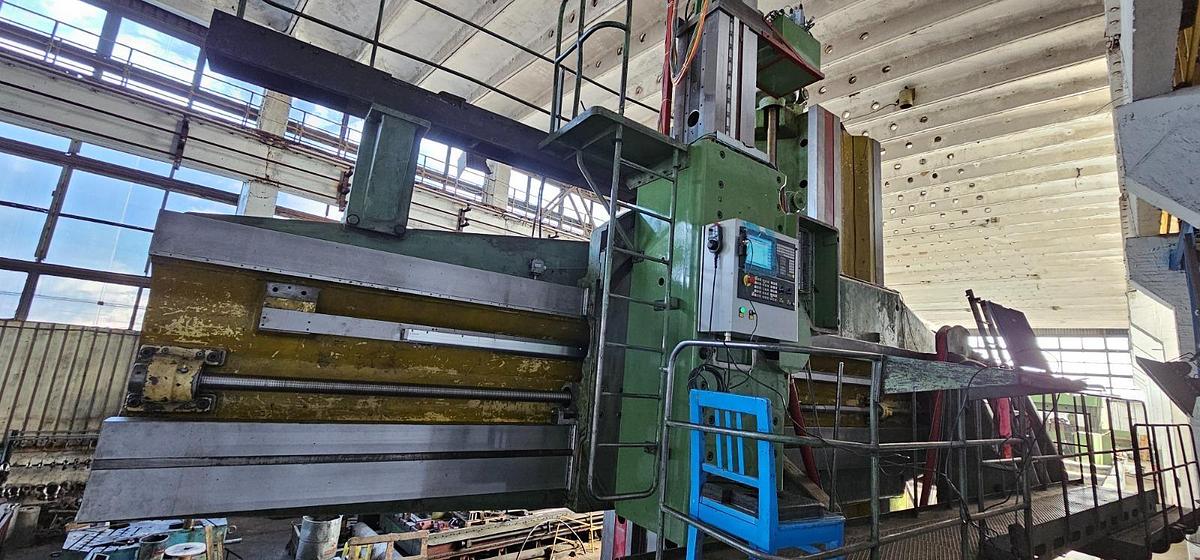

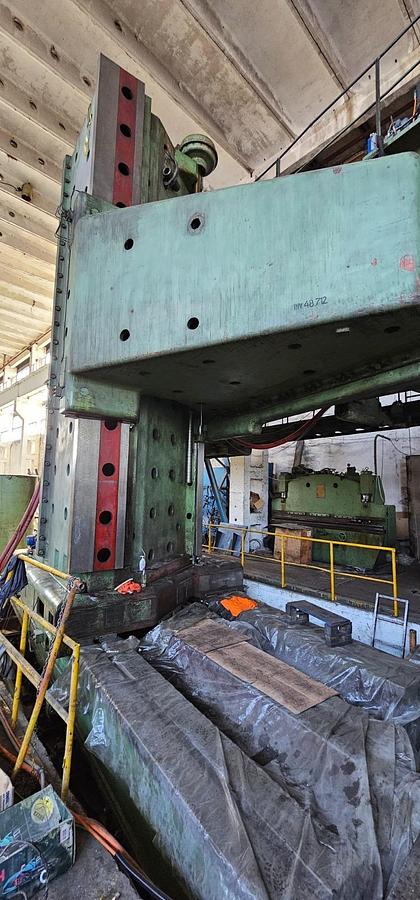

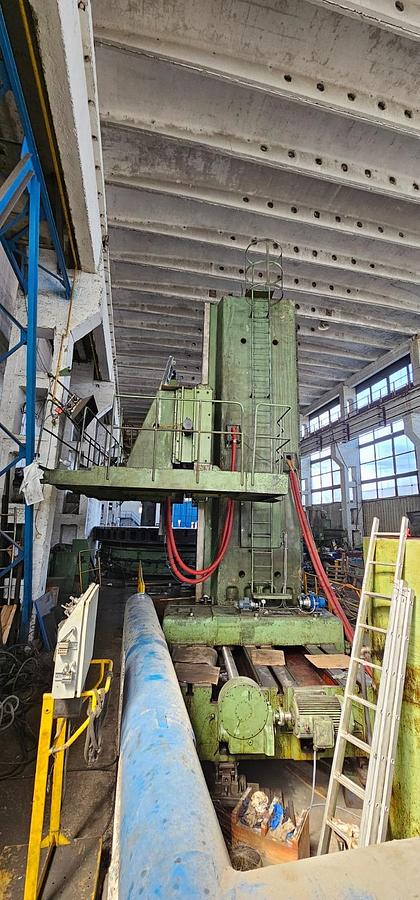

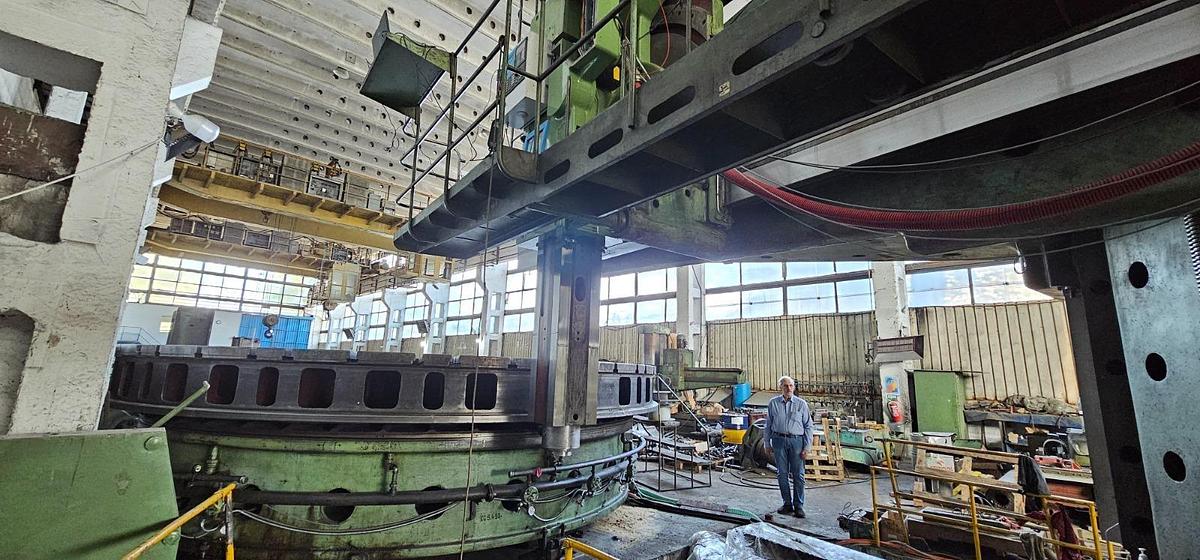

A vertical lathe with a single column, the Blansko SKSJ 1A, completely modernized, equipped with a vertical head for turning and milling operations.


The machine was completely modernized in 2025/2026 and equipped with the following new components:

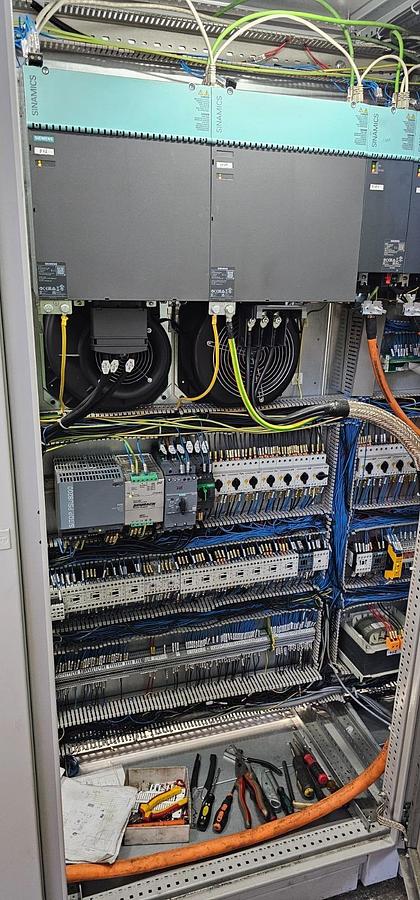

  • New electrical cabinet, made with CE components (Siemens, Schrack, etc.)
  • Siemens 828 numerical control system, 100 kW main motor, 27 feed motors and ZF gearboxes with 1/5 ratio

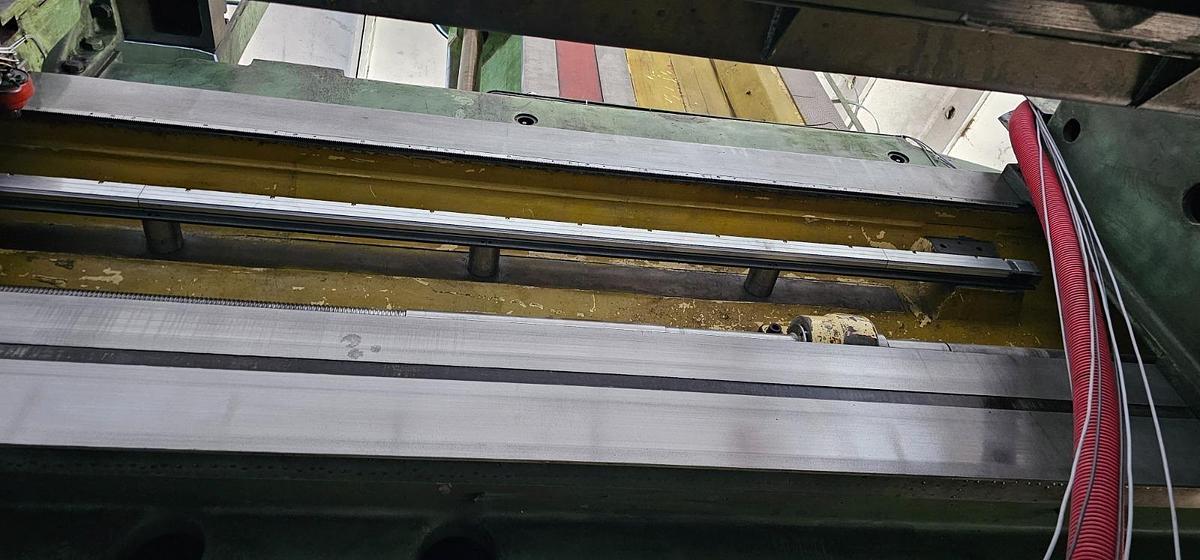

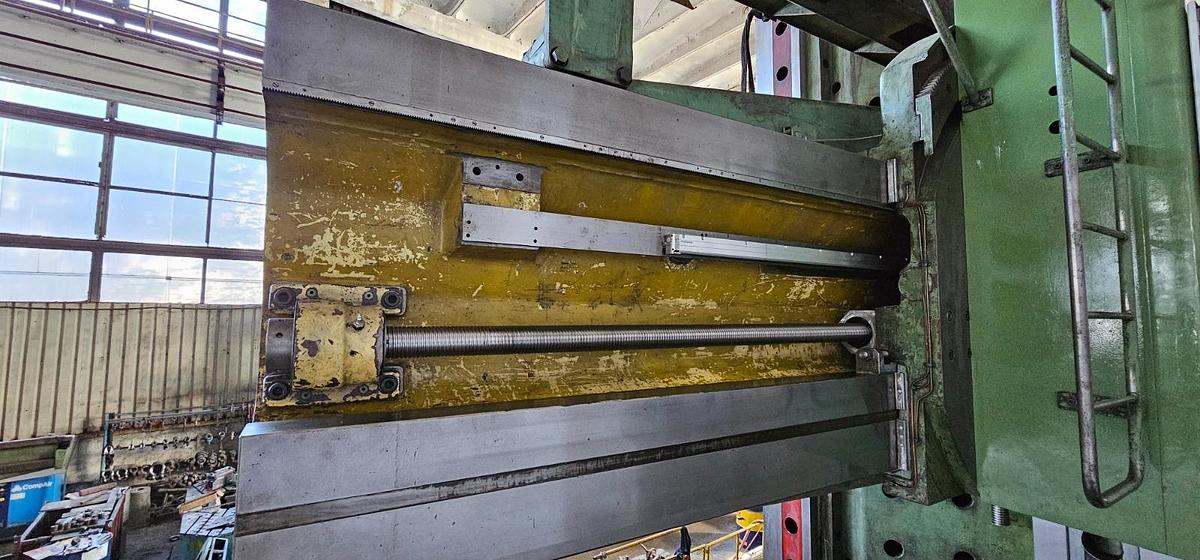

  • New 2-axis ball screw (vertical head and transverse sled)
  • New Heidenhain 2-axis measuring rulers - Hydraulic and support installations, made with CE components (Rexroth, Brevini, Atos, etc.)
  • New lubrication plant DROPSA-Italy or similar

Specifications

ManufacturerBlansko
ModelSKSJ 1A
Year2025
ConditionRefurbished
Stock Number5654392

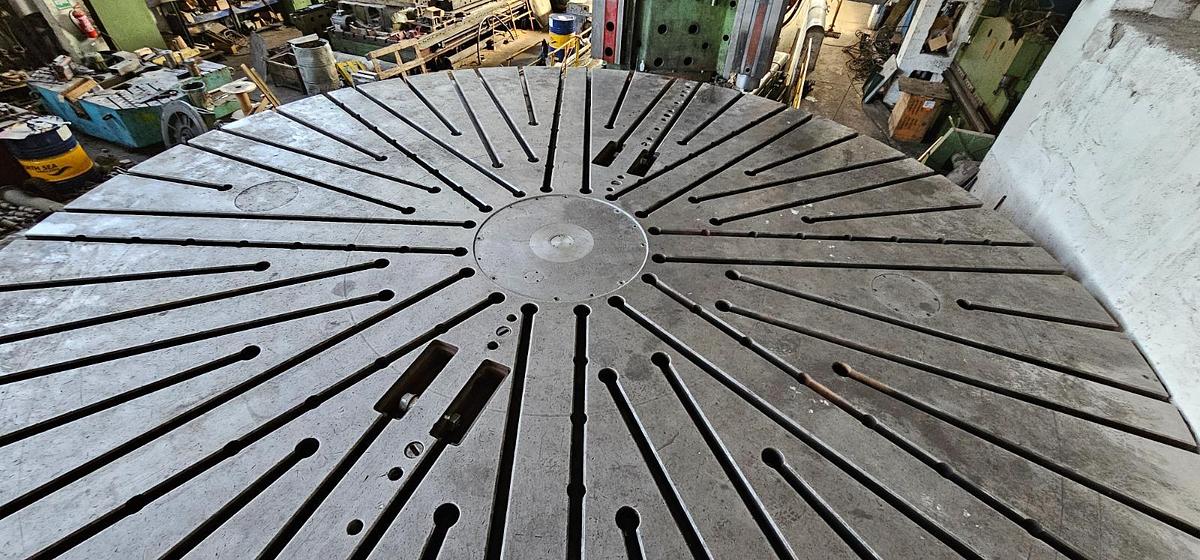

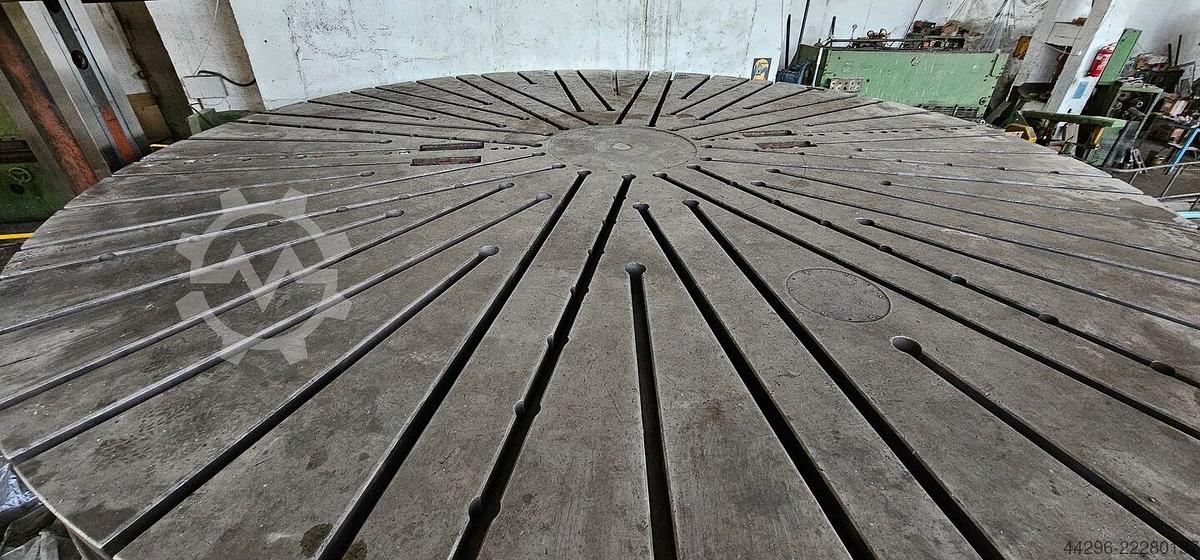

Table diameter6,300 mm
Turning diameter16,000 mm
Max turning diameter column near faceplate8,000 mm
Max workpiece height4,800 mm
Max workpiece diameter14,700 mm
Max workpiece diamater internal turning16,000 mm
Continuously variable turning faceplate0.5 - 20 rpm
Table capacity100 Ton
Live spindle speed1,500 rpm
Live spindle motor2 speed gearbox 15 kW
Spindle taperISO 50 - Siemens motor manual clamping system
Machine weight220 Ton
