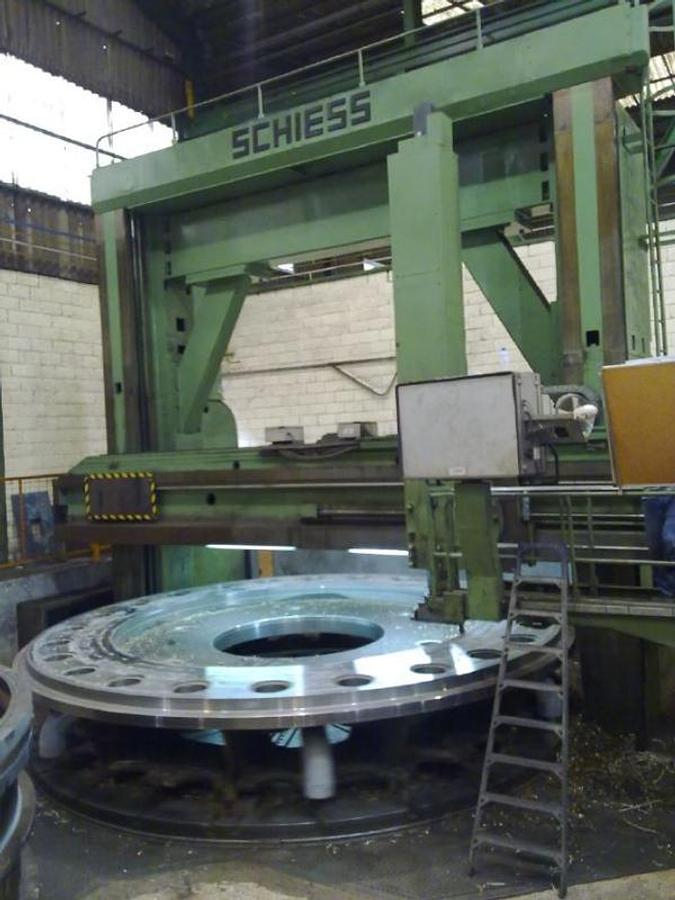

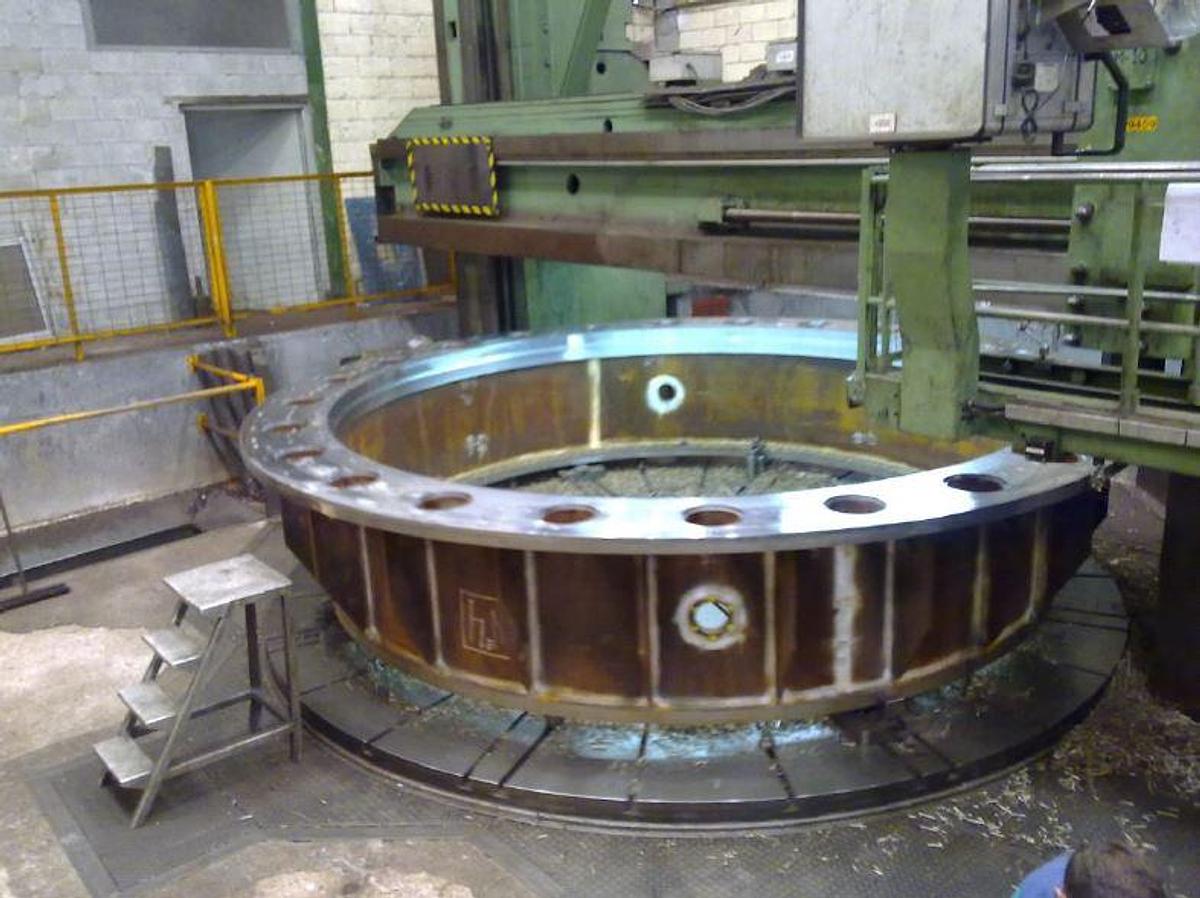

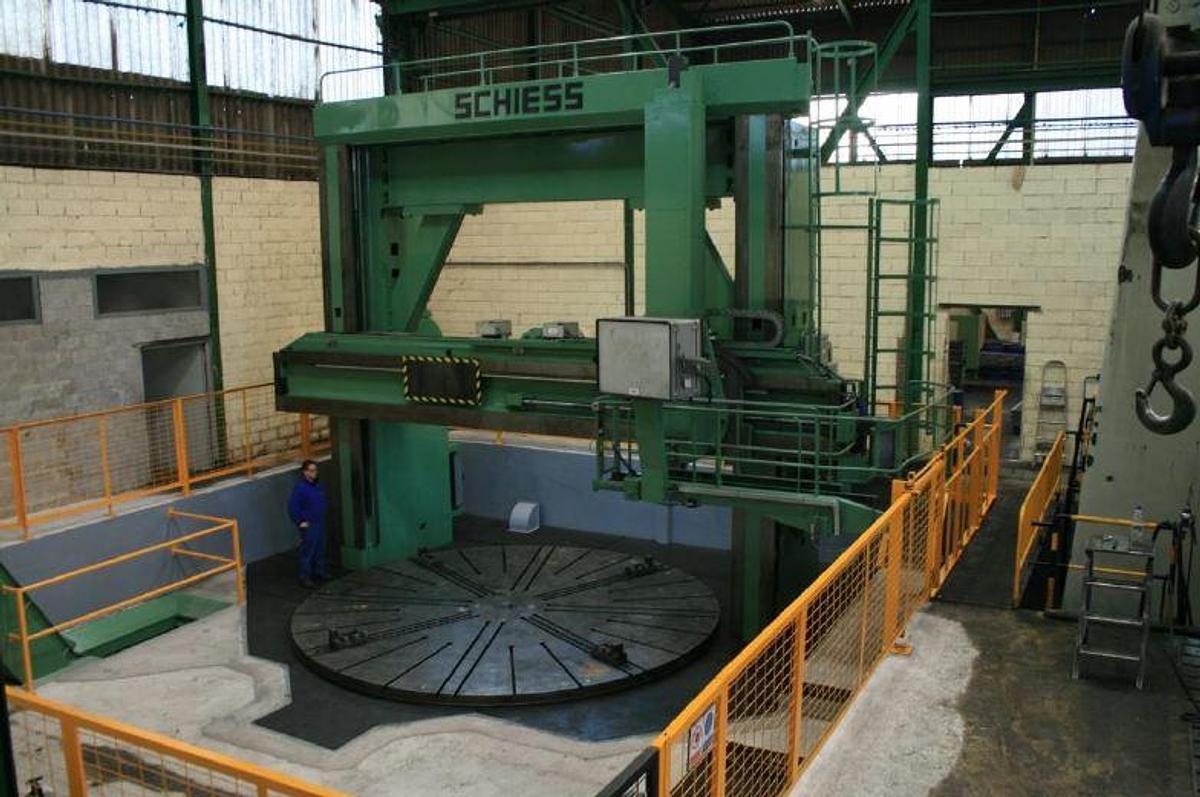

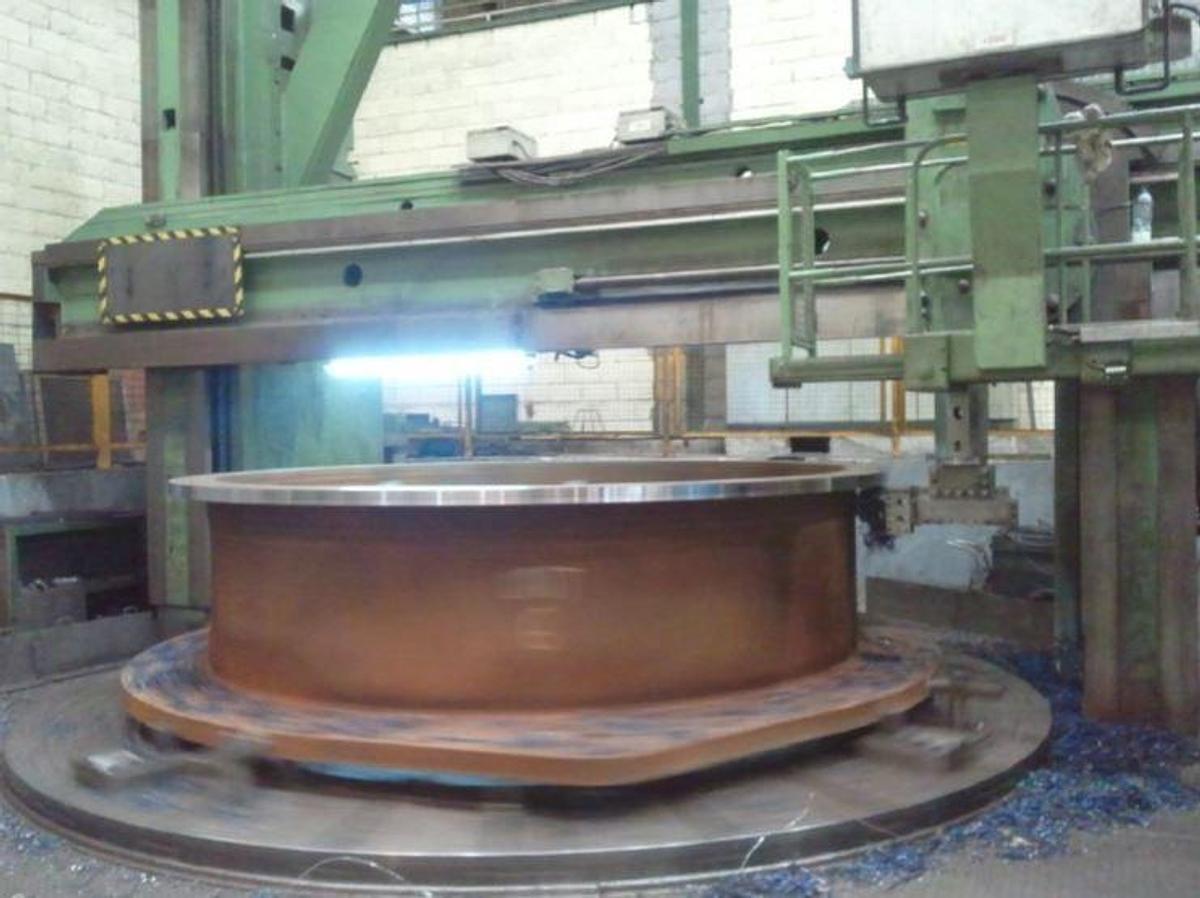

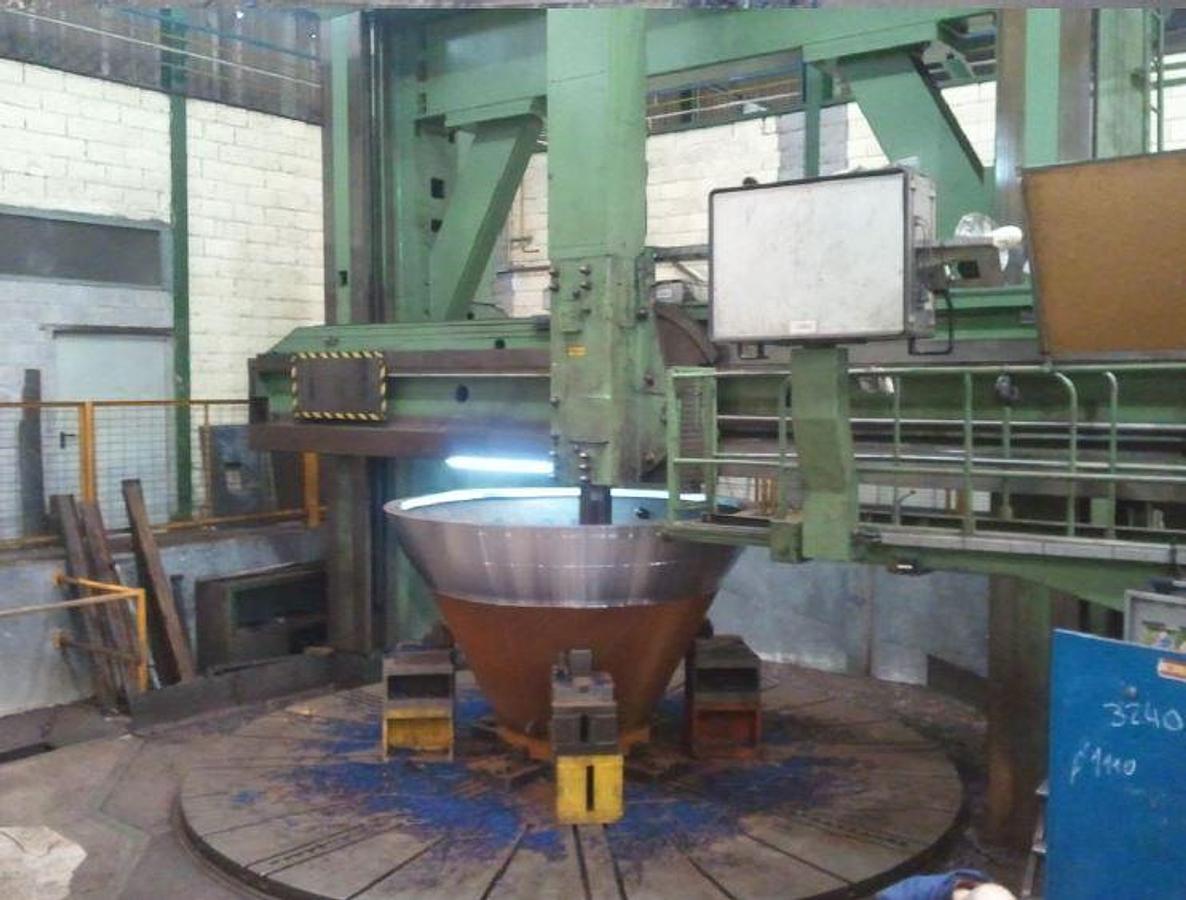

Schiess 18 VBM CNC Double Column Vertical Turning Machine
Schiess 18 VBM CNC Double Column Vertical Turning Machine
or
Call 770-509-0744
Description
Rebuilt & Retrofit in 2015 with Fagor 8055 CNC Control
Specifications
| Manufacturer | Schiess |
| Model | 18 VBM |
| Condition | Used |
| Stock Number | 5654389 |
| Table diameter | 5,500 mm |
| Swing | 6,000 mm |
| Turning height | 4,400 mm |
| Table capacity | 100 Ton |
| Table turn speed | 1 - 25 rpm |
| Ram travel | 1,500 mm |
| Crossrail travel | 3,000 mm |
