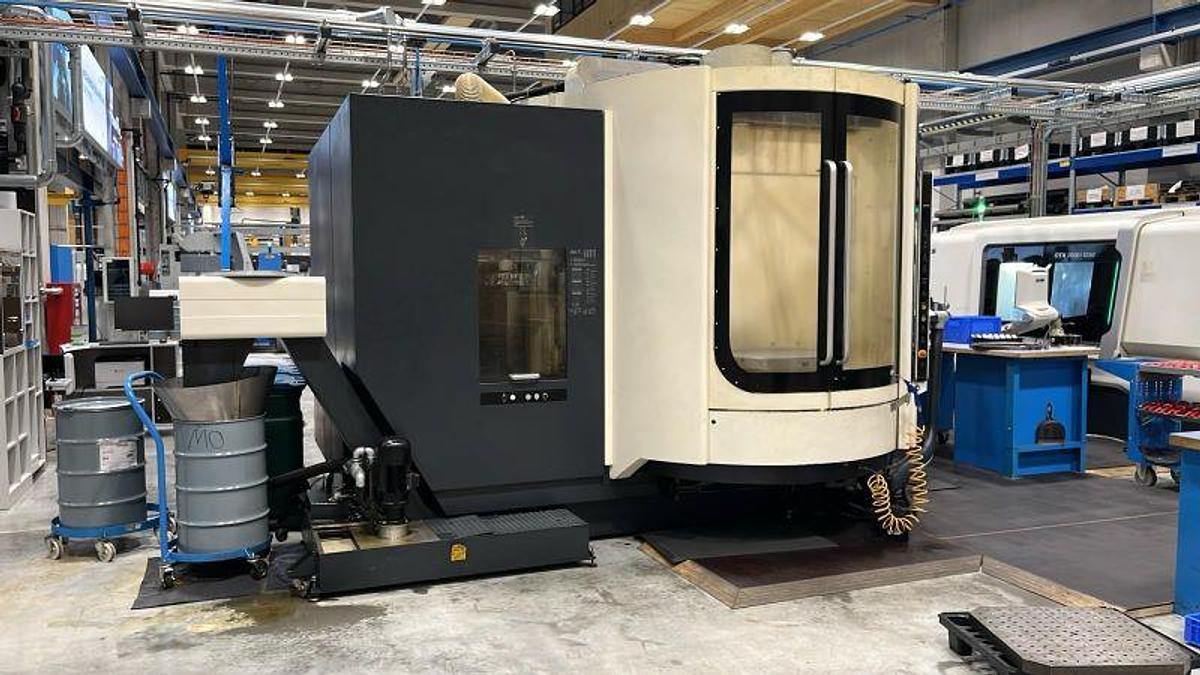

HEIDENHAIN MillPlus IT CNC Control

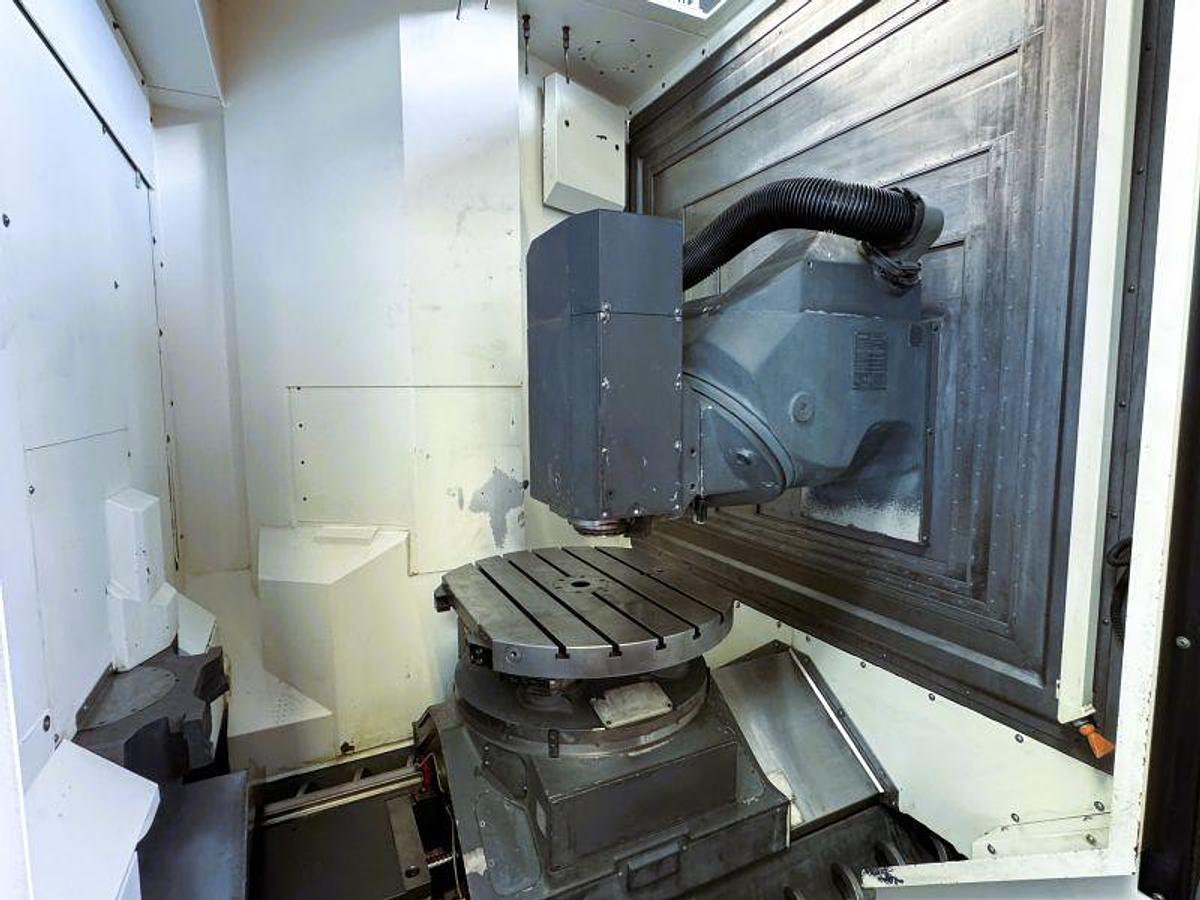

NC-swivelling milling head with 18,000 rpm motor spindle for 5-axis simultaneous machining

3D CNC-control HEIDENHAIN MillPlus iT

Spindle cone HSK 63 with internal coolant supply (IKZ)

Direct distance measuring system (glass scale in all three axes)

SmartKey for operating mode 3

SmartKey for operating mode 4

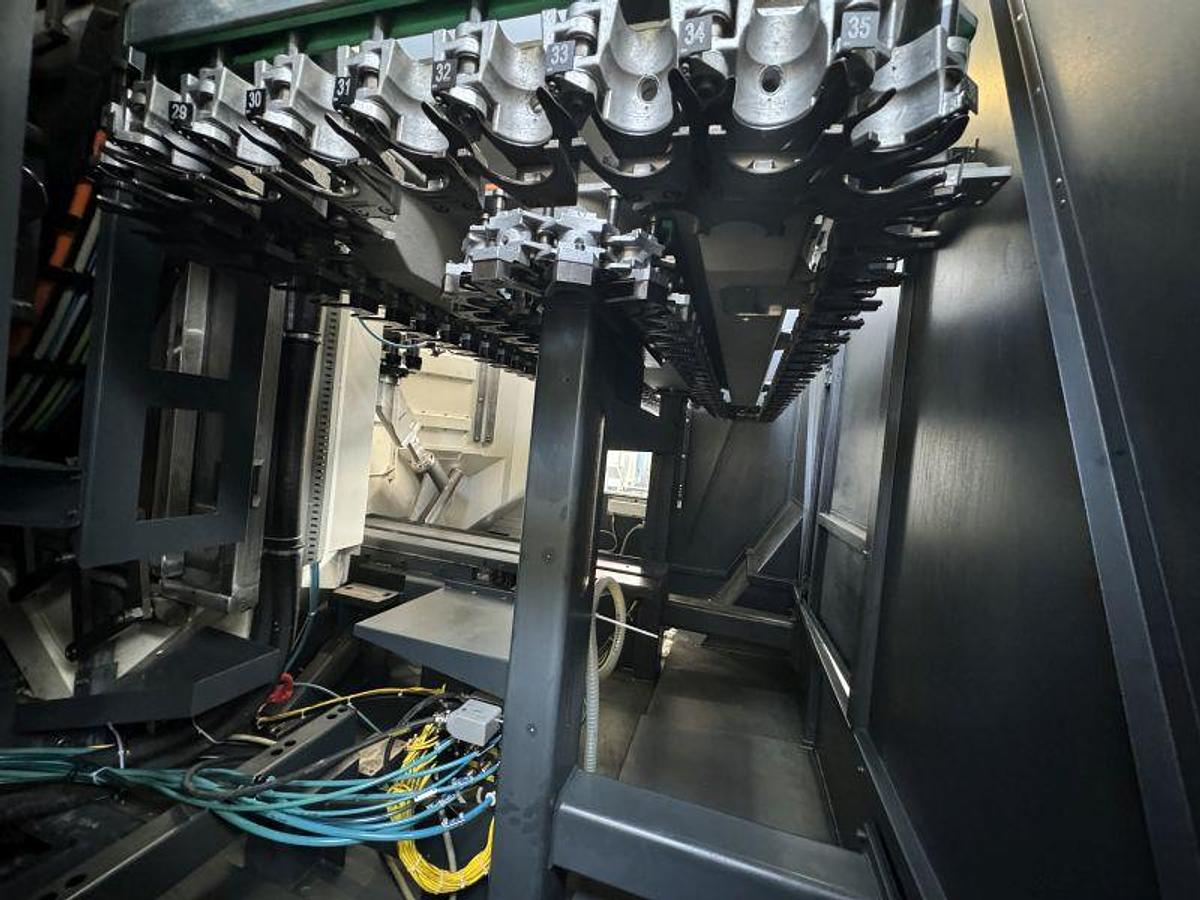

120-position tool magazine with automatic changer

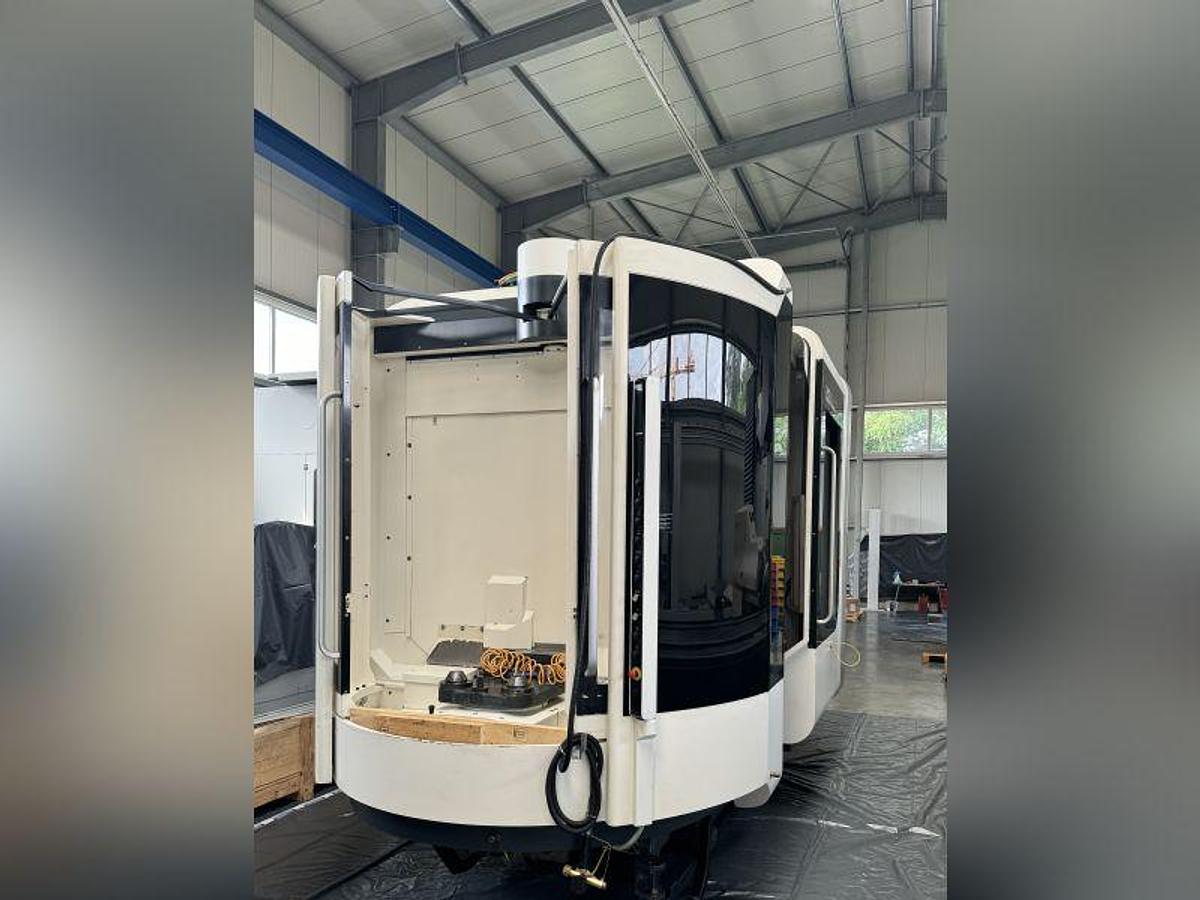

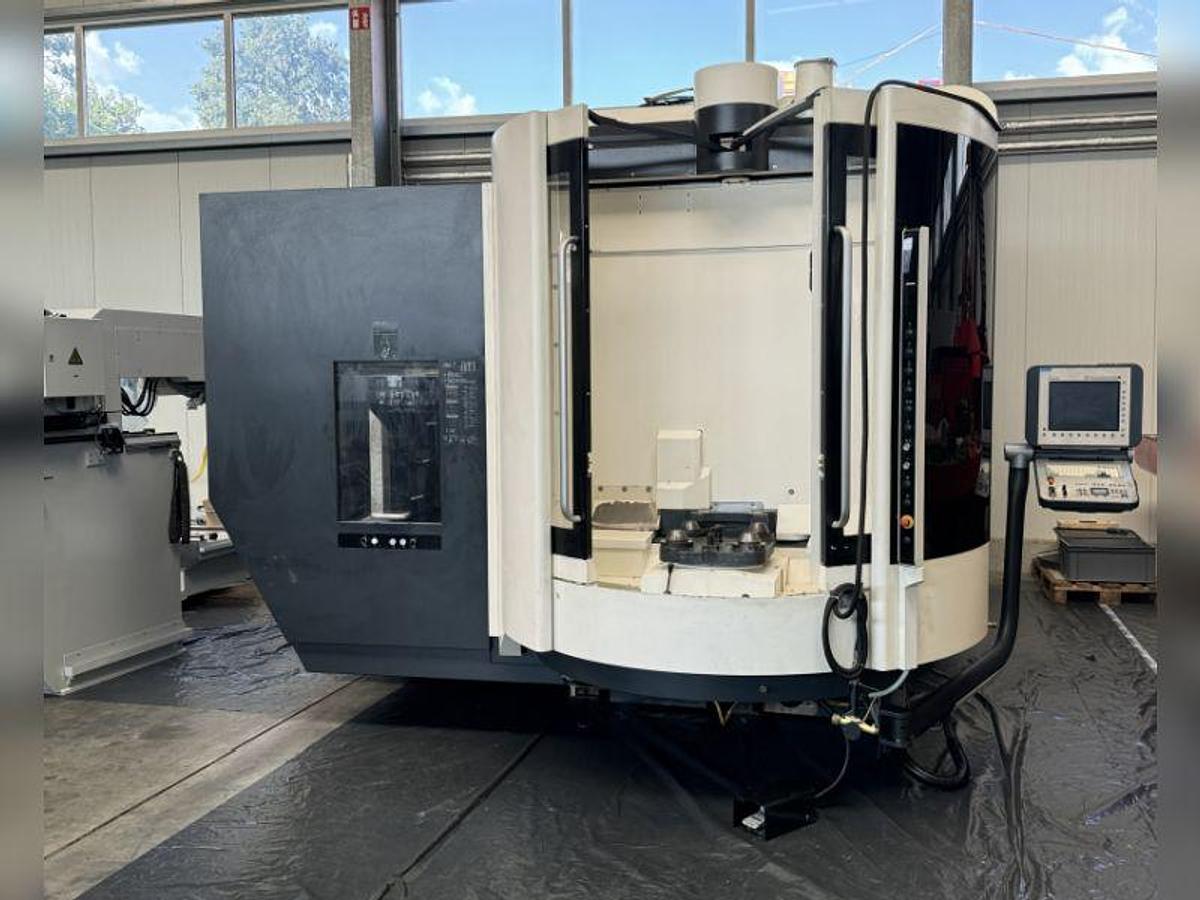

2 pcs. Exchangeable pallets Ø800 x 630mm

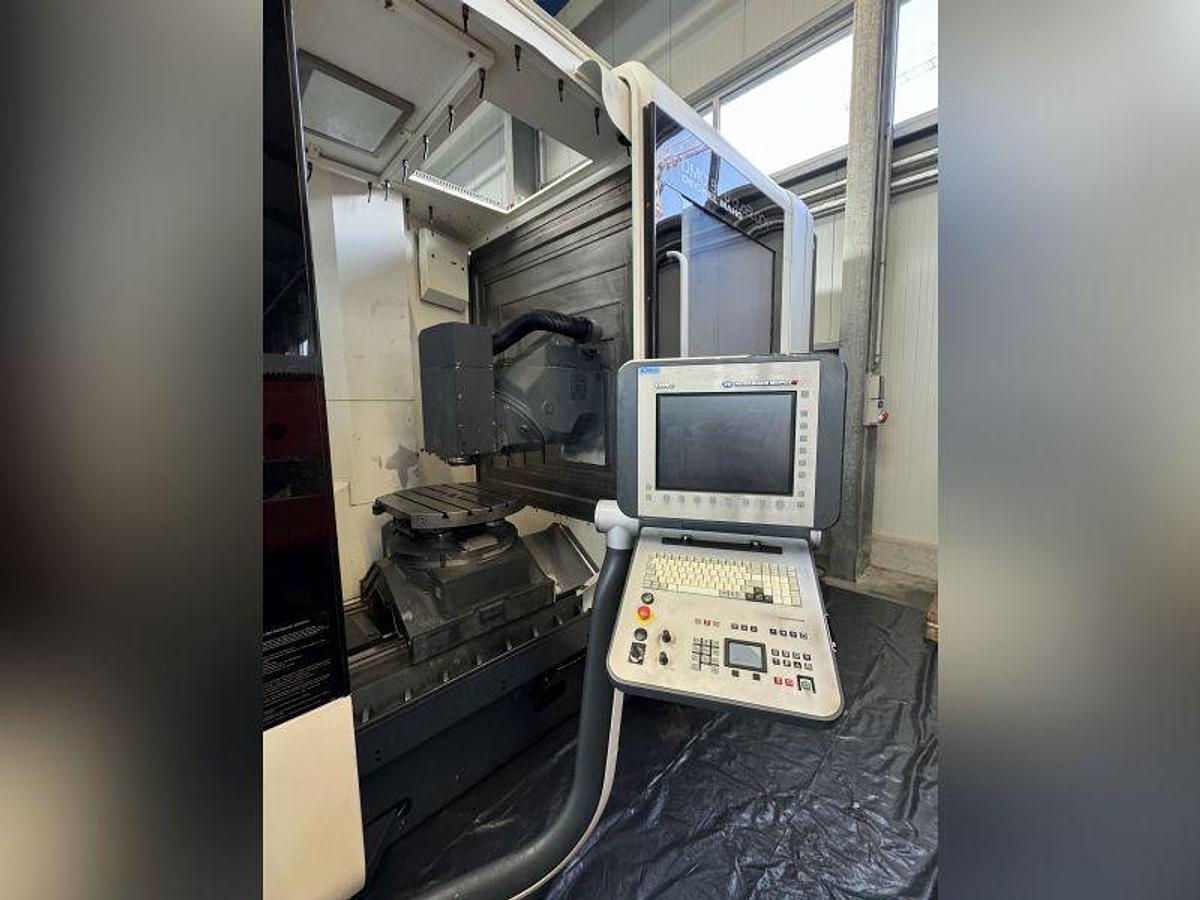

Swiveling control panel for machine operator

Exhaust system for oil/emulsion mist with separator

Chip conveyor with discharge height approx. 956mm

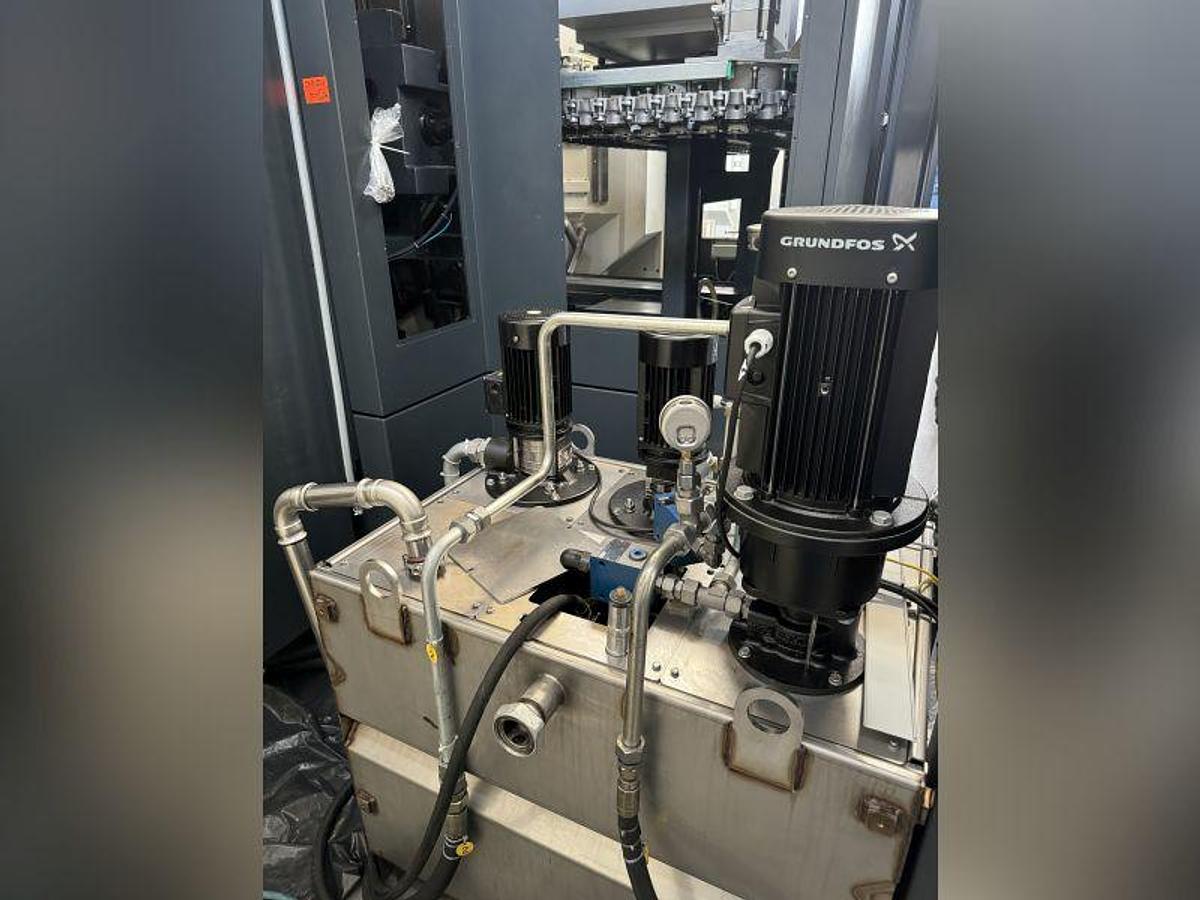

Intermediate tank with feed pumps and high-pressure pump 40 bar)

Machine prepared for central coolant supply

Chip cleaning gun

3 pcs installation elements

3D Touchprobe

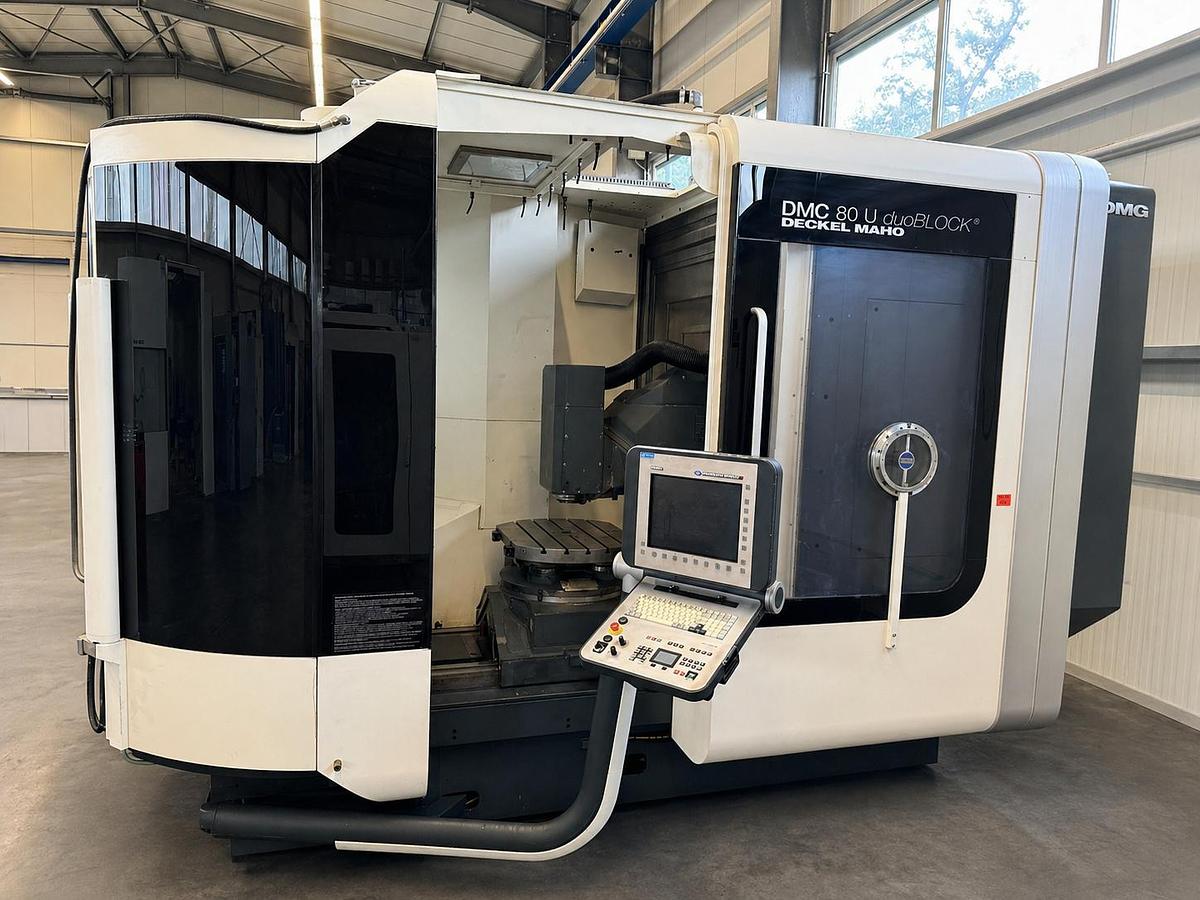

Machine in new design

Machine on: approx. 59.500h, Operation hours: approx 18.900h

NC Rotary Table:

Clamping surface Ø 800 x 630mm

Resolution of C-Axis 0.001°

Max. workpiece weight 1,200 Kg

Max. holding torque of the table surface 5,000 Nm

Max. speed of the table plate 30 rpm

Permitted mass moment of inertia max. 205 kgm² - H12

Number and size of T-slots 5 x Gr.14

Distance of T-slots 100 mm

Centering hole Ø50H6 mm

Universal NC-Milling Head:

B-Axis, steplesss 180°

Resolution 0.001°

Type of spindle - Motor spindle

Max. power S3, 40 % ED 28 kW

Max. torque S3, 40% 121 Nm

Speed range, stepless 20 - 18,000 rpm

Tool clamping system HSK-63 - DIN 69893 Form A
