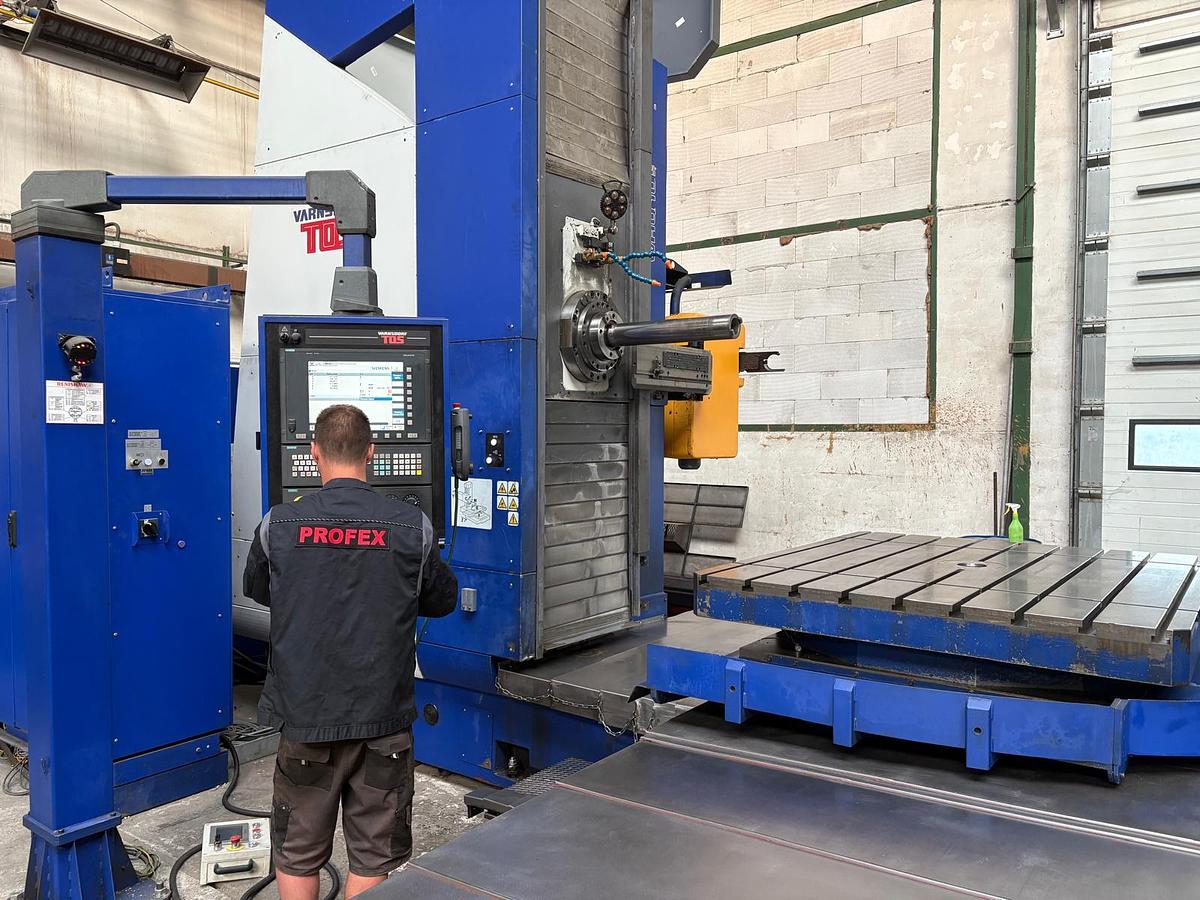

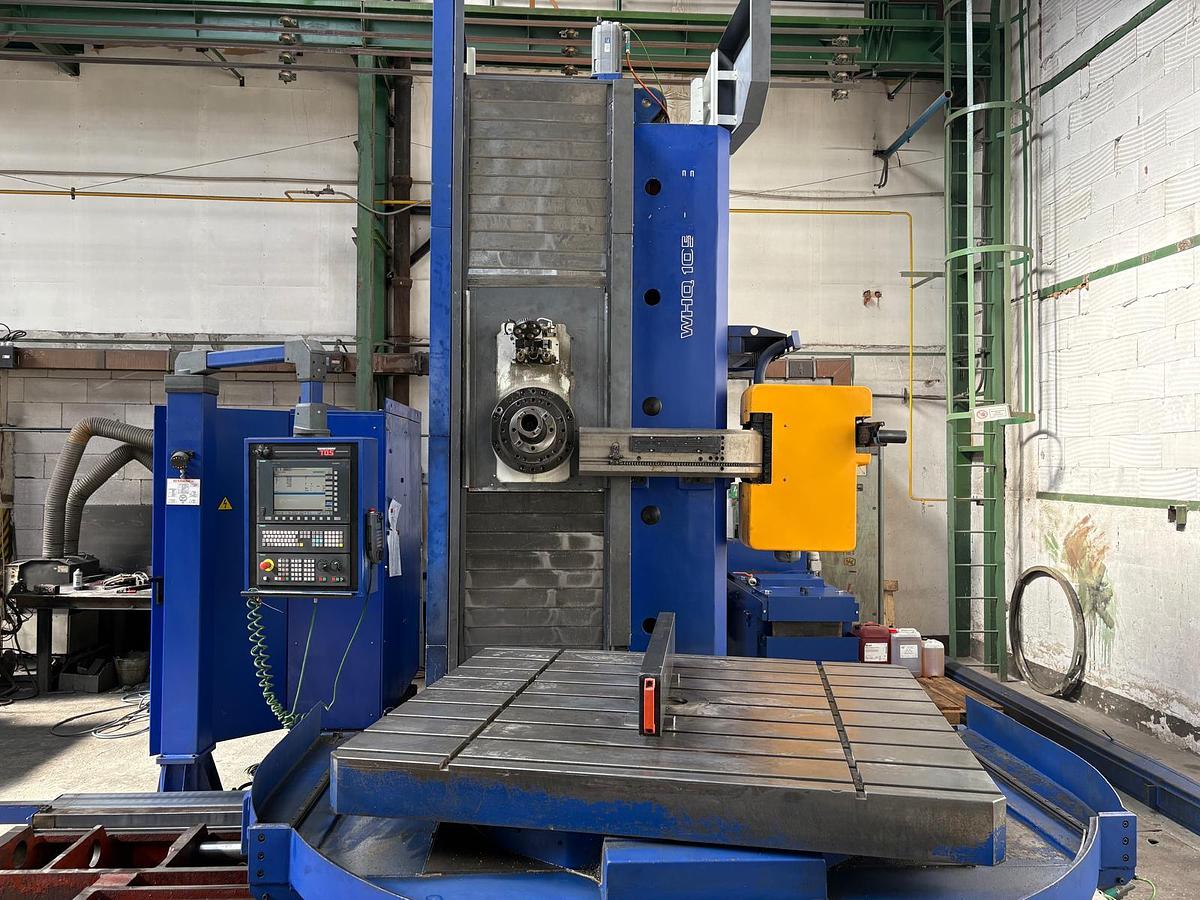

Tos Varnsdorf WHQ 15 CNC Table Type Horizontal Boring Machine
Tos Varnsdorf WHQ 15 CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description

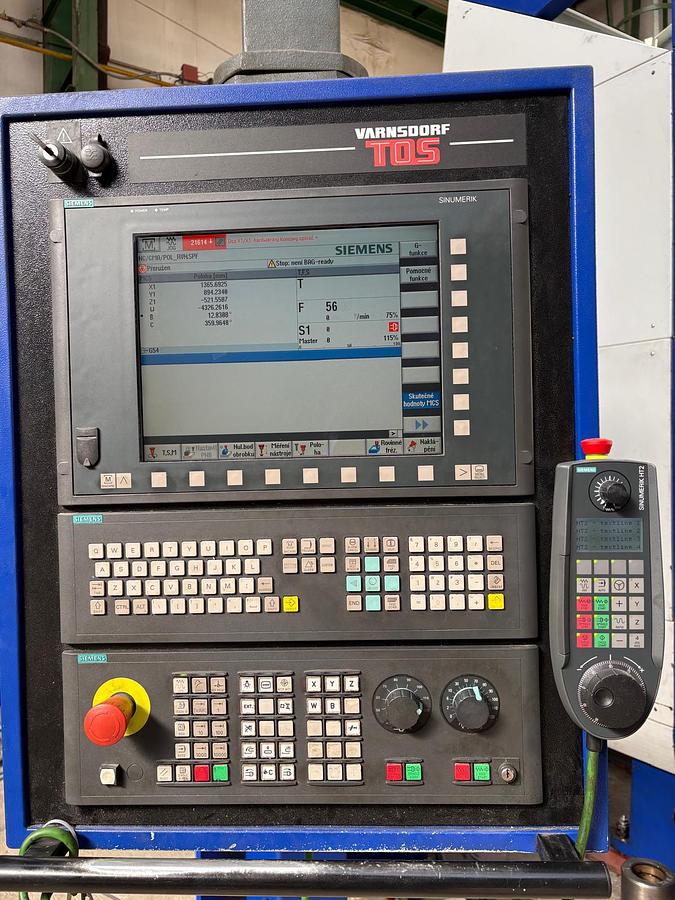

Siemens SIUMERIK 840D SL CNC Control
40 Position Automatic Tool Changer
Through Spindle Coolant - 20 bar

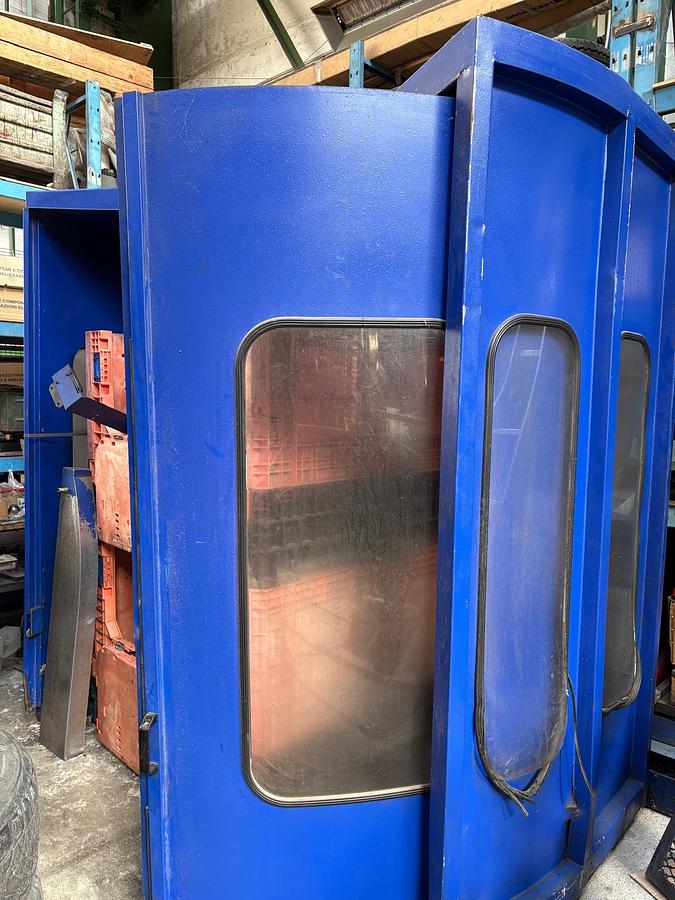

Splash guard around rotary table
Chip Conveyor

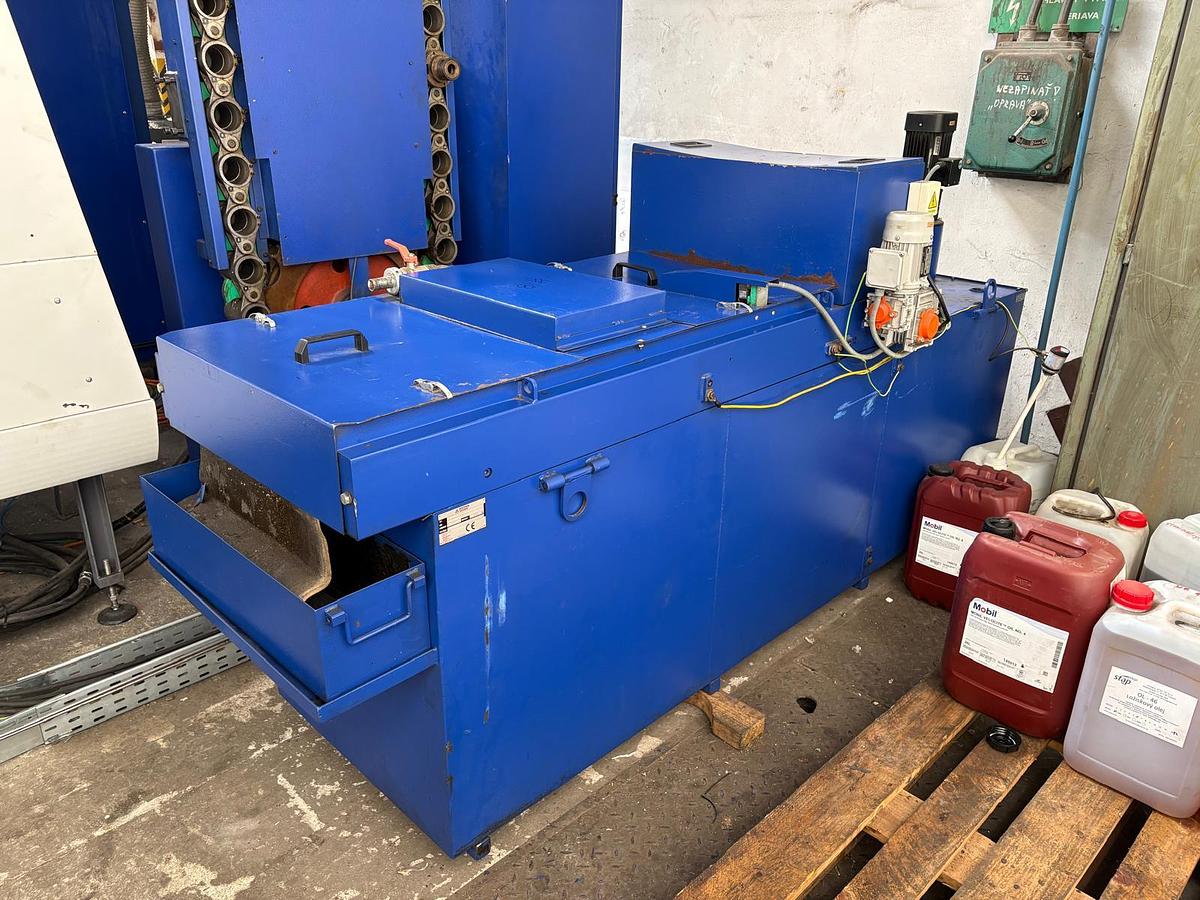

Oil cooling unit (chiller)
Renishaw touch probe transmitter
Upgrades in 2025 and 2026

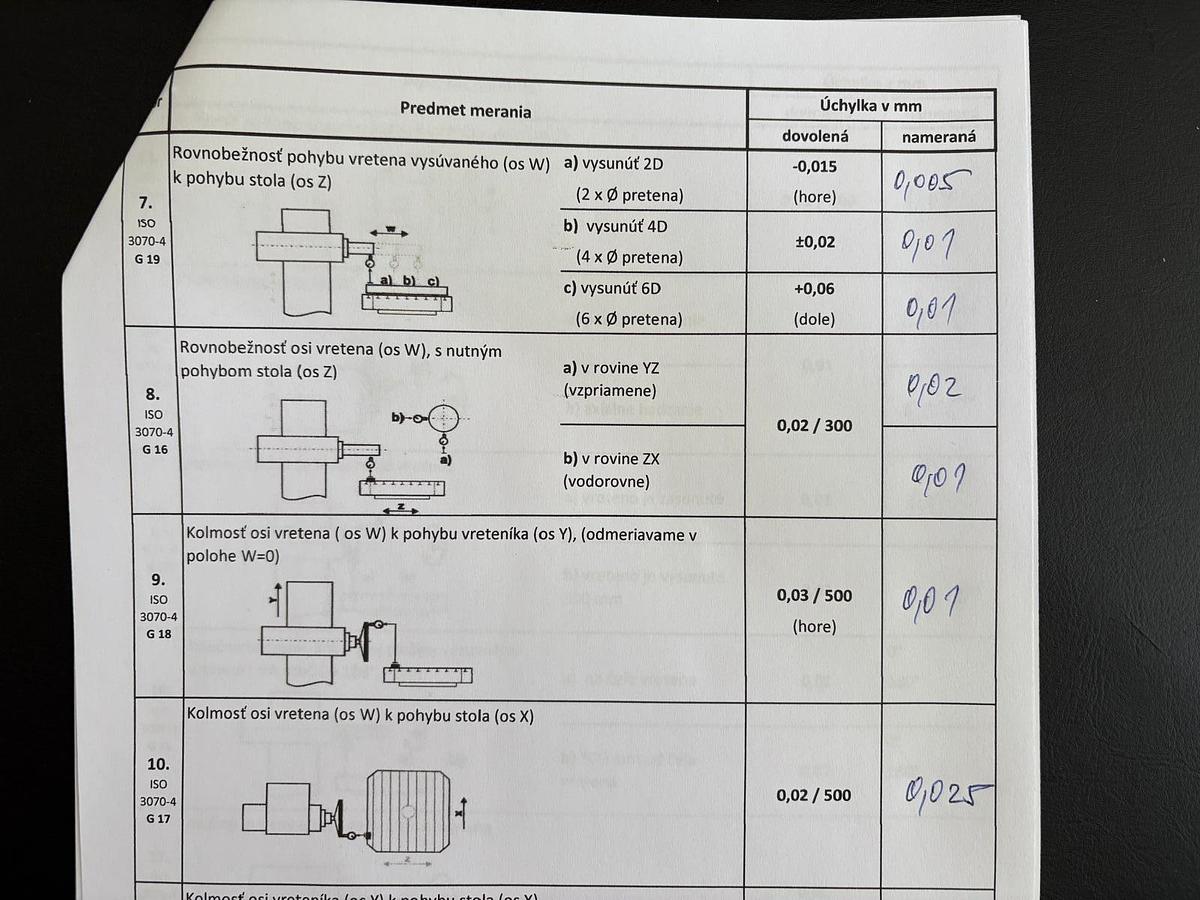

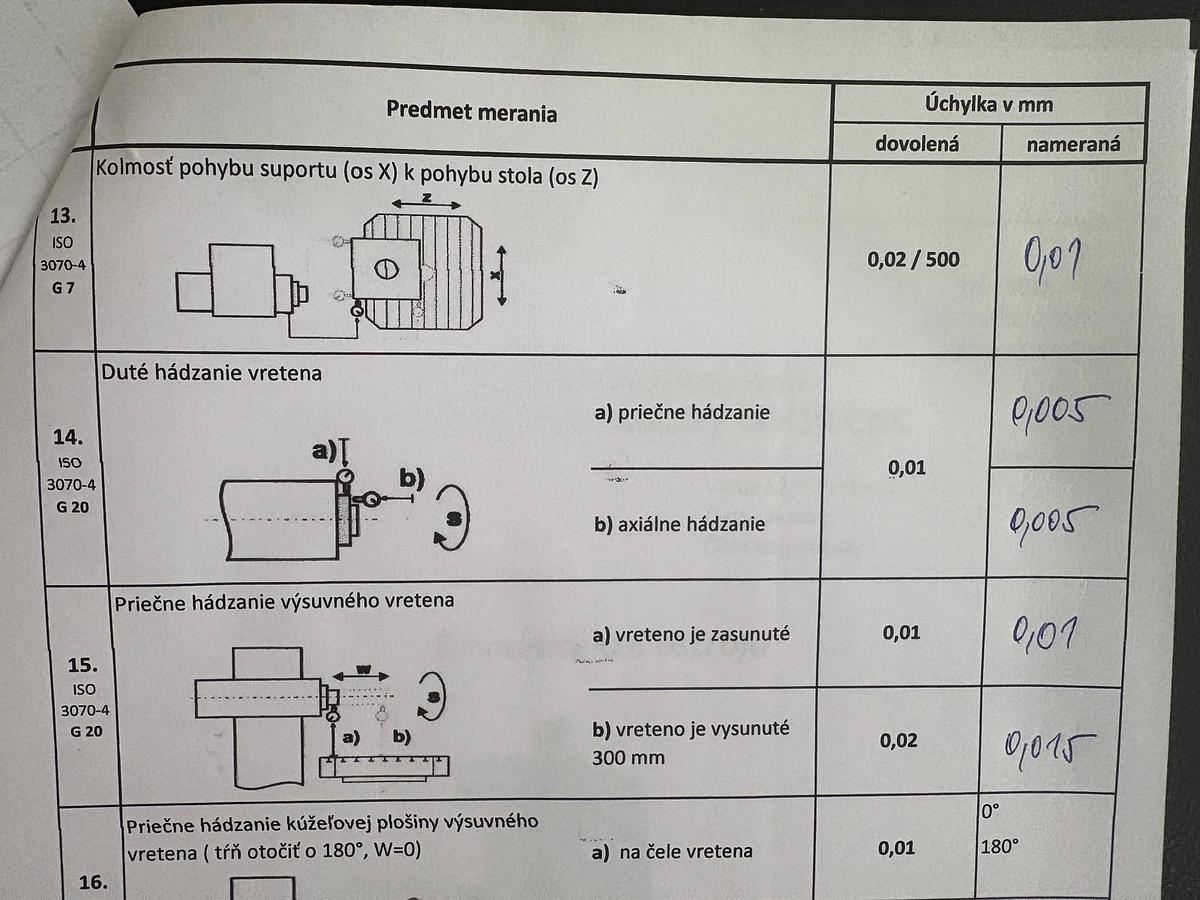

Geometry Overhaul
Retrofit of X and Z axis ball screws at producer – KSK Kuřim CZ
New linear scales Heidenhain in X and Z axis including cabling
New hand scraped lining from Biplast V on Z axis

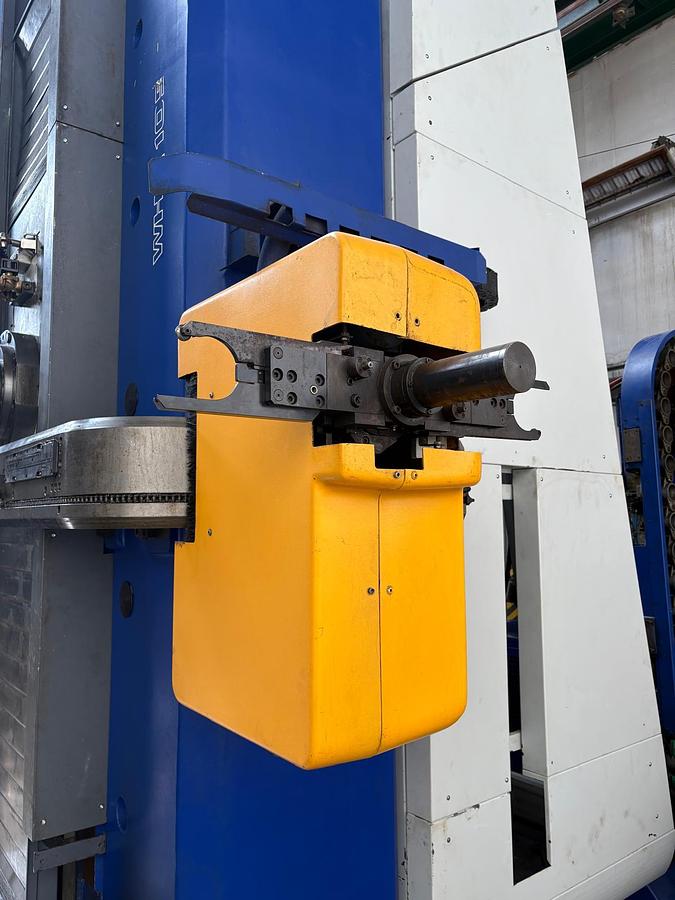

New TOS Varnsdorf parts for tool clamping and automatic tool changer arm

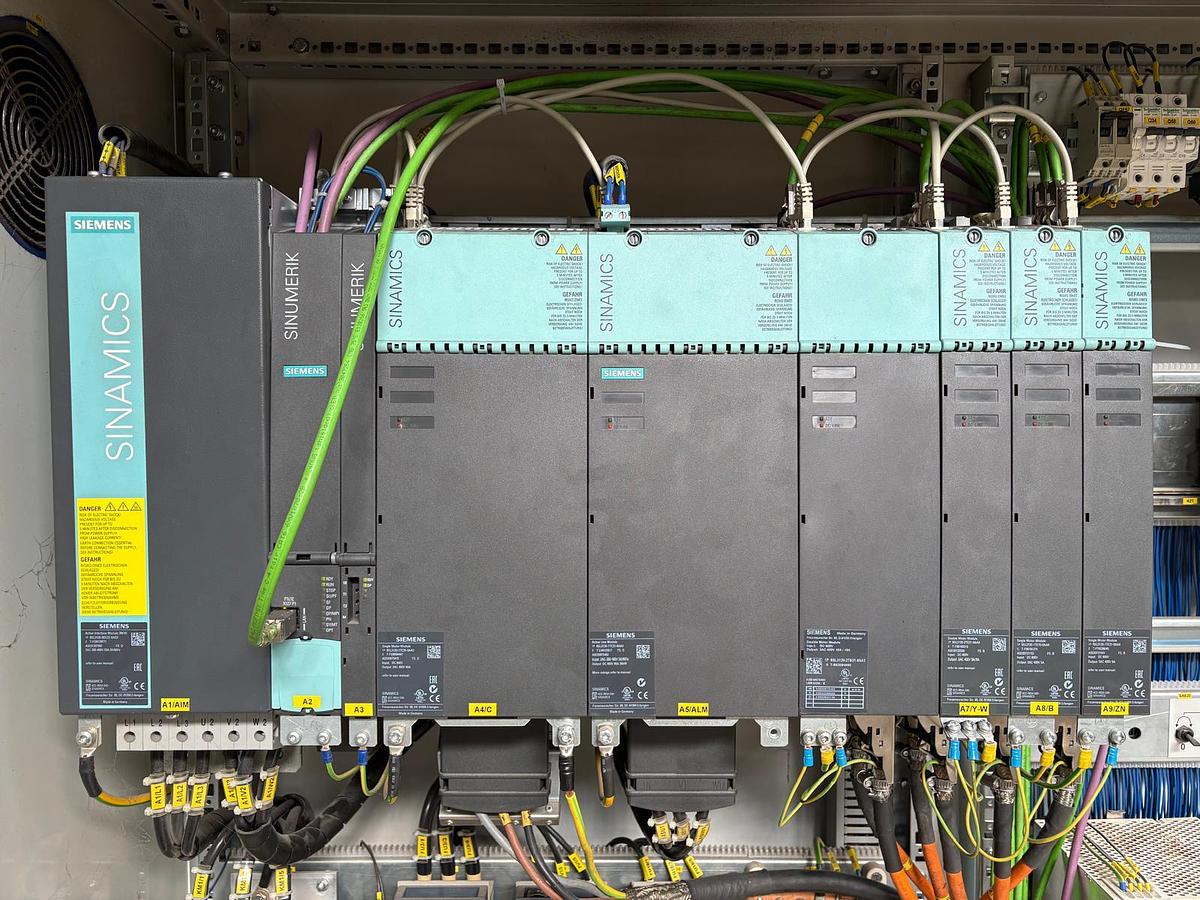

Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor)
New hand wheel Sinumerik Handheld Terminal HT 2 WITH 128 x 64 PIXEL DISPLAY
Specifications
| Manufacturer | Tos Varnsdorf |
| Model | WHQ 15 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 5654381 |

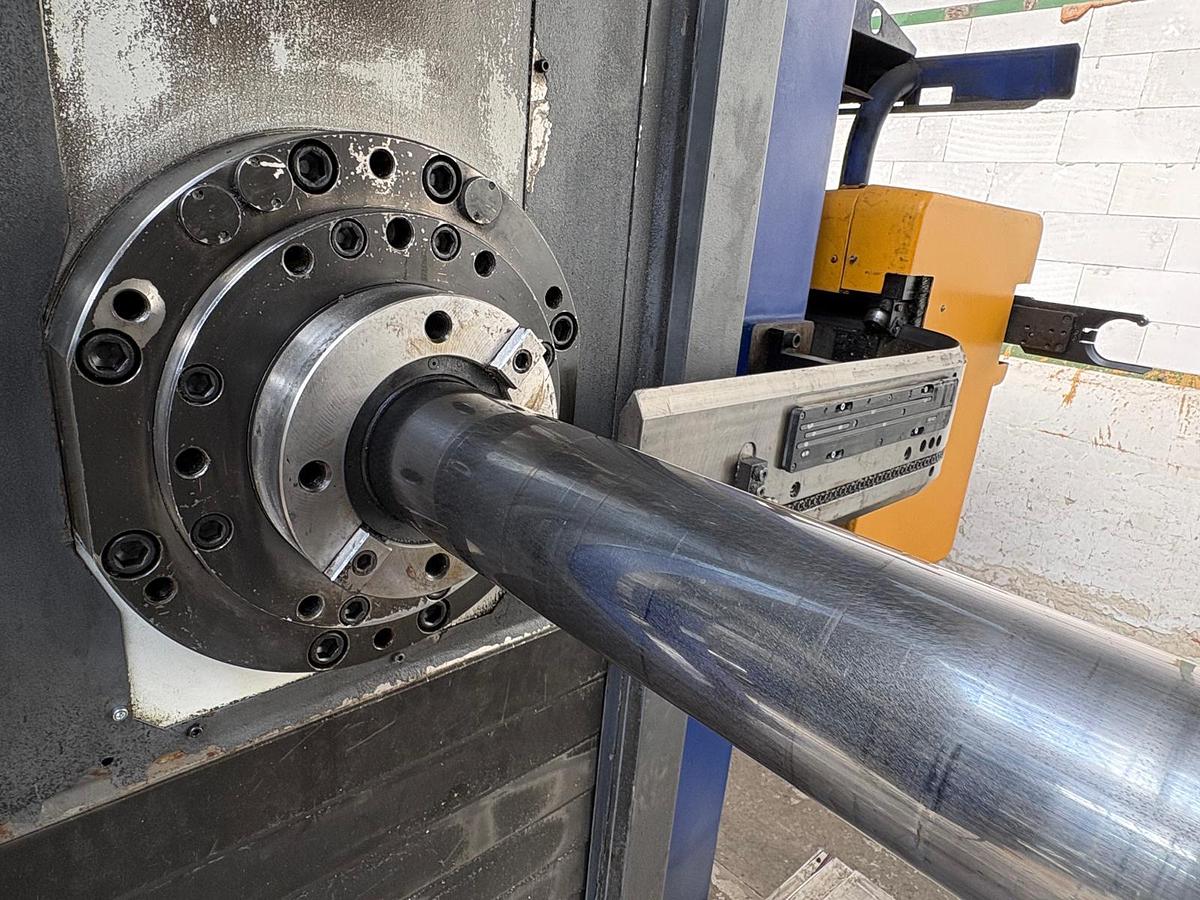

| Spindle diameter | 105 mm |
| Spindle speeds | 3,300 rpm |
| X axis travel | 1,800 mm |
| Y axis travel | 1,600 mm |
| Z axis travel | 1,250 mm |

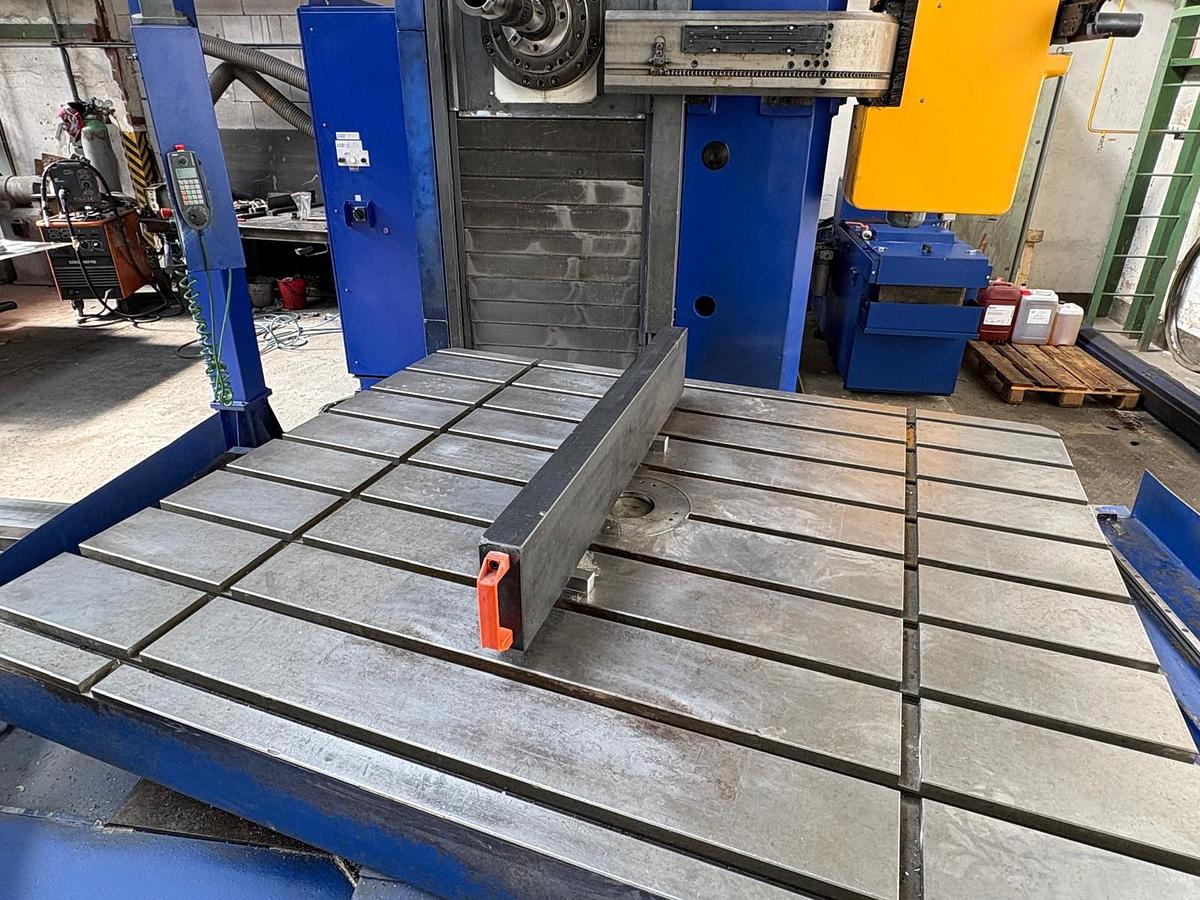

| Table dimensions | 1,400 x 1,600 mm |
| Table capacity | 5,000 kg |
| W axis travel | 630 mm |
| Electrics | 3PE - 400 V - 50/60 Hz - 60 Amp |
