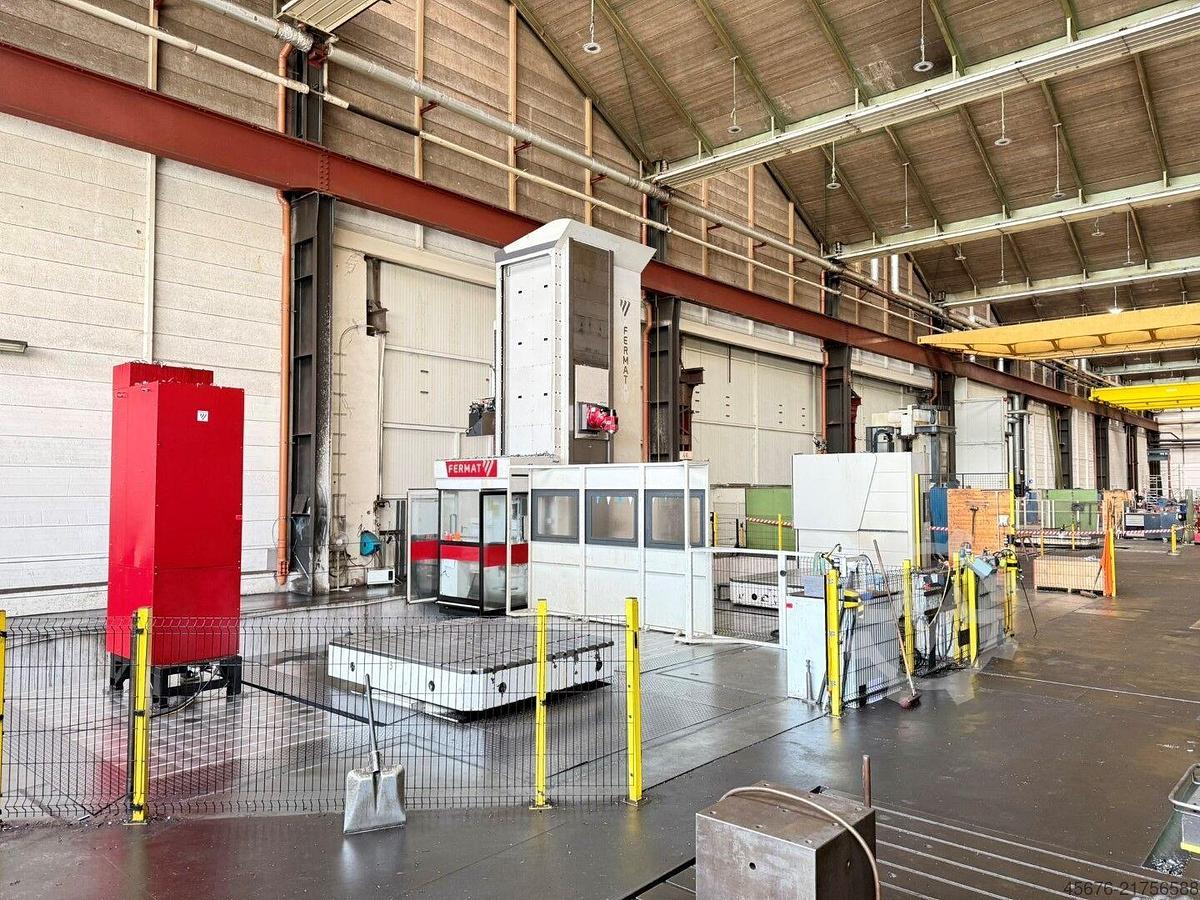

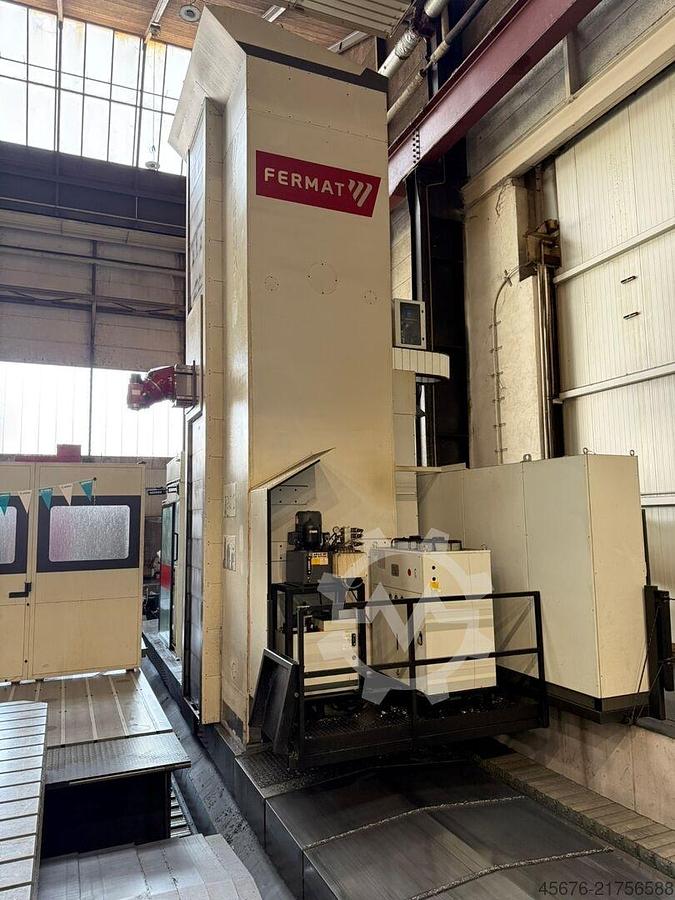

Fermat WRF Mill CNC Floor-Type Horizontal Boring Machine with 2 Infeeding Rotary Tables
Fermat WRF Mill CNC Floor-Type Horizontal Boring Machine with 2 Infeeding Rotary Tables
Description
Heidenhain iTNC 640 CNC Control
Heads & Head Changer - Automatic Pickup for 3 Places
Head 1 - Uhami 30 continuous A and C axis 180°+, 180°-
Head 2 - Uhami 30 continuous A and C axis 180°+, 180°- (New in 2022)
Head 3 - Horizontal spindle extension: 400 mm
Head 4 - Horizontal spindle extension: 800 mm
Head 5 - ISO40 vertical head to be mounted on horizontal spindle extension

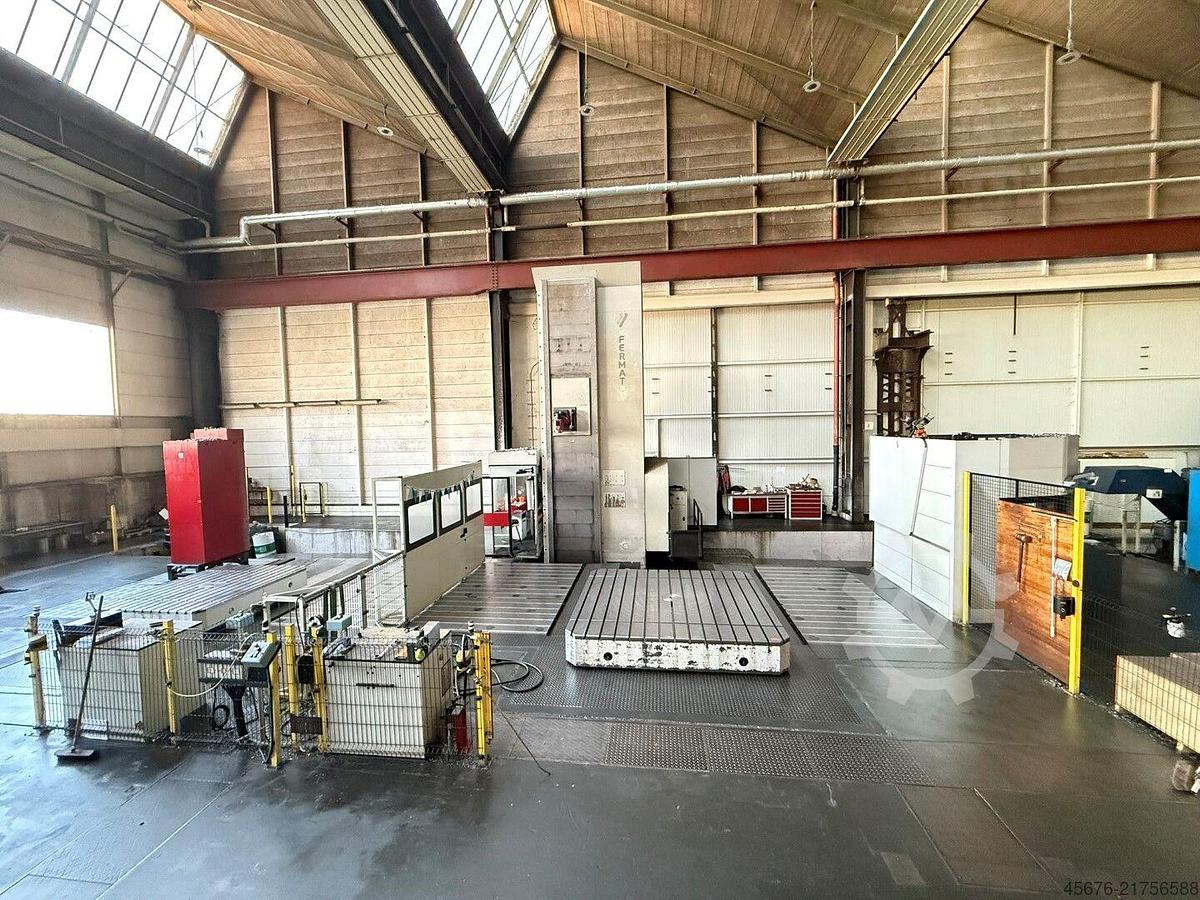

Floor plates: 2 pcs. 4,000 x 2,000 mm, 2 pcs. 5,000 x 2,000 mm

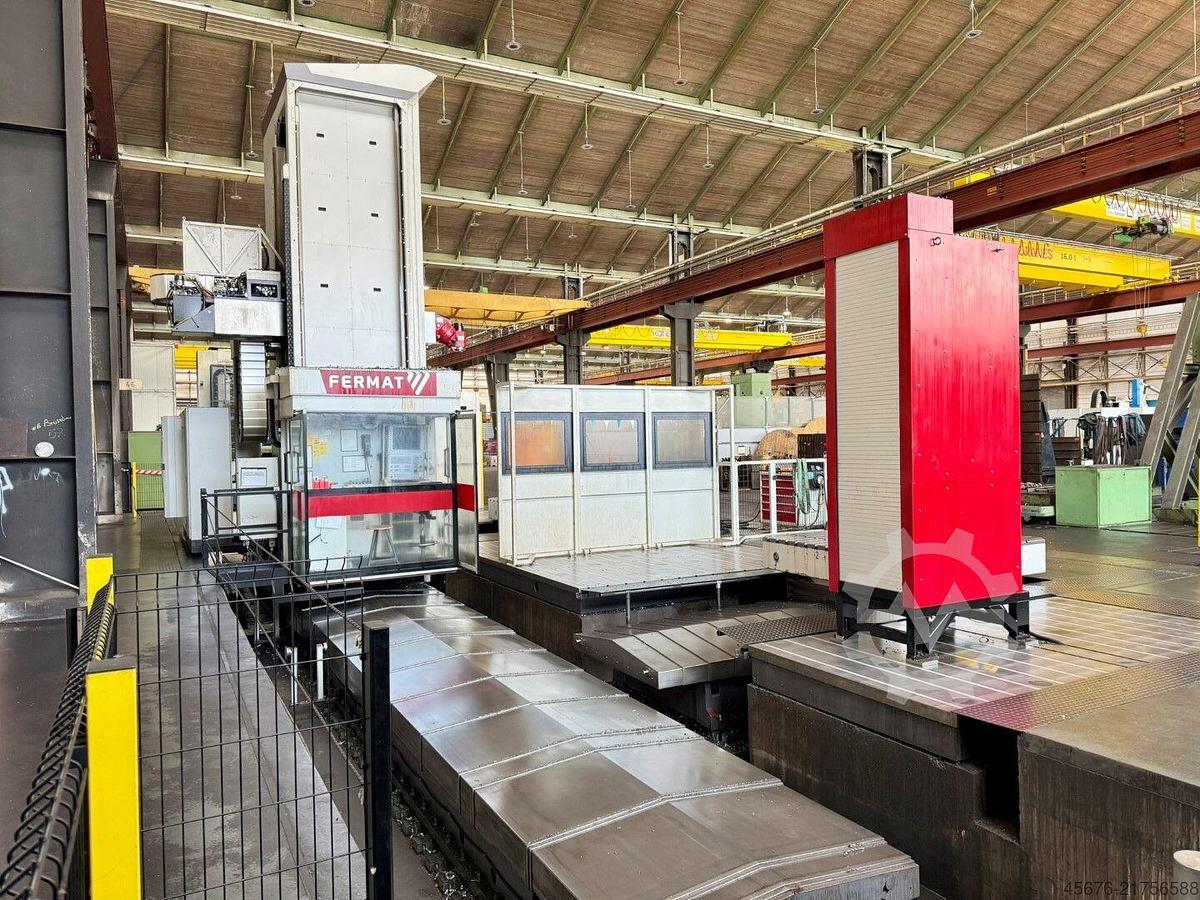

Two Infeeding Rotary Tables.
Rotary Table Infeeding 3,000mm x 3000 m, V-Axis 2,400 mm Travel, 50 Ton Load Capacity
Rotary Table Infeeding 2.500mm x 2000 m, V-Axis 2,400 mm Travel, 30 Ton Load Capacity

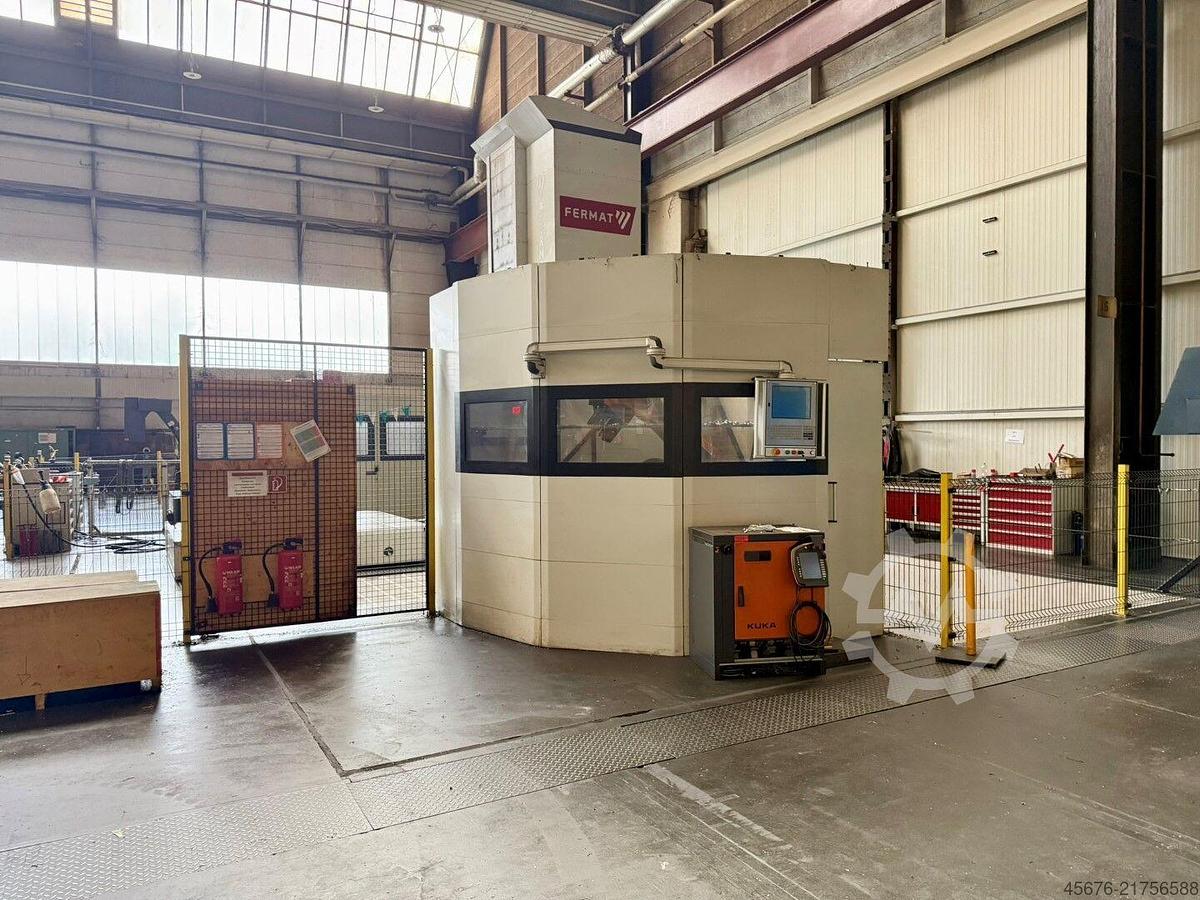

Working Area Separation
Tool Changer - Robot Type
Spindle Through Coolant
Chip Conveyor
3D Probe
Movable Operator Platform
Wireless Handwheel
CE marking
Approx. 14000 programming hours
Continuous Heads
Specifications
| Manufacturer | Fermat |
| Model | WRF Mill |
| Year | 2017 |
| Condition | Used |
| Stock Number | 5654378 |
| Spindle speeds | 5,000 rpm |
| X axis travel | 14,100 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,550 mm |
| Spindle power (40%/100%) | 51/36 kW |
| Spindle torque | 1500 Nm |
| Spindle taper | ISO 50 |
| Ram size | 420 x 420 mm |
| C axis indexing | 0.001° - Continuous |
