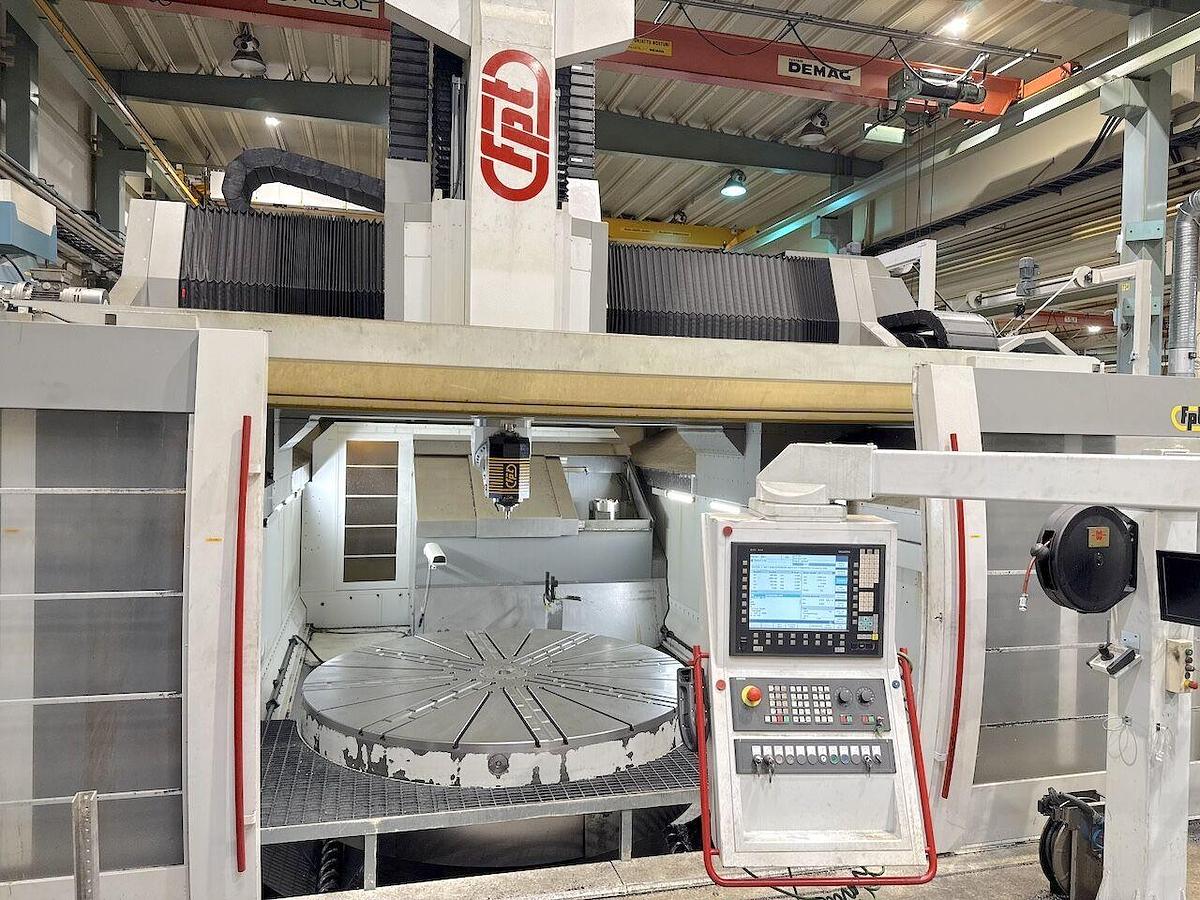

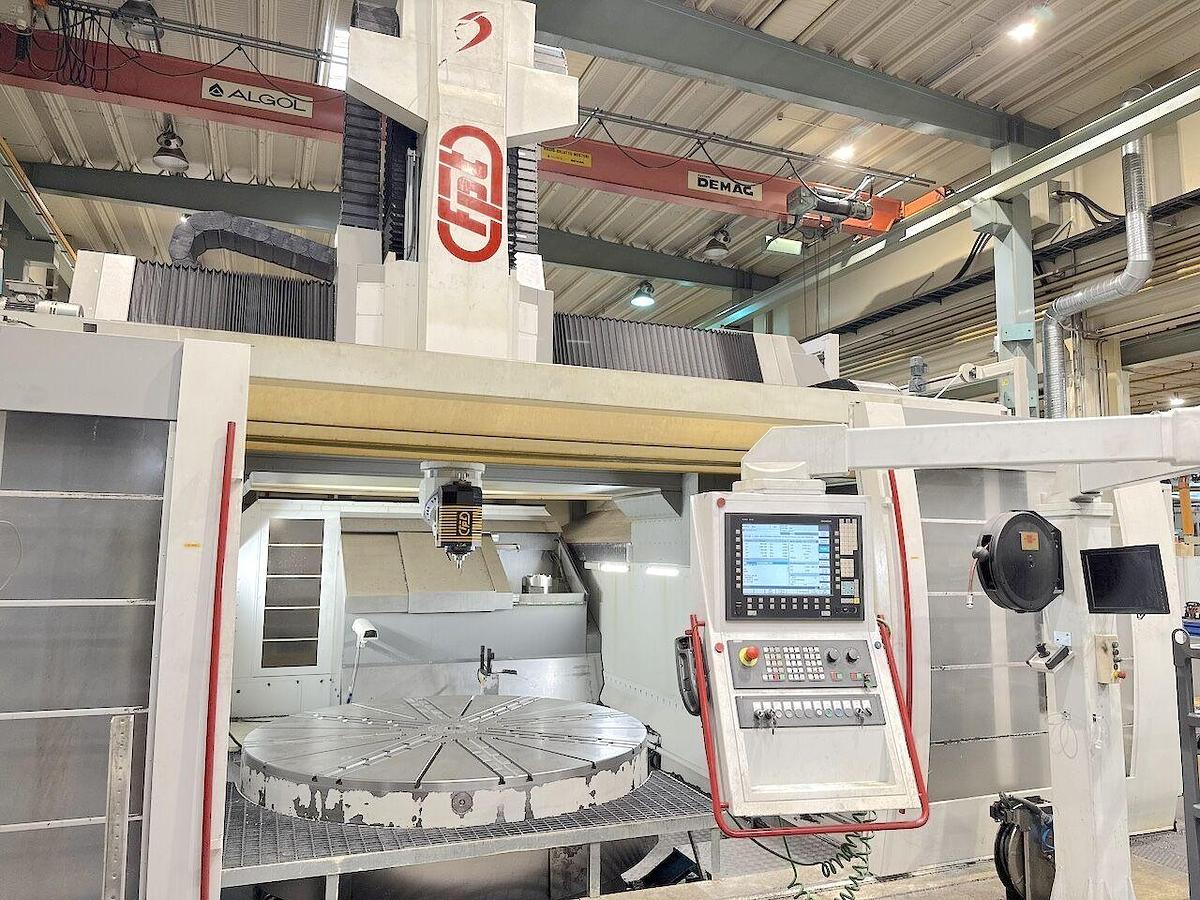

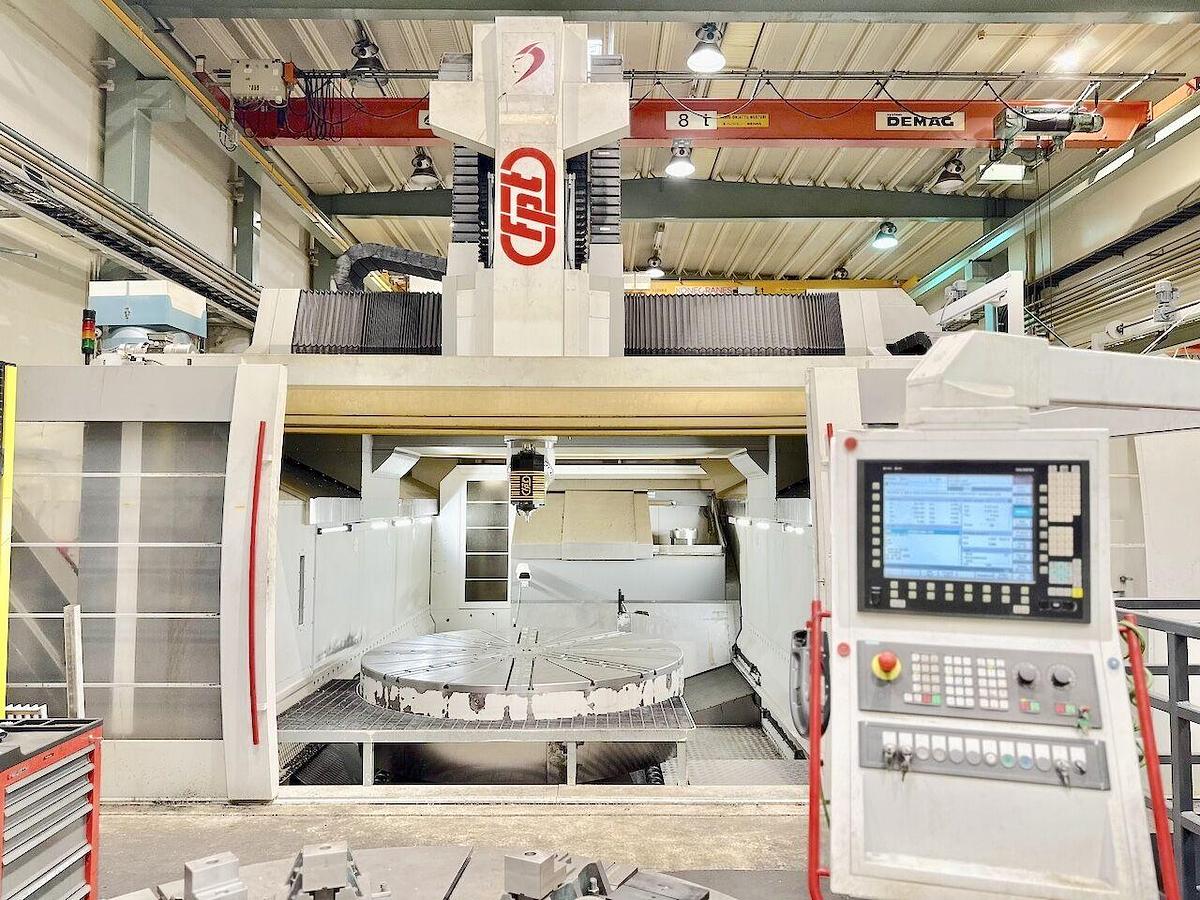

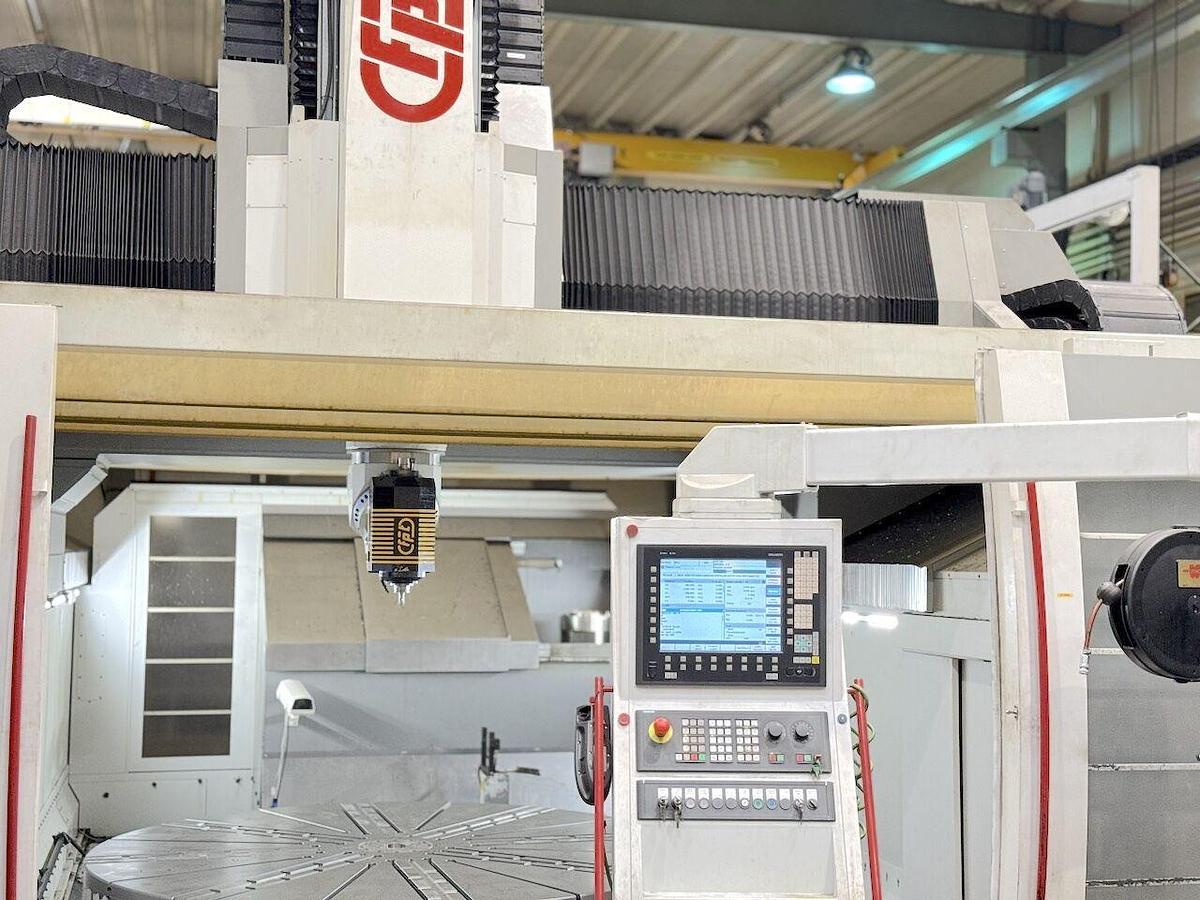

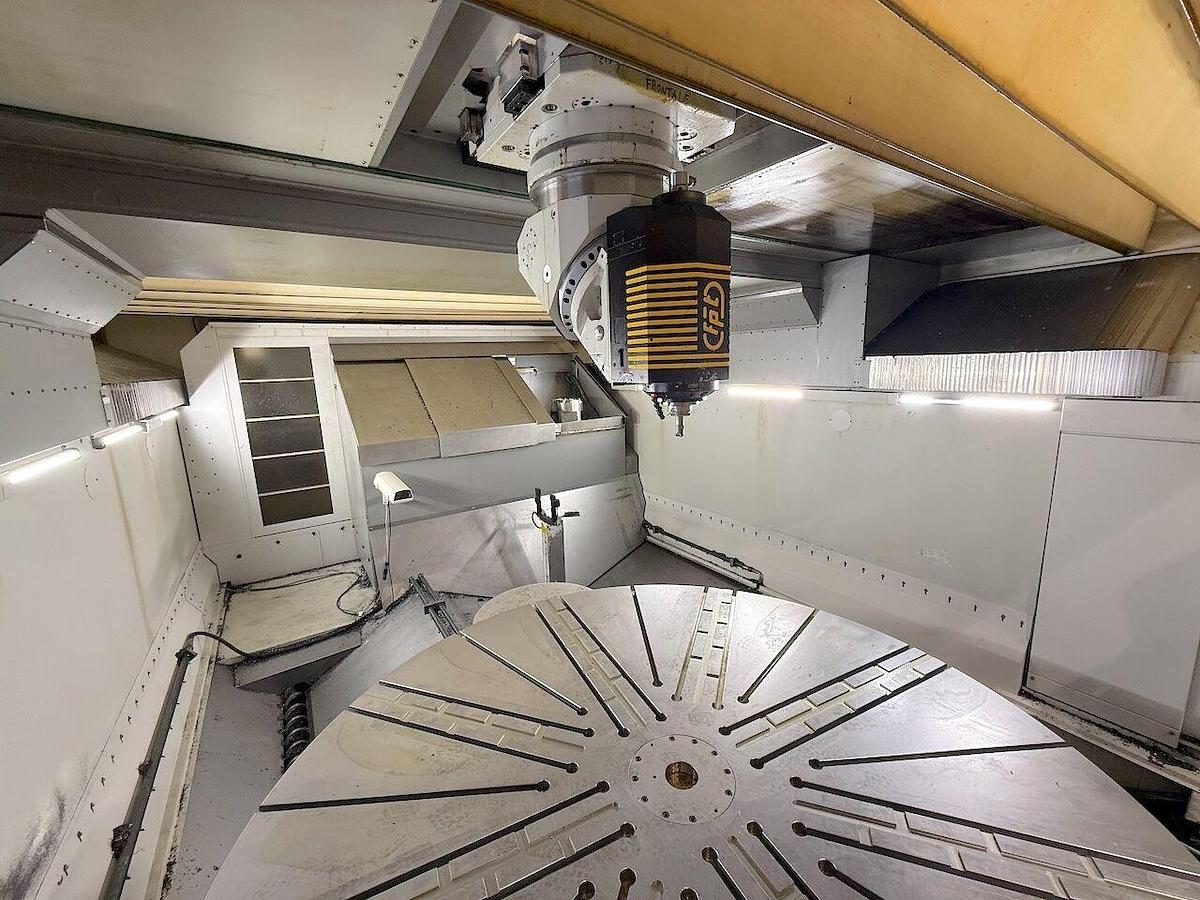

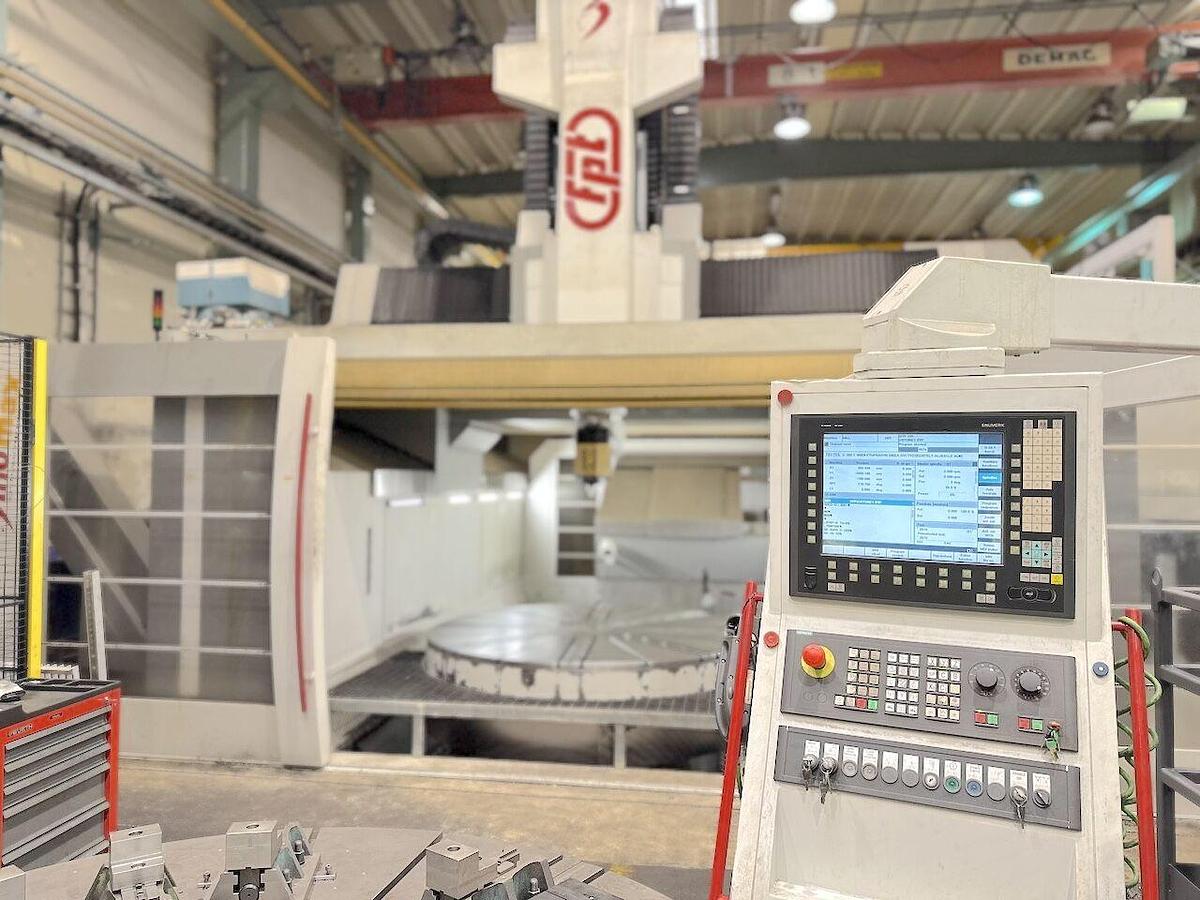

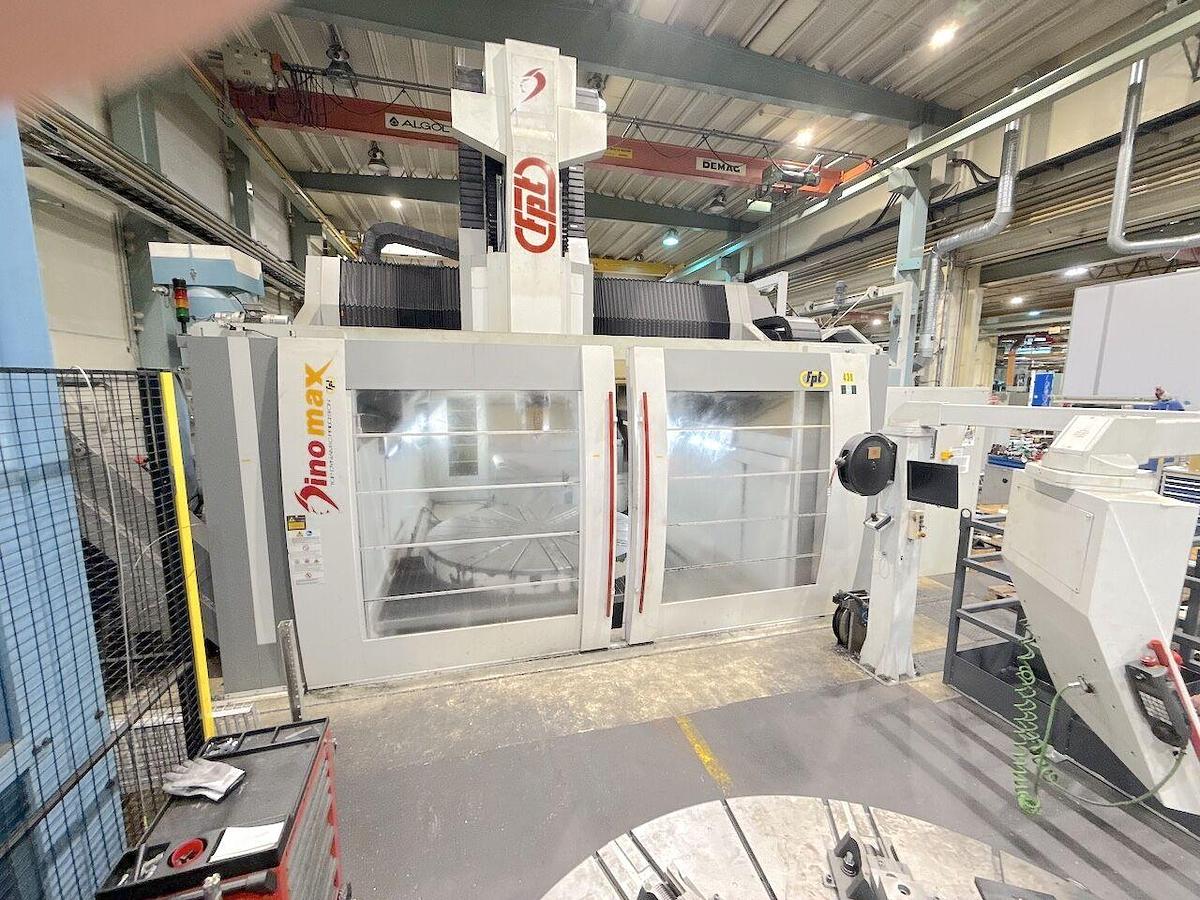

FPT DINOMAX 2 CNC 5-Axis Gantry Type Milling Machine with 2 Turning & Indexing Tables
FPT DINOMAX 2 CNC 5-Axis Gantry Type Milling Machine with 2 Turning & Indexing Tables
Description

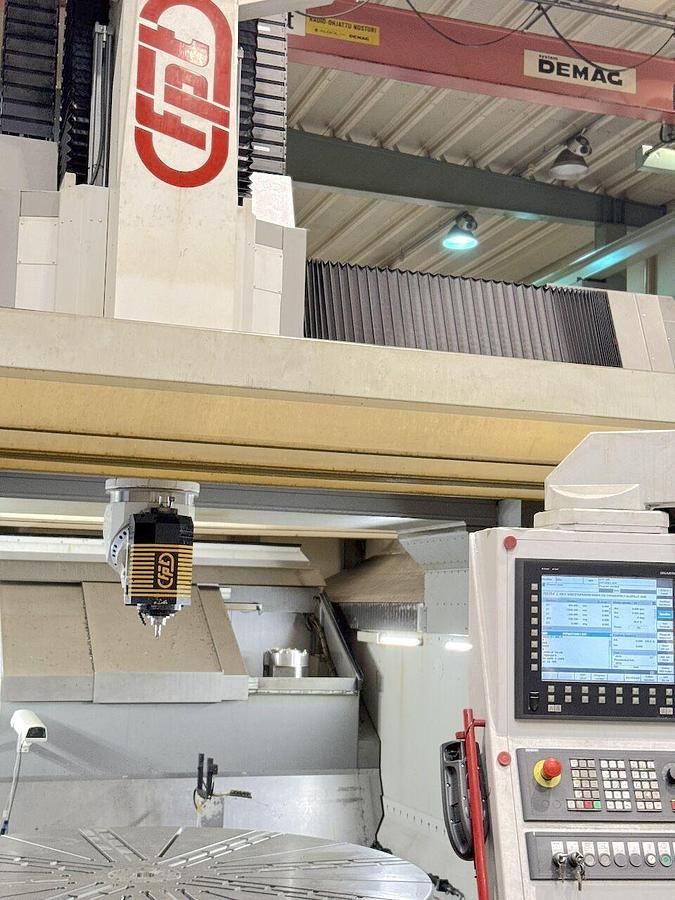

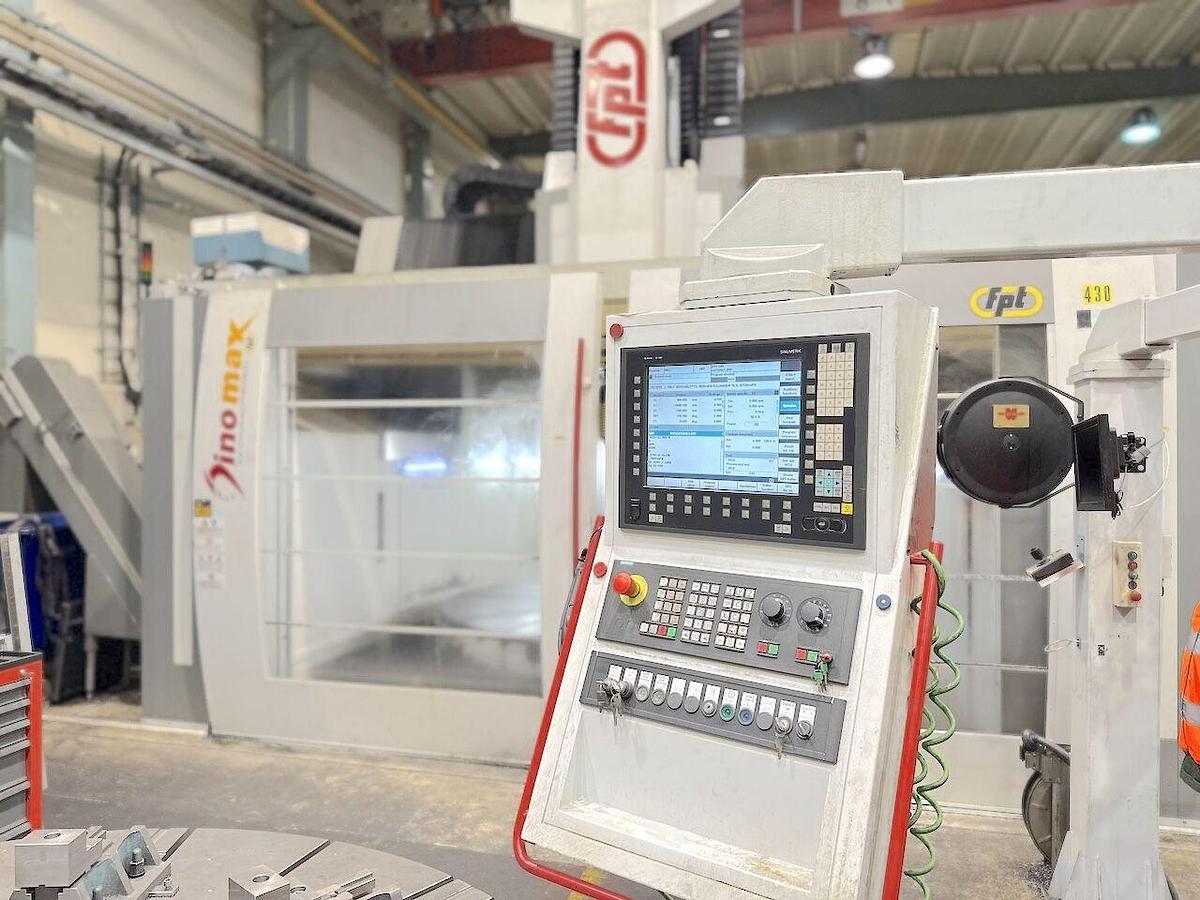

Siemens 840DHS (DSL) CNC Control
AUTOCAL software for automatic calibration
Dynamic RTCP software
Tool life management software
Rigid Tapping for each head

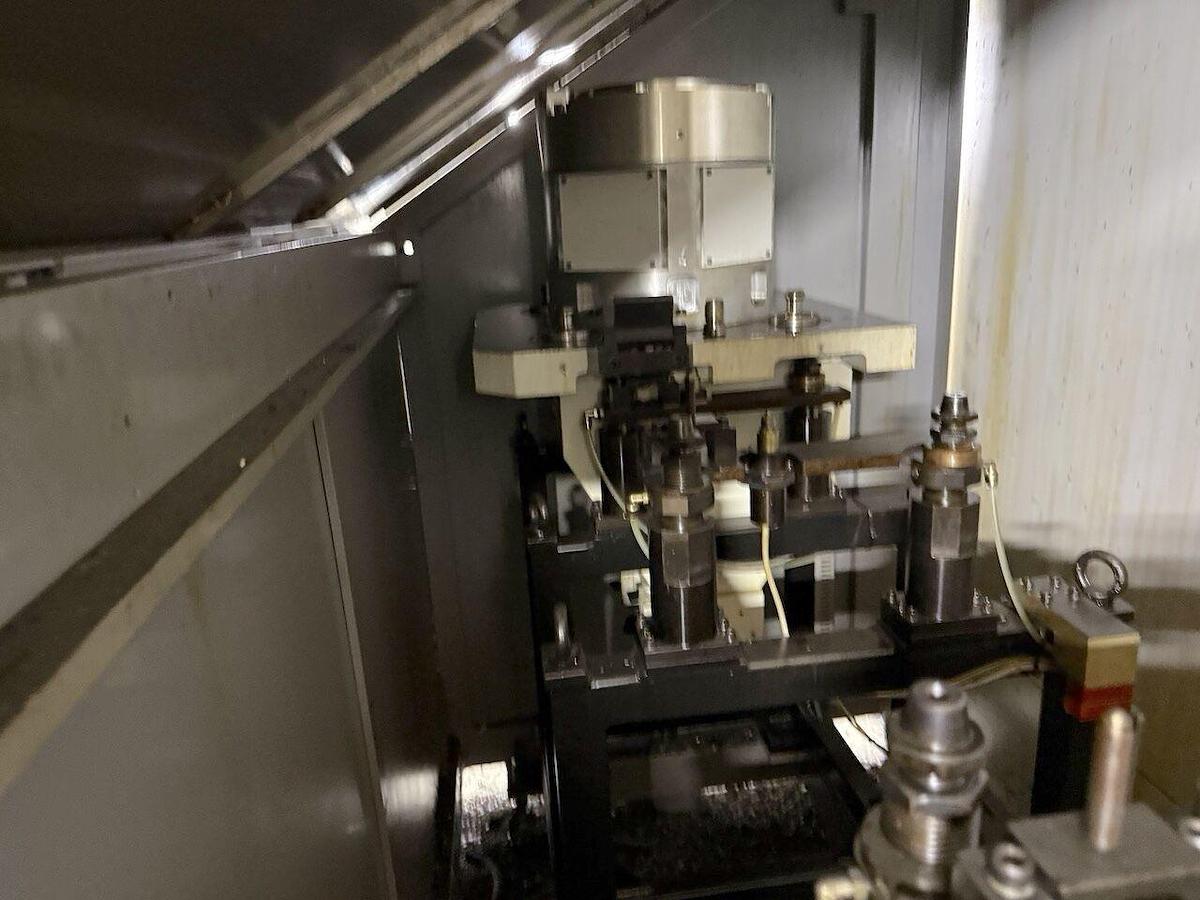

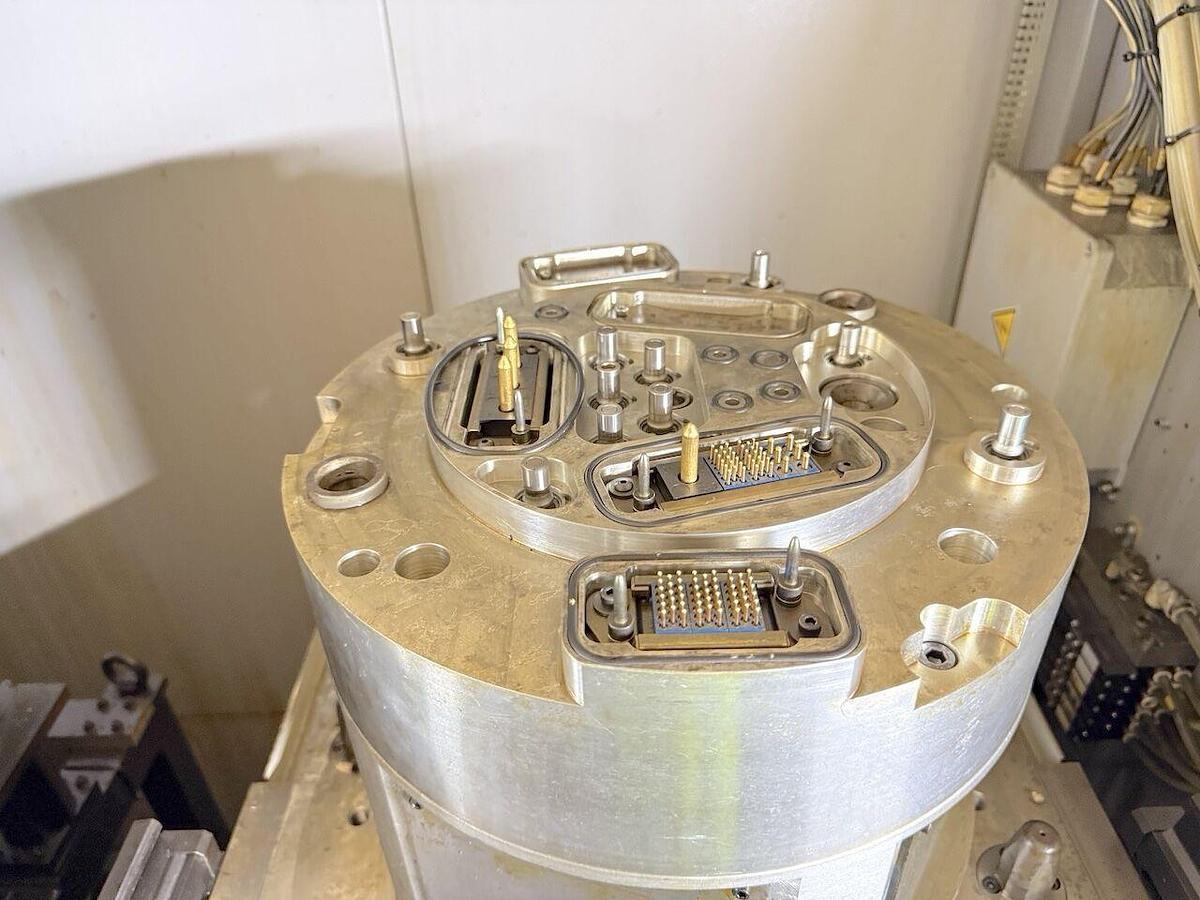

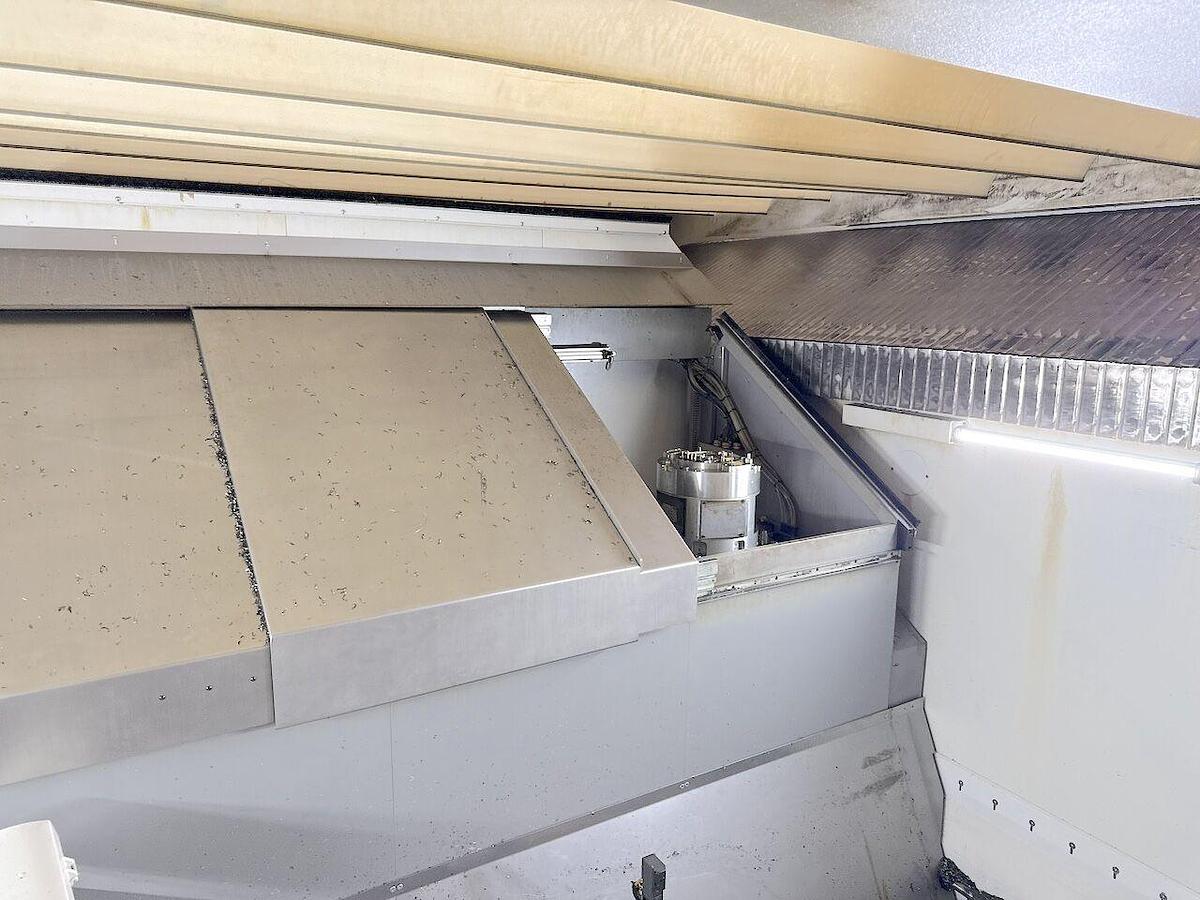

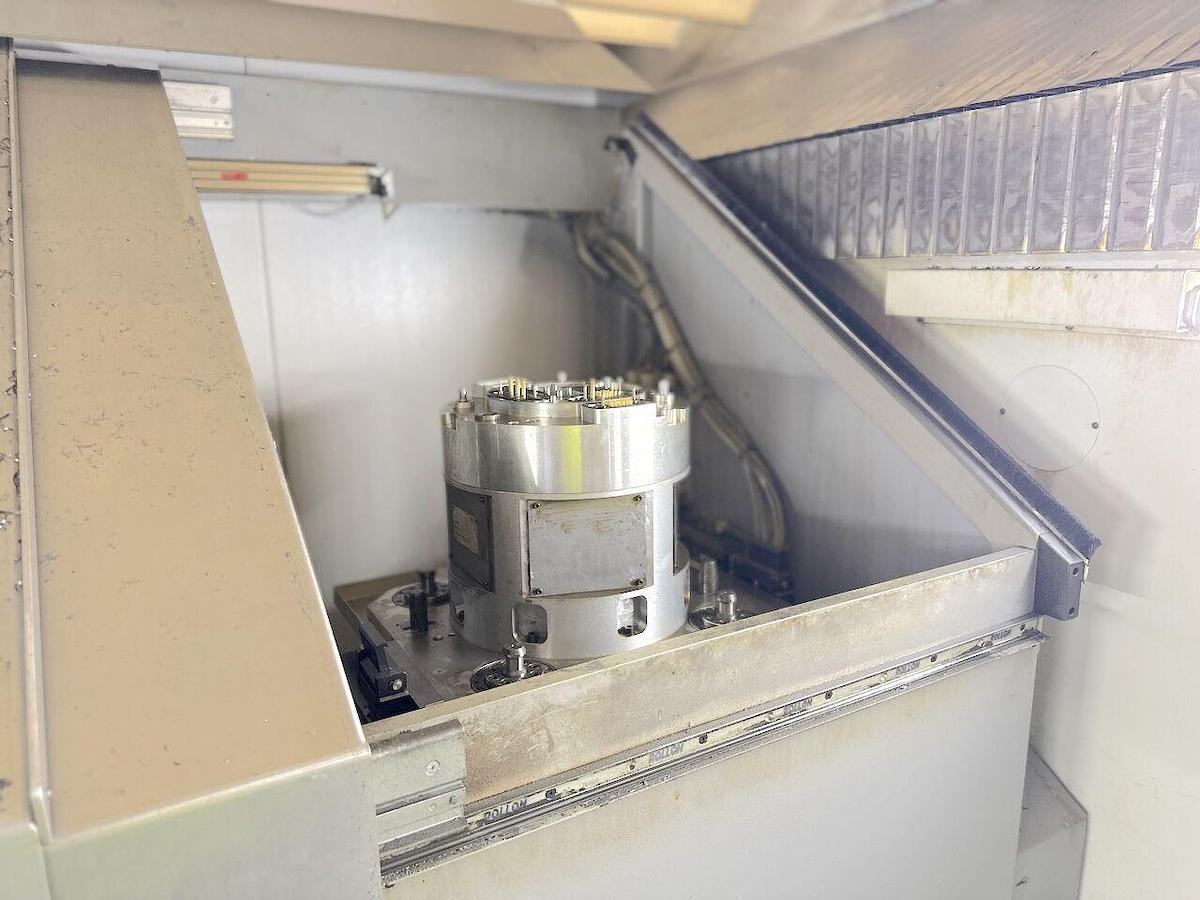

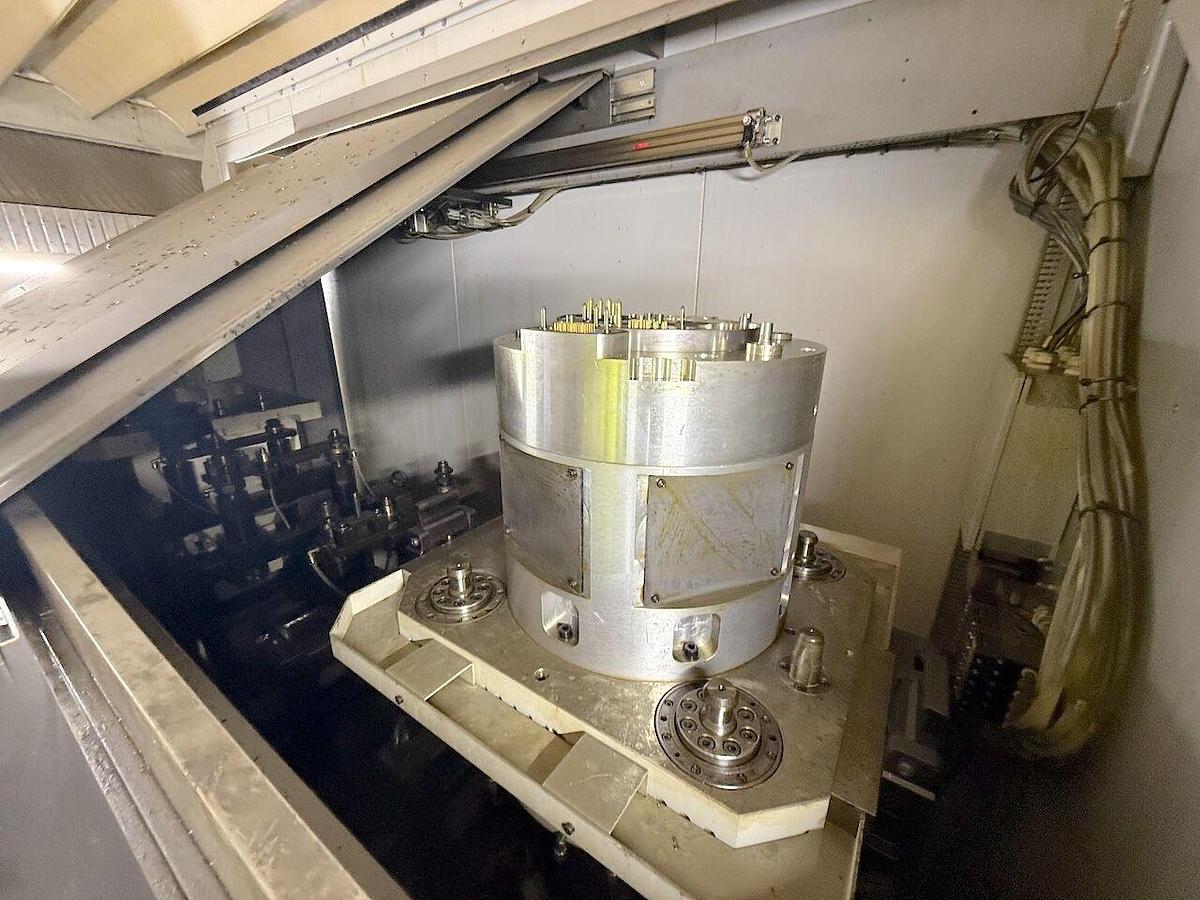

3 Station Pick-Up Station for Heads

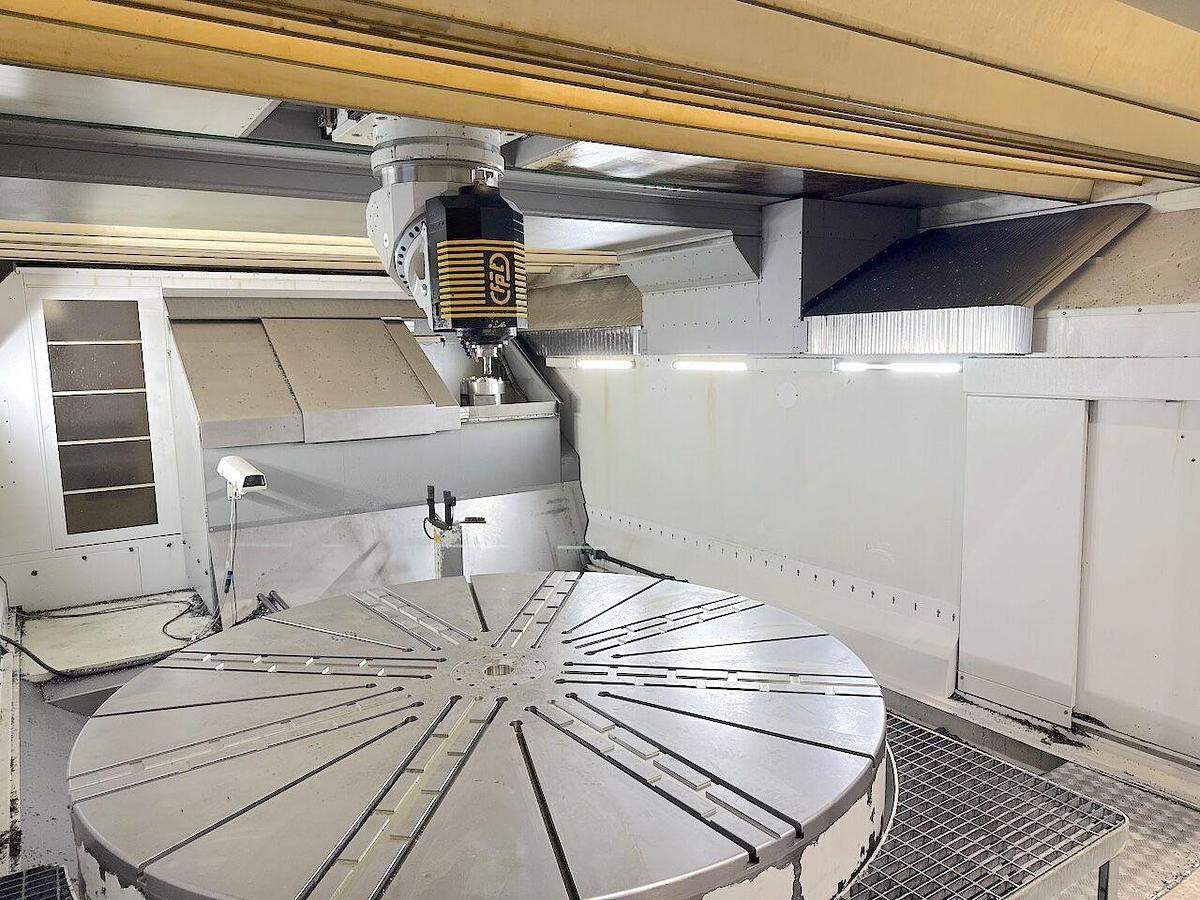

Head 1 (T2C6)
Spindle Taper - 2xCaptoC6 (Horizontal) - 1x CaptoC8 (Vertical)
Coolant - CTS 40 bar

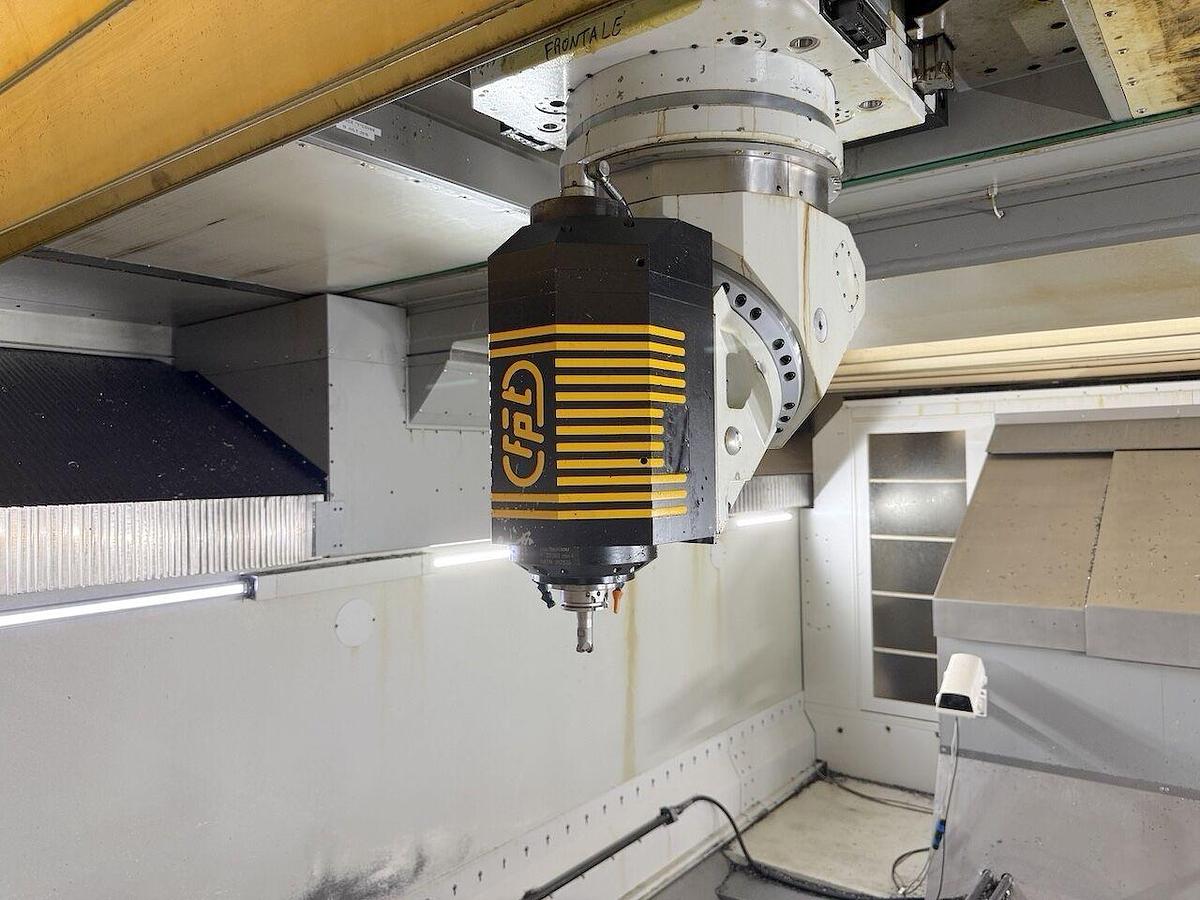

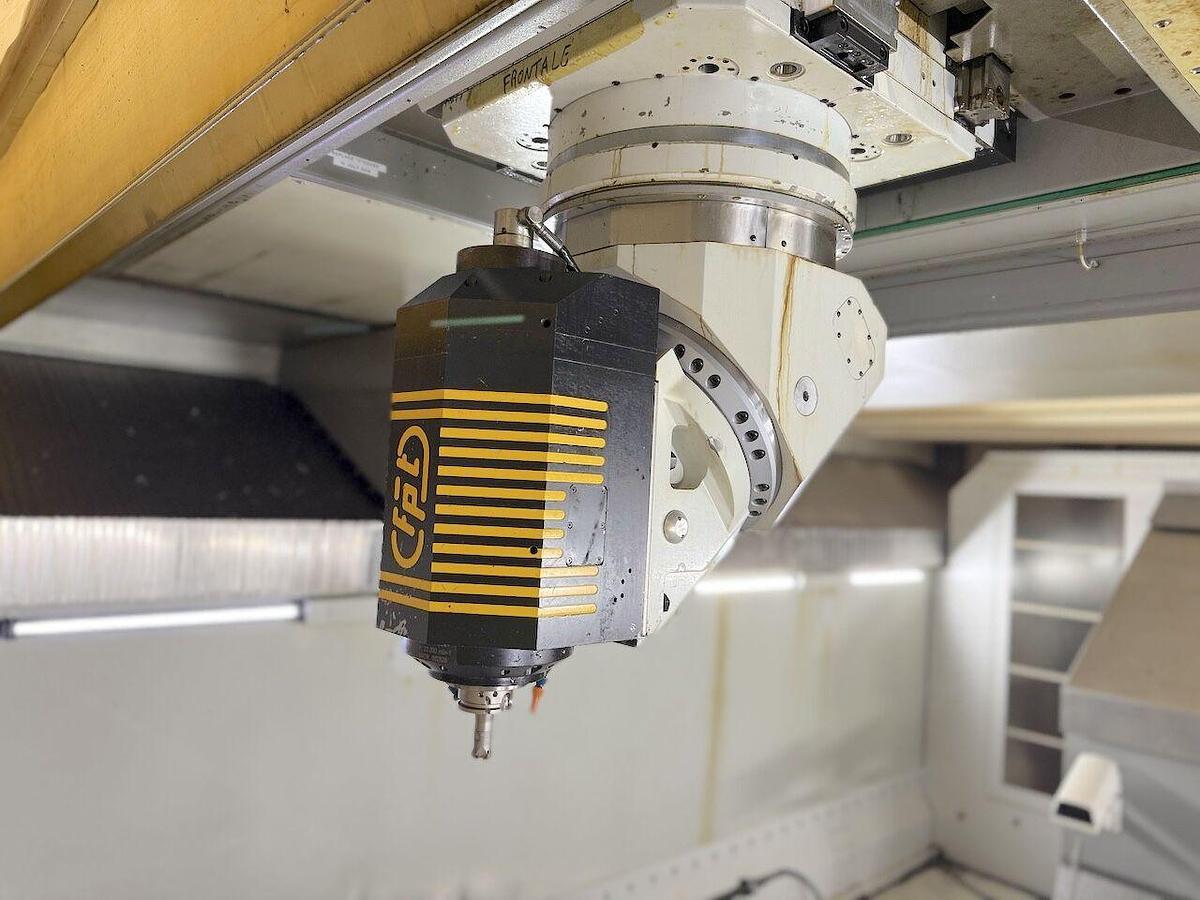

Head 2 (TULCE22)
Spindle Taper - HSK63
A Axis ±185°
C Axis±185°
Max Torque 128 Nm
Max Speed 22,000 rpm
Max Power 33 Kw
Coolant - CTS40 Bar
Undercutting 10° angle
Direct drive indexing full 5 axes
Head 3 (TVS10)
Spindle Taper - HSK63
Max Torque 210 Nm
Max Speed 10,000 rpm
Max Power 44 Kw
Coolant - CTS40 Bar

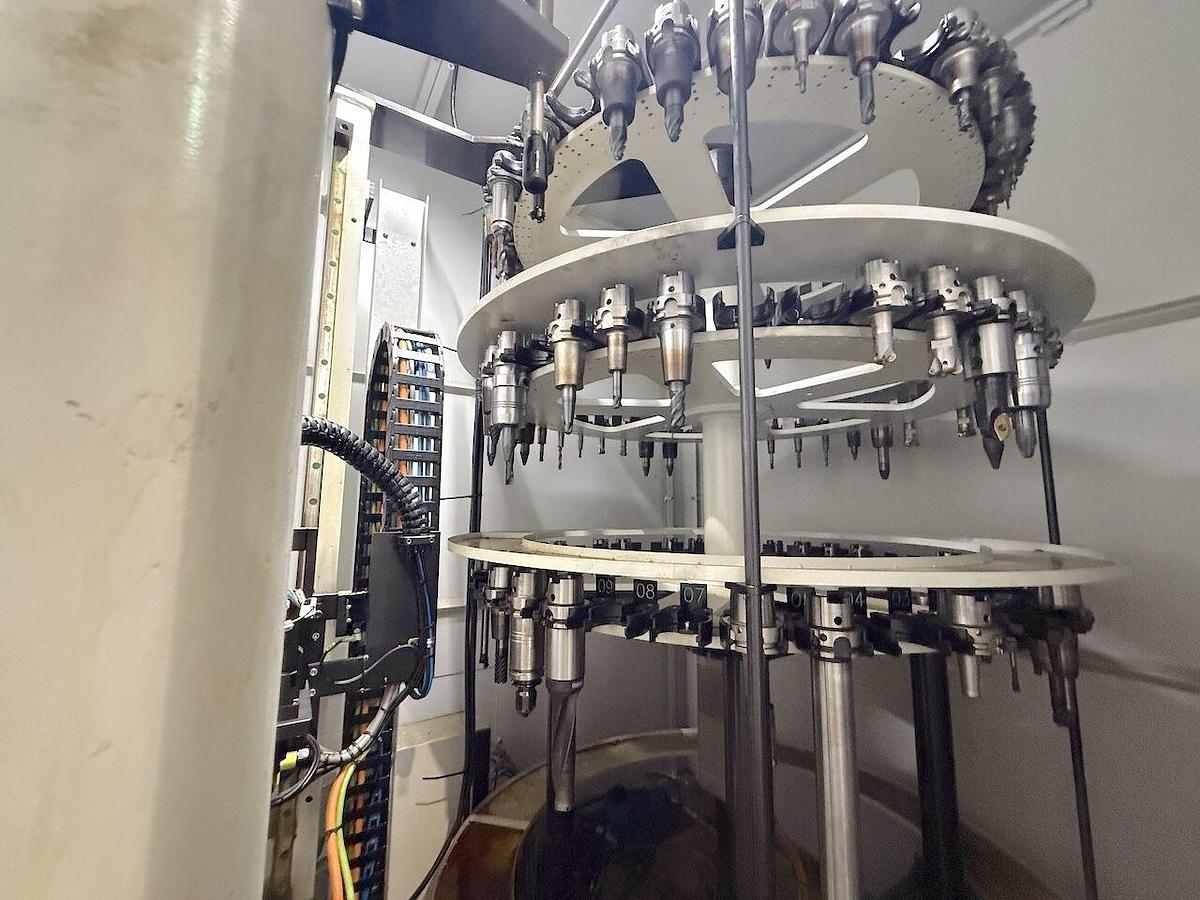

120 Position Automatic Tool Changer
Max Tool Diameter - 75 mm
Max Diameter with Free Adjacent Space - 125 mm
Max Tool Length - 80 x 300 mm - 40 x 500 mm
Max Tool Weight - 10 kg
Tool Taper
Milling - HSK63
Turning - CaptoC6
Tooling Included:
Fast clamping system for manual pallet change with second ø2,500mm 6 jaws Chuck

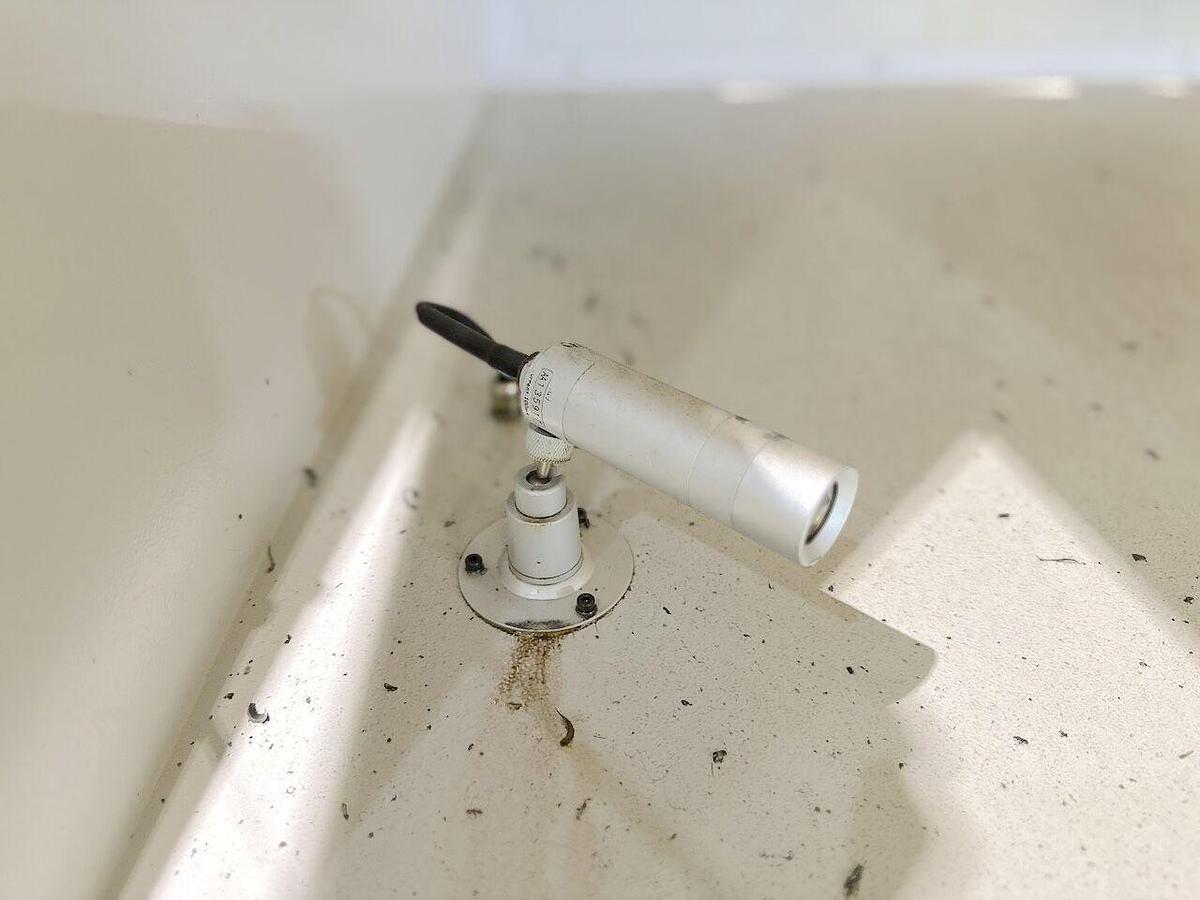

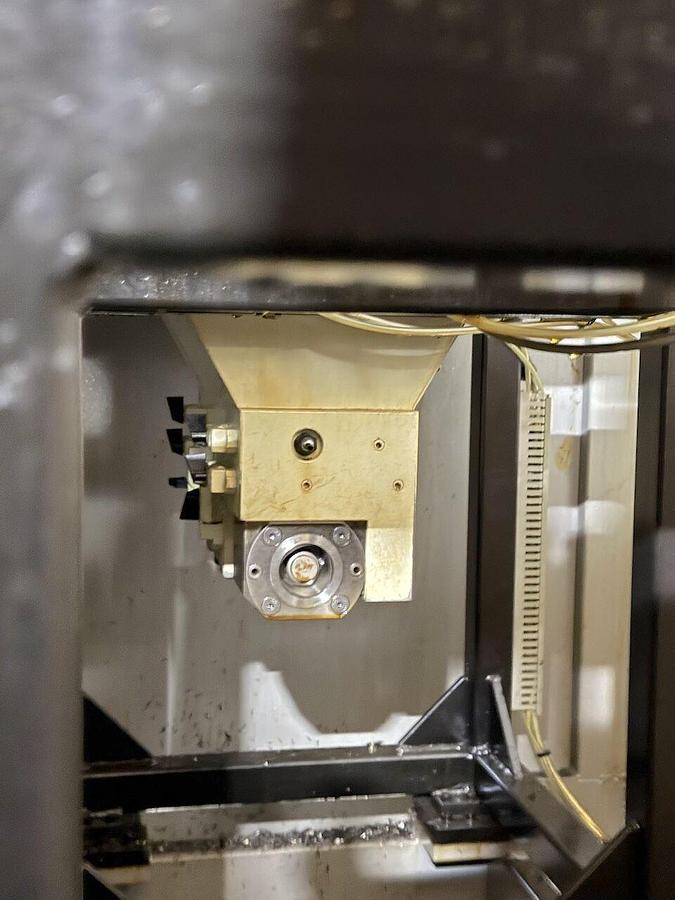

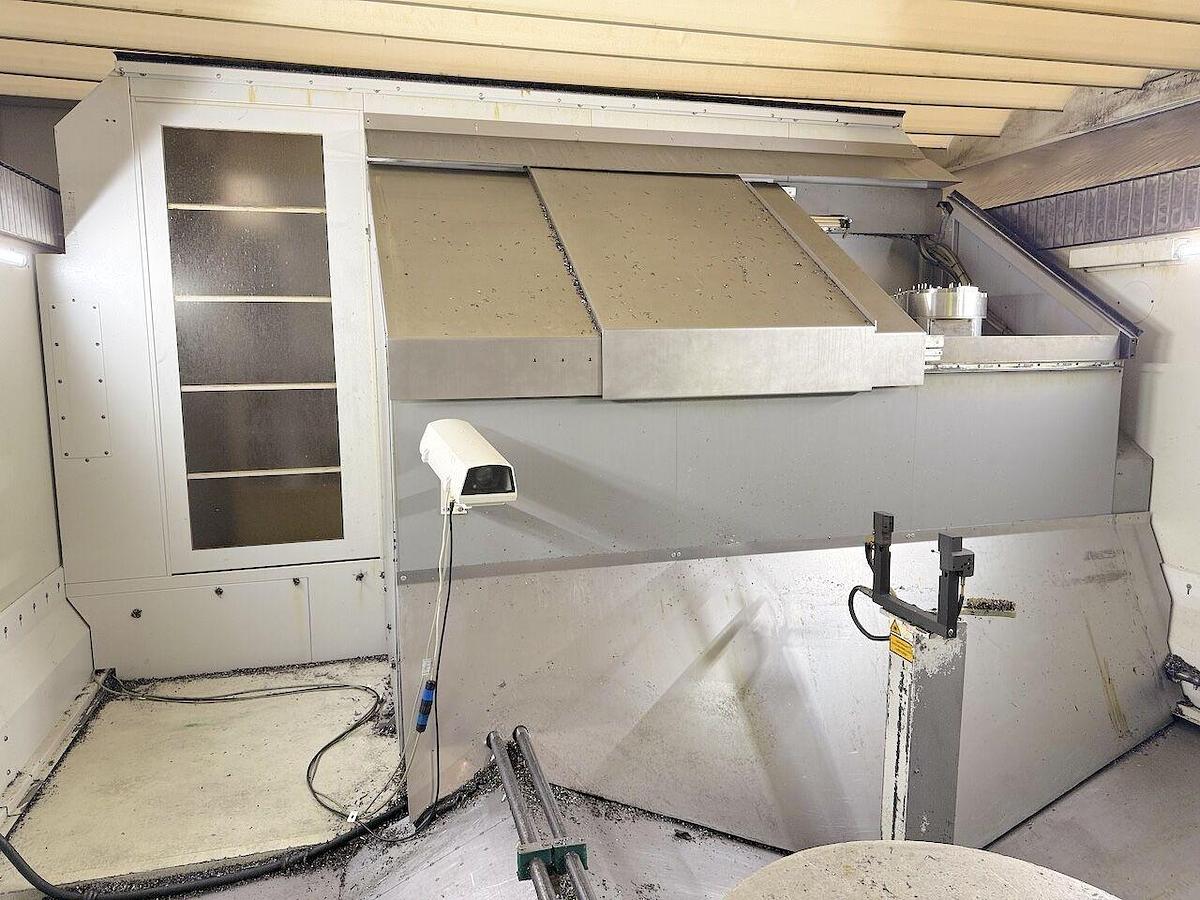

3x internal live cameras
High Pressure 40Bar CTS / 4Bar external 28l/min - 1200lt
M&H Workpiece Touch Probe

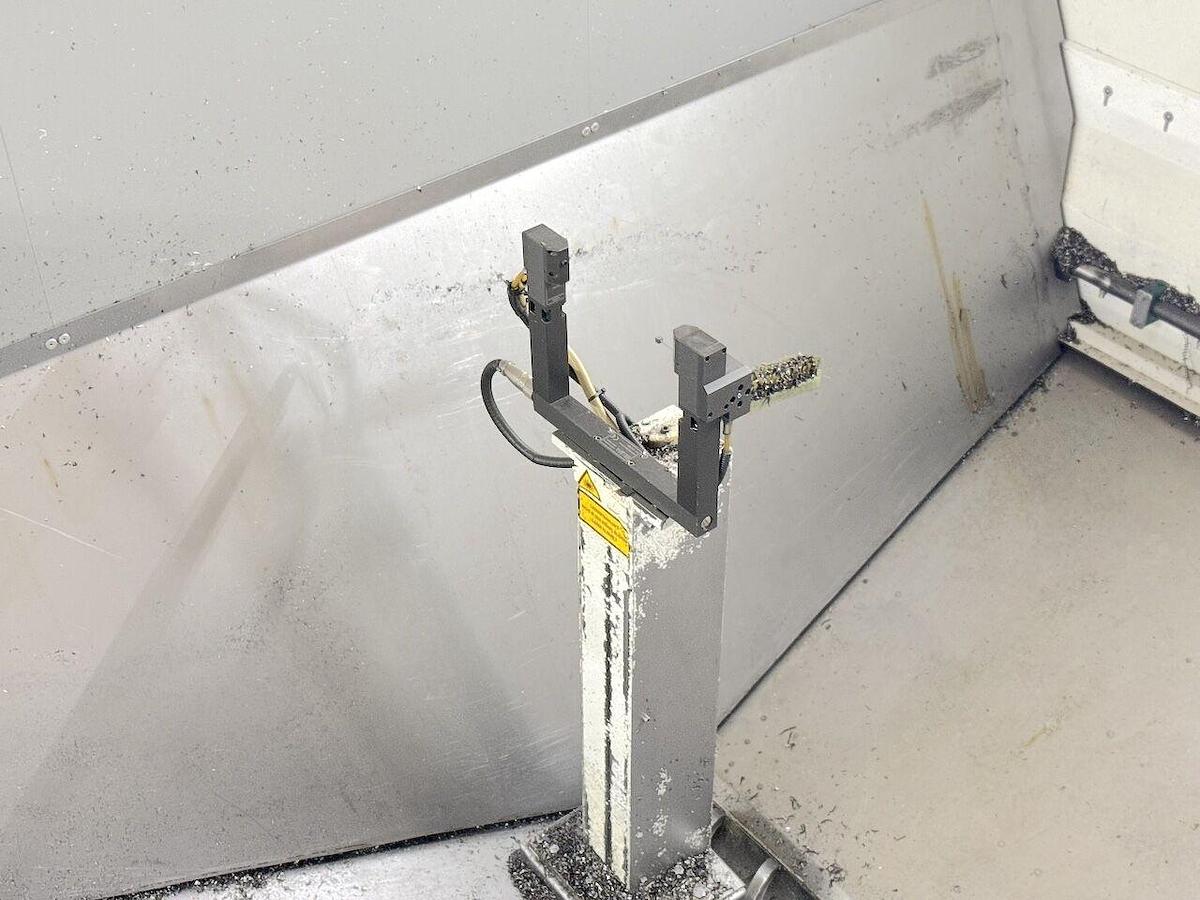

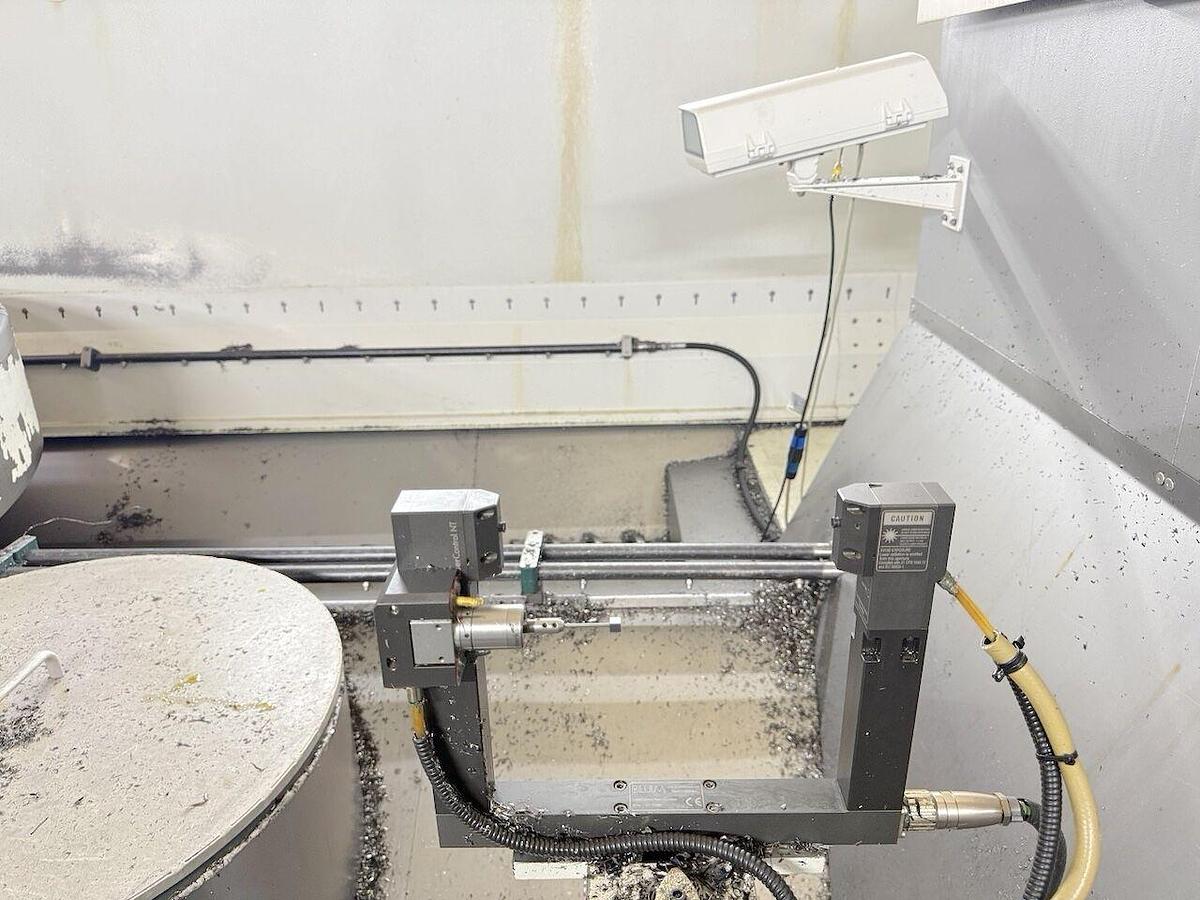

Tool Presetter Laser Probe Complete with Software for Tool Breakage and Tool Length/Radius Measuring

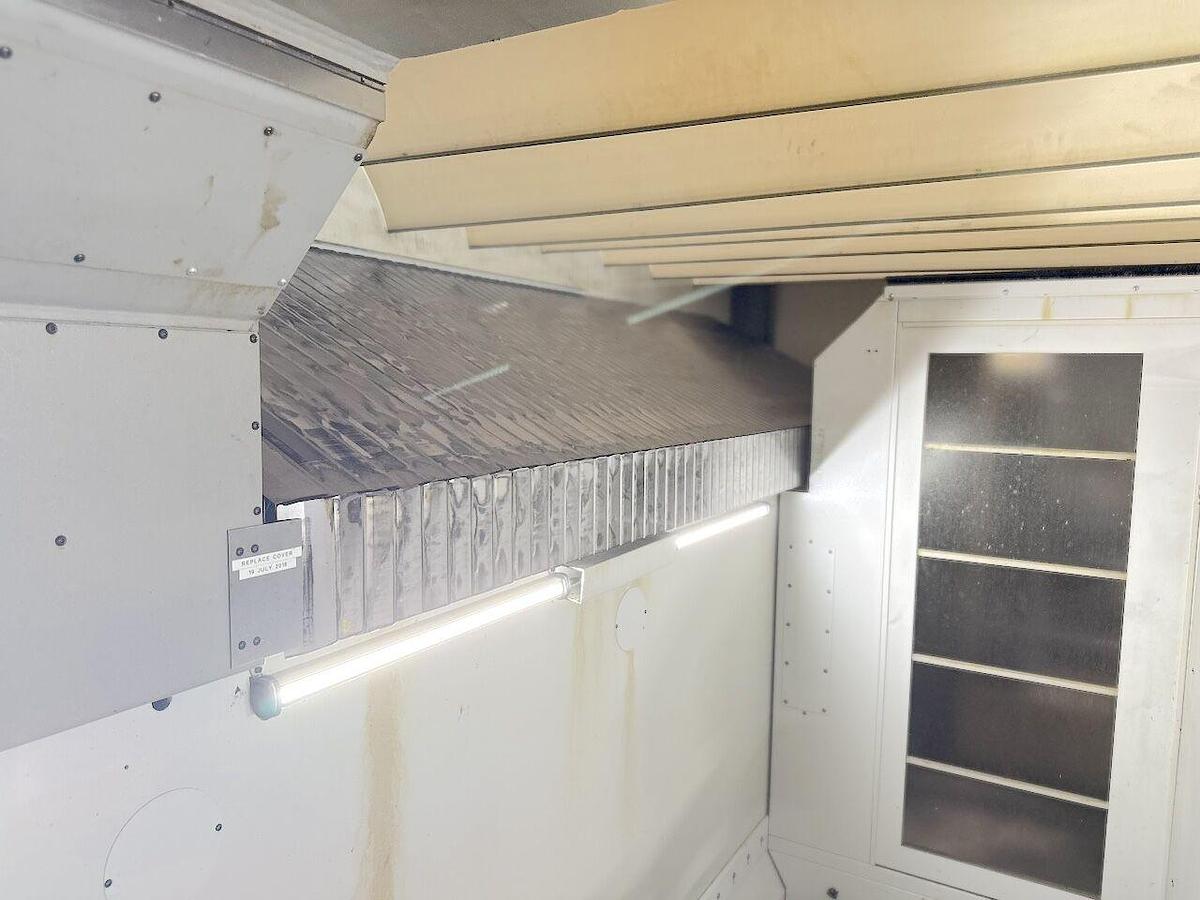

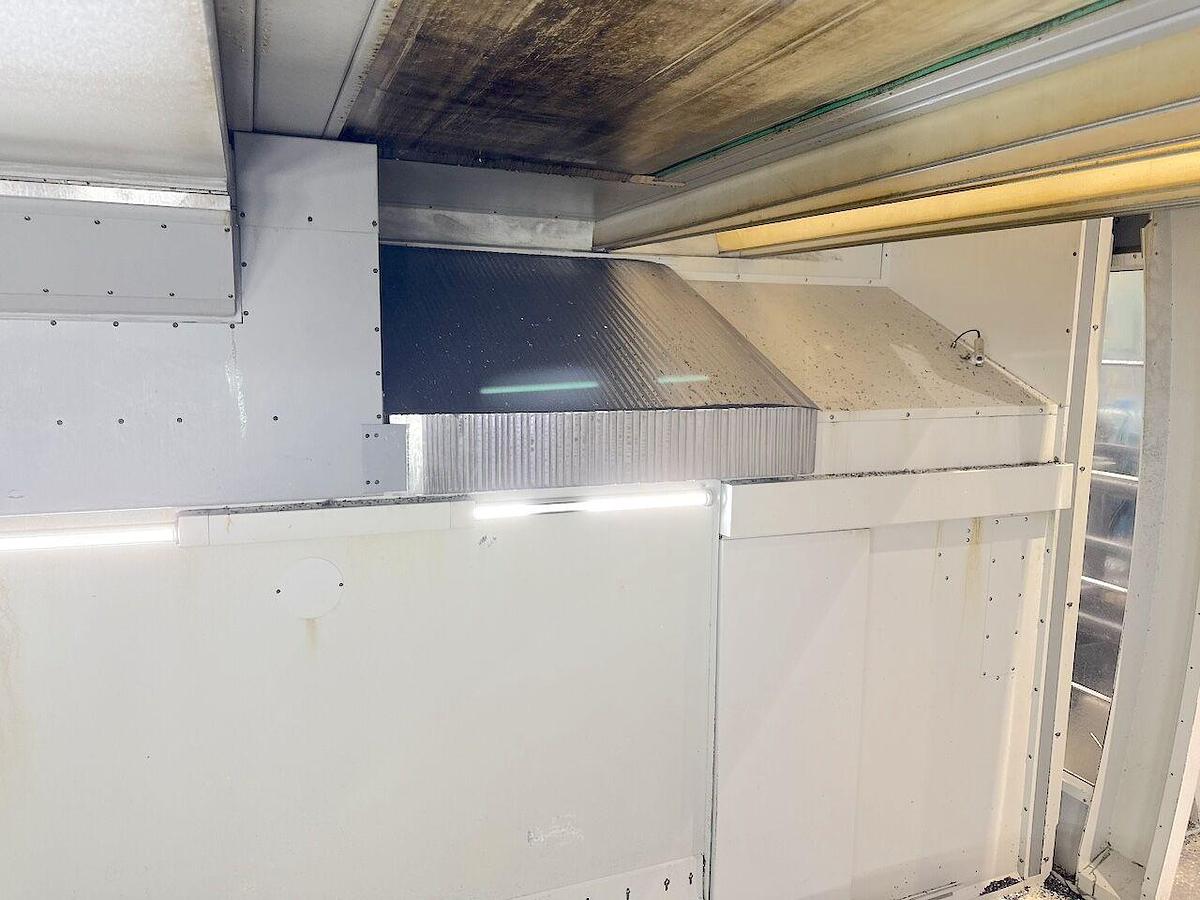

Housing full cover with folding-type roof cover
Chip Conveyor parallel to Y axis
Mist extractor - Pre-arrangement for fumes extraction
Linear Motors Axes Support
Specifications
| Manufacturer | FPT |
| Model | DINOMAX 2 |
| Condition | Used |
| Stock Number | 5654377 |
| Milling capacity | 4,000 x 2,700 x 1,300 mm |
| Turning capacity | 3,100 x 1,300 mm |
| Table diameter | 2,500 mm |
| X axis (longitudinal) travel | 4,000 mm |
| Y axis (vertical RAM) travel | 1,300 mm |
| Z axis (Crossrail Cross) travel | 2,700 mm |
| Distance between columns | 3,700 mm |
| Spindle nose to table - TULCE (V/H) | 1,620 / 1,859 mm |
| Spindle nose to table - TVS | 1,749 mm |
| Spindle nose to table - Turning Head | 1,979 mm |
| Table capacity | 8,000 kg |

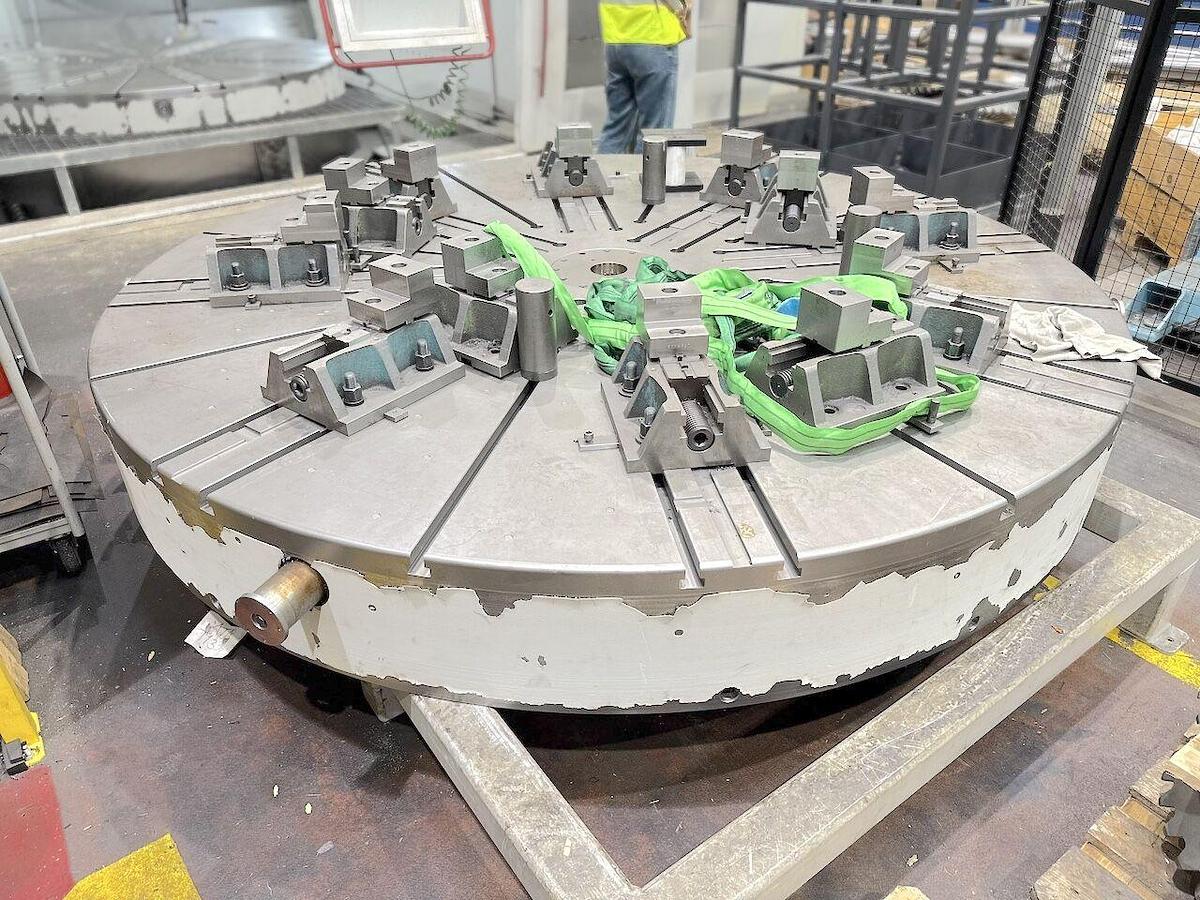

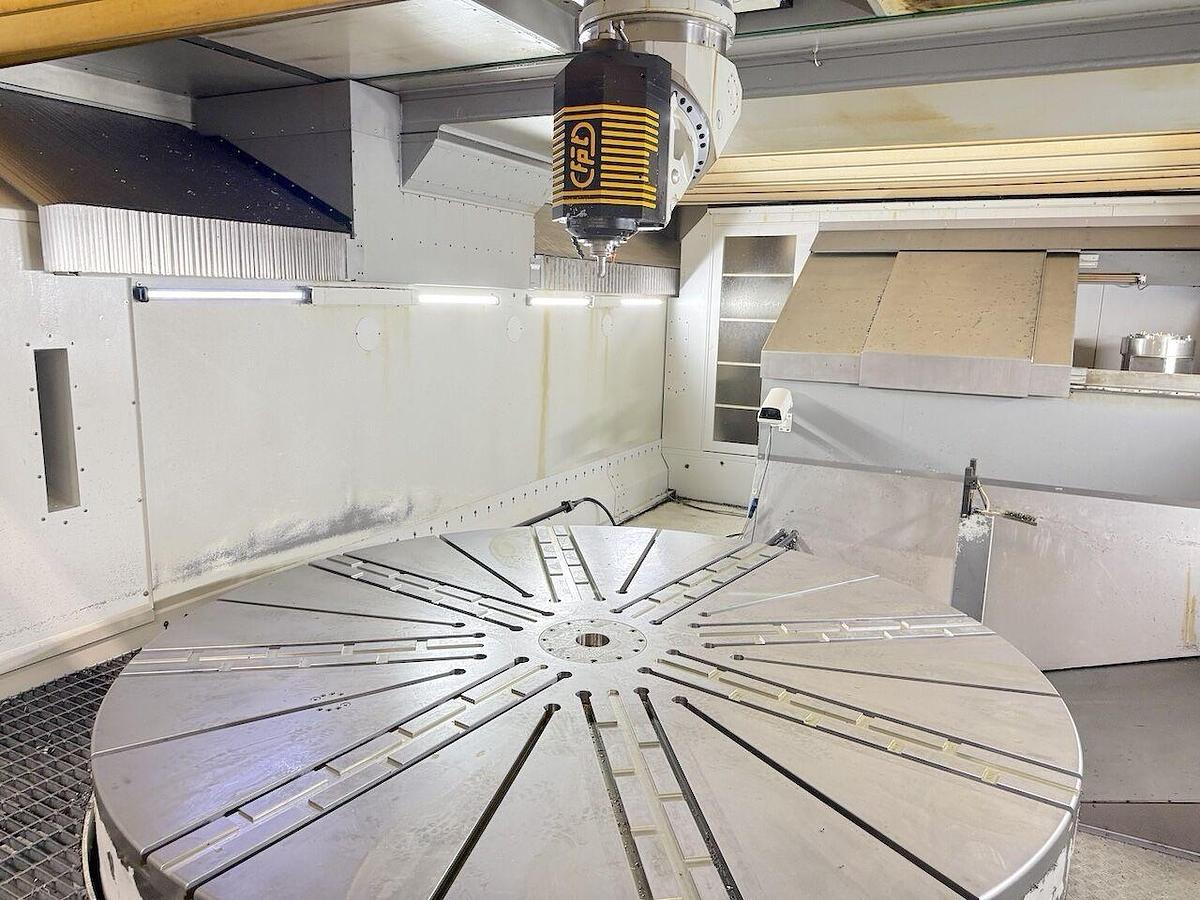

| Second rotary table | 2,500 mm x 790 mm (height) - 6 Jaws |
| Table rotation speed | 80 rpm |
| Table indexing | 0.0001° |
| Table motor | 70 kW |
| Rapid feeds XYZ | 50 m/min |
| Rapid feeds B | 80 rpm |
| Feeds acceleration | 4 m/sec² |
| Total power supply | 150 kW |
| Machine weight | 70,000 kg |
| Floor Space | 7,500 x 6,975 x 5,180 mm |
