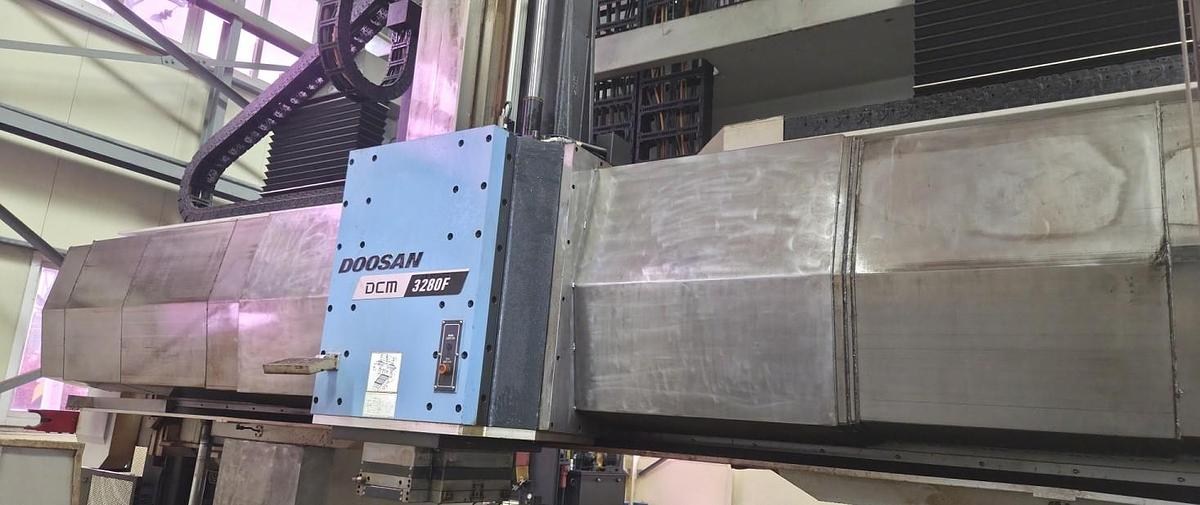

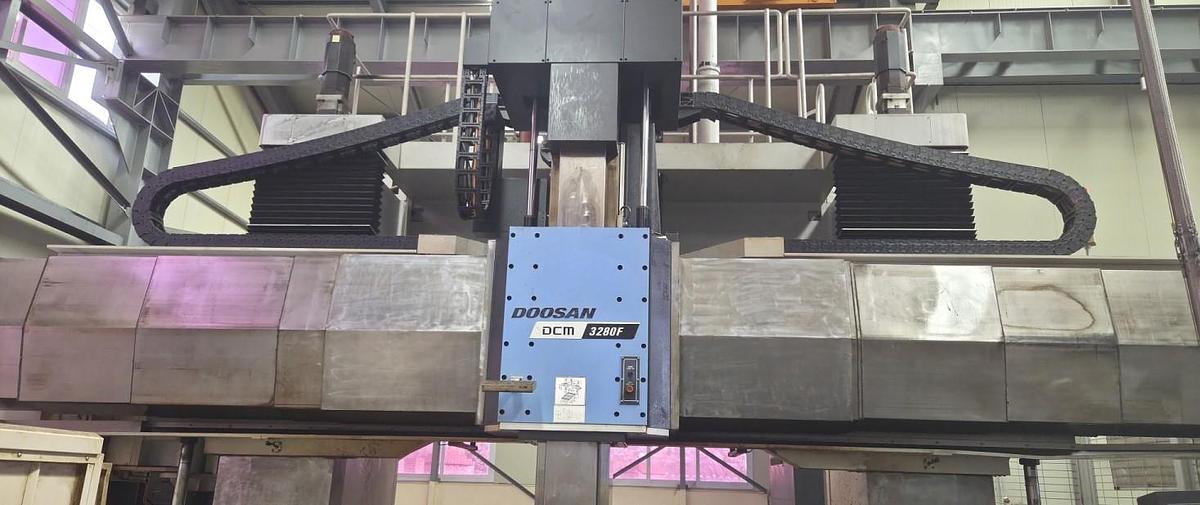

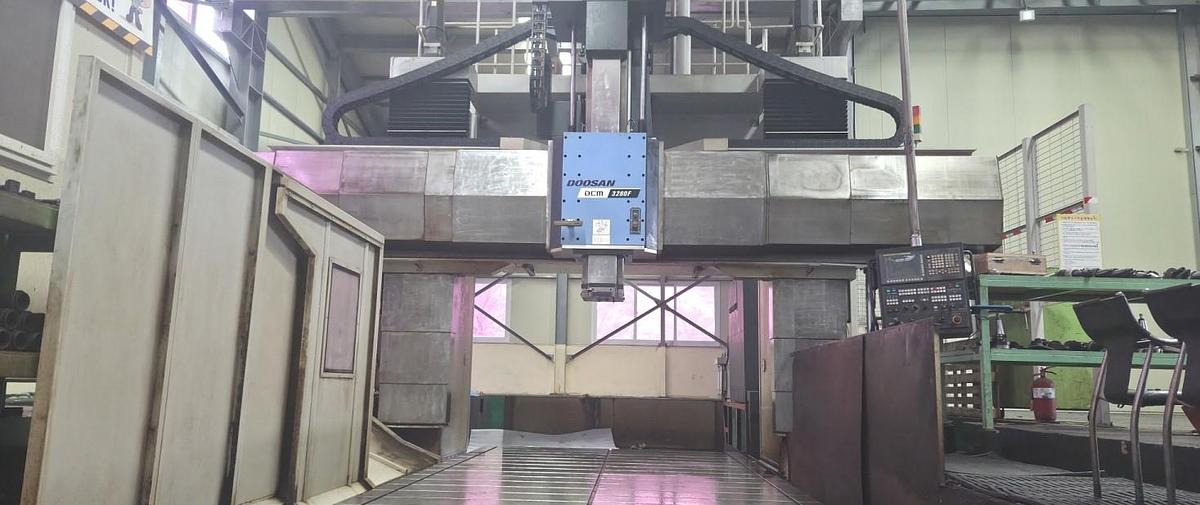

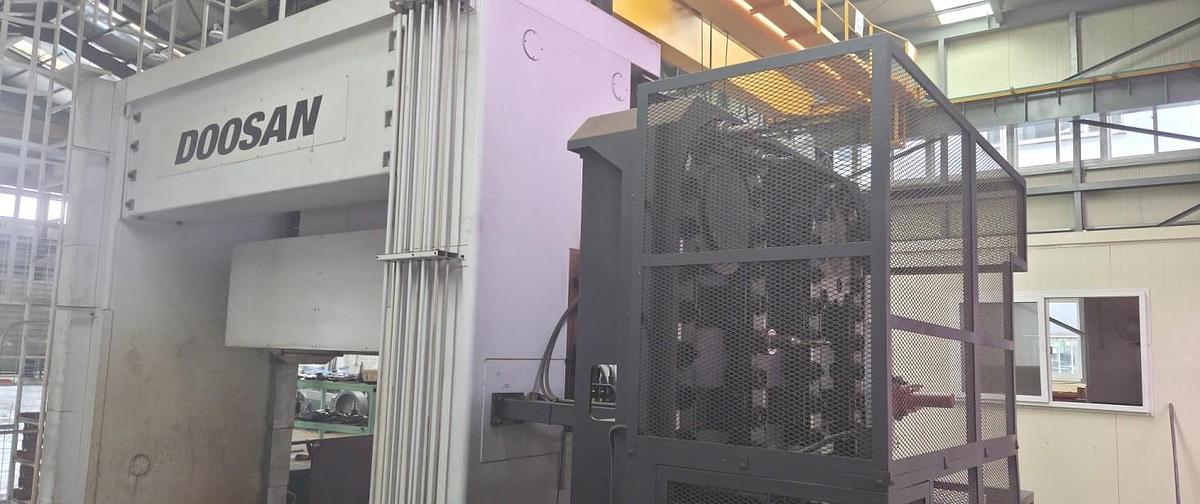

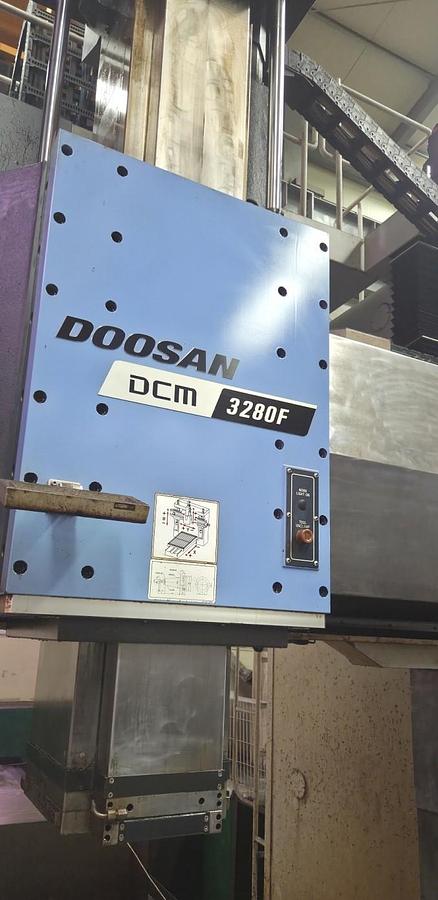

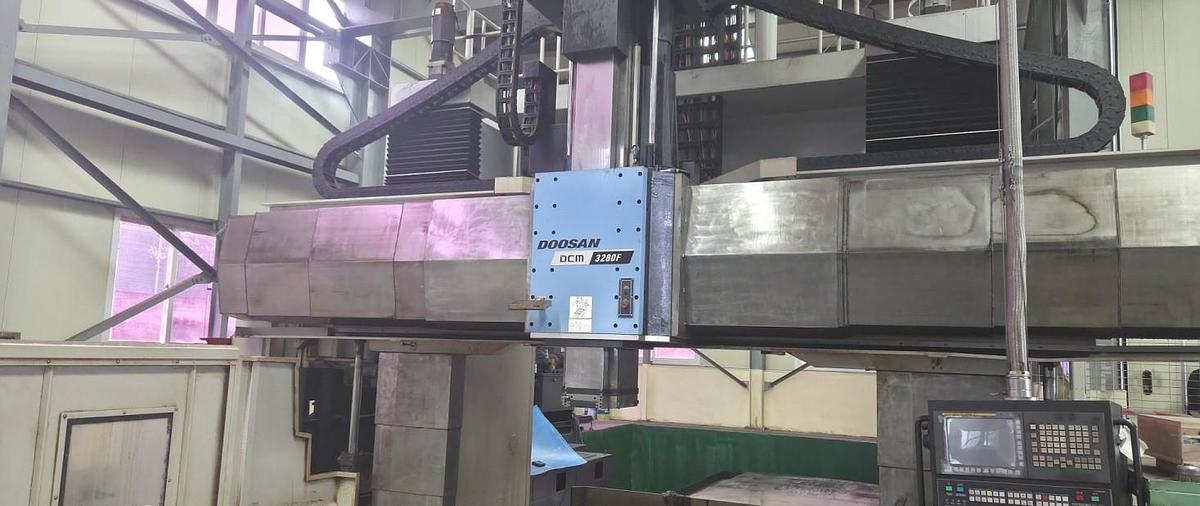

Doosan DCM 3280 CNC Double Column Planer Type Milling Machine
Doosan DCM 3280 CNC Double Column Planer Type Milling Machine
or
Call 770-509-0744
Description

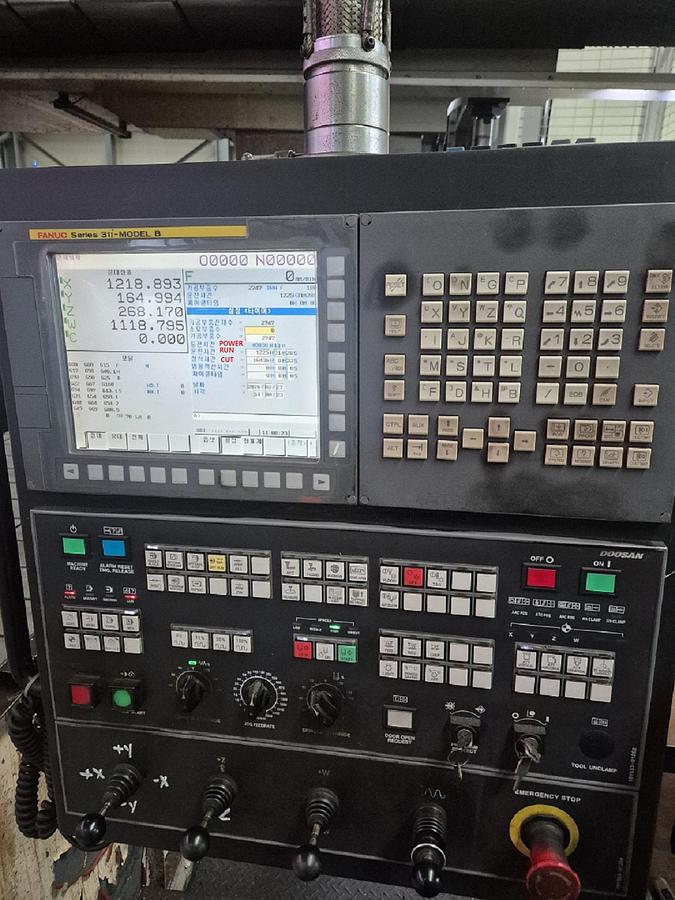

Fanuc 31iB CNC Control
Scales XYZW
Chip conveyor
20 bar spindle thru coolant
90 Position Automatic Tool Changer
4 Position Linear Automatic Attachment Changer:

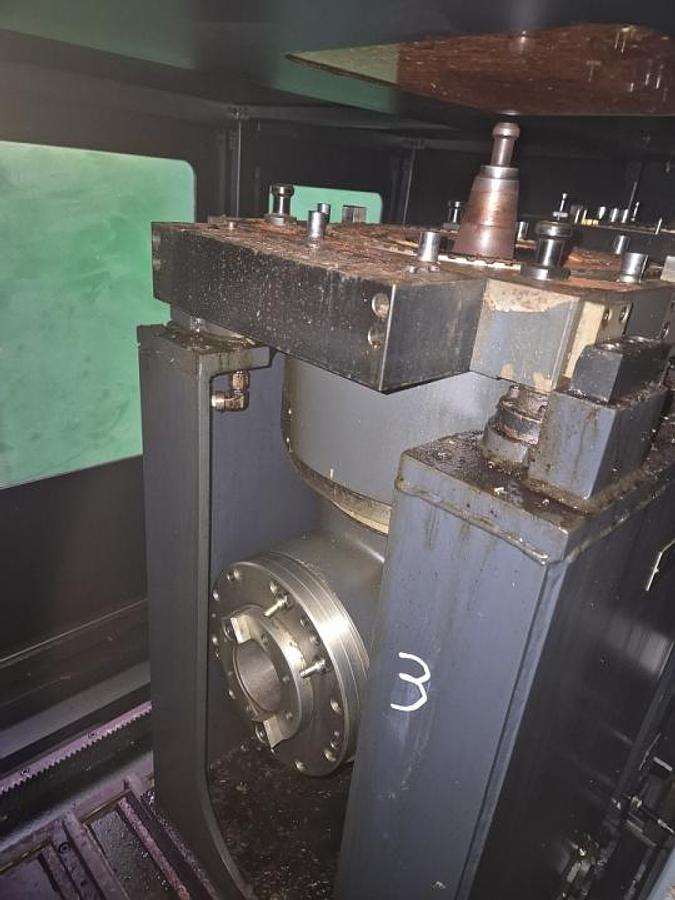

90 degree angle head (5 degree indexing), 2000 rpm

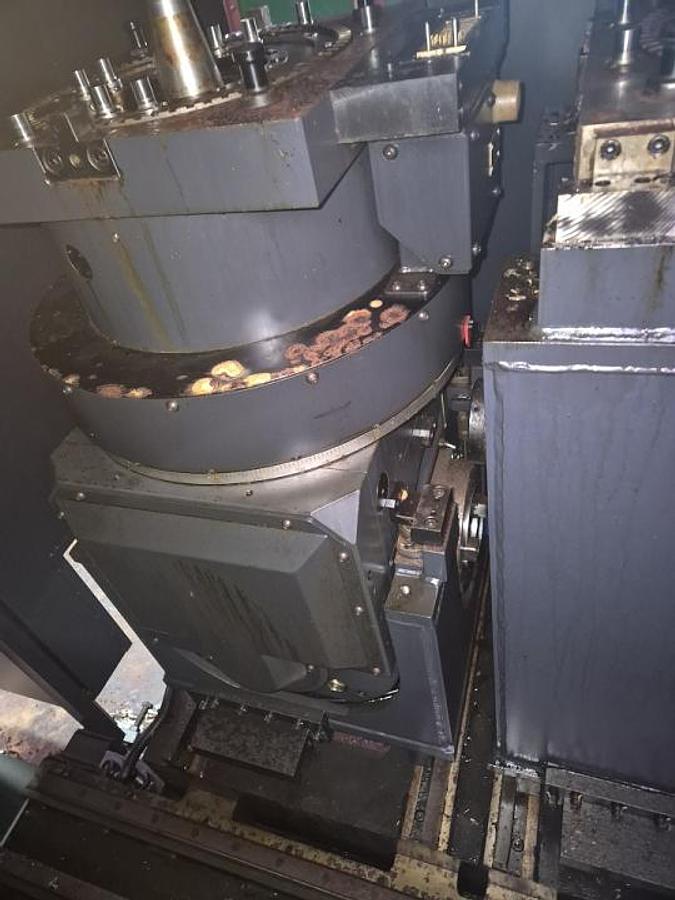

Universal head (A/C) 1 degree indexing. 4000 rpm
Extension Head 600mm, 4000 rpm
Specifications
| Manufacturer | Doosan |
| Model | DCM 3280 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 5654368 |
| Between columns | 3,200 mm |
| Spindle speeds | 4,000 rpm (Gearbox head) |
| Table to spindle nose | 2,000 mm |
| X axis travel | 8,250 mm |
| Y axis travel | 3,700 mm |
| Z axis travel | 1,000 mm |
| W axis travel | 1,450 mm |
| Table size | 2,700 x 8,100 mm |
| Table capacity | 40 Ton |
| Ram size | 380 x 380 mm |
| Spindle drive motor | 30 / 37 kW |
| Spindle taper | BT 50 |
| Machine weight | 94,000 kg |
| Electrics | AC 220 V, 3 Ph, 50/60 Hz |
