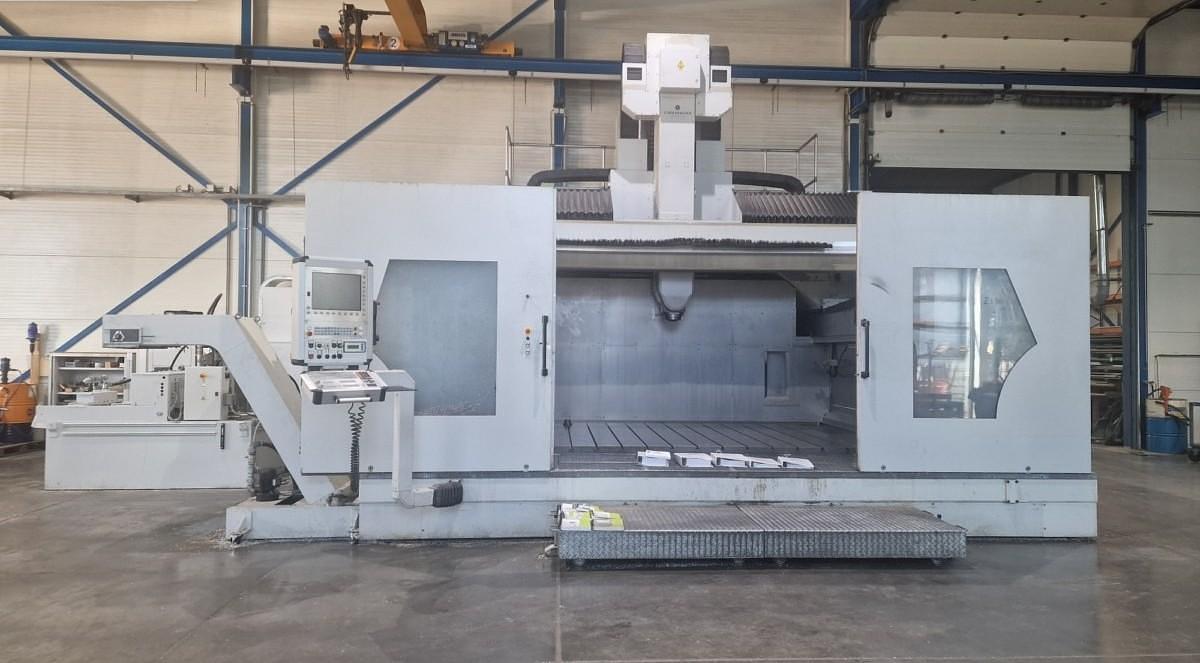

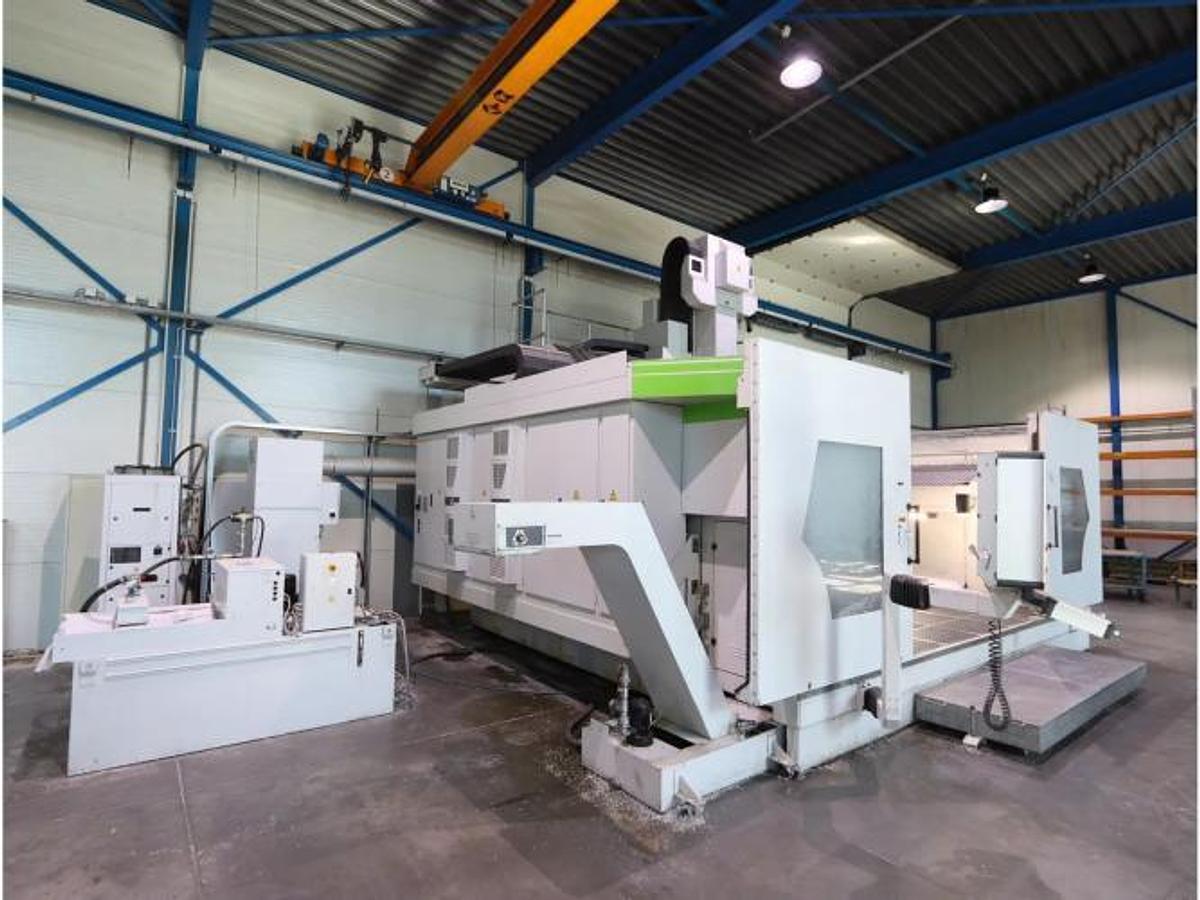

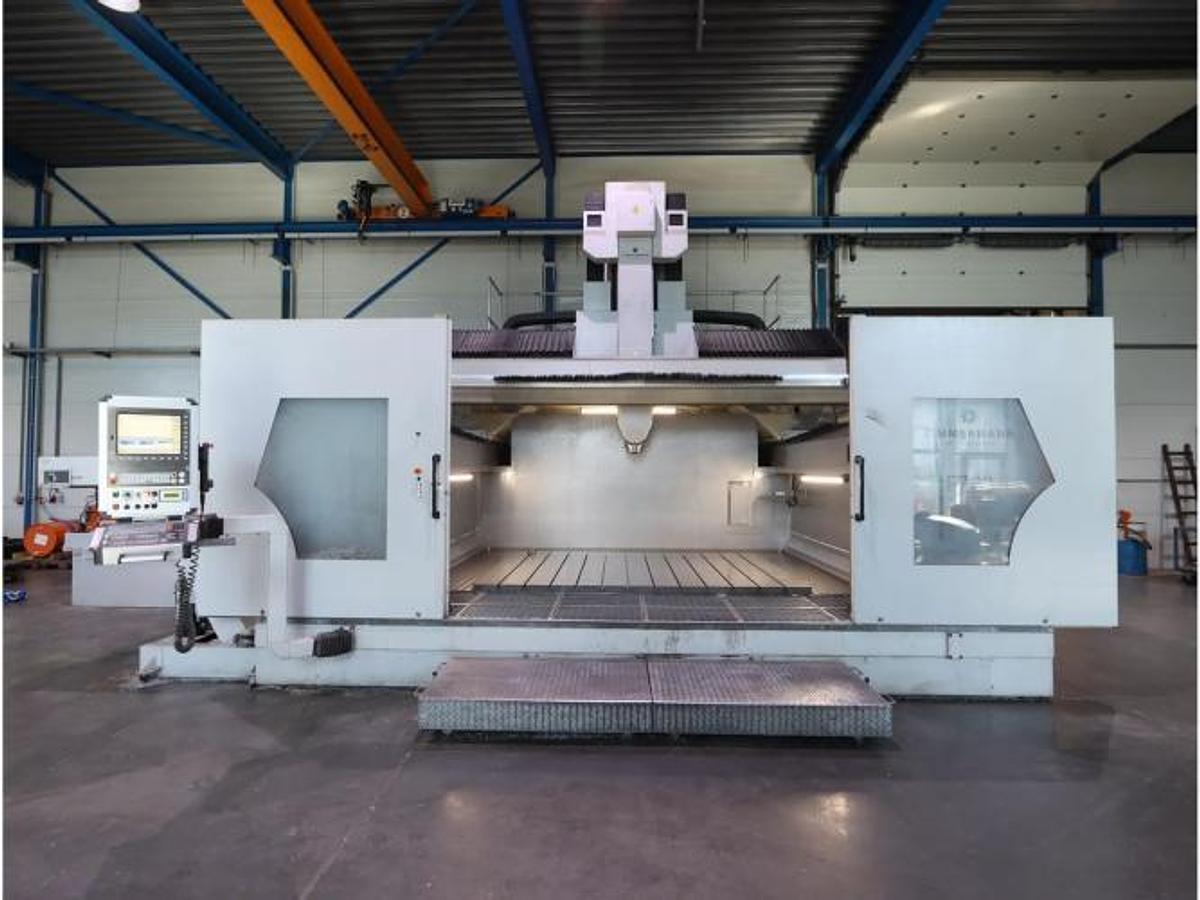

Zimmermann FZ 33 C CNC 5-Axis Double Column Gantry Milling Machine

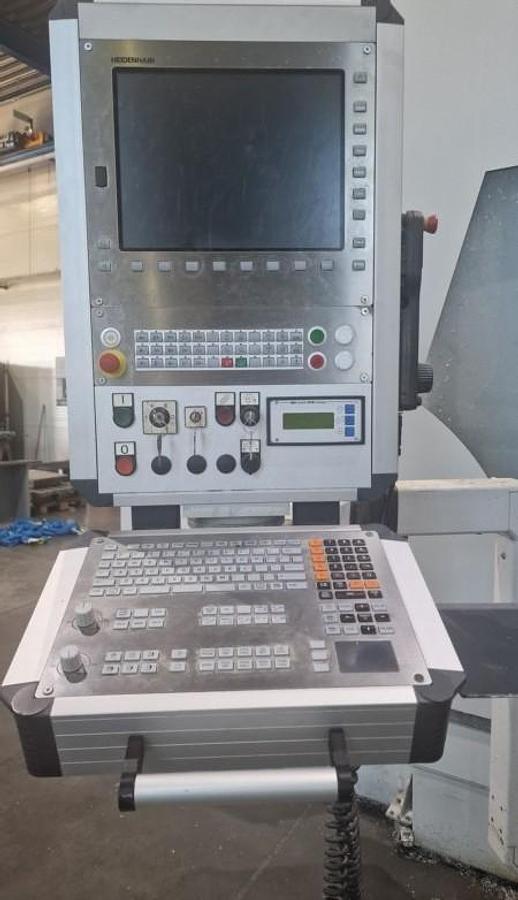

Heidenhain iTNC 530 CNC 5-Axis Path Control

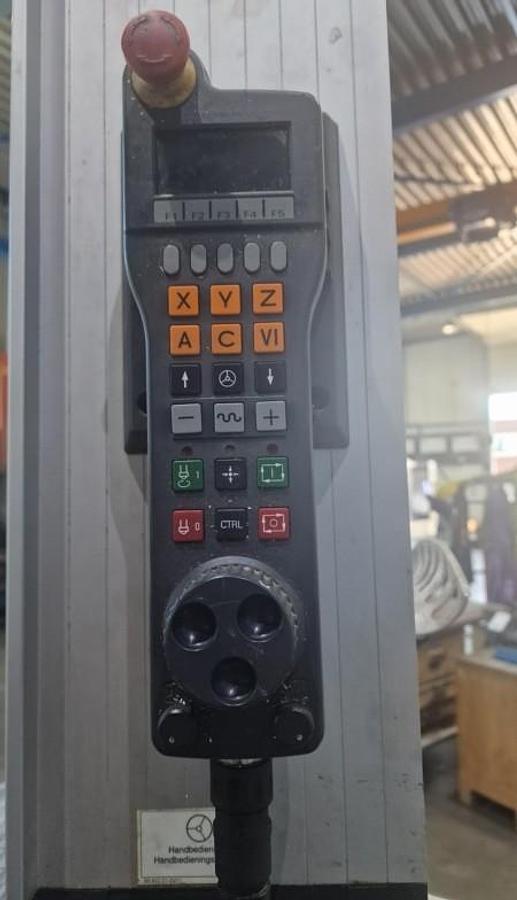

handwheel HR520

15” TFT color display

NEW Spindle Installed 6-months ago

Includes vibration sensor

Includes bearing temperature sensor

Includes rotary joint for internal tool magazine feed (IKZ)

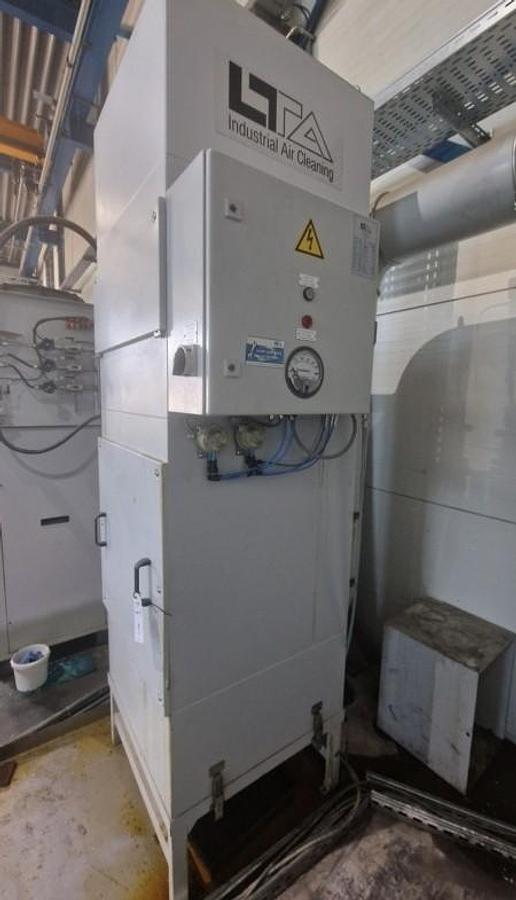

Extraction system LTA Industrial Air Cleaning

Machine room canopy

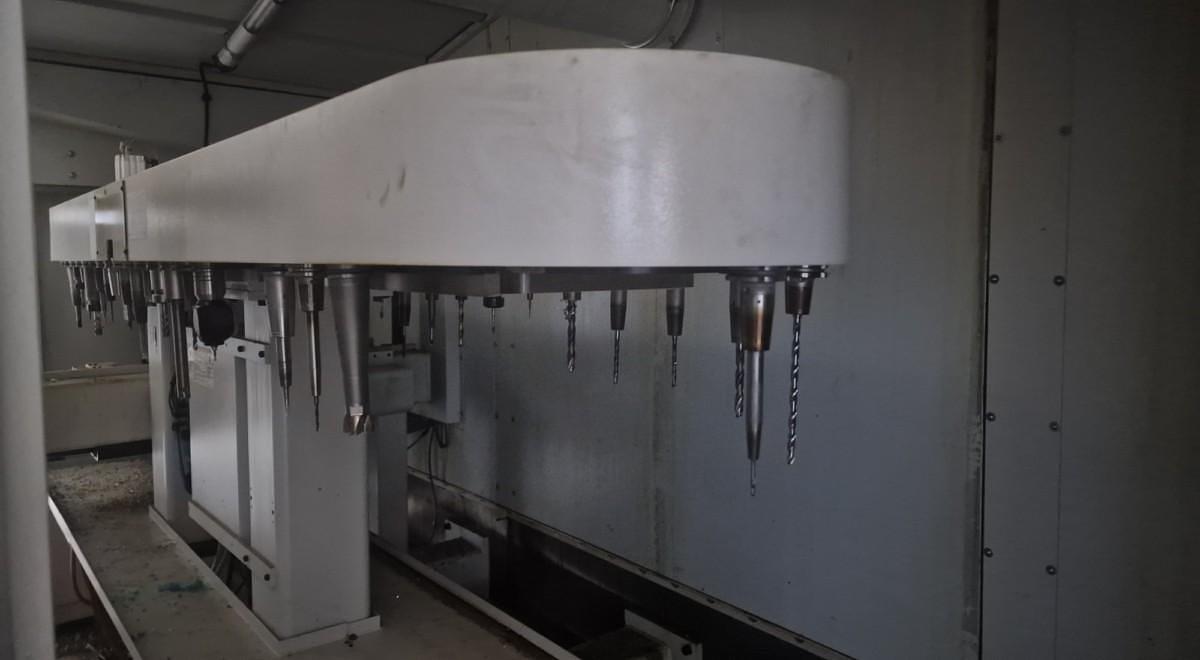

50-position tool changer, chain magazine, behind the machine

Chip conveyor, ejection 60° to the left, front-facing

No probe available!!!

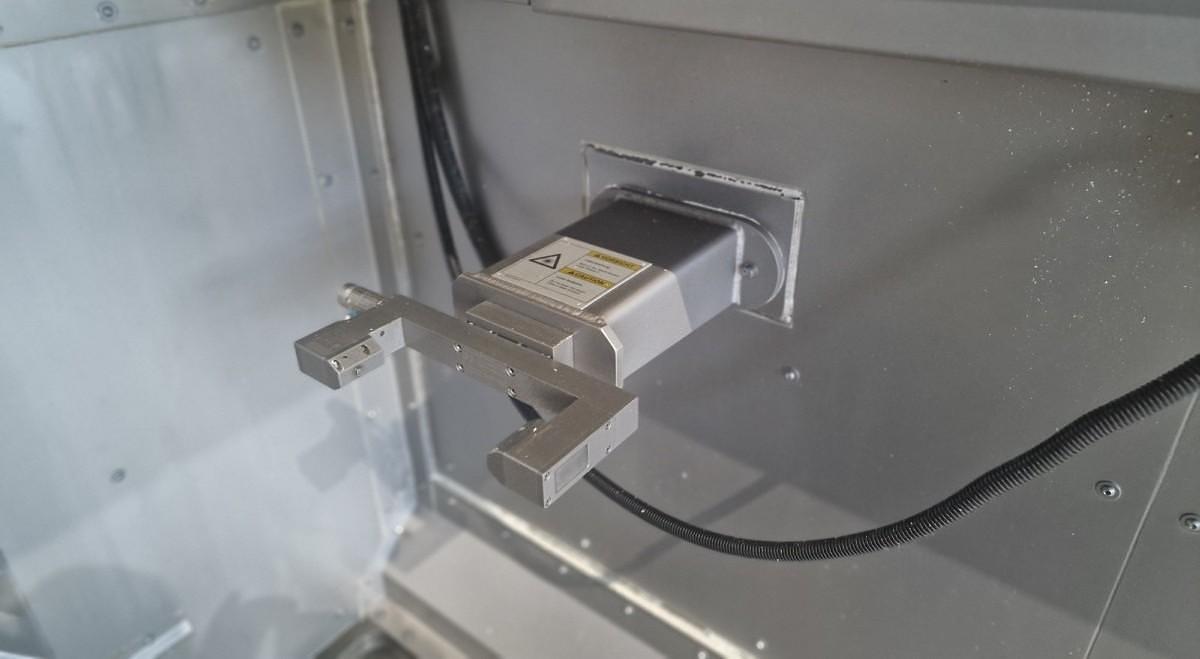

Blum Laser tool measurement ‘Control NT-Micro

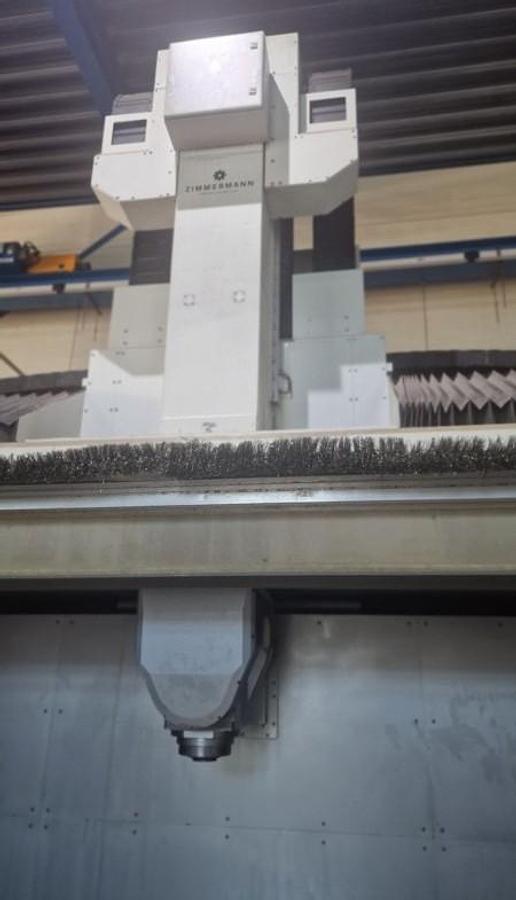

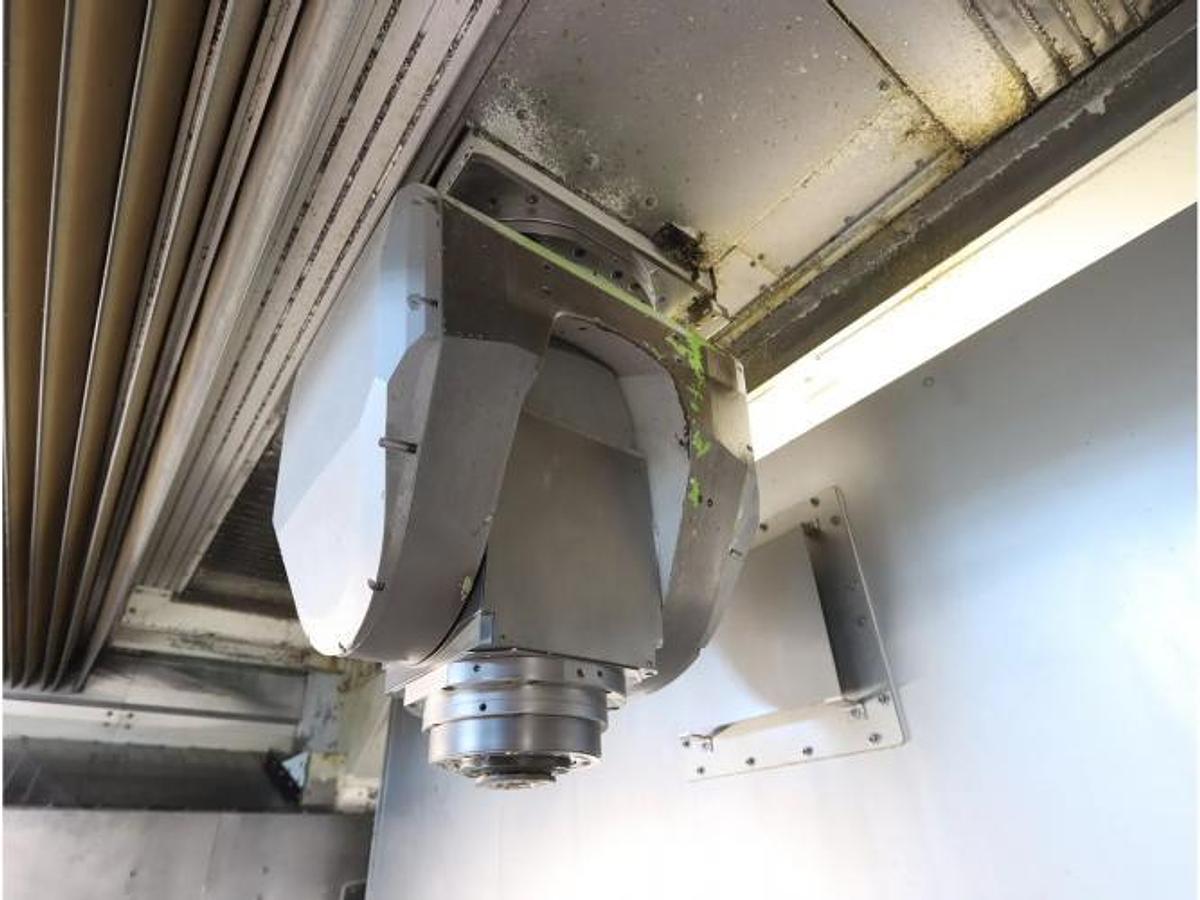

VH30 milling head

2-axis milling head: VH30,

Siemens Weiss milling spindle

Spindle power S1 (100% duty cycle) 60 kW,

Spindle speed 22,000 rpm, 95 Nm, HSK-A63

External dimensions of fork head L x W approx. 500 x 600 mm

Nominal torque of rotary axes Control loop A: min. 1,200 Nm

C: min. 1,047 Nm

Clamped A and C axes: 3,000 Nm

(Continuous grease lubrication with automatic relubrication system)

Swivel axis – spindle nose 326 mm

Tool holder HSK 63 A

Tool clamping Spring clamp

Tool unclamping Hydraulic

Permissible tool weight 4.5 kg (manufacturer’s specification)

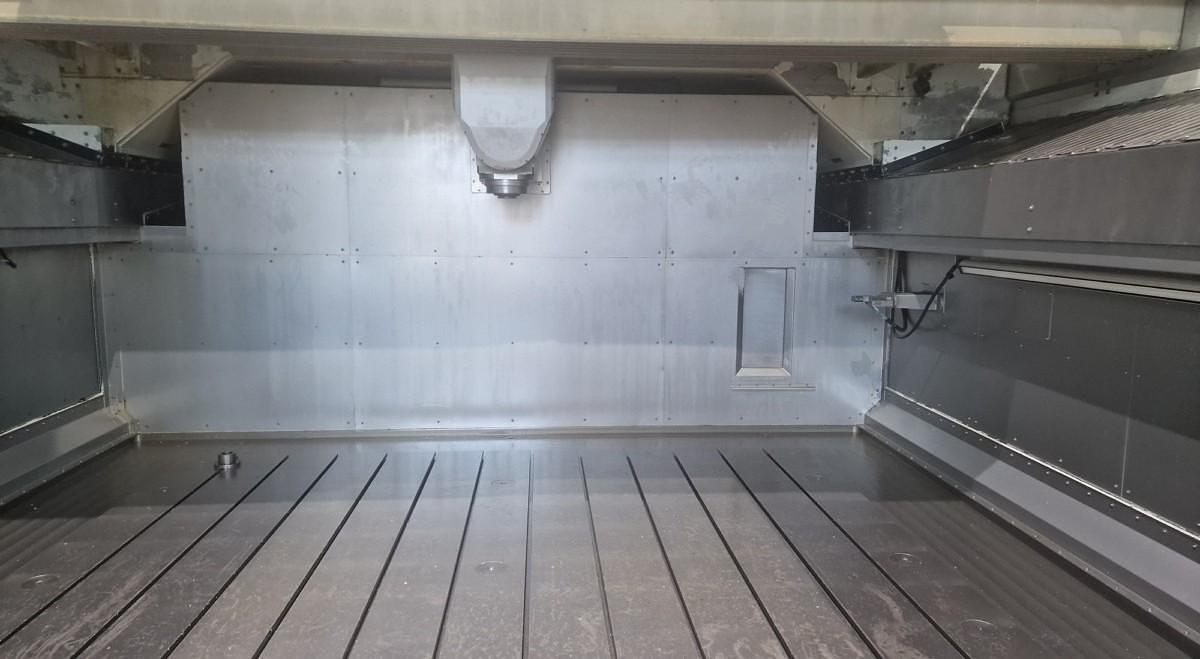

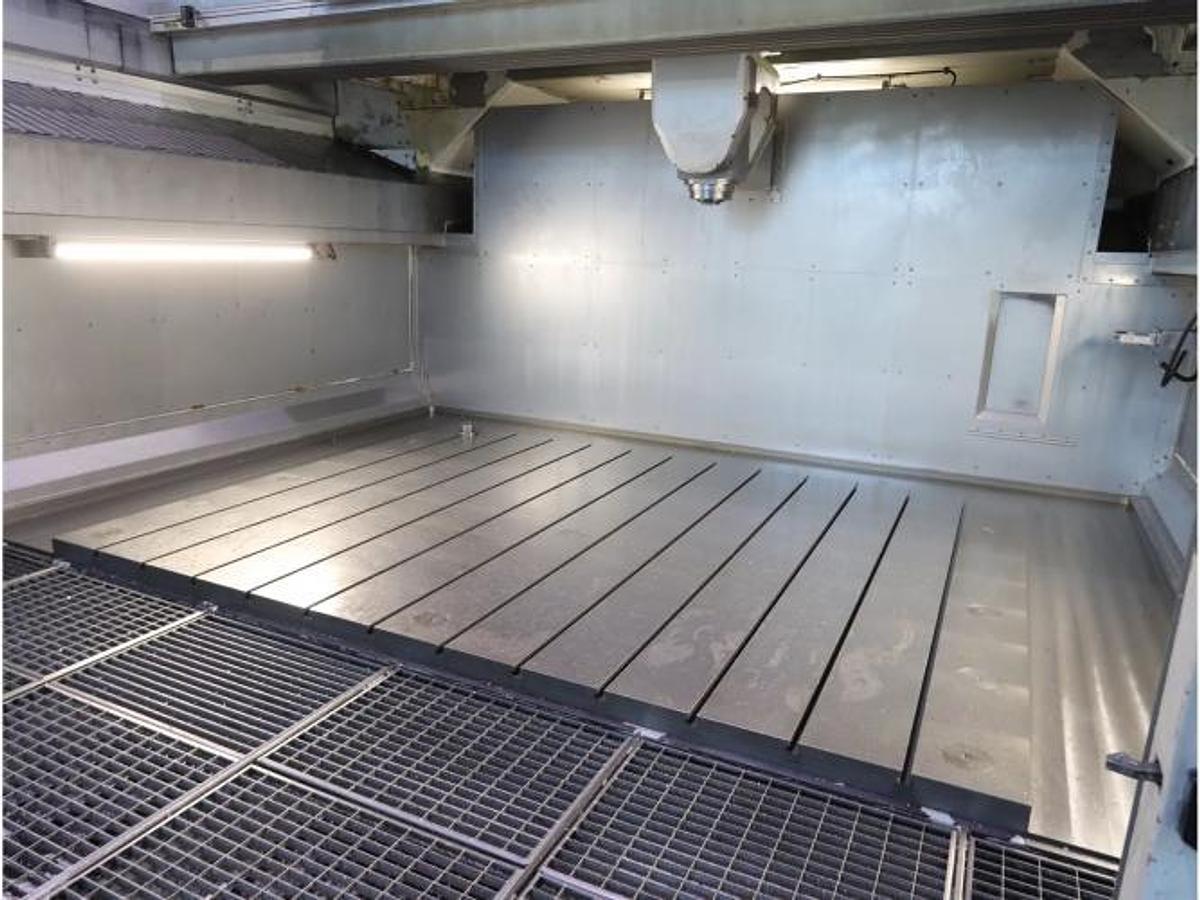

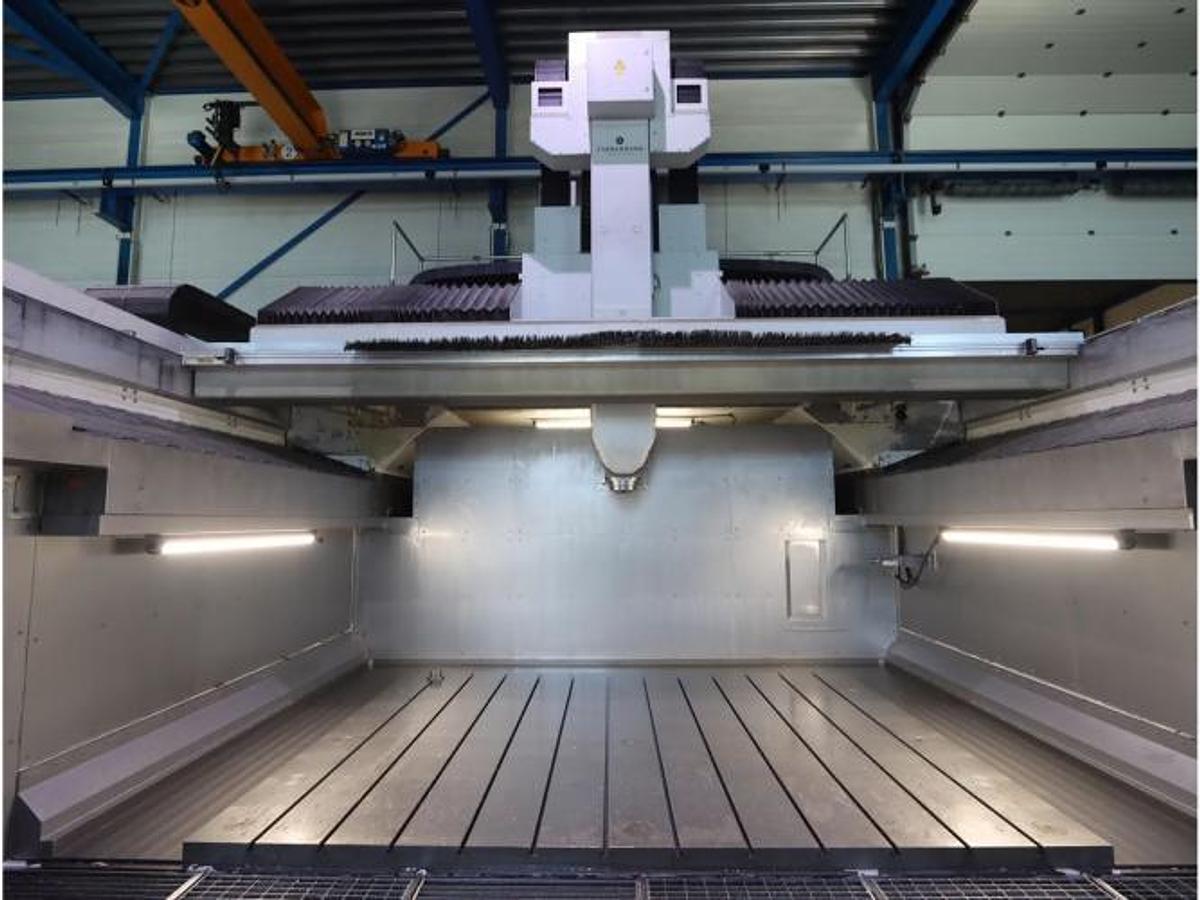

Clamping table

Length x width x height - 2500 x 3250 x 400 mm

Table load 8000 kg/m² (max. 16,000 kg)

T-slots, arranged longitudinally 18H12

T-slot spacing 250 mm

Linear axis drives

Feed rate X, Y, Z axes 60 m/min

Axis acceleration X, Y, Z axes up to 5 m/s²

Rotary axis drives – VH30

Feed rate A- and C-axis 360 °/s

Axis acceleration A- and C-axis 700 °/s²

Resolution A- and C-axis 0.0001

Accuracies of linear axes – in accordance with VDI / DGQ 3441

Positioning accuracy X-axis P= 0.026 mm

Y-axis P= 0.028 mm

Z-axis P= 0.020 mm

Repeatability X-axis Ps= 0.015 mm

Y-axis Ps= 0.016 mm

Z-axis Ps= 0.010 mm

Resolution of measuring systems (interpol) A-, C-axis 0.0001°

Accuracy of rotary axes – VH30

Positioning accuracy A- and C-axis P= 12" = 0.0033°

Repeatability A- and C-axis Ps= 8" = 0.0022°

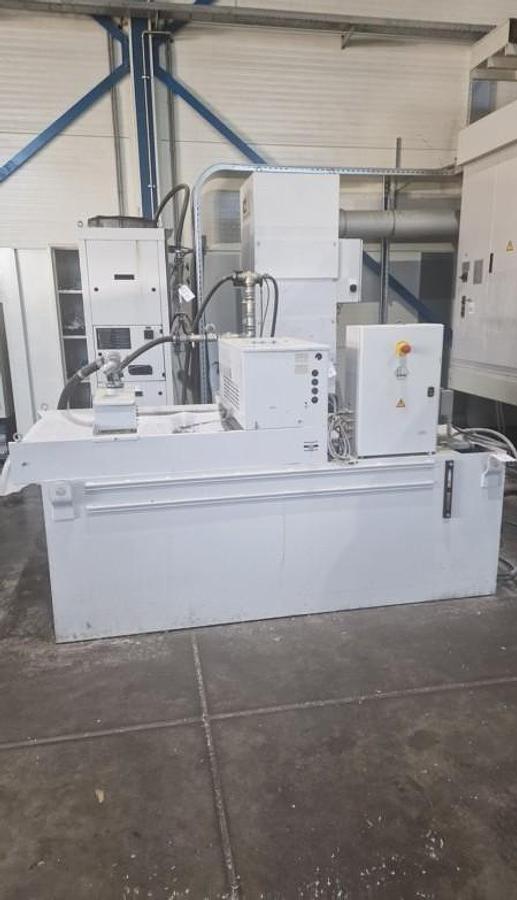

Coolant supply External and internal

Coolant/lubricant supply (emulsion) at the front of the milling spindle with

belt filter system

Volume 1500 l

Pump 1: 40 l/min at 20 bar

Pump 2: 20 l/min at 40 bar,

Air blow at the front of the milling spindle

Dimensions, weights

Footprint (excluding peripheral equipment) approx. 7600 x 7300 x 5650 mm

Total weight approx. 53,500 kg

Electrical connection data

Voltage (three-phase) 400 V

Frequency 50 Hz

Compressed air connection (to be provided by customer)

Required air pressure 6 bar

Average air consumption approx. 15 m³/h
