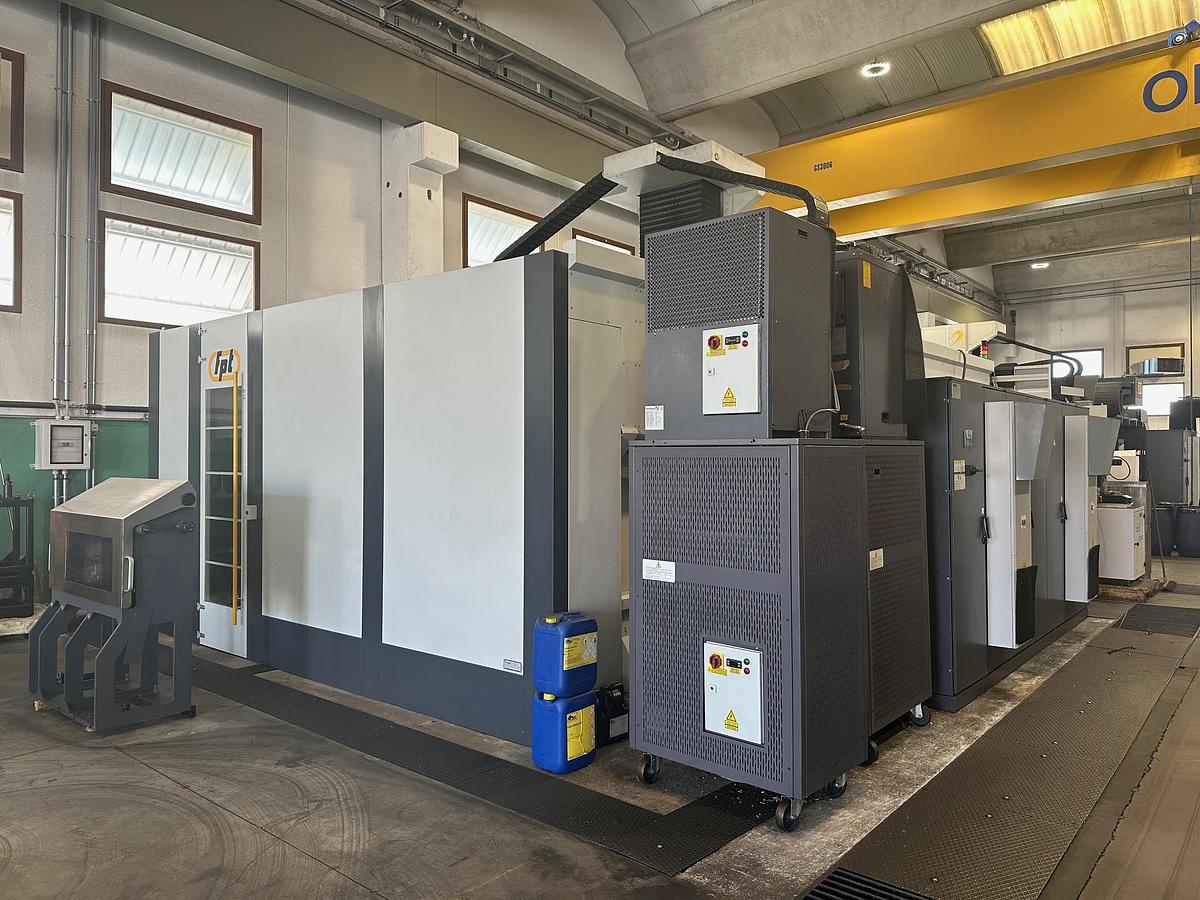

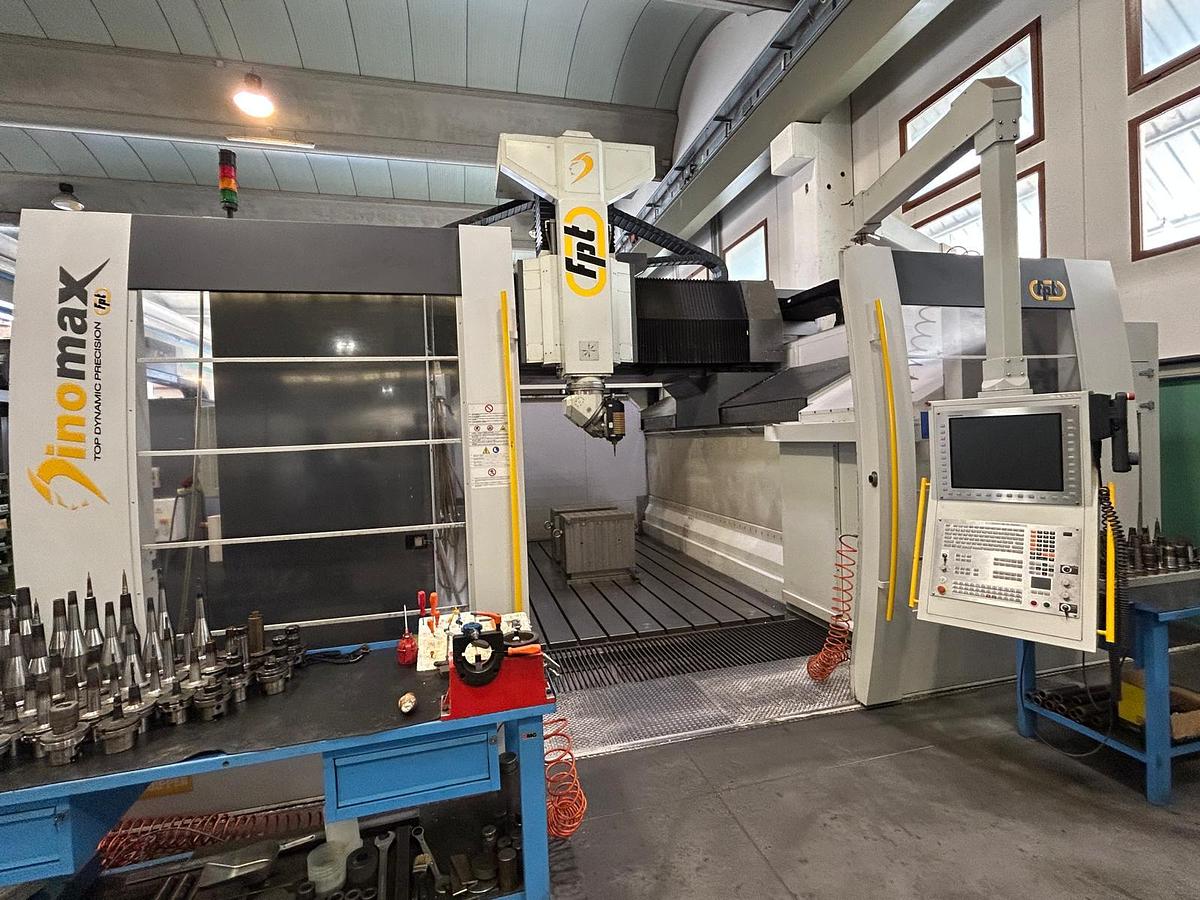

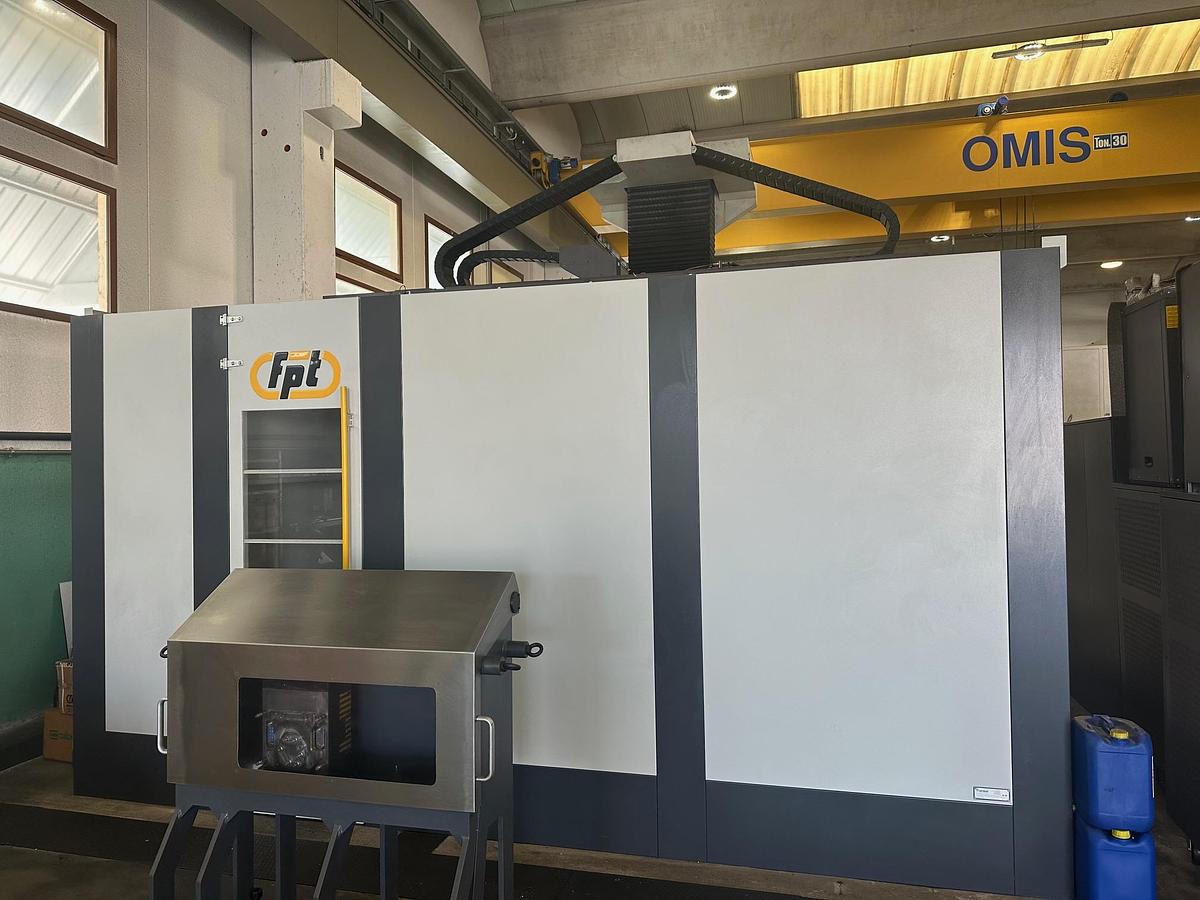

FPT DINOMAX CNC 5-Axis High-Speed Gantry Type Milling Machine

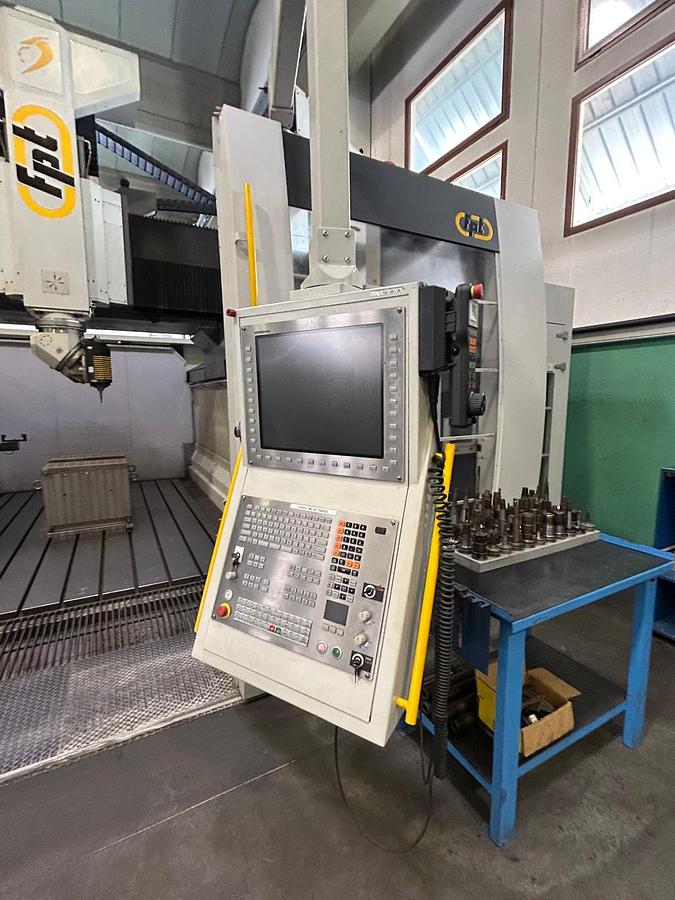

• Heidenhain iTNC 640 CNC Control
• Heidenhain HR550 remote electronic handwheel
• High-pressure water and air through the spindle
• Semi-automatic electrospindle change, with HSK-A63 and HSK-A100 interfaces
• Various tooling included with the machine
• Renishaw probe
• BLUM laser presetting system
• AUTOCAL automatic head calibration system
• Visormax subscription for remote monitoring
• Electrical cabinet air conditioning unit
• Cooling system for all axes and the electrospindle
• User and maintenance manual and CE declaration of conformity

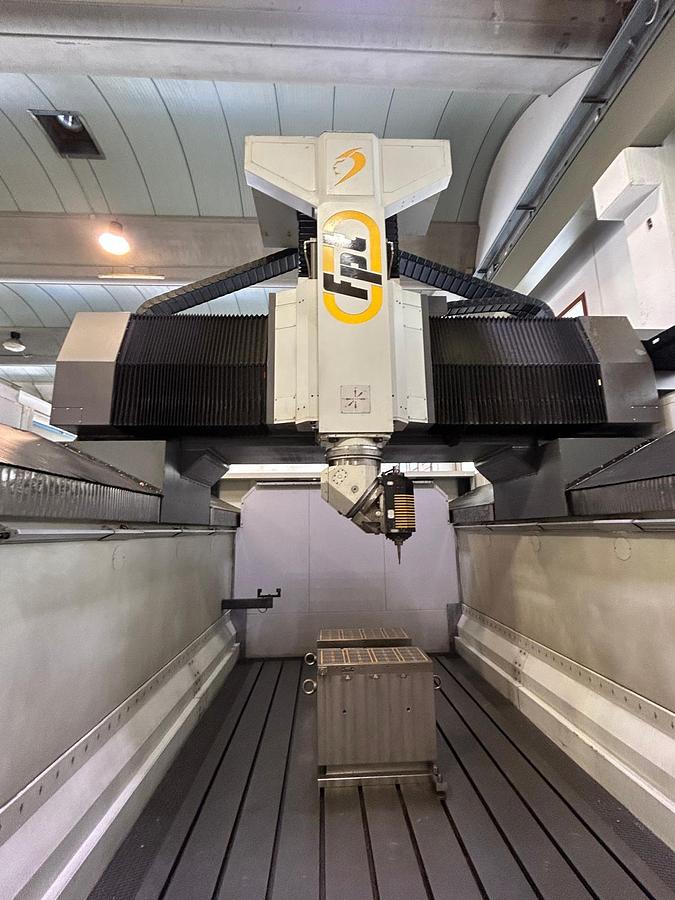

CONTINUOUS POSITIONING UNIVERSAL HEAD WITH ELECTROSPINDLE:

Automatic universal head indexed to 360,000 positions (every 0.001°). Rotation is driven by direct drive motors and controlled by the CNC as a positioning axis. Automatic tool clamping. Allows 10° undercut machining. Internal cooling system for bearings and axis motors.

• C-axis rotation range: ± 270°
• A-axis rotation range: ± 185°
• Maximum axis rotation speed: rpm 30
• Maximum torque available on A/C axes: Nm 450
• Axis clamping torque: Nm 1.400
• Spindle power (S1/S6): kW 22/33
• Spindle torque (S1/S6): Nm 84/128
• Maximum spindle speed: rpm 22.000
• Constant power range: rpm 3.000 to 18.000
• Constant torque range: rpm 10 to 3.000
• Tool interface: HSK-A63 DIN 69893

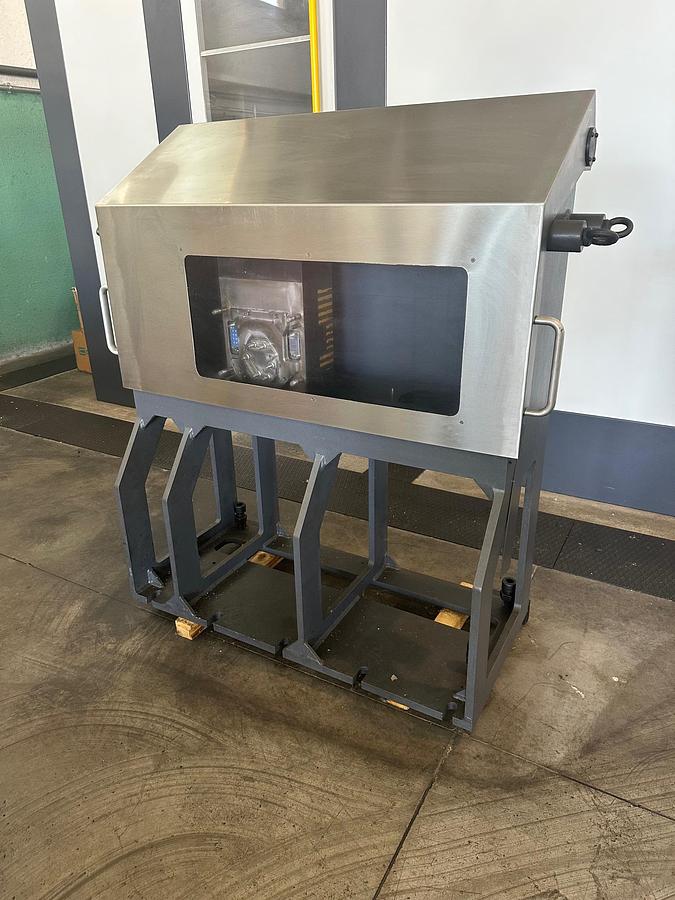

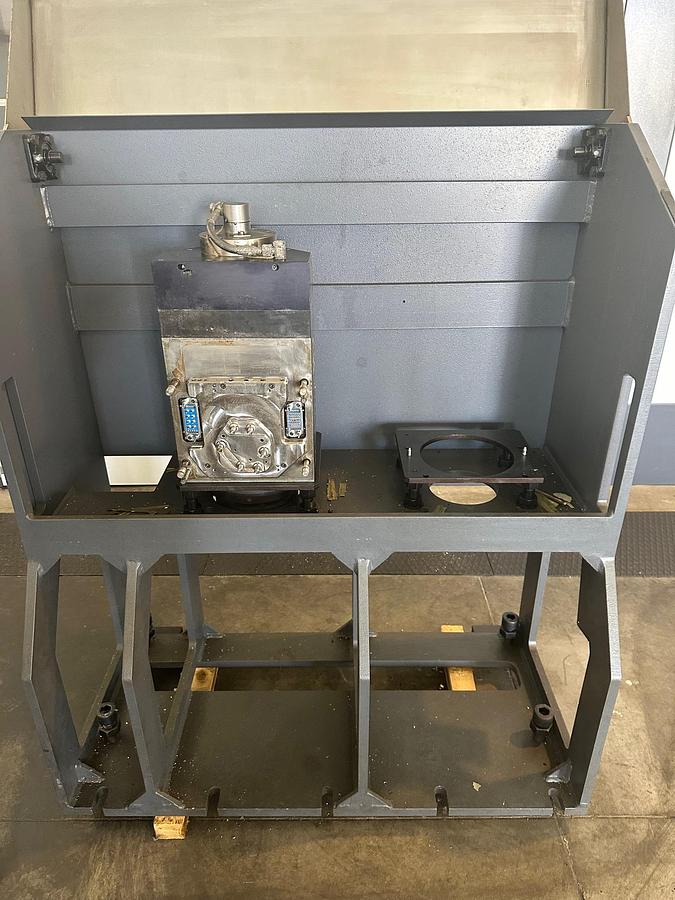

ELECTROSPINDLE HSK-A100 WITH SEMI-AUTOMATIC CHANGE SYSTEM

• Spindle power (S1/S6): kW 37/43
• Spindle torque (S1/S6): Nm 140/165
• Maximum spindle speed: rpm 15.000
• Constant power range: rpm 2.500 to 12.000
• Constant torque range: rpm 10 to 2.500
• Tool interface: HSK-A100 DIN 69893

CHAIN TOOL MAGAZINE – 55 POSITIONS, HSK-A100 / HSK-A63

Floor-mounted fixed chain magazine located at the rear of the machine, fully enclosed for operator protection, equipped with a vertical tool change arm and automatic tool pre-selection. Fixed-pocket management system.

• Hydraulic axis locking
• Total tools: No. 55
• HSK-A63 tools (DIN 69893):
• Number of tools: No. 30
• Max tool diameter: mm 90
• Max tool diameter (with adjacent pockets free): mm 160
• Max tool length: mm 300
• Max tool weight: kg 10
• HSK-A100 tools (DIN 69893):
• Number of tools: No. 25
• Max tool diameter: mm 100
• Max tool diameter (with adjacent pockets free): mm 160
• Max tool length: mm 450
• Max tool weight: kg 20
