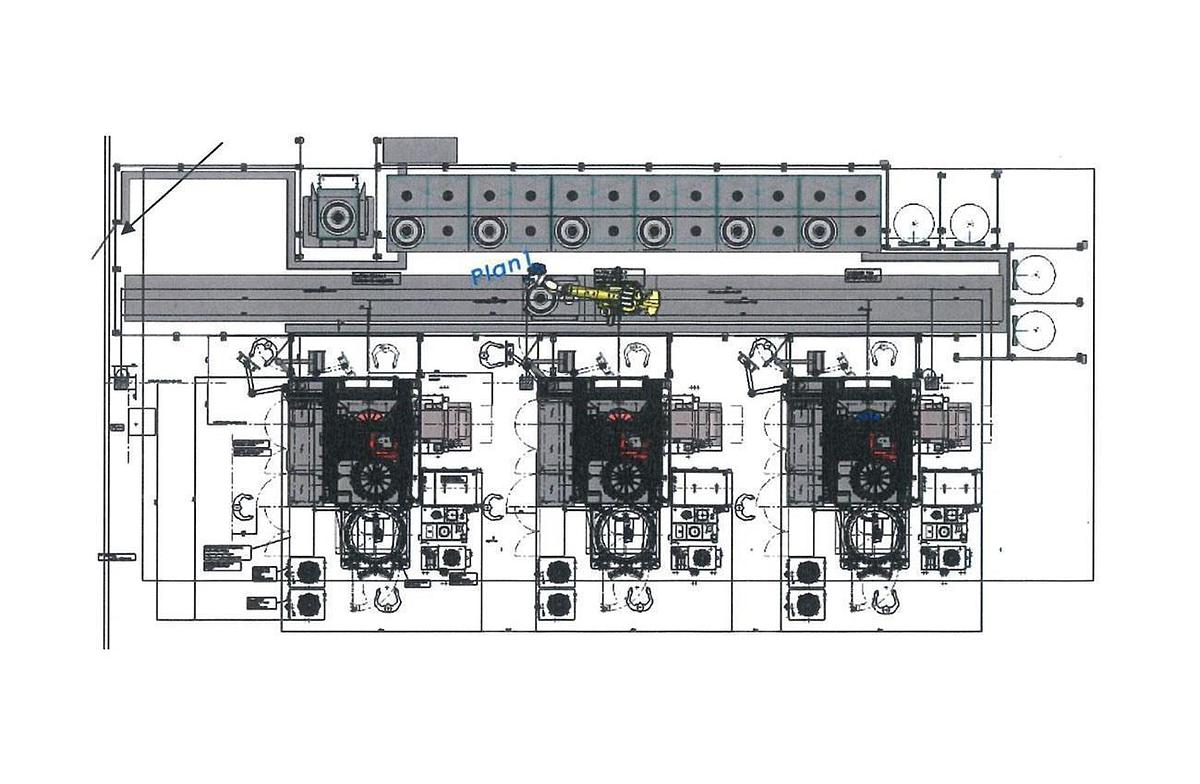

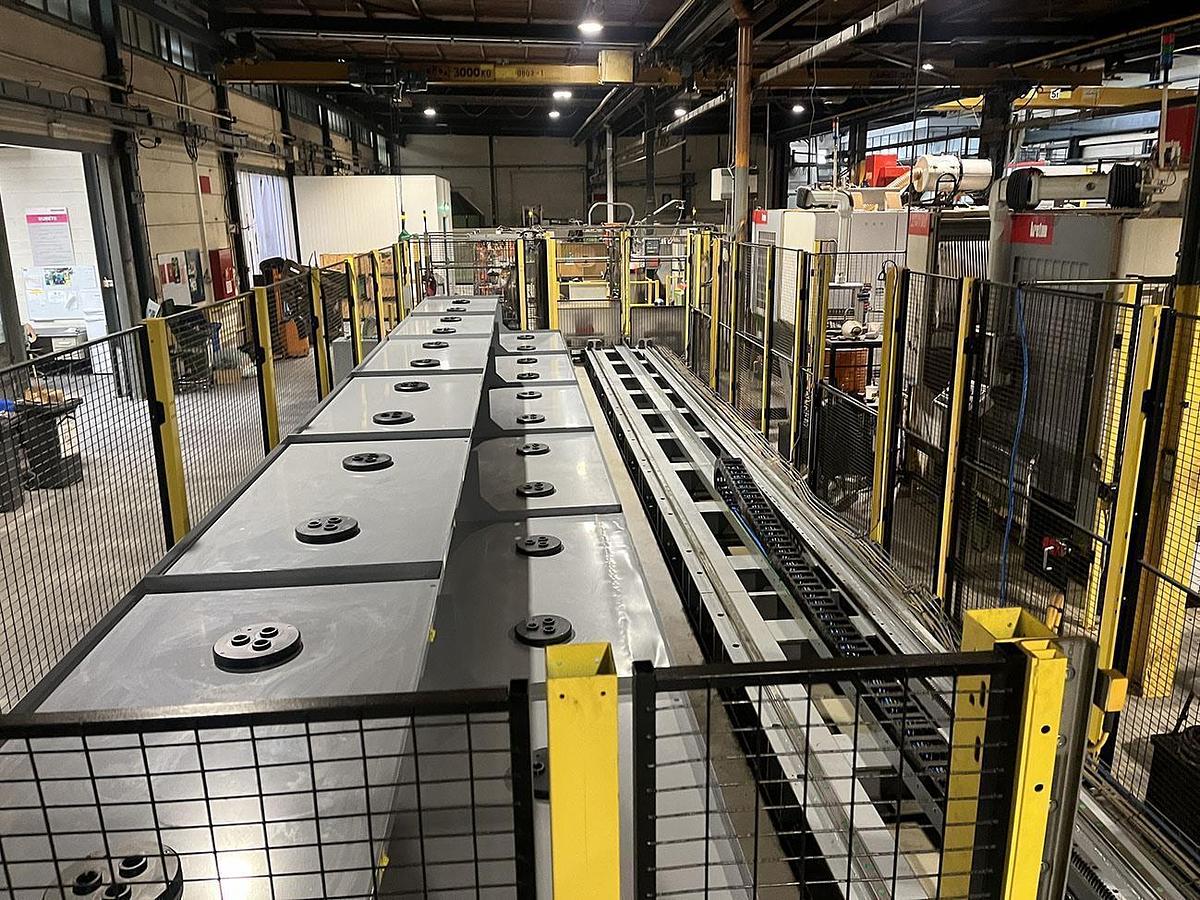

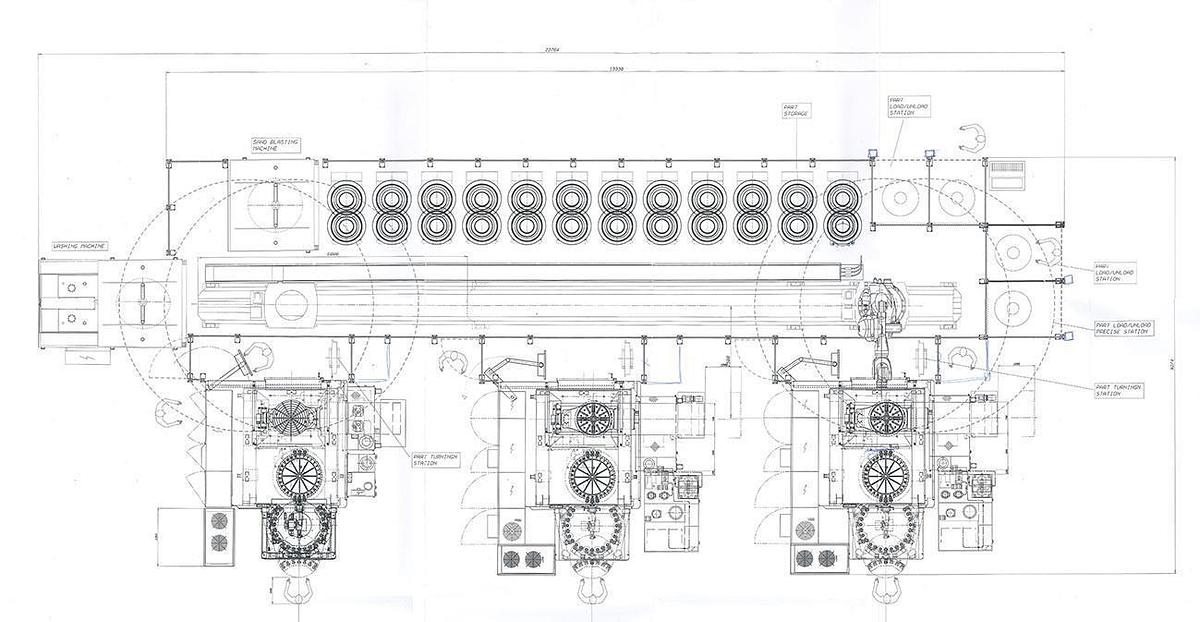

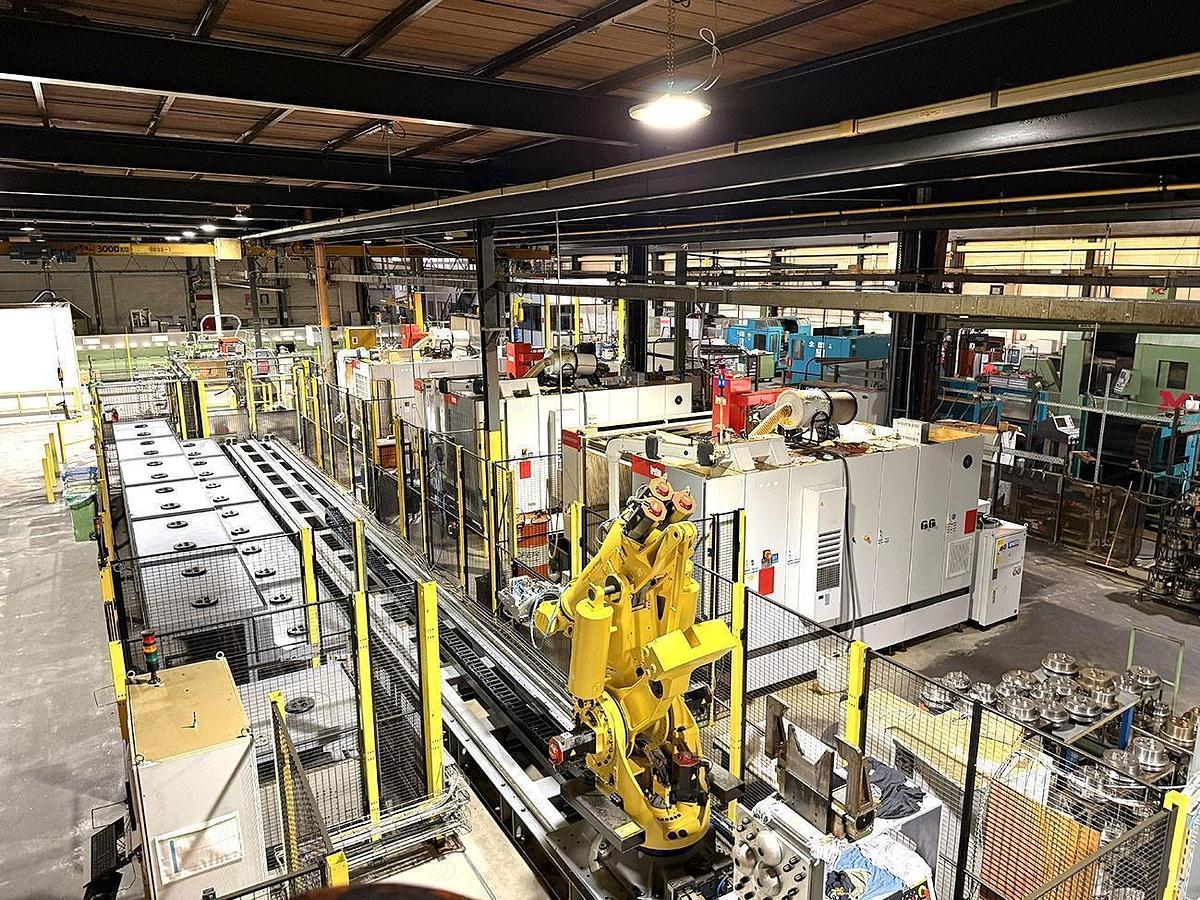

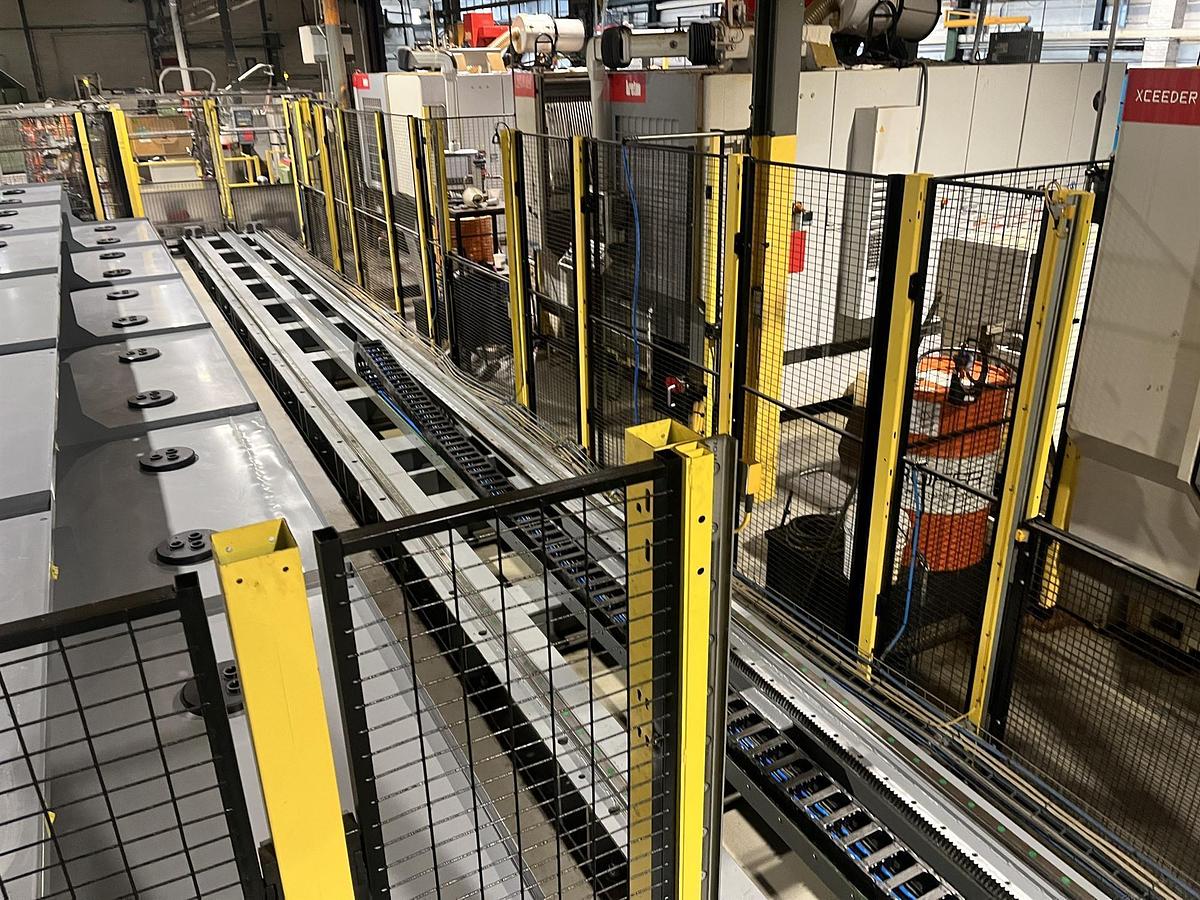

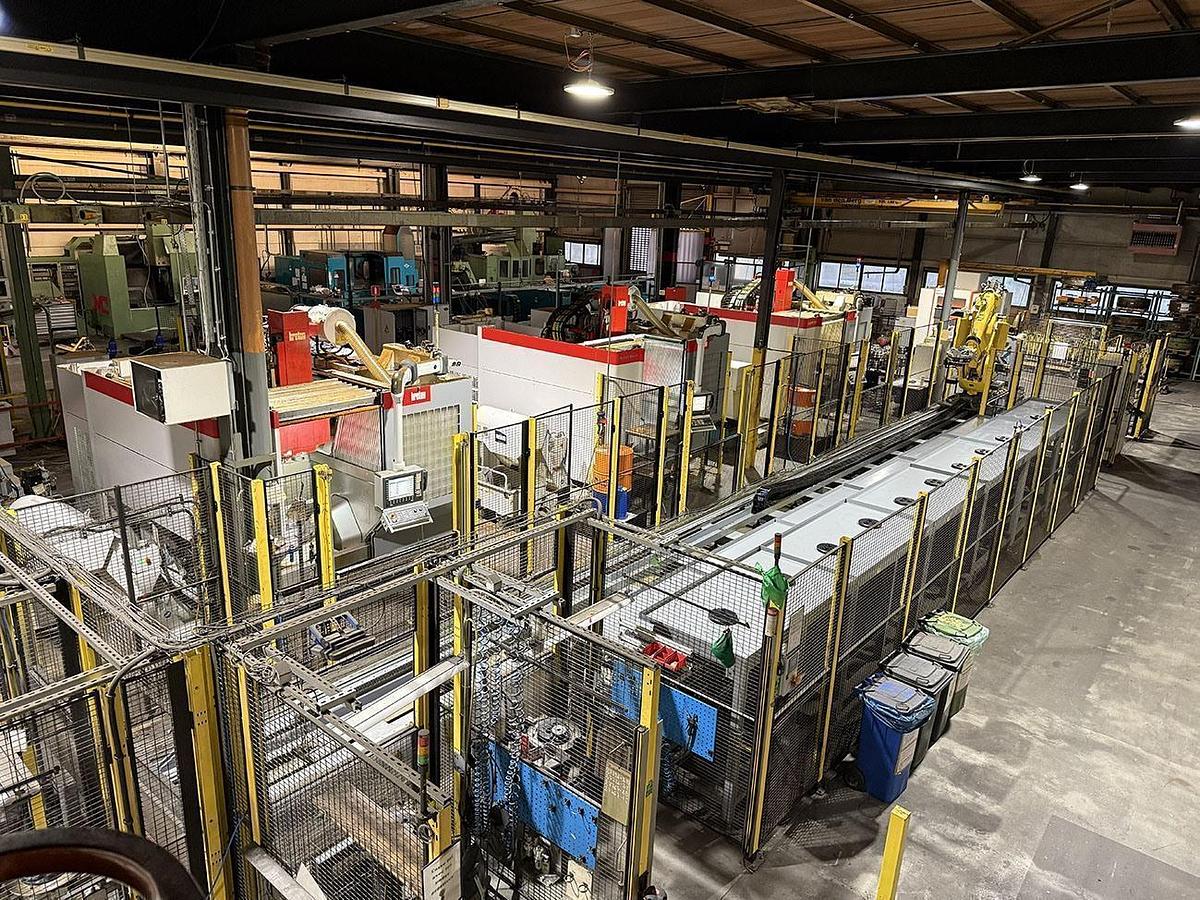

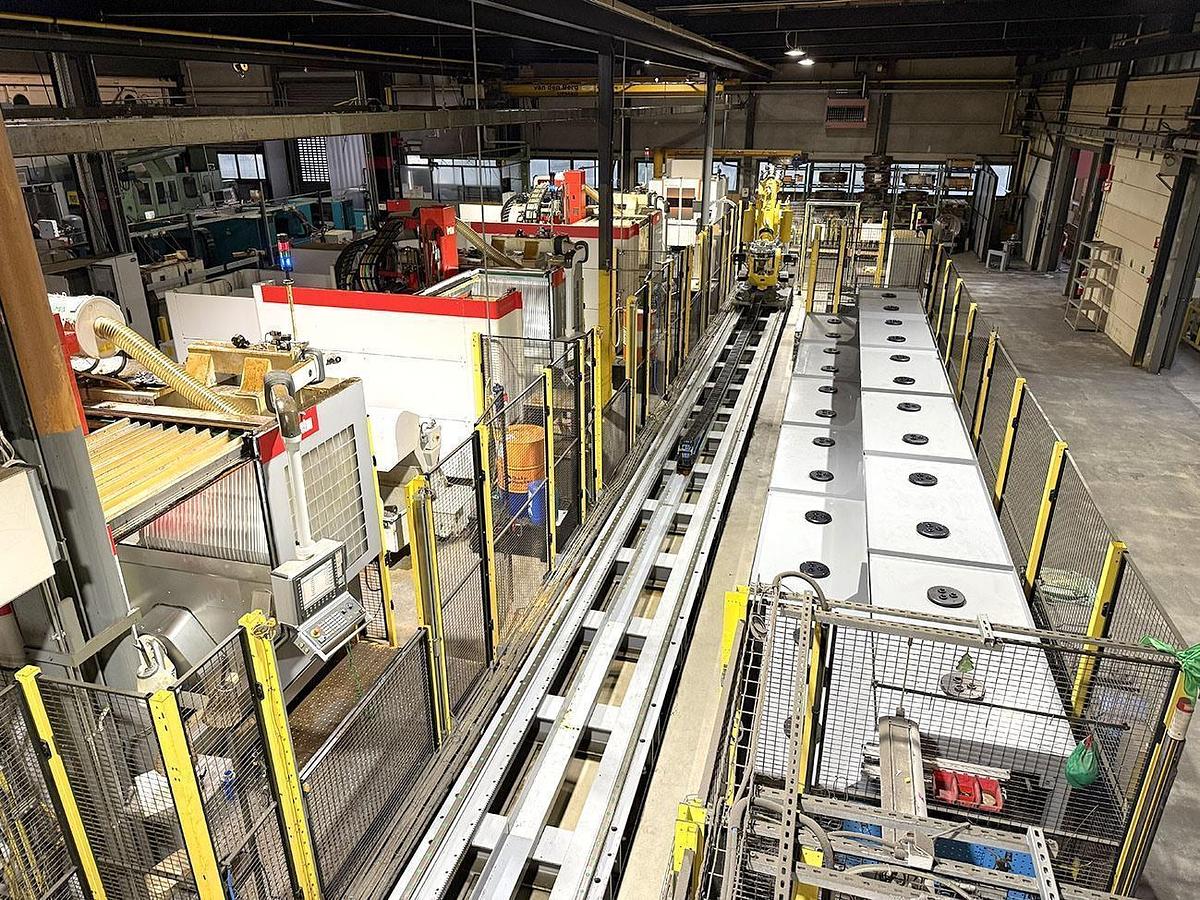

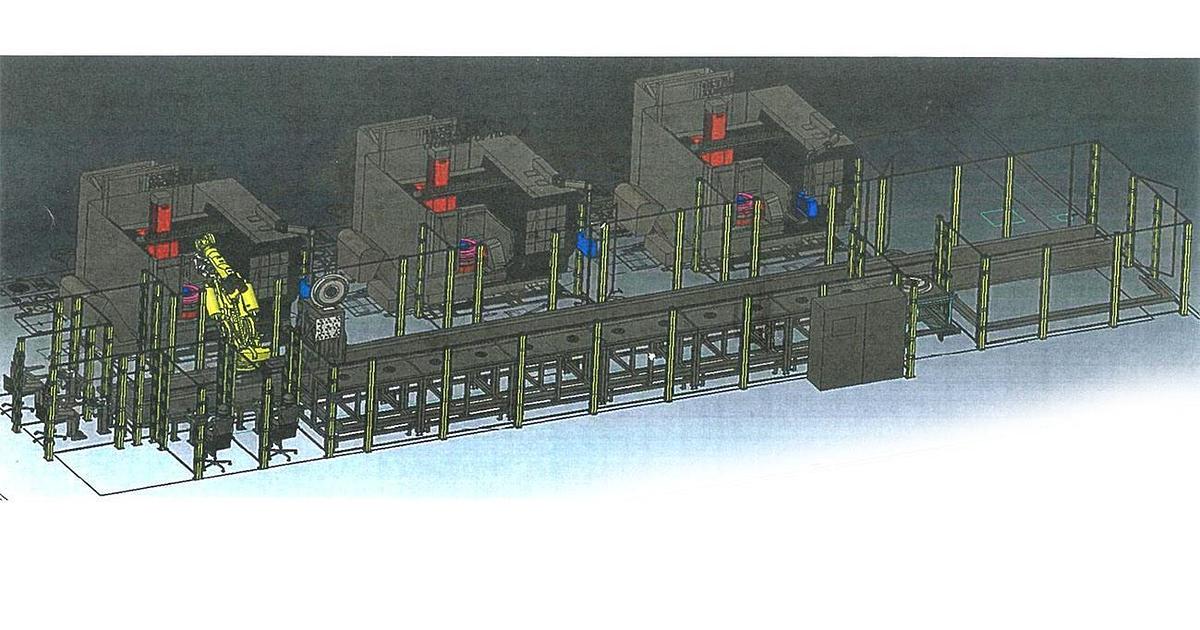

3x Breten 5-Axis Machining Centers with Fanuc Robot Loader

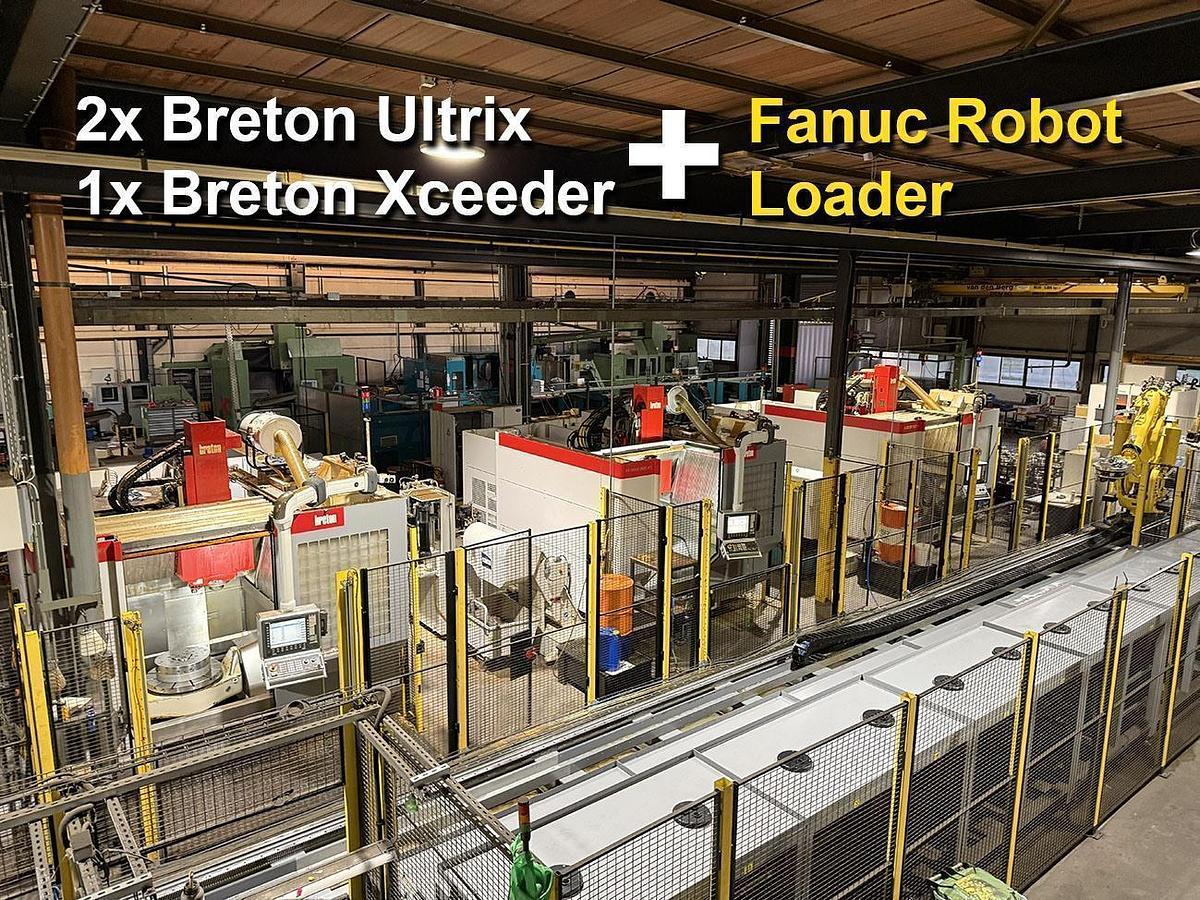

3 x Breton CNC 5-Axis Machining Centers + Fanuc Robot Loader

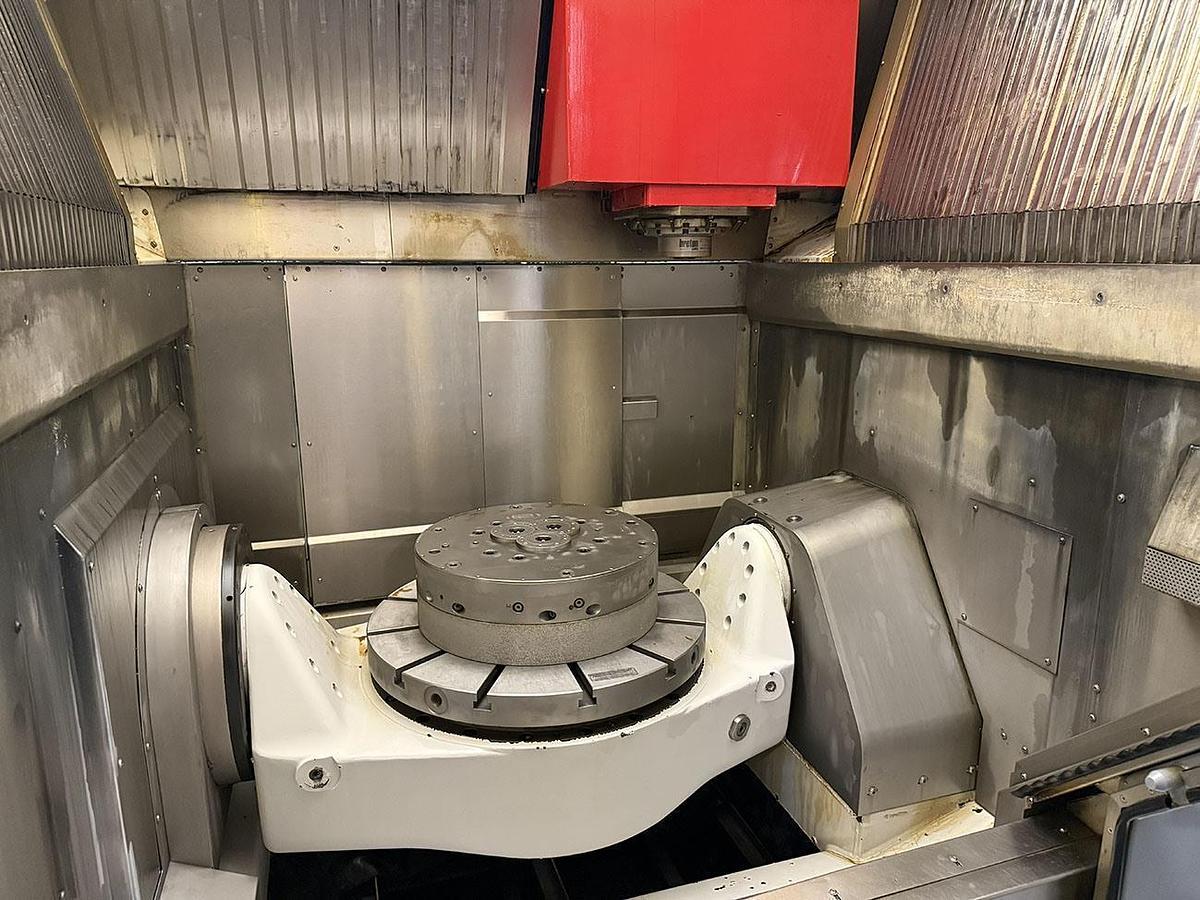

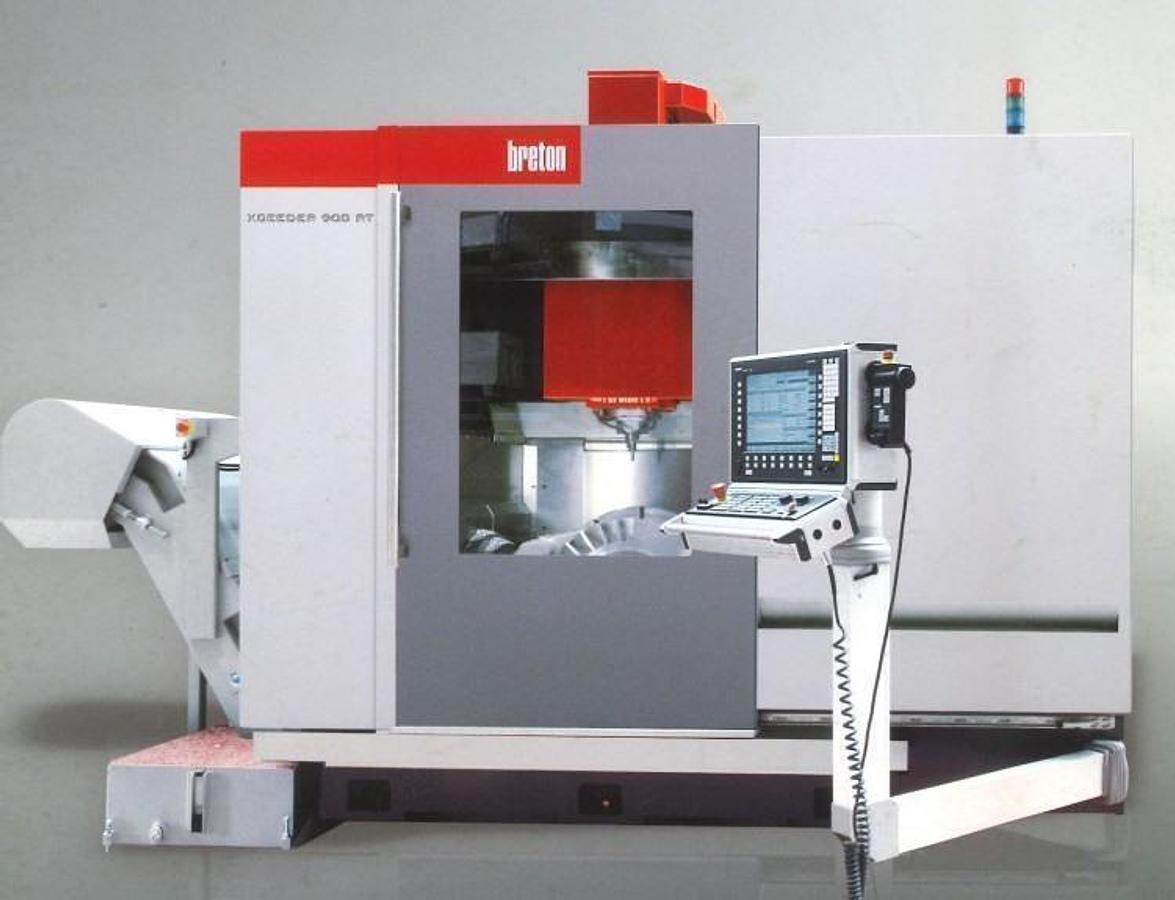

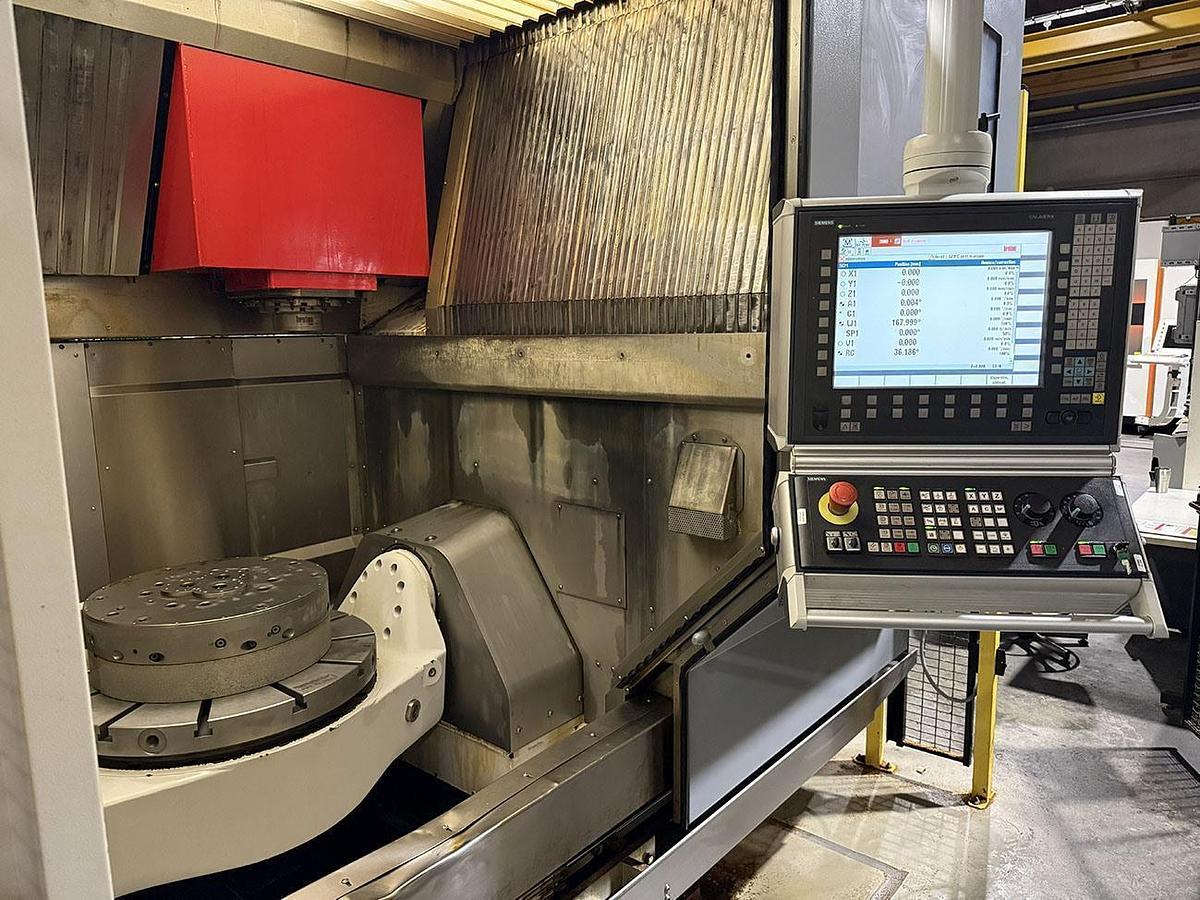

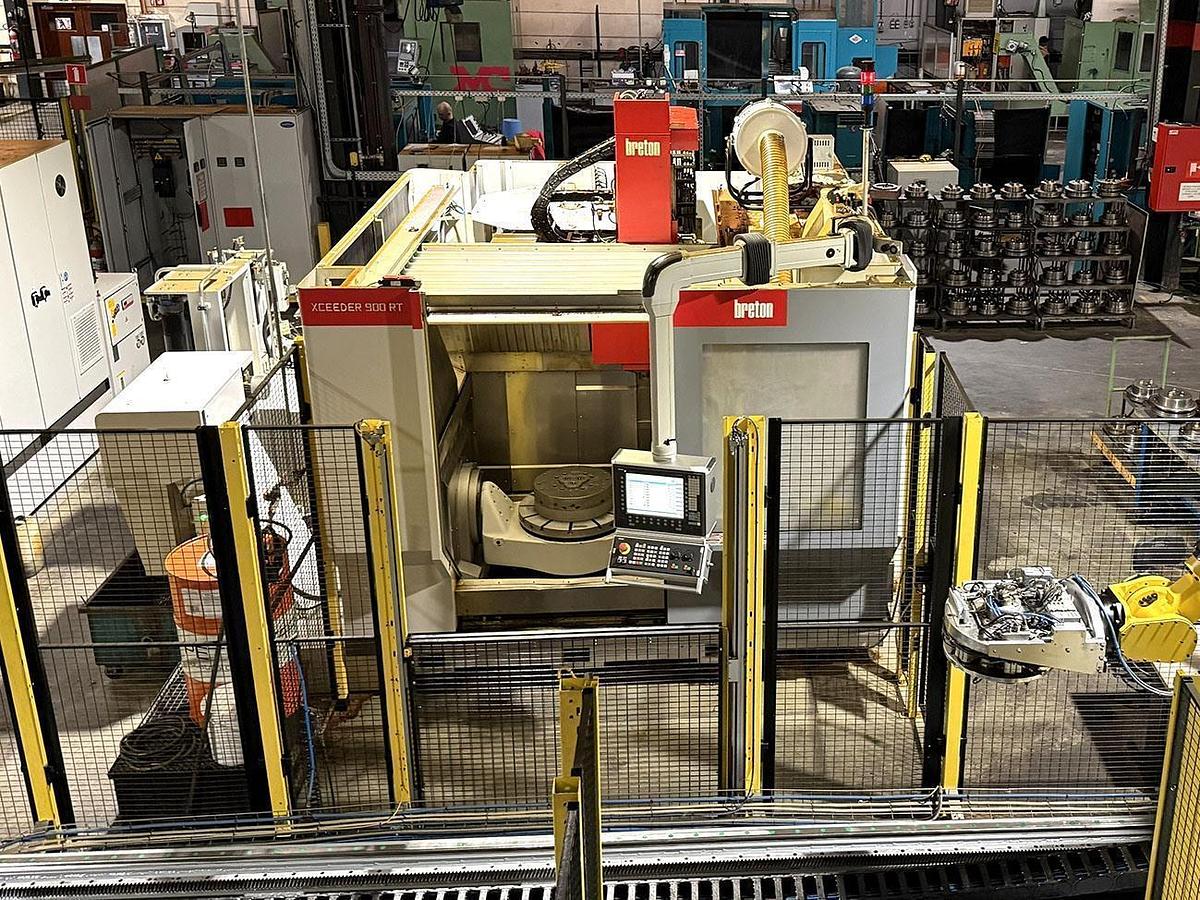

Breton Xceeder CNC 5-Axis Vertical Machining Center:

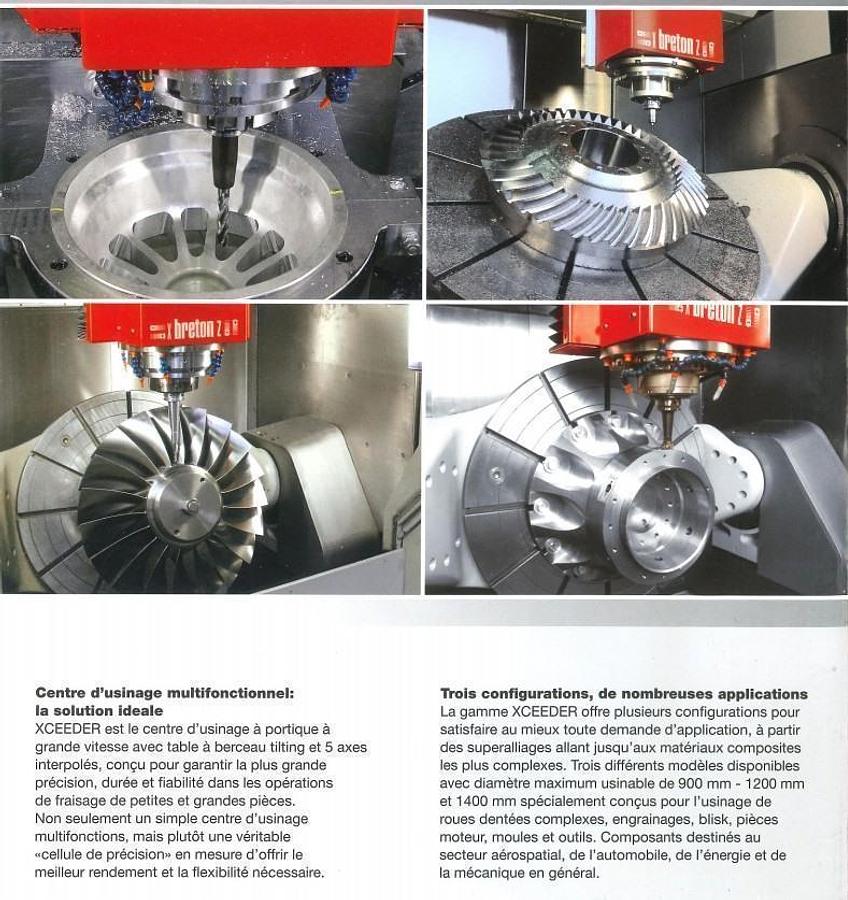

XCEEDER is a 5-axis interpolated moving machining center for high-speed milling. Specifically designed for applications ranging from complex gears and impellers to molds, dies, and tools, for projects in the aerospace, automotive, and power generation industries.

• X-axis
• 900 mm
• Y-axis
• 900 mm
• Z-axis
• 600 mm
• Table dimensions
• dia 700 mm
• Max weight on the table
• 1000 kg
• Admission in spindle (ISO)
• HSK-E40
• Power on the spindle
• 45/40 kW

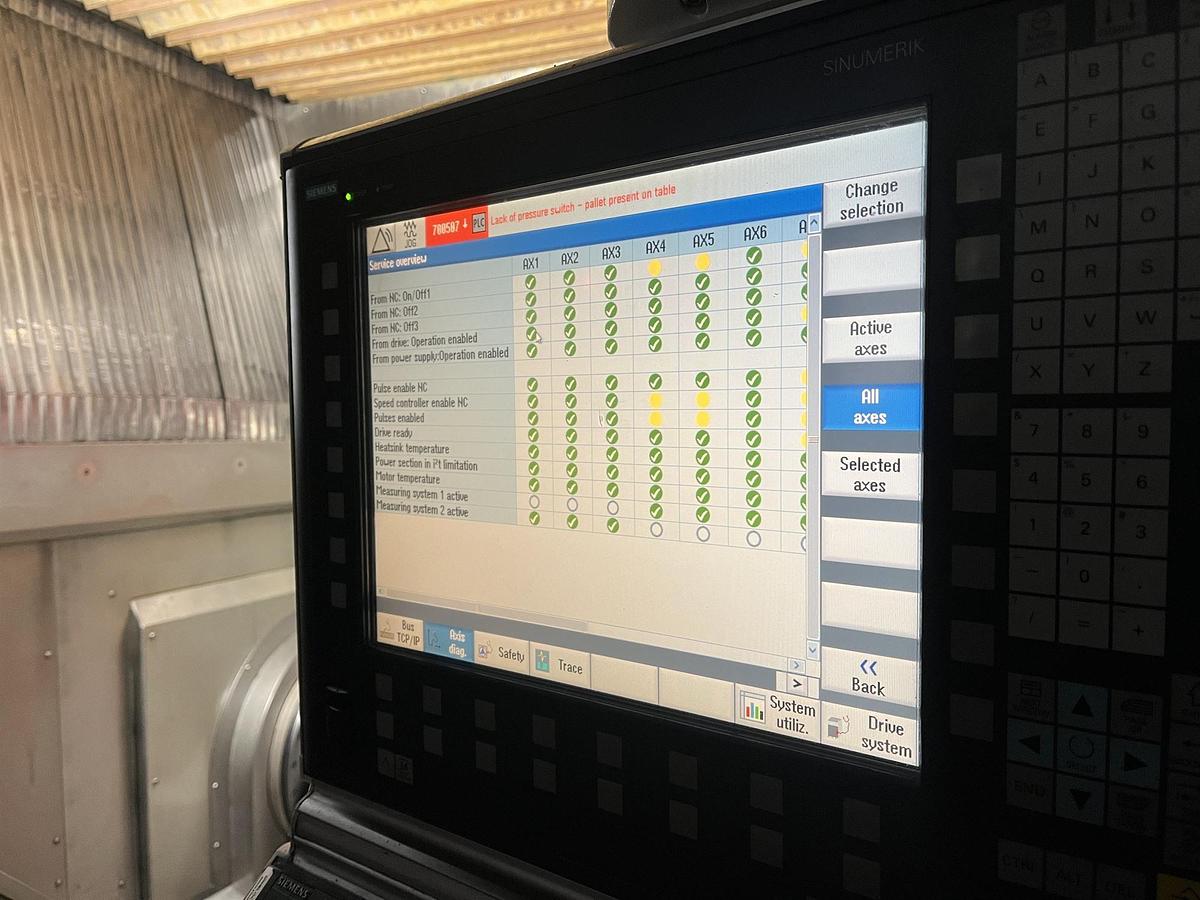

• Control

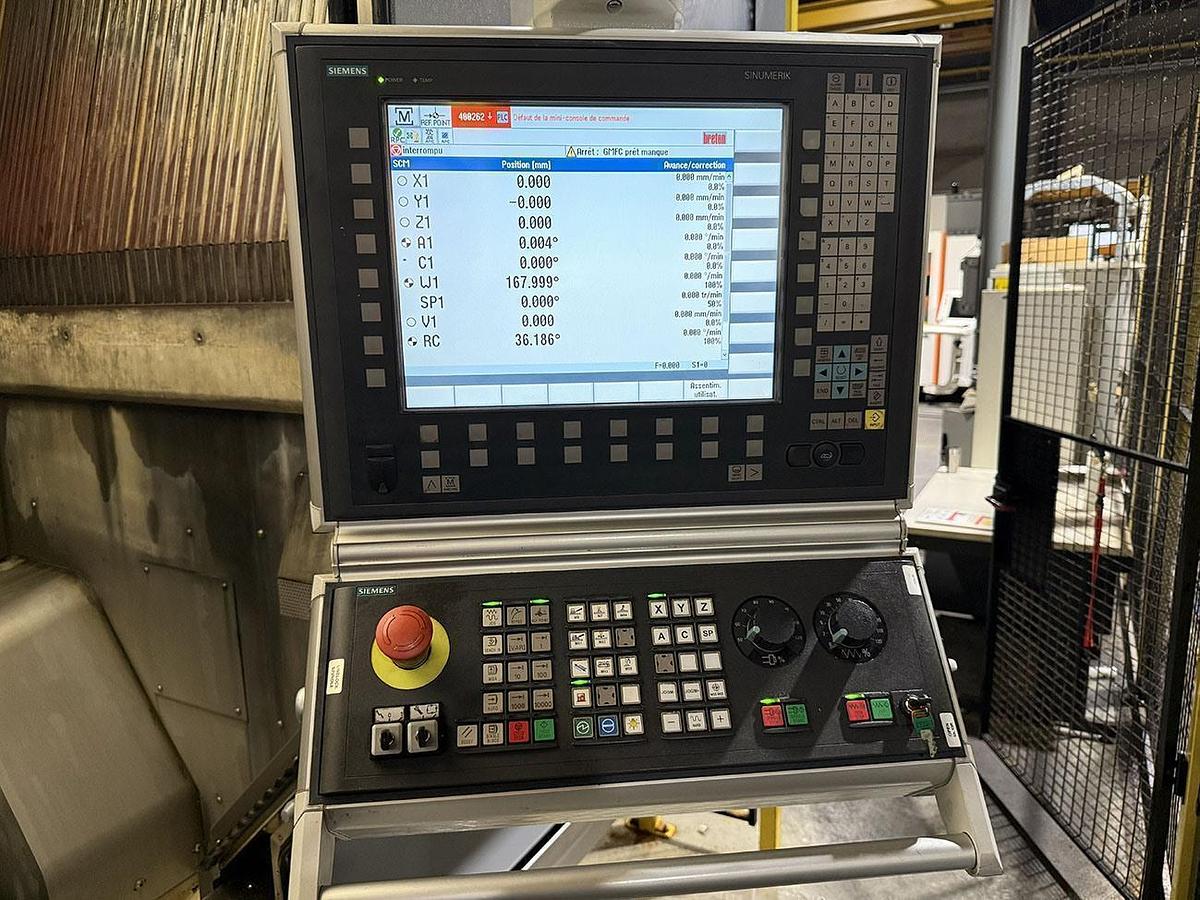

• Siemens Sinumerik 840D SL
• Number of axes
• 5 AXIS simultaneous

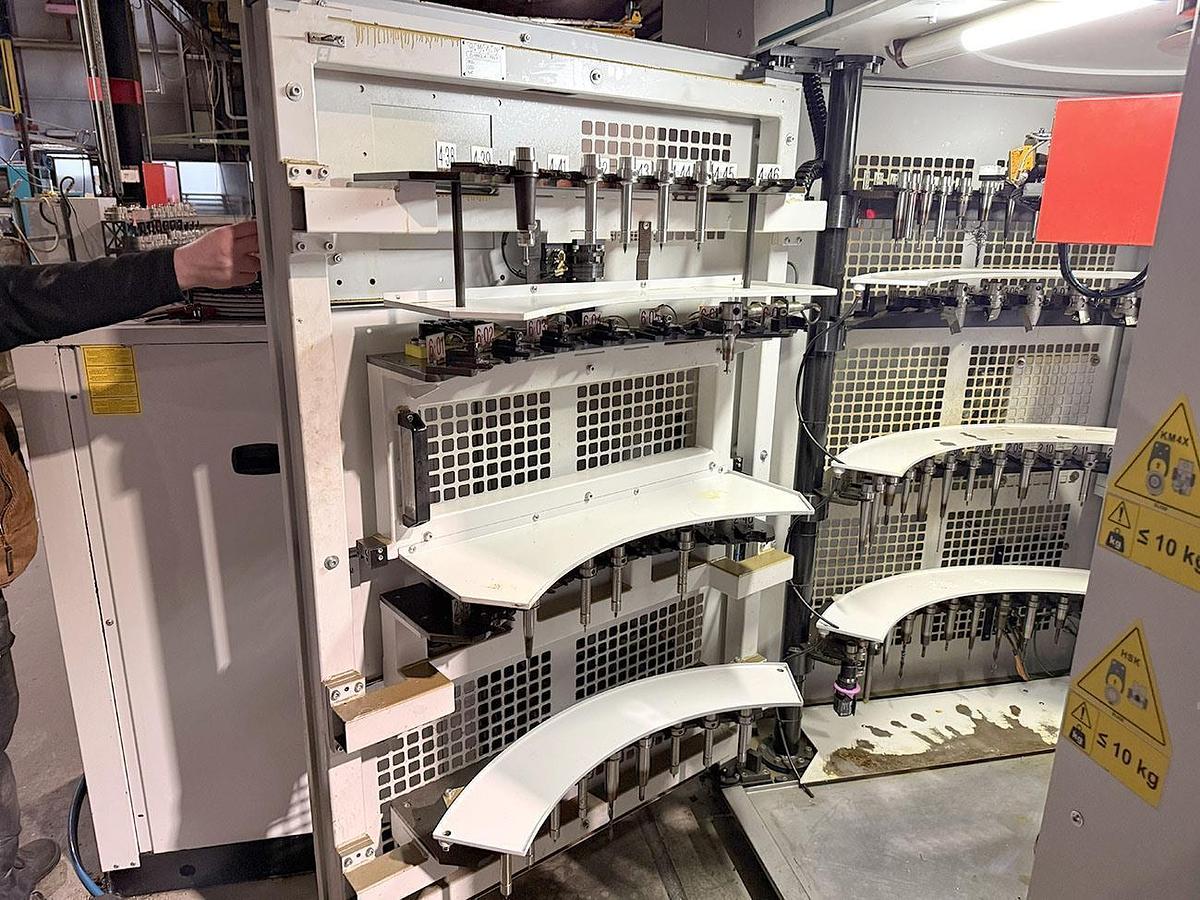

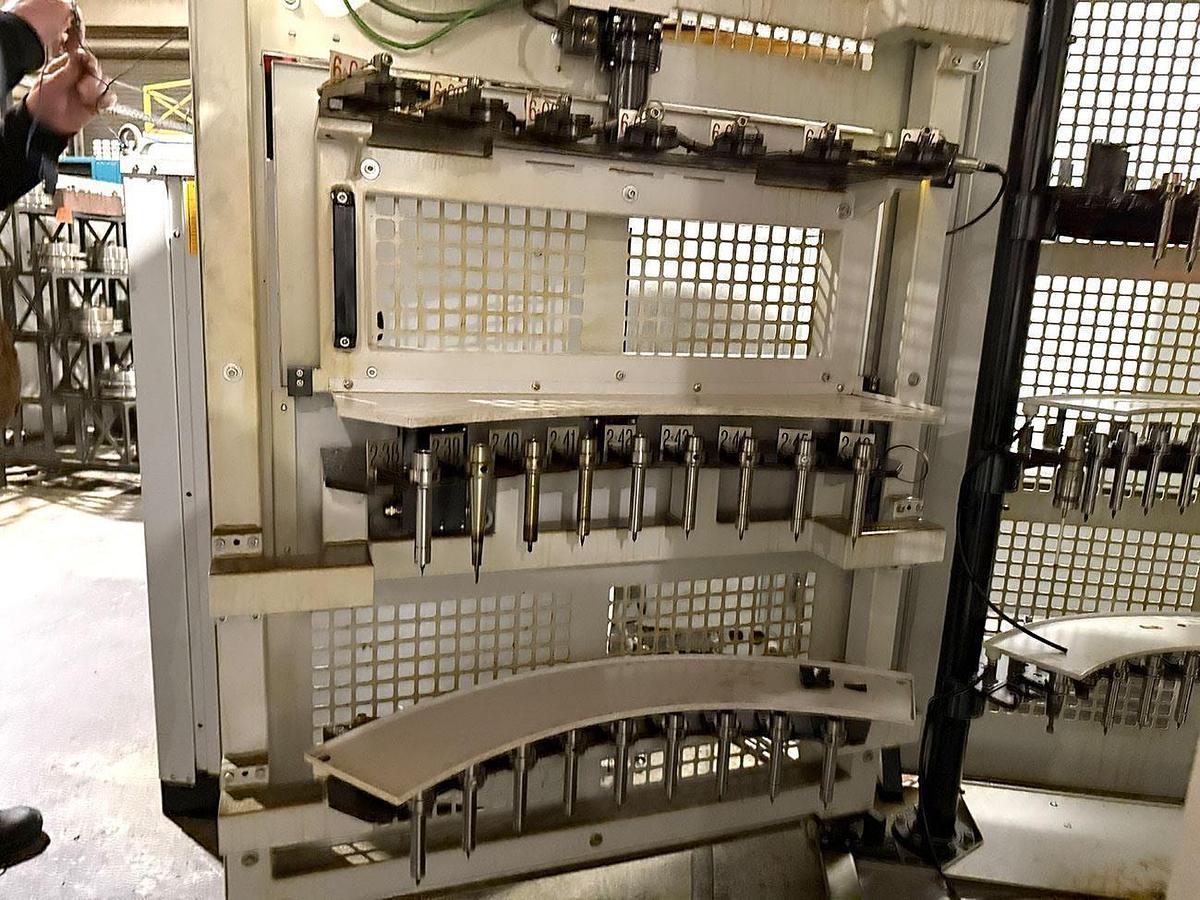

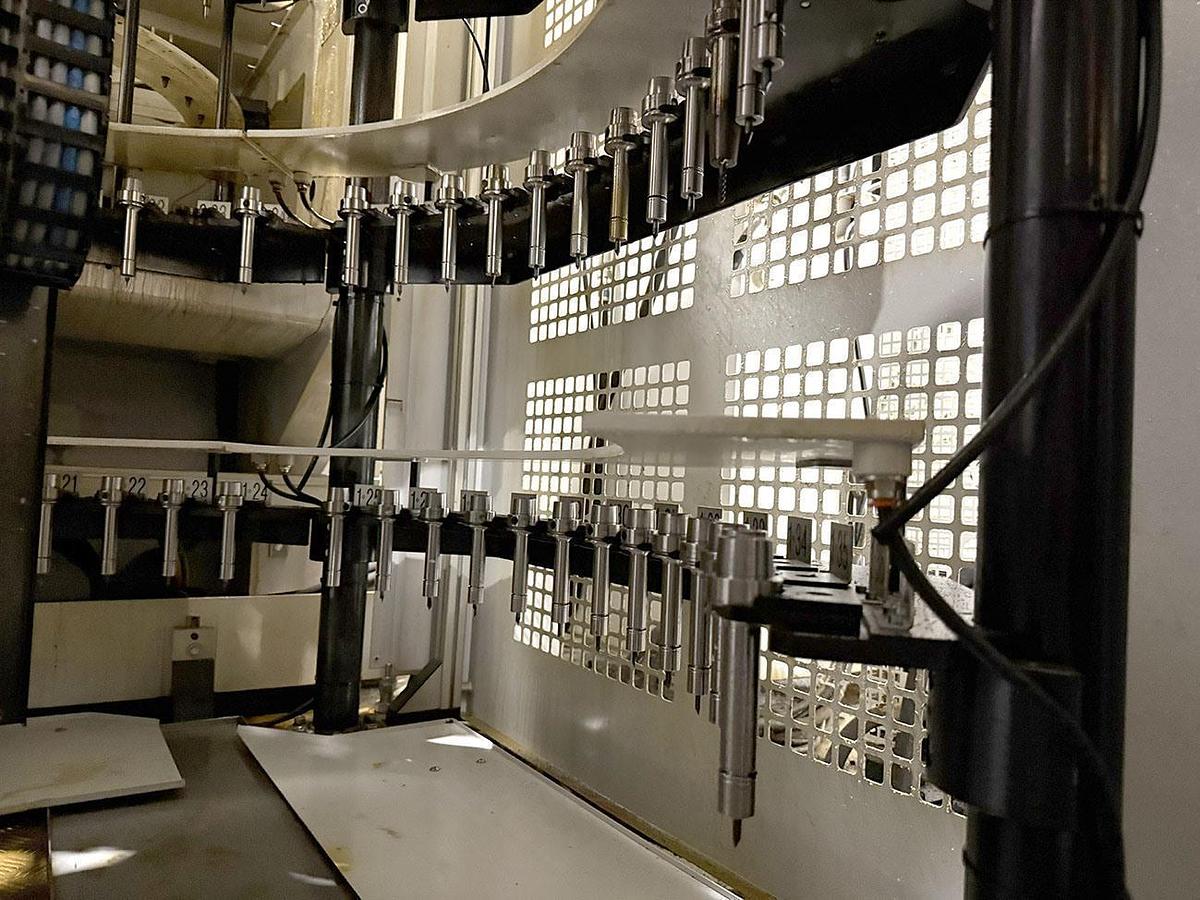

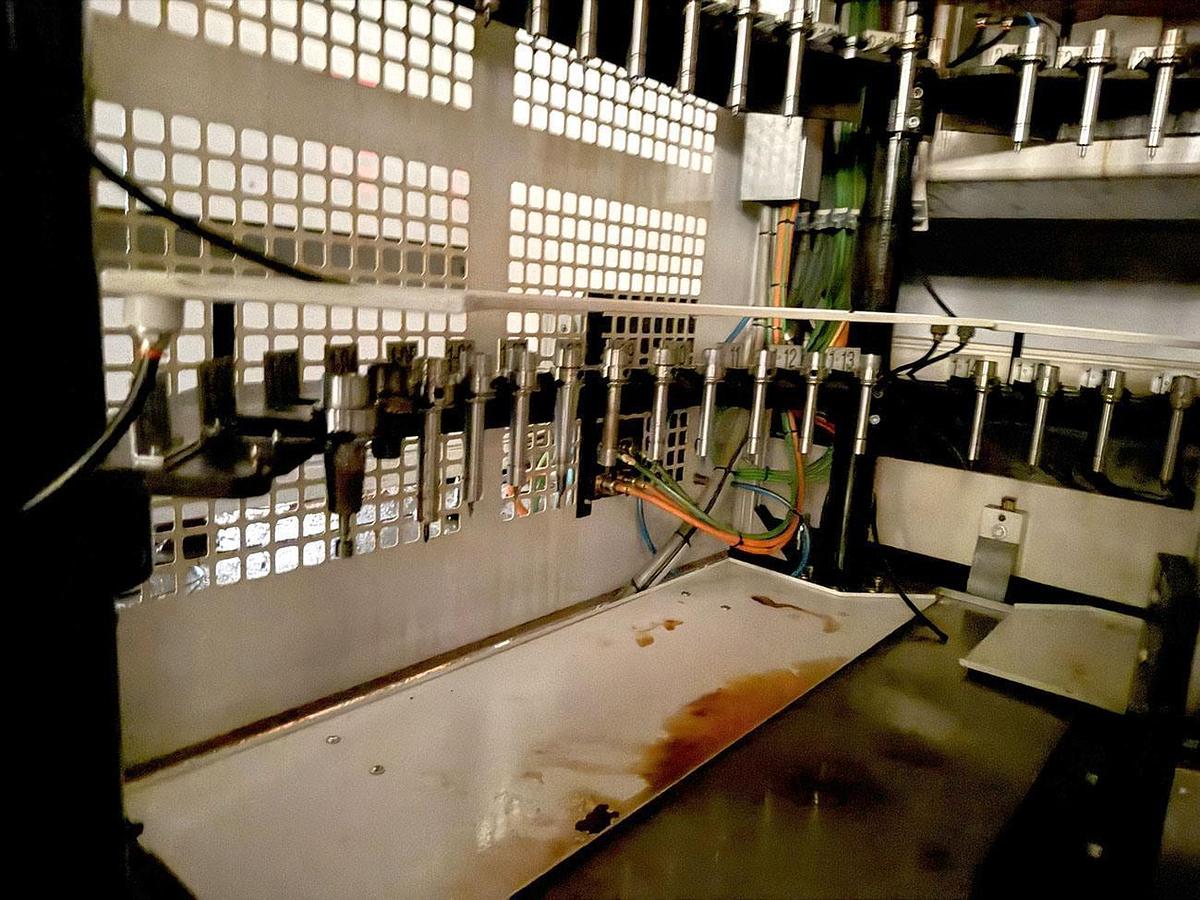

• Toolchanger
• yes
• Number of toolholders
• 150 positions
• Number of rotations
• 40,000 rpm

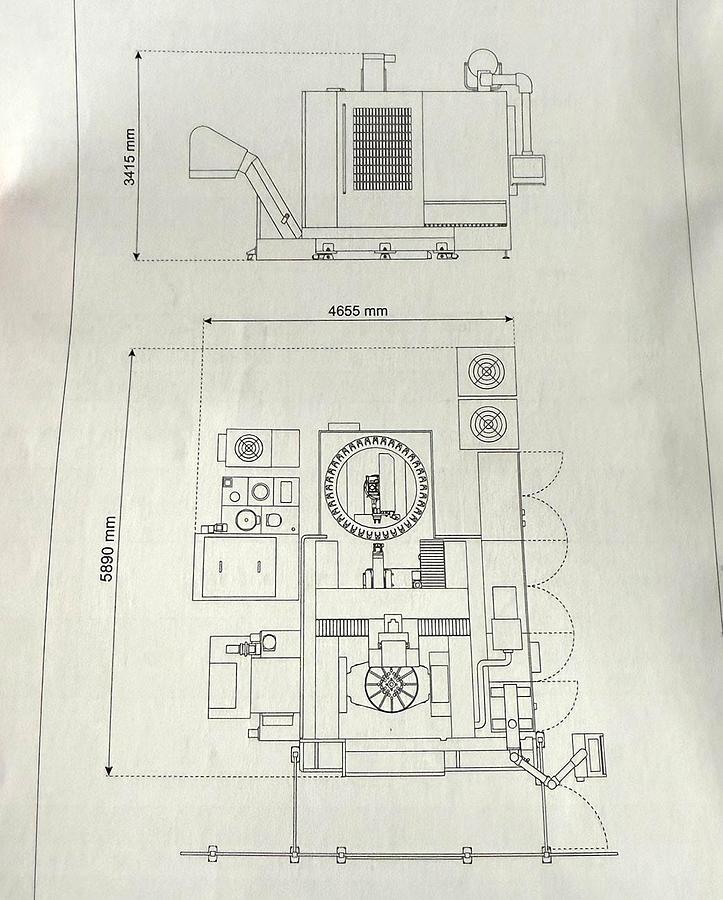

• Length
• 4655 mm
• Depth
• 5890 mm
• Height
• 3415 mm
• Weight
• 16,500 kg

Options fitted to this machine:

1 - 40,000 rpm high-speed spindle

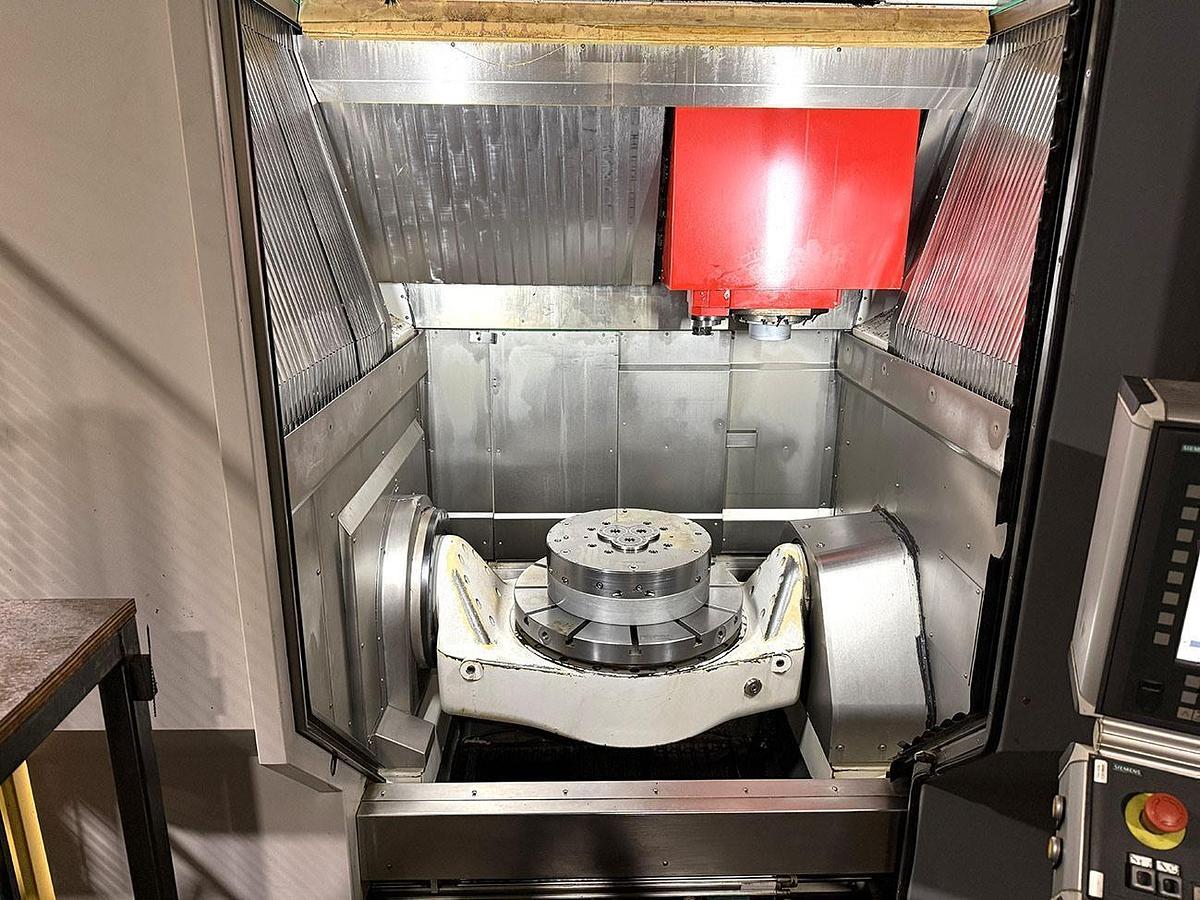

2 - table dia 700 mm with hydraulic clamping

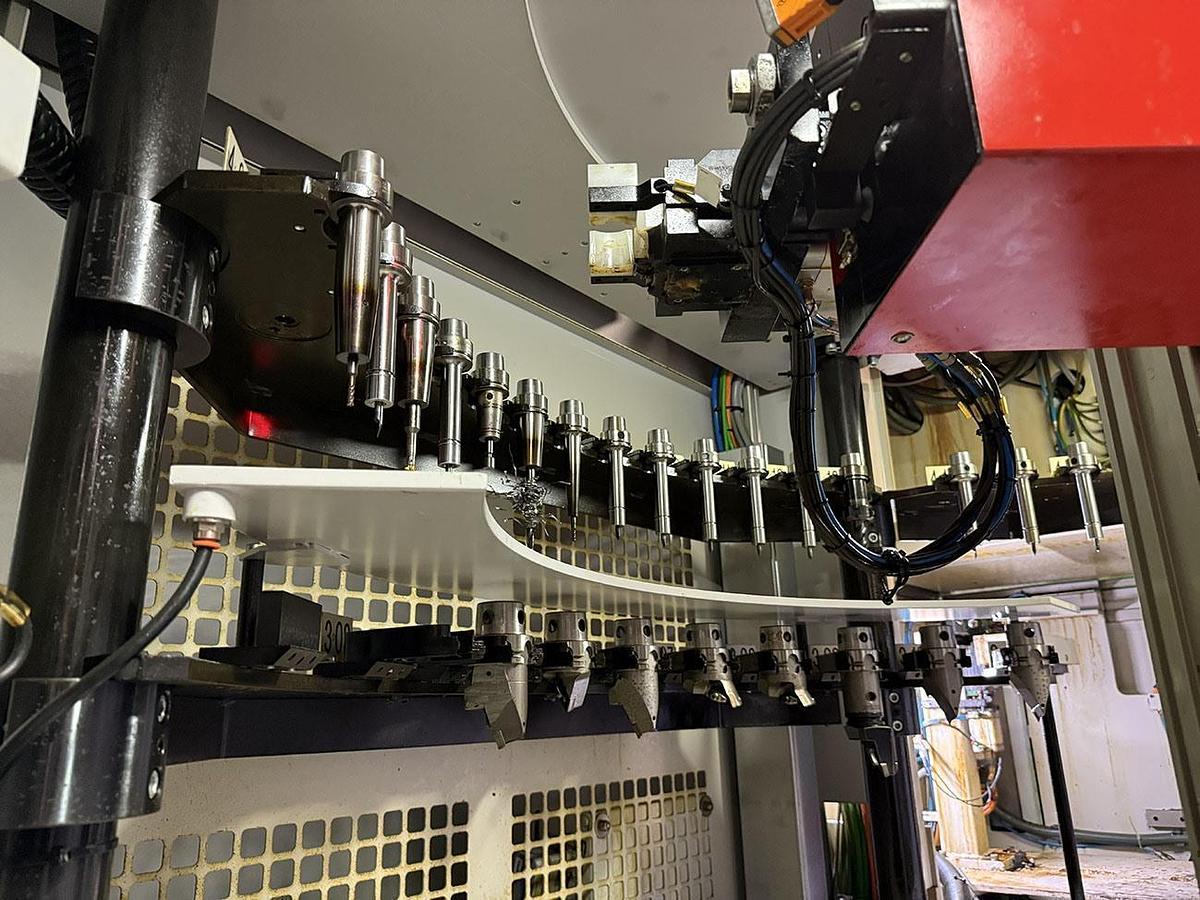

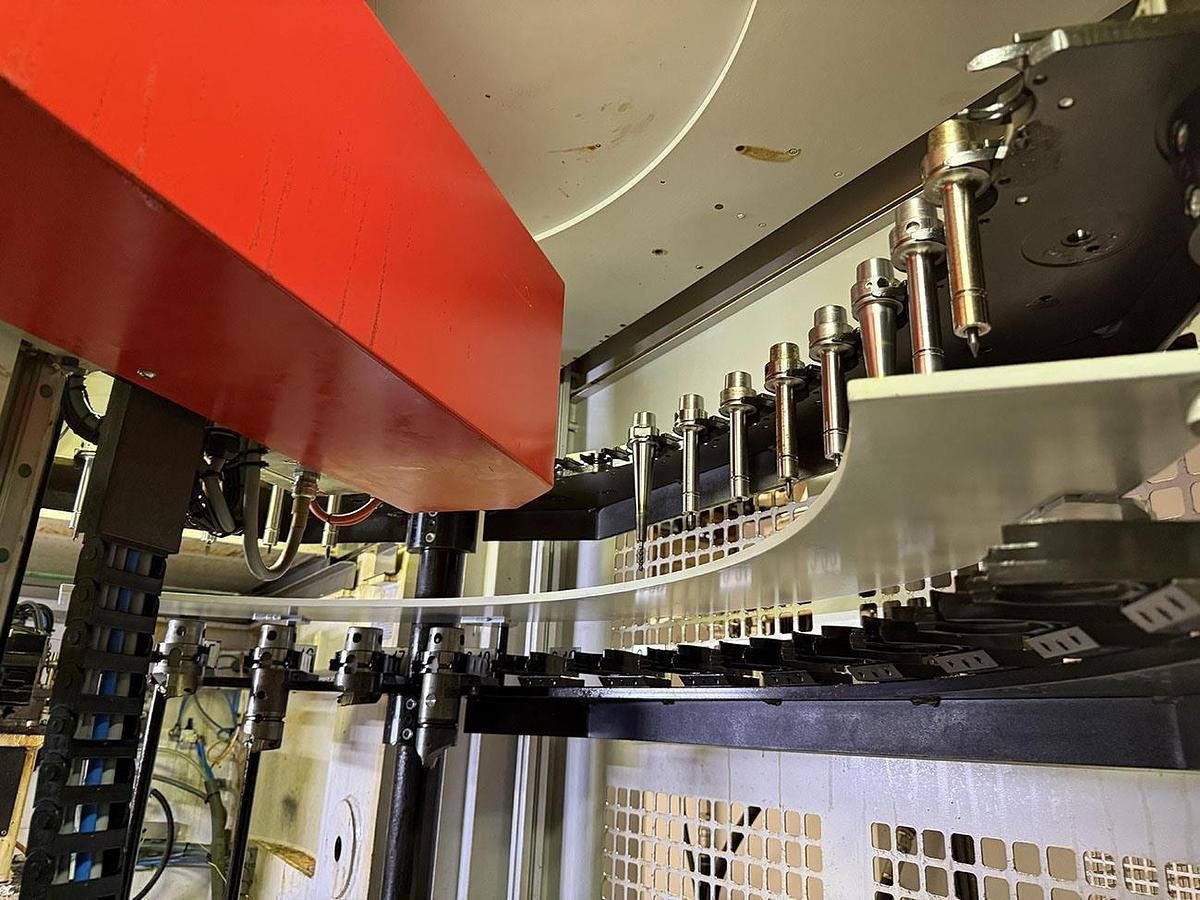

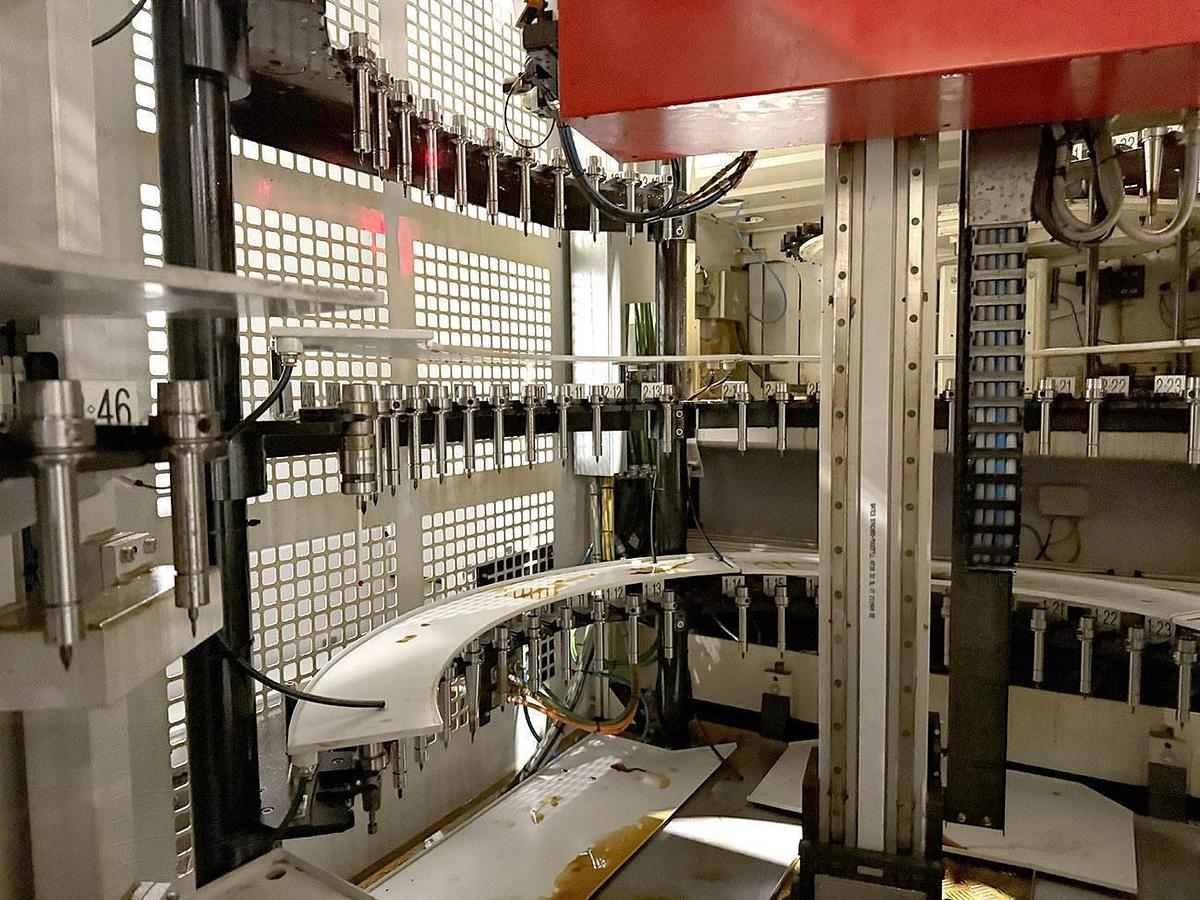

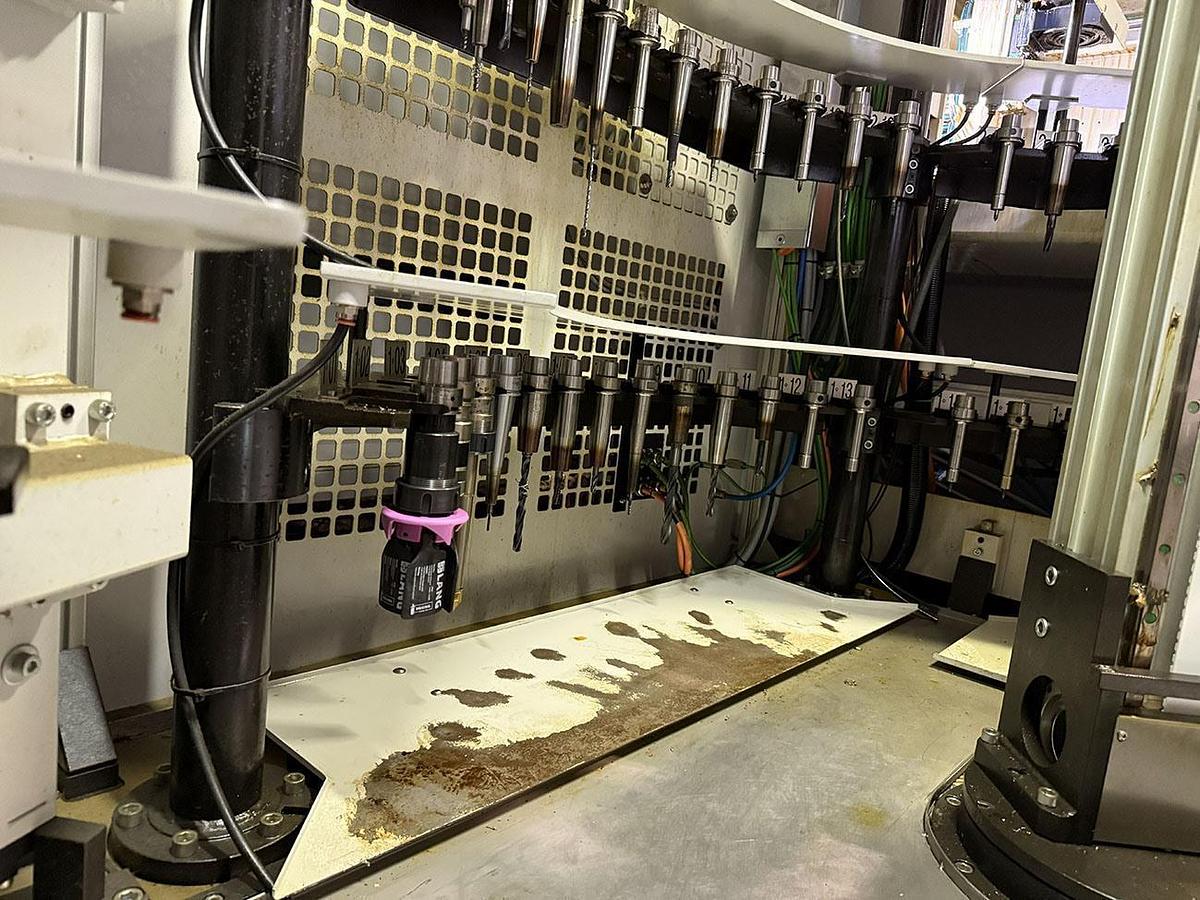

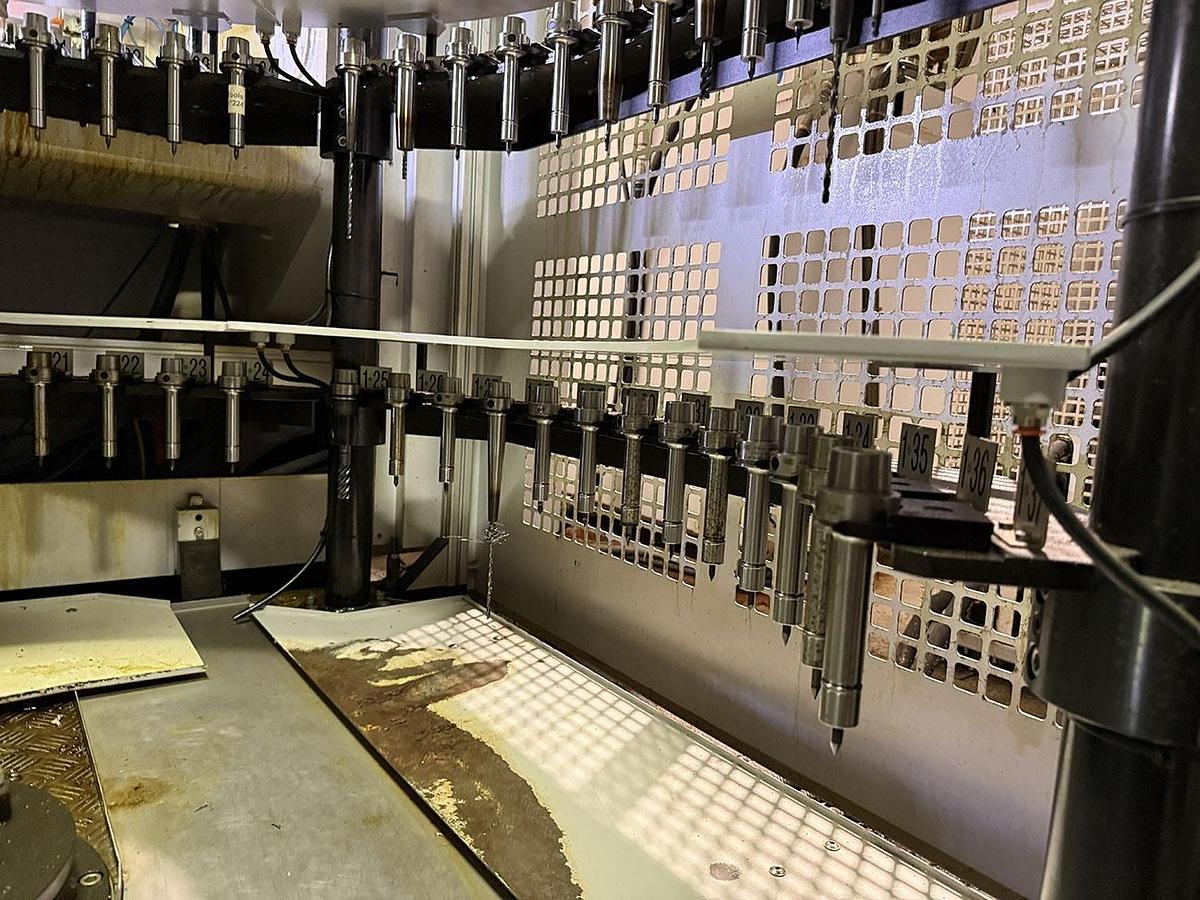

3 - Tool changer with 3-150 positions

4 - chip conveyor belt

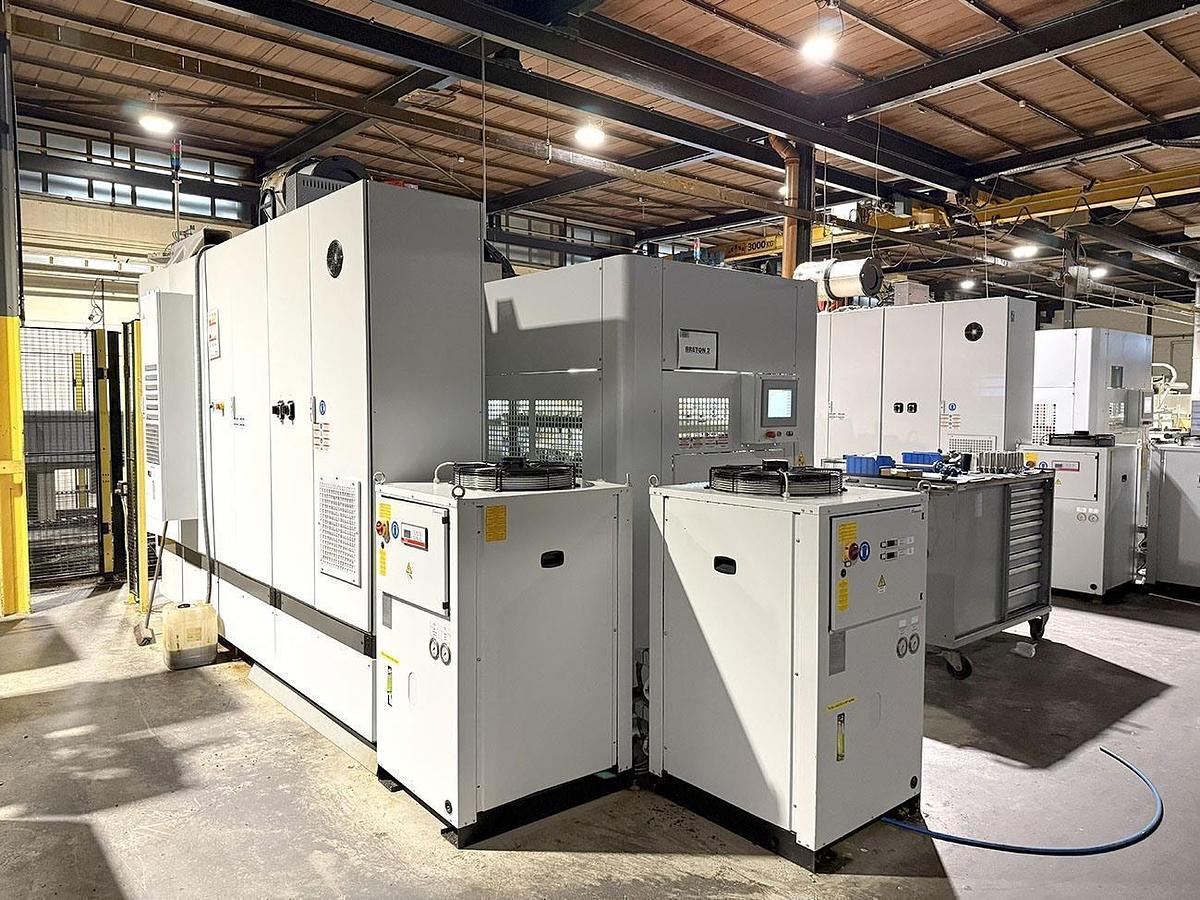

5 - cooling system with recovery

6 - Coolant temperature control

7 - high pressure cooling (40 to 70 bar) by spindle

8 - smoke extraction system

9 - chip collection box

10 - Presetting system and tool integrity: laser and mechanical probe for measuring tools

11 - Renishaw measuring head

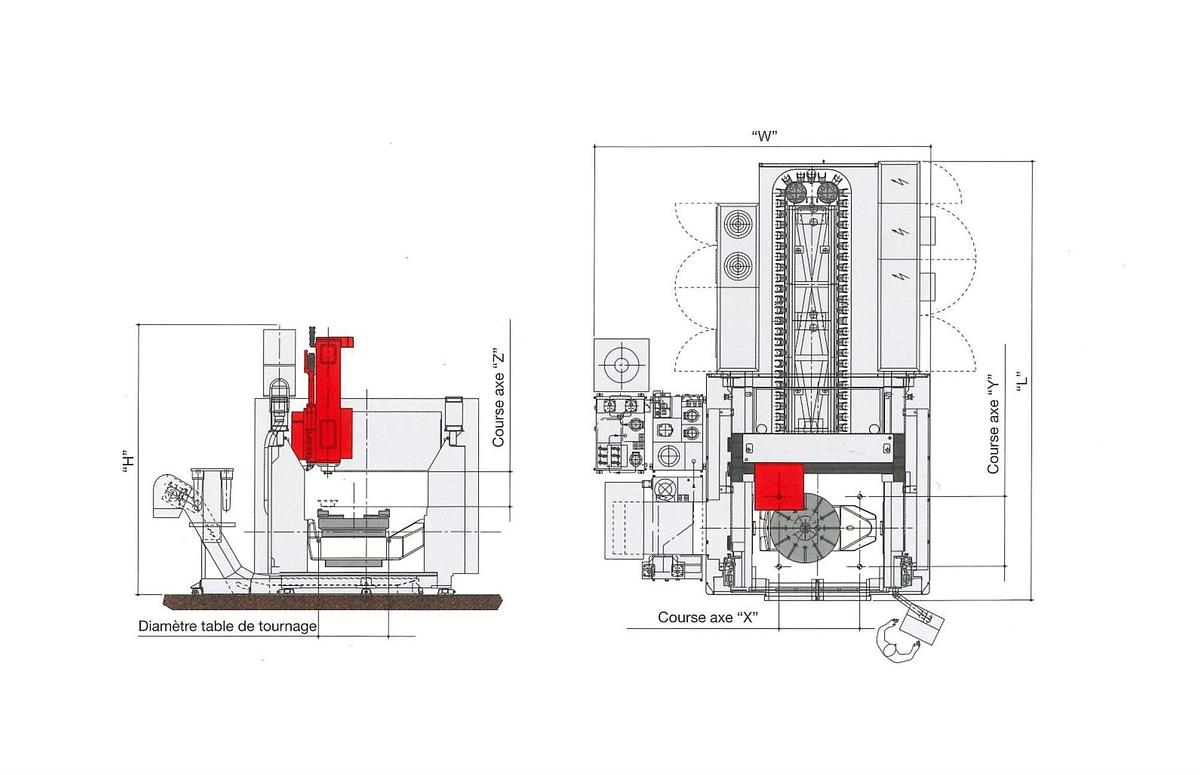

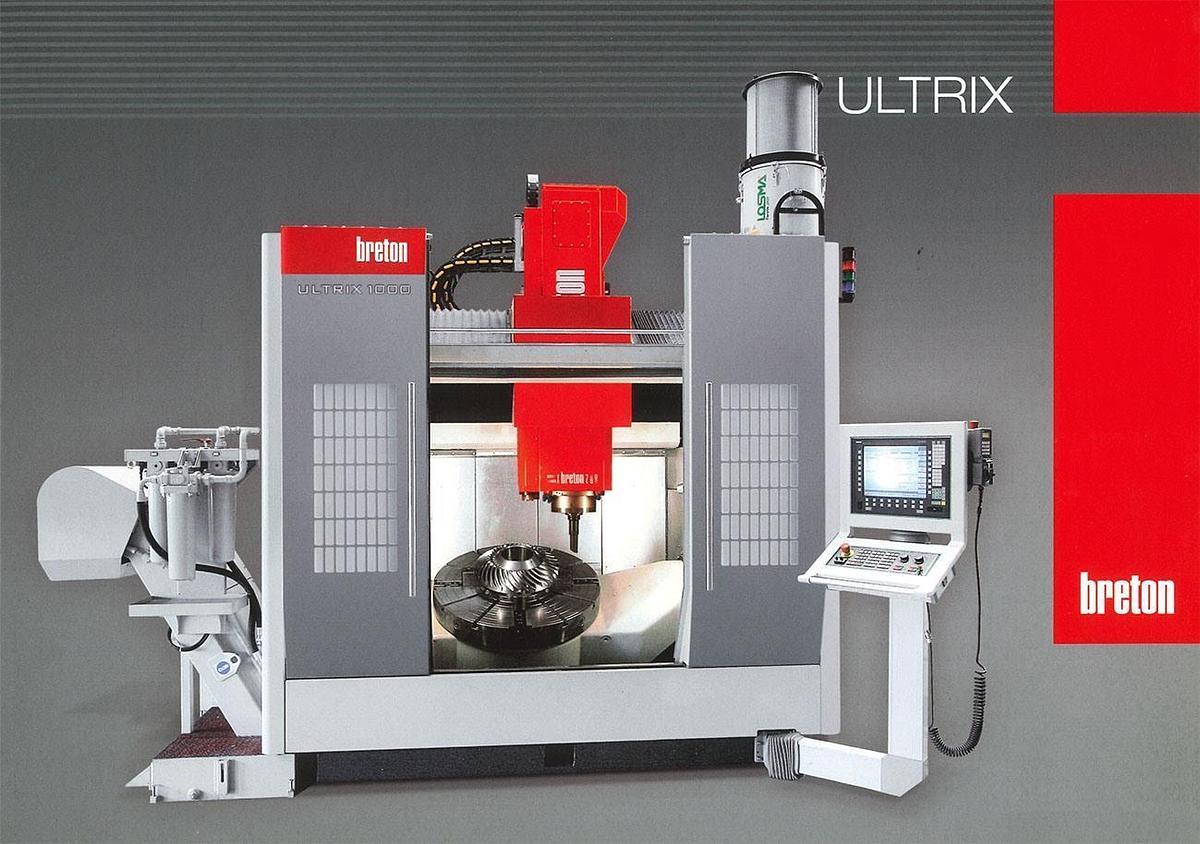

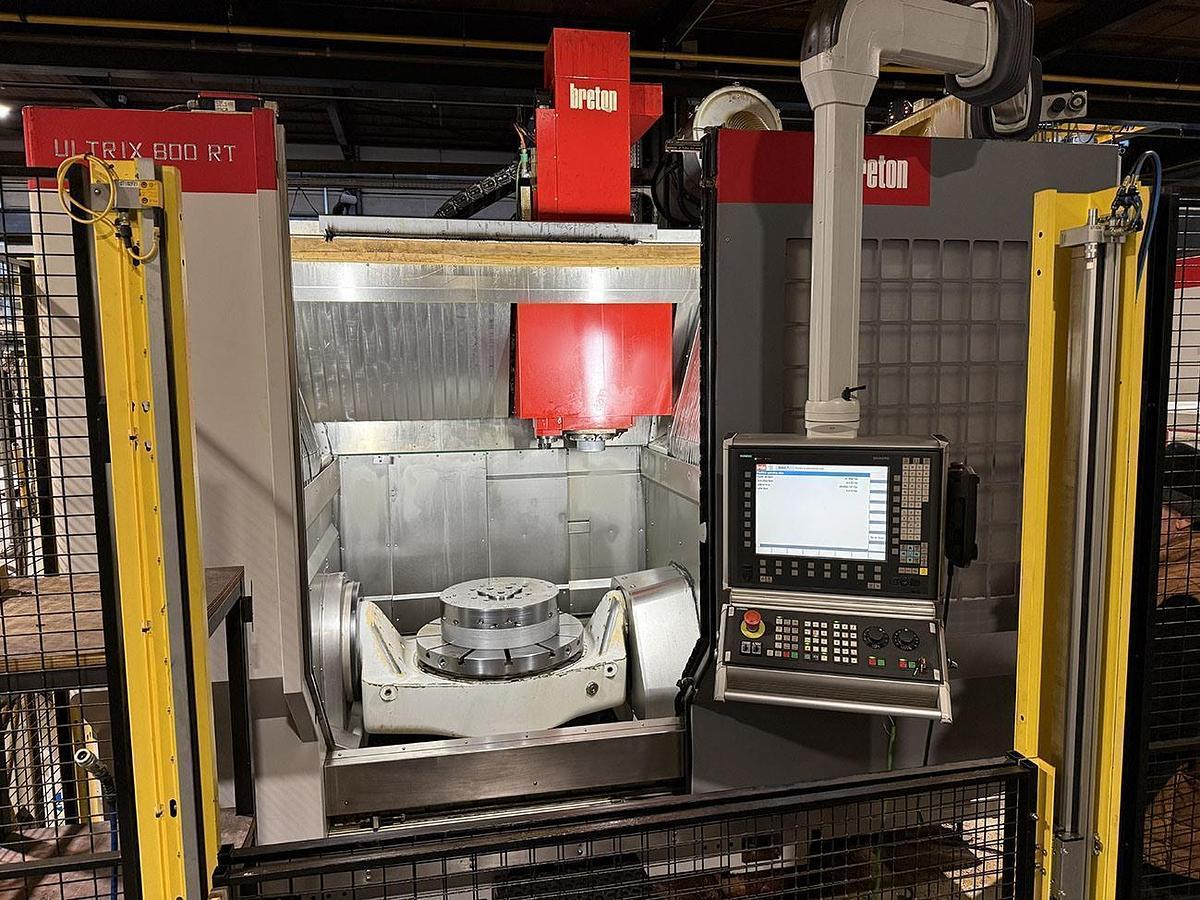

Breton Ultrix CNC 5-Axis Vertical Machining Center:

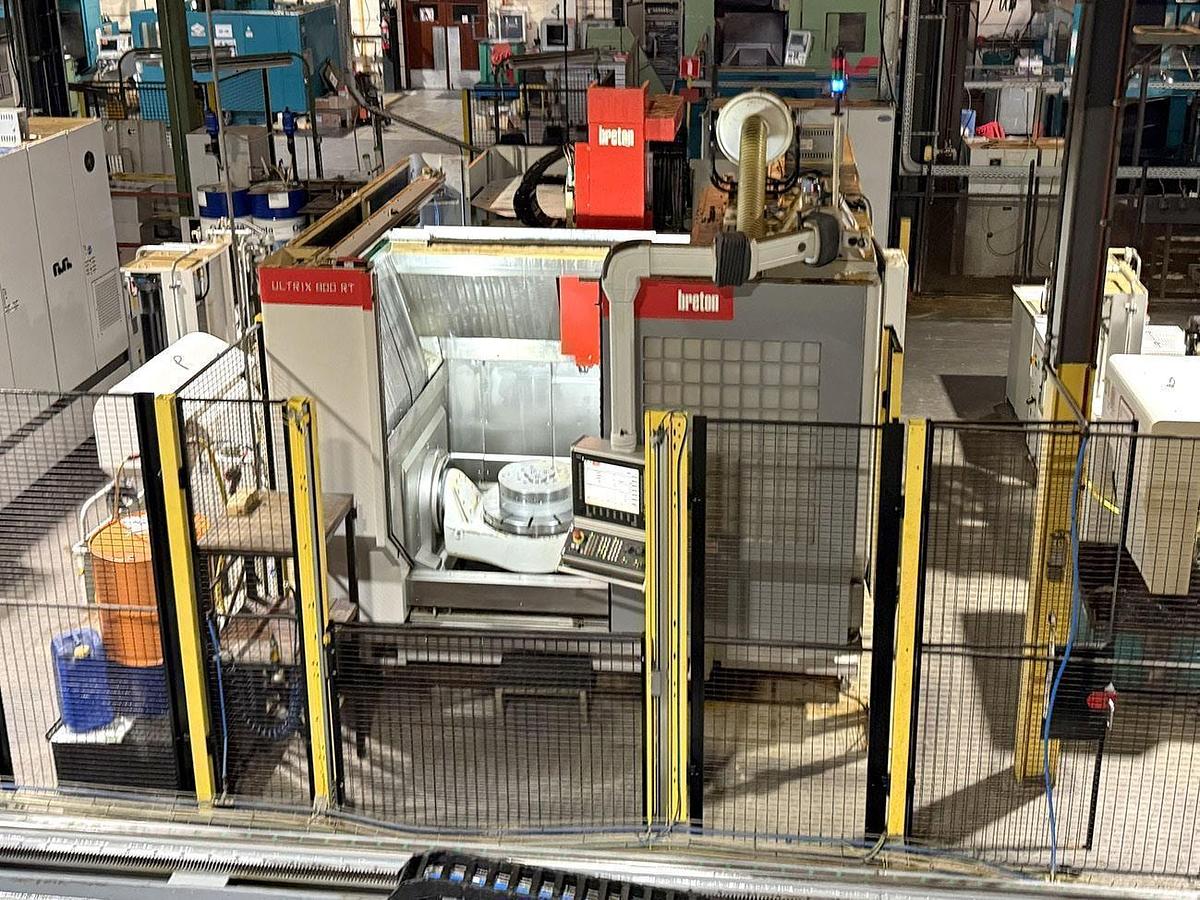

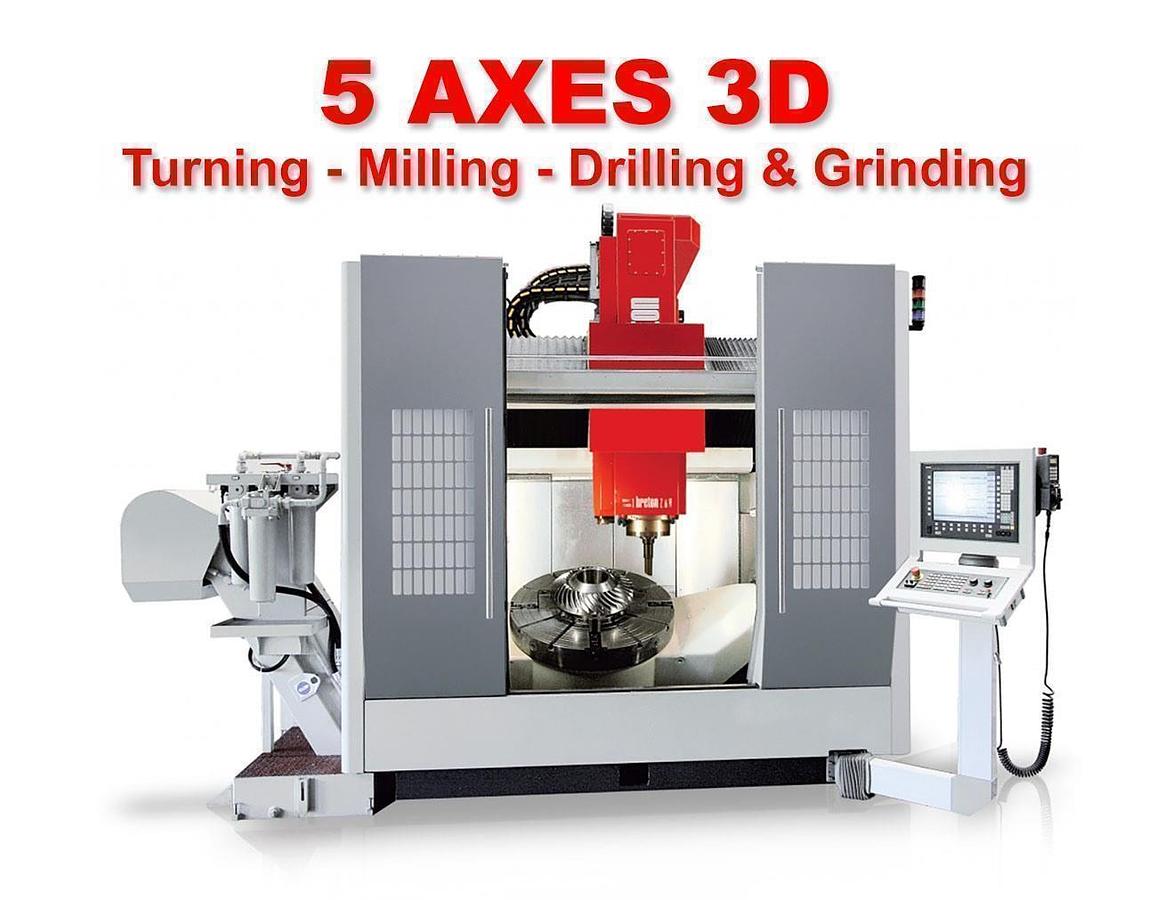

The Ultrix 800 RT is a multifunction machining center with 5 interpolated axes and a moving gantry design for high-speed milling, turning, grinding, drilling, tapping, finishing, deburring and roughing of complex parts.

• X-axis
• 800 mm
• Y-axis
• 900 mm
• Z-axis
• 600 mm
• Table dimensions
• dia 700 mm
• Max weight on the table
• 700 kg
• Admission in spindle (ISO)
• HSK-63/KM63
• Power on the spindle
• 40 kW
• Drilling-capacity
• yes
• Tapping-capacity
• yes

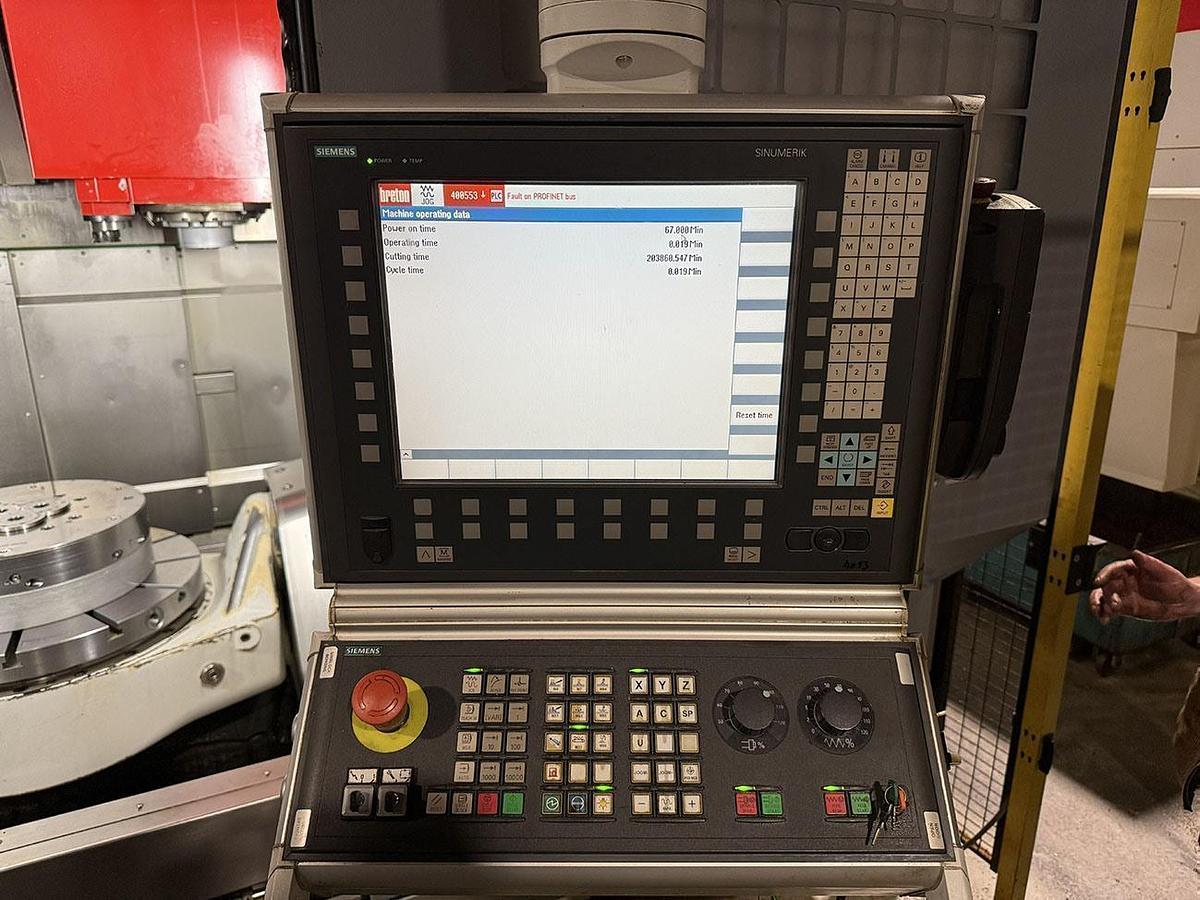

• Control
• Siemens 840D Solution Line
• Number of axes
• 5
• Toolchanger
• yes
• Number of toolholders
• 150 positions
• Number of rotations
• 18,000 rpm
• Length
• 4655 mm
• Depth
• 5890 mm
• Height
• 3415 mm
• Weight
• 17 ton
• Cooling-system
• yes

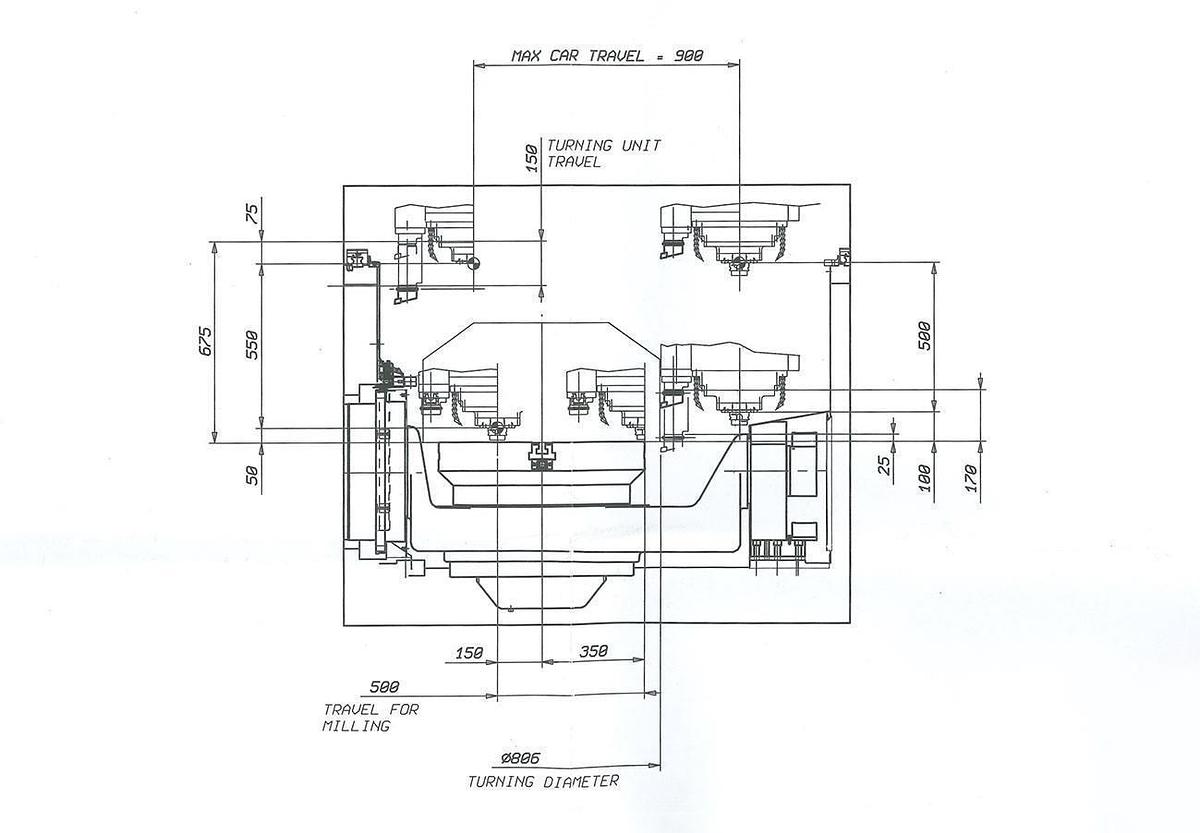

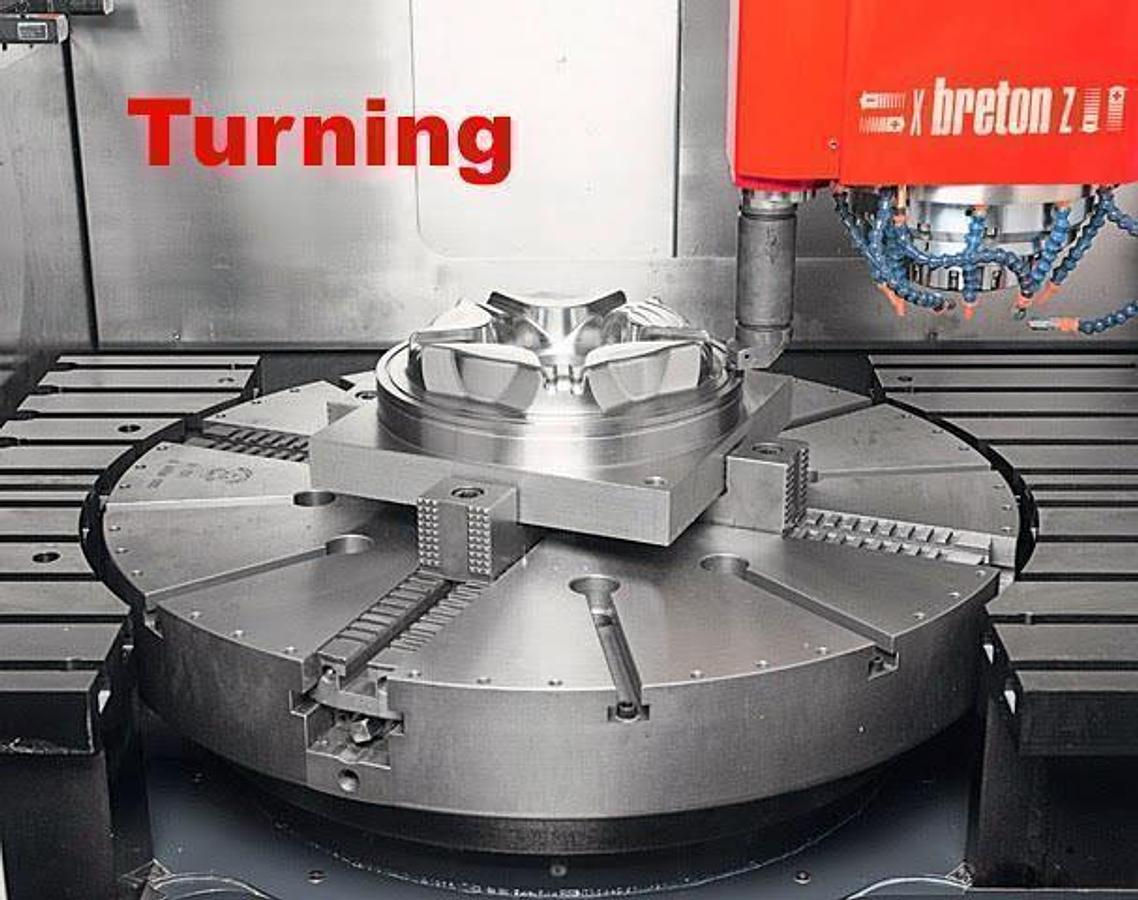

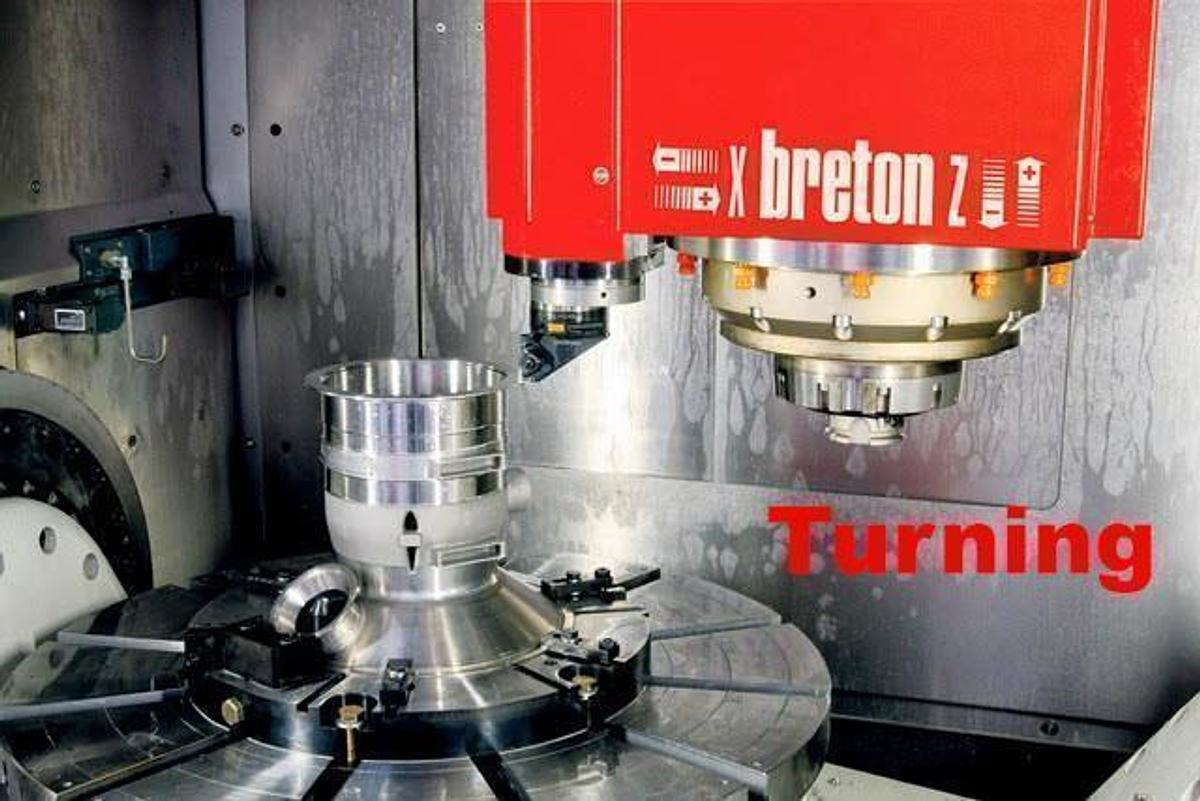

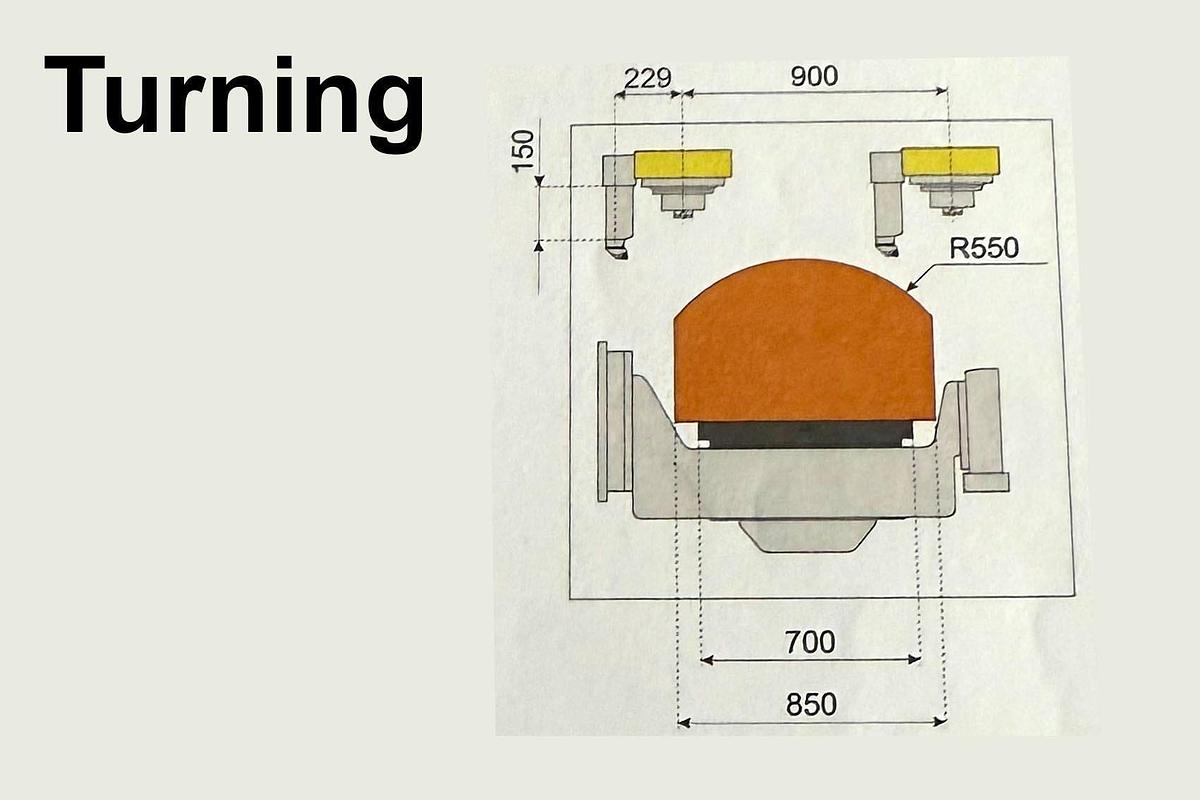

When used for turning > vertical lathe:

- Swivel range: 1100 mm

- maximum weight of the workpiece: 700 kg

- 40/30 kW on the table

- maximum torque on the table: 1500 Nm

- Maximum speed of the table: 1000 rpm!!

- hydraulic clamping on table

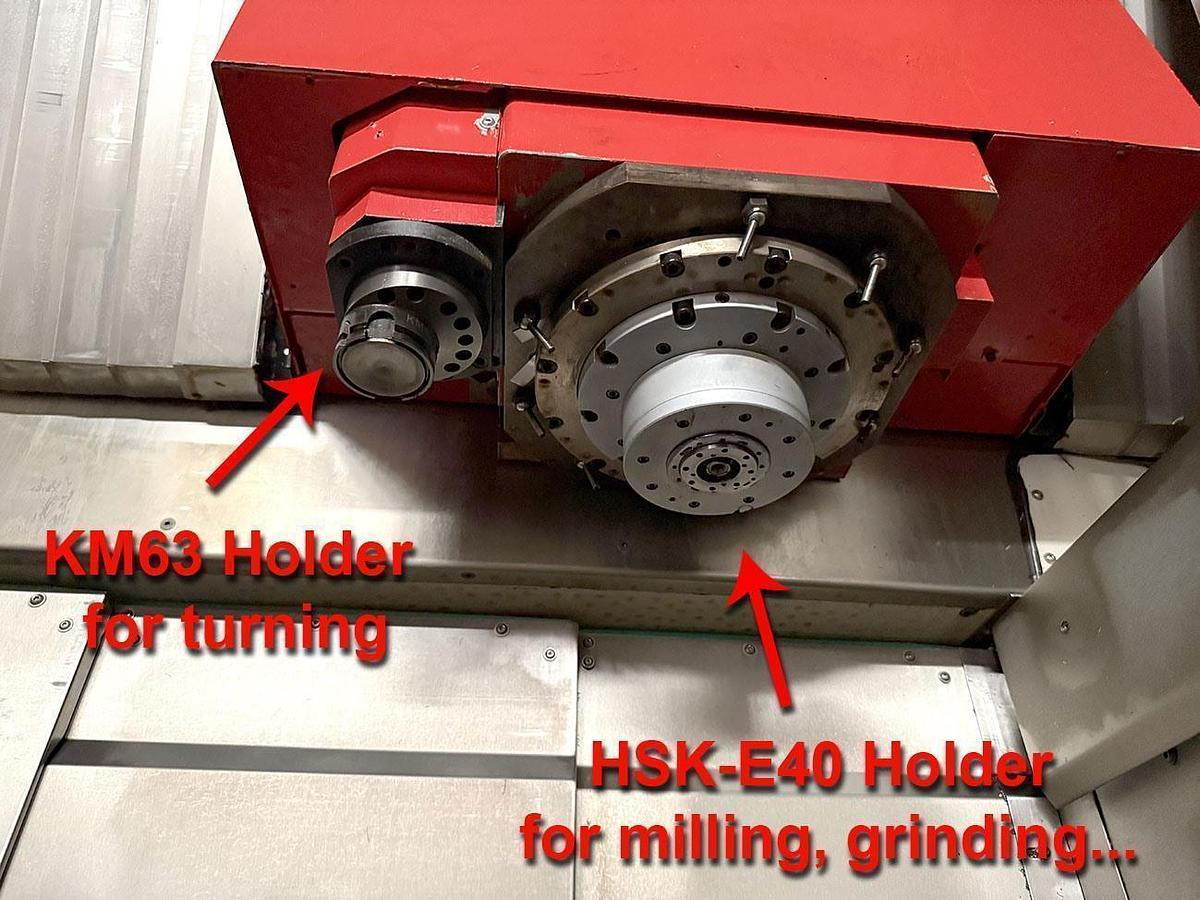

- tool taper for turning: KM63

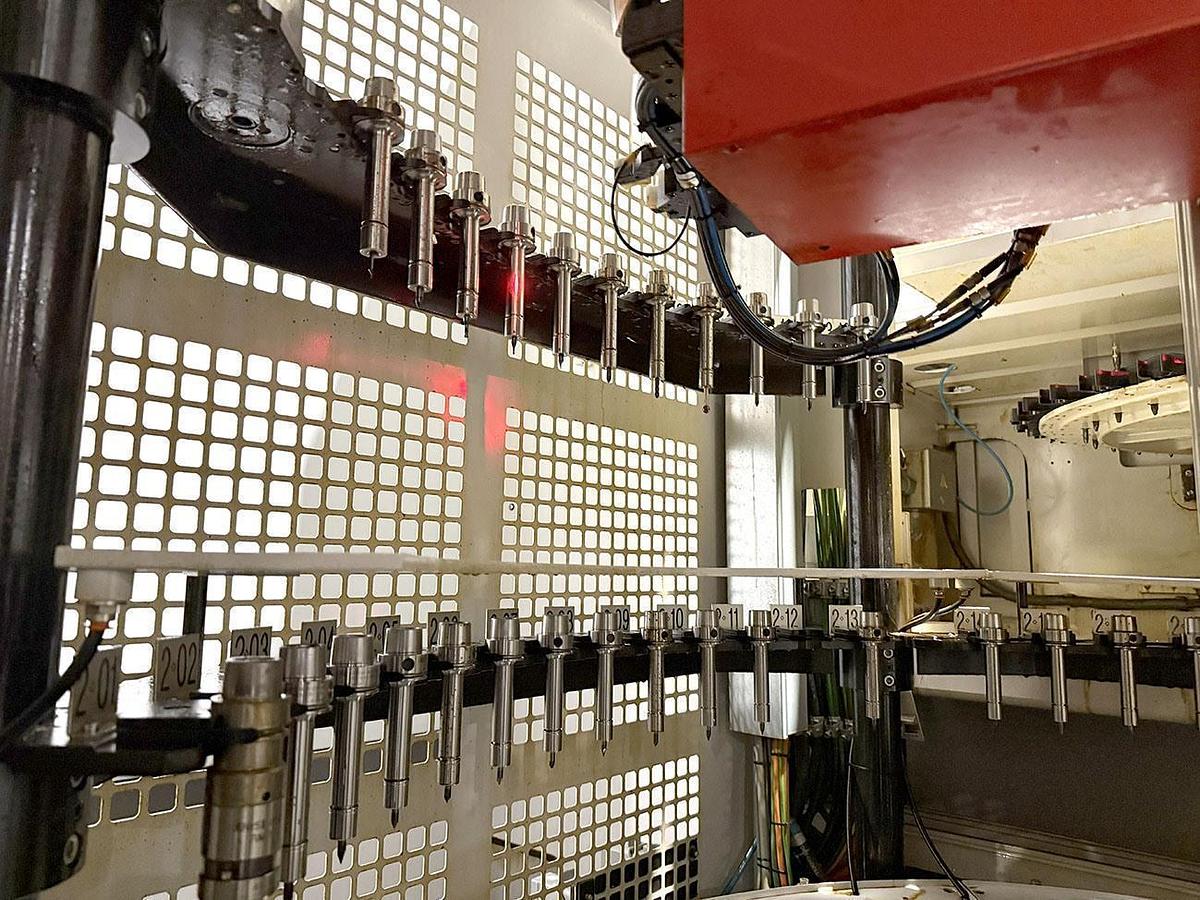

- Tool changer with 150 positions, of which 24 for turning.

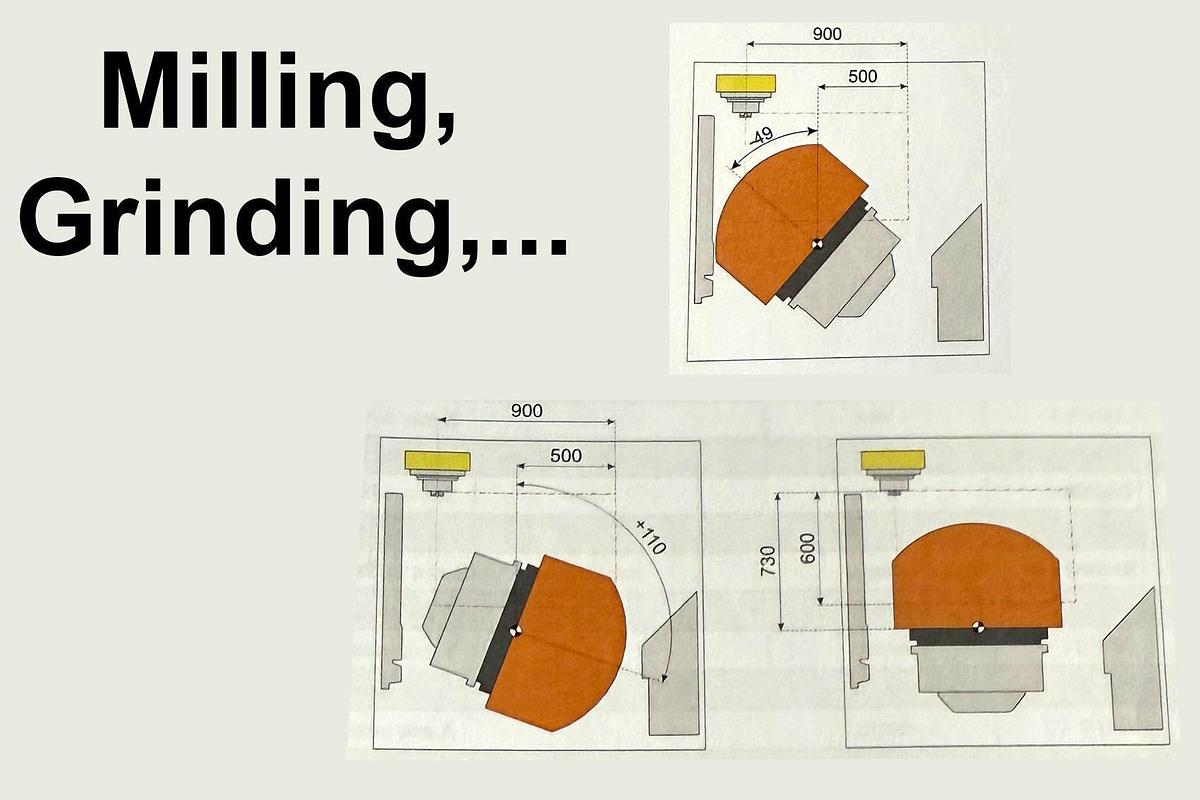

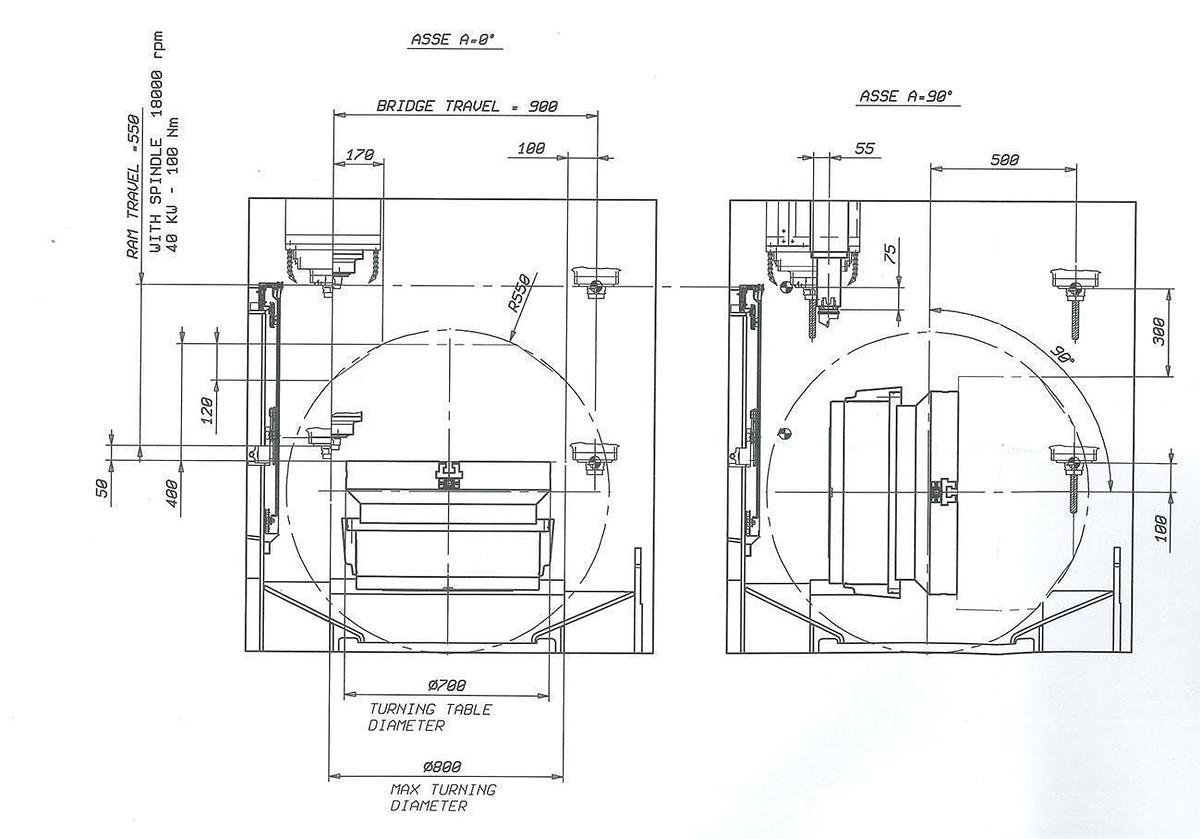

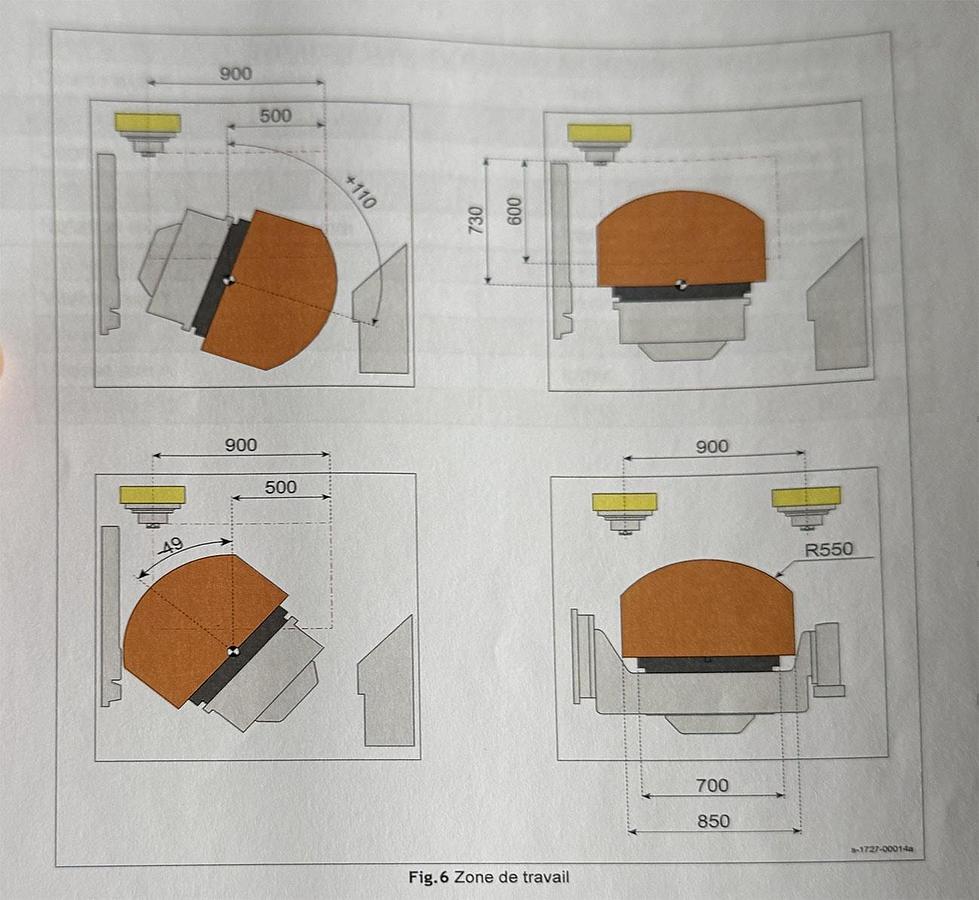

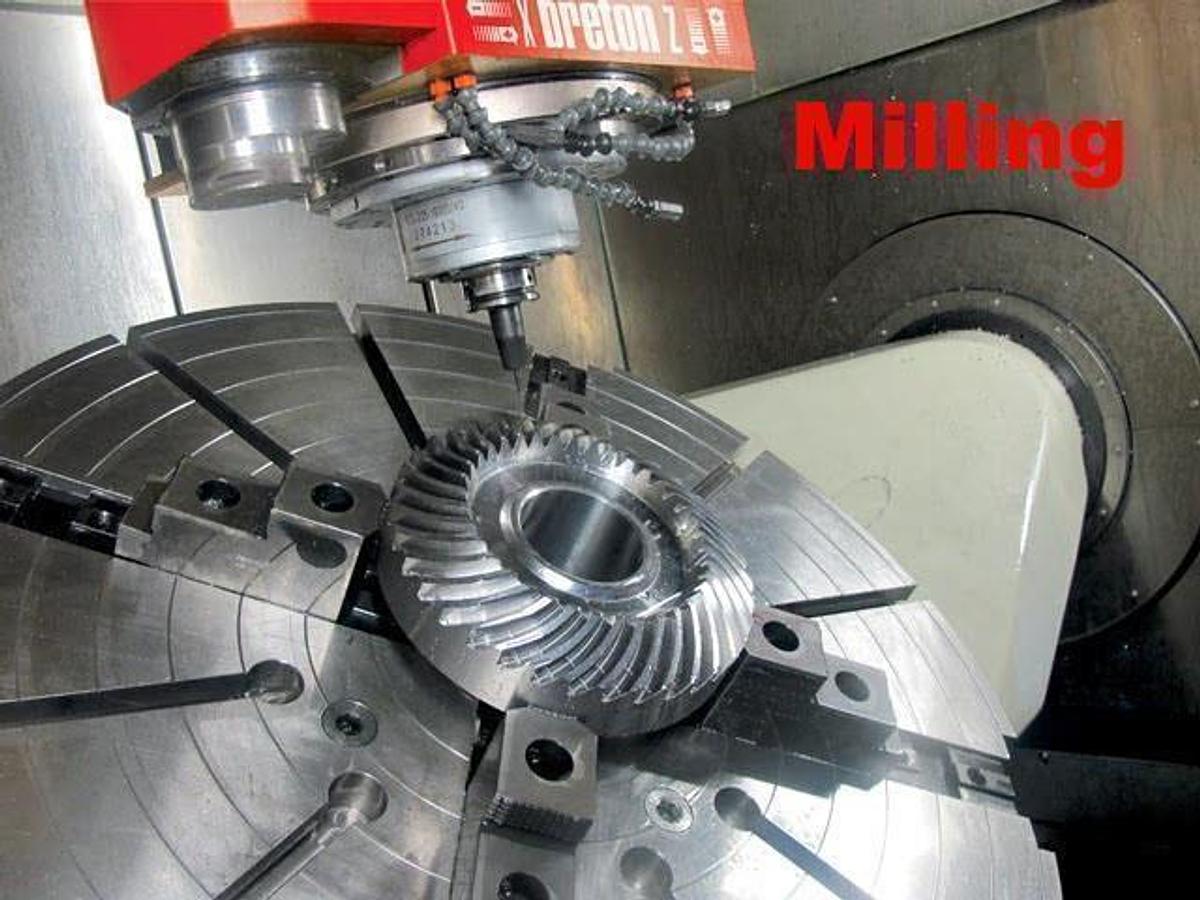

When used for milling, grinding, drilling, ... > machining center:

- X-axis: 800 mm

- Y-axis: 900 mm

- Z-axis: 600 mm

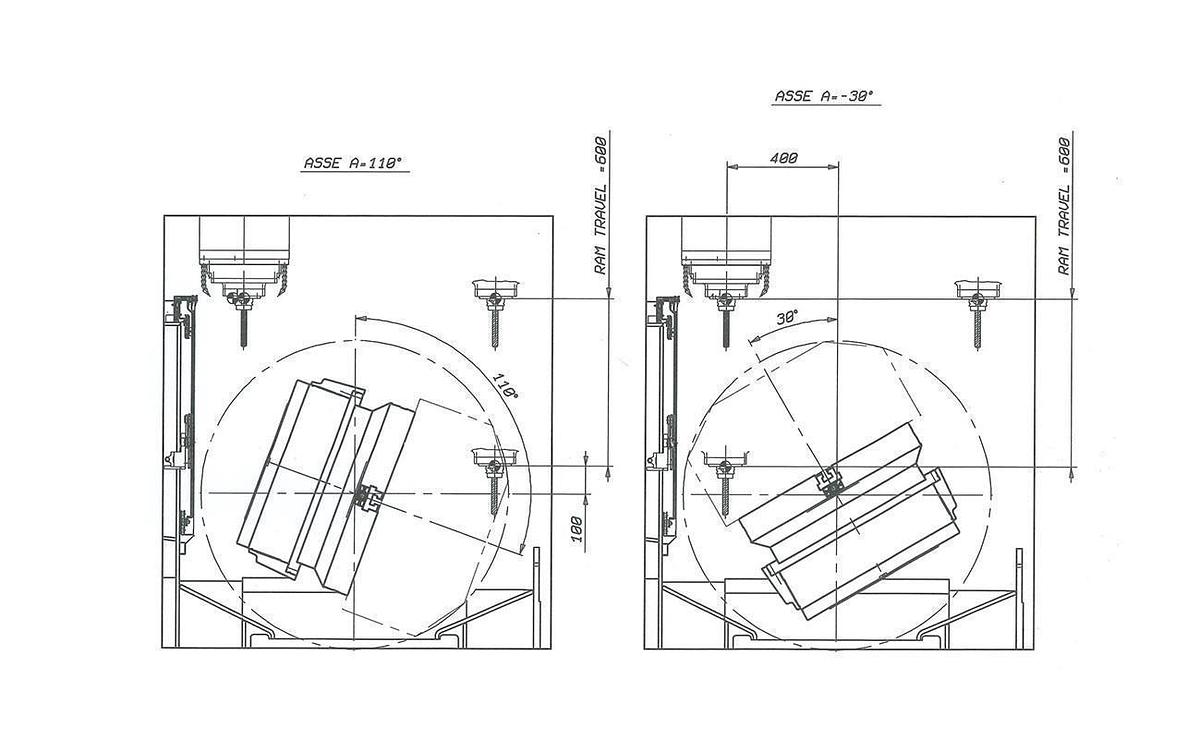

- A-axis: -30° / 110°

- C-axis: continuous

- maximum weight of the workpiece: 700 kg

- 55/40 kW on the spindle

- maximum torque on the spindle: 137/100 Nm

- maximum 18,000 revolutions per minute

- tool taper for milling: HSK-63

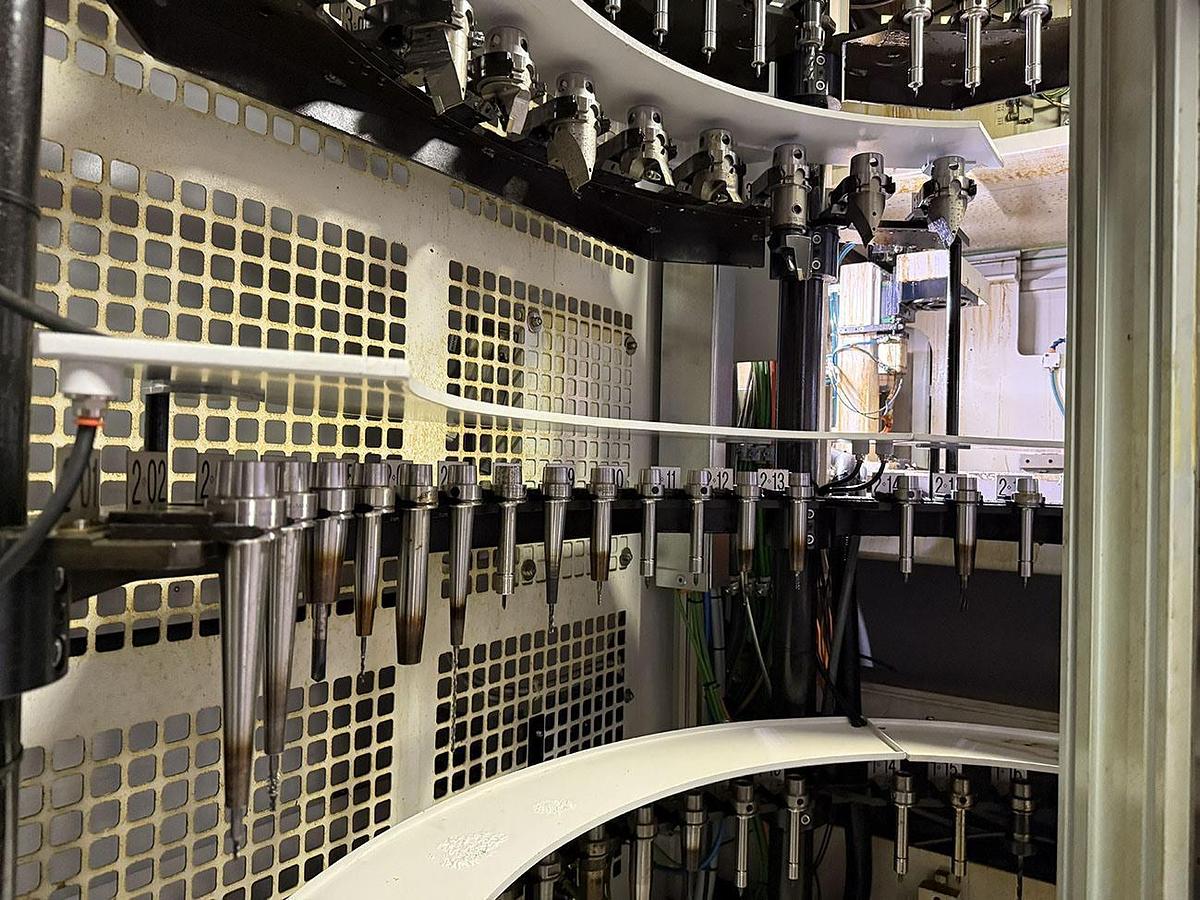

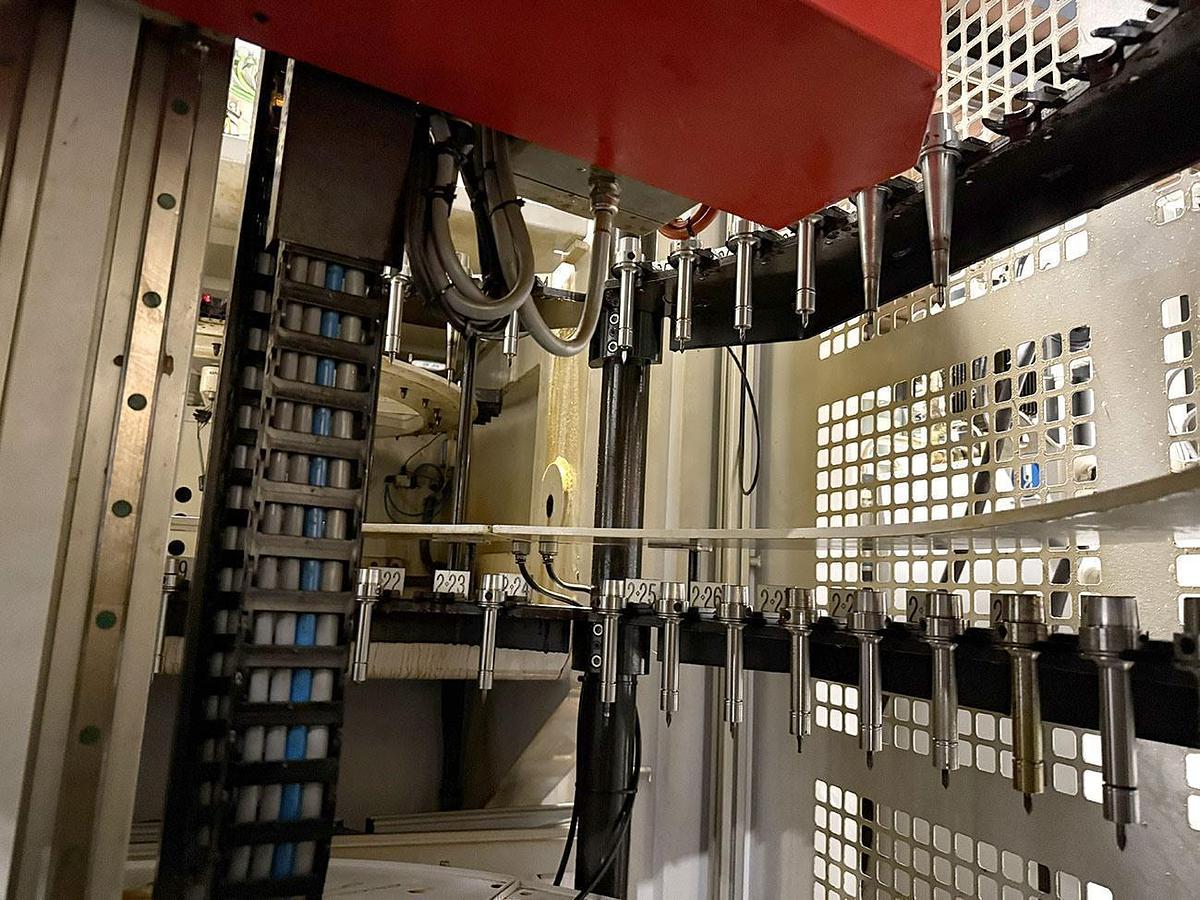

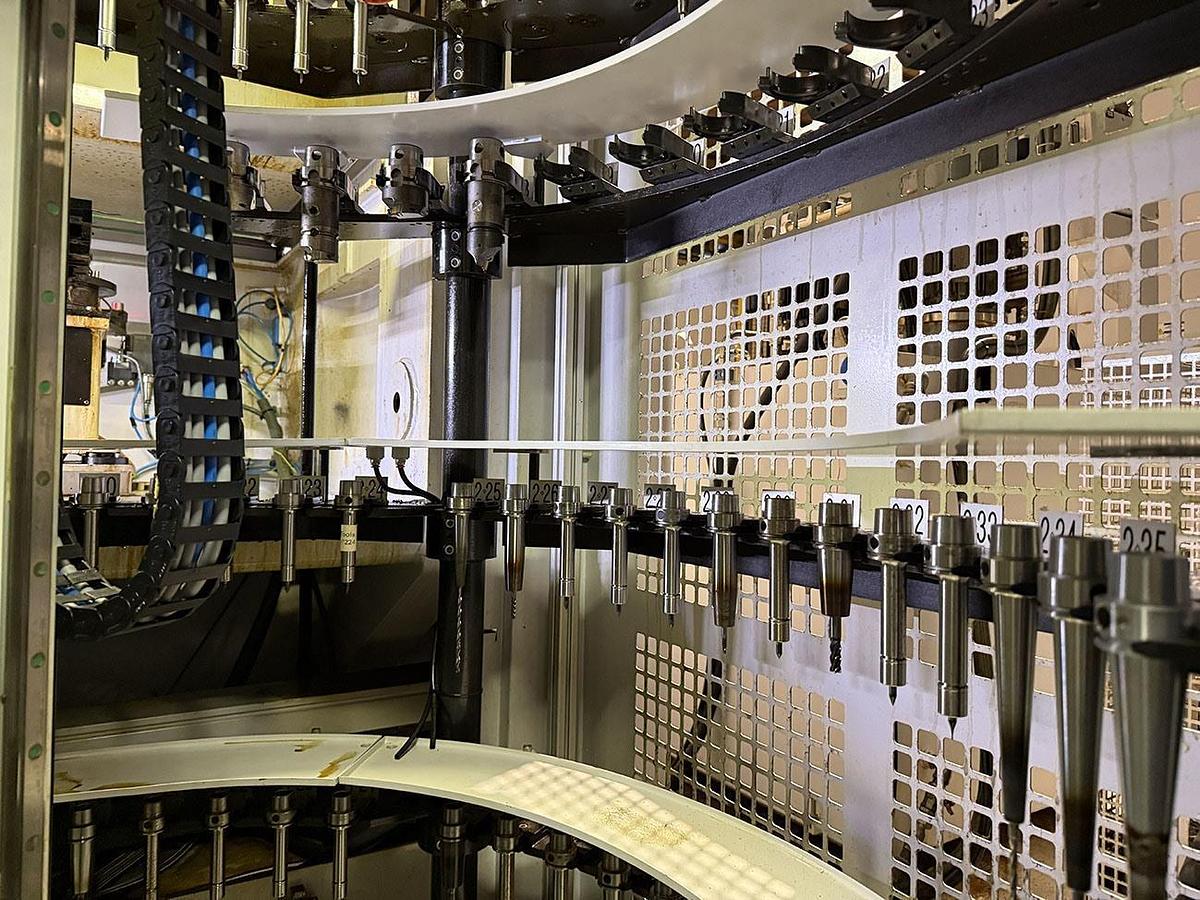

- Tool changer with 150 positions and 126 tool positions for milling, grinding and drilling

List of options mounted on the machine:

1 - table diameter 700 mm with hydraulic clamping

2- Tool changer with 150 positions

3 - chip conveyor belt

4 - cooling system with recovery

5 - Coolant temperature control

6 - high pressure cooling (40 to 70 bar) through spindle

7 - smoke extraction system

8 - Chip collection box

9 - Presetting System and Tool Integrity: Laser and Mechanical Probe for Measuring Instruments

10 - Renishaw probe

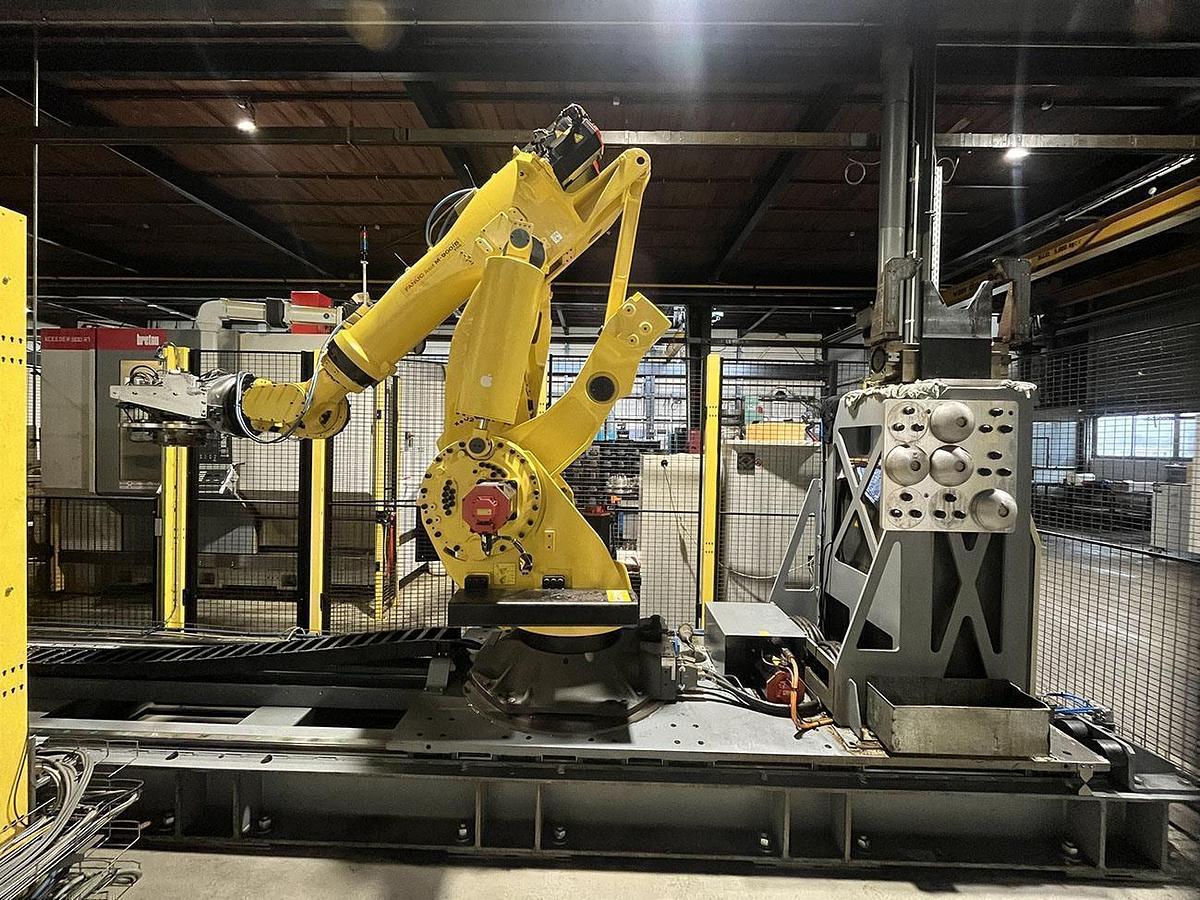

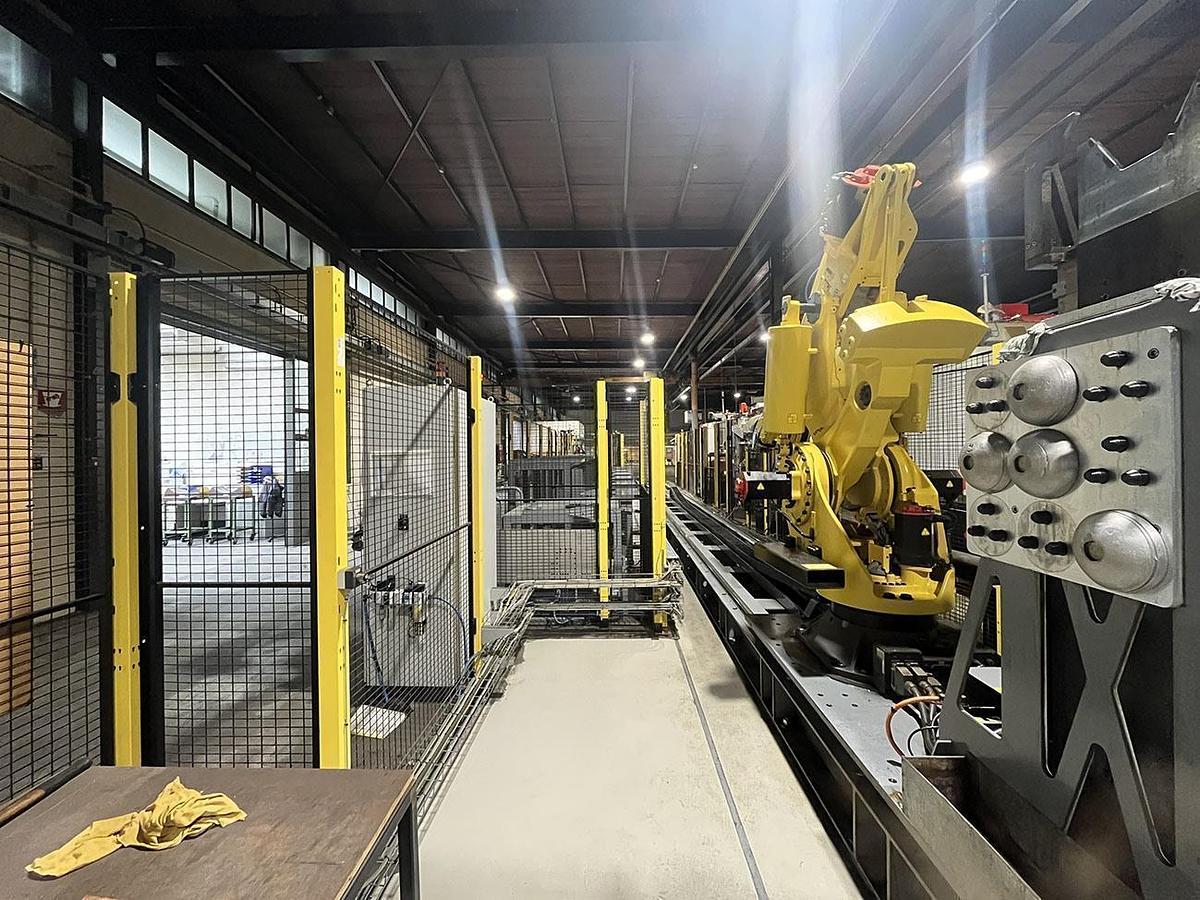

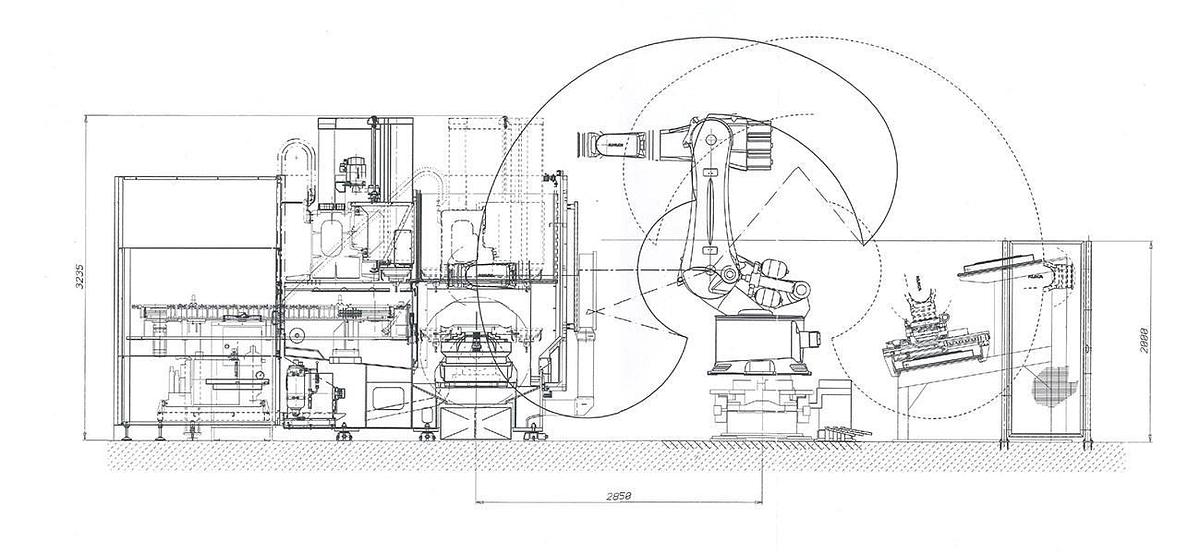

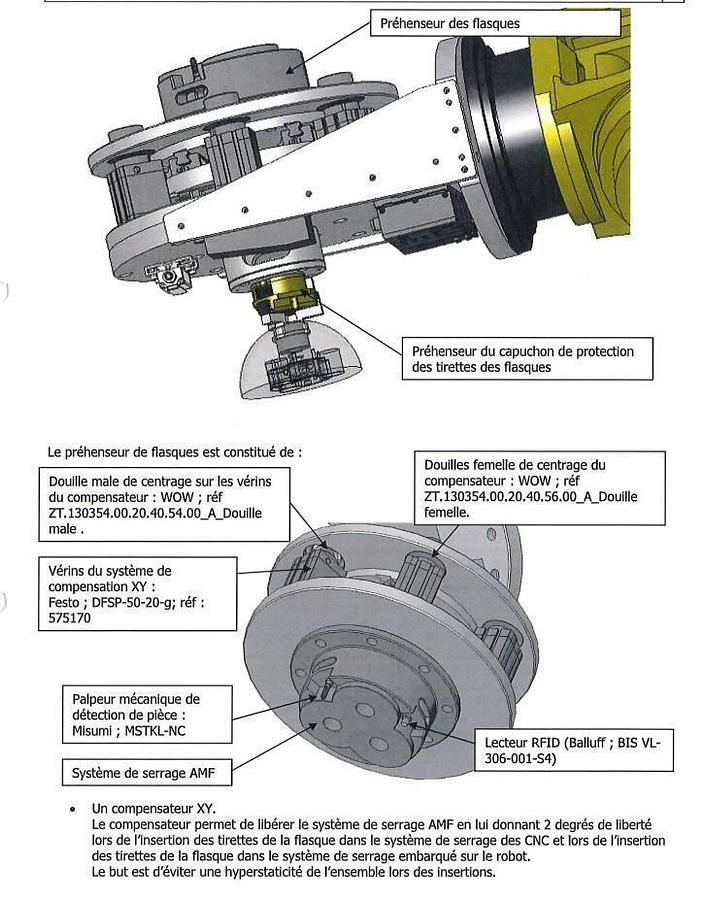

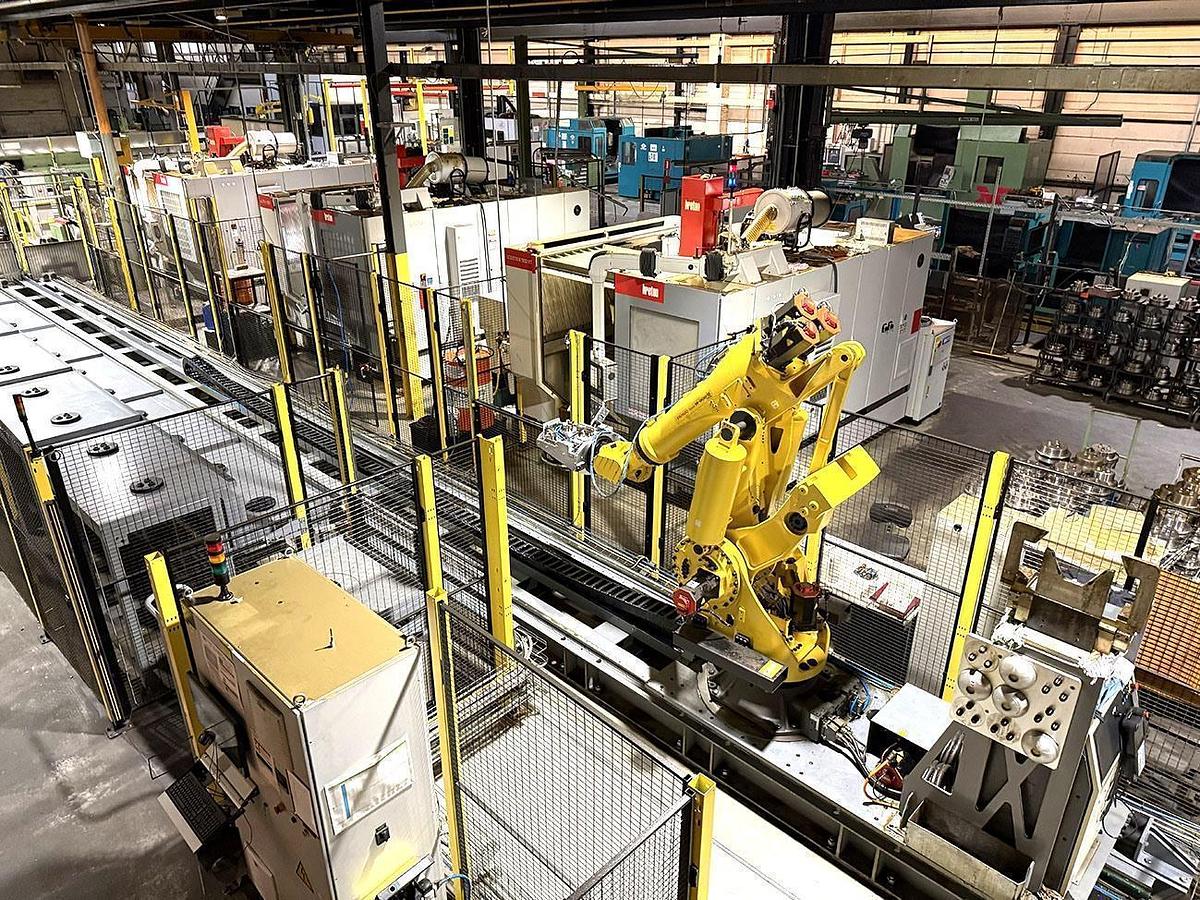

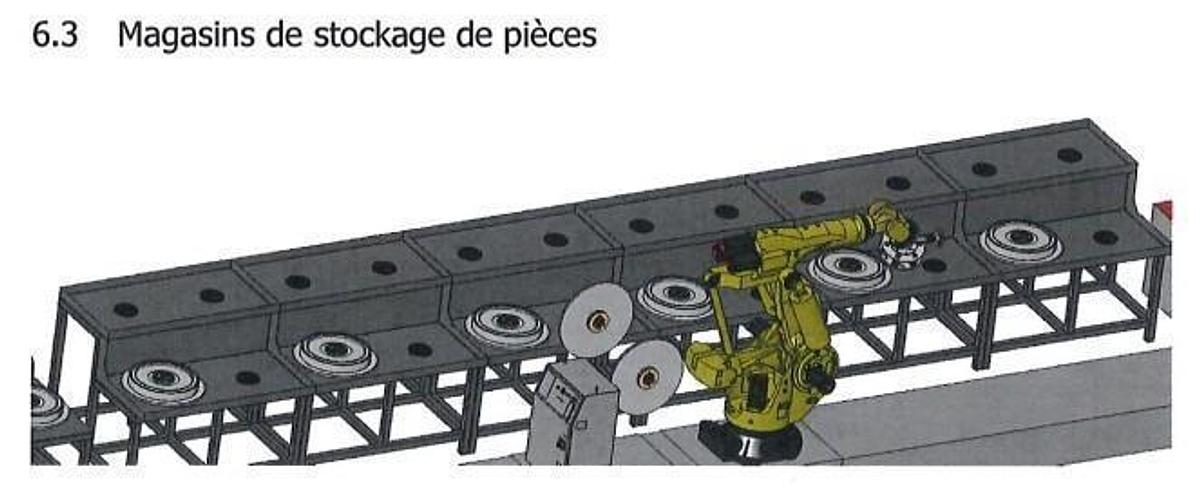

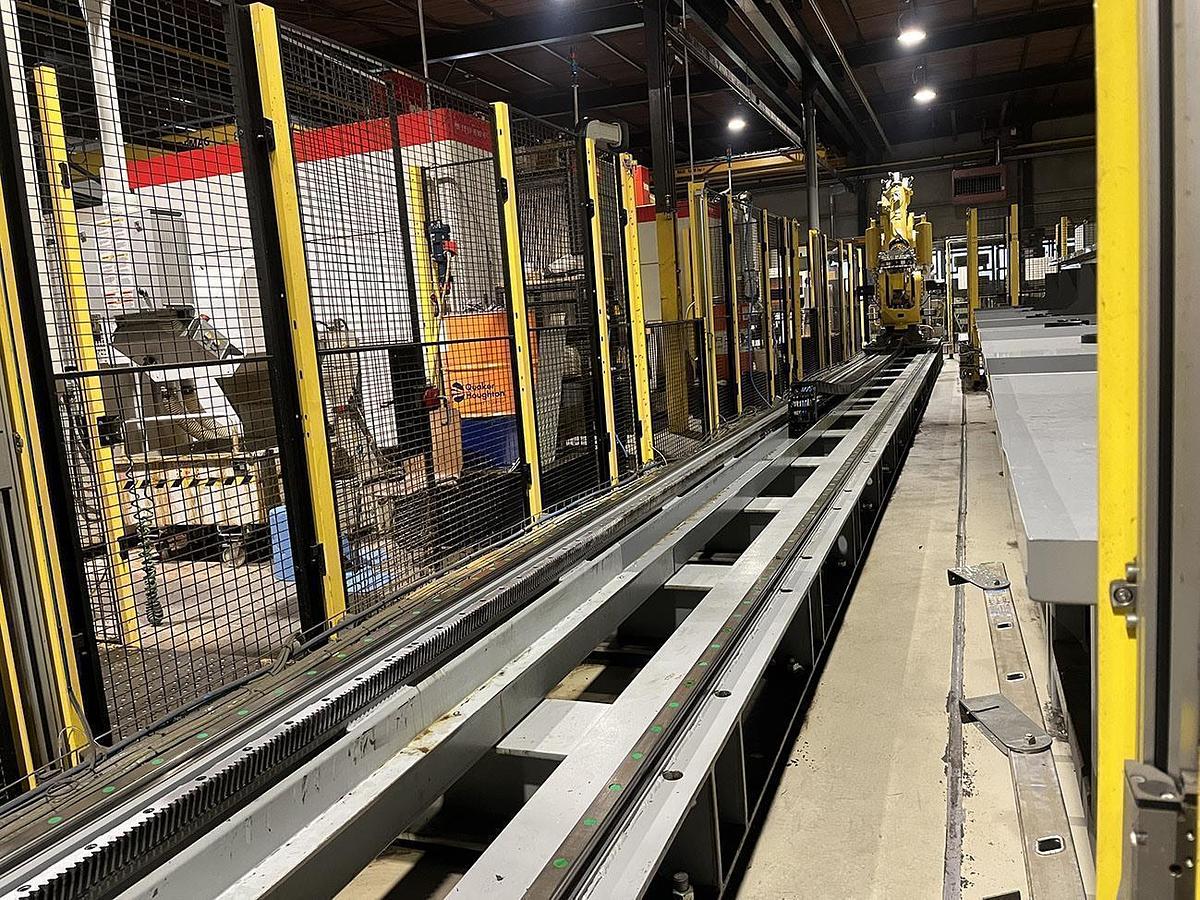

Fanuc M-900iB 700 kg Loading Robot:
