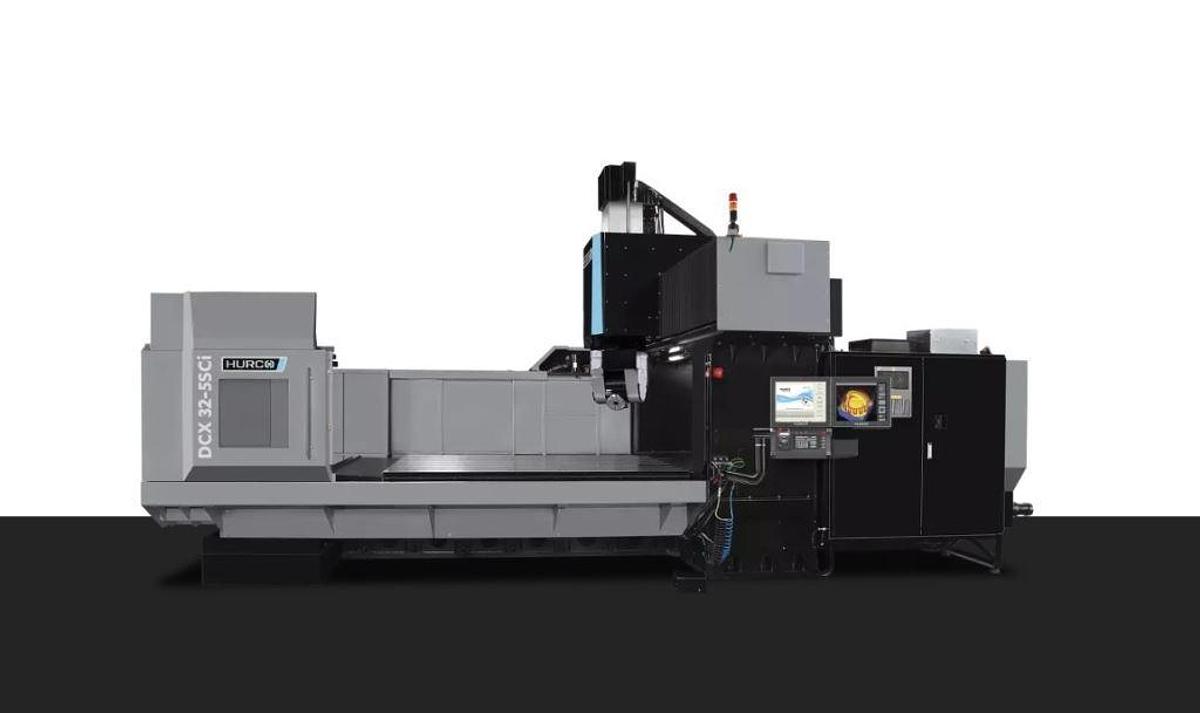

Hurco DCX 32-5 Si CNC 5-Axis Planer Type Milling Machine
Hurco DCX 32-5 Si CNC 5-Axis Planer Type Milling Machine
or
Call 770-509-0744
Description
NEW Machine - No Operating Hours
5-axis simultaneous machining, enables simultaneous movement of 4 or 5 axes in NC mode
Max 5 CNC Control
5-Axis Fork Head:
Tool holder HSK 63 A
C-axis (4th axis) +/- 360°
B-axis (5th axis) +100° /-110°
AXS control with removable electronic handwheel
Pentium technology, SSD (solid-state drive) storage medium, 2 GB RAM, Ethernet interface, USB interface, internal system self-diagnosis, WINDOWS platform
Synchronous thread cutting (thread cutting without compensating chuck)
60 Position Tool Changer
Motor Spindle
Spindle Cooler
Chip Conveyor
Specifications
| Manufacturer | Hurco |
| Model | DCX 32-5 Si |
| Year | 2025 |
| Condition | Used |
| Stock Number | 5654356 |
| Spindle speeds | 18,000 rpm |
| Spindle nose to table | 66 - 966 mm |
| X axis travel | 3,200 mm |
| Y axis travel | 2,100 mm |
| Z axis travel | 900 mm |
| Table size | 3,000 x 1,700 mm |
| Table capacity | 11,000 kg |
| Spindle power | 63 kW |
| Spindle torque | 106 Nm |
| Rapid traverse X/Y | 15,000 mm/min |
| Spindle taper | HSK 63A |
| Machine weight | 37,700 kg |
