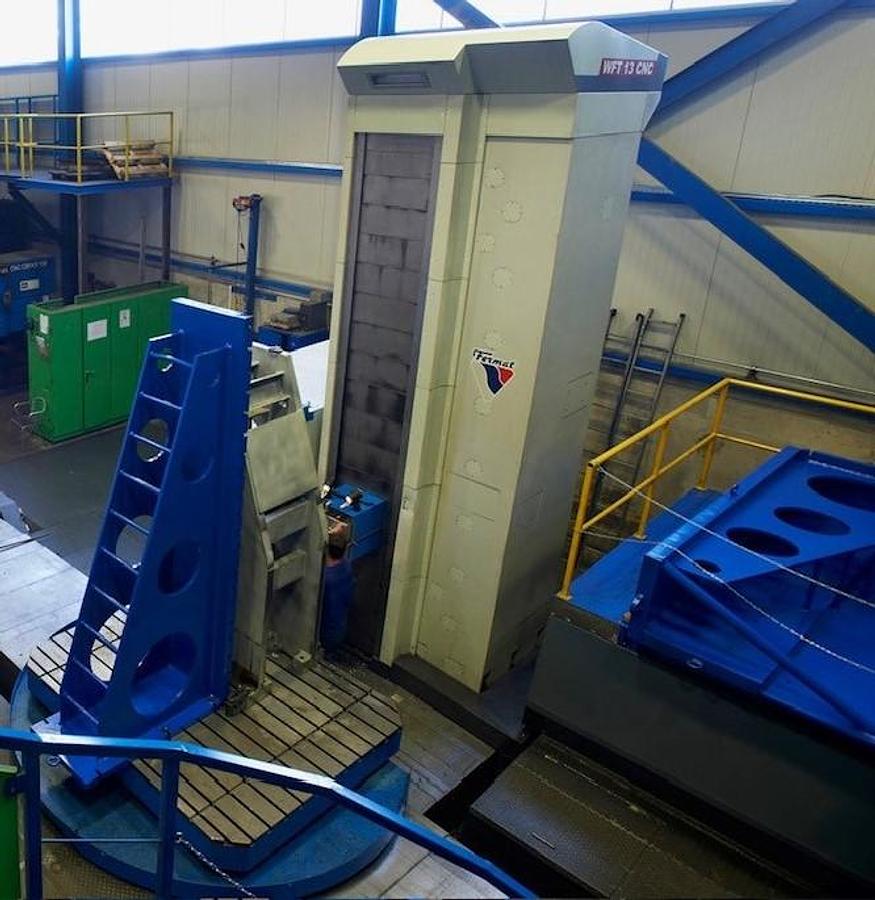

Fermat WFT 13 CNC Table Type Horizontal Boring Machine
Fermat WFT 13 CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description
Heidenhain TNC530 CNC Control
Chip Conveyor

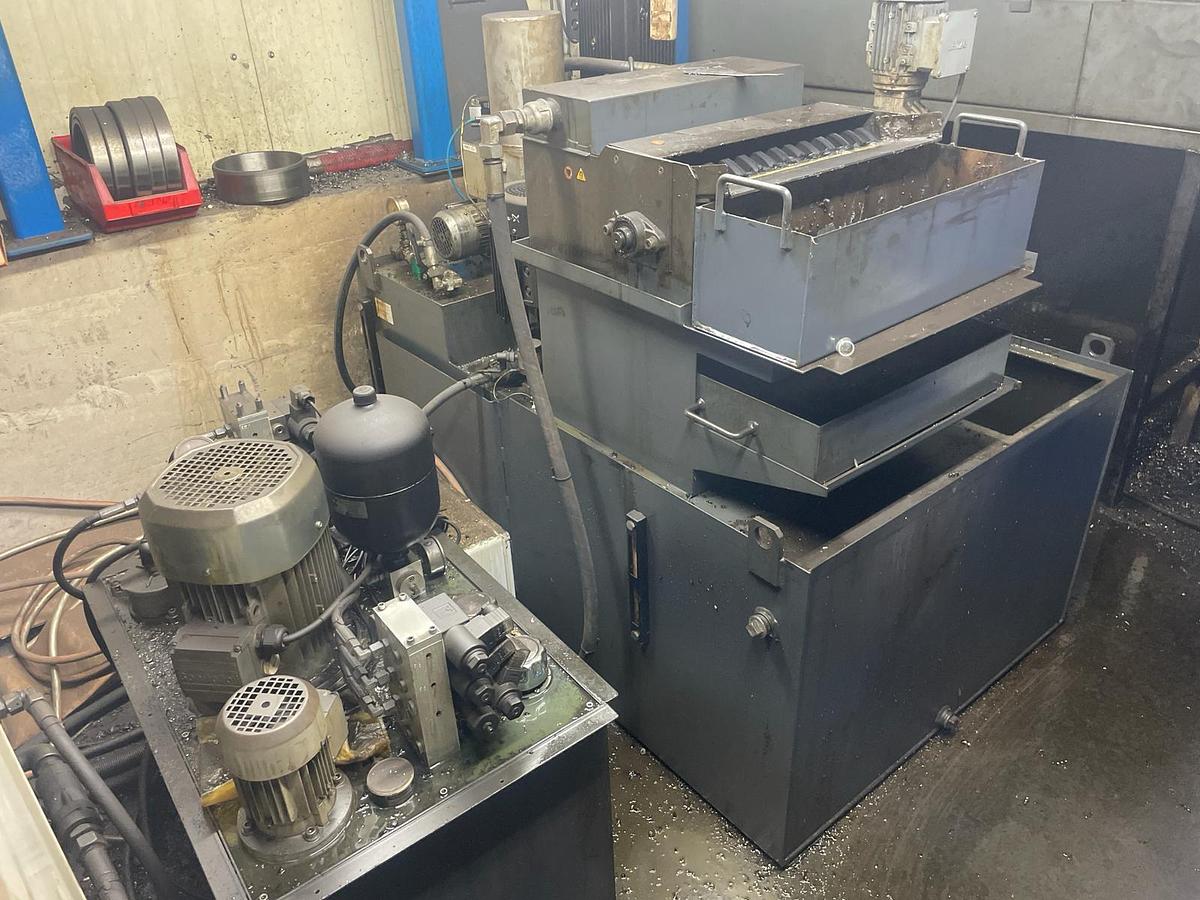

Cooling - Low & High Pressure
A Few Working Tools Included
Specifications
| Manufacturer | Fermat |
| Model | WFT 13 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 5654350 |
| Spindle diameter | 130 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 5,000 mm |
| Y axis travel | 3,500 mm |
| Z axis travel | 2,000 mm |
| W axis travel (spindle) | 730 mm |

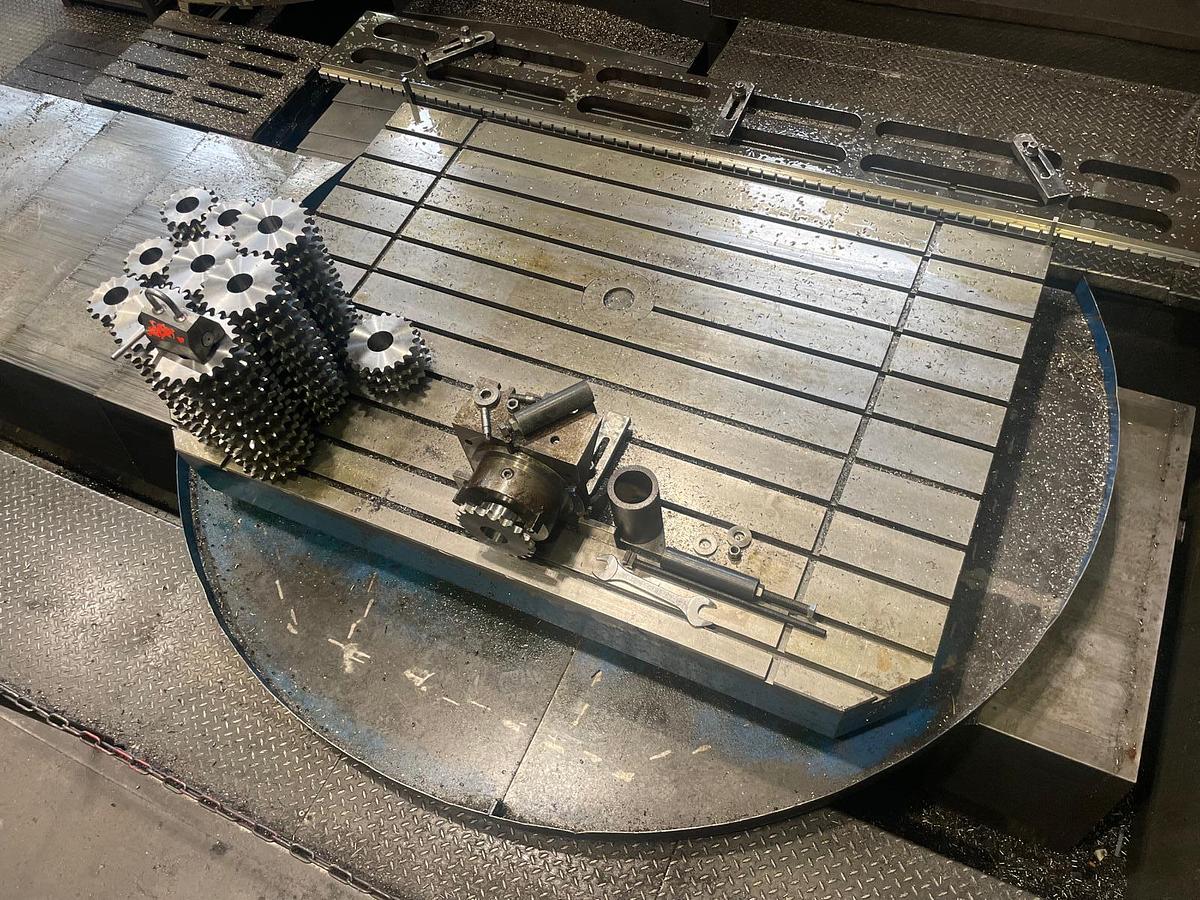

| Table dimensions | 2,400 x 2,000 mm |
| Table capacity | 20,000 kg |
| Spindle power | 37 kW |
| Spindle torque | 2008 Nm |
| Spindle Motor | 37 kVA |
| Slide dimensions | 400 x 400 mm |
| Spindle taper | ISO 50 - DIN 69871 |
| Pull studs | DIN 69872 |
| Input | 80 kVA |
| Machine dimensions | 11.2 x 12.44 x 6.35 m |
| Machine weight | 58,100 kg |
| Working feeds | 1 - 8,000 mm/min |
| Travel speeds X/Y | 12,000 mm/min |
| Travel speeds Z/W | 10,000 mm/min |
